Planter Bench
1
1
2
4
5
6
7
8
9
12
10
11
13
3
Assembly Instruction

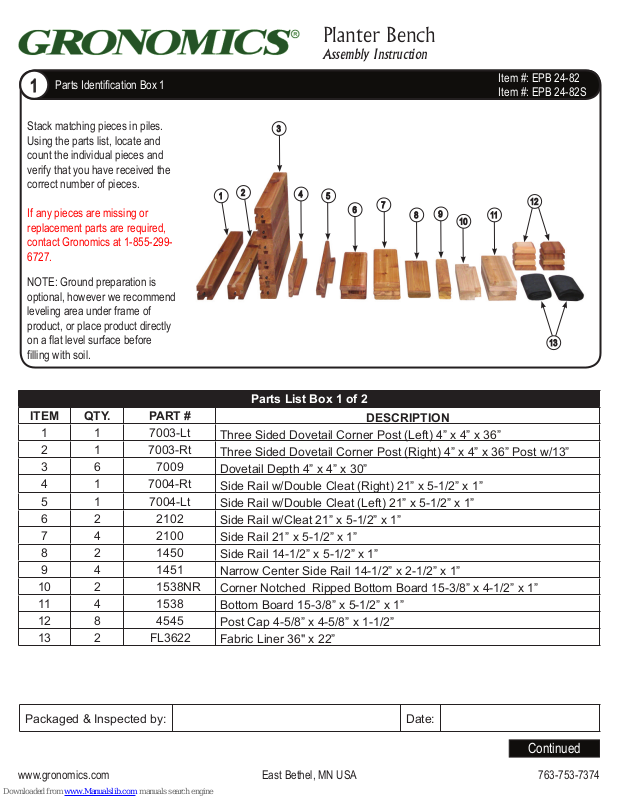

Parts Identifi cation Box 1
Stack matching pieces in piles.
Using the parts list, locate and
count the individual pieces and
verify that you have received the
correct number of pieces.
If any pieces are missing or
replacement parts are required,
contact Gronomics at 1-855-299-
6727.
NOTE: Ground preparation is
optional, however we recommend
leveling area under frame of
product, or place product directly
on a flat level surface before
filling with soil.
Item #: EPB 24-82
Item #: EPB 24-82S
10
11
12
13
ITEM QTY. PART #
1 1 7003-Lt
2 1 7003-Rt
3 6 7009
4 1 7004-Rt
5 1 7004-Lt
6 2
2102
7 4 2100
8 2 1450
9 4 1451
10 2
1538NR
11 4 1538
12 8 4545
13 2
FL3622
Parts List Box 1 of 2
DESCRIPTION
Three Sided Dovetail Corner Post (Left) 4” x 4” x 36”
Three Sided Dovetail Corner Post (Right) 4” x 4” x 36” Post w/13”
Dovetail Depth 4” x 4” x 30”
Side Rail w/Double Cleat (Right) 21” x 5-1/2” x 1”
Side Rail w/Double Cleat (Left) 21” x 5-1/2” x 1”
Side Rail w/Cleat 21” x 5-1/2” x 1”
Side Rail 21” x 5-1/2” x 1”
Side Rail 14-1/2” x 5-1/2” x 1”
Narrow Center Side Rail 14-1/2” x 2-1/2” x 1”
Corner Notched Ripped Bottom Board 15-3/8” x 4-1/2” x 1”
Bottom Board 15-3/8” x 5-1/2” x 1”
Post Cap 4-5/8” x 4-5/8” x 1-1/2”
Fabric Liner 36" x 22”
Packaged & Inspected by: Date:
Continued
www.gronomics.com East Bethel, MN USA 763-753-7374
2
Parts Identifi cation Box 2
14
15
16
10
18
8
17
Using the parts list, locate and count
14
the individual pieces and verify that
you have received the correct number
of pieces.
If any pieces are missing or
replacement parts are required,
contact Gronomics at 1-855-299-
6727.
NOTE: It is recommend when to place
a protective layer between the ground
and the pieces during assembly.
This will help prevent damage to the
pieces.
Parts List Box 2 of 2
ITEM QTY. PART # DESCRIPTION
14 1 7110 Planter Bench (pre-assembled)
15 2 4501
16 1 4501L
8 6 1450
17 4 7006
10 2 1551
18 6
R410-318ZY
Side Rail 45 x 5-1/2” x 1”
Side Rail w/ Logo 45 x 5-1/2” x 1”
Side Rail 14-1/2” x 5-1/2” x 1”
Narrow Center Side Rail 21” x 2-1/2” x 1”
Corner Notched Bottom Board 15-1/2” x 4-1/2” x
1” 10 x 3-1/8 R4 GRK use Torx T15
15
16
17
10
18
Product Care & Maintenance
Western Red Cedar will turn a weathered grey if left unfinished. Although no finish is required for cedar products
when used outdoors, a natural oil finish applied regularly will help maintain the beauty and minimize cracking and
drying. It is recommended to use Gronomics Garden Bed Oil (Item # GBO-1Q), a non-toxic, food safe finish that
is very easy to apply.
Continued
www.gronomics.com East Bethel, MN USA 763-753-7374
Planter Bench Backrest Assembly
3
4
1
2
15
16
15
NOTE: The posts slots must be positioned as shown.
Lay the 4” x 4” x 36” three sided dovetail corner post
(left) (Item 1) on the ground (as shown).
Lay the 4” x 4” x 36” three sided dovetail corner post
(right) (Item 2) on the ground (as shown).
Locate a 45” x 5-1/2” side rail (Item 15). Install the
side rail into the curved dovetail slots and slide to the
bottom of the slots.
Planter Bench Backrest Assembly Continued
Curved
Dovetail
15
Slot
Slots Slots
Curved
Dovetail
Slot
Install the remaining 45” x 5-1/2” side rail (Item 15)
into the slots and slide down.
Locate the 45” x 5-1/2” side rail w/Logo (Item 16).
Install the side rail (Logo facing down) into the slots
and slide to the bottom of the slots.
15
16
Continued
www.gronomics.com East Bethel, MN USA 763-753-7374
Planter Bench / Planter Box Assembly
5
6
3
3

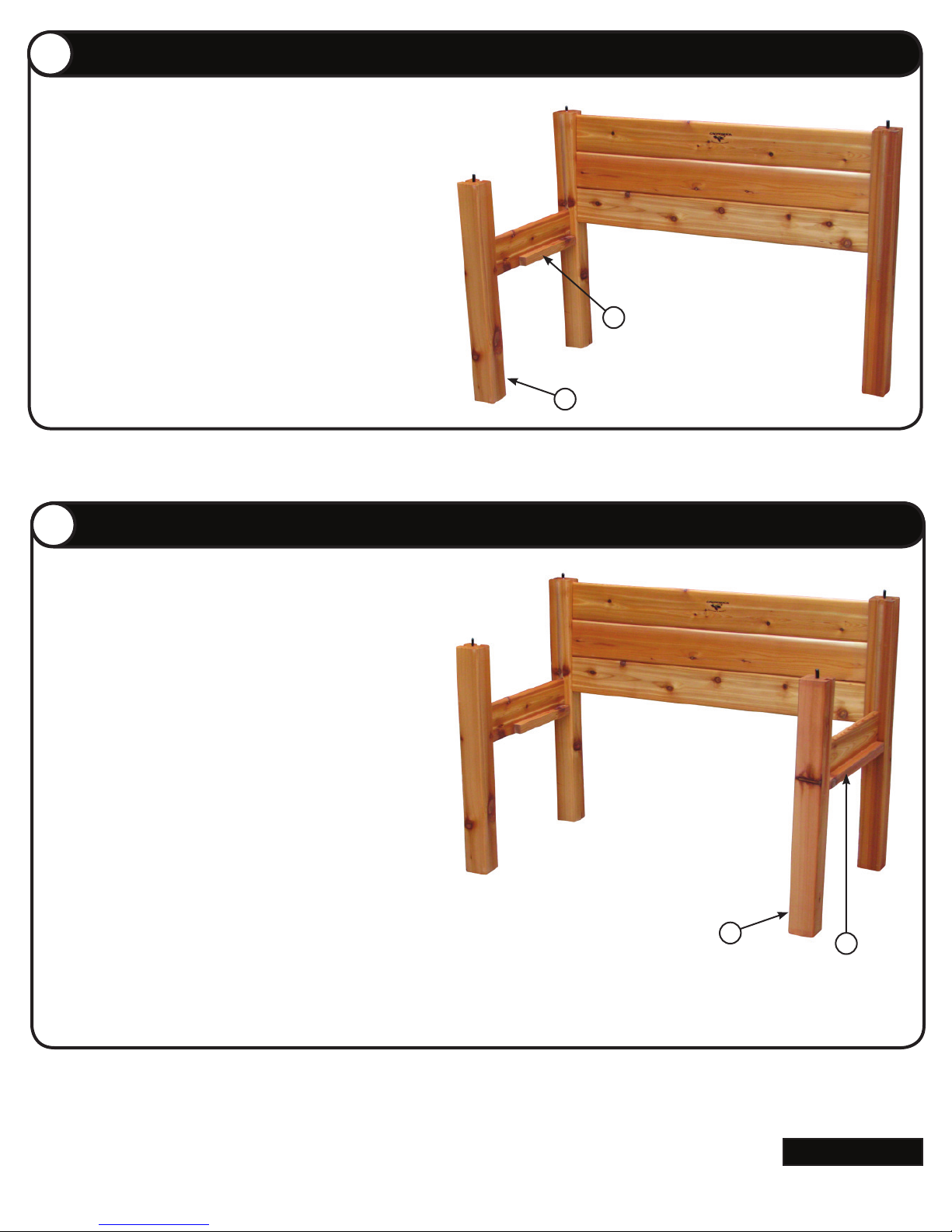

Stand the backrest assembly up (as shown). The
backrest should be slanted out at the top
Locate a 4” x 4” x 30” post (Item 3). Stand the post up
with slot facing out and slot facing the backrest assembly.
Install the 21” x 5-1/2” side rail w/double cleat (left)
(Item 5) (cleats located at the bottom) into the slots
on the posts and slide down to the bottom of the slots.
5
Short Cleat Located
(as shown)
Planter Bench / Planter Box Assembly Continued
Locate a 4” x 4” x 30” post (Item 3). Stand the post
up with slot facing out and slot facing the backrest
assembly.
Install the 21” x 5-1/2” side rail w/double cleat (right)
(Item 4) (cleats located at the bottom) into the slots
on the posts and slide down to the bottom of the slots.
4
4
Long Cleat Located
(as shown)
Continued
www.gronomics.com East Bethel, MN USA 763-753-7374
Planter Box Assembly
7
8
8
3
3
8
6

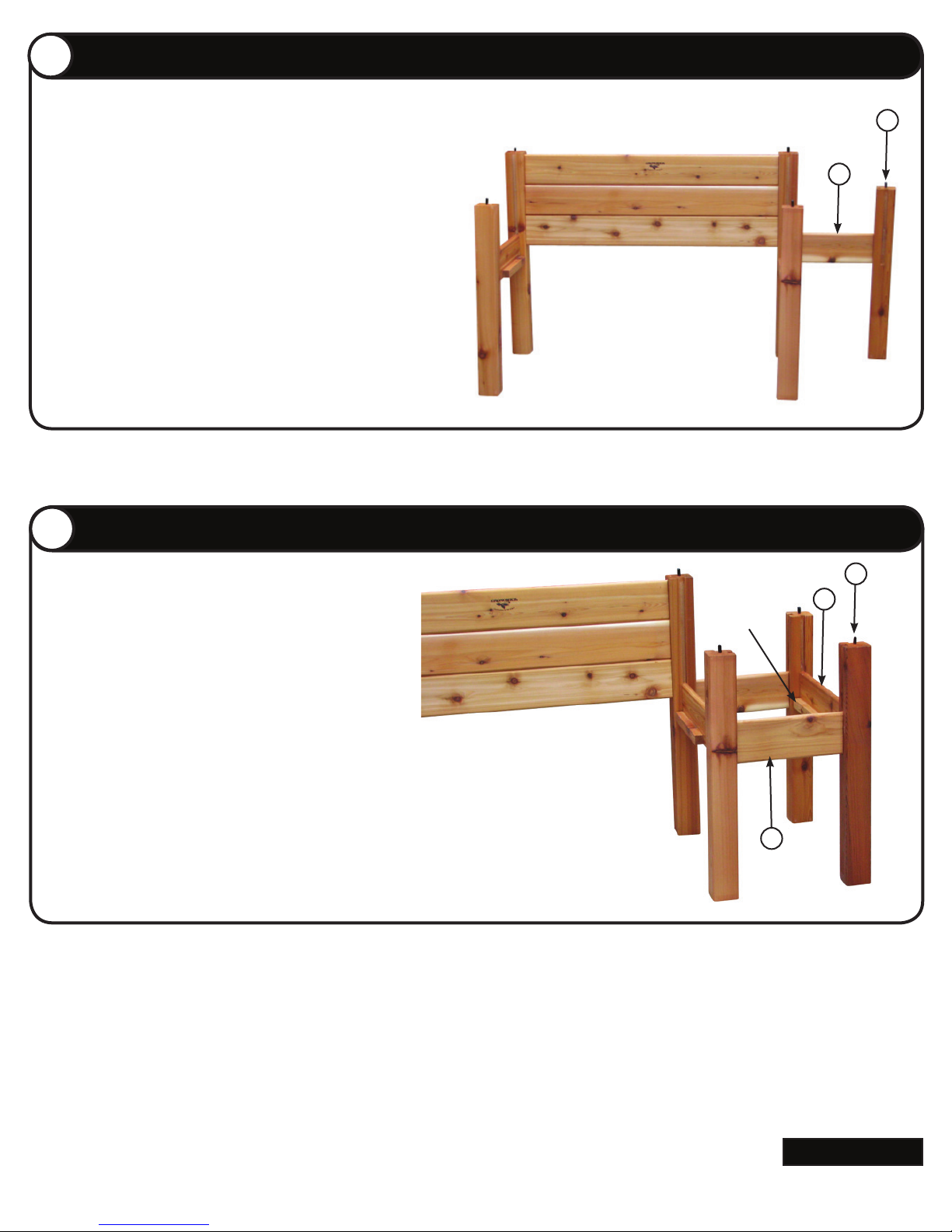

Stand a 4” x 4” x 30” post (Item 3) up with slot facing the
36” post and slot facing you.
Install the 14-1/2” x 5-1/2” side rail (Item 8) into the slots on
the posts and slide down to the bottom of the slots.
Planter Box Assembly Continued
Stand a 4” x 4” x 30” post (Item 3) up with slots facing
each post.
Install the 14-1/2” x 5-1/2” side rail w/cleat (Item 6)
(cleat located at the bottom) into the slots on the posts
and slide down to the bottom of the slots.
Install the 14-1/2” x 5-1/2” side rail (Item 8) into the
slots on the posts and slide down to the bottom of the
slots.
Cleat
Continued
www.gronomics.com East Bethel, MN USA 763-753-7374
Planter Box Assembly Continued
9
17
17
9
7
10
7
8
Planter Box Assembly Continued

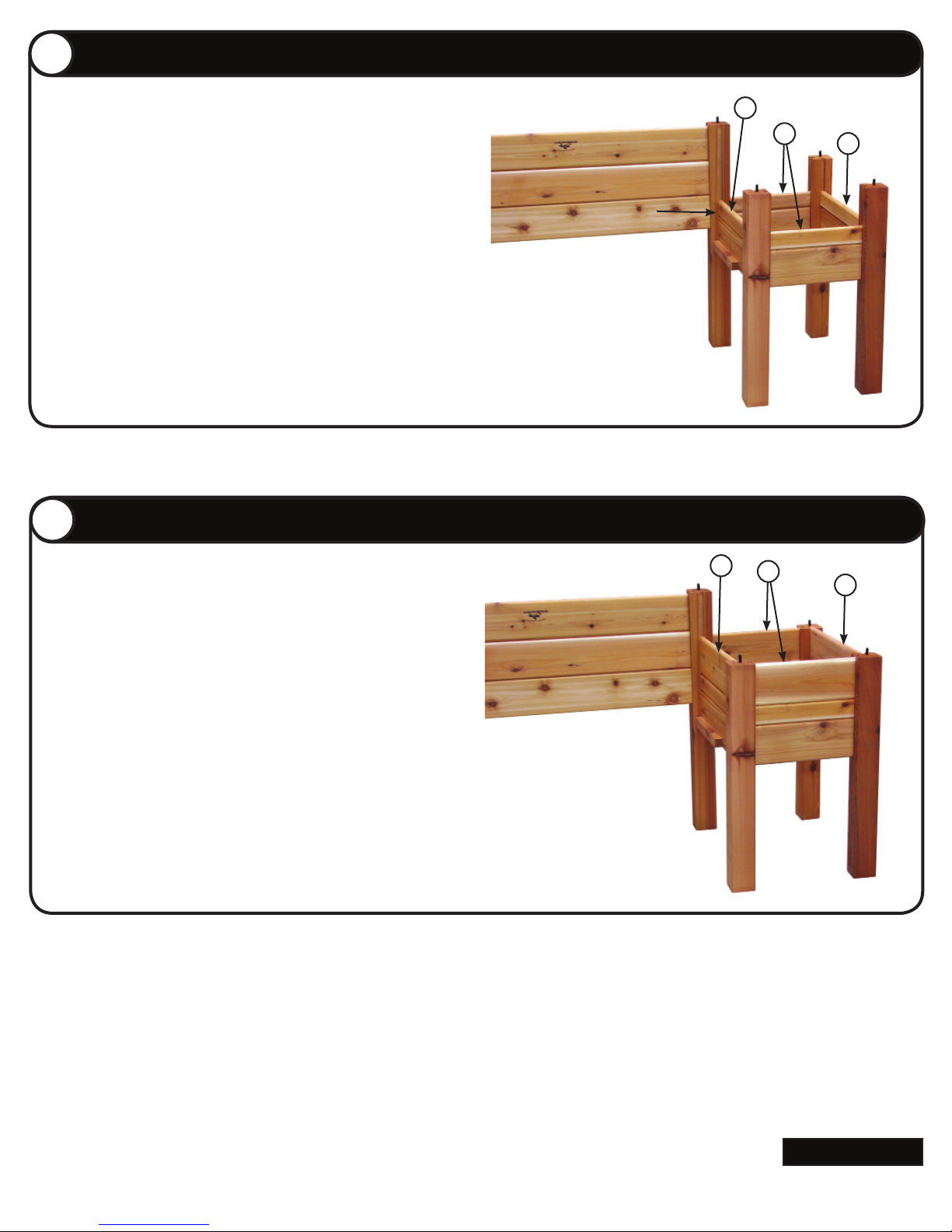

Install the 14-1/2” x 2-1/2” narrow center side rails (Item 9)
into the slots on the posts and slide down.
Install the 21” x 2-1/2” narrow center side rails (Item 17) into
the slots on the posts and slide down.
17
17
Planter Box Assembly Continued
10
Install the 14-1/2” x 5-1/2” side rails (Item 8) into the
slots on the posts and slide down.
Install the 21” x 5-1/2” side rails (Item 7) into the slots
on the posts and slide down.
Continued
www.gronomics.com East Bethel, MN USA 763-753-7374
11
12
10
11

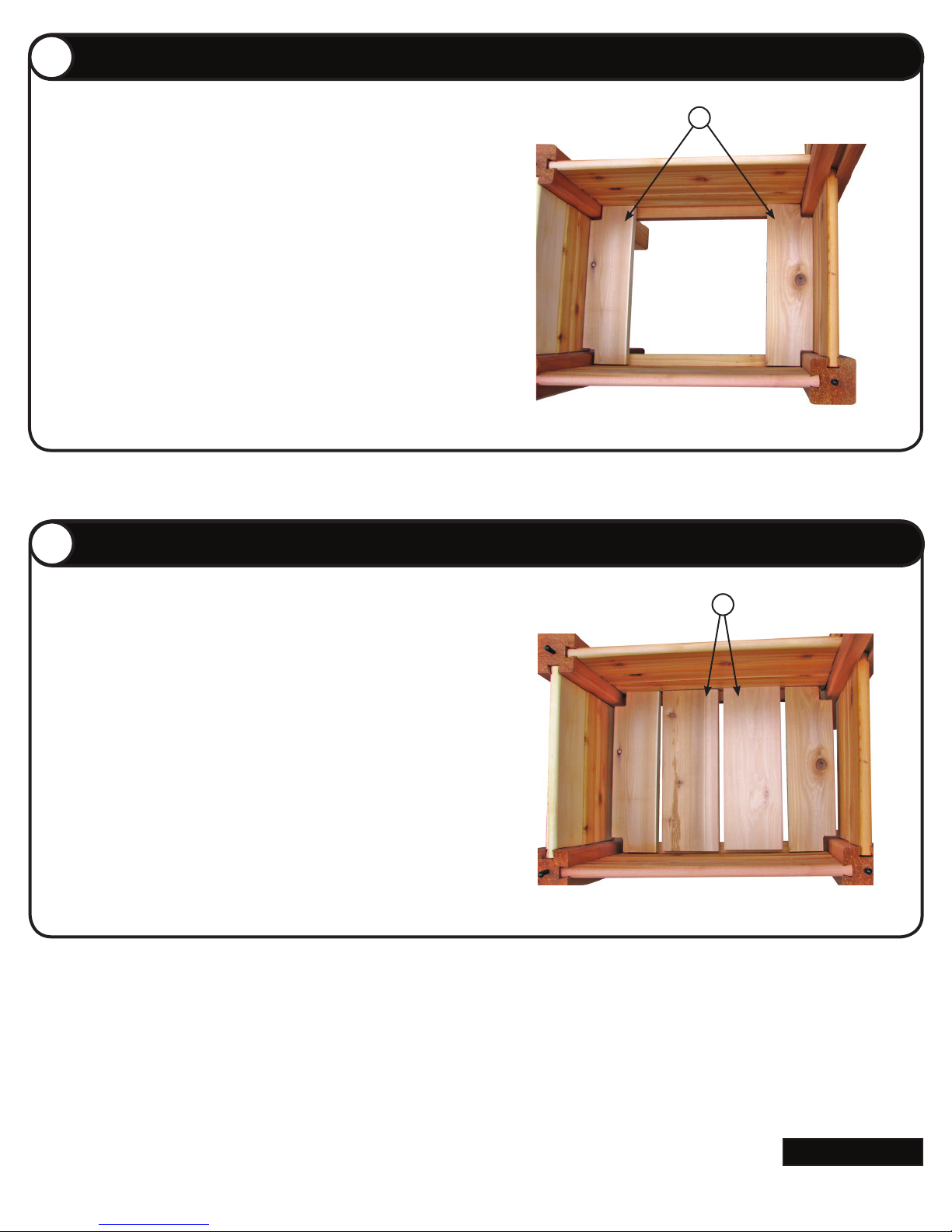

Corner Notched Bottom Board Assembly
11
Place one 15-1/2” x 4-1/2” corner notched bottom
board (Item 10) on each end of the planter box.
10
Bottom Board and Fabric Installation
12
Place two 15” x 5-1/2” bottom boards (Item 11) into
the planter box. (Gap boards evenly to allow for water
drainage).
Repeat steps 7 - 12 for planter box on opposite end of
planter bench backrest.
Locate the two pieces of fabric liner. Place one piece
in the bottom of each planter box.
Soil Capacity: 4.1 Cubic Feet
11
Continued
www.gronomics.com East Bethel, MN USA 763-753-7374
13
14
12
14
18

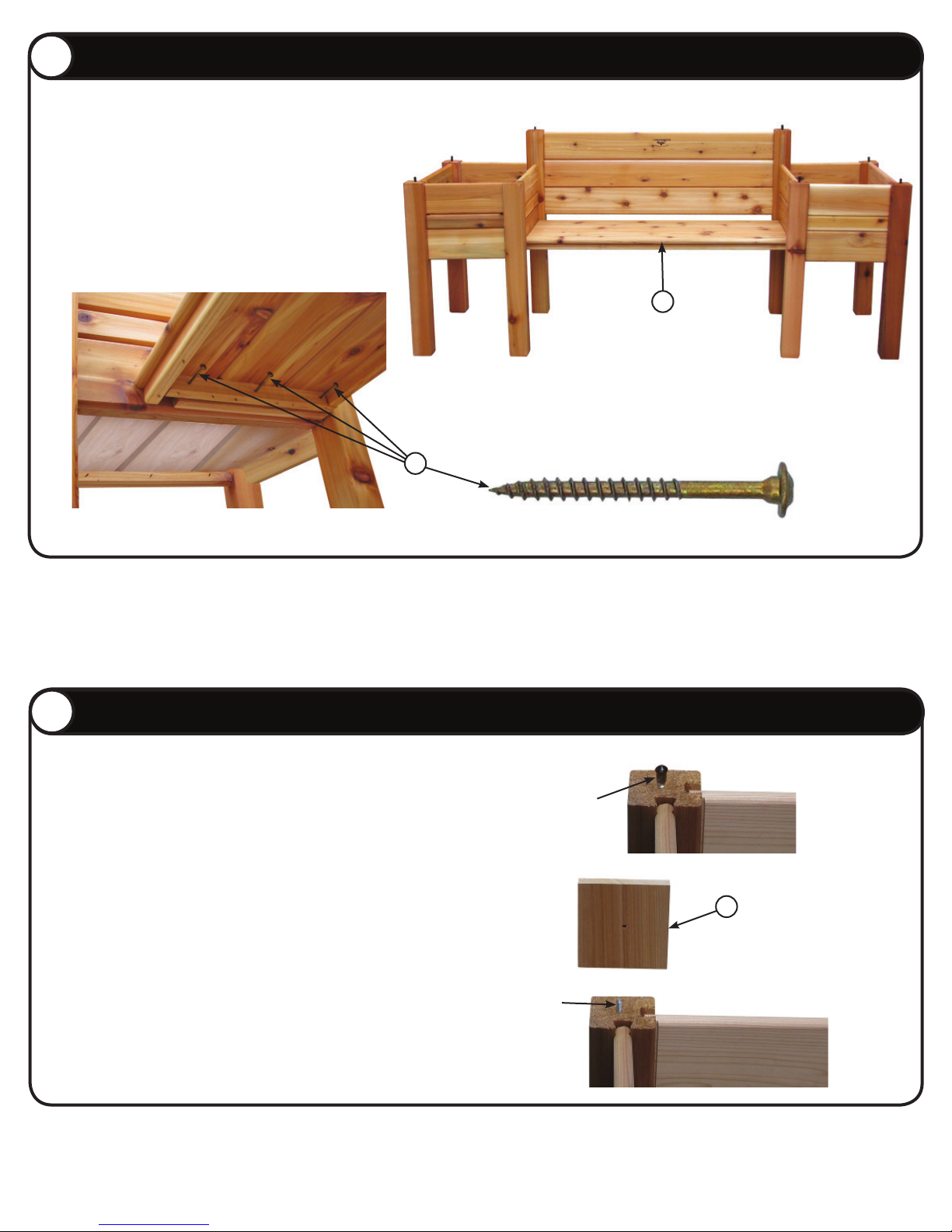

Planter Bench Assembly 5
13
Place the planter bench (Item 14) onto the side rail
w/double cleats (as shown).
Install the GRK R4 screws (Item 18) into the predrilled holes at each end of the planter bench and
tighten.
18
14
14
Post Cap Assembly
Remove the rubber cap from the post stud.
Align the hole of the 4” x 4” post cap (Item 12) with
stud and tighten until the cap makes contact with the
post.
NOTE: Do not overtighten.
Repeat procedure for all posts.
Rubber Cap
Stud
12
www.gronomics.com East Bethel, MN USA 763-753-7374
