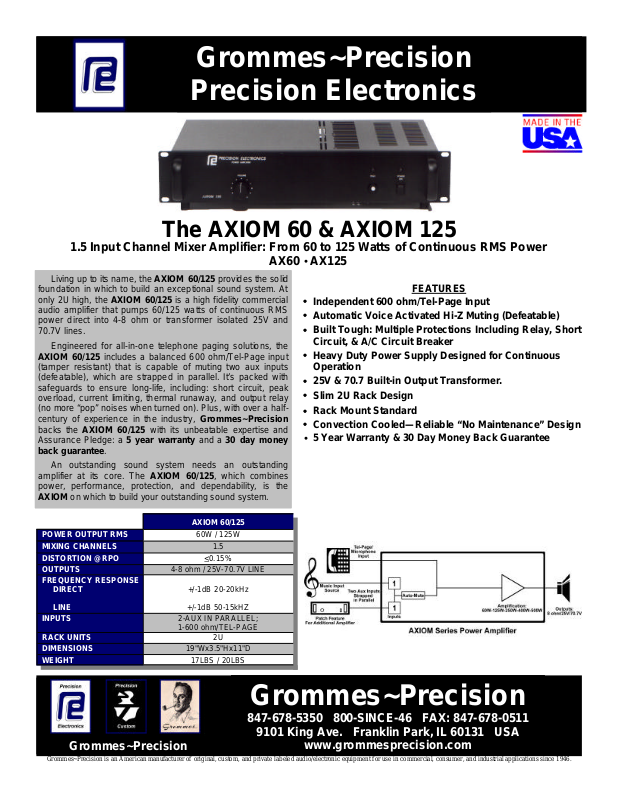

Grommes-Precision AXIOM 60, AXIOM 125 Specifications
Grommes~Precision
Precision Electronics
The AXIOM 60 & AXIOM 125
1.5 Input Channel Mixer Amplifier: From 60 to 125 Watts of Continuous RMS Power
AX60 • AX125
Living up to its name, the AXIOM 60/125 provides the solid
foundation in which to build an exceptional sound system. At
only 2U high, the AXIOM 60/125 is a high fidelity commercial
audio amplifier that pumps 60/125 watts of continuous RMS
power direct into 4-8 ohm or transformer isolated 25V and
70.7V lines.
Engineered for all-in-one telephone paging solutions, the
AXIOM 60/125 includes a balanced 600 ohm/Tel-Page input
(tamper resistant) that is capable of muting two aux inputs
(defeatable), which are strapped in parallel. It’s packed with
safeguards to ensure long-life, including: short circuit, peak
overload, current limiting, thermal runaway, and output relay
(no more “pop” noises when turned on). Plus, with over a halfcentury of experience in the industry, Grommes~Precision
backs the AXIOM 60/125 with its unbeatable expertise and
Assurance Pledge: a 5 year warranty and a 30 day money
back guarantee.
An outstanding sound system needs an outstanding
amplifier at its core. The AXIOM 60/125, which combines
power, performance, protection, and dependability, is the
AXIOM on which to build your outstanding sound system.
POWER OUTPUT RMS 60W / 125W
MIXING CHANNELS 1.5
DISTORTION @RPO <0.15%
OUTPUTS 4-8 ohm / 25V-70.7V LINE
FREQUENCY RESPONSE
DIRECT
LINE
INPUTS 2-AUX IN PARALLEL;
RACK UNITS 2U
DIMENSIONS 19"Wx3.5"Hx11"D
WEIGHT 17LBS / 20LBS
AXIOM 60/125
+/-1dB 20-20kHz
+/-1dB 50-15kHZ
1-600 ohm/TEL-PAGE
FEATURES
Independent 600 ohm/Tel-Page Input
••
Automatic Voice Activated Hi-Z Muting (Defeatable)
••
Built Tough: Multiple Protections Including Relay, Short
••
Circuit, & A/C Circuit Breaker
Heavy Duty Power Supply Designed for Continuous
••
Operation
25V & 70.7 Built-in Output Transformer.
••
Slim 2U Rack Design
••
Rack Mount Standard
••
Convection Cooled—Reliable “No Maintenance” Design
••
5 Year Warranty & 30 Day Money Back Guarantee
•
Grommes~Precision
847-678-5350 800-SINCE-46 FAX: 847-678-0511
9101 King Ave. Franklin Park, IL 60131 USA
Grommes~Precision
Grommes~Precision is an American manufacturer of original, custom, and private labeled audio/electronic equipment for use in commercial, consumer, and industrial applications since 1946.
www.grommesprecision.com
Grommes~Precision
Grommes~Precision
Grommes~Precision
Precision Electronics
Precision Electronics
Precision Electronics
AXIOM 60 & AXIOM 125
The power amplifier shall be a
Grommes~Precision Electronics, Inc.
model AXIOM 60/125. The power
amplifier shall provide 60/125 watts of
continuous, monaural RMS power into a
direct coupled 8 ohm, 25V, or 70.7V
lines. The 25V and 70.7V output shall be
supplied through a fully isolated output
transformer. Total harmonic distortion at
rated output shall be less than or equal to
0.15%. The frequency response for 8
ohm output shall be 20Hz to 20kHz, +0
to –1 dB. The frequency response for
25V and 70.7V output shall be 50Hz to
15kHz, +0 to –1dB. Hum and noise shall
be at least 90dB below rated output
unweighted.
The inputs shall be: a Tel-Page, a 600
ohm, and two high impedance inputs,
strapped in parallel.
AXIOM 125 (AXIOM 60 not shown)
Architects Specifications
The input sensitivity required to
receive full rated output shall be: TelPage - 50mV, 600 ohm - 0.50V, and HiZ - 0.50V. The input impedance shall be
Tel-Page - 600 ohm, 600 ohm - 600 ohm,
and Hi-Z - 10K ohm.
The front panel shall include a power
indicator, power switch, peak level
indicator, circuit breaker reset plunger,
gain control, and be rack mounted as
standard.
The back panel shall include input
connectors, screw terminals, for both the
Tel-Page and 600 ohm inputs, phono
(RCA) connectors for both Hi-Z inputs.
Output connectors shall be screw barrier
strip.
An output switch shall connect the
output transformer in circuit for 25V and
70.7V line outputs and also switch in a
low cut filter that begins to roll-off at 120
Hz. Also a 2 ampere maximum
convenience outlet shall also be on the
back panel.
The power amplifier shall be available in
either 120VAC 60Hz or 240VAC 50Hz
versions (add DV to the model). The
maximum power consumption of the unit
shall be 720W.
The unit shall measure 19”W x 3.5”H
x 11”D (48.2cm x 8.8cm x 27.9cm). The
unit shall weigh, 60 watt - 17lbs (7.7kg)
and 125 watt - 20lbs (9.1 kg). The unit
shall include a full 3 year warranty be
designed and manufactured in the United
States of America.
