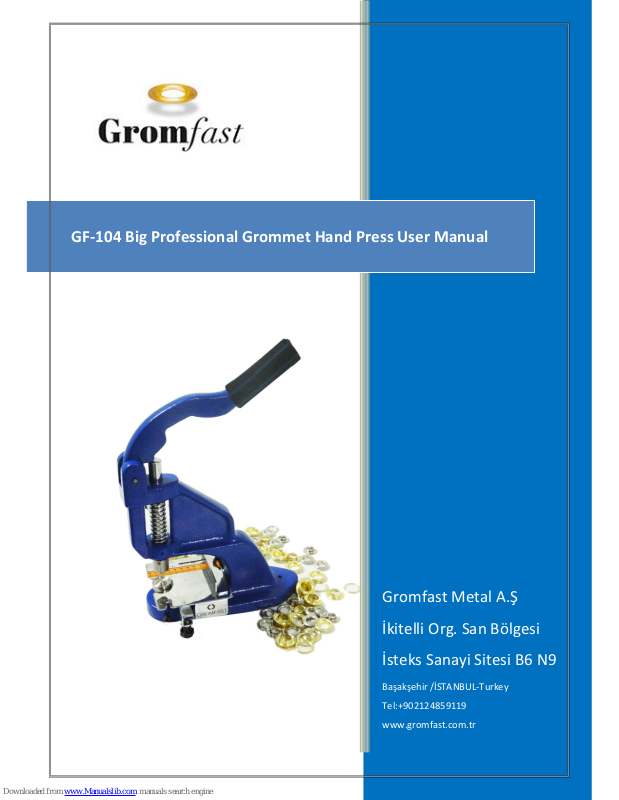

GF-104 Big Professional Grommet Hand Press User Manual
Page 2
GF-104 Eyelet Hand Press User Manual
Using in Industry of the GF-104 Big Professional Manual Hand Press;
1-Self piercing eyelets,grommets attaching on sign banner,vinly banne,x banner or foam board
,boardex etc. for sign industry
2-Metal buttons,metal spring snaps,bebeto metal button snaps,jean rivets,jean accessories, and other
metal accesories attaching on fabric material for sewing industry and textile industry,leather,shoes
industy,sail and yatching
3-Tent & canvas industry,tarpaulin industry.
Page 3
GF-104 Eyelet Hand Press User Manual
GF-104 Big Professional Grommet Hand Press is the most of using popular hand
press model in the market.
GF-104 Big Professional Grommet Hand Press Advantages ;
1. Practical ease of use.
2. Interchangeable dies setting
3. Heavy duty durability
4. Easy to carry.
5. Suitable numerous materials
6. 3 Year Warranty
7. Parts and service avaliable
8. Machine body made of high quality best quality iron casting raw material
Page 4
GF-104 Eyelet Hand Press User Manual
GF-104 is compatiable with all size self piercing grommet dies,smallest #1.7 up to
#5.5.
Curtain grommet dies appliciable with #12(40mm) new all in one die, #12 hole
piercer die,#8,5 (30mm) attacher setting die, #8,5(30mm) hole piercer
die,#7,5(25mm) attacher dies, hole piercer dies, and all in one #7,5,#8,5 dies.
Using areas: Techtextile industry ,sign banner industry, pvc brenda industry and
other related industries.
Technical Spefications of GF-104 Big Professional Grommet Hand Press Advantages ;
Net Weight
8.5 kg
18,7 IBS
Throat Depth Dimension
120 mm
4.72 inches -4 23/32 inch
Height Dimension
440 mm
17,33 inches
Width Dimension
90 mm
3,54 inches- 3 35/64"
Depth Dimension
230 mm
9 1/16 "
Bottom Die adaptor hole
9,8 mm
1/2 inch
Top Of Die Screw
6,35 mm
1/4 inch
Extra Accesories,GF-104 Aligment Helping Tool,
Page 5
GF-104 Eyelet Hand Press User Manual
GF-104 aligment tool provide adjusting of each 2 grommet grommet distance on using
material, vinly banner, techtextile fabric etc.
Free allen key inlcluded in Box of GF-104 machine.
Using of grommet die
You can place first bottom die after that screw of top die , another step is you can place
grommet top, washer should placed bottom die.
Page 6
GF-104 Eyelet Hand Press User Manual
