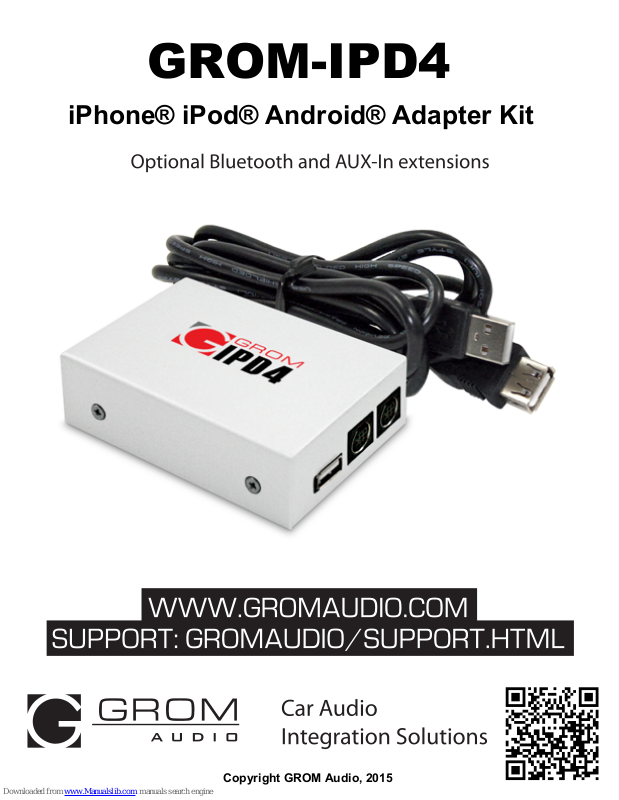

GROM Audio GROM-IPD4 Operating Instructions Manual
GROM-IPD4
iPhone® iPod® Android® Adapter Kit
Copyright GROM Audio, 2015
GROM-IPD4 car stereo adapter kit
TABLE OF CONTENTS
Chapter 1 – Introduction
1.1 Subject p.2
1.2 Functionality Highlights p.2
1.3 Main Features in USB iPod®/iPhone® Mode p.2
1.4 Main Features in USB Android® phone Mode p.2
1.5 Bluetooth Hands Free and Wireless, AUX-IN p.2
1.6 Precautions p.2
1.7 Disclaimer p.2
1.8 Completeness and connection of set p.3
1.9 Important Compatibility Notes p.4
1.10 EXT1/EXT2 ports p.4
Chapter 2 – General Installation
2.1 General Installation p.4
2.2 Tools needed p.4
2.3 Preparation and adapter installation p.5
2.4 Installation Troubleshooting p.6
Chapter 3 – Usage manual
3.1 Different MODES of GROM-IPD4 p.7
3.1.1 Different modes of GROM-IPD4 in CD changer emulation p.7
3.1.2 Different modes of GROM-IPD4 in SAT emulation p.7
3.2 USB iPod/iPhone Mode Operation p.8
3.2.1 Simple Mode p.8
3.2.2 Advanced Mode p.9
3.2.3 Playlist set up for advanced mode p.9
3.2.4 When car ignition is OFF p.10
3.2.5 Troubleshooting p.10
3.3 USB Android® Device Operation p.10
3.3.1 Android Setup and Operation p.10
3.3.2 Android Operation Troubleshooting p.12
3.3.3. Android USB Audio Streaming p.12
3.4 AUX Mode -- AUX-IN or Bluetooth Operation p.12
3.4.1 AUX-IN input p.12
3.4.2 Bluetooth Dongle p.13
3.5 USB charging of Android phone via GROM USB port p.13
Chapter 4 – Support p.13
Chapter 5 – Warranty, license and disclaimer p.14
1 V.1.0.0
Chapter 1 – Introduction
1.1 Subject
Thank you for purchasing the GROM-IPD4 adapter. It has been designed to provide endless hours of listening pleasure
through most vehicle factory stereos. To ensure that your GROM-IPD4 interface performs correctly in your vehicle, we
recommend that you read this entire manual before attempting to install the GROM interface.
1.2 Functionality Highlights
- Easily access your media collection in your car, including shuffling songs, skipping between tracks, and adjusting the volume—all with
only your factory car stereo head unit or multifunction steering wheel controls (where applicable).
- Android® phone (most supported) play, charge and control through USB port via standard USB to Android cable.
- iPod®/iPhone®/iPad® play, charge and control via standard USB to iPod cable (supports both 30-pin and Lightning style connectors).
- Bluetooth or AUX-IN integration. To get AUX-IN you will need GROM MiniDin to 3.5mm audio and 5V USB charging cable, to get the
Bluetooth hands free and wireless functionality you will need GROM-BTD Bluetooth Dongle (both sold separately).
1.3 Main Features in iPod/iPhone (USB) Mode
- Ability to play, charge and control iPod/iPhone – all using your factory car stereo.
- Playlists on the iPod/iPhone are mapped to an individual “Disc” button on car stereo’s dashboard (different for SAT
emulation – please refer to your installation manual).
- Number of “discs” limited to the car stereo (up to 99 on select stereos)
- Last listened song position within the playlist is remembered (may not apply to some iPod/iPhone/iPad)
- Last listened song time position is restored upon ignition cycle (may not apply to some iPod/iPhone/iPad)
1.4 Main Features in Android (USB) mode
- Ability to listen to songs in car from Android phone (using free AALinQ app for Android from Google® Play Store).
- Ability to control music from car stereo or steering wheel buttons.
- Play lists on Android phone (AALinQ app) are mapped to an individual “Disc” button on car stereo’s dashboard (different
for SAT emulation – please refer to your installation manual).
- Number of “Discs” limited to the car stereo (up to 99 on select stereos).
- Last listened song position within the Playlist is remembered and time position is restored upon ignition cycle.
- Android phone is charged while in car (0.5Amp charging speed due to the Android software limitation*).
1.5 Bluetooth Hands Free and Wireless Audio, AUX-IN Features
- With hands free (HFP) you can receive the phone calls through the factory car stereo, answer or reject the phone calls
using car stereo or steering wheel controls, speak to the other person using microphone provided with GROM Bluetooth
Dongle.
- Wireless music play from your phone to the factory car stereo (A2DP), control the music or Pandora® internet radio with
the car stereo or steering wheel buttons (AVRCP).
- AUX-IN 3.5mm audio connector for any audio source, and additional 5V charging port.
1.6 Precautions
Proper mounting location securely installs the interface in a location free from heat, humidity, moving parts, or direct sunlight.
Beware of hot-air flow from your vehicle’s climate control system. The interface should be secured in a suitable location, free of
sharp metal edges, using double-sided tape, Velcro, or wire ties. The adapter’s operating temperature range is -30°C to +70°C (-
24°F to +158°F)
1.7 Disclaimer
- This product is not affiliated with any of the OEM manufacturers
V.1.0.0 2
- Modifying the stereo may void any existing warranty
- The purchase of this product carries no warranties, either expressed or implied
- GROM Audio has confirmed the listed stereo and vehicle application to the best of our ability. Due to uncontrollable factors and
various factory options, GROM Audio cannot 100% guarantee every listed application. These factors include variables such as
inconsistencies within a factory stereo, factory stereo models unknown to GROM Audio and any partial model year changes.
- Keep your eyes on the road while driving!
- We are not liable for the misuse of this product, including improper installation, damage to the board or stereo during installation,
and the illegal use of the stereo
1.8 Completeness and connection of set
a) The GROM audio adapter set consists of the GROM-IPD4 main interface, one automotive grade USB cable 3FT
extension cable, and one vehicle-specific cable.
1. GROM IPD4 interface 2.One Automotive grade USB 3FT 3. One Vehicle specific cable
Figure 1. Package contents
b) The basic package does not include the optional accessories that you can purchase separately:
AUX MiniDin 3.5mm USB charge cable GROM Bluetooth Dongle
Figure 2. Optional Accessories (sold separately)
c) The basic wiring diagram of the GROM Audio adapter is detailed in Figure 3 below (some installs may differ):
3 V.1.0.0
1.9 Important Compatibility Notes
- If your vehicle is equipped with an external factory CD changer, you must disconnect it in order to be able to install the
GROM interface. You will lose the use of the external CD changer to gain the use of your iPod, iPhone, Android, Bluetooth
or MP3 player. The built-in CD changer will remain operational. SAT if present may need to be disconnected in some case.
- If your vehicle has factory SAT and GROM adapter is using SAT emulation, you must disconnect factory SAT to gain the
use of your device, iPod, Bluetooth or MP3 player. This is applicable to Nissan/Infinity with SAT emulation, Honda/Acura 03
and up with SAT emulation, Ford/Lincoln/Mercury, Mazda 3,5 08-09 and Subaru 07-09. For a full version of the GROM
compatibility guide, please visit http://gromaudio.com/grom_application_guide.pdf or contact GROM Audio at
http://gromaudio.com/support.html.
1.10 USB/EXT1/EXT2 ports
It is recommended for you to use GROM automotive grade USB extension cable. It will ensure better connection using the latch
system that withstands the moving vehicle conditions. In addition it will prevent the wear-out of USB port on GROM-IPD4 adapter.
Please refer to the Figure below for the proper connection of the accessories to the EXT1/EXT2 ports on GROM-IPD4 module.
Figure 4. EXT ports, accessories connection.
2.1 Installation location
Most installations will require removing the factory stereo in order to plug in the vehicle- specific harness. For some
vehicles, you will also have the option to connect the interface to the factory pre-run CD changer cable located in the trunk
or glove box.
2.2 Tools needed
In most cases, there are no special tools required in order to remove the stereo. For some stereos (e.g., VW, Audi), it is
better to use car stereo removal tools. Please consult your local car audio shop or your vehicle’s dealership for instructions
or assistance as necessary. If you are unsure how to install the interface properly, we recommend contacting your local car
stereo shop for assistance. Some installation examples can be found at www.gromaudio.com.
2.3 Preparation and adapter installation
1. Turn off car engine and remove key from ignition
V.1.0.0 4
Chapter 2 – General Installation
