Please pass these instructions on to the end user of the fitting!

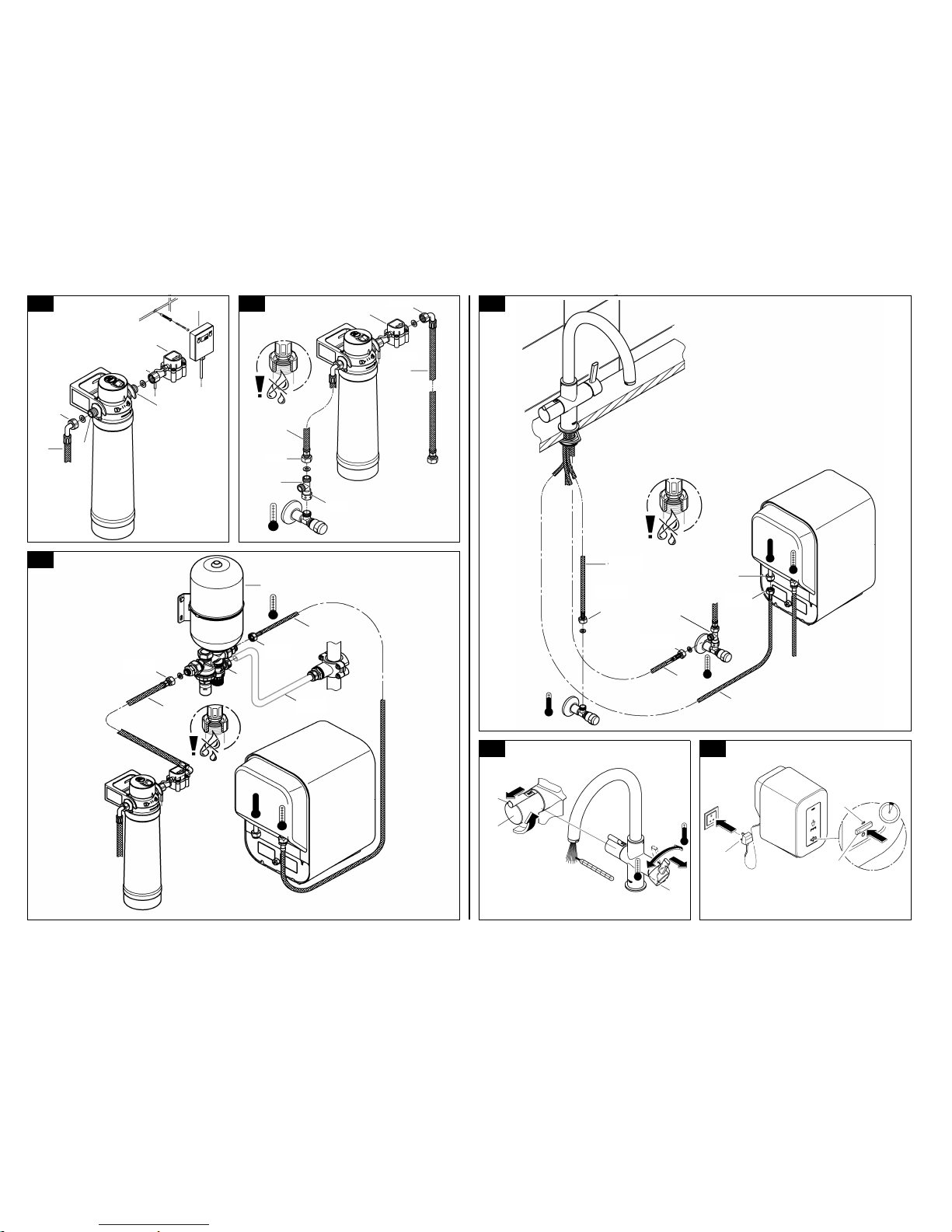

II

1

13mm

*19 017

A

max.

60mm

max.

45mm

A

7

Ø8

22

24mm

31mm

G 1/2

G 3/8

31mm

24mm

B

B

9

C

10

8

10mm

4

Ø40

Ø32

5 6

3

min. 50

284

1

GB

Type approvals

The GROHE Red boiling water storage heater

with filter

system must be installed the safety assembly with

expansion

vessel

provided.

The boiling water storage heater

with filter system

may only be
operated together with an original GROHE Red boiling water
fitting.

Application

The GROHE Red boiling water fitting supplies boiling water in
addition to hot and cold tap water. Boiling and mixed water
flows into the GROHE Red fitting through separate pipes and
flows out through two separate areas of the flow straightener.

The GROHE boiling water storage heater is designed to heat
and store drinking water in pressurised systems.

The GROHE boiling water storage heater is suitable for
connection to a mains system with a maximum water pressure
of 0.8 MPa.

It must not be connected to hot water.
The filter system measures the flow rate using a sensor and

from this calculates the remaining capacity of the filter
cartridge as a function of the set litre capacity. If the filter
cartridge litre capacity set on the display unit is exceeded, the
values are displayed as negative values.

The sensor also monitors the maximum service life of the filter
cartridge. If the maximum service life of 12 months is
exceeded, the remaining capacity of the filter cartridge flashes.

The water filtrate is classified as Category 2 according
to EN 1717.

Safety notes

GROHE Red boiling water storage heater:

This device is not intended for use by persons
(including children) with physical, sensory or mental
impairments or a lack of experience or knowledge in
using devices of this type.

Children must be supervised to ensure that they do
not play with the device.

Risk of electric shock. Avoid damaged power supply
cable. In case of damage, the boiling water storage
heater must be replaced by the manufacturer or its
customer service department or an equally qualified
person.

Caution, risk of scalding! Escaping water is boiling
hot. Never touch the end of the spout in order to
swivel the spout as it becomes extremely hot.

•The boiling water storage heater must be connected
to a permanent power supply with earth wire.

• Installation is only possible in frost-free rooms.

• The boiling water storage heater is only suitable for

indoor use.

• The boiling water storage heater must be placed in an

upright position.

• The boiling water storage heater and plug must not be

directly or indirectly sprayed with water when cleaning.

• The boiling water storage heater must not be opened.

• Use only genuine replacement parts and accessories.

The use of other parts will result in voiding of the warranty
and the CE identification, and could lead to injuries.

If the boiling water storage heater is to be drained, the safety
assembly

with

expansion vessel of the boiling water storage
heater must be removed. Invert the boiling water storage
heater and allow the water to run out.

However, we strongly advise against draining the boiling
water storage heater. There is a significant risk of
damaging the boiling water storage heater.

Technical data

Electrical data boiling water storage heater:

• Connection: Wall socket with earth wire, protected

via a 13 A fuse

• Voltage supply: 230 V AC / 50 Hz

• Power consumption: 2100 W

• Standby power loss (switched on): 15 W

• Standby power loss (switched off): 1 W

• Type of protection: IPX4

Filter system:

• Sensor battery: 3 V lithium battery (type CR 2032)

• Cable length: 1,500mm

• Display unit rating (wall installation): IPX4

• Sensor rating: IPX8

Sanitary data boiling water storage heater, fitting:

• Boiling water storage heater capacity: 4 l

• Flow pressure:

– min. 0.1 MPa
– recommended 0.1 – 0.5 MPa

• Operating pressure: max. 0.2 – 0.8 MPa

• Test pressure: 1.6 MPa

• Flow rate at 0.3 MPa flow pressure

- Mixed water: approx. 6.8 l/min

- Boiling water: approx. 3.4 l/min

• Boiling water temperature 99 °C

The actual temperature may differ slightly due to different
ambient pressures

• Heating time from 10 °C to 99 °C: approx. 15 min

• Available storage heater volume at 99 °C: 3 l/min

• Max. chlorine value: 100 mg/l

• Water connection at storage heater: Cold water

• Water connection at fitting: Cold water from service valve

Hot water from service valve

Boiling water from storage heater

New Water Regulations

Please ensure installation complies with New Water Regula­tions. It must also be installed in accordance with local bye-law
requirements.

Approval and conformity

The conformity declarations can be obtained from the following
address:

GROHE Deutschland Vertriebs GmbH

Zur Porta 9
D-32457 Porta Westfalica

This product conforms to the requirements of the
relevant EU guidelines.
