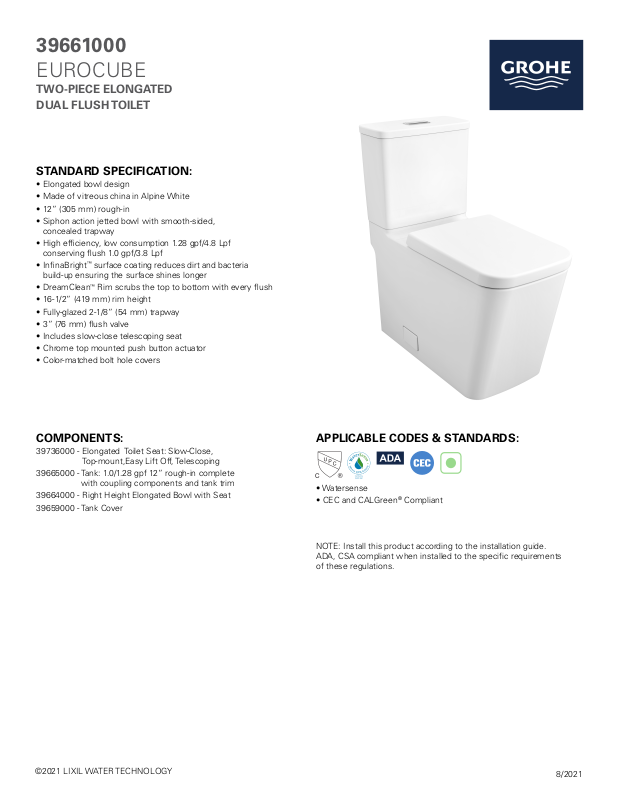

Page 1
39661000
EUROCUBE
TWO-PIECE ELONGATED
DUAL FLUSH TOILET
STANDARD SPECIFICATION:
• Elongated bowl design
• Made of vitreous china in Alpine White
• 12” (305 mm) rough-in
• Siphon action jetted bowl with smooth-sided,
concealed trapway
• High efficiency, low consumption 1.28 gpf/4.8 Lpf
conserving flush 1.0 gpf/3.8 Lpf
• InfinaBright™ surface coating reduces dirt and bacteria
build-up ensuring the surface shines longer
• DreamClean™ Rim scrubs the top to bottom with every flush
• 16-1/2” (419 mm) rim height
• Fully-glazed 2-1/8” (54 mm) trapway
• 3” (76 mm) flush valve
• Includes slow-close telescoping seat
• Chrome top mounted push button actuator
• Color-matched bolt hole covers
COMPONENTS:
39736000 - Elongated Toilet Seat: Slow-Close,
Top-mount,Easy Lift Off, Telescoping
39665000 - Tank: 1.0/1.28 gpf 12” rough-in complete
with coupling components and tank trim
39664000 - Right Height Elongated Bowl with Seat
39659000 - Tank Cover
APPLICABLE CODES & STANDARDS:
• Watersense
• CEC and CALGreen® Compliant
NOTE: Install this product according to the installation guide.
ADA, CSA compliant when installed to the specific requirements
of these regulations.
©2021 LIXIL WATER TECHNOLOGY
8/2021
Page 2
39661000
EUROCUBE
TWO-PIECE ELONGATED
DUAL FLUSH TOILET
FINISHED WALL
MUR FINI
PARED TERMINADA
7-5/16" (186 mm)
5-1/2” (140 mm) distance to rim
3-9/16" (90 mm)
TECHNICAL DATA:
DIMENSIONS:
NOMINAL DIMENSIONS
29-3/8”x 14-15/16”x 30-13/16”
(746 x 379 x 782 mm)
WATER SPOT
7-7/8” (200 mm) wide
9-1/4” (235 mm) length
15-1/16"
(382 mm)
1"
3"
(76 mm)
(25 mm)
8-9/16"
(217 mm)
12"
(305 mm)
3-7/8" (99 mm)
18-1/2"
(470 mm)
14-7/16"
(366 mm)
SUPPLY AS
REQUIRED
(position 1)
(793 mm)
16-1/2"
(419 mm)
31-1/4"
5-1/2"
(140 mm)
FINISHED WALL
PLANCHER FINI
PISO ACABADO
(229 mm)
13-15/16"
(354 mm)
13-3/8"
9"
C/L
13"
(330 mm)
(339 mm)
3-3/4"
(95 mm)
SUPPLY AS
REQUIRED
(position 2)
NOTES:
This toilet is designed to rough-in at a minimum dimension of 12” (305 mm) from finished wall to C/L of outlet.
Supply not included with fixture and must be ordered separately.
Dimensions shown for location of supply is suggested.
IMPORTANT:
Dimensions of fixtures are nominal and may vary within the range of tolerance established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
©2021 LIXIL WATER TECHNOLOGY
8/2021
