26 128
EUPHORIA
®
260 COOLTOUCH THERMOSTATIC
SHOWER SYSTEM
STANDARD SPECIFICATION:
• GROHE StarLight®
• GROHE CoolTouch® no risk of scalding
• GROHE TurboStat® compact car tridge with
wax thermoelement
• Exposed thermostatic temperature control with
SafeStop at 100°F / 38 °C
• GROHE SafeStop® Plus optional temperature
limiter at 110°F (43°C) included
• GROHE DreamSpray® perfect spray pattern
• GROHE EcoJoy™ 1.75 gpm (6.6 l/min) flow
limiter
• 17 ¾” Horizontal swivel shower arm
• GROHE QuickFix® (upper bracket adjust able)
• Switch between hand shower and shower
head via built-in diverter
• 2 Discrete functions (non-shared)
• Bar with adjustable height hand shower holder
• Includes adaptors for easy installation (depth
adjust able)
• 69” Rotaflex metal shower hose (1750mm) (28
025)
• Speed Clean® anti-lime system
• Euphoria® 260 shower head (26 456), 1.75gpm
• 3 Adjustable sprays: Rain, Smar tRain, Jet
• Euphoria® 110 hand shower (26 513), 1.75gpm
• 3 Adjustable sprays: Rain, Massage &
SmartRain
• Protected against backflow
• Optional: GROHE EasyReach tray (26 362 LN1)
(sold separately)
• Optional: Spacer Disc
separately)
• Optional: Longer Rail 46” (1166mm) (48 053)
(sold separately)
• Optional: Shorter Rail 34” (866mm) (48 054)
(sold separately)
• Optional: Service Stop (12 400) (sold
separately)
1
⁄4” (27 180) (sold
PRODUCT FEATURES: CERTIFICATIONS: AVAILABLE FINISHES:
2612 800 2
• CEC Certified
• Massachusetts Plumbing Board Approved
• Energy Policy Act of 1992
• ASSE 1016
• CSA B125.1
• CSA B125.16
• AS M E A112 .18 .1
• ASM E A112.1 01 6
NOTE: Install this product according to the installation guide. ADA, CSA compliant when installed to the specific requirements of these regulations.
Tel: 1.630.582.7711 Fax: 1.630.582.7722
We reserve the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.grohe.us.
03-17-2021
2612 8EN 2
Page 2
26 128
EUPHORIA
®
260 COOLTOUCH THERMOSTATIC
SHOWER SYSTEM

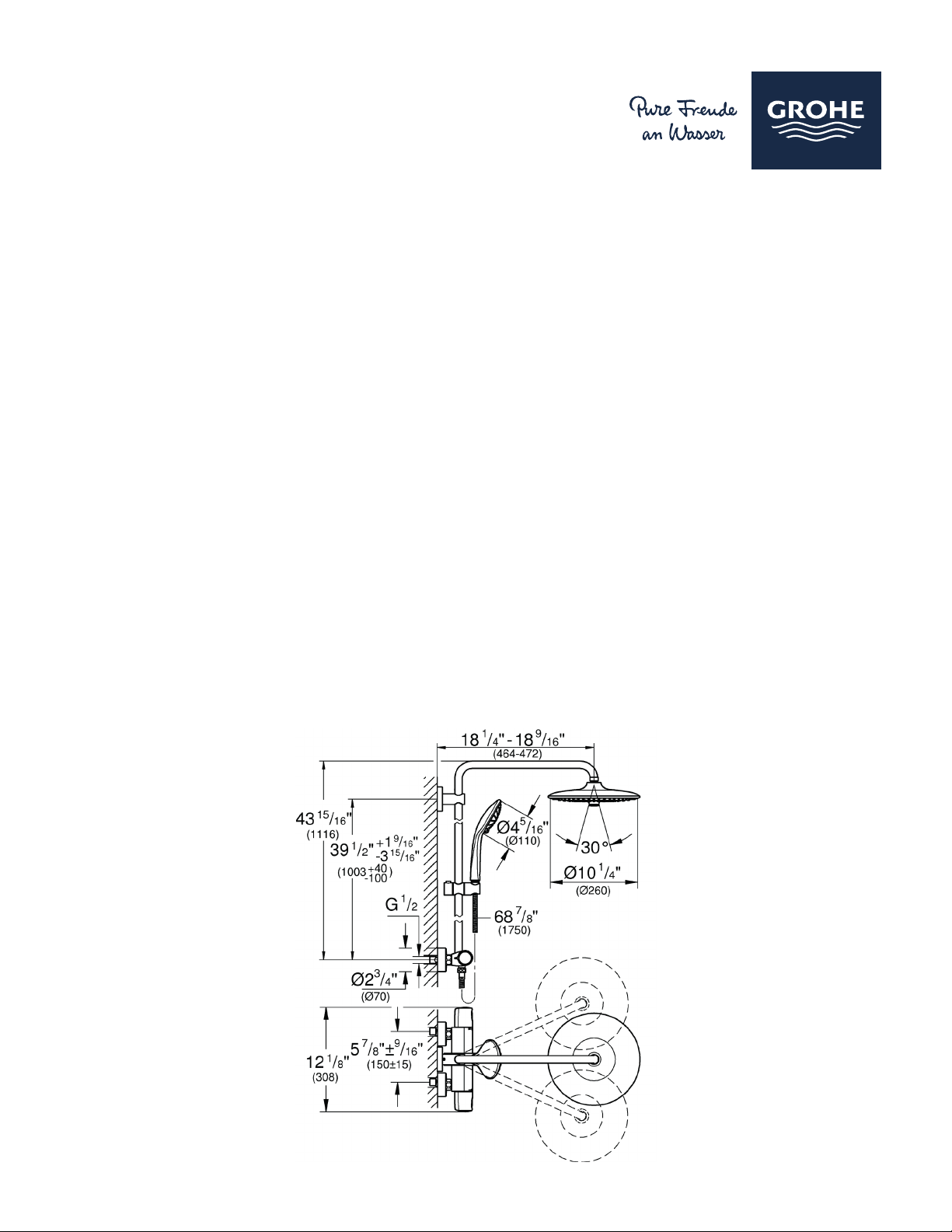

TECHNICAL DATA:
Product Height 43-15/16 in
GPM (Min)-GPM (Max) 1.75 GPM
