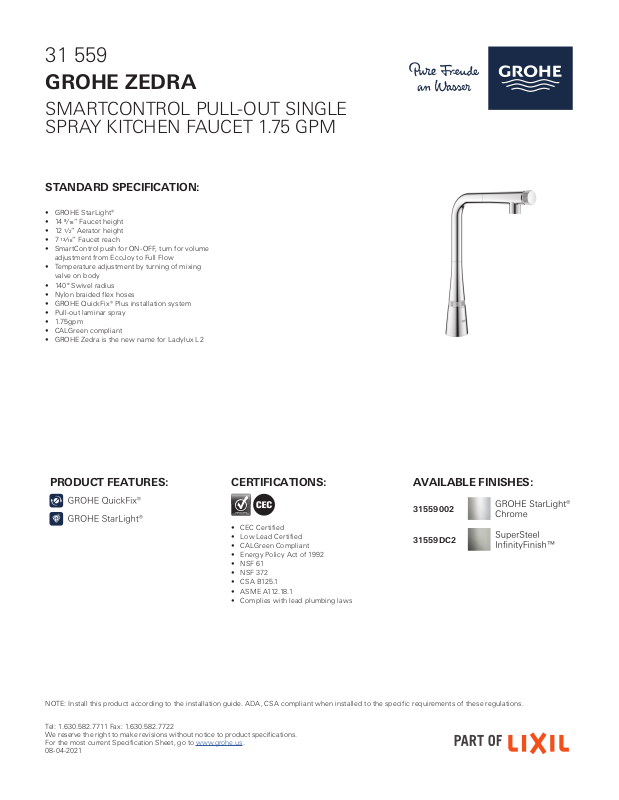

Page 1
31 559
GROHE ZEDRA
SMARTCONTROL PULL-OUT SINGLE
SPRAY KITCHEN FAUCET 1.75 GPM
STANDARD SPECIFICATION:
• GROHE StarLight®
9
⁄16” Faucet height
• 14
1
⁄2” Aerator height
• 12
13
⁄16” Faucet reach
• 7
• Smart Control push for ON -OFF, turn for volume
adjustment from EcoJoy to Full Flow
• Temperature adjustment by turning of mixing
valve on body
• 140° Swivel radius
• Nylon braided flex hoses
• GROHE QuickFix® Plus installation system
• Pull-out laminar spray
• 1.75 gpm
• CALGreen compliant
• GROHE Zedra is the new name for Ladylux L2
PRODUCT FEATURES: CERTIFICATIONS: AVAILABLE FINISHES:
3155 900 2
• CEC Certified
• Low Lead Certified
• CALGreen Compliant
• Energy Policy Act of 1992
• NSF 61
• NSF 372
• CSA B125.1
• AS M E A112 .18 .1
• Complies with lead plumbing laws
NOTE: Install this product according to the installation guide. ADA, CSA compliant when inst alled to the specific requirements of these regulations.
Tel: 1.630.582.7711 Fax: 1.630.582.7722
We reserve the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.grohe.us.
08-04-2021
3155 9DC2
Page 2
31 559
GROHE ZEDRA
SMARTCONTROL PULL-OUT SINGLE
SPRAY KITCHEN FAUCET 1.75 GPM

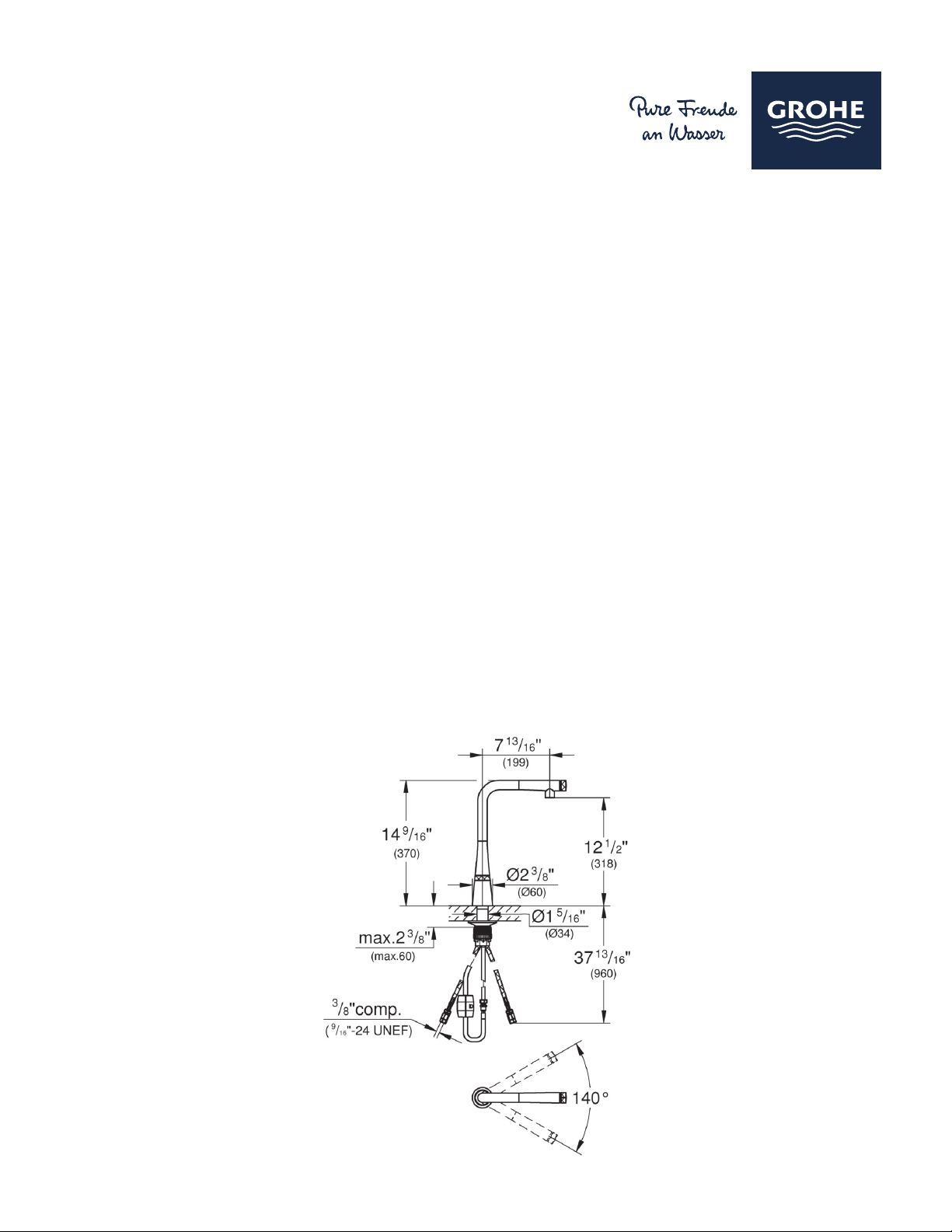

TECHNICAL DATA:
Product Height 14-9/16 i n
Product Length 9 in
Product Width 2-3/8 in
Fitting Spout Height 12-1/2 in
Fitting Spout Reach 7-13 /16 i n
GPM (Min)-GPM (Max) 1.75 GP M
Fitting No of Holes Required 1
