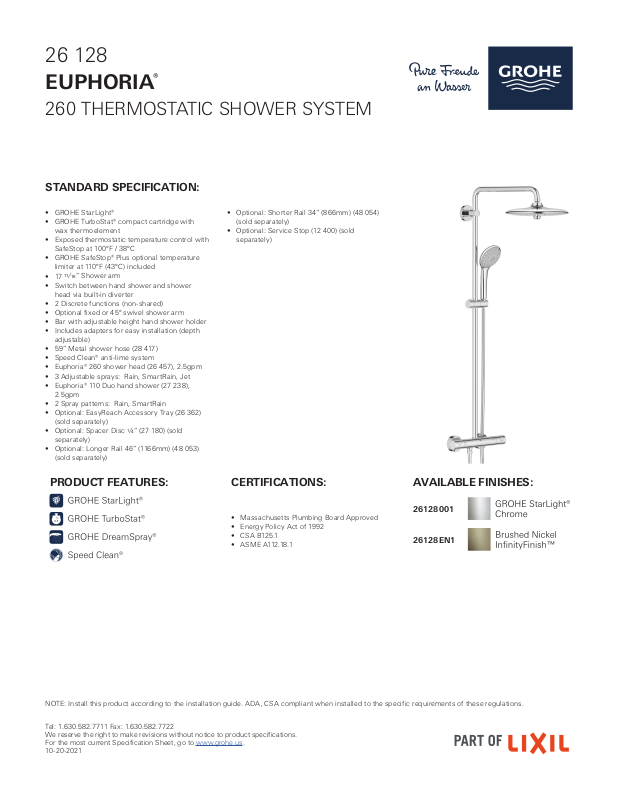

Page 1
26 128
EUPHORIA
®
260 THERMOSTATIC SHOWER SYSTEM
STANDARD SPECIFICATION:
• GROHE StarLight®
• GROHE TurboStat® compact car tridge with
wax thermoelement
• Exposed thermostatic temperature control with
SafeStop at 100°F / 38 °C
• GROHE SafeStop® Plus optional temperature
limiter at 110°F (43°C) included
11
⁄16” Shower arm
• 17
• Switch between hand shower and shower
head via built-in diverter
• 2 Discrete functions (non-shared)
• Optional fixed or 45° swivel shower arm
• Bar with adjustable height hand shower holder
• Includes adapters for easy installation (depth
adjust able)
• 59” Metal shower hose (28 417)
• Speed Clean® anti-lime system
• Euphoria® 260 shower head (26 457), 2.5gpm
• 3 Adjustable sprays: Rain, Smar tRain, Jet
• Euphoria® 110 Duo hand shower (27 238),
2.5gpm
• 2 Spray patterns: Rain, SmartRain
• Optional: EasyReach Accessory Tray (26 362)
(sold separately)
• Optional: Spacer Disc
separately)
• Optional: Longer Rail 46” (1166mm) (48 053)
(sold separately)
1
⁄4” (27 180) (sold
• Optional: Shorter Rail 34” (866mm) (48 054)
(sold separately)
• Optional: Service Stop (12 400) (sold
separately)
PRODUCT FEATURES: CERTIFICATIONS: AVAILABLE FINISHES:
• Massachusetts Plumbing Board Approved
• Energy Policy Act of 1992
• CSA B125.1
• AS M E A112 .18 .1
NOTE: Install this product according to the installation guide. ADA, CSA compliant when installed to the specific requirements of these regulations.
Tel: 1.630.582.7711 Fax: 1.630.582.7722
We reserve the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.grohe.us.
10-20-2021
2612 8001
2612 8EN1
Page 2
26 128
EUPHORIA
®
260 THERMOSTATIC SHOWER SYSTEM
TECHNICAL DATA:
Product Height 45 -15/17 in
Product Length 23 -11 / 16 in
Product Width 11- 3 /4 in
GPM (Min)-GPM (Max) 2.5 gal (US)/min
