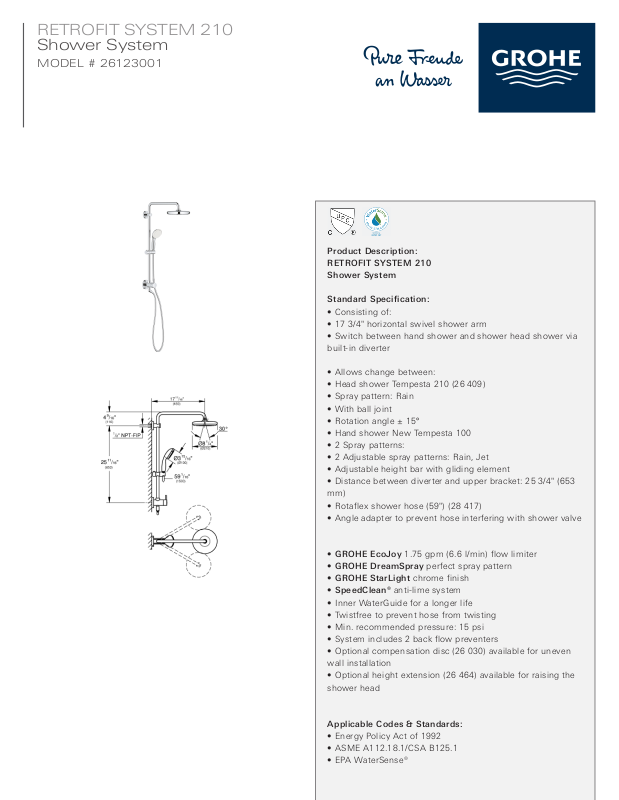

Page 1
RETROFIT SYSTEM 210
Shower System
MODEL # 26123001
Product Description:
RETROFIT SYSTEM 210
Shower System
Standard Specification:
• Consisting of:
• 17 3/4" horizontal swivel shower arm
• Switch between hand shower and shower head shower via
built-in diverter
• Allows change between:
• Head shower T empesta 210 (26 409)
• Spray pattern: Rain
• With ball joint
• Rotation angle ± 15°
• Hand shower New T empesta 100
• 2 Spray patterns:
• 2 Adjustable spray patterns: Rain, Jet
• Adjustable height bar with gliding element
• Distance between diverter and upper bracket: 25 3/4" (653
mm)
• Rotaflex shower hose (59") (28 417)
• Angle adapter to prevent hose interfering with shower valve
• GROHE EcoJoy 1.75 gpm (6.6 l/min) flow limiter
• GROHE DreamSpray perfect spray pattern
• GROHE StarLight chrome finish
• SpeedClean® anti-lime system
• Inner WaterGuide for a longer life
• Twistfree to prevent hose from twisting
• Min. recommended pressure: 15 psi
• System includes 2 back flow preventers
• Optional compensation disc (26 030) available for uneven
wall installation
• Optional height extension (26 464) available for raising the
shower head
Applicable Codes & Standards:
• Energy Policy Act of 1992
• ASME A112.18.1/CSA B125.1
• EPA WaterSense®
Page 2
• CalGreen
Color:
q 26123001 StarLight Chrome
