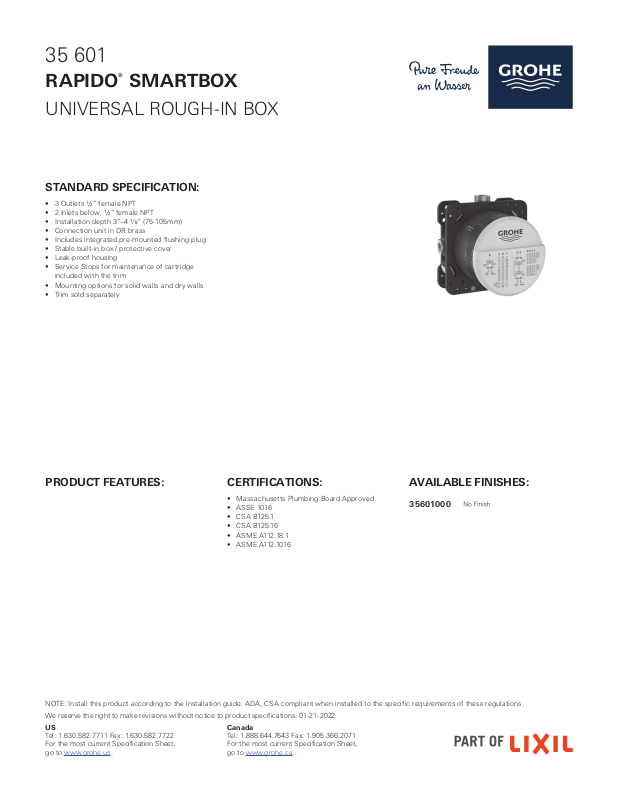

Page 1
35 601
RAPIDO® SMARTBOX
UNIVERSAL ROUGH-IN BOX
STANDARD SPECIFICATION:
1
• 3 Outlets
• 2 Inlets below,
• Installation depth 3”–4
• Connection unit in DR brass
• Includes integrated pre-mounted flushing plug
• Stable built-in box / protective cover
• Leak-proof housing
• Service Stops for maintenance of c artridge
included with the trim
• Mounting options for solid walls and dry walls
• Trim sold separately
⁄2” female NPT
1
⁄2” female NPT
1
⁄8” (7 5 -10 5mm)
PRODUCT FEATURES: CERTIFICATIONS: AVAILABLE FINISHES:
• Massachusetts Plumbing Board Approved
• ASSE 1016
• CSA B 12 5.1
• CSA B 12 5.16
• AS M E A112 .18.1
• ASM E A112.10 16
NOTE: Install this product according to the installation guide. ADA, CSA compliant when installed to the specific requirements of these regulations.
We reserve the right to make revisions without notice to product specifications. 01-21-2022
US
Tel: 1.630.582.7711 Fax: 1.630.582.7722
For the most current Specification Sheet,
go to www.grohe.us.
Canada
Tel: 1.888.644.7643 Fax: 1.90 5.366.2071
For the most current Specification Sheet,
go to www.grohe.ca.
35601000
Page 2
35 601
RAPIDO® SMARTBOX
UNIVERSAL ROUGH-IN BOX

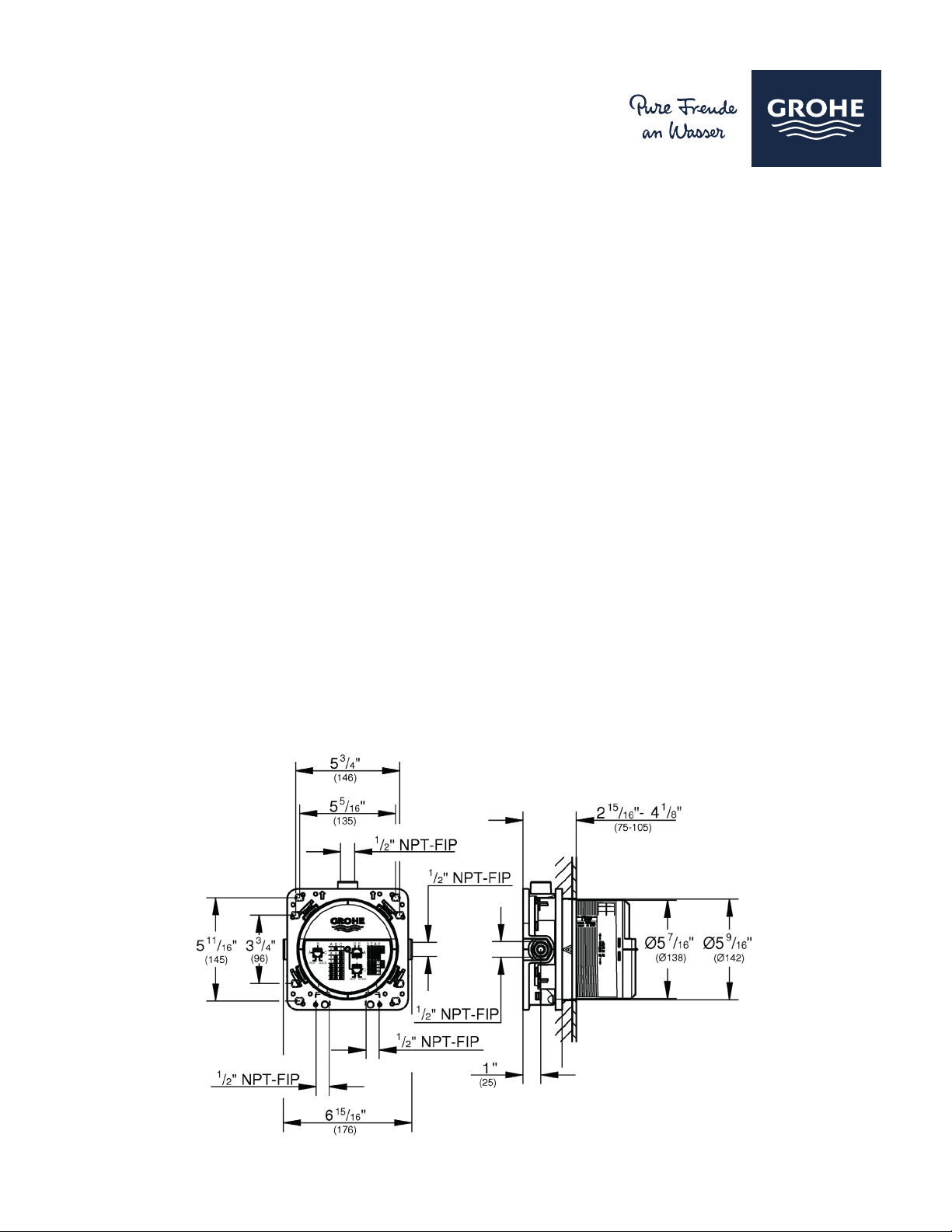

TECHNICAL DATA:
Product Height 5 -11/ 1 6 i n
Product Length 4-1/ 8 in
Product Width 6-15/16 i n
