31 492

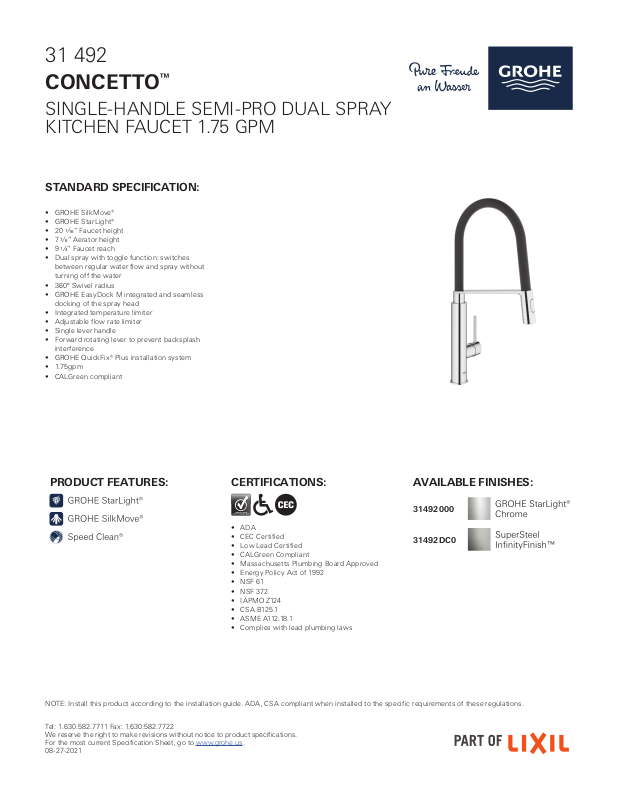

CONCETTO
™
SINGLE-HANDLE SEMI-PRO DUAL SPRAY
KITCHEN FAUCET 1.75 GPM
STANDARD SPECIFICATION:
• GROHE SilkMove®
• GROHE StarLight®
1
⁄16” Faucet height
• 20
7
⁄8” Aerator height
• 7
1
⁄4” Faucet re ach
• 9
• Dual spray with toggle func tion: switches
between regular water flow and spray without
turning of f the water
• 360° Swivel radius
• GROHE EasyDock M integrated and seamless
docking of the spray head
• Integrated temperature limiter
• Adjustable flow rate limiter
• Single lever handle
• Forward rotating lever to prevent backsplash
interference
• GROHE QuickFix® Plus installation system
• 1.75 gpm
• CALGreen compliant
PRODUCT FEATURES: CERTIFICATIONS: AVAILABLE FINISHES:
31492000
• ADA
• CEC Certified
• Low Lead Certified
• CALGreen Compliant
• Massachusetts Plumbing Board Approved
• Energy Policy Act of 1992
• NSF 61
• NSF 372
• IA PMO Z124
• CSA B 125 .1
• AS ME A112.18.1
• Complies with lead plumbing laws
NOTE: Install this product according to the installation guide. ADA, CSA compliant when installed to the specific requirements of these regulations.
Tel: 1.630.582.7711 Fax: 1.630.582.7722
We reserve the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.grohe.us.
08-27-2021
31492DC0
Page 2
31 492
CONCETTO
™
SINGLE-HANDLE SEMI-PRO DUAL SPRAY
KITCHEN FAUCET 1.75 GPM
TECHNICAL DATA:
Product Height 20 -1/16 in
Product Length 11- 3 /16 i n
Product Width 5- 5/16 in
Fitting Spout Height 7-14 /16 in
Fitting Spout Reach 9-1/4 i n
GPM (Min)-GPM (Max) 1.75 gal (US)/min
Fitting No of Holes Required 1
