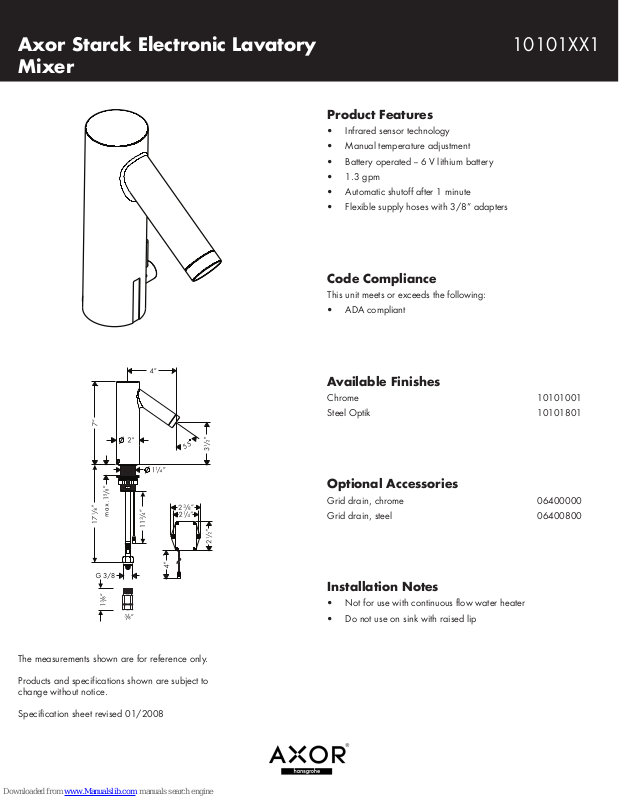

Axor Starck Electronic Lavatory
Mixer
Product Features
Infrared sensor technology
•
Manual temperature adjustment
•
Battery operated -- 6 V lithium battery
•
1.3 gpm
•
Automatic shutoff after 1 minute
•
Flexible supply hoses with 3/8” adapters
•
Code Compliance
This unit meets or exceeds the following:
ADA compliant•
10101XX1
The measurements shown are for reference only.
Available Finishes
Chrome 10101001
Steel Optik 10101801
Optional Accessories
Grid drain, chrome 06400000
Grid drain, steel 06400800
Installation Notes
Not for use with continuous flow water heater
•
Do not use on sink with raised lip
•
Products and specifications shown are subject to
change without notice.
Specification sheet revised 01/2008
