DESIGN + ENGINEERING GROHE GERMANY

www.grohe.com

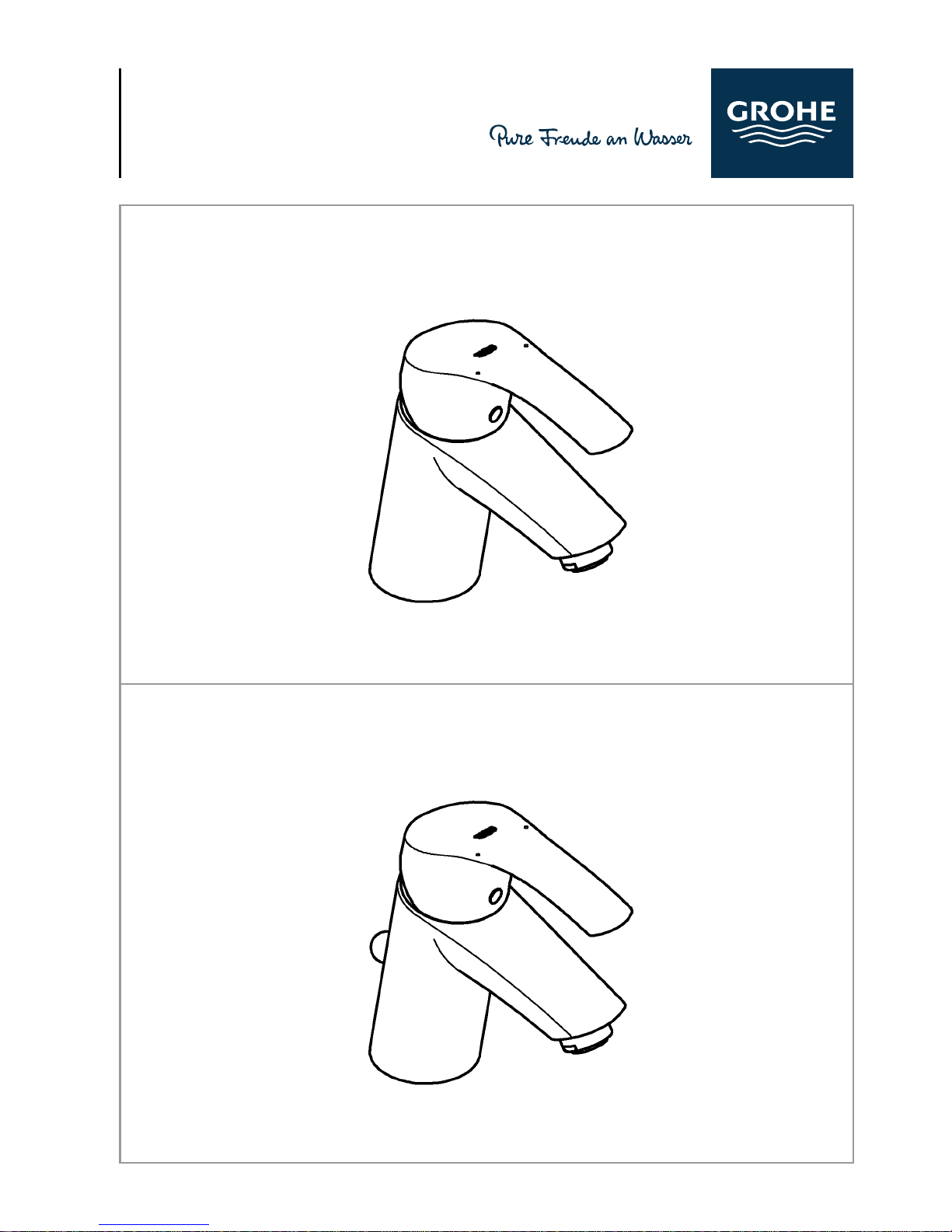

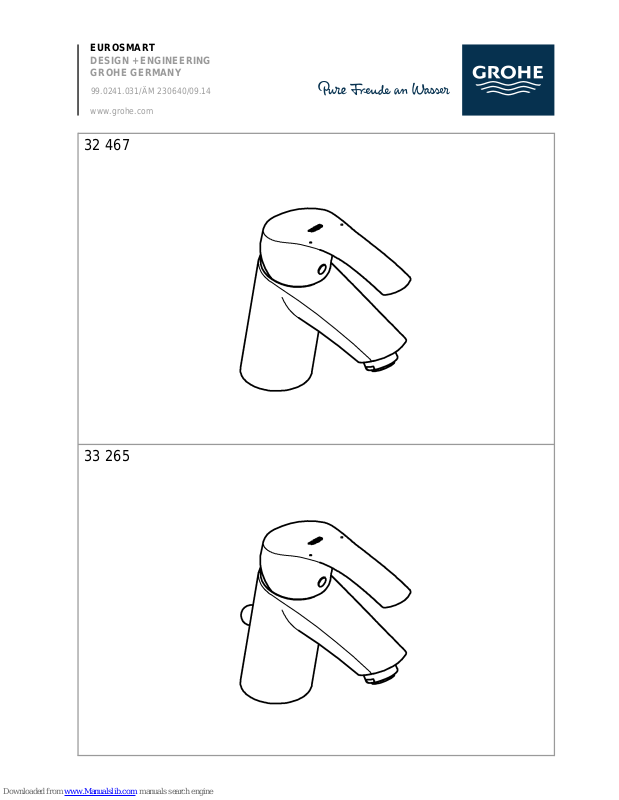

32 467

33 265

EUROSMART

99.0241.031/ÄM 230640/09.14

Page 2

Please pass these instructions on to the end user of the fitting.

32 467

33 265

Page 3

Page 4

Application

Can be used in conjunction with: Pressurised storage h eaters, thermally and hydraulically controlled instantaneous heaters. Operation with low-pressure displacement water heaters is

not possible.

Specifications

• Minimum flow pressure 0.1 bar

• Maximum operating pressure 10 bar

• Test pressure 16 bar If static pressure is greater than 5 bar, fit pressure reducer. Avoid major pressure differences between cold and hot water

supply.

• Flow rate at 0.1 bar flow pressure with flow straightener: approx. 2 l/min

• Temperature

- Hot water inlet (maximum): 70 °C

- Recommended (energy saving): 60 °C

- Thermal desinfection possible: max. 90 °C

• Water connection cold - right

hot - left

Installation

Flush piping system prior and after installation of fitting thoroughly (Consider EN 806)!

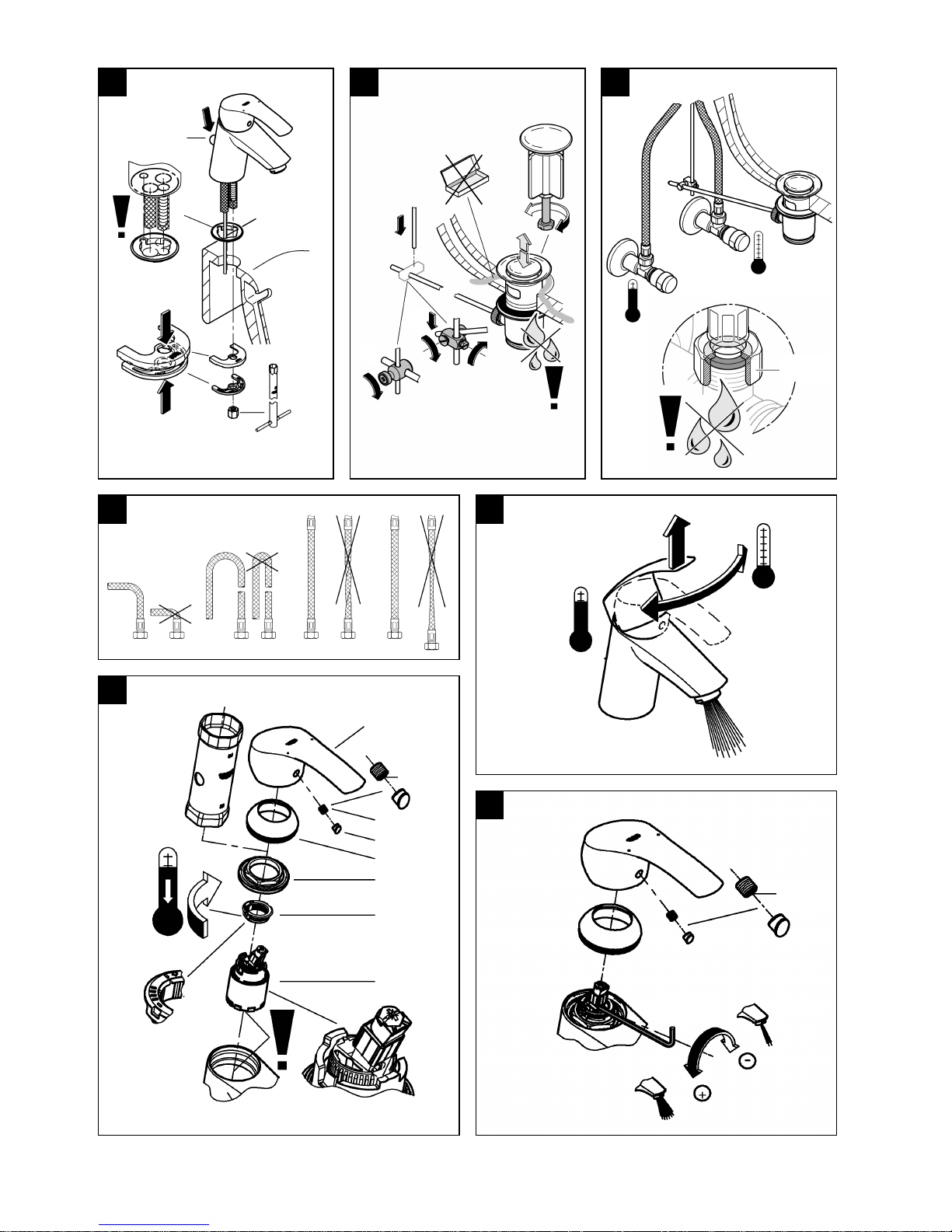

Installation and connection, see fold-out page III, Fig. [1], [3]

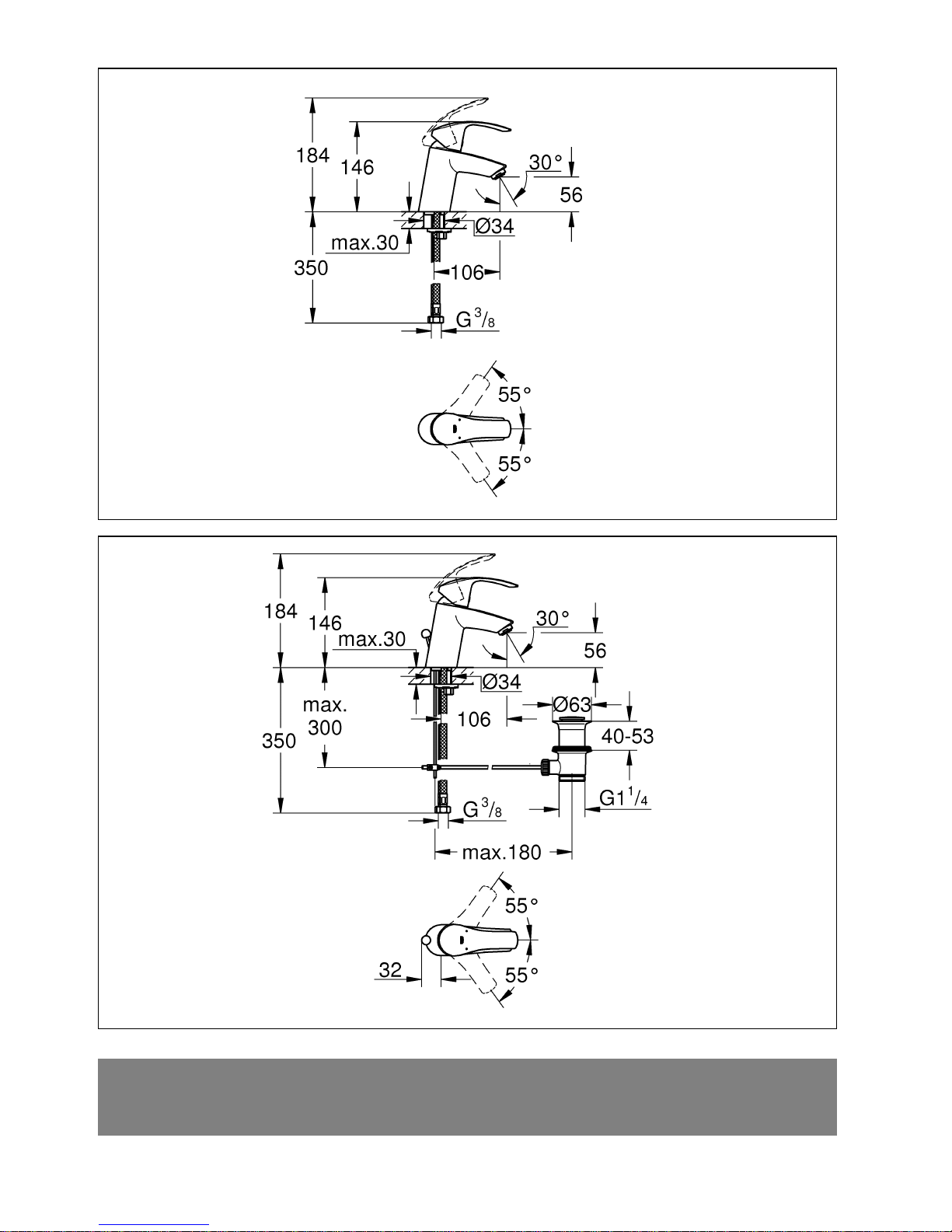

and [4]. Refer to the dimensional drawing on fold-out page I. When assembling, the waste rod (A) has to be placed into the

body, see fold-out page III, Fig. [1].

Fit pop-up waste set, see Fig. [2]. Seal plug-hole rim. Sealing set not included in the scope of delivery.

The cold water supply must be connected on the right and the hot water supply on the left.

Open cold and hot water supply and check connections for leakage!

Check fitting for correct function, see Fig. [5].

Flow rate limiter

This mixer is fitted with a flow rate limiter, permitting an infinitely individual variable reduction in the flow rate.

The highest possible flow rate is set by the factory before dispatch.

The use of flow rate limiters in combination with hydraulic instantaneous water heaters is not recommended.

For commissioning see “replacing the cartridge” point 1 to 3, Fig. [6] and [7].

Temperature limiter

On delivery, the temperature limiter is inoperative. For commissioning see “replacing the cartridge” point 1 to 3,

Fig. [6]. Change the maximum temperature by turning the set ring (G).

Maintenance

Inspect and clean all parts, replace if necessary and grease with special grease.

Shut off cold and hot water supply! I.Replacing the cartridge, see Fig. [6].

1.Lever out plug (D).

2.Remove set screw (C) using a 3mm allen key and pull off lever (B).

3.Pull off cap (E).

4.Turn out screwing (F) using a key 32mm.

5.Change complete cartridge (H).

Assemble in reverse order.

Observe the correct installation position!

Make sure that the cartridge seals engage in the grooves and the locating pins at the base of the cartridge slot into the apertures on the housing.

Screw in and tighten screwing (F).

II. Flow straightener, see fold-out page II. Unscrew and clean flow straightener (48 258).

Assemble in reverse order.

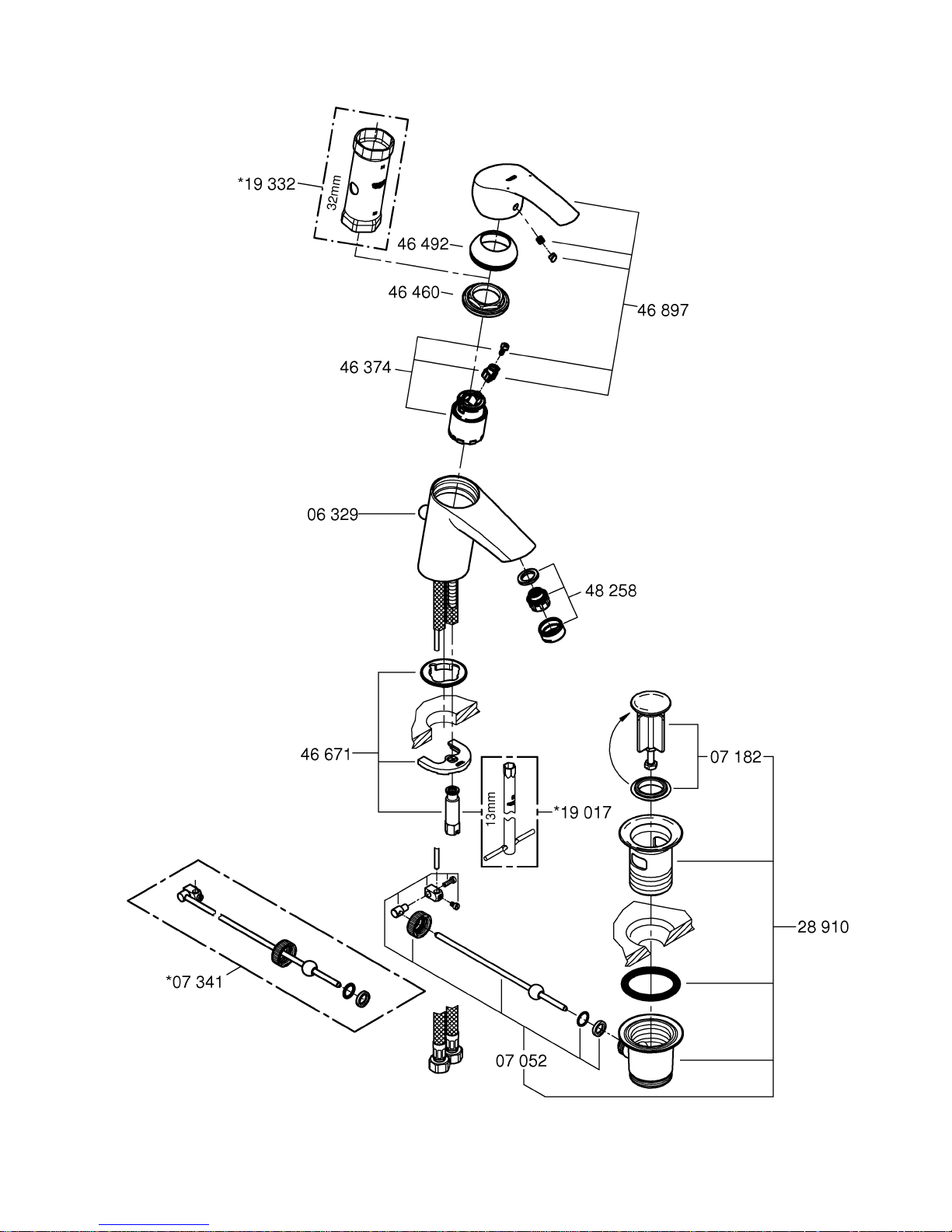

Replacement parts, see fold-out page II ( * = special accessories).

Care

Dear Customer,

We want to ensure that you get long-lasting satisfaction and pleasure from your GROHE fitting. Therefore, please read the following care instructions because damage to the surface and underlying material resulting from improper treatment is not covered by warranty.

Do not use any abrasive sponges or scouring agents for cleaning. We also advise you not to use cleaning agents containing solvent or acid, limescale removers, household vinegar and cleaning agents with acetic acid in them. They are aggressive to the surface - and will leave your fitting dull and scratched. As the formulations of commercially available cleaning agents frequently change, we cannot guarantee they will provide the gentle care our fitting deserves.

Clean the fitting with a little soap and a moist clo th only, then simply rinse off and wipe dry. You can avoid lime spots by drying the fitting each time it is used. If lime deposits do occur, remove them with GrohClean, our environment-friendly cleaning liquid. GrohClean is specially formulated to clean the surface of our fittings gently. GrohClean is available from your supplier.

Page 5

III

*19 017

13mm

19mm

*19 332

32mm

3mm

F G

2.5mm

3mm
