MODEL G0764Z

14" SLIDING TABLE SAW

OWNER'S MANUAL

(For models manufactured since 05/18)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN17972 PRINTED IN TAIWA N

V3 . 0 5 .1 8

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Machine Description

Contact Info.................................................... 2

Manual Accuracy Controls & Components Glossary Of Terms Sliding Table Saw Capacities Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Sliding Table Saws Additional Safety for Sliding Table Saws Preventing Kickback

Protecting Yourself From Kickback.............. 14

SECTION 2: POWER SUPPLY

440V Conversion

SECTION 3: SETUP

Needed for Setup Unpacking Hardware Recognition Chart Inventory Cleanup Site Considerations Lifting & Placing Saw Assembly Dust Collection

Power Connection........................................ 39

Test Run Recommended Adjustments

SECTION 4: OPERATIONS

Operation Overview

Workpiece Inspection................................... 44

Through & Non-Through Cuts Blade Guard Riving Knife Blade Requirements Blade Selection Changing Speed

Changing ..................................................... 50

Main Blade Replacing & Aligning Scoring Blade Setting Up Crosscut Fence Rip Cutting Crosscutting

Miter Cutting................................................. 61

Dado Cutting Rabbet Cutting Narrow-Rip Auxiliary Fence & Push Block

.................................................... 18

...................................................... 20

........................................................ 22

..................................................... 25

...................................................... 41

................................................. 45

.................................................. 46

................................................... 50

................................................... 54

................................................... 57

................................................. 59

................................................ 62

...................................... 2

........................................... 2

................................. 3

......................................... 6

........................ 7

...................................... 8

..................................... 11

................ 11

..... 13

.................................... 14

...................... 15

......................................... 16

....................................... 18

......................................... 18

....................... 19

...................................... 23

................................... 24

............................................. 38

........................ 42

........................... 43

..................................... 43

..................... 44

.................................... 47

............................................ 47

.......................................... 49

............ 51

............................................ 54

............................................. 63

.. 64

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule Cleaning & Protecting Lubrication

SECTION 7: SERVICE

Troubleshooting Belt Service Blade Tilt Calibration Sliding Table Parallel Adjustment Sliding Table Movement Adjustment Squaring Crosscut Fence to Blade Riving Knife Mounting Block Calibrating Rip Fence

SECTION 8: WIRING

Wiring Safety Instructions Wiring Overview Component Location Index Control Panel Wiring 220V Electrical Panel Wiring 440V Electrical Panel Wiring Scoring Motor Wiring

Main Motor Wiring ....................................... 89

Master Power Switch Wiring

SECTION 9: PARTS

Body Main Tables Control Panel Blade Enclosure Main Motor Main Blade Arbor Blade Tilt System Blade Elevation System Scoring Blade Arbor Scoring Blade Adjustment System Scoring Blade Motor Crosscut Swing-Arm Crosscut Table Crosscut Fence

Rip Fence................................................... 106

Sliding Table Blade Guard Sliding Table Accessories Electrical Labels & Cosmetics

WARRANTY & RETURNS

...................................................... 69

................................................... 70

................................... 71

........................................... 71

.................................................. 73

.................................... 75

...................................... 81

........................................... 82

.................................... 84

....................................... 91

............................................................. 91

................................................. 93

............................................... 94

........................................... 95

................................................... 96

......................................... 97

......................................... 98

................................... 100

.................................. 102

.................................. 103

........................................... 104

.......................................... 105

.............................................. 107

............................................... 108

.................................................... 111

................................... 112

......................... 66

......................... 69

.................................. 69

................ 76

........... 77

.............. 77

........................ 79

.................................. 80

............................ 81

.......................... 83

....................... 85

....................... 86

................................. 88

....................... 90

............................... 99

............ 101

.......................... 110

........................... 117

INTRODUCTION

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Machine Description

A sliding table saw is primarily used to rip and crosscut sheet stock or panels in a production setting. The sliding table saves time and increases accuracy by removing the burden of sliding large and heavy panels over a stationary table surface. This saw can also be used as a traditional table saw for most types of through-cuts.

The Model G0764Z is equipped with a scoring blade, which is a smaller circular saw blade located in front of the main blade. It makes a shallow cut in the workpiece in the opposite direction of the main blade, greatly reducing tearout and chipped edges.

When using the sliding table saw as a traditional table saw, the sliding table is locked in place and the rip fence is then used to guide the workpiece through the cut.

Contact Info

Email: techsupport@grizzly.com

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Manufacture Date

Serial Number

-2-

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: manuals@grizzly.com

Model G0764Z (Mfd. Since 05/18)

Controls & Components

Refer to Figures 1–5 and the following descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and stay safe when operating this saw.

Main Blade Not Included

Figure 1. Model G0764Z overview.

A. Crosscut Table. Provides a wide, stable

platform for supporting full-size panels during crosscutting operations. This is where you put panels when you are going to cut them using the sliding table.

B. Crosscut Fence. Used during crosscutting

operations to keep panels at the desired angle to the blade. Features a scale and flipstyle stop blocks.

C. Flip Stops. Used for quick, precise measure-

ments for repeatable cuts when using crosscut fence.

D. Sliding Table. Ball-bearing rollers make it

quicker and easier to guide large, heavy panels through the cut.

E. Blade Guard. Fully enclosed, adjustable

blade guard maintains maximum protection around the saw blade with a 4" dust port extending from the guard support that effectively extracts dust from the cutting operation.

F. Rip Fence. Fully adjustable with micro-

adjustment knob for precision cuts of smaller workpieces. Fence face can be positioned for standard cutting operations, or in the lower position for blade guard clearance during narrow ripping operations.

G. Hold-Down. Quickly clamps one end of

workpiece to sliding table.

H. Edge Shoe. Used with hold-down, keeps

the other end of workpiece secured to sliding table.

I. Control Panel. Features push-button con-

trols for operating saw.

J. Blade Angle Handwheel. Adjusts angle of

main and scoring blades for beveled cuts.

K. Blade Elevation Handwheel. Adjusts height

of the main saw blade.

Model G0764Z (Mfd. Since 05/18)

-3-

Rip Fence

To reduce your risk of serious injury, read this entire manual BEFORE

Figure 2. Rip fence controls.

L. Rip Fence Scale. Helps you measure the cut

when rip cutting.

M. Slide Lock Handle. Secures the aluminum

fence face on its forward/backward slide track to support the workpiece.

P. Rip Fence Lock Handle. Secures the rip

fence assembly into position along the fence rail so that the workpiece is stable when cutting.

Q. Micro-Adjust Lock Knob. Enables the use

of the micro-adjust knob for precise positioning of the rip fence.

Saw Blades

N. Micro-Adjust Knob. Provide precise adjust-

ments of the fence along the rail. Tighten micro-adjust lock knob to use this feature.

O. Rip Fence Rail. Provides a stable side-to-

side path for sliding the rip fence assembly toward or away from blade.

using machine.

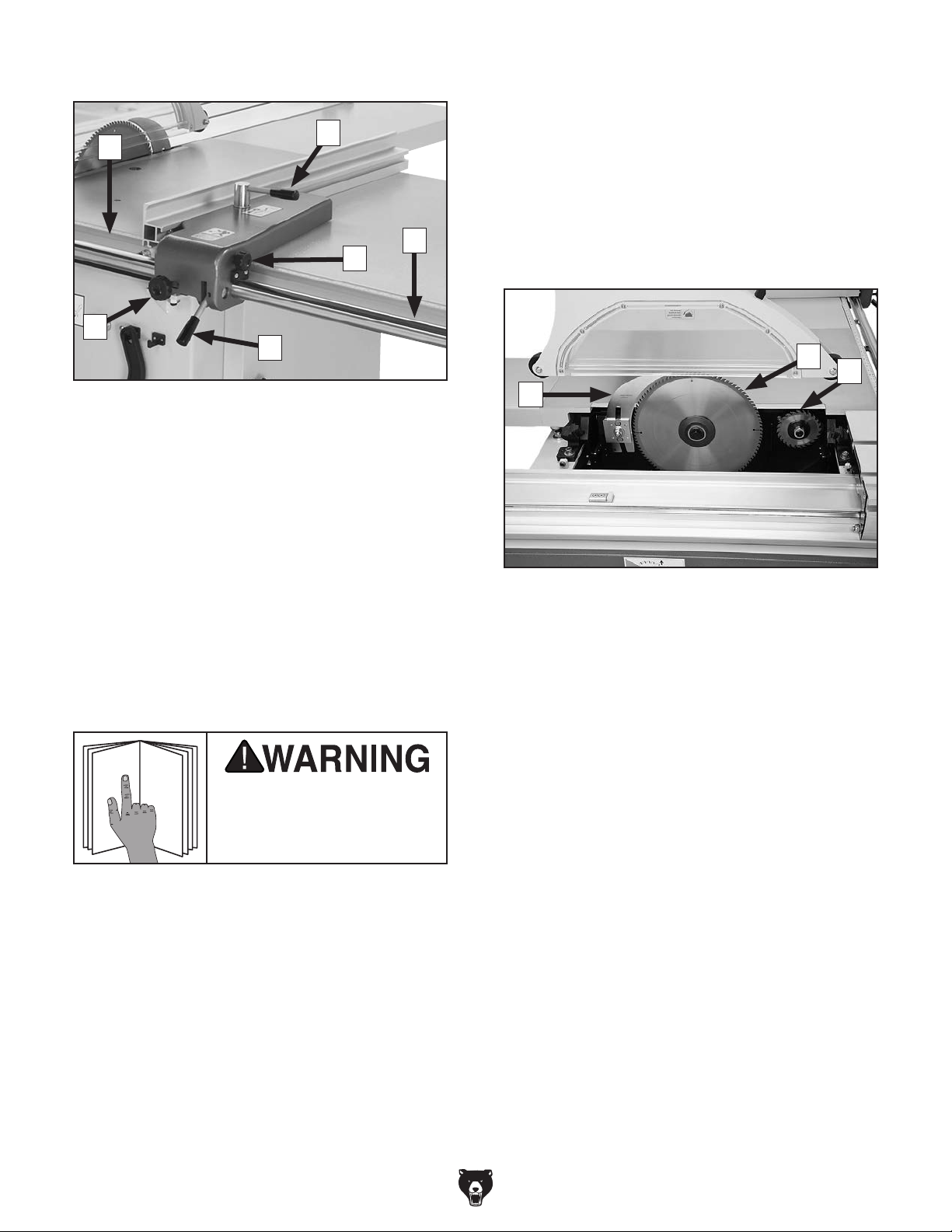

Figure 3. Saw blades.

R. Riving Knife. Maintains kerf opening during

cutting operations. This function is crucial to preventing kickback caused by the kerf closing behind the blade.

S. Main Blade. Performs the cutting operation.

T. Scoring Blade. Rotates in the opposite

direction of the main blade and pre-cuts the surface of the workpiece before the actual cutting operation is performed to reduce tearout or chipping. The scoring blade is adjustable for kerf thickness and alignment with the main blade.

-4-

Model G0764Z (Mfd. Since 05/18)

Front Controls Rear Controls

U V W

X Y

Figure 4. Front controls.

U. Main Blade Elevation Handwheel. Raises

and lowers the main blade. The lock knob in the center secures the handwheel to prevent blade from moving during operation.

V. Tilt Scale. Displays the tilt angle of blades in

degrees.

W. Blade Tilt Handwheel. Adjusts the tilt angle

of both blades. The lock knob in the center secures the handwheel to prevent blade from moving during operation.

X. Main Blade ON Button.

Y. Main Blade OFF Button.

Z. Scoring Blade ON Button.

Figure 5. Rear controls.

AD. Master Power Switch. Enables power flow

to the machine.

AE. Scoring Blade Elevation Knob. Raises

and lowers the scoring blade to change the kerf thickness. The knurled wheel behind the knob secures the setting to prevent blade from moving during operation.

AF. Scoring Blade Alignment Knob. Adjusts

the alignment of scoring blade to the main blade. The knurled wheel behind the knob secures the setting to prevent blade from moving during operation.

AG. Emergency Stop Button. Turns both motors

OFF. Twist clockwise until it pops out to reset.

AA. Scoring Blade OFF Button.

AB. Power Lamp. When lit, provides a visual

indicator that power is enabled to the saw.

AC. Emergency Stop Button. Turns both motors

OFF. Twist clockwise until it pops out to reset.

Model G0764Z (Mfd. Since 05/18)

-5-

Glossary Of Terms

The following is a list of common definitions, terms and phrases used throughout this manual as they relate to this sliding table saw and woodworking in general. Become familiar with these terms for assembling, adjusting or operating this machine. Your safety is VERY important to us at Grizzly!

Arbor: Metal shaft extending from the drive

mechanism, to which saw blade is mounted.

Bevel Edge Cut: Tilting the arbor and saw blade

to an angle between 0° and 45° to cut a beveled edge onto a workpiece.

Blade Guard: Metal or plastic safety device that

mounts over the saw blade. Its function is to prevent the operator from coming into contact with the saw blade.

Crosscut: Cutting operation in which the cross-

cut fence is used to cut across the grain, or across the shortest width of the workpiece.

Dado Blade: Blade or set of blades that are used

to cut grooves and rabbets.

Dado Cut: Cutting operation that cuts a flat bot-

tomed groove into the face of the workpiece.

Featherboard: Safety device used to keep the

workpiece against the rip fence and against the table surface.

Kerf: The resulting cut or gap in the workpiece

from the saw blade passing through it while cutting.

Kickback: A dangerous event that happens if

the blade catches on the workpieces while cutting. The force of the blade then throws the workpiece back toward the operator with what sounds like a horrible explosion. The danger comes from flying stock striking the operator or bystanders. The operator’s hands may also be pulled into the blade during the kickback. Refer to Preventing Kickback on Page 14 for additional information.

Parallel: When two objects are spaced an equal

distance apart at every point along two given lines or planes (I.e. the rip fence face is parallel to the face of the saw blade).

Non-Through Cut: A sawing operation in which

the workpiece is not completely sawn through. Dado and rabbet cuts are considered NonThrough Cuts because the blade does not protrude above the top face of the wood stock.

Perpendicular: Lines or planes that intersect

and form right angles. I.e. the blade is perpendicular to the table surface.

Push Stick: Safety device used to push the

workpiece through a cutting operation. Used most often when rip cutting thin workpieces.

Rabbet: Cutting operation that creates an

L-shaped channel along the edge of the workpiece.

Riving Knife: Metal plate located behind the

blade maintains the kerf opening in the wood when cutting, and helps reduce the risk of injury from a kickback that otherwise would result in amputation.

Straightedge: A tool with a perfectly straight

edge used to check the flatness, parallelism, or consistency of a surface(s).

Through Cut: A sawing operation in which the

workpiece is completely sawn through.

Rip Cut: Cutting operation in which the rip fence

is used to cut with the grain, or cut across the widest width of the workpiece.

-6-

Model G0764Z (Mfd. Since 05/18)

SLIDING TABLE

SAW CAPACITIES

Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901

MODEL G0764Z 14" SLIDING TABLE SAW

134"

124"

Ripping Width

42"

Miter Cut 90º (push cut)

Miter Cut 45º

134"

90"

511/4"

134"

126"

Cross Cut

134"

Miter Cut 45º (push cut)

Cross Cut (fence not extended)

58"

124"

731/4"

Miter Cut 45º (push cut, fence not extended)

Model G0764Z (Mfd. Since 05/18)

731/4"

58"

126"

Miter Cut 45º (fence not extended)

-7-

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0764Z 14" SLIDING TABLE SAW

Product Dimensions:

Weight............................................................................................................................................................ 1410 lbs.

Width (side-to-side) x Depth (front-to-back) x Height....................................................................... 133 x 202 x 65 in.

Footprint (Length x Width)............................................................................................................... 74-1/2 x 35-1/2 in.

Space Required for Full Range of Movement (Width x Depth)................................................................ 279 x 203 in.

Shipping Dimensions:

Carton #1

Type................................................................................................................................................ Wood Crate

Content................................................................................................................................................. Machine

Weight.................................................................................................................................................. 1397 lbs.

Length x Width x Height............................................................................................................. 83 x 45 x 44 in.

Must Ship Upright......................................................................................................................................... Yes

Carton #2

Type................................................................................................................................................ Wood Crate

Content.......................................................................................................................................... Sliding Table

Weight.................................................................................................................................................... 246 lbs.

Length x Width x Height............................................................................................................. 130 x 17 x 9 in.

Must Ship Upright......................................................................................................................................... Yes

Electrical:

Power Requirement..................................................................................................... 220V or 440V, 3-Phase, 60 Hz

Prewired Voltage.................................................................................................................................................. 220V

Full-Load Current Rating............................................................................................... 29.2A at 220V, 14.6A at 440V

Minimum Circuit Size.......................................................................................................... 40A at 220V, 20A at 440V

Connection Type........................................................................................... Permanent (Hardwire to Shutoff Switch)

Switch Type................................................................................................. Magnetic w/Thermal Overload Protection

Voltage Conversion Kit.............................................................................................................. P0764Z1814 for 440V

Recommended Phase Converter....................................................................................................................... G7978

-8-

Motors:

Main

Type........................................................................................................................................... TEFC Induction

Horsepower.............................................................................................................................................. 10 HP

Phase.................................................................................................................................................... 3-Phase

Amps......................................................................................................................... 26A at 220V, 13A at 440V

Speed................................................................................................................................................ 3450 RPM

Power Transfer .................................................................................................................................. Belt Drive

Bearings........................................................................................................ Sealed & Permanently Lubricated

Scoring Blade

Type........................................................................................................................................... TEFC Induction

Horsepower................................................................................................................................................ 1 HP

Phase.................................................................................................................................................... 3-Phase

Amps....................................................................................................................... 3.2A at 220V, 1.6A at 440V

Speed................................................................................................................................................ 3450 RPM

Power Transfer .................................................................................................................................. Belt Drive

Bearings........................................................................................................ Sealed & Permanently Lubricated

Model G0764Z (Mfd. Since 05/18)

Main Specifications:

Operation Information

Main Blade Size......................................................................................................................................... 14 in.

Main Blade Arbor Size................................................................................................................................. 1 in.

Scoring Blade Size................................................................................................................................ 4-3/4 in.

Scoring Blade Arbor Size........................................................................................................................ 20 mm

Main Blade Tilt.................................................................................................................................. 0 – 45 deg.

Main Blade Speed......................................................................................................... 3000, 4000, 5000 RPM

Scoring Blade Tilt............................................................................................................................. 0 – 45 deg.

Scoring Blade Speed......................................................................................................................... 8000 RPM

Cutting Capacities

Max Depth of Cut At 90 Deg.................................................................................................................. 4-1/8 in.

Max Depth of Cut At 45 Deg.................................................................................................................. 2-7/8 in.

Rip Fence Max Cut Width.................................................................................................................... 51-1/4 in.

Sliding Table w/Crosscut Fence Max Cut Width...................................................................................... 134 in.

Sliding Table w/Crosscut Fence Max Cut Length.................................................................................... 124 in.

Miter Fence Max Cut Width at 45 Deg..................................................................................................... 126 in.

Table Information

Floor To Table Height.......................................................................................................................... 34-1/2 in.

Table Size Length................................................................................................................................ 39-1/2 in.

Table Size Width................................................................................................................................. 21-1/2 in.

Table Size Thickness.......................................................................................................................... 2-5/16 in.

Table Size With Ext Wings Length...................................................................................................... 35-1/4 in.

Table Size With Ext Wings Width........................................................................................................ 59-1/8 in.

Table Size With Ext Wings Thickness................................................................................................... 2-1/2 in.

Sliding Table Length................................................................................................................................ 126 in.

Sliding Table Width.................................................................................................................................... 14 in.

Sliding Table Thickness......................................................................................................................... 6-3/4 in.

Sliding Table T-Slot Top Width................................................................................................................. 5/8 in.

Sliding Table T-Slot Height....................................................................................................................... 5/8 in.

Sliding Table T-Slot Bottom Width......................................................................................................... 1-1/2 in.

Fence Information

Crosscut Fence Type.......................................................................................................... Extruded Aluminum

Crosscut Fence Size Length...................................................................................................................... 73 in.

Crosscut Fence Size Width................................................................................................................... 2-3/8 in.

Crosscut Fence Size Height.................................................................................................................. 2-3/8 in.

Crosscut Fence Number of Stops.................................................................................................................... 2

Rip Fence Type................................................................................................................. Single Lever Locking

Rip Fence Size Length........................................................................................................................ 39-3/8 in.

Rip Fence Size Width.................................................................................................................................. 2 in.

Rip Fence Size Height........................................................................................................................... 3-1/2 in.

Construction Materials

Table.................................................................................................................................................... Cast Iron

Cabinet..................................................................................................................................................... Steeel

Rip Fence Rails.......................................................................................................................... Chromed Steel

Guard............................................................................................................................ Sheet Steel and Plastic

Spindle Bearing Type.................................................................................... Sealed & Permanently Lubricated

Cabinet Paint Type/Finish.......................................................................................................... Powder Coated

Other Related Information

No of Dust Ports............................................................................................................................................... 2

Dust Port Size.......................................................................................................................................... 4, 5 in.

Model G0764Z (Mfd. Since 05/18)

-9-

Other Specifications:

Country of Origin .............................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ............................................................................................................. 3 Hours

Serial Number Location .................................................................................................. ID Label on Side of Machine

ISO 9001 Factory .................................................................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No

Features:

Micro-Adjustable Rip Fence Scoring Saw Blade for Tear-Out Free Cutting Sliding Table on Steel Ball Guide System with Heat-Treated Steel Ways Alloy Crosscut Fence for Miter Cutting 45 Deg. Right and Left Miter Fence with Two Swing Stops for Repetitive Cutting Adjustable Riving Knife Overhead Blade Guard with Built-In Dust Port Safety Limit Switch for Blade Cover

-10 -

Model G0764Z (Mfd. Since 05/18)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.

This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

Model G0764Z (Mfd. Since 05/18)

-11-

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-12-

Model G0764Z (Mfd. Since 05/18)

Additional Safety for Sliding Table Saws

Serious injury or death can occur from getting cut or having body parts, such as fingers, amputated by rotating saw blade. Workpieces thrown by kickback can strike operators or bystanders with deadly force. Flying particles from cutting operations or broken blades can cause eye injuries or blindness. To minimize risk of getting hurt or killed, anyone operating machine MUST completely heed hazards and warnings below.

HAND & BODY POSITIONING. Keep hands

away from saw blade and out of blade path during operation, so they cannot slip accidentally into blade. Stand to side of blade path. Never reach around, behind, or over blade. Only operate at front of machine.

BLADE GUARD. Use blade guard for all cuts that allow it to be used safely. Make sure blade guard is installed and adjusted correctly. Promptly repair or replace if damaged. Re-install blade guard immediately after operations that require its removal.

RIVING KNIFE. Use riving knife for all cuts. Make sure riving knife is aligned and positioned correctly. Promptly repair or replace it if damaged.

KICKBACK. Kickback occurs when saw blade ejects workpiece back toward operator. Know how to reduce risk of kickback. Learn how to protect yourself if it does occur.

FENCE ADJUSTMENTS. Make sure rip fence remains properly adjusted and parallel with blade. Always lock fence before using.

PUSH STICKS/BLOCKS. Use push sticks or push blocks whenever possible to keep your hands farther away from blade while cutting. In event of an accident these devices will often take damage that would have happened to hands/ fingers.

BLADE ADJUSTMENTS. Adjusting blade height or tilt during operation increases risk of crashing blade and sending metal fragments flying with deadly force at operator or bystanders. Only adjust blade height and tilt when blade is completely stopped and saw is OFF.

CHANGING BLADES. Always disconnect power before changing blades. Changing blades while saw is connected to power greatly increases injury risk if saw is accidentally powered up.

WORKPIECE CONTROL. Feeding workpiece incorrectly increases risk of kickback. Make sure workpiece is in stable position on tables and supported by rip fence or crosscut fence during cutting operation. Never start saw with workpiece touching blade. Allow blade to reach full speed before cutting. Only feed workpiece against direction of main blade rotation. Always use some type of guide to feed workpiece in a straight line. Never back workpiece out of cut or move it backwards or sideways after starting a cut. Feed cuts all the way through to completion. Never perform any operation “freehand”. Turn OFF saw and wait until blade is completely stopped before removing workpiece.

Model G0764Z (Mfd. Since 05/18)

DAMAGED SAW BLADES. Never use blades that have been dropped or otherwise damaged.

CUTTING CORRECT MATERIAL. Never cut materials not intended for this saw. Only cut natural and man-made wood products, laminate covered wood products, and some plastics. Cutting metal, glass, stone, tile, etc. increases risk of operator injury due to kickback or flying particles.

-13-

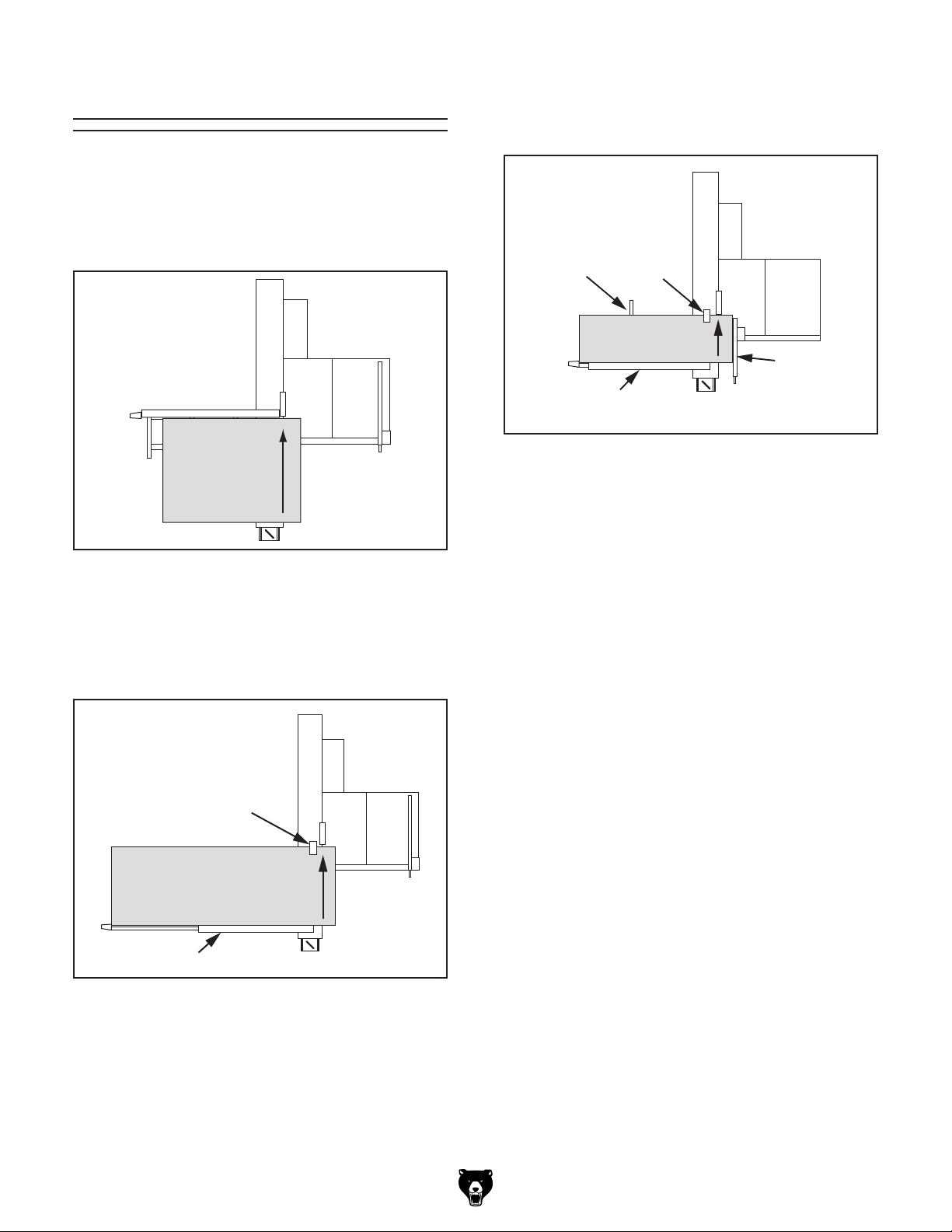

Preventing Kickback

Do the following to prevent kickback:

• When rip cutting, only cut workpieces that have at least one smooth and straight edge. DO NOT cut excessively warped, cupped or twisted wood. If workpiece warpage is questionable, always choose another workpiece.

• Never attempt freehand cuts. If the workpiece is not fed parallel with the blade, kickback will likely occur. Always use the rip fence or crosscut fence to support the workpiece.

Statistics show that the most common accidents among table saw users can be linked to kickback. Kickback is typically defined as the high-speed expulsion of stock from the table saw toward the operator. In addition to the danger of the operator or others in the area being struck by the flying stock, it is often the case that the operator’s hands are pulled into the blade during the kickback.

Protecting Yourself

• Make sure the riving knife is properly aligned with the blade. A misaligned riving knife can cause the workpiece to catch or bind, increasing the chance of kickback. If you think that your riving knife is not aligned with the blade, stop operations, and check it immediately!

• Ensure sliding table slides parallel with the blade; otherwise, the chances of kickback are extreme. Take the time to check and adjust

the sliding table before cutting.

• Always use the riving knife whenever possible. It reduces risk of kickback and reduces your risk of injury if it does occur.

• Always keep blade guard installed and in good working order.

• Feed cuts through to completion. Any time you stop feeding a workpiece in the middle of a cut, the chance of kickback is greatly increased.

• Ensure rip fence is adjusted parallel with the blade; otherwise, the chances of kickback are extreme. Take the time to check and adjust the rip fence before cutting.

From Kickback

Even if you know how to prevent kickback, it may still happen. Here are some precautions to help protect yourself if kickback DOES occur:

• Stand to the side of the blade path when cutting. If a kickback does occur, the thrown workpiece usually travels directly towards the front of the blade.

• Wear safety glasses or a face shield. In the event of a kickback, your eyes and face are the most vulnerable parts of your body.

• Never, for any reason, place your hand behind the blade path. Should kickback occur, your hand will be pulled into the blade.

• Use a push stick or push block to keep your hands farther away from the moving blade. If a kickback occurs, these safety devices will most likely take the damage that your hand would have received.

• Use featherboards or anti-kickback devices to prevent or slow down kickback.

-14-

Model G0764Z (Mfd. Since 05/18)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage may occur if machine is not properly grounded and connected to power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

This machine can be converted to operate on a power supply circuit that has a verified ground and meets the requirements listed below. (Refer to Voltage Conversion instructions for details.)

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Full-Load Current Rating at 220V .. 29.2 Amps Full-Load Current Rating at 440V

Model G0764Z (Mfd. Since 05/18)

.. 14.6 Amps

Circuit Requirements for 220V

Nominal Voltage ................... 220V, 230V, 240V

..........................................................60 Hz

Cycle Phase Power Supply Circuit

.................................................... 3-Phase

......................... 40 Amps

Circuit Requirements for 440V

Nominal Voltage ............................. 440V, 480V

..........................................................60 Hz

Cycle Phase Power Supply Circuit

.................................................... 3-Phase

......................... 20 Amps

-15-

Connection Type

A permanently connected (hardwired) power supply is typically installed with wires running through mounted and secured conduit. A disconnecting means, such as a locking switch (see following figure), must be provided to allow the machine to be disconnected (isolated) from the power supply when required. This installation must be performed by an electrician in accordance with all applicable electrical codes and ordinances.

Since this machine must be permanently connected to the power supply, an extension cord cannot be used.

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. A permanently connected machine must be connected to a grounded metal permanent wiring system; or to a system having an equipmentgrounding conductor. All grounds must be verified and rated for the electrical requirements of the machine. Improper grounding can increase the risk of electric shock!

440V Conversion

The Model G0764Z can be converted for 440V operation. This conversion job consists of: 1) Disconnecting the saw from the power source, 2) moving the fuse to the 440V holder, 3) replacing the overload relays, and 4) rewiring the main and scoring blade motors for 440V operation. Refer to Page 86 for a detailed 440V wiring diagram

Locking

Disconnect Switch

Power

Source

ConduitConduit

Ground

Figure 6. Typical setup of a permanently

connected machine.

Grounding Instructions

Machine

Ground

All wiring changes must be inspected by a qualified electrician or service personnel before the saw is connected to the power source. If, at any time during this procedure you need help, call Grizzly Tech Support at (570) 546-9663.

Contact the Grizzly Order Desk at (800) 523-4777 to purchase the 440V Conversion Kit, Part No. P0764Z1814.

To convert G0764Z for 440V operation:

DISCONNECT MACHINE FROM POWER!

2. Using a 4mm hex wrench, remove electri-

cal panel cover (see Figure 7) from back of frame.

Electrical Panel

Cover

Serious injury could occur if you connect machine to power before completing setup process. DO NOT connect to power until instructed later in this manual.

Extension Cords

-16 -

Figure 7. Electrical panel cover location.

Model G0764Z (Mfd. Since 05/18)

3. Remove fuse from “220V” holder and insert it

1L1

5L3

13NO

3L2

2T1

6T3

4T2

14NO

S-P11

Shihlin

1L1

5L3

13NO

3L2

21NC

2T1

6T3

4T2

22NC

14NO

Shihlin

S-P21

1L1

5L3

13NO

3L2

21NC

2T1

6T3

4T2

22NC

14NO

Shihlin

S-P21

1L1

5L3

13NO

3L2

21NC

2T1

6T3

4T2

22NC

14NO

Shihlin

S-P21

654

781

220V

440V

220V

STAR-DELTA TIMER

TYPE TRD-N

ANLY

SECONDS

101520

RST

220

440

Ground

5RS

88T

220

440

220

440

014

RST

440

LCE

TBSM-100040

XYZ

into “440V” holder (see illustration in Figure 8).

Replace right overload relay with Shihlin

TH-P20 overload relay, and set amperage dial to 15A (see Figure 9).

220V Fuse

6 5 4 3

Fuse

SECONDS

Holder

220V

440V Fuse

Holder

440V

TIMER

FOTEK

H3-TRD-30S

7 8 1 2

220

440

Figure 8. Moving fuse to “440V” fuse holder.

Replace left overload relay with TH-P12

overload relay, and set amperage dial to 1.7A (see Figure 9).

Open motor cabinet door on back of saw.

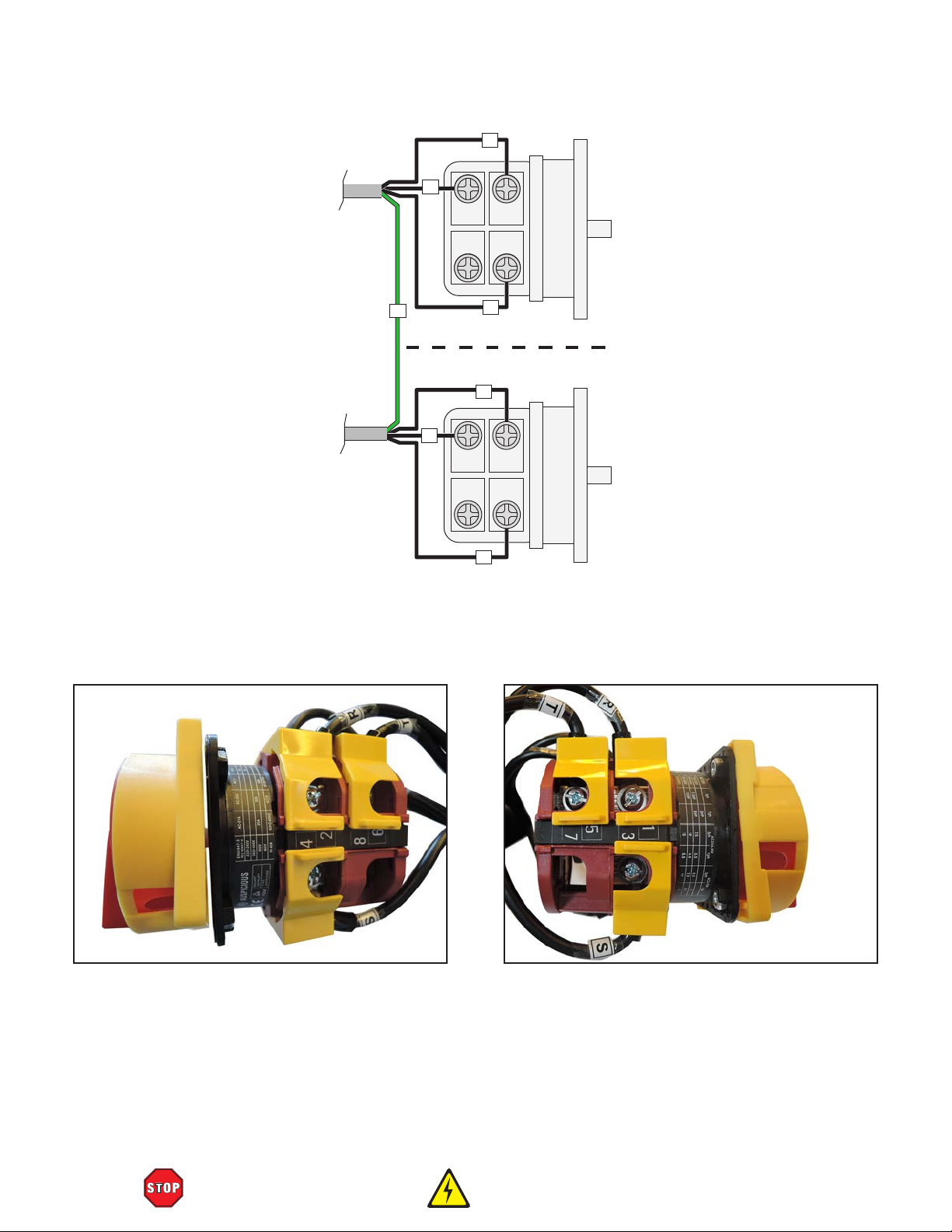

7. Rewire main blade and scoring blade motors to 440V. Refer to wiring diagrams on Pages 88–89.

Close motor cabinet door and replace electri-

cal panel cover.

After Setup and Assembly procedures are

completed, connect machine to power, as instructed on Page 39.

1L1

TH-P20

Overload

Relay

5L3

3L2

TH-P20

RCA

TH-P12

Overload

Relay

RESET TRIP

H A

U V W

2.1

1.3

1.7

RCA

96959798

Figure 9. Overload relays for 440V.

TRIP

RESET

Model G0764Z (Mfd. Since 05/18)

-17-

SECTION 3: SETUP

get help from other people

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT:

you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Keep children and pets away from plastic bags or packing materials shipped with this

Needed for Setup

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Wear safety glasses during the entire setup process!

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk,

The following are not included, but needed to properly complete the setup process.

Description Qty

• Additional People ....................................... 4

• Safety Glasses ........................ 1 Per Person

• Cleaner/Degreaser (Page 22) .... As Needed

• Disposable Shop Rags ............... As Needed

• Forklift (Rated for at least 2000 lbs.) .......... 1

• Straightedge 4' ........................................... 1

• Level ........................................................... 1

• Screwdriver Phillips #2 ............................... 1

• Screwdriver Flat Head #2 ........................... 1

• Saw Blade 14" (Page 66) ........................... 1

• Dust Collection System w/4" Branch Line . . 1

• Dust Hose 4" (Page 38) ............................. 1

• Hose Clamp 4" (Page 38) .......................... 1

• Dust Hose 5" (Page 38) ............................. 1

• Hose Clamp 5" (Page 38) .......................... 1

and use a forklift (or other lifting equipment) rated for weight of this machine.

-18-

Unpacking

If items are damaged

call us immediately at (570) 546-9663.

Save all packaging materials until

SUFFOCATION HAZARD!

machine. Discard immediately.

Model G0764Z (Mfd. Since 05/18)

5mm

Hardware Recognition Chart

Model G0764Z (Mfd. Since 05/18)

-19 -

Inventory

These are the “loose” components shipped with the machine. Before setup, lay them out to make sure you have everything listed below.

If any non-proprietary parts are missing (e.g. a nut, bolt, or washer), we will gladly ship them upon verification of order. For the sake of expediency, you can also get replacement parts at your local hardware store.

Inventory (Figure 10) Qty

A. Small Extension Table ................................ 1

— Set Screws M10-1.5 x 20 ........................ 2

— Hex Nuts M10-1.5 ................................... 2

Large Extension Table ............................... 1

— Set Screws M10-1.5 x 20 ........................ 3

— Hex Nuts M10-1.5 ................................... 3

Crosscut Table ........................................... 1

D. Crosscut Fence .......................................... 1

E. Crosscut Table Brace ................................. 1

F. Rip Fence Rail w/Fasteners ....................... 1

Rip Fence Scale ......................................... 1

H. Rip Fence ................................................... 1

Cabinet Door .............................................. 1

Inventory (Figure 11) Qty

J. Rip Fence Body Assembly ......................... 1

Push Handle Assembly .............................. 1

— Push Handle ........................................... 1

— T-Nut M12-1.75 ........................................ 1

— Flat Washer 12mm .................................. 1

— Flat Washer 12mm (Copper) .................. 1

Crosscut Fence Flip Stops ......................... 2

M. Edge Shoe Assembly ................................. 1

N. Push Stick .................................................. 1

Riving Knife ................................................ 1

Hold-Down Assembly ................................ 1

Q. Blade Guard Cover (Straight) ..................... 1

Blade Guard Connection Plate Assembly . . 1

Blade Guard Cover (Wide) ......................... 1

Blade Guard Dust Hood ............................. 1

Dust Port Connection ................................. 1

End Plate w/Handle (Sliding Table) ............ 1

Arm Support Base ...................................... 1

Arm Support Pedestal ................................ 1

Upper Support Arm .................................... 1

End Cap (Sliding Table) .............................. 1

Dust Hose ................................................... 1

ZZ.

-20-

Figure 10. G0764Z Inventory 1.

Figure 11. G0764Z Inventory 2.

Model G0764Z (Mfd. Since 05/18)

AA. Arbor Locking Pin ....................................... 1

T-bolts M12-1.75 x 50.................................. 3

AB.

Rip Fence Rail Stop Ring w/Set Screw ...... 1

AC.

Locking Handles M10-1.5 x 12 ................... 2

AD.

Knob Bolt M10-1.5 x 70 .............................. 1

AE.

Rip Fence End Stop ................................... 1

AF.

Adjustable Lock Handle M12-1.75 x 55 ...... 1

AG.

T-Nut Plate M12-1.75 .................................. 1

AH.

T- Nuts M8 -1.25 ........................................... 5

AI.

90° Stop Block............................................ 1

AJ.

T-Bolt M8-1.25 x 35 .................................... 1

AK.

Pivot Bolt M8-1.25 ...................................... 1

AL.

AM. T-Slot Plate M8-1.25 ................................... 1

AN. Long Knobs M8-1.25 .................................. 2

AO. Knob Bolt M8-1.25 x 50 .............................. 3

Knob Bolt M8-1.25 x 25 w/Nylon Tip .......... 1

AP.

Wire Clamps 3" .......................................... 2

AQ.

Dust Hood Return Spring ........................... 1

AR.

Dust Port Adapter 4" .................................. 1

AS.

Component Hardware (not shown) Qty

—Combo Wrenches 30mm (Toolbox) ............... 2

—Open-End Wrench 19/22mm (Toolbox) —Open-End Wrench 36mm (Toolbox) —Lock Washers 12mm (Sliding Table) —Flat Washers 12mm (Sliding Table) —Hex Nuts M12-1.75 (Sliding Table) —B.H. Cap Screws M6-1 x 12 (Fence Scale) —Flat Washers 6mm (Rip Fence Scale) —Hex Nut M6-1 (Rip Fence Scale) —Cap Screw M8-1.25 x 15 (Fence Rail) —Lock Washer 8mm (Fence Rail) —Flat Washer 12mm (Crosscut Table) —Flat Washers 8mm (Crosscut Brace) —Cap Screw M8-1.25 x 35 (Crosscut Fence) —Lock Washer 8mm (Crosscut Fence) —Flat Washer 8mm, Fiber (Crosscut Fence)

—Fender Washer 8mm (Crosscut Fence)......... 2

—Fender Washers 20mm (Lower Guard Arm) —Hex Nuts M20-2.5 (Lower Guard Arm) —Hex Bolt M12-1.75 x 70 (Lower Guard Arm) —Hex Nut M12-1.75 (Lower Guard Arm) —Cap Screws M8-1.25 x 25 (Arm Support) —Flat Washers 8mm (Arm Support) —Lock Washers 8mm (Arm Support) —Hex Bolt M10-1.5 x 30 (Arm Support) —90° Mounting Bracket (Arm Support) —B.H. Cap Screws M6-1 x 12 (Dust Coupler) —Flat Washers 6mm —Lock Washers 6mm —Cap Screws M6-1 x 20 (Guard Cover) —Lock Washers 6mm (Guard Cover) —Flat Washers 6mm (Guard Cover) —Toolbox

........................................................... 1

......................................... 5

....................................... 6

.................... 1

......... 1

.............. 1

............. 3

............... 3

................. 3

... 3

........... 4

................... 2

........... 1

............. 1

............. 2

... 1

............ 1

.... 1

. 2

.......... 2

.. 1

........... 1

...... 4

................. 4

............... 4

............ 1

. . 4

.......... 5

............... 3

................. 3

Figure 12. G0764Z Inventory 3.

Model G0764Z (Mfd. Since 05/18)

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

-21-

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufacturer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

Many cleaning solvents

work in a well-ventilated

Avoid chlorine-based solvents, such as

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Avo id using these products to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

acetone or brake parts cleaner, that may damage painted surfaces.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from your machine during clean up.

Figure 13. T23692 Orange Power Degreaser.

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant to prevent rust.

-22-

Model G0764Z (Mfd. Since 05/18)

Site Considerations

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

Machine Data Sheet for the weight

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

133"

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or apply a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate enough that operations can be performed safely.

Model G0764Z (Mfd. Since 05/18)

203"

Figure 14. Minimum working clearances.

279"

-23-

Lifting &

get help from other people

Placing Saw

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk,

and use a forklift (or other lifting equipment) rated for weight of this machine.

To lift and place saw:

Position crate as close to installation location

as possible.

Remove small items packed around saw and

unbolt saw from pallet.

DO NOT lift saw any higher than necessary to clear pallet. Serious personal injury and machine damage may occur if safe moving methods are not followed.

4. With an assistant holding each end to help

stabilize load, lift saw with forklift just high enough to clear pallet, and move it to your predetermined location.

Lower saw onto ground and back forklift

away.

Remove top of crate. Position forklift forks as

wide as they can be while still fitting under center opening (see Figure 15).

Figure 15. How to insert forks for lifting table

saw off pallet.

-24-

Model G0764Z (Mfd. Since 05/18)

Assembly

The sliding table weighs nearly 200 pounds. It must be lifted and carefully positioned onto saw frame during assembly. If you are using a forklift to lift and place it, you'll need to use lifting slings around table to prevent scratching the aluminum surface.

If you are not able to use the described forklift method, the sliding table can be lifted into place by four strong people—with one lifting from each corner.

2. Insert (3) M12-1.75 x 50 T-bolts into T-slot along bottom of sliding table (see Figure 17), and space them the same distance apart as mounting holes in cabinet frame.

T-Bolt

(1 of 3)

The only other part of the assembly that requires additional help is installation of the extension tables and blade guard arm. It takes approximately two hours to assemble the saw and make the required adjustments to prepare the saw for the test run.

To assemble sliding table saw:

Turn sliding table upside down, as shown in

Figure 16.

Figure 16. Sliding table turned upside down.

Figure 17. T-slot along bottom of table.

Lift sliding table over saw and lower T-bolts

into mounting holes on frame, as shown in Figure 18.

Note: Make sure cap screw shown in Figure

18 is on outside of cabinet frame and against mount edge.

T-Bolt

(1 of 3)

Cap Screw

Figure 18. Inserting T-bolt into mounting hole on

saw frame.

Lifting heavy machinery or parts without proper assistance or equipment may result in strains, back injuries, crushing injuries, or property damage.

Model G0764Z (Mfd. Since 05/18)

-25-

4. Install end plate with handle, as shown in Figure 19, using the screws pre-installed in

this location on the sliding table.

End Plate

w/Handle

Figure 19. Slide table control end handle.

5. Position sliding table against parallelism

adjustment bolts at each end (see Figure 20).

Parallelism Adjustment Bolt

(1 of 2)

Sliding Table T-bolt

Figure 22. Sliding table T-bolt access on rear

side at front of saw.

Sliding Table T-bolt

(Middle)

Cabinet Access Hole

Figure 23. Sliding table middle T-bolt access.

Sliding Table

Figure 20. Sliding table parallelism adjustment

bolt (1 of 2).

6. Remove access covers on each side of the frame to reach the T-bolts on the ends of the sliding table (Figures 21–22). Reach through cabinet access hole to reach middle sliding table T-bolt (Figure 23).

Sliding Table T-Bolt

7. Put (3) M12-1.75 hex nuts, (3) 12mm lock washers, and (3) 12mm flat washers on end of each T-bolt and tighten to secure sliding table to frame (as shown in Figures 21–23).

8. Attach end cap (as shown in Figure 24) with Phillips screws already threaded into those same holes on the sliding table.

End Cap

Phillips Screws

Figure 24. End cap secured on sliding table with

Phillips screws.

Figure 21. Sliding table T-bolt access on rear

side at back of saw.

-26-

Model G0764Z (Mfd. Since 05/18)

9. Slide M12-1.75 T-nut of push handle assembly into T-slot at front end of sliding table, as shown in Figure 25. It may be necessary to loosen T-nut first.

Note: Make sure 12mm flat washer and

12mm copper washer are positioned in front of T-slot, as shown in Figure 25.

Washers

Push Handle

Attach large extension table to cast iron table

11.

using (3) pre-installed M10-1.5 x 25 cap screws, 10mm lock washers, and 10mm flat washers (see Figure 27). Only hand tighten cap screws for now. They will be fully tightened in a later step.

T-nut

Figure 25. Push handle attached to sliding table.

10. Attach the cabinet door by sliding hinge

sleeves over pins of already attached hinge (see Figure 26).

Hinge Sleeves

& Pins

Figure 26. Cabinet door attached on hinges.

Figure 27. Underside view of large extension

table attached to cabinet.

12. Place a straightedge across cast-iron table and large extension table to see if tables are parallel.

—If entire length of straight edge is parallel

with both tables move on to Step 14.

—If both tables are not parallel with straight

edge, loosen hex nuts on set screws shown in Figure 28. Adjust set screws to align top of extension table with top of cast-iron table, then retighten hex nuts to secure setting.

Hex Nut

Set Screw

Model G0764Z (Mfd. Since 05/18)

Figure 28. Location of set screws and hex nuts

used to level extension table.

-27-

13. Fully tighten cap screws from Step 12.

Rail Studs

16. Fully tighten cap screws from Step 15.

. Attach small extension table to cast iron

table using (2) pre-installed M10-1.5 x 25 cap screws, 10mm lock washers, and 10mm flat washers (see Figure 29). Only hand tighten cap screws for now. They will be fully tightened in a later step.

Figure 29. Underside view of large extension

table attached to cabinet.

Attach rip fence scale flush along top edge of

17.

cast iron table and large extension table (see Figure 31) with (3) M6-1 x 12 button head cap screws, (4) 6mm flat washers, and (1) M6-1 hex nut.

x 2

x 1

Rip Fence

Scale

Figure 31. Rip fence scale attached flush with top edge of cast-iron table and large extension

table.

. Place a straightedge across cast-iron table

and large extension table to see if tables are parallel.

—If entire length of straight edge is parallel

with both tables move on to Step 17.

—If both tables are not parallel with straight

edge, loosen hex nuts on set screws shown in Figure 30. Adjust set screws to align top of extension table with top of cast-iron table, then retighten hex nuts to secure setting.

Hex Nut

Set Screw

18. The rip fence rail is pre-assembled with four rail studs and accompanying hardware. Remove (1) hex nut, (1) flat washer, and (1) lock washer from end of each stud, as shown in Figure 32.

Figure 32. Removing rip fence rail hardware to

prepare for installation.

Figure 30. Location of set screws and hex nuts

used to level extension table.

-28-

Model G0764Z (Mfd. Since 05/18)

19. Insert studs into tables as shown in Figure 33, and re-install hardware removed in Step 20.

Slide rip fence onto clamping plate, as shown

22.

in Figure 35, and lock it with slide lock handle.

Slide Lock

Handle

Rip

Fence

Figure 35. Rip fence attached to rip fence base.

23. Move sliding table all the way forward to

expose blade cover. Pull blade cover toward front of machine to disengage magnetic catches (see Figure 36).

Clamping

Plate

Figure 33. Installing the rip fence rail.

20. Slide rip fence base onto fence rail as shown

in Figure 34.

Thread (2) M10-1.5 x 12 lock handles and

21.

M10-1.5 x 70 lock knob bolt into rip fence base, as shown in Figure 34.

Fence Base

Knob

Bolt

Lock

Handles

Figure 34. Rip fence attached with lock handles

and lock knob installed.

Magnetic Catch

(1 of 2)

Figure 36. Location of magnetic catches that

secure blade cover.

The Model G0764Z does not ship with a 14" main blade. Refer to Blade Requirements and Blade Selection beginning on Page 47 when purchasing the main blade.

Model G0764Z (Mfd. Since 05/18)

-29-

24. Insert arbor locking pin into access hole shown in Figure 37.

Note: Main blade is shown here only for illus-

trative purposes.

Main Arbor

Access Hole

Arbor

Nut

Figure 37. Loosening main blade arbor nut.

25.

Push down on locking tool with one hand as

you rotate arbor nut clockwise with wrench. This will force blade locking tool into arbor indent and prevent arbor from rotating in next steps.

Before proceeding with the next steps, wear gloves to protect your hands when handling and installing the blade.

27. Slide main blade (not included) over arbor

with teeth facing to the right, then install flange (see Figure 39).

Upper Teeth Facing Right

Flange

Arbor

Nut

Figure 39. Main blade component assembly.

Arbor

26. Continue unthreading arbor nut clockwise (it has left-hand threads) until you can remove flange (see Figure 38).

Arbor Nut Wrench

Flange

Arbor Locking Pin

Figure 38. Main blade arbor parts and tools for

changing blade.

Thread arbor nut on counterclockwise and

28.

fully tighten it to secure the blade (see Figure

40).

Figure 40. Main blade installed on arbor.

-30-

Model G0764Z (Mfd. Since 05/18)

29. Install and align riving knife (refer to Riving Knife Alignment beginning on Page 46 for

detailed information).

. Close blade cover. Center sliding table and

lock in place.

Position rip fence 1⁄8" away from main blade.

31.

Slide rip fence stop ring onto end of rail

32.

and tighten set screw to secure it in place (see Figure 41). When installed correctly, this ring will prevent rip fence from contacting blade.

33. Install rip fence end stop on opposite end of rip fence rail with (1) M8-1.25 x 15 cap screw and (1) 8mm lock washer (see Figure 42).

Rip Fence

End Stop

Rip Fence

Stop Ring

w/Set Screw

Figure 41. Rip fence stop ring attached to rail.

Figure 42. Rip fence end stop attached to rail.

34. Adjust rip fence to main blade and tables as instructed in Calibrating Rip Fence on Page

80.

Thread M12-1.75 x 55 adjustable lock handle

35.

with a 12mm flat washer through hole in short side of crosscut table and into a M12-1.75 T-nut plate, as shown in Figure 43.

Flat Washer

Lock

Handle

T-Nut

Plate

Model G0764Z (Mfd. Since 05/18)

Figure 43. Crosscut lock handle installed on

crosscut table.

-31-

36. With assistance from other people, place crosscut table on swing arm pivot rod and slide T-nut plate into sliding table T-slot, as shown in Figure 44.

38. Secure table brace by threading (2) M8-1.25 x 50 knob bolts with (2) 8mm flat washers into brace T-nuts (see Figure 45).

Turn crosscut fence onto its side.

39.

Crosscut Table

T-Slot

Figure 44. Attaching crosscut table to machine

frame.

Slide (2) M8-1.25 T-nuts into crosscut table

37.

brace T-slots, and align them with center holes in crosscut table (see Figure 45).

Swing Arm

Pivot Rod

T-Nut Plate

40. On crosscut fence end nearest blade:

Insert (1) M8-1.25 T-nut into T-slot, then

loosely thread M8-1.25 pivot bolt with 8mm fiber flat washer into T-nut (see Figure 46).

End Cap

T-Nut, Pivot Bolt,

& Fiber Flat Washer

Figure 46. Crosscut fence hardware near to

blade.

Position crosscut fence so edge cap (see

Figure 46) is close to but not touching

main blade.

Long Knob

& Fender Washer

Pivot

Hole

Crosscut Table Brace

Figure 45. Example of table brace attached to

crosscut table.

-32-

Align the pivot bolt with pivot hole (see

Figure 46), then fully tighten pivot bolt.

Note: Long knob and fender washer will

help secure crosscut fence in later step.

Model G0764Z (Mfd. Since 05/18)

41. In middle of crosscut fence:

a. Insert M8-1.25 x 35 T-bolt into T-slot (see

Figure 47).

43. Without moving previously installed hard-

ware, flip crosscut fence over and insert pivot bolt and T-slot bolt into appropriate hole/slot.

. Secure crosscut fence to crosscut table by:

Long Knob w/ Fender Washer & T-Slot Plate

Scale

T-Bolt

Figure 47. Crosscut fence hardware in the

middle.

Align T-slot bolt with slot in pre-installed

scale bar (see Figure 47).

Note: Long knob and fender washer will

help secure crosscut fence in later step.

On end of crosscut fence farthest from blade:

42.

Bar

a. From underneath left side of crosscut

fence, threading M8-1.25 long knob with 8mm fender washer onto pivot bolt.

From underneath middle of crosscut

fence, positioning M8-1.25 T-slot plate in scale bar slot, then threading M8-1.25 long knob with 8mm fender washer onto previously installed T-slot bolt.

On the right side of crosscut fence, mak-

ing sure 90° stop block is against stop bolt, then securing fence by threading M8-1.25 x 50 knob bolt into threaded hole on stop block.

. Slide crosscut fence extension out, as shown

in Figure 49.

Attach flip stops onto long side of crosscut

46.

fence by sliding T-nuts into T-slots on fence and tightening the knob bolts (see Figure 49).

a. Insert M8-1.25 T-nut into T-slot

b. Attach 90° stop block to T-nut with

M8-1.25 x 35 cap screw and 8mm lock washer so that it is aligned with stop bolt (see Figure 48).

Note: Make sure threaded hole in stop

block is on the right of cap screw.

T-Nut, 90° Stop Block,

Cap Screw, & Lock Washer

Stop

Bolt

Stop Block

Knob Bolt

Fence Extension

Flip Stop T-Nut

Figure 49. Flip stop attached to crosscut fence.

Figure 48. 90° stop block installed.

Model G0764Z (Mfd. Since 05/18)

-33-

47. From underneath right end of crosscut fence, insert M8-1.25 T-nut into crosscut fence T-slot, then thread M8-1.25 x 25 knob bolt with nylon tip through T-nut and into placement hole (see Figure 50). This secures crosscut fence extension in place.

Knob

Bolt w/

Nylon Tip

49. Remove hex nuts from pre-installed armsupport studs (see Figure 51), and install support-arm base onto arm-support studs, as shown in Figure 52.

Arm-Support Base

Placement Hole

Figure 50. Knob bolt and placement hole

(viewed from underneath crosscut fence).

48. Thread (1) M12-1.75 x 70 arm-leveling bolt with M12-1.75 jam nut into bracket connected to rear of machine body, as shown in Figure 51.

Arm-Leveling Bolt

M12-1.75 Jam Nut

Bracket

Arm-Support Studs

Figure 52. Installing arm-support base.

Adjust arm-leveling bolt until arm support

50.

base is parallel with floor (see Figure 53 on Page 35).

Tip: Check this position by using a tape to

measure the distance between each end of the arm-support base and the floor.

Note: This parallel position helps ensure the

blade guard is parallel with the table once it is installed. For now, this positioning should be very close. It will be checked, and if necessary, fine-tuned in a later step.

Arm-

Support

Studs

Figure 51. Arm-support studs installed in body

and arm-leveling bolt installed in bracket.

-34-

Model G0764Z (Mfd. Since 05/18)

51. Tighten jam nut against bracket (see Figure

53) to secure arm-leveling bolt.

54. Insert upper support arm through top of arm-

support pedestal, as shown in Figure 55.

Secure arm-support base with (2) M20-2.5

52. hex nuts and (2) 20mm fender washers (see Figure 53).

M20-2.5 Hex Nut

w/Fender Washer

(1 of 2)

Figure 53. Securing arm support base.

53. Install arm-support pedestal onto arm-support

base, using (4) M8-1.25 x 25 cap screws, (4) 8mm lock washers, and (4) 8mm flat washers (see Figure 54).

Bracket

Jam Nut

Arm-Leveling

Bolt

Install (1) M10-1.5 x 30 hex bolt into location

55.

shown in Figure 55. Do not tighten yet.

Upper

Support Arm

Figure 55. Installing upper support-arm.

56. Install dust hose coupler onto upper support

arm, using (2) M6-1 x 12 button head cap screws, (2) 6mm lock washers, and (2) 6mm fender washers (see Figure 56).

Top of Arm

Support Pedestal

x 1

Arm-Support

Pedestal

x 4

Figure 54. Installing arm-support pedestal.

x 2

Dust Hose Coupler

Figure 56. Installing dust hose coupler.

Model G0764Z (Mfd. Since 05/18)

-35-

57. Attach connection plate assembly to blade guard using (2) M6-1 lock nuts (see Figure 57).

Blade

Guard

Assembly

Connection Plate

Assembly

59. Slide upper support arm until at least one blade guard roller is centered over blade (see

Figure 59), then tighten hex bolt from Step 52 to secure upper support arm.

Blade Guard

Roller (1 of 2)

Figure 57. Installing blade guard connection

plate assembly onto blade guard assembly.

58. Attach connection plate assembly to end of upper support arm, using (3) M6-1 x 20 cap screws, (3) 6mm lock washers, and (3) 6mm fender washers (see Figure 58).

x 3

Connection Plate

Assembly

Blade

Figure 59. Blade guard rollers centered over

blade.

60. Ensure front and rear blade guard rollers are parallel with blade (see Figure 59).

— If rollers are parallel with blade, proceed to

Step 62.

— If rollers are not parallel with blade, loosen

cap screws shown in Figure 60, adjust arm-support pedestal until rollers are parallel with blade, then re-tighten cap screws to secure. Check to make sure both blade rollers are centered over blade, and if necessary, loosen hex bolt from Step 55 on Page 35, slide upper support arm until rollers are centered over blade, then retighten hex bolt to secure.

Figure 58. Connection plate assembly attached

to upper support arm.

-36-

Cap Screws

that Secure

Arm Support

Pedestal

Figure 60. Adjusting alignment of arm-support

pedestal.

Model G0764Z (Mfd. Since 05/18)

Arm Support

Pedestal

61. Make sure rollers are parallel with table. If necessary, loosen M20-2.5 hex nuts from Step 52, repeat Steps 50–51 until rollers are parallel with table, then re-tighten hex nuts.

63. Attach dust hose to blade guard and upper support arm dust ports, and secure with hose clamps (see Figure 62).

Install dust port on upper support arm, using

62.

(2) M6-1 x 12 button head cap screws and (2) 6mm lock washers (see Figure 61).

Dust Port

x 2

Upper

Support Arm

Figure 61. Installing dust port onto upper

support-arm.

Hose Clamps

Dust Hose

Figure 62. Dust hose attached to blade guard

and upper support arm.

Tug hose to make sure it is secure. If it pulls

64.

off easily, re-install it and tighten hose clamps until it is secure.

Changing Blade Guard For Angled Cuts

The Model G0764Z blade guard comes with two assemblies—a "flat" insert for 90° cuts, and a "bubble" insert for angled cuts. To switch between these two inserts, remove the lock knob shown in Figure 63, slide the insert out and replace it with the appropriate insert, then re-install the lock knob to secure the insert.

Model G0764Z (Mfd. Since 05/18)

"Flat" Insert

Lock

Knob

Figure 63. Removing blade guard insert.

-37-

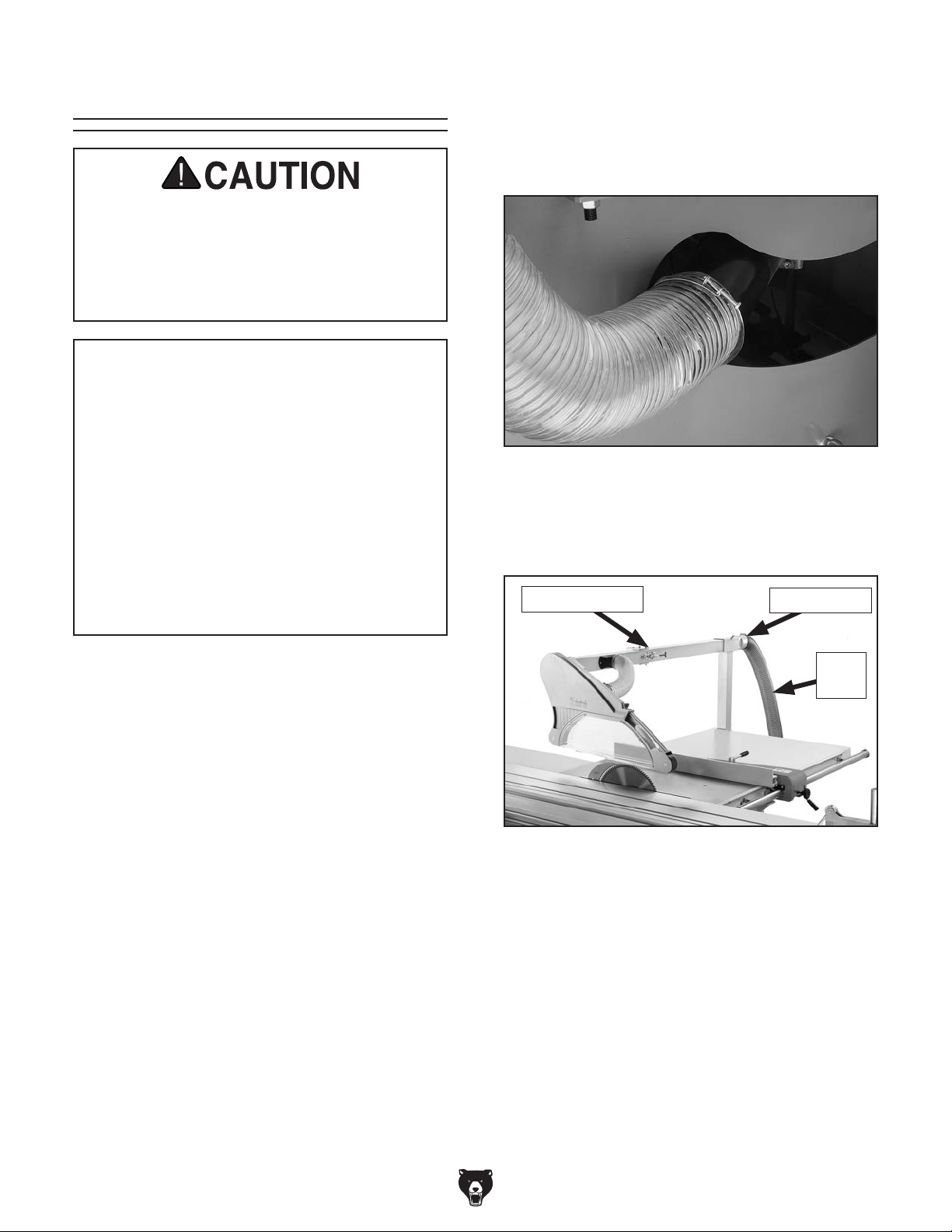

Dust Collection

This machine creates a lot of wood chips/ dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust collection system.

Minimum CFM at 5" Dust Port: 615 CFM Minimum CFM at 4" Dust Port: 400 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must consider these variables: (1) CFM rating of the dust collector, (2) hose type and length between the dust collector and the machine, (3) number of branches or wyes, and (4) amount of other open lines throughout the system. Explaining how to calculate these variables is beyond the scope of this manual. Consult an expert or purchase a good dust collection "how-to" book.

To connect dust collection hoses:

Fit 5" dust hose over dust port on rear side of

cabinet, as shown in Figure 64, and secure with hose clamp.

Figure 64. 5" dust hose attached to dust port.

2. Connect 4" dust hose to end of horizontal

arm, then attach it to a single dust collection branch line.

Horizontal Arm

Hose Clamp

Dust

Hose

Figure 65. Dust hose attached to blade guard.

Tug on dust hoses to make sure they do not

come off. A tight fit is necessary for proper performance.

-38-

Model G0764Z (Mfd. Since 05/18)

Before the machine can be connected to the power source, an electrical circuit and connection device must be prepared per the POWER

SUPPLY

setup instructions in this manual must be complete to ensure that the machine has been assembled and installed properly. The disconnect switch installed by the electrician (as recommended) is the primary means for disconnecting or connecting the machine to the power source.

Move the disconnect switch handle to the ON position, as illustrated below. The machine is now connected to the power source.

Move the disconnect switch handle to the OFF position, as illustrated below. The machine is now disconnected from the power source.

Note:

Lock the switch in the OFF position to

restrict others from starting the machine.

or equipment damage

not properly grounded

Power Connection

Electrocution, fire, shock,

may occur if machine is

section in this manual; and all previous

and connected to power supply.

Note About Phase Converters: Due to the start-

up load from this machine, we do not recommend using a static phase converter to create 3-phase power—as it can quickly decrease the life of electrical components on this machine. If you must use a phase converter, only use a rotary phase converter. Only connect the manufactured leg or "wild wire" to the S terminal (see location on Page

82). The S terminal can handle power fluctuation

because it is wired directly to the motor.

To connect saw to power:

1. Remove power junction box cover (see Figure 68).

Power Junction

Box

Figure 66. Connecting power to machine.

Figure 67. Disconnecting power from machine.

Model G0764Z (Mfd. Since 05/18)

Strain Relief

Figure 68. Location of junction box.

2. Insert incoming power wires through strain

relief in bottom of power junction box.

-39-

3. Connect ground wire, then connect incoming power wires to bottom terminals shown in Figure 69.

Incoming Power

Terminals

Figure 69. Terminal locations to connect

incoming power wires and ground wire.

Ground

Terminal

Make sure incoming ground wire is connected to right-most terminal post in the power junction box so machine is properly grounded. An ungrounded or improperly grounded machine may have an electrified frame which could cause electrocution when touched.

4. Make sure wires have enough slack so they

are not pulled tight or stretched.

5. Re-install junction box cover, and perform Test Run in following section to check phase

polarity.

-40-

Model G0764Z (Mfd. Since 05/18)

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

ed results that can lead to serious injury,

Troubleshooting

Verify saw is operating correctly by pushing

Main Blade and Scoring Blade ON buttons (refer to Figure 4 on Page 5).

—When operating correctly, machine runs

smoothly with little or no vibration or rubbing noises.

— Investigate and correct strange or unusu-

al noises or vibrations before operating machine further. Always stop machine and disconnect it from power before investigating or correcting potential problems.

The test run consists of verifying the following:

1) The motors power up and run correctly, 2) the safety features of the Emergency Stop buttons work correctly, and 3) the main blade turns forward (clockwise when viewed from front of saw) and the scoring blade turns opposite main blade.

may result in malfunction or unexpect-

death, or machine/property damage.

To test run machine:

1. Make sure you understand all safety instruc-

tions at the beginning of manual and that machine is set up properly.

Verify main blade is rotating clockwise (as

standing in front of machine) and scoring blade is rotating counterclockwise (opposite direction as main blade).

Note: You may need to stop the blade rota-

tion and watch them come to a stop to determine which direction they are rotating.

— If blades are rotating in wrong direction,

stop machine and DISCONNECT FROM POWER! Polarity of incoming power supply is reversed. Swap “R” and “T” wire positions inside junction box (see Figure

71), then replace junction box cover, and reconnect machine to power.

Power Junction

Box

Make sure all tools and objects used during

setup are cleared away from machine.

Connect saw to power.

4. Push Emergency Stop button, then twist it

clockwise so it pops out. When button pops out, switch is reset and will allow operation (see Figure 70).

Figure 70. Resetting Emergency Stop button.

Model G0764Z (Mfd. Since 05/18)

R and T

Connections

Figure 71. Up-close view of power supply

terminal inside junction box.

Ground

-41-

Recommended

Do not swap "R" or "T" wires with ground wire inside power supply junction box. Doing so will electrify machine frame, which could cause electrocution. Make sure incoming ground wire is only connected to right-most terminal post in the power supply junction box so machine is properly grounded.

7. Press Emergency Stop button on front of

machine to turn machine OFF.

WITHOUT resetting Emergency Stop button,

press either ON button. Machine should not start.

—If machine does start (with Emergency Stop

button pushed in), immediately disconnect power to machine. Emergency Stop button safety feature is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help.

Adjustments

The following list of adjustments were performed at the factory before the machine was shipped:

• Riving Knife Alignment ................... Page 46

• Aligning Scoring Blade ................... Page 53

• Blade Tilt Calibration .......................Page 75

• Sliding Table Parallel Adjustment ....Page 76

• Sliding Table Movement Adjustment

....................................................... Page 77

• Squaring Crosscut Fence to Blade

....................................................... Page 77

• Calibrating Rip Fence ..................... Page 80

Be aware that machine components can shift during the shipping process. Pay careful attention to these adjustments during operation of the machine. If you find that the adjustments are not set according to the procedures in this manual or your personal preferences, re-adjust them.

Reset Emergency Stop button on front of

machine.

Repeat Steps 7–9 with Emergency Stop but-

10.

ton on side of cabinet. Congratulations. Test Run is complete!

-42-

Model G0764Z (Mfd. Since 05/18)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

ing loss can occur while operating this

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

To complete a typical operation, the operator does the following:

Examines workpiece to make sure it is suit-

able for cutting.

Adjusts blade tilt, if necessary, to correct

angle of desired cut.

Adjusts blade height approximately 1⁄4" higher

than thickness of the workpiece.

Adjusts fence to desired width of cut then

locks it in place.

5. Adjusts blade guard for workpiece height.

Checks outfeed side of machine for proper

support and to make sure the workpiece can safely pass all the way through the blade without interference.

using machine.

Eye injuries, respiratory problems, or hear-

tool. Wear personal protective equipment to reduce your risk from these hazards.

The Model G0764Z does not ship with a 14" main blade. Refer to Blade Requirements and Blade Selection beginning on Page 47 when purchasing the main blade.

Puts on safety glasses and a respirator.

Locates push sticks if needed.

Feeds the workpiece all the way through

blade while maintaining firm pressure on workpiece against table and fence.

Turns machine OFF immediately after cut is

complete and waits for blades to completely stop before removing workpieces.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Model G0764Z (Mfd. Since 05/18)

-43-

Workpiece

• Material Type: This machine is intended for

cut metal, glass, stone, tile, etc.; cutting these

•

Cutting wood with a

sary wear on the blades, increases the risk of

•

Workpieces with exces-

•

Slightly cupped workpieces

pieces supported on the bowed side will rock during the cut, which could cause kickback.

A non-through cut is a sawing operation where the blade does not protrude above the top face of the wood stock, as shown in the Figure below.

A through cut is a sawing operation in which the workpiece is completely sawn through, as shown in the

. Examples of through cuts are rip cuts, cross cuts, miter cuts, and beveled cuts. The blade guard assembly MUST be used when performing through cuts.

Through &

Inspection

Some workpieces are not safe to cut on this machine or may need to be modified before they can be safely cut. Before cutting, inspect all

workpieces for the following:

cutting natural and man-made wood products, laminate-covered wood products, and some plastics. Cutting drywall or cementitious backer board creates extremely fine dust and may reduce the life of the motor bearings. This machine is NOT designed to

materials with a table saw greatly increases the risk of injury and damage to the saw or blade.

Foreign Objects: Nails, staples, dirt, rocks and other foreign objects are often embedded in wood. While cutting, these objects can become dislodged and hit the operator, cause kickback, or break the blade, which might then fly apart. Always visually inspect your workpiece for these items. If they can’ be removed, DO NOT cut the workpiece.

Large/Loose Knots: Loose knots can become dislodged during the cutting operation. Large knots can cause kickback and machine damage. Choose workpieces that do not have large/loose knots or plan ahead to avoid cutting through them.

Non-Through Cuts

Through Cuts

Figure below

Figure 72. Example of a through cut (blade

guard not shown for illustrative clarity).

Non-Through Cuts

A non-through cut is a sawing operation where the blade does not protrude above the top face of the wood stock, as shown in the Figure below. The blade guard assembly MUST be used when performing all non-through cuts, except when the guard will not safely accommodate the workpiece.

Wet or “Green” Stock:

moisture content over 20% causes unneces-

kickback, and yields poor results.

Excessive Warping:

sive cupping, bowing, or twisting are dangerous to cut because they are unstable and may move unpredictably when being cut.

Minor Warping:

can be safely supported with cupped side facing the table or fence; however, work-

-44-

Figure 73. Example of a non-through cut.

Model G0764Z (Mfd. Since 05/18)

Blade Guard

The term "blade guard" refers to the assembly shown in Figure 74.

Lock Handle

Hex Bolt

Guard

Arm

Guard

Adjusting Blade Guard

Loosen the hex bolt securing the guard arm (see Figure 74), and adjust the guard so the distance between the blade and both side covers is equal.

For stock up to 1" thick, loosen the (4) lock nuts securing guard to guard arm, (see inset image in Figure 74), moves smoothly up and down with the workpiece. For stock thicker than 1", set the guard to rest on the workpiece, then tighten the (4) lock nuts.

IMPORTANT: Every time the blade guard is reinstalled, you must verify that it functions correctly before making a cut.

To test blade guard operation, lift the front end all the way up, then release it. The blade guard should freely drop down and both wheels should contact table surface.

⁄4-turn each so the blade guard

Figure 74. Blade guard assembly.

Understanding & Using Blade Guard

The blade guard MUST be installed on the saw for all cuts (see Page 14). The guard encloses the top of the blade to reduce the risk of accidental blade contact and contain flying chips or dust. When installed and properly maintained, it is an excellent tool for reducing the risk of injury when operating the table saw.

Sometimes the guard or its components can get in the way when cutting very narrow workpieces or other specialized cuts. Use the lock handle shown in Figure 74 to move the guard out of the way. The blade guard MUST remain installed on saw. If blade guard is removed for specific operations, always replace it immediately after those operations are complete.

As the workpiece is pushed into the blade, the guard lifts and remains in contact with the workpiece during the cut, then returns to a resting position against the table when workpiece is pushed completely past the guard.

If blade guard remains in the same position where you released it, loosen lock nuts securing blade guard upper guard arm, and re-test operation until guard freely drops all the way down.

Guard Covers

The G0764Z features two dust hood assemblies for either straight cuts or angled cuts. Use the flat blade cover when performing straight (90°) cuts or the bubble cover for angled cuts. To change between covers, remove lock knob (see Figure

75) then secure the guard assembly to the dust hood, install the other cover, and re-tighten the lock knob.

Dust Hood

Guard

Assembly

Lock Knob

To ensure that the guard does its job effectively, it MUST be centered over blade and properly adjusted so it moves up and down to accommodate workpieces, yet properly maintains blade after the workpiece exits.

Model G0764Z (Mfd. Since 05/18)

Figure 75. Removing blade guard assembly.

-45-

Riving Knife

Secure the riving knife 1–5mm below the top level of the blade, as shown in Figure 78.

The riving knife (see Figure 76) is a metal plate that prevents freshly cut pieces of workpiece from pinching the backside of the blade and causing kickback. It also acts as a barrier behind the blade to shield hands from being pulled into the blade if a kickback occurs while the operator is reaching behind the blade. (Reaching behind the blade is a major safety risk and should never be done.) Use the riving knife for all operations.

Riving Knife

Figure 76. Riving knife location.

To ensure riving knife works safely, it MUST be aligned with and correctly adjusted to blade.

Riving Knife Installation & Removal

The riving knife must be correctly installed, adjusted, and aligned in order to provide the maximum safety benefit.

The riving knife attaches to the mounting block as shown in Figure 77. Always firmly tighten the hex nut when securing the riving knife in place.

Minimum 1mm

Maximum 5mm

Figure 78. Height difference between riving knife

and blade.

The height difference between the riving knife and the blade allows the workpiece to pass over the blade during non-through cuts (those in which the blade does not cut all the way through the thickness of the workpiece).

The riving knife also prevents the freshly cut sides of the workpiece from pinching the blade and causing kickback. For maximum effectiveness of this safety design, the riving knife must be positioned within 3–8mm of the blade, as shown in Figure 79.

Top Distance

Minimum 3mm

Maximum 8mm

Bottom Distance

Minimum 3mm Maximum 8mm

Figure 79. Allowable top and bottom distances

between riving knife and blade.

Height Difference

Figure 77. Installing riving knife on mounting

block.

-46-

Model G0764Z (Mfd. Since 05/18)

Once the riving knife is properly positioned at the correct distance from the blade, verify that it is aligned with the blade by checking the alignment with a straightedge in the top and bottom locations shown in Figure 80.

Top Alignment

Bottom Alignment

Figure 80. Checking top and bottom riving knife

alignment with blade.

The riving knife should be parallel with the blade along its length at both positions and should be in the "Alignment Zone" shown in Figure 81.

Blade Requirements

The riving knife included with this machine is 0.10" (2.5mm) thick and is only designed for 14" diameter blades.

When choosing a main blade, make sure the blade size meets the requirements listed below. The thickness of the blade body and teeth can be measured with calipers or any precision measuring device.

Blade Size Requirements:

• Body Thickness: 0.079"–0.094" (2.0mm–2.4mm)

• Kerf (Tooth) Thickness: 0.102"–0.126" (2.6mm–3.2mm)

Alignment

Zone

Spreader

Blade

Figure 81. Verifying that riving knife is in the

alignment zone behind the blade.

If the riving knife is not aligned or parallel with the blade, refer to Riving Knife Mounting Block on Page 79.

Straightedge

Blade Selection

This section on blade selection is by no means comprehensive. Always follow the saw blade manufacturer's recommendations to ensure safe and efficient operation of your table saw.

Ripping Blade Features:

• Best for cutting with the grain

• 30-40 teeth

• Flat-top ground tooth profile

• Large gullets for large chip removal

Flat Top

Blade

Model G0764Z (Mfd. Since 05/18)

Figure 82. Ripping blade.

-47-

Crosscut blade features:

• Best for cutting across the grain

• 80–100 teeth

• Alternate top bevel tooth profile

• Small hook angle and a shallow gullet

Laminate blade features:

• Best for cutting plywood or veneer

• 100–120 teeth

• Triple chip tooth profile

• Very shallow gullet

Alternate

Top

Bevel

Figure 83. Crosscutting blade.

Combination blade features:

• Designed to cut both with and across grain

• 50–80 teeth

• Alternate top bevel and flat, or alternate top bevel and raker tooth profile

• Teeth are arranged in groups

• Gullets are small and shallow (similar to a cross-cut blade), then large and deep (similar to a ripping blade

Triple

Chip

Blade

Figure 85. Laminate blade.

Thin Kerf Blade: A blade with thinner kerf than

a standard blade. Since the spreader/riving knife included with this table saw is sized for standard blades, thin kerf blades cannot be used on this saw.

-48-

Alternate

Top

Bevel

and Flat

Figure 84. Combination blade.

Model G0764Z (Mfd. Since 05/18)

Changing Speed

The Model G0764Z has three main blade speeds—3000, 4000, and 5000 RPM. These speeds are selected by repositioning the main motor belts on the pulleys.

Items Needed Qty

Wrench 22mm ................................................... 1

To change main blade speed:

3. Rotate motor adjustment lever clockwise to

release belt tension.

Inspect the belt. If there is any evidence of

damage or excessive wear, replace it.

Position belt on correct arbor and motor pul-

ley set for desired speed (refer to Figure 87 for pulley identification).

DISCONNECT MACHINE FROM POWER!

2. Open motor cabinet door and locate motor

adjustment lever shown in Figure 86.

Adjustment

Lever

Figure 86. Location of main motor adjustment

lever.

Arbor

Pulley

4000

5000

Figure 87. Belt positions for each speed.

Rotate motor adjustment lever clockwise to

retension belt.

Close motor cabinet door before reconnect-

ing machine to power.

3000

Motor Pulley

Model G0764Z (Mfd. Since 05/18)

-49-

Changing

Main Blade

The Model G0764Z performs best when using sharp, high-quality blades. Whenever the main blade starts to get dull, resharpen it or replace it with a new blade.

The Model G0764Z does not ship with a 14" main blade. Refer to Blade Requirements and Blade Selection beginning on Page 47 when purchasing the main blade.

Tools Needed Qty

Wrench 36mm ................................................... 1

Blade Locking Tool

To change the main blade:

DISCONNECT MACHINE FROM POWER!

............................................ 1

Always wear leather gloves when working around the blades to protect your hands.

6. Insert arbor locking tool into table hole shown

in Figure 89.

Main Arbor

Locking Hole

Arbor

Nut

Figure 89. Loosening the main blade arbor nut.

2. Adjust main blade tilt to 0° and raise blade all

the way up.

Raise blade guard up.

4. Move sliding table all the way forward to

expose blade cover.

Pull blade cover away from blade to disen-

gage magnetic catches (see Figure 88).

Main Blade Cover

Push down on locking pin with one hand as

you rotate blade clockwise with wrench on arbor nut. This will force blade locking pin into arbor indent and prevent blade from rotating.

Continue unthreading arbor nut clockwise

(left-hand threads) until you can remove the nut, flange, and blade (see Figure 90).

Arbor Nut Wrench

Flange

Arbor Locking Pin

Figure 90. Main saw blade and arbor parts.

Figure 88. Main blade cover in closed position.

-50-

Slide replacement blade over arbor with teeth

facing to the right, then replace flange.

Model G0764Z (Mfd. Since 05/18)

Thread arbor nut on counterclockwise and

10.

fully tighten it to secure the assembly (see

Figure 91 for order of assembly).

Figure 91. Order of assembly for main blade.

11. Recheck the riving knife alignment with blade,

as instructed in next subsection.

Replacing & Aligning

Scoring Blade

The scoring blade rotates in the opposite direction from the main blade and makes a shallow cut into the workpiece surface. This prevents workpiece tearout.

The scoring blade included with the Model G0764Z has wedge-shaped teeth that narrow at the top, as shown in Figure 92. With this style of scoring blade, the kerf thickness is adjusted by changing the height of the scoring blade. Raising the scoring blade higher increases the kerf thickness.

12. Close blade cabinet door, close blade cover, reposition blade guard over blade, then move sliding table back to center of machine.

Scoring Blade

Tooth

Figure 92. Scoring blade tooth that narrows at

the top.

Replacing Scoring Blade

Tools Needed Qty

Wrench 19mm ................................................... 1

Blade Locking Tool

To replace scoring blade:

DISCONNECT MACHINE FROM POWER!

2. Adjust blade tilt to 0° and raise blade all the

way up.

............................................ 1

Model G0764Z (Mfd. Since 05/18)

Raise blade guard up and move it away from

blade.

Move sliding table all the way forward to

expose blade cover.

Pull blade cover toward front of machine to

disengage magnetic catch.

-51-

6. Slide arbor wrench behind scoring blade (see Figure 93) to prevent blade from spinning.

Arbor

Wrench

Scoring Blade

Hex Bolt

Figure 93. Inserting arbor wrench behind scoring

blade to prevent blade from spinning.

Slide replacement scoring blade over arbor

with teeth facing to the left, then replace flange.

Thread arbor hex bolt on clockwise and fully

tighten it to secure the assembly (see Figure 95 for order of assembly).

7. Use 19mm wrench to unthread arbor hex bolt

counterclockwise (left-hand threads), and remove arbor hex bolt, flange, and blade (see Figure 94).

Hex Bolt

Arbor

Wrench

Flange

19mm Wrench

Figure 94. Scoring blade, flange, arbor hex bolt,

19mm wrench, and arbor wrench.

Figure 95. Scoring blade order of assembly.

10. Adjust scoring blade to main blade, as

instructed in the next subsection.

-52-

Model G0764Z (Mfd. Since 05/18)

Aligning Scoring Blade

1. DISCONNECT MACHINE FROM POWER!

2. Adjust main blade tilt to 0° and raise blade all

the way up.

Raise blade guard up and move it away from

blade.

Align scoring blade body horizontally to main

blade body by:

a. Rotating knurled lock collar shown in

Figure 96 counterclockwise to loosen it.

Lock

Collar

5. Align scoring blade kerf to main blade kerf by:

Positioning straightedge on one side of

main blade flat on table and against main blade and scoring blade teeth.

Rotating knurled lock collar behind height

adjustment knob (see Figure 96 on previous page) counterclockwise to loosen it.

Using height adjustment knob to adjust

scoring blade so that the edge of scoring blade teeth are aligned with main blade teeth.

Note: Rotating knob clockwise lowers

scoring blade and counterclockwise raises it.

Tightening lock collar clockwise to secure

setting.

Height

Adjustment Knob

Figure 96. Scoring blade adjustment controls.

Positioning straightedge against the

flat of main blade body (not teeth) and extending it over scoring blade body.

Rotating horizontal adjustment knob to

align bodies of blades.

Note: Rotating knob clockwise moves

scoring blade to the left and counterclockwise moves it to the right.

Tightening lock collar clockwise to secure

setting.

Horizontal

Adjustment Knob

Repeat Step 5 for other side of blades to

verify kerf thickness matches and scoring blade is aligned with main blade.

Close blade cover, properly reposition blade

guard, and slide table back to center of machine.

Perform a test cut and check for chip-out.

— If there is chip-out, repeat this procedure

until corrected.

Model G0764Z (Mfd. Since 05/18)

-53-

Setting Up

Crosscut Fence

Before using the crosscut fence to perform cutting operations, it must be setup properly. This includes positioning the crosscut fence on the crosscut table, adjusting the support bar, adjusting the crosscut fence distance from the blade, and positioning the crosscut table along the sliding table.

Positioning Crosscut Fence

The crosscut fence can be mounted in the front or rear position (see Figure 97) depending upon the size of the workpiece and which position will provide the safest operation. The support bar is adjusted accordingly for maximum workpiece support.

Front

Position

The support bar can also be installed in either the inside or outside positions (see Figure 98).

Crosscut

Fence

Crosscut

Table

Inside

Position

Crosscut

Table

Outside Position

Figure 98. Inside and outside support bar

positions.

Crosscut

Table

Crosscut

Table

Rear

Position

Figure 97. Crosscut fence front and rear table

mounting positions.

Whenever the crosscut fence is moved between the front and rear positions, you must verify the fence is square to the blade, and the 0° stop bolts are properly adjusted before using the fence. Refer to Squaring Crosscut Fence to Blade on Page 77 for further details.

Support

Bar

Support

Bar

To position crosscut fence:

DISCONNECT MACHINE FROM POWER!

2. Unthread and remove knob bolts shown in Figure 99.

Knob Bolts

Figure 99. Locations of knob bolts securing

crosscut fence.

-54-

Model G0764Z (Mfd. Since 05/18)

3. Lift fence up and loosen pivot bolt (see Figure 100).

Pivot Bolt &

Rear Hole

Front Hole

Figure 100. Crosscut fence pivot bolt and nut.

4. Re-insert pivot bolt into front hole or rear

hole, and re-insert angle scale bolt into angle scale slot.

Rotate fence so stop block is against 0° stop

bolt (see Figure 101).

Nut

Angle

Scale Bolt

Adjusting Crosscut Fence Distance from Blade

To accurately use the crosscut fence scale and ensure the end block does not contact the blade, the distance between the crosscut fence and the blade must be properly adjusted.

To adjust distance between crosscut fence and blade:

DISCONNECT MACHINE FROM POWER!

2. Perform "To Position Crosscut Fence" proce-

dure starting on Page 54.

Move crosscut table (refer to Positioning

Crosscut Table Along Sliding Table on Page 56 for instructions) so fence end block is aligned with center of blade (see Figure

103).

0° Stop Bolt

& Block

Figure 101. Stop block against 0° stop bolt.

Loosen support bar knob bolts shown in

6. Figure 102, slide support bar into position

required for operation, then tighten knob bolts.

Support Bar

Knob Bolts

3" Mark

Figure 103. End block aligned with blade.

4. Place precision ruler against a blade tooth,

as shown in Figure 103, then adjust fence so that 3" mark on fence scale is exactly 3" from blade tooth.

Without disturbing pivot bolt position, lift

fence up (see Figure 100), tighten pivot bolt nut, then re-insert pivot bolt into hole.

Repeat measurement in Step 3.

— If measurement is not exactly 3", repeat

Steps 2–10 until it is.

End Block

Figure 102. Locations of knob bolts for adjusting

support bar position.

Model G0764Z (Mfd. Since 05/18)

Re-install knob bolts removed earlier to

secure setting.

-55-

Positioning Crosscut Table Along Sliding Table

The crosscut table can be positioned as necessary along the sliding table (see Figure 104).

Figure 104. Crosscut table positions along

sliding table.

Loosen crosscut table lock lever shown in

Figure 106.

Lock Lever

Figure 106. Location of crosscut table lock lever.

Position crosscut table along sliding table

T-slot to desired position, then retighten lock lever to secure table.

To position crosscut table along sliding table:

DISCONNECT MACHINE FROM POWER!

2. Use sliding table lock lever (see Figure 105)

to secure table in position.

Sliding Table

Lock Lever

Figure 105. Location of sliding table lock lever.

-56-

Model G0764Z (Mfd. Since 05/18)

Rip Cutting

Determine which cutting operation will be best suited for the workpiece to be ripped.

The Model G0764Z has the capability of rip cutting large panels (see Figure 107). The sliding table removes the burden of sliding a large and heavy panel over a stationary table surface.

Edge Shoe

Workpiece

Crosscut

Fence

Figure 107. Rip cut with sliding table and

crosscut fence.

The edge shoe (see Figure 107) is used to stabilize the front end of a workpiece when otherwise unsecured.

This saw also has the capability of rip cutting smaller boards, using the machine as a traditional table saw (see Figure 108). Smaller, lighter boards are easier to slide across the stationary cast iron table surface to the right of the saw blade.

• To use the sliding table, read the instructions titled “Rip Cutting with Sliding Table.”

• To use the machine as a traditional table saw, skip ahead to “Rip Cutting with Rip Fence.”

Rip Cutting with Sliding Table

1. Position crosscut fence on crosscut table,

and rotate it until fence touches 0° stop bolt (Figure 109).

0° Stop Bolt

& Block

Figure 109. Stop block against 0° stop bolt.

2. Check to make sure fence is at 0°, and if necessary, adjust it as described in Squaring Crosscut Fence to Blade on Page 77.

Adjust distance between crosscut fence and

blade (refer to Page 55 for further details).

Set a flip stop to desired width of cut.

Rip

Fence

Workpiece

Figure 108. Traditional rip cut with rip fence.

Model G0764Z (Mfd. Since 05/18)

5. Position blade guard according to height of workpiece. (Refer to Understanding Blade Guard on Page 45.)

Load workpiece onto table saw. The setup

6. should look similar to Figure 107 on Page

56.

Take all necessary safety precautions, then

perform cutting operation.

-57-

Rip Cutting with Rip Fence

1. Move crosscut table and fence to front of slid-

ing table, and lock them in place with crosscut table lock lever (see Figure 110).

Crosscut

Table Lock

Lever

Figure 110. Location of crosscut table lock lever.

2. Lock sliding table in place with table lock

lever (see Figure 111).

Vertical

Horizontal

Figure 113. Rip fence positions.

Position leading edge of rip fence so it

extends across extension wing, as shown in Figure 114, then retighten lock lever.

Micro-Adjust

Lock Knob

Rip Fence

Sliding Table

Lock Lever

Figure 111. Location of sliding table lock lever.

Loosen slide lock lever shown in Figure 112.

Slide Lock

Lever

Figure 112. Location of slide lock lever.

Place fence in vertical position (see Figure

113) for thicker workpieces, or in horizontal

position for thinner workpieces and for angled cuts where blade is tilted over the fence.

Micro-Adjust

Knob

Rip Fence

Lock Lever

Figure 114. Proper position of rip fence.

6. Lift rip fence lock lever (see Figure 114) and

adjust fence to approximate width of cut.

Tighten micro-adjust lock knob (see Figure

114), then turn micro-adjust knob to fine tune

width of cut.

Push rip fence lock lever down to secure

fence assembly in position.

Load workpiece onto table saw. The setup

should look similar to Figure 108 on Page 57.

Take all necessary safety precautions, then

10.

perform cutting operation.

-58-

Model G0764Z (Mfd. Since 05/18)

Crosscutting

The Model G0764Z can crosscut full-size panels with the fence in the front or rear position, although it is easier to load full-size panels with the crosscut fence mounted in the front position (see Figure 115).

Workpiece

When set up properly, the crosscut fence can support workpieces while using the rip fence as a cut-off gauge, as shown in Figure 117.

Support

Bar

Crosscut Fence

Figure 117. Crosscutting using the rip fence as

Determine which cutting operation will be best suited for the workpiece to be crosscut.

Edge

Shoe

Workpiece

Rip

Fence

a cut-off gauge.

Figure 115. Crosscut with fence mounted in

front position.

Mounting the crosscut fence in the rear position (Figure 116) gives greater stability for crosscut- ting smaller panels.

Edge Shoe

Workpiece

Crosscut Fence

Figure 116. Crosscut with fence mounted in rear

position.

— If you will be crosscutting full-size panels,

then skip ahead to Crosscutting Full-Size Panels.

— If you will be crosscutting smaller panels,

then skip ahead to Crosscutting Smaller Panels.

— If you will be crosscutting workpieces using

the rip fence as a cut-off gauge, then skip ahead to Crosscutting Using Rip Fence as Cut-Off Gauge.

To understand how to move the crosscut table, read Positioning Crosscut Table Along Sliding Table on Page 56.

The edge shoe (see Figure 116) is used to stabilize the front end of the workpiece when otherwise unsecured.

Model G0764Z (Mfd. Since 05/18)

-59-

Crosscutting Full-Size Panels

1. Install crosscut fence in front mounting loca-

tion shown in Figure 118.

Load workpiece onto table saw in rear mount-

ing location, shown in Figure 118. If necessary, use edge shoe to secure workpiece to sliding table.

Rear Mounting

Location

Front Mounting

Location

Figure 118. Crosscut fence mounting locations.

2. Check to make sure fence is at 0°, and if necessary, adjust it as described in Squaring Crosscut Fence to Blade on Page 77.

Adjust distance between crosscut fence and

blade (refer to Page 55 for further details).

Set either flip stop to the desired width of cut.

Note: Extend the crosscut fence slide if the

workpiece is more than 73".

5. Take all necessary safety precautions, then perform cutting operation.

Crosscutting Using Rip Fence as Cut-Off Gauge

1. Install crosscut fence in rear position of crosscut table, as illustrated in Figure 117 on Page 59.

2. Perform Steps 2 & 3 in Crosscutting FullSize Panels.

Set rip fence to desired width of cut.

4. Slide leading end of rip fence behind front

edge of blade (see Figure 119 for an example).

Important: This step is critical to reducing

the risk of blade binding and kickback.

Rip Fence

Load workpiece onto table saw in forward

mounting location shown in Figure 115.

6. Take all necessary safety precautions, then

perform cutting operation.

Crosscutting Smaller Panels

1. Install crosscut fence in rear mounting loca- tion shown in Figure 115 and lock it in place.

2. Perform Steps 2 & 3 in Crosscutting FullSize Panels.

Set either flip stop to the desired width of cut.

Note: Extend the crosscut fence slide if the

workpiece is more than 73".

Front Edge

of Blade

Figure 119. Example photo of correct rip fence

position when using it as a cut-off gauge

(blade guard removed for clarity).

Load workpiece onto table saw and against

rip fence. The setup should look similar to Figure 119.

Take all necessary safety precautions, then

perform cutting operation.

Leading Edge

of Rip Fence

-60-

Model G0764Z (Mfd. Since 05/18)

Miter Cutting

The crosscut fence can be positioned for miter cuts from 0° to 45° (see Figure 120) using the front or rear crosscut table holes. The angle scale on top of the crosscut table has a resolution of 1°.

Rear Hole

Angle Scale

Front Hole

Figure 120. Crosscut fence positioned for miter

cut.

Front Hole

Workpiece

Figure 122. Crosscut fence mounted in front

hole for miter cuts from 0° to 45°.

4. Install knob bolts shown in Figure 123.

To perform a miter cut:

DISCONNECT MACHINE FROM POWER!

2. Position crosscut table to provide the great-

est amount of workpiece support, then lock it in place.

Install fence pivot bolt into front or rear holes

shown in Figure 120 to position table for desired angle of cut (see Figures 121–122).

Workpiece

Rear Hole

Figure 121. Crosscut fence mounted in rear hole

for miter cuts from 0° to 45°.

Knob Bolts

Figure 123. Locations of knob bolts.

Pivot crosscut fence to desired angle, making

sure fence end block is clear of blade so it will not be cut during operation.

Tighten both knob bolts to secure setting.

If the crosscut fence moves during cutting, kickback could occur and cause serious personal injury. Always make sure crosscut fence is properly secured before using it.

7. Set flip stop according to length of workpiece

you want to cut off to left of blade.

Load workpiece onto crosscut table. The

setup should look similar to Figures 121–122.

Take all necessary safety precautions, con-

nect saw to power, then perform cutting operation.

Model G0764Z (Mfd. Since 05/18)

-61-

Dado Cutting

Commonly used in furniture joinery, a dado is a straight channel cut in the face of the workpiece.

Typ ic al ly, d adoes can be cut using either a dedicated dado blade or a standard saw blade. However, since the Model G0764Z cannot accept dado blades, a standard blade must be used.

Repeat cutting operation on other side of

dado channel, as shown in Figure 125.

Cut 2

Workpiece

Blade

Fence

To use standard saw blade to cut a dado:

DISCONNECT MACHINE FROM POWER!

2. Mark width of dado cut on workpiece. Include

marks on edge of workpiece so cut path can be aligned when workpiece is lying on table.

Raise blade to desired depth of dado chan-

nel.

Align workpiece with blade to cut one of dado

sides, as shown in Figure 124, then align rip fence with workpiece.

Cut 1

Workpiece

Blade

Fence

Figure 125. Second cut for a single-blade dado.

Make additional cuts (see Figure 126) in

center of dado to clear out necessary material. Dado is complete when channel is completely cleared out.

Cuts 3+

Fence

Workpiece

Figure 126. Additional single-blade dado cuts.

Adjust rip fence to properly support workpiece for each of the dado cuts. This will reduce likelihood of kickback and injury.

Figure 124. First cut for a single-blade dado.

Reconnect saw to power and turn saw ON.

Allow blade to reach full speed, then perform

the cutting operation.

-62-

Model G0764Z (Mfd. Since 05/18)

Rabbet Cutting

Commonly used in furniture joinery, a rabbet is an L-shaped groove cut in the edge of the workpiece.

Typically, rabbets can be cut with either a dado blade or a standard saw blade. However, because the Model G0764Z cannot accept dado blades, rabbets must be cut with a standard saw blade only.

Stand workpiece on edge, as shown in

Figure 127, then adjust rip fence so blade is

aligned with inside of rabbet channel.

Blade

Workpiece

Fence

A ripping blade is typically the best blade to use for cutting rabbets when using a standard blade because it removes sawdust very efficiently. (See Page 47 for blade details.) Also, a sacrificial fence is not required when cutting rabbets with a standard blade.

To cut rabbets with standard blade:

DISCONNECT MACHINE FROM POWER!

2. Mark width of rabbet cut on workpiece.

Include marks on edge of workpiece so cut path can be aligned when workpiece is lying on table.

If workpiece is too tall to safely use blade

guard, position blade guard up and away from main blade.

Always use push sticks, featherboards, push paddles, and other safety accessories whenever possible to increase safety and control during operations which require removal of blade guard. ALWAYS replace blade guard after operation is complete.

Figure 127. First rabbet cut.

DO NOT place a tall board on edge when cutting a rabbet. Overly tall workpieces cannot be properly supported with the fence and can easily shift during operation, causing kickback or loss of control. Instead, use another tool to cut these types of rabbets.

Reconnect saw to power source, then per-

form cut.

Lay workpiece flat on table, as shown in

Figure 128, adjust saw blade height to inter-

sect with first cut, then perform second cut to complete rabbet.

4. Raise blade to desired depth of rabbet channel desired.

Model G0764Z (Mfd. Since 05/18)

Blade

Fence

Workpiece

Figure 128. Second cut to create a rabbet.

-63-

Narrow-Rip Auxiliary

Fence & Push Block

Pre-drill and countersink eight pilot holes 3⁄8"

in from boards together with eight #6 x 1

edge of 5 1⁄4" wide board, then secure

⁄2" wood

screws, as shown in Figure 130.

There are designs for hundreds of specialty jigs that can be found in books, trade magazines, and the internet. These types of jigs can greatly improve the safety and consistency of cuts. They are particularly useful during production runs when dozens or hundreds of the same type of cut need to be made.

The narrow-rip auxiliary fence and push block system shown in this section is an example of a specialty jig that can be made to increase the safety of very narrow rip cuts.

Making a Narrow-Rip Push Block for an Auxiliary Fence

1. Cut a piece of 1⁄2" thick plywood 5 1⁄4" wide

and as long as your table saw rip fence; cut a piece of as long as your table saw rip fence (see Figure 129).

Length of Table Saw Rip Fence

51⁄4"

⁄4" thick hardwood 3" wide and

⁄4" Hardwood

⁄4" Plywood

Length of Table Saw Rip Fence

#8 x 1

⁄2"

Wood Screw

⁄4" Hardwood

⁄4" Plywood

Completed Fence

Figure 130. Location of pilot holes.

Using 1⁄2" material you used in previous steps,

cut out pieces for push block per the dimensions shown in Figure 131; for handle, cut a piece 10" long by 5"–9" high and shape it as desired to fit your hand.

⁄8"

15"

⁄2"

⁄4"

⁄8"

⁄2"

⁄8"

Handle

Lip

⁄8"

Figure 131. Push block dimensions and

construction.

⁄2"

Figure 129. Auxiliary fence dimensions.

Note: We recommend cutting hardwood

board oversize, then jointing and planing it to the correct size to make sure the board is square and flat. Only use furniture grade plywood or kiln dried hardwood to prevent warping.

-64-

Attach handle to base with #8 x 11⁄2" wood

screws, and attach lip to base with cyanoacrylate type wood glue.

Model G0764Z (Mfd. Since 05/18)

Using the Auxiliary Fence and Push Block

1. Place auxiliary fence on table and clamp it to

rip fence at both ends, then adjust distance between the auxiliary fence and blade—this determines width of rip cut (see Figure 132).

Auxilliary Fence

Blade

4. Turn saw ON, wait for blade to reach full speed, then begin ripping the workpiece using a push stick for side support.

As the workpiece nears end of cut, place

push block on auxiliary fence with lip directly behind workpiece, then release push stick just before blade.

Guide workpiece rest of the way through cut

6. with push block, as shown in Figure 134.

Workpiece Cutting Width

Figure 132. Example illustration of adjusting ripping distance between blade and auxiliary

fence.

Whenever possible, keep blade guard in the proper position over blade when using jigs of this nature. This will reduce risk of injury from kickback or contact with blade.

Install blade guard.

3. Place workpiece 1" behind blade and evenly

against table and auxiliary fence.

Release

Push Stick

Before Blade

Lip

Blade Path

Figure 134. Example illustration of ripping with

push block.

Turn saw OFF and wait for blade to completely stop before removing cut off piece. This will reduce risk of injury from kickback or contact with blade.

Push Block

Auxilliary Fence

Blade

Workpiece

Push Stick

for Side

Support

Blade Path

Figure 133. Example illustration of push block in

position to push workpiece through blade.

Model G0764Z (Mfd. Since 05/18)

Push

Block

-65-

ACCESSORIES

order online at www.grizzly.com or call 1-800-523-4777

Installing unapproved accessories may

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

G0777—1.5 HP Ultra-Quiet Cyclone Dust Collector

Where most dust collectors this size operate at a minimum of 80-82 dB, the G0777 can collect even the biggest shavings without exceeding 70–72 dB due to its slow-speed motor and large impeller. Features a compact profile on a sturdy mobile frame, a pleated filter system, an internal filtercleaning brush system, 880 CFM airflow, a builtin remote control switch, and a mobile 35-gallon collection drum.

H3388 H3389—14" Carbide Tipped Saw Blade, 100T

These blades are designed especially for sliding table saws and manufactured for heavy-duty use.

T23037—Scoring Blade Replacement

—14" Carbide Tipped Saw Blade, 80T

Figure 135. 14" carbide tipped saw blade.

Figure 137. G0777 Ultra-Quiet Cyclone

Dust Collector.

Figure 136. Model T23037 Scoring Blade

-66-

Model G0764Z (Mfd. Since 05/18)

order online at www.grizzly.com or call 1-800-523-4777

T20501—Face Shield Crown Protector 4" T20502—Face Shield Crown Protector 7" T20503—Face Shield Window T20451—“Kirova” Clear Safety Glasses T20452—“Kirova” Anti-Reflective S. Glasses H7194—Bifocal Safety Glasses 1.5 H7195—Bifocal Safety Glasses 2.0 H7196—Bifocal Safety Glasses 2.5

D4218—Black Flexible Hose 5" x 10'

D4212—Black Flexible Hose 2

⁄2" x 10'

W1318—Wire Hose Clamp 5"

W1314—Wire Hose Clamp 2

⁄2"

W1008—Plastic Blast Gate 5"

We've hand picked a selection of commonly used dust collection components for the Model G0764Z.

T20502

T20452

T20503

H7194

T20451

Figure 138. Eye protection assortment.

W1732—Adjustable Roller Table

Specifications:

• Roller size: 19 1⁄2" long x 2" dia., 9 each

• Minimum stand length: 19 1⁄2"

• Maximum stand length: 54"

• Minimum stand height: 24 1⁄2"

• Maximum stand height: 38"

• Casters: Polyurethane, 4 1⁄4" dia., locking

• Legs: Independently adjustable Multiple stands can be connected for unlimited rolling capacity

W1008

D4218

W1318

Figure 140. Recommended dust collection

accessories.

H8029—5-Piece Safety Kit

This kit has four essential jigs. Includes two push blocks, push stick, featherboard, and combination saw and router gauge. Featherboard

⁄8" x 3⁄4" miter slots. Made of high-visibility

fits yellow plastic.

Figure 141. H8029 5-Piece Safety Kit.

Figure 139. W1732 Adjustable Roller Table.

Model G0764Z (Mfd. Since 05/18)

-67-

G5562—SLIPIT® 1 Qt. Gel

order online at www.grizzly.com or call 1-800-523-4777

G5563—SLIPIT G2871—Boeshield G2870—Boeshield H3788—G96 H3789—G96

12 Oz. Spray

T-9 12 Oz. Spray

Gun Treatment 12 Oz. Spray

Gun Treatment 4.5 Oz. Spray

T-9 4 Oz. Spray

Figure 142. Recommended products for protect-

ing unpainted cast iron/steel parts on machinery.

H2499—Small Half-Mask Respirator H3631—Medium Half-Mask Respirator H3632—Large Half-Mask Respirator H3635—Cartridge Filter Pair P100

Wood dust has been linked to nasal cancer and severe respiratory illnesses. If you work around dust everyday, a half-mask respirator can be a lifesaver. Also compatible with safety glasses!

T26419—Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized hydrocarbon basestocks that are compounded with special thickeners and additives to make Syn-O-Gen non-melt, tacky, and water resistant. Extremely low pour point, extremely high temperature oxidation, and thermal stability produce a grease that is unmatched in performance.

Figure 143. T26419 Syn-O-Gen Synthetic

Grease.

Figure 144. Half-mask respirator with disposable

cartridge filters.

G0572—Hanging Air Filter with Remote

This Hanging Air Filter has a convenient remote control and features a three-speed motor, automatic shutoff timer, 1-micron secondary filter, and 5-micron primary filter. Air flow is 556, 702, and 1044 CFM. Overall size is 26" long x 19 1⁄4" wide x 15" high. Approximate shipping weight is 58 lbs.

Figure 145. G0572 Hanging Air Filter with

Remote.

-68-

Model G0764Z (Mfd. Since 05/18)

SECTION 6: MAINTENANCE

accidental startup, always disconnect machine from

Cleaning &

To reduce risk of shock or

power before adjustments, maintenance, or service.

Schedule

For optimum performance from your machine, follow this maintenance schedule and refer to any specific instructions given in this section.

Daily Check:

• Loose mounting bolts.

• Damaged saw blade. Worn or damaged wires.

• Any other unsafe condition.

•

Weekly Maintenance:

• Clean sliding table surface and grooves.

• Clean and protect cast iron table.

• Clean rip fence and slide ways.

Protecting

Cleaning the saw is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin-dissolving cleaner to remove it.

Protect the unpainted cast iron table by wiping it clean after every use—this ensures moisture from wood dust does not remain on the bare metal surface. Keep the table rust-free with regular applications of products like G96 SLIPIT

G5562—SLIPIT G5563—SLIPIT G2871—Boeshield G2870—Boeshield H3788—G96 H3789—G96

, or Boeshield® T-9 (see Page 146).

1 Qt. Gel

12 Oz. Spray

T-9 12 Oz. Spray

Gun Treatment 12 Oz. Spray

Gun Treatment 4.5 Oz. Spray

T-9 4 Oz. Spray

Gun Treatment,

Monthly Maintenance:

• Clean/vacuum dust buildup from inside cabi-

net and off motors.

• Check/replace belts for proper tension, dam-

age or wear (Page 73).

Every 6–12 Months:

• Lubricate slide shafts (Page 70).

• Lubricate elevation chain (Page 70).

• Lubricate tilt leadscrew (Page 70).

Model G0764Z (Mfd. Since 05/18)

Figure 146. Recommended products for protecting unpainted cast iron/steel parts on machinery.

-69-

Lubrication

To reduce risk of shock or accidental startup, always disconnect machine from

An essential part of lubrication is cleaning the components before lubricating them. This step is critical because dust and chips build up on lubricated components, which makes them hard to move. Simply adding more lubrication to builtup grime will not result in smooth-moving parts. Clean the components in this section with an oil/ grease solvent cleaner or mineral spirits before applying lubrication.

All bearings are sealed and permanently lubricated. Leave them alone until they need to be replaced. Refer to Page 66 for NLGI#2 grease (T23964) available from Grizzly.

Elevation Chain

Lubrication Type .......... G4682 Dry Coating Lube

Amount Lubrication Frequency

Clean the chain links (see Figure 148) with a brush and mineral spirits, then apply a light coat of lubricant.

.................................................Thin Coat

.....................6–12 Months

Elevation

Chain

Figure 148. Location of elevation chain.

power before adjustments, maintenance, or service.

Slide Shafts

Lubrication Type ...T23964 or NLGI#2 Equivalent Amount Lubrication Frequency

The blades and motors move up and down on slide shafts that require adding lubricant to the grease fittings shown in Figures 147–149.

.............................................. 1–2 Pumps

.....................6–12 Months

Sliding

Shafts

Tilt Leadscrew

Lubrication Type ...T23964 or NLGI#2 Equivalent Amount Lubrication Frequency

Clean the threads of the tilt leadscrew (see Figure 149) with a stiff brush and mineral spirits. When dry, apply a thin coat of lubricant into the threads with a brush and tilt the blade back and forth a few times to distribute the grease.

.................................................Thin Coat

.....................6–12 Months

Tilt

Leadscrew

Grease Fittings

Figure 147. Sliding shafts and grease fittings.

-70 -

Figure 149. Tilt leadscrew.

Model G0764Z (Mfd. Since 05/18)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Symptom Possible Cause Possible Solution

Machine does not start or a breaker trips.

Machine stalls or is underpowered.

1. Emergency Stop button is engaged/faulty.

2. Master power switch turned OFF or is at fault.

3. Power supply switched OFF or is at fault.

4. Blade guard limit switch engaged/at fault.

5. Cabinet door is open/door safety switch is at fault.

6. Motor connection wired incorrectly.

7. Thermal overload relay has tripped.

8. Wall fuse/circuit breaker is blown/tripped.

9. Contactor not getting energized/has burnt contacts.

10. Wiring is open/has high resistance.

11. Motor ON button is at fault.

12. Set incorrectly or fault.

13. Motor is at fault.

1. Feed rate/cutting speed too fast for task.

2. Workpiece material is not suitable for this machine.

3. Worn or damaged belts.

4. Motor connection is wired incorrectly.

5. Motor bearings are at fault.

6. Start timer module is at fault.

7. Motor is at fault.

1. Rotate clockwise slightly until it pops out/replace it.

2. Turn master power switch ON; replace.

3. Ensure power supply switch is on; ensure power supply has correct voltage.

4. Move blade guard to working position; replace faulty limit switch.

5. Close door/replace faulty safety switch.

6. Correct motor wiring connections.

7. Turn cut-out dial to increase working amps and push reset pin. Replace if tripped multiple times (weak relay).

8. Ensure circuit size is suitable for this machine; replace weak breaker.

9. Test for power on all legs and contactor operation. Replace unit if faulty.

10. Check for broken wires or disconnected/corroded connections, and repair/replace as necessary.

11. Replace faulty ON button.

12. Adjust to correct delay; replace module.

13. Test/repair/replace.

1. Decrease feed rate/cutting speed.

2. Only cut wood products; make sure moisture content is below 20% and there are no foreign materials in the workpiece.

3. Replace bad belts (Page 73).

4. Correct motor wiring connections.

5. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

6. Adjust to correct delay; replace module.

7. Test/repair/replace.

Model G0764Z (Mfd. Since 05/18)

-71-

Symptom Possible Cause Possible Solution

Machine has vibration or noisy operation.

Blades rotate in the opposite direction as they should.

Workpiece has burned edges, binds, or kicks back.

Workpiece has chip out on the bottom edge.

Sliding table saw does not cut square.

Rip fence hits table top when sliding across table.

Blade does not reach 90˚, or blade does not reach 45˚.

The rip fence scale is not accurate.

Tilt or blade height handwheels difﬁcult to turn.

1. Motor or component is loose.

2. Blade is at fault.

3. Worn or damaged belts.

4. Pulley is loose.

5. Motor mount loose/broken.

6. Machine is incorrectly mounted or sits unevenly.

7. Arbor pulley is loose.

8. Motor fan is rubbing on fan cover.

9. Arbor bearings are at fault.

10. Motor bearings are at fault.

1. Two of the power wires are reversed.

1. Sliding table is not parallel to blade.

2. Riving knife is not aligned with blade.

3. Blade is warped.

1. Scoring blade height is incorrect.

2. Scoring blade is not aligned with main blade.

3. Scoring blade kerf does not match the main blade.

1. Sliding table is not parallel to blade.

2. Crosscut fence is not perpendicular to blade.

1. Rail is too low.

2. Rip fence roller is too low.

1. Blade tilt stop nuts are out of adjustment.

1. The rip fence scale is out of calibration or was not set up correctly.

1. Lock knob is tight.

2. Leadscrews caked with dust.

1. Inspect/replace stripped or damaged bolts/ nuts, and retighten with thread locking ﬂuid.

2. Replace warped, bent, or twisted blade; resharpen dull blade.

3. Replace bad belts (Page 73).

4. Re-align/replace shaft, pulley, set screw, and key as required.

5. Tighten/replace.

6. Tighten/replace anchor studs in ﬂoor; relocate/shim machine.

7. Retighten/replace arbor pulley with shaft and thread locking liquid.

8. Replace dented fan cover; replace loose/ damaged fan.

9. Replace arbor housing bearings; replace arbor.

10. Test by rotating shaft; rotational grinding/ loose shaft requires bearing replacement.

1. Reverse R & T incoming power connections in junction box (Page 41).

1. Make sliding table parallel to blade (Page 76).

2. Align riving knife with main blade (Page 46).

3. Replace blade.

1. Adjust height of scoring blade (Page 53).

2. Align scoring blade (Page 53).

3. Adjust scoring blade kerf (Page 53).

1. Make sliding table parallel to blade (Page 76).

2. Adjust crosscut fence perpendicular to blade (Page 77).

1. Raise front rail (Page 80).

2. Adjust rip fence roller (Page 80).

1. Adjust stop nuts (Page 75).

1. Adjust the rip fence scale (Page 80).

1. Release lock knob.

2. Clean off dust and lubricate leadscrews/gears.

-72-

Model G0764Z (Mfd. Since 05/18)

Belt Service

Over time, belts will stretch and wear. To maintain efficient power transfer to the blades, make sure the belts are properly tensioned and in good condition. If belts show any glazing, fraying, or cracking, replace them.

To reduce risk of shock or accidental startup, always disconnect machine from power before adjustments, maintenance, or service.

Tensioning Scoring Motor Belt

Proper tension of the scoring motor flat belt is automatically maintained by a spring on the motor pivot rod (see Figures 150 and 151).

Replacing Scoring Motor Belt

To replace the scoring motor belt, have an assistant lift the scoring motor up to relieve the belt tension, then replace the belt with a new one. When the motor is lowered, proper belt tension will be applied by the spring.

Tensioning Main Motor Belt

Proper tension of the main motor V-belt is automatically maintained by a cam lock attached to the motor mounting plate and arbor support bracket (see Figure 152).

Cam Lock

Main Motor

V-Belt

Scoring Motor

Flat Belt

Figure 150. Location of scoring motor flat belt.

Figure 152. Location of main motor V-belt and

cam-lock (table removed for photo clarity).

Spring

Figure 151. Location of scoring motor spring.

Model G0764Z (Mfd. Since 05/18)

-73 -

Replacing Main Motor Belt

A V-belt transfers power from the main motor to the main blade.

Tool Needed Qty

Wrench 22mm ................................................... 1

To replace main motor belt:

DISCONNECT MACHINE FROM POWER!

2. Open cabinet door and locate motor adjust-

ment lever shown in Figure 153.

Rotate adjustment lever clockwise to raise

motor and release belt tension (see Figure

154). The cam will lock the motor in place.

Cam Lock

Pulley

Belt

Adjustment

Lever

Figure 153. Main motor V-belt tension controls

(table removed for photo clarity).

Adjustment

Lever

Figure 154. Rotating motor position using motor

adjustment lever.

Carefully position belt onto desired pulleys

(see Change Speed on Page 49 for additional information).

Rotate adjustment lever counterclockwise to

lower motor and retension belt.

Note: The cam lock will automatically posi-

tion motor for correct belt tension.

Close cabinet door before reconnecting

machine to power.

-74 -

Model G0764Z (Mfd. Since 05/18)

Blade Tilt Calibration

The blade tilt stops are calibrated at the factory, but they can be recalibrated if they change during the life of the machine. The 0° stop positions the blade square to the table.

Tools Needed Qty

Hex Wrench 3mm .............................................. 1

Machinist's Square, 90° & 45°

........................... 1

Use machinist's square to check if main blade

is square to table (see Figure 156).

Blade

Table

90° Square

0° Stop

1. DISCONNECT MACHINE FROM POWER!

2. Move blade tilt to 0° and raise main blade as

high as it will go.

Open cabinet door and identify the stop nuts

shown in Figure 155.

45° Stop

Nut

0° Stop

Nut

Figure 155. Blade tilt stop nuts.

Figure 156. Machinist's square against blade

and table.

a. If main blade is not square to table,

loosen the two set screws on 0° stop nut, then loosen stop nut away from leadscrew collar.

b. Adjust main blade tilt angle so that it is

square to table.

Thread 0° stop nut against leadscrew col-

lar and retighten set screws.

45° Stop

Use a similar procedure for the 45° stop nut shown in Figure 155, as previously instructed for the 0° stop nut.

Tilt Scale Calibration

If necessary, the blade tilt scale on the front of the saw can be adjusted by using the hex nuts shown on the tilt scale cable in Figure 157. These are accessed inside the cabinet.

Model G0764Z (Mfd. Since 05/18)

Tilt Scale

Cable Hex Nuts

Figure 157. Tilt scale cable hex nuts.

-75-

Sliding Table Parallel

Adjustment

The sliding table is adjusted parallel with the main blade at the factory, but it can re-adjusted if necessary.

Tools Needed Qty

Felt Tip Pen ....................................................... 1

90° Square Precise Measuring Tool Phillips Screwdriver #2 Wrench or Socket 17mm

........................................................ 1

..................................... 1

...................................... 1

................................... 1

5. Rotate blade 180°, move sliding table all the way back, then measure distance “B” shown in Figure 158.

— If “A” and “B” measurements are same or

difference is 0.004" or less, no adjustments to table parallelism need be made.

— If difference is greater than 0.004", then

sliding table parallelism must be adjusted. Proceed to Step 6.

Loosen hex nuts on sliding table T-bolts to

allow sliding table to move in next step (refer to Figures 21–23 on Page 26 for hex nut locations).

To adjust sliding table parallel with main blade:

1. DISCONNECT MACHINE FROM POWER!

Raise main blade as high as it will go and

adjust tilt angle to 0° (verify with square).

Mark one blade tooth with felt tip pen. This

will be your reference point when taking measurements in following steps.

Move sliding table all the way forward, and

measure distance “A” shown in Figure 158, which is between marked blade tooth and edge of sliding table miter slot.

Marked Tooth

Blade

Miter Slot

Adjust adjustment bolts underneath each end

of sliding table (see Figure 159) to make sliding table parallel with main blade.

Adjustment Bolt

(1 of 2)

Figure 159. Sliding table parallelism adjustment

bolt (1 of 2).

Once sliding table parallelism is within 0.004"

from one end to the other, retighten hex nuts and re-install access panels.

Marked Tooth

Figure 158. Measuring distance between miter

slot and blade at each end of sliding table.

-76-

Model G0764Z (Mfd. Since 05/18)

Sliding Table

Squaring Crosscut

Movement

Adjustment

The sliding table features an adjustment bar with bolts that control how easily the sliding table moves across the base (see Figure 160). These adjustment bolts are factory set and should not be adjusted unless absolutely necessary. They can only be accessed by removing the end covers from both ends of the sliding table base and sliding the thin plate that is over the bolts out of the way.

Important: Before making any adjustments to the factory setting, make sure it is necessary. This is a major adjustment that, if not done properly, can adversely affect the movement of the sliding table saw.

Fence to Blade

Squaring the crosscut fence to the blade ensures that cuts made with the crosscut fence will be square. This procedure can be done by using a 32" x 32" piece of scrap plywood as a test piece and making five test cuts, then adjusting the fence as necessary.

Note: Getting accurate results with this procedure is a matter of trial-and-error and patience.

To square crosscut fence with the blade:

Make sure sliding table is parallel with

1. main blade (refer to Sliding Table Parallel Adjustment on Page 76 for detailed instruc-

tions).

Loosen crosscut fence pivot lock knob to

allow fence to pivot.

Adjustment

Bolt

Figure 160. Adjustment bolt access location.

Increasing pressure between the rails (turning bolts counterclockwise) reduces table movement inaccuracies, which increases accuracy, but makes it harder to slide the table. Decreasing pressure between the rails (turning bolts clockwise) makes it easier to slide the table, but increases table movement inaccuracies, which reduces accuracy.

Adjusting this part of the sliding table correctly is a matter of trial-and-error by making adjustments, moving the sliding table, making additional adjustments, and repeating the process until the sliding table moves smoothly and easily but without any inaccuracies.

Move crosscut fence stop block against 0°

stop bolt (see Figure 161), then retighten pivot lock knob to secure fence in place.

0° Stop Bolt

& Block

Figure 161. Stop block against 0° stop bolt.

Model G0764Z (Mfd. Since 05/18)

-77-

Test

Piece

Test

Piece

Prepare scrap test piece by cutting it to 32"

x 32" square, then number all four sides 1–4 (see Figure 162).

Figure 162. Fence adjustment test piece.

Use crosscut fence to cut 1⁄2" off of each side

of test piece, then cut side 1 again (make five cuts total).

Loosen crosscut fence pivot lock knob to

allow fence to pivot.

Loosen hex nut on the 0° stop bolt shown

in Figure 161 on the previous page, rotate 0° stop bolt to square crosscut fence, then retighten hex nut.

Move crosscut fence stop block against 0°

stop bolt, then retighten pivot lock knob to secure fence in place.

Repeat Steps 5–6.

10.

Measure test piece diagonally from corner-to-

corner, as shown in Figure 163.

— If both measurements are within 1⁄16", then

you are finished with this procedure.

— If both measurements are not within 1⁄16",

then crosscut fence needs to be adjusted. Proceed to Step 7.

Figure 163. Diagonals to measure on test piece.

-78 -

Model G0764Z (Mfd. Since 05/18)

Riving Knife

Mounting Block

Tools Needed Qty

Straightedge ...................................................... 1

Wrench 19mm Hex Wrench 4mm

................................................... 1

.............................................. 1

The riving knife must be aligned with the blade when installed. If the riving knife is not aligned with the blade, then the workpiece will be forced sideways during the cut, which will increase the risk of kickback.

The riving knife mounts to a block that can be repositioned to correctly align the riving knife to the blade. The mounting block adjusts by turning the set screws in each corner of the block. Figure 164 shows the set screws associated with controlling the mounting block position. Have patience when adjusting the mounting block, because it requires trial-and-error to perform with accuracy.

Mounting Block

Face View

Top Control

Side

Control

Side

Control

To adjust riving knife mount block:

1. DISCONNECT MACHINE FROM POWER!

2. Raise blade guard and move it away from

blade, then adjust blade tilt to 0° and raise blade all the way up.

Move sliding table all the way forward to

expose blade cover, then lock it in place.

Use blade locks to open cover (see Figure

4. 88 on Page 50) and gain access to riving

knife mounting block.

Loosen hex nut that secures riving knife to

mounting block, and remove riving knife.

Adjust each pair of set screws that controls

the direction required to move mounting block so riving knife can be aligned with blade. Make sure to move both set screws in even increments.

Bottom Control

Figure 164. Riving knife mounting block

adjustment controls.

All adjustment and alignment positions for the riving knife are covered on Page 46 in the subsection Riving Knife Installation & Removal; the mounting block should not be adjusted unless you have been unable to mount the riving knife as instructed by these procedures.

Re-install riving knife and check alignment

with blade. Repeat Step 6 as necessary until riving knife is properly aligned with blade.

Note: If you discover that riving knife is bent

and cannot be properly aligned with the blade, it is possible to bend it into alignment, but make sure that the final result is precisely aligned so the risk of kickback is not increased. If the riving knife is bent, and you cannot easily bend it back into alignment, we recommend replacing it with a new one.

Properly re-install riving knife as described on

8. Page 46, close blade cover, properly reposi-

tion blade guard, and move sliding table back to center position.

Model G0764Z (Mfd. Since 05/18)

-79 -

Calibrating Rip

Fence

There are three adjustments that affect the accuracy and operation of the rip fence: 1) Height above the table, 2) parallelism with the blade, and 3) rip fence scale position. If your cuts are not square when using the rip fence, check these adjustments. Parallelism is an important safety adjustment and the rip fence MUST be parallel with blade to minimize the risk of kickback.

Parallelism To Blade

Parallelism is an important safety adjustment. Rip fence MUST be parallel with blade to minimize risk of kickback.

Tool Needed Qty

Wrench 19mm ................................................... 1

To adjust rip fence parallel to main blade:

DISCONNECT MACHINE FROM POWER!

Height Above Table

The rip fence and base should ride as close to the table surface as possible without touching it and with an even gap along the length. This is accomplished by adjusting the rip fence rail and the roller at the end of the fence base.

Tools Needed Qty

Hex Wrench 6mm .............................................. 1

Wrench 13mm Wrench 19mm

To adjust rip fence height above table:

Observe gap between fence base and table

along entire length.

— If rail end of fence body is too low, loosen

hex nuts that secure rail, raise rail until fence body gap is even, then retighten rail hex nuts.

................................................... 2

................................................... 1

2. Raise main blade all the way up and tilt to 0°.

3. Slide rip fence as close to main blade as pos-

sible and check the gap that remains.

— If gap between rip fence and main blade is

not even at both ends, loosen rail hex nuts and adjust one end in or out until fence is parallel with blade, then retighten hex nuts.

Calibrating Rip Fence Scale

Tool Needed Qty

Hex Wrench 4mm .............................................. 1

To calibrate rip fence scale:

DISCONNECT MACHINE FROM POWER!

2. Make sure rip fence is parallel with main

blade, then move it against blade so that it just touches teeth.

— If far end of fence base is too low, remove

rail end cap, and slide fence base off rail.

Loosen acorn nut shown in Figure 165,

adjust wheel position, retighten acorn nut, and re-install fence base on rail.

Wheel

Acorn Nut

Figure 165. Rip fence base roller controls.

-80-

Observe reading on scale underneath rip

fence (see Figure 166 for an example).

— If scale is not zero, loosen cap screws that

secure it to table, adjust it so it reads zero, then retighten cap screws.

Fence Scale

Zero Mark

Figure 166. Rip fence scale zero mark.

Model G0764Z (Mfd. Since 05/18)

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0764Z (Mfd. Since 05/18)

-81-

Wiring Overview

23 24

11 12

1 2 3 4

EMERGENCY

STOP

2 1

R T E

Ground

Hot

DISCONNECT

SWITCH

(as recommended)

3-PHASE

220V or 440V

R9COLVN

Figure 169. Emergency stop.

Figure 167. Door limit

switch.

Door

Limit Switch

Control Panel

Page 84

Electrical Panel

Pages 85–86

Scoring Motor

Page 88

Main Motor

Page 89

Figure 170. Blade

guard limit switch.

Blade Guard

Limit Switch

Figure 168. Power

supply junction box.

-82-

Master Power Switch

Page 90

= For phase converter wild wire (if used)

READ ELECTRICAL SAFETY

ON PAGE 80!

Power Supply Junction Box

Model G0764Z (Mfd. Since 05/18)

Component Location Index

Control Panel

Figure 171. Front view of sliding table saw.

Page 84

Master Power

Switch

Page 90

Electrical Panel

Page 85–86

Figure 172. Rear view of sliding table saw.

Model G0764Z (Mfd. Since 05/18)

Emergency Stop

Button

Page 82

Power Supply Junction

Box Page 82

• Main Motor Page 89

• Scoring Motor Page 88

• Door Limit Switch Page 82

• Blade Guard Limit Switch

Page 82

READ ELECTRICAL SAFETY

ON PAGE 80!

-83-

Control Panel Wiring

To Emergency Stop

Page 82

RENY

R9C01VN

EMERGENCY

STOP

KEYON

KE22DS

POWER

LIGHT

To Electrical Panel

Pages 85–86

X1X2

SCORING

MOTOR OFF

RENY

R9C01VN

RENY

R9C01VN

SCORING

MOTOR ON

RENY

R9C01VN

NCNO NO

MAIN MOTOR

OFF

RENY

R9C01VN

MAIN

MOTOR ON

Control Panel Wiring Photo

Figure 173. Control panel wiring.

-84-

READ ELECTRICAL SAFETY

ON PAGE 80!

Model G0764Z (Mfd. Since 05/18)

220V Electrical Panel Wiring

To Master Power Switch Page 90 To Control Panel Page 84

Ground

0 1 4

TBSM-100040

1L1

2T1

R S T

LCE

Ground

4T2

5L39613NO 3L2

6T3

0 1

6 5 4 3

440

220

440

220

440

220

7 8 1 2

SECONDS

TIMER

FOTEK

H3-TRD-30S

220V

440V

1L1 5L3 13NO 3L2

S-P11KS

Shihlin

14NO

21NC

S-P21KM

22NC

Shihlin

4T2

6T3

2T1

14NO

2T1

4T2

S-P21KY

Shihlin

6T3

21NC

22NC

14NO

21NC

S-P21KD

22NC

Shihlin

2T1

4T2

6T3

14NO

Set to 3.2

2.5

3.3

H A

U V W

RESET TRIP

4.1

RCA

959798

To Scoring Motor Page 88 To Main Motor

Model G0764Z (Mfd. Since 05/18)

1L1

Ground

3L2

Set to 26

TRIP

TH-P20

RESET

RCA

5L3

Y ZX

X Y Z

Ground

To Main Motor

Page 89

READ ELECTRICAL SAFETY

Thermostat Page 89

-85-

ON PAGE 80!

440V Electrical Panel Wiring

To Master Power Switch Page 90 To Control Panel Page 84

Ground

0 1 4

TBSM-100040

1L1

2T1

R S T

LCE

Ground

4T2

5L39613NO 3L2

6T3

0 1

6 5 4 3

440

220

440

220

440

220

7 8 1 2

SECONDS

TIMER

FOTEK

H3-TRD-30S

220V

220

440V

440

1L1 5L3 13NO 3L2

S-P11KS

Shihlin

14NO

21NC

S-P21KM

22NC

Shihlin

4T2

6T3

2T1

14NO

2T1

4T2

S-P21KY

Shihlin

6T3

21NC

22NC

14NO

21NC

S-P21KD

22NC

Shihlin

2T1

4T2

6T3

14NO

RESET TRIP

H A

U V W

To Scoring Motor Page 88

-86-

READ ELECTRICAL SAFETY

1.6

2.1

1.3

RCA

959798

ON PAGE 80!

1L1

U V

Ground

3L2

5L3

TRIP

RESET

RCA

TH-P20

Ground

To Main Motor

Page 89

To Main Motor

Thermostat Page 89

Model G0764Z (Mfd. Since 05/18)

Electrical Panel Wiring Photo

Model G0764Z (Mfd. Since 05/18)

Figure 174. Electrical panel wiring.

READ ELECTRICAL SAFETY

ON PAGE 80!

-87-

Scoring Motor Wiring

220V 440V

1 2 3 4

To Electrical Panel

Pages 85–86

Ground

1 2 3 4

W1U1

Ground

(Rewired for 440V operation)

Scoring Motor Wiring Photo

-88-

Figure 175. Scoring motor wiring.

READ ELECTRICAL SAFETY

ON PAGE 80!

Model G0764Z (Mfd. Since 05/18)

Main Motor Wiring

220V

440V

To Electrical Panel

Pages 85–86

Gnd

(Rewired for 440V operation)

Main Motor Wiring Photo

Model G0764Z (Mfd. Since 05/18)

Figure 176. Main motor wiring.

READ ELECTRICAL SAFETY

-89-

ON PAGE 80!

Master Power Switch Wiring

KONCAR

07-40U06

Right Side

Left Side

To Electrical Panel

Pages 85–86

To Power Supply

Junction Box

Page 82

Master Power Switch Photo

Figure 177. Master power switch right side. Figure 178. Master power switch left side.

-90-

READ ELECTRICAL SAFETY

ON PAGE 80!

Model G0764Z (Mfd. Since 05/18)

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

Body

16-1

20-1

20-2

71-7

71-1

71-2

71-3

71-4 71-5 71-5

71-6

71-8

71-9

71-10

71-11

71-12

71-13

71-14

Model G0764Z (Mfd. Since 05/18)

-91-

Body Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0764Z0001 FRONT PANEL 55 P0764Z0055 STRAIN RELIEF M20 TYPE-6 ST 2 P0764Z0002 HEX BOLT M10-1.5 X 40 56 P0764Z0056 CONDUIT FITTING PGN21-28 LT STRAIGHT 3 P0764Z0003 HEX NUT M10-1.5 57 P0764Z0057 STRAIN RELIEF PG20 LT STRAIGHT 4 P0764Z0004 MACHINE FRAME 58 P0764Z0058 STRAIN RELIEF PLATE 5 P0764Z0005 CAP SCREW M12-1.75 X 80 59 P0764Z0059 LOCK WASHER 6MM 6 P0764Z0006 FLAT WASHER 12MM 60 P0764Z0060 CAP SCREW M6-1 X 12 7 P0764Z0007 PLATE 62 P0764Z0062 COVER PLATE (RH) 8 P0764Z0008 LOCK WASHER 6MM 63 P0764Z0063 COVER PLATE (LH) 9 P0764Z0009 CAP SCREW M6-1 X 16 64 P0764Z0064 FLANGE SCREW M6-1 X 10 10 P0764Z0010 LOCK NUT M12-1.75 65 P0764Z0065 ELECTRICAL MOUNTING PLATE 11 P0764Z0011 LOCK WASHER 12MM 66 P0764Z0066 ELECTRICAL PANEL 12 P0764Z0012 ATTACHMENT ACCESS PANEL 67 P0764Z0067 FLAT WASHER 6MM 13 P0764Z0013 BUTTON HD CAP SCR M6-1 X 12 68 P0764Z0068 FLANGE NUT M6-1 14 P0764Z0014 FLANGE BOLT M5-.8 X 10 69 P0764Z0069 GASKET 2 X 300 X 7.5MM 16 P0764Z0016 HINGE POST 71 P0764Z0071 TILT INDICATOR ASSEMBLY 16-1 P0764Z0016-1 HINGE 71-1 P0764Z0071-1 FLAT WASHER 5MM 17 P0764Z0017 CAP SCREW M4-.7 X 30 71-2 P0764Z0071-2 PHLP HD SCR M5-.8 X 10 18 P0764Z0018 LOCK WASHER 4MM 71-3 P0764Z0071-3 POINTER 19 P0764Z0019 FLAT WASHER 4MM 71-4 P0764Z0071-4 SUPPORT PLATE 20 P0764Z0020 DOOR LIMIT SWITCH ASSEMBLY 71-5 P0764Z0071-5 FLAT WASHER 6MM 20-1 P0764Z0020-1 LIMIT SWITCH SHINOZAK AZD-S11 71-6 P0764Z0071-6 STEEL WIRE 20-2 P0764Z0020-2 LIMIT SWITCH CORD 20G 2W 16" 71-7 P0764Z0071-7 CAP SCREW M5-.8 X 10 21 P0764Z0021 LOCK WASHER 12MM 71-8 P0764Z0071-8 SET SCREW M5-.8 X 10 22 P0764Z0022 FLAT WASHER 12MM 71-9 P0764Z0071-9 POINTER MOUNT 23 P0764Z0023 PLATE 71-10 P0764Z0071-10 CAP SCREW M6-1 X 12 24 P0764Z0024 FLANGE BOLT M5-.8 X 6 71-11 P0764Z0071-11 LOCK WASHER 6MM 27 P0764Z0027 PANEL PLUG 71-12 P0764Z0071-12 SHAFT 28 P0764Z0028 MASTER POWER SWITCH KONCAR 07-40U06 71-13 P0764Z0071-13 FLAT WASHER 6MM 29 P0764Z0029 ELECTRICAL BOX ACCESS PANEL 71-14 P0764Z0071-14 COMPRESSION SPRING 30 P0764Z0030 FLANGE SCREW M6-1 X 10 72 P0764Z0072 FLANGE SCREW M4-.7 X 20 31 P0764Z0031 TRUNNION 73 P0764Z0073 TILT SCALE 32 P0764Z0032 FLAT WASHER 10MM 74 P0764Z0074 FLAT WASHER 4MM

33 P0764Z0033 LOCK WASHER 10MM 75 P0764Z0075 HEX NUT M4-.7 34 P0764Z0034 CAP SCREW M10-1.5 X 35 76 P0764Z0076 LOCK NUT M5-.8 35 P0764Z0035 TAP SCREW M5 X 20 77 P0764Z0077 SET SCREW M8-1.25 X 30 36 P0764Z0036 E-STOP BUTTON RENY R2-PNR4-1B-R 78 P0764Z0078 SET SCREW M8-1.25 X 40 37 P0764Z0037 SWITCH BOX GASKET 79 P0764Z0079 BLOCK 38 P0764Z0038 SWITCH BOX 80 P0764Z0080 TRUNNION PLATE 39 P0764Z0039 STRAIN RELIEF PG21 LT STRAIGHT 81 P0764Z0081 FLAT WASHER 5MM 40 P0764Z0040 DOOR KNOB ASSEMBLY 82 P0764Z0082 LOCK WASHER 6MM 41 P0764Z0041 DOOR W/HINGE ASSEMBLIES 83 P0764Z0083 CAP SCREW M6-1 X 12 42 P0764Z0042 LOCK WASHER 4MM 84 P0764Z0084 TILT SCALE WINDOW 43 P0764Z0043 PHLP HD SCR M4-.7 X 12 86 P0764Z0086 HEX BOLT M16-2 X 50 44 P0764Z0044 BUTTON HD CAP SCR M6-1 X 20 87 P0764Z0087 HEX NUT M16-2 45 P0764Z0045 JUNCTION BOX 88 P0764Z0088 SET SCREW M8-1.25 X 25 46 P0764Z0046 TERMINAL BAR 4P PB2504 89 P0764Z0089 HEX NUT M8-1.25 47 P0764Z0047 PHLP HD SCR M5-.8 X 8 90 P0764Z0090 CORD CONNECTOR 48 P0764Z0048 BUTTON HD CAP SCR M5-.8 X 12 91 P0764Z0091 TAP SCREW M4 X 16 49 P0764Z0049 STRAIN RELIEF PG20 LT STRAIGHT 92 P0764Z0092 TOOL HANGER 50 P0764Z0050 CAP SCREW M6-1 X 45 93 P0764Z0093 TOOLBOX 51 P0764Z0051 DOOR LATCH 95 P0764Z0095 WRENCH 24 X 27MM OPEN-ENDS 52 P0764Z0052 CAP SCREW M6-1 X 30 96 P0764Z0096 WRENCH 19MM COMBO 53 P0764Z0053 LOCK WASHER 6MM 97 P0764Z0097 WRENCH 30MM COMBO 54 P0764Z0054 HEX BOLT M12-1.75 X 25 99 P0764Z0099 CAP SCREW M5-.8 X 16 61 P0764Z0061 PANEL PLUG

-92-

Model G0764Z (Mfd. Since 05/18)

103

104

108

107

Main Tables

104

107

108

105

101

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 P0764Z0101 SET SCREW M10-1.5 X 20 108 P0764Z0108 LOCK WASHER 10MM

102 P0764Z0102 HEX NUT M10-1.5 109 P0764Z0109 BUTTON HD CAP SCR M6-1 X 12

103 P0764Z0103 EXTENSION TABLE (LH) 110 P0764Z0110 TABLE INSERT

104 P0764Z0104 CAP SCREW M10-1.5 X 25 111 P0764Z0111 STUD-FT M16-2 X 100

105 P0764Z0105 MAIN TABLE 112 P0764Z0112 LOCK NUT M16-2

106 P0764Z0106 EXTENSION TABLE (RH) 113 P0764Z0113 FLAT WASHER 16MM

107 P0764Z0107 FLAT WASHER 10MM 114 P0764Z0114 HEX NUT M16-2

102

109

106

110

111

112

113

114

Model G0764Z (Mfd. Since 05/18)

-93-

Control Panel

201

202

203

206

205

203

204

207

209

208

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0764Z0201 BUTTON DUST COVER (PLASTIC) 206 P0764Z0206 CONTROL PANEL PLATE

202 P0764Z0202 ON BUTTON RENY R9C01VN 22MM GRN 207 P0764Z0207 LOCK WASHER 6MM

203 P0764Z0203 OFF BUTTON RENY R9C01VN 22MM RED 208 P0764Z0208 CAP SCREW M6-1 X 16

204 P0764Z0204 POWER LAMP KEYON KE22DS 209 P0764Z0209 E-STOP BUTTON RENY R9C01VN 22MM

205 P0764Z0205 CONTROL PANEL LABEL

-94-

Model G0764Z (Mfd. Since 05/18)

308

337

307

306

302-3

Blade Enclosure

302-1

302-2

303

304

305

318

320

319

336

302

302-5

302-4

335

331

329

317

301

330

314

310

309

321

315

316

311

312

322

313

321

334

333

324

325

326

323

REF PART # DESCRIPTION REF PART # DESCRIPTION

301 P0764Z0301 BLADE COVER 317 P0764Z0317 MAGNET

302 P0764Z0302 BLADE COVER LIMIT SWITCH ASSY 318 P0764Z0318 BLADE SHROUD

302-1 P0764Z0302-1 BLADE LIMIT SWITCH SHINOZAK AZD-1112 319 P0764Z0319 CAP SCREW M12-1.75 X 45

302-2 P0764Z0302-2 STRAIN RELIEF PG11 320 P0764Z0320 SLIDE SHAFT

302-3 P0764Z0302-3 PHLP HD SCR M4-.7 X 35 321 P0764Z0321 FLAT WASHER 5MM

302-4 P0764Z0302-4 LIMIT SWITCH BRACKET 322 P0764Z0322 CAP SCREW M5-.8 X 16

302-5 P0764Z0302-5 LIMIT SWITCH CORD 20G 2W 9FT 323 P0764Z0323 LOCK WASHER 5MM

303 P0764Z0303 CAP SCREW M5-.8 X 12 324 P0764Z0324 HEX NUT M5-.8

304 P0764Z0304 LOCK WASHER 5MM 325 P0764Z0325 CAP SCREW M6-1 X 10

305 P0764Z0305 FLAT WASHER 5MM 326 P0764Z0326 LOCK WASHER 6MM

306 P0764Z0306 CUSHION STRIP 327 P0764Z0327 FLAT WASHER 6MM

307 P0764Z0307 FLANGE BOLT M8-1.25 X 12 328 P0764Z0328 BLADE SHROUD L-BRACKET

308 P0764Z0308 DUST PORT 5" 329 P0764Z0329 LOCK WASHER 12MM

309 P0764Z0309 BLADE COVER HINGE 330 P0764Z0330 LOCK NUT M6-1

310 P0764Z0310 FLAT WASHER 5MM 331 P0764Z0331 CAP SCREW M6-1 X 25

311 P0764Z0311 LOCK WASHER 5MM 333 P0764Z0333 HEX BOLT M8-1.25 X 75

312 P0764Z0312 CAP SCREW M5-.8 X 8 334 P0764Z0334 HEX NUT M8-1.25

313 P0764Z0313 L-BRACKET 335 P0764Z0335 SET SCREW M8-1.25 X 50

314 P0764Z0314 FLAT WASHER 5MM 336 P0764Z0336 HEX NUT M8-1.25

315 P0764Z0315 LOCK WASHER 5MM 337 P0764Z0337 DUST GASKET

316 P0764Z0316 CAP SCREW M5-.8 X 10

328

327

Model G0764Z (Mfd. Since 05/18)

-95-

Main Motor

409-3

401

402

409-1

409-4

403

409-2

409-5

405

404

406

414

404

407

415

408

418

419

409

421

422

429

423

427

428

427

430

425

424

426

413

412

420

411

410

REF PART # DESCRIPTION REF PART # DESCRIPTION

401 P0764Z0401 FLANGE CAP SCREW M10-1.5 X 20 413 P0764Z0413 SHAFT

402 P0764Z0402 PULLEY FLAT WASHER 10MM 414 P0764Z0414 BUTTON HD CAP SCR M8-1.25 X 25

403 P0764Z0403 MOTOR PULLEY 415 P0764Z0415 LOCK WASHER 8MM

404 P0764Z0404 THRUST WASHER BEARING 32 X 54 X 1.5MM 418 P0764Z0418 SET SCREW M8-1.25 X 20

405 P0764Z0405 MAIN MOTOR PLATE 419 P0764Z0419 KEY 8 X 8 X 35

406 P0764Z0406 MAIN MOTOR SHAFT 420 P0764Z0420 COLLAR

407 P0764Z0407 SPACER 421 P0764Z0421 CAP SCREW M6-1 X 12

408 P0764Z0408 LOCK NUT M30-3.5 422 P0764Z0422 HEX NUT M10-1.5

409 P0764Z0409 MAIN MOTOR 10HP 220V/440V 3-PH 423 P0764Z0423 ADJUSTING LEVER

409-1 P0764Z0409-1 MOTOR FAN COVER 424 P0764Z0424 FLAT WASHER 10MM

409-2 P0764Z0409-2 MOTOR FAN 425 P0764Z0425 HEX BOLT M10-1.5 X 35

409-3 P0764Z0409-3 MOTOR JUNCTION BOX 426 P0764Z0426 ADJUSTING SHAFT

409-4 P0764Z0409-4 BALL BEARING 6206ZZ (FRONT) 427 P0764Z0427 LOCK NUT M10-1.5

409-5 P0764Z0409-5 BALL BEARING 6205ZZ (REAR) 428 P0764Z0428 EYE BOLT M10-1.5 X 60

410 P0764Z0410 CAP SCREW M6-1 X 20 429 P0764Z0429 SHAFT

411 P0764Z0411 GAS SPRING 25KG, 60L 430 P0764Z0430 TEMPERATURE CORD

412 P0764Z0412 HEX NUT M6-1

-96-

Model G0764Z (Mfd. Since 05/18)

Main Blade Arbor

RIVING KNIFE 350-400

531

532

537

533

528

519

530

518

520

534

527

525

526

523

524

536

522

521

501

503

505

504

502

506

508

529

507

512

516

517

514

515

535

513

509

REF PART # DESCRIPTION REF PART # DESCRIPTION

501 P0764Z0501 ARBOR NUT WRENCH 36MM 521 P0764Z0521 STANDOFF HEX FF M6-1

502 P0764Z0502 HEX NUT M12-1.75 522 P0764Z0522 LOCK NUT M6-1

503 P0764Z0503 FENDER WASHER 12MM 523 P0764Z0523 WAVE WASHER 47 X 60MM

504 P0764Z0504 SET SCREW M5-.8 X 10 524 P0764Z0524 BALL BEARING 6007LLB

505 P0764Z0505 FIX BLOCK 525 P0764Z0525 MAIN BLADE PULLEY

506 P0764Z0506 FIX BLOCK BRACKET 526 P0764Z0526 PULLEY FLAT WASHER 10MM

507 P0764Z0507 CARRIAGE BOLT M12-1.75 X 40 527 P0764Z0527 CAP SCREW M10-1.5 X 25

508 P0764Z0508 FLAT HD SCR M6-1 X 16 528 P0764Z0528 FLANGE BOLT M6-1 X 12

509 P0764Z0509 ARBOR NUT M24-3 529 P0764Z0529 LOCK WASHER 6MM

510 P0764Z0510 MAIN BLADE FLANGE 530 P0764Z0530 CAP SCREW M6-1 X 30

511 P0764Z0511 MAIN BLADE ARBOR 25.4MM 531 P0764Z0531 BALL BEARING LM30UU

512 P0764Z0512 KEY 10 X 8 X 40 532 P0764Z0532 LEVER SHAFT M8-1.25 X 15, 12 X 166

513 P0764Z0513 HEX BOLT M6-1 X 20 533 P0764Z0533 BALL KNOB M8-1.25

514 P0764Z0514 LOCK WASHER 6MM 534 P0764Z0534 V-BELT 5V X 31.5 RIBBED

515 P0764Z0515 ARBOR PLATE 535 P0764Z0535 PUSH STICK

516 P0764Z0516 SPACER 536 P0764Z0536 SET SCREW M6-1 X 25

517 P0764Z0517 BUSHING 537 P0764Z0537 ZERK FITTING 1/4-28

518 P0764Z0518 BEARING HOUSING 538 P0764Z0538

519 P0764Z0519 ARBOR SUPPORT BRACKET 539 P0764Z0539

510

511

RIVING KNIFE 300-350

Model G0764Z (Mfd. Since 05/18)

-97-

Blade Tilt System

614

613

606-6

606-4

606-5

606-2

606-8

609

610

606-7

612

611

602

603

604-1

604

606-1

605

607

606

606-3

608

601

REF PART # DESCRIPTION REF PART # DESCRIPTION

601 P0764Z0601 LOCK KNOB M10-1.5 606-6 P0764Z0606-6 UNIVERSAL JOINT

602 P0764Z0602 LOCK WASHER 10MM 606-7 P0764Z0606-7 SET SCREW M6-1 X 6

603 P0764Z0603 FENDER WASHER 10MM 606-8 P0764Z0606-8 ROLL PIN 6 X 26

604 P0764Z0604 HANDWHEEL TYPE-12 203D X 10B-K X M6-1 607 P0764Z0607 SPACER

604-1 P0764Z0604-1 FOLDING HANDLE 110L, M6-1 X 12 608 P0764Z0608 FLAT WASHER 8MM

605 P0764Z0605 KEY 7 X 7 X 20 609 P0764Z0609 CAP SCREW M8-1.25 X 20

606 P0764Z0606 TILT HANDWHEEL SHAFT ASSY 610 P0764Z0610 LOCK WASHER 8MM

606-1 P0764Z0606-1 HANDWHEEL SHAFT 611 P0764Z0611 SET SCREW M6-1 X 6

606-2 P0764Z0606-2 BALL BEARING 6902LLU 612 P0764Z0612 LOCK COLLAR

606-3 P0764Z0606-3 SHAFT BRACKET 613 P0764Z0613 TILT LEADSCREW

606-4 P0764Z0606-4 EXT RETAINING RING 28MM 614 P0764Z0614 TILT LEADSCREW NUT

606-5 P0764Z0606-5 THRUST BEARING NTB1528+AS

612

611

-98-

Model G0764Z (Mfd. Since 05/18)

Grizzly Industrial G0764Z User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Machine Description

Contact Info

Manual Accuracy

Controls & Components

Glossary Of Terms

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for Sliding Table Saws

Preventing Kickback

SECTION 2: POWER SUPPLY

440V Conversion

SECTION 3: SETUP

Needed for Setup

Unpacking

Hardware Recognition Chart

Inventory

Cleanup

Site Considerations

Lifting &

Placing Saw

Assembly

Dust Collection

Power Connection

Test Run

SECTION 4: OPERATIONS

Operation Overview

Through &

Non-Through Cuts

Blade Guard

Riving Knife

Blade Requirements

Blade Selection

Changing Speed

Changing

Main Blade

Setting Up

Crosscut Fence

Rip Cutting

Crosscutting

Miter Cutting

Dado Cutting

Rabbet Cutting

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule

Lubrication

SECTION 7: SERVICE

Troubleshooting

Belt Service

Blade Tilt Calibration

Figure 164. Riving knife mounting block

SECTION 8: WIRING

Wiring Safety Instructions

Wiring Overview

Component Location Index

Control Panel Wiring

220V Electrical Panel Wiring

440V Electrical Panel Wiring

Scoring Motor Wiring

Main Motor Wiring

Master Power Switch Wiring

SECTION 9: PARTS

Body

Main Tables

Control Panel

Blade Enclosure

Main Motor

Main Blade Arbor

Blade Tilt System
