10" HEAVY-DUTY TABLE SAW

MODEL G1023Z, ZX & ZX3

INSTRUCTION MANUAL

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

REVISED NOVEMBER 2002, PRINTED IN TAIWAN

ONLINE MANUAL DISCLAIMER

THE INFORMATION IN THIS MANUAL REPRESENTS THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE

MACHINE CONFIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF

THE MACHINE, THIS MANUAL MAY NOT EXACTLY DEPICT YOUR MACHINE . CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS

ABOUT DIFFERENCES. PREVIOUS VERSIONS ARE NOT AVAILABLE ONLINE.

WARNING

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement, and other masonry products.

• Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

TABLE OF CONTENTS

1. SAFETY PAGE

SAFETY RULES FOR ALL TOOLS....................................................................................................................2-3

ADDITIONAL SAFETY INSTRUCTIONS FOR TABLE SAWS..............................................................................4

AVOIDING KICKBACK ..........................................................................................................................................5

SAFETY ACCESSORIES ..................................................................................................................................5-6

2. INTRODUCTION

COMMENTARY ....................................................................................................................................................7

3. CIRCUIT REQUIREMENTS

G1023Z ..................................................................................................................................................................8

G1023ZX ................................................................................................................................................................9

G1023ZX3 ............................................................................................................................................................10

GROUNDING ......................................................................................................................................................11

EXTENSION CORDS ..........................................................................................................................................11

4. MACHINE FEATURES

TERMS & DEFINITIONS ................................................................................................................................12-13

MAIN FEATURES ................................................................................................................................................13

5. SET UP

UNPACKING ........................................................................................................................................................14

PIECE INVENTORY ......................................................................................................................................14-15

HARDWARE RECOGNITION CHART ................................................................................................................16

CLEAN UP ..........................................................................................................................................................17

SITE CONSIDERATIONS ....................................................................................................................................17

BEGINNING ASSEMBLY ....................................................................................................................................18

EXTENSION WINGS ......................................................................................................................................18-19

FENCE & RAILS ..................................................................................................................................................19

SWITCH ..............................................................................................................................................................19

DUST HOOD........................................................................................................................................................20

MOTOR COVER ..................................................................................................................................................20

MOTOR BRACE ..................................................................................................................................................21

GUARD BRACKET ..............................................................................................................................................21

HANDWHEEL ......................................................................................................................................................22

TABLE INSERT....................................................................................................................................................22

SAW BLADE ........................................................................................................................................................23

BLADE GUARD/SPLITTER ............................................................................................................................23-25

MITER GAUGE ....................................................................................................................................................26

START UP............................................................................................................................................................27

RECOMMENDED ADJUSTMENTS ....................................................................................................................27

6. OPERATIONS

BLADE SELECTION ......................................................................................................................................28-29

CROSSCUTTING ................................................................................................................................................30

RIPPING ..............................................................................................................................................................31

DADO OPERATIONS ....................................................................................................................................32-34

RABBET OPERATIONS ................................................................................................................................34-37

7. MAINTENANCE

GENERAL ............................................................................................................................................................38

LUBRICATION ....................................................................................................................................................39

TABLES................................................................................................................................................................39

V-BELT............................................................................................................................................................39-40

MAINTENANCE LOG ..........................................................................................................................................41

8. SERVICE AGREEMENT

45˚ & 90˚STOPS ..................................................................................................................................................42

BLADE PARALLELISM ..................................................................................................................................43-44

BLADE ALIGNMENT ......................................................................................................................................45-46

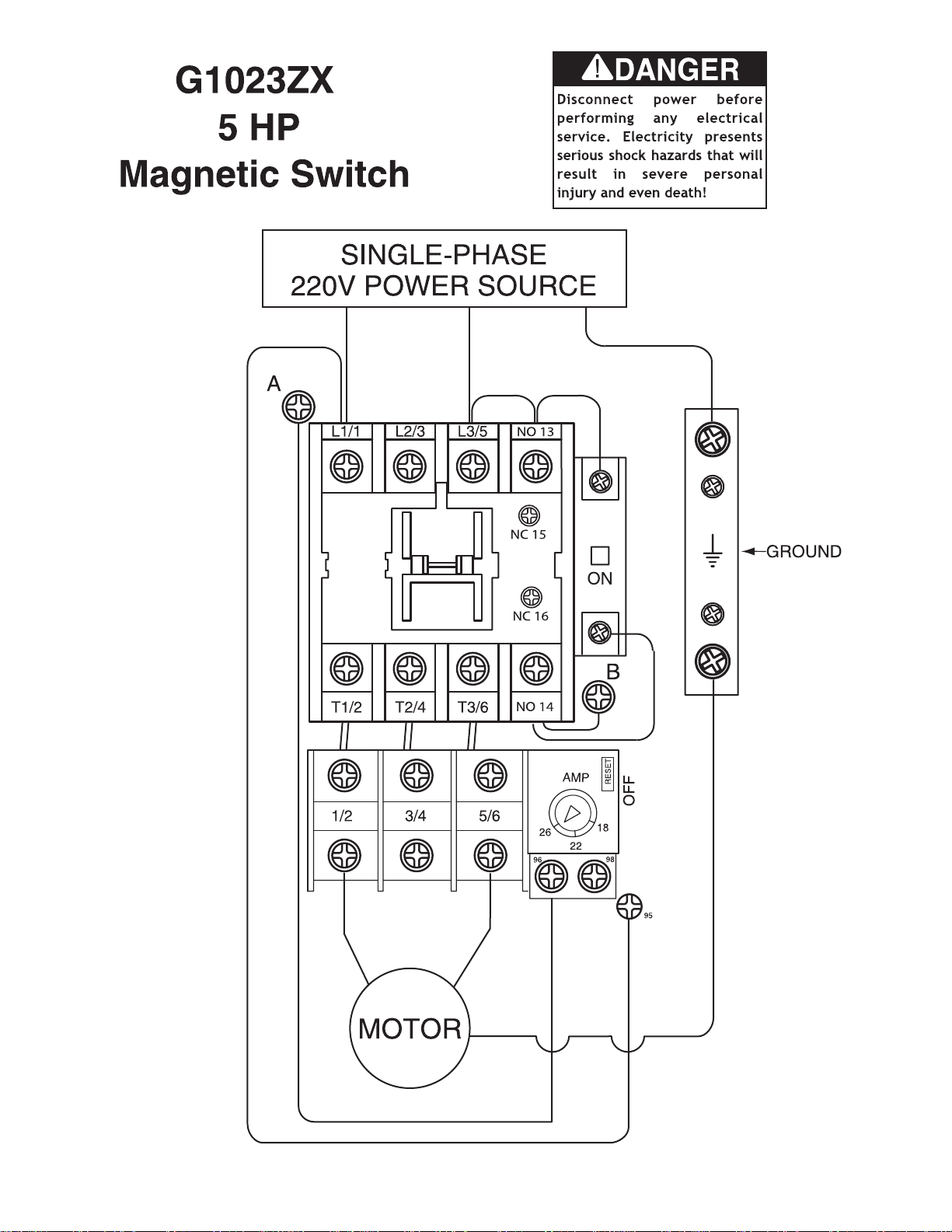

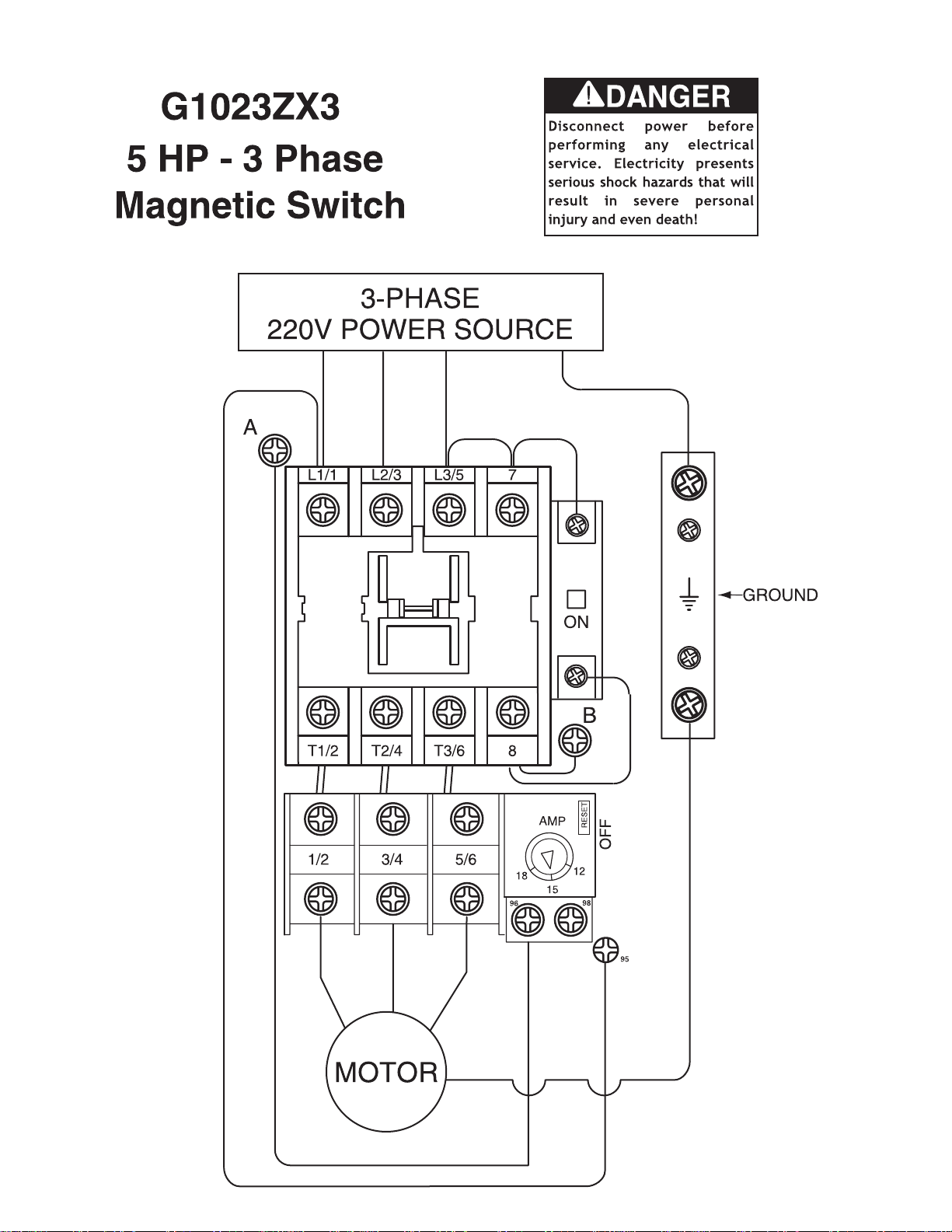

WIRING DIAGRAM ........................................................................................................................................47-49

9. CLOSURE....................................................................................................................................................................50

DATA SHEET ............................................................................................................................................................................51

PARTS BREAKDOWNS & LIST............................................................................................................................................52-54

TROUBLESHOOTING................................................................................................................................................................55

PUSH STICK PATTERN ............................................................................................................................................................57

WARRANTY AND RETURNS ..............................................................................................................................................58-60

-2- G1023Z Series Heavy-Duty 10'' Table Saw

SECTION 1: SAFETY

For Your Own Safety Read Instruction

Manual Before Operating This Equipment

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury, or MAY cause property damage.

This symbol is used to alert the user to useful information about proper operation of the equipment.

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.

NOTICE

Safety Instructions For Power Tools

5. KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be

kept at a safe distance from work area.

6. MAKE WORKSHOP CHILD PROOF with

padlocks, master switches, or by removing starter keys.

7. DO NOT FORCE TOOL. It will do the job

better and safer at the rate for which it was designed.

8. USE RIGHT TOOL. Do not force tool or

attachment to do a job for which it was not designed.

1. KEEP GUARDS IN PLACE and in working

order.

2. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to

see that keys and adjusting wrenches are removed from tool before turning on.

3. KEEP WORK AREA CLEAN. Cluttered

areas and benches invite accidents.

4. DO NOT USE IN DANGEROUS ENVIRONMENT. Do not use power tools in

damp or wet locations, or where any flammable or noxious fumes may exist. Keep work area well lighted.

G1023Z Series Heavy-Duty 10'' Table Saw -3-

9. USE PROPER EXTENSION CORD. Make

sure your extension cord is in good condition. Conductor size must be in accordance with the chart below. The amperage rating is listed on the motor or tool nameplate. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Your extension cord must also contain a ground wire and plug pin. Always repair or replace damaged extension cords.

Minimum Gauge for Extension Cords

10. WEAR PROPER APPAREL. Do not wear

loose clothing, gloves, neckties, rings, bracelets, or other jewelry which may get caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair.

11. ALWAYS USE ANSI-APPROVED SAFETY GLASSES. Also use face or dust mask

if cutting operation is dusty. Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses.

12. SECURE WORK. Use clamps or a vise to

hold work when practical. It is safer than using your hand and frees both hands to operate tool.

13. NEVER OVERREACH. Keep proper foot-

ing and balance at all times.

LENGTH

AMP RATING 25ft 50ft 100ft

0-6 16 16 16 7-10 16 16 14 11-12 16 16 14 13-16 14 12 12 17-20 12 12 10 21-30 10 10 No

Safety Instructions For Power Tools

14. MAINTAIN TOOLS WITH CARE. Keep

tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.

15. DISCONNECT TOOLS before servicing

and changing accessories, such as blades, bits, cutters, and any other item.

16. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch is in off

position before plugging in. Also, the magnetic switch on this machine may start if the switch gets bumped hard enough.

17. USE RECOMMENDED ACCESSORIES.

Consult the owner’s manual for recommended accessories. The use of improper accessories may cause risk of injury.

18. CHECK DAMAGED PARTS. Before fur-

ther use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged must be properly repaired or replaced.

19. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Do not

leave tool until it comes to a complete stop.

20. NEVER USE UNDER THE INFLUENCE of

alcohol or drugs, or when tired.

21. IF AT ANY TIME YOU ARE EXPERIENCING DIFFICULTIES performing the intend-

ed operation, stop using the machine! Then contact our service department or ask a qualified expert how the operation should be performed.

-4- G1023Z Series Heavy-Duty 10'' Table Saw

Additional Safety Instructions For Table Saws

1. THRU-SAWING: Use blade guard, splitter,

and anti-kickback fingers on all thru-saw-

ing operations. See Page 12 for the defin-

ition of thru-sawing.

2. KICKBACK: Use anti-kickback devices

during ALL cutting operations. If you do not have a complete understanding of how kickback occurs, or how to prevent it, Do

not operate this table saw. See Page 12

for the definition of kickback.

3. DANGEROUS REACHING: Do not reach

behind or over the saw blade with either hand while the saw is running.

4. PUSHSTICK: Use a push stick when rip-

ping narrow stock.

5. FREE-HAND CUTTING: The fence or the

miter gauge must support the workpiece during all cutting operations.

6. BODY POSITION WHEN CUTTING: Do

not stand or have any part of your body inline with the path of the saw blade.

7. WORKPIECE CONTROL: Hold the work-

piece firmly against the miter gauge or fence and hold the workpiece firmly against the table.

8. CROSSCUTTING: Move the rip fence out

of the way when crosscutting.

9. MITER GAUGE/RIP FENCE: Never use

the miter gauge and rip fence at the same time.

10. STALLED BLADE: Never attempt to free a

stalled saw blade without first turning the saw off.

11. CUTOFF TABLES: Use adequate support

to the rear and sides of the saw table for wide or long workpieces.

12. HAND SAFETY: Avoid awkward cutting

operations and hand positions where a sudden slip could cause your hand to move into the saw blade.

13. SAW BLADE: Lower the saw blade below

the table when not in use.

14. DAMAGED SAW BLADE: Never use a

damaged saw blade or one that has been dropped.

15. DADO CUTTING: There is a high degree

of risk involved with any dado operation.

See Page 12 for the definition of dado.

No list of safety guidelines can be complete. Operating this machinery may require additional safety precautions specific to your shop environment. Failure to use reasonable caution while operating this machine could result in serious personal injury.

Unfamiliarity with this manual could result in serious personal injury. Become familiar with the contents of this manual, including all the safety warnings.

G1023Z Series Heavy-Duty 10'' Table Saw -5-

Push Sticks

The use of push sticks, particularly when cutting small or narrow workpieces, provides a double benefit for saw operators. The push stick provides added leverage, enabling the operator to keep the workpiece firmly supported against the fence and table. At the same time, the push stick keeps the operator’s hand safely away from the

rotation of the saw blade as shown in Figure 1. See the template on Page 57 of the manual for

construction details, or purchase one from the Grizzly catalog or website.

Safety Accessories

Not using safety accessories could cause serious personal injury. Learn how to correctly use each safety accessory.

Figure 1. Push Stick.

Push Stick

Statistics prove that most common accidents among table saw users can be linked to kickback.

Kickback is typically defined as the high-speed expulsion of stock from the table saw toward its operator.

In addition to the danger of the operator or others in the area being struck by the flying stock, it is often the case that the operator’s hands are forced into the blade during the kickback.

The following can help minimize kickbacks:

• Use your blade guard and splitter.

• Never for any reason place your hand behind the blade. Should kickback occur, your hand will be pulled into the blade.

• Inspect splitter for alignment between it and your blade.

• Never use the fence as a guide for crosscutting.

• Never attempt freehand cuts.

• Use a push stick or featherboard to maintain control of your workpiece.

• Feed cuts through to completion.

• Stand to the side when ripping.

• Ensure your fence and miter slot are parallel to the blade.

If you do not have a clear understanding of kickback and how it occurs, do not operate this table saw.

Failure to understand how and why kickback occurs could cause serious personal injury. DO NOT operate this table saw if you do not have a clear understanding of kickback, and how it occurs.

Avoiding Kickback

-6- G1023Z Series Heavy-Duty 10'' Table Saw

Figure 2. Zero Clearance Table Inserts.

Zero Clearance Table Inserts

Ideal for use when ripping thin strips or making bevel cuts, these prevent tearout and jammed blades by supporting material close to the blade.

Use the standard table insert as a template when creating additional inserts from wood or plywood. Slots can be custom cut for specific blade angles by raising the running blade into an uncut insert at the angle you desire. Be sure to make an additional slot for the blade splitter.

We also carry a wide selection of table inserts

(Figure 2) in the Grizzly catalog or website. Be

sure to hold the insert firmly in place with a piece of wood when creating slots. Never hold the table insert with your hand while cutting new slots.

Push Paddles

Push paddles provide added leverage and support when ripping or crosscutting wide work-

pieces as shown in Figure 3. We offer a number

of push paddles in the Grizzly catalog.

Featherboards

Easily made from scrap stock, featherboards provide an added degree of protection against kick-

back as shown in Figure 4. To make a feather-

board, cut a 30-40° angle at one end of the board and make a number of end cuts at approximately

⁄4

" apart and 2" to 3" deep. We also offer a num-

ber of featherboards in the Grizzly catalog.

Figure 3. Push Paddles.

Figure 4. Featherboards.

Push Paddles

Featherboards

G1023Z Series Heavy-Duty 10'' Table Saw -7-

SECTION 2: INTRODUCTION

We are proud to offer the Grizzly Model G1023Z Series Table Saw. The Model G1023Z Series is part of a growing Grizzly family of fine woodworking machinery. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commitment to customer satisfaction.

The Model G1023Z Series is an industrial grade

table saw intended for professional use. Features

include cast iron trunnions, triple V-belt drive, magnetic switch, and the Shop Fox

Fence. The G1023Z features a 3 HP 220V single-phase motor and the Model G1023ZX features a 5 HP 220V single-phase motor. The Model G1023ZX3 makes the step up to a 5 HP 220V 3-phase motor.

Grizzly offers many accessories for the table saws including blades, extension rails, outfeed rollers and mobile bases. Please refer to the current Grizzly catalog or website for prices and ordering information.

Grizzly is also pleased to provide this manual with the Model G1022 Series Table Saws. It was written to guide you through assembly, review safety considerations, and cover general operating procedures. If you have any comments regarding this manual, please write to us at the address below:

Grizzly Industrial, Inc.

/O Technical Documentation

P.O. Box 2069

Bellingham, WA 98227-2069

Commentary

Most importantly, we stand behind our machines. If you have any service questions or parts requests, please call or write us at the location listed below:

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Fax: (800) 438-5901 E-Mail: techsupport@grizzly.com Web Site: http://www.grizzly.com

The specifications, drawings, and photographs illustrated in this manual represent the Model G1023Z Series Table Saws as supplied when the manual was prepared. However, owing to Grizzly’s policy of continuous improvement, changes may be made at any time with no obligation on the part of Grizzly. Current Grizzly machine manuals can be viewed and printed at: www.grizzly.com.

Lack of familiarity with this manual could cause serious personal injury. Become familiar with the contents of this manual, including all the safety warnings.

-8- G1023Z Series Heavy-Duty 10'' Table Saw

SECTION 3: CIRCUIT REQUIREMENTS

Figure 5. NEMA-style L6-20 plug and outlet.

G1023Z

The motor supplied with the Model Z is a 3 HP 220V single-phase motor. Under normal 220V use, the motor draws approximately 18 amps. Use a 20 amp circuit breaker or a 20 amp slowblow fuse for 220V operation.

The Model Z does not come with a plug. When operating at 220V, use a NEMA-style L6-20 plug

and receptacle as shown in Figure 5.

The circuit you use should be dedicated, (i.e., the machine should provide the only draw from that circuit). If frequent circuit failures occur when using this machine, contact our Service Department or your local electrical contractor.

If the machine is not wired correctly a fire could result. Make sure your wiring, receptacle, plug, and circuit breaker can handle the current draw of the machine. If you are not sure that your electrical circuit can handle the current draw, get a qualified electrician to test your electrical system and do any required upgrades. DO NOT attempt to modify an existing circuit by only replacing the circuit breaker with one rated for a higher amperage draw than the wiring, receptacle, and plug are rated for.

G1023Z Series Heavy-Duty 10'' Table Saw -9-

Figure 6. NEMA-style L6-30 plug and outlet.

G1023ZX

The motor supplied with the Model ZX is a 5 HP 220V single-phase motor. Under normal 220V use, the motor draws approximately 25 amps. Use a 30 amp circuit breaker or a 30 amp slowblow fuse for 220V operation.

The Model ZX does not come with a plug. When operating at 220V, use a NEMA-style L6-30 plug

and receptacle as shown in Figure 6.

-10- G1023Z Series Heavy-Duty 10'' Table Saw

G1023ZX3

Figure 7. NEMA-style L15-20 plug and outlet.

The motor supplied with the Model ZX3 is a 5 HP 220V 3-phase motor. Under normal 220V use, the motor draws approximately 15 amps. Use a 20 amp circuit breaker or a 20 amp slow-blow fuse for 220V operation.

The Model ZX3 does not come with a plug. When operating at 220V, use a NEMA-style L15-20 plug

and receptacle as shown in Figure 7.

G1023Z Series Heavy-Duty 10'' Table Saw -11-

Grounding

Electrocution or a fire can result if the bandsaw is not grounded correctly. Make sure all electrical circuits are grounded. Do not use the machine if it is not grounded.

NOTICE

The wire on the power cord with green or green and yellow striped insulation is the grounding conductor.

In the event of an electrical short, grounding provides electric current a path of least resistance to reduce the risk of electrical shock to the operator. Ground the power cord and this machine in accordance with all local codes and ordinances.

Operating this machine when it is not properly grounded can result in electric shock or electrocution.

No single list of electrical guidelines can be comprehensive for all shop environments. Operating this machinery may require additional electrical upgrades specific to your machine and shop environment. It is your responsibility to make sure your electrical systems comply with all local electrical codes and ordinances.

Extension Cord

Should it be necessary to use an extension make sure the cord is rated Hard Service (grade S) or

better. Refer to the chart in Section 1: Safety Instructions to determine the minimum gauge for

the extension cord. The extension cord must also contain a ground wire and plug pin. Always repair or replace extension cords when they become worn or damaged.

-12- G1023Z Series Heavy-Duty 10'' Table Saw

SECTION 4: MACHINE FEATURES

The following is a list of common definitions, terms and phrases used throughout this manual as they relate to this table saw and woodworking in general. It is important that you read and become familiar with them before assembling, adjusting or operating this machine. Your safety

is VERY important to us at Grizzly!

Arbor: Metal shaft extending from the drive

mechanism, to which the cutting blade is attached.

Bevel Edge Cut: Tilting the saw arbor and blade

to an angle between 0° and 45° to perform an angled cutting operation.

Blade Guard: Metal or plastic mechanism that

mounts over the saw blade to prevent accidental contact with the cutting edge.

Crosscut: Table saw operation in which the miter

gauge is used to cut across the grain of a piece of wood.

Dado Blade: Blade or set of blades that attach to

the arbor and are used for cutting grooves and rabbets.

Dado Cut: Table saw operation that uses a dado

blade to cut a flat bottomed groove into the face of wood stock.

Featherboard: Safety device used to keep the

workpiece against the rip fence or table during a cutting operation. The featherboard also allows the operator to keep his/her hands at a safe distance away from the saw blade while cutting the workpiece.

Terms & Definitions

Kerf: The resulting cut or gap made by a saw

blade.

Kickback: A condition in which the wood is

thrown back towards an operator at a high rate of speed.

Miter Gauge: A component that controls the

wood stock movement while performing a crosscut. Allows for variation of angle cuts such as miter cuts used on a picture frame.

Moulding Head: A cutterhead attached to the

arbor that accepts interchangeable moulding

knives for profile cutting. We DO NOT recom-

mend the use of moulding head cutters.

Parallel: Being an equal distance apart at every

point. i.e. the rip fence face is parallel to the side face of the saw blade.

Non-Thru Cut: A sawing operation that requires

the removal of the blade guard and splitter. Dado and rabbet cuts are considered NonThru Cuts because the blade does not protrude above the top face of the wood stock. Always remember to reinstall the blade guard and splitter after performing a non-thru cut.

Perpendicular: Intersecting and forming right

angles; at right angles to the vertical and horizontal planes. i.e. the blade is perpendicular to the table surface.

Push Paddle: Safety aid used to push a piece of

wood stock through a cutting operation.

Push Stick: Safety aid used to push a piece of

wood stock through a cutting operation. Usually used when rip cutting.

Rabbet: Cutting operation that creates an L-

shaped channel along the edge of wood stock.

G1023Z Series Heavy-Duty 10'' Table Saw -13-

Splitter: Metal plate attached to the back of the

blade guard that maintains the kerf opening in the wood when performing a cutting operation.

Standard Kerf:

⁄8" gap made with a standard

blade.

Straightedge: A tool used to check the flatness,

parallelness, or consistency of a surface(s).

Thru-Sawing: A sawing operation where the

wood stock thickness is completely sawn through. Proper blade height usually allows

⁄4" of the top of the blade to extend above the wood stock.

Thin Kerf:

⁄32" gap made with a thin kerf blade.

Rip Cut: A cut made along the grain of the wood.

Sacrificial Fence: A piece of wood attached to

the face of the rip fence that is designed to extend the fence face away from the metal portion of the fence. Used primarily when making rabbet cuts with a dado blade.

Main Features

Figure 8. The front of the table saw.

A. Extension Wing B. On/Off Switch C. Blade Height Handwheel D. Base E. Blade Angle Handwheel F. Rip Fence Rails G.Rip Fence H. Blade Guard/Splitter Assembly I. Miter Gauge

Set up and operation instructions will be easier to understand if you become familiar with the location and names of the basic features.

Match up the feature list below with the letters in

Figure 8 to identify the table saw feature loca-

tions.

-14- G1023Z Series Heavy-Duty 10'' Table Saw

SECTION 5: SET UP

Unpacking Piece Inventory

The Model G1023Z Series Table Saws are shipped from the manufacturer in three carefully packed boxes. If you discover the machine is damaged after you have signed for delivery, immediately call our Customer Service for advice.

The Model G1023Z Series is a heavy machine, weighing up to 460 lbs. Personal injury could occur if the machine is moved without additional assistance. Seek the help friends when moving or lifting the machine.

When you are completely satisfied with the condition of your shipment of boxes, you should inventory their parts.

Sharp edges on metal parts may cause personal injury. Examine the edges of all metal parts before handling.

Figure 9B. Motor cover assembly.

Figure 9A. Shop Fox

fence components.

Box 1:

Box 2:

G1023Z Series Heavy-Duty 10'' Table Saw -15-

After all the parts have been removed from Box 3, you should have:

1. Extension Wings (2)

2. Miter Gauge

⁄8"-18 Blade Guard Mounting Shaft

4. Arbor Wrench

⁄

8" Combo Wrench

6. Blade Guard Assembly

7. Handwheel Knob Bolt

8. Handwheel Handle

9. Dado Blade Table Insert

10. Standard Blade Table Insert

11. Dust Port

12. Cleanout Door

13. Hardware Bag

14. Table Saw Unit (Not Shown)

The hardware bag should contain the following:

(1) 3mm Allen Wrench (1) 4mm Allen Wrench (1) Combo Wrench

⁄8"

(1)

⁄8"-18 Blade Guard Mounting Shaft

(1)

⁄8"-18 Hex Nut

(4) #8 x

⁄8" Self Tapping Screw (4) #8 Flat Washer (2)

⁄4"-20 x 3⁄8" Phillip Head Screw

(2)

⁄4" Lock Washer

Figure 9C. G1023Z Series component layout.

Box 3:

-16- G1023Z Series Heavy-Duty 10'' Table Saw

Hardware Recognition Chart

Use this chart to match up hardware pieces during the assembly process!

G1023Z Series Heavy-Duty 10'' Table Saw -17-

Clean Up Site Considerations

Unsupervised children and visitors entering a shop could receive serious personal injury. Ensure child and visitors safety by keeping all entrances to the shop locked at all times. DO NOT allow unsupervised children or visitors in the shop at any time.

The unpainted surfaces are coated with a waxy oil to protect them from corrosion during shipment. Remove this waxy oil with a solvent cleaner or citrus-based degreaser such as Grizzly’s G7895 Degreaser. To clean thoroughly, some

parts may need to be removed. The machine

will operate best when the waxy oil is removed from all moving and sliding parts.

Chlorine-based cleaners and solvents will damage the painted surfaces of the machine. Follow the manufacturer’s instructions when using any type of cleaning product.

Gasoline or petroleum products used to clean the machinery could explode causing serious personal injury. DO NOT use gasoline or petroleum products to clean the machinery.

Smoking near solvents could ignite an explosion or fire causing serious injury. DO NOT smoke while using solvents.

Lack of ventilation while using solvents could cause serious personal health risks, fire, or environmental hazards. Always work in a well ventilated areas to prevent the accumulation of dangerous fumes. Supply the work area with a constant supply of fresh air using a fan.

Floor Load

The Model G1023Z Series Table Saws are a heavy load with a medium footprint. Most commercial or home shop floors should be sufficient to carry the weight of the machine. Reinforce the floor if you question its ability to support the weight.

Working Clearance

Working clearances can be thought of as the distances between machines and obstacles that allow safe operation of every machine without limitation. Consider existing and anticipated machine needs, size of material to be processed through each machine, and space for auxiliary stands or work tables. Also, consider the relative position of each machine to one another for efficient material handling. Be sure to allow yourself sufficient room to safely run your machines in any foreseeable operation and keep dust collection hoses off the floor and out of the way.

Lighting

Lighting should be bright enough to eliminate shadows and prevent eye strain. Electrical circuits should be dedicated or large enough to handle combined motor amp loads. Be sure to follow local electrical codes for proper installation of new lighting or circuits.

-18- G1023Z Series Heavy-Duty 10'' Table Saw

TOOLS REQUIRED: You will need a high quality

square, a long straightedge, 10mm, 12mm, 14mm open end wrenches and a 3mm Allen

wrench.

Extension WingsBeginning Assembly

To attach the extension wings to the saw:

1. Attach the left wing to the table using the (3)

⁄8"-16 x 11⁄4" Hex Bolts and 3⁄8" Flat Washers provided. Adjust the wing reasonably flush with the table and do not tighten the bolts completely at this time.

2. Attach the right wing to the table using the

(3)

⁄8"-16 x 11⁄4" Hex Bolts and 3⁄8" Flat Washers provided. Adjust the wing reasonably flush with the table and do not tighten the bolts completely at this time.

3. Align the top of the wings flush with the table

top directly above the front bolts and flush with the front edge of the table. Tighten the front bolts.

4. Raise or lower the rear of the extension

wings until the middle of the wings are flush with the table top. Tighten the middle bolts.

5. Raise or lower the rear of the wings until the

wings and table are flush. Tighten the rear bolts.

6. Re-check the flushness of the wings against

the table above each bolt. Re-adjust if necessary.

The table and the wings represent a very heavy load. DO NOT over-exert yourself while lifting or moving the table and the wings – get assistance.

Keep clothing rolled up and out of the way of machinery and keep hair pulled back.

Wear safety glasses during the entire assembly process. Failure to comply may result in serious personal injury.

Disconnect power to the machine when performing any maintenance or assembly. Failure to do this may result in serious personal injury.

Some metal parts may have sharp edges on them after they are formed. Please examine the edges of all metal parts before handling them. Failure to do so could result in injury.

G1023Z Series Heavy-Duty 10'' Table Saw -19-

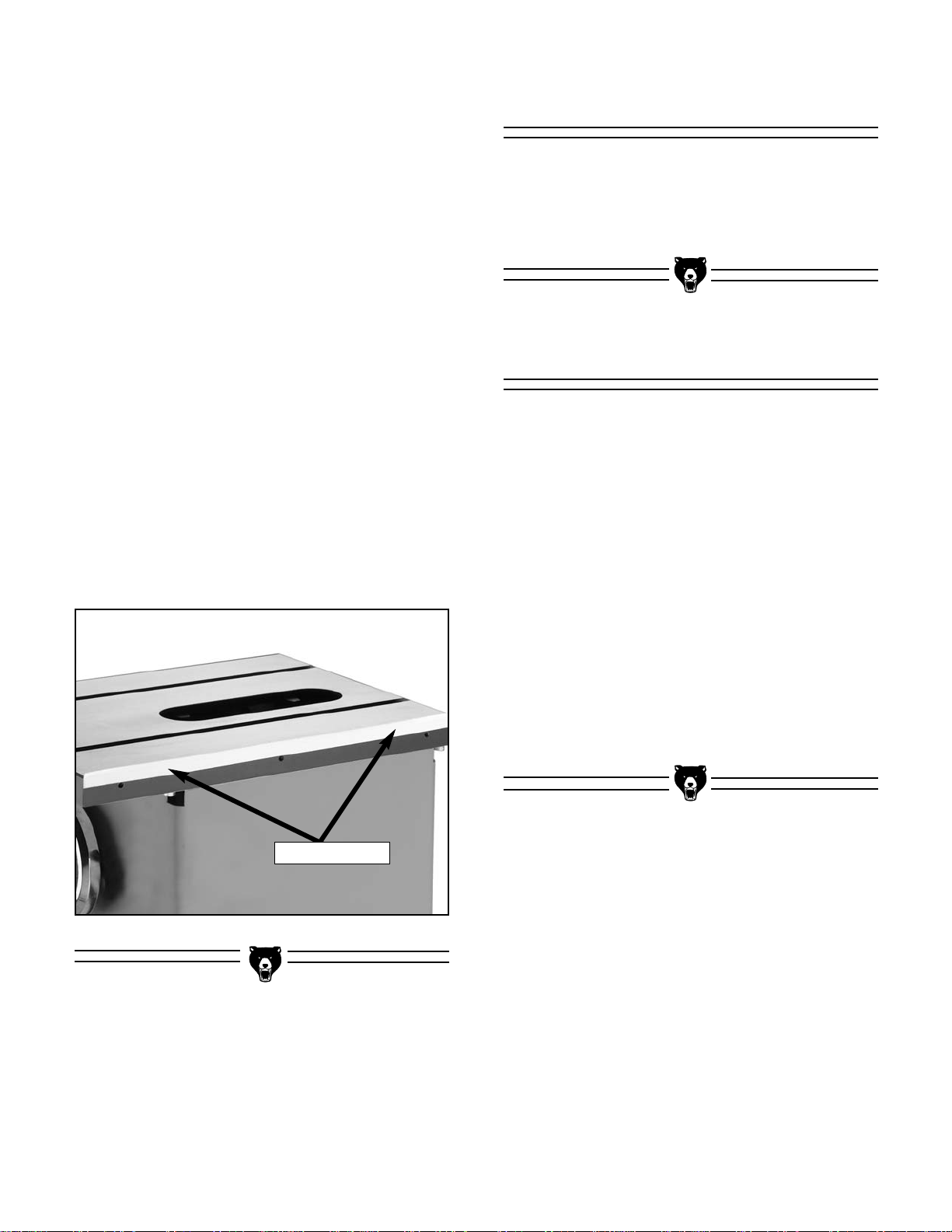

Figure 10. Using tape to shim for wing alignment.

Masking Tape

7. Check the alignment of the table and both

wings with a straightedge. The straightedge should run flat across both wings and the table top. If the straightedge contacts both wings and the table evenly, you are finished with this section. If the straightedge does not

contact them evenly, continue to Step 9.

8. If the extension wings tilt up or down at the

outside edges, remove the wings and shim

them with masking tape as shown in Figure

10.

A)If a wing tilts down, stick layers of mask-

ing tape along the bottom edge of the table and retighten.

B)If a wing tilts up, stick layers of masking

tape along the top edge of the wing and

retighten. Allow the tape to extend above

table surface and trim the extended tape with a sharp knife after final assembly.

9. Re-check the alignment of the table and both

wings with a straightedge and re-adjust if necessary.

Switch

The switch comes prewired to the motor and can be easily mounted to the rail.

To mount the switch:

1. Line the switch bracket holes up with the

holes on the underside of the rail.

2. Secure the switch and bracket to the under-

side of the rail using the (2)

⁄4"-20 x 3⁄8"Phillip

Head Screws and

⁄4

" Lock Washers.

3. Disconnect the machine from the power source!

4. Connect the plug on the cord between the

switch and motor.

Fence & Rails

Your Model G1023Z Series comes with a Shop Fox

Brand Fence & Rails. Refer to the manual included in the fence box for assembly instructions.

-20- G1023Z Series Heavy-Duty 10'' Table Saw

Figure 11. Installing dust hood.

Dust Hood

The Model G1023Z Series comes with a 4" dust hood and a cleanout door.

To mount the dust hood and cleanout door:

1. Mount the cleanout door into the square hole

on the lower left side of the saw base.

2. Using (4) #8 x

⁄8" Self Tapping Screws and #8 Flat Washer, screw the dust hood to the cleanout door.

3. Be sure to orient the dust hood so the 4"

flange is on the lower half of the dust hood when installed as shown in

Figure 11

Motor Cover

The Model G1023Z Series motor cover is designed to increase the efficiency of dust collection. The motor cover is packaged amd shipped in a separate box. It is held shut by a

⁄4"-20 x 1⁄2"

knob bolt as shown in

Figure 12a.

Figure 12a. Installed motor cover.

Cleanout Door

Self Tapping

Screw

Dust Hood

Motor Cover

Knob Bolt

G1023Z Series Heavy-Duty 10'' Table Saw -21-

Guard Bracket

Figure 13. Attaching the

⁄8"-18 blade guard

mounting shaft.

Figure 14. Blade guard mounting bracket

To install the blade guard assembly:

Thread the

⁄8"-18 blade guard mounting

shaft into the mounting location on the back

of the table saw base as shown in Figure

13.

Secure the blade guard mounting shaft with the included

⁄

16"-18 hex bolt.

3. Slide the loosely assembled bracket onto

the blade guard mounting shaft and temporarily hand tighten the nuts as shown in

Figure 14

Motor Brace

A red motor brace has been installed for shipping purposes. Remove this brace before continuing with assembly. The bolts that secure the brace should be screwed back in at the locations from which they came.

NOTICE

The blade guard mounting bracket (Figure

13) is supplied with the Shop Fox

Fence.

Blade Guard

Mounting Shaft

Motor Brace Installed For

Shipping Only!

Blade Guard

Mounting Bracket

Figure 12b. Motor brace.

-22- G1023Z Series Heavy-Duty 10'' Table Saw

Table Insert

Handwheel

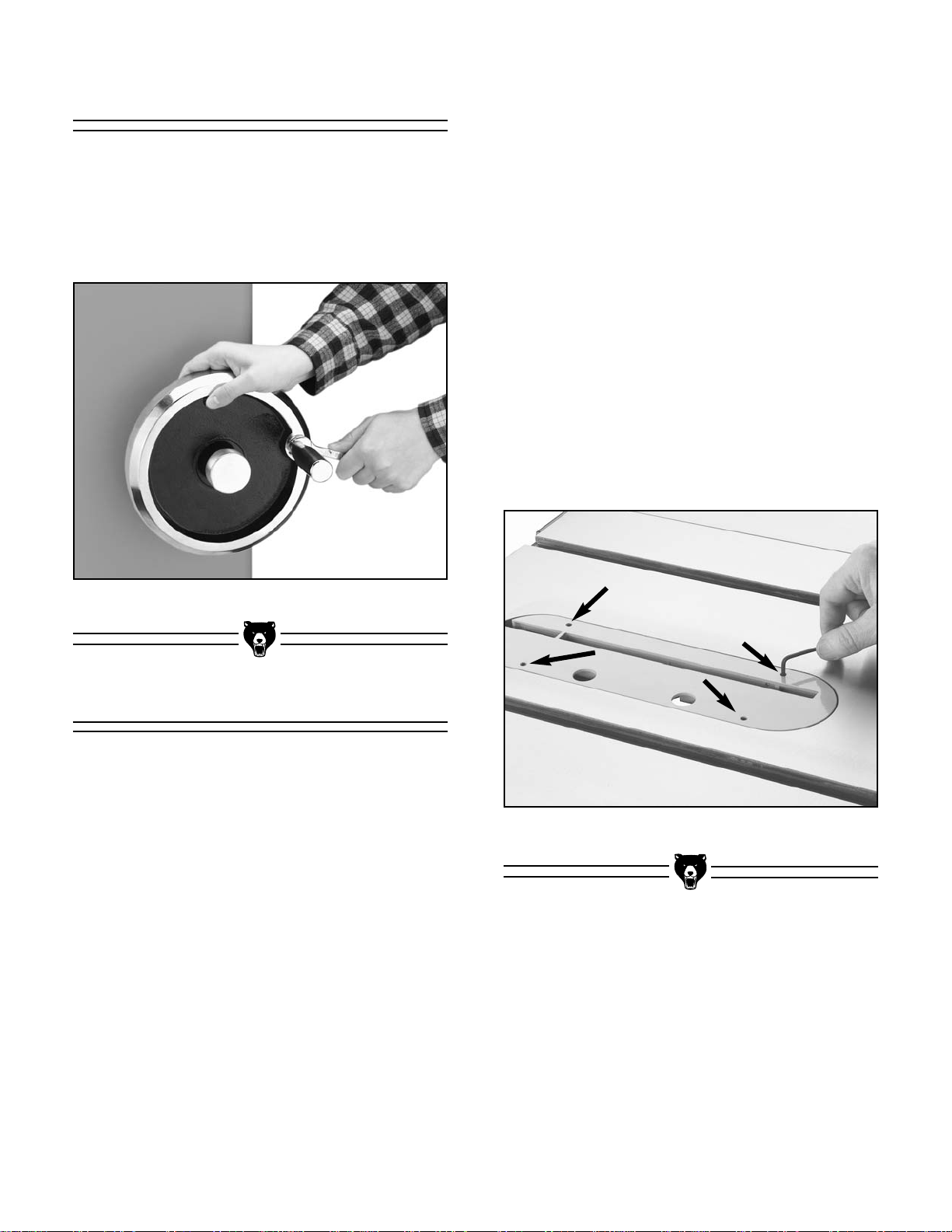

Figure 16. Setscrews on each corner of insert.

Figure 15. Tightening handle onto handwheel.

One handwheel has been removed for shipping. To install, place the handwheel over the threads and screw the lock knob into the center. Next insert the handle into the handwheel and tighten

it as shown in Figure 15. Install the other handle

onto the other handwheel.

3. Set the table insert into the recessed area on

the table surface.

4. Ensure that all four table insert setscrews

(

Figure 16)

are firmly in contact with the

table casting.

5. Using an allen wrench, raise or lower each of

the four setscrews until the insert is flush with the table top.

6. Using the side handwheel, position the blade

90° to the table surface.

7. Wearing leather gloves, rotate the blade while

raising and lowering it through its full range of motion. Make sure it never contacts any part of the table insert.

8. Repeat Step 6 with the blade in the 45° posi-

tion.

The table insert provides support for the material being cut. It must be installed flush with the cast iron table surface.

To install the table insert:

1. Disconnect the machine from the power source!

2. Using the front handwheel, move the blade

to its lowest position.

G1023Z Series Heavy-Duty 10'' Table Saw -23-

3. Set a machinist’s square against the face of

the blade splitter. Slightly rotate the rear bracket to adjust the face of the blade splitter perpendicular to the table top as shown in

Figure 19.

Figure 18. Blade guard and splitter in place.

Figure 19. Blade splitter square to table.

To install a blade guard/splitter:

1. Disconnect the machine from the power source!

2. Slip the blade guard/splitter over the mount-

ing bolts as shown in Figure 18. The wash-

ers should be between the bolt head and the slots. Tighten the bolts to secure the blade guard/splitter.

Blade Guard

Saw Blade Blade Guard/Splitter

Mounting Bolt

To install a saw blade:

1. Disconnect the machine from the power source!

2. The arbor nut has left-hand threads.

Loosen the arbor nut clockwise and remove the outside flange from the arbor. Remove and discard the

⁄4'' diameter spacer on the

arbor shaft.

Use caution and remain alert when working with the saw blade. Failure to follow this warning could result in serious personal injury or death.

3. Install the saw blade onto the arbor. Ensure

that the blade teeth point toward you as you stand at the front of the saw.

4. Slide on the flange and thread the arbor nut

back on.

5. Use the arbor wrench provided with the saw

to tighten the arbor nut. Wedge a block of wood in the teeth of the blade to keep it from turning when tightening the nut as shown in

Figure 17.

Figure 17. Changing saw blade.

Anti-kickback Pawl

-24- G1023Z Series Heavy-Duty 10'' Table Saw

5. If the blade splitter is to the right of the blade as shown in Figure 21, simply add washers

between the splitter and the front mounting bracket, and adjust the rear splitter support

as shown in Figure 22.

4. Next, set a straightedge against the face of

the saw blade and the blade splitter as

shown in Figure 20. If the blade splitter is properly aligned, please skip ahead to Page

26; otherwise, continue with the next step.

Figure 20. Guard in line with blade.

Figure 21. Improper splitter/blade alignment.

Splitter

Add washers here to move back of split-

ter to the left.

Add washers here to move

front of split-

ter to the left.

Blade

Figure 22. Proper splitter/blade alignment.

Added Washers

Front Support

Bracket

Adjustment

Screw

Adjusted

Rear Splitter

Proper Alignment

Use caution and remain alert when working around the saw blade. Failure to follow this warning could result in serious personal injury or death.

G1023Z Series Heavy-Duty 10'' Table Saw -25-

11. Moving the arbor bracket moves the V-belts

and pulleys out of alignment, so adjustment of the motor pulley is required. Simply loosen the setscrew in the middle groove of the pulley, and slowly slide the pulley toward the end of the motor shaft. Once the V-belts are back in alignment, tighten the setscrew securely.

12. Recheck the guard alignment to the blade

and to the table top. Adjust as necessary and tighten down all the bolts before use. If the blade guard is properly aligned, re-attach the table, making sure there is adequate blade clearance through all blade adjustments.

13. Adjust the blade to 45°. Raise and lower it

through the full range. Re-adjust the blade to 90°, then raise and lower it through the full range. There should be no contact between the blade, the base, the table insert, or any other part of the saw. If there is contact,

repeat Steps 8-12.

Figure 23. Arbor bracket adjustment locations.

6. Recheck the splitter alignment to the blade

and to the table top. Adjust as necessary and tighten all the bolts before use. If the blade guard is properly aligned, please skip ahead

to Step 13; otherwise, continue with the next

step.

7. If the splitter is positioned to the left of the

blade, alignment cannot be achieved by washer placement. Adjustment of the front

support bracket is required. See Figure 21

for adjustment details. Loosen the 2 adjustment screws and move left or right.

8. If this adjustment does not allow enough

movement of the splitter, remove the table

and wings, and set them to one side. Be sure

to note the position of the table shims. Replace them to their original position before re-attaching the table.

The arbor bracket and motor pulley now need to be adjusted:

9. Loosen the adjustment bolt shown in Figure 23, and slowly slide the arbor bracket

towards the end of the shaft. Only move the arbor bracket a distance equal to the amount of misalignment between the blade and the splitter, or a little more. You can always adjust the splitter back to the left with washers.

10. Tighten the adjustment bolt securely.

The table and wings represent a very heavy load. DO NOT overexert yourself while lifting or moving the table and wings – get assistance.

Blade Adjustment Bolt

Arbor Bracket

-26- G1023Z Series Heavy-Duty 10'' Table Saw

Miter Gauge

The miter gauge for the Model G1023Z Series has two setscrews in the miter bar which can be set to remove any loose movement between the miter bar and the T-slot.

To adjust the miter gauge:

1. Loosen or tighten the two miter bar

setscrews (

Figure 23

) until the miter gauge slides freely in the slot, but has no loose movement.

2. Loosen the lock knob on the miter gauge and

place a square against the face of the miter body and the miter bar.

3. Adjust the miter body until there is no space

between the square and the miter bar.

4. Tighten the lock knob.

5. With the stop link (

Figure 23

) in the up position, loosen the jam nut and adjust the stop screw until it is seated against the stop link.

6. Loosen the setscrew on the left front side of

the miter bar, adjust the pointer to 90˚ and retighten the setscrew.

7. To adjust to 45˚, follow Steps 1-6 while using

an adjustable square.

8. After rotating the miter body from 45˚ to 90˚

and back a few times, double check your adjustments at both angles to ensure that you have accurately set your miter gauge.

Figure 23. Miter gauge adjustment points.

Stop Link

Jam Nut

Setscrew

Stop Screw

G1023Z Series Heavy-Duty 10'' Table Saw -27-

Before starting the machine:

1. Read this manual and make sure you take all

safety precautions before operating this machine.

2. Make sure the blade guard and splitter have

been correctly installed and are adjusted

properly as shown on Pages 23-25.

3. Make sure that any tools or foreign objects

have been removed from the machine.

4. Review Section 3: Circuit Requirements

beginning on Page 8 and make sure all

wiring is correct.

5. Keep your finger on the STOP button during

the entire test run of the machine.

Starting the machine:

Turn the machine on and make sure your hand is

on the STOP button in case you need to shut the

machine off immediately. The machine should run smoothly with little or no vibration.

Start Up Recommended

Adjustments

For your convenience, the adjustments listed below have been performed at the factory and no further setup is required to operate your machine.

However, because of the many variables involved with shipping, we recommend that you at least check the following adjustments to ensure the best possible results from your new machine.

All of these adjustments are covered in step-by-

step detail in Section 8: Service Adjustments.

Recommended adjustment checklist:

• 45˚ & 90˚ Stops (Page 39)

• Blade Parallelism (Page 40)

• Blade Alignment (Page 42)

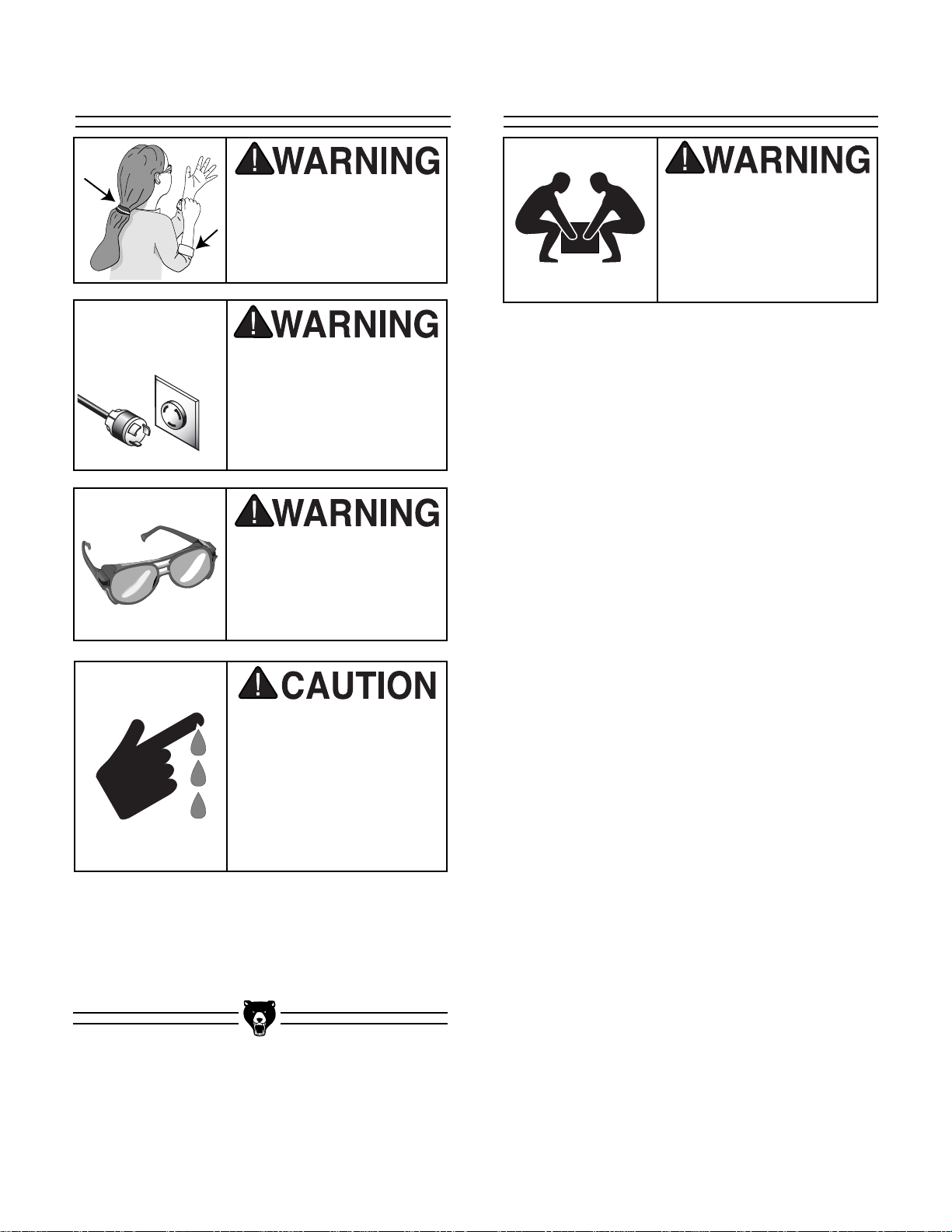

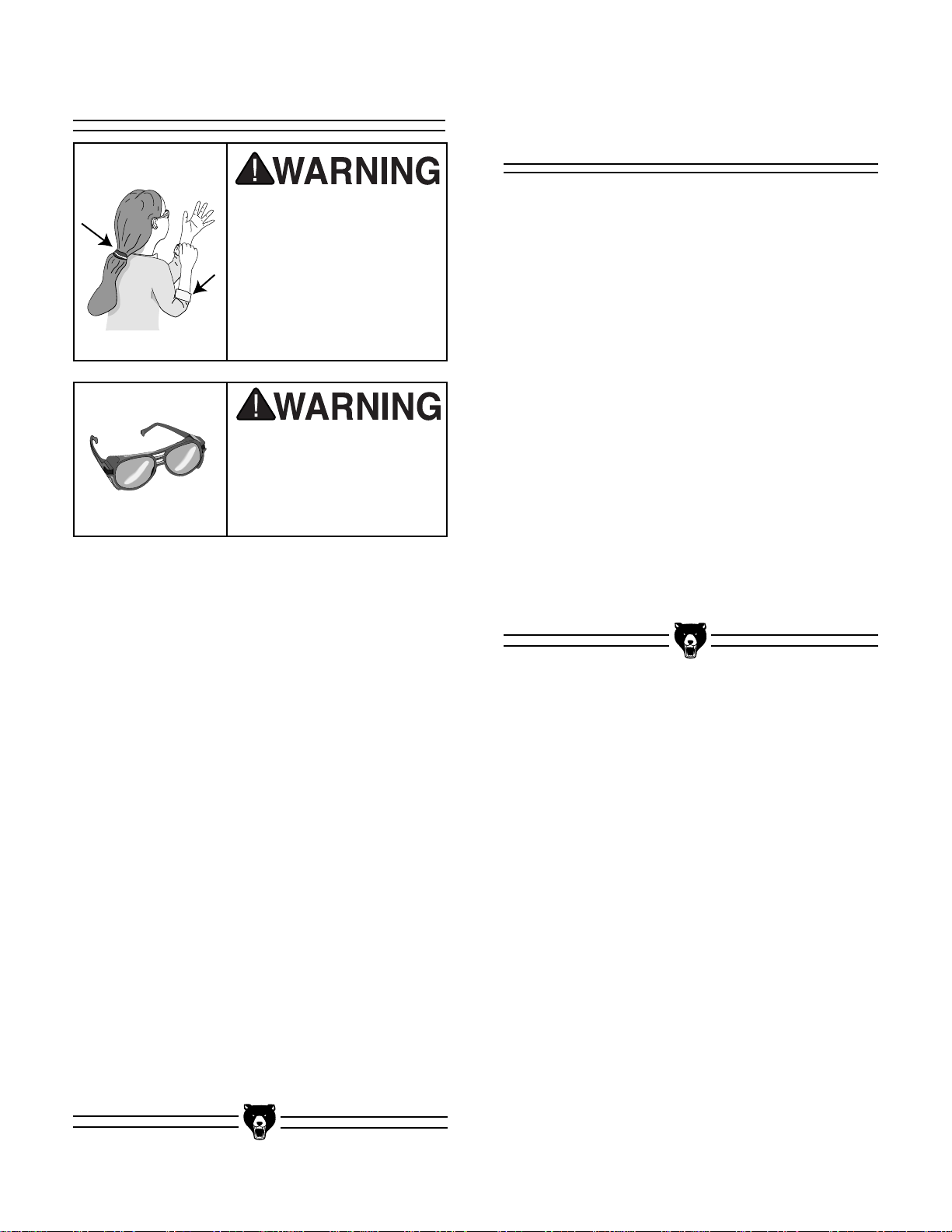

Loose hair and clothing could get caught in machinery causing serious personal injury. Keep loose clothing rolled up and long hair tied up and away from machinery.

Projectiles thrown from the machine could cause serious eye injury. Wear safety glasses during assembly.

-28- G1023Z Series Heavy-Duty 10'' Table Saw

Blade Selection

Choosing the correct blade for the job is essential for the safe and efficient use of your table saw.

Rip Blade: Used for cutting with the grain. 10" rip blades have between 20-40 teeth (Figure 25), flat-top ground tooth profile (Figure 30) and large

gullets to allow for large chip removal.

Figure 25. Ripping blade.

Combination Blade: Used for cutting with and

across the grain. A compromise between a rip blade and a cross-cut blade, a 10" combination blade will typically have between 40-50 teeth

(Figure 27), an alternate top bevel and flat or alternate top bevel (Figure 30) and raker tooth

profile. The teeth are arranged in groups of five. The gullets are small and shallow within the groups of five teeth, similar to a cross-cut blade; then large and deep between the groups, like a ripping blade.

Figure 27. Combination blade.

Cross-cut Blade: Used for cutting across the

grain. 10" cross-cut blades have between 60-80

teeth (Figure 26), alternate top bevel or steep alternate top bevel tooth profiles (Figure 30),

small hook angle and a shallow gullet.

Figure 26. Crosscutting blade.

SECTION 6: OPERATIONS

Wear safety glasses. a dust mask, and hearing protection while the machine is running. Failure to do this could result in serious personal injury.

G1023Z Series Heavy-Duty 10'' Table Saw -29-

Figure 28. Plywood blade.

Plywood Blade: Used for cutting plywood or

veneers. 10" plywood blades have 40-80 teeth

(Figure 28), a steep alternate top bevel tooth pro- file (Figure 30) and very shallow gullet.

Thin-kerf: Designed for saws with smaller

motors and for reducing material waste, thin-kerf blades are thinner than standard blades. Performance and accuracy can be maintained by the use of blade stabilizers.

Dado Blades: There are two types of dado

blades: stacked and wobble.

• Stacked Dado Blade—These dedicated dado cutting blades consist of a set of up to 8 individual blades. Multiple cutters are "stacked" between two outside blades. The width of the dado is determined by the combination of cutters that are “stacked” together. The dado is cut in a single pass leaving a smooth and square channel in the face of the workpiece as shown

on Page 32. Stacked dado blades are the most

expensive option but are worth considering if your projects require a lot of visible dado cuts. A typical stacked dado blade is shown in

Figure 29.

• Wobble Dado Blade—Also a dedicated dado blade, a wobble blade usually consists of a single blade that is tilted on the arbor shaft while it is spinning. The channel is cut in the face of the workpiece as the blade passes through its preadjusted width of travel. Wobble blades are an inexpensive option when visibly pleasing channels are not a concern.

Moulding Heads: A moulding head is a cutter-

head that attaches to the arbor and holds individual moulding knives. They should only be used by professional woodworkers with training beyond the scope of this manual.

This section on blade selection is by no means comprehensive. Always follow the saw blade manufacturer's recommendations to ensure safe and efficient operation of your table saw.

Some blade guards/splitters are thicker than thin-kerf blades. DO NOT use the thinkerf blade if this is the case or serious personal injury could result.

Figure 29. Optional dado blade.

Figure 30. Various saw tooth cutting profiles.

-30- G1023Z Series Heavy-Duty 10'' Table Saw

Crosscutting

To make a 90˚ crosscut using the miter gauge:

1. Adjust the miter gauge to the 90˚ position.

2. Adjust the fence completely away from the

cutting operation.

3. Position the miter gauge in one of the two

miter slots.

4. Adjust the blade height so the highest saw

tooth protrudes approximately

⁄4" above the

workpiece.

5. Hold the workpiece against the miter gauge

and line up the cut with the blade.

A crosscut is a cut against the grain direction of the workpiece. Crosscutting man-made wood products like plywood is performed by cutting parallel to the shortest side.

6. Turn on the saw and allow it to come to full

speed.

7. Hold the workpiece firmly against the face of

the miter gauge and ease it into the blade as

shown in Figure 31.

Figure 31. Cross-cut operation.

Keep the blade guard in the down position at all times. Failure to do this could result in serious personal injury or death.

Turn off the saw and allow the blade to come to a complete stop before removing the cut-off piece. Failure to follow this warning could result in serious personal injury

G1023Z Series Heavy-Duty 10'' Table Saw -31-

Ripping

To make a rip cut:

1. Set the fence to the desired width of cut on

the fence rail scale.

2. Adjust the blade height so the highest saw

tooth protrudes approximately 1⁄4" above the workpiece.

3. Joint one long edge of the workpiece on a

jointer.

4. Set up any safety devices such as feather-

boards or other anti-kickback devices.

5. With the saw disconnected from the power source, rotate the blade to make

sure it does not come into contact with any of the safety devices.

6. Plug the saw into the power source, and turn

on the saw and allow it to come to full speed.

7. The jointed edge of the workpiece must be

slide against the fence during the cutting operation.

A rip cut is a cut with the grain direction of the workpiece. Ripping man-made wood products like plywood is performed by cutting parallel to the longest side.

8. Using a push stick, feed the workpiece through the saw blade as shown in Figure 32, until the workpiece is completely past the saw blade. When a small width is to be

ripped and a push stick cannot be safely put between the blade and rip fence, rip a larger piece to obtain the desired piece.

Stand to the left of the blade line-of-cut when ripping a board. Serious personal injury could occur if kickback results.

Keep the blade guard in the down position at all times. Failure to do this could result in serious personal injury or death.

Figure 32. Ripping operation.

Turn off the saw and allow the blade to come to a complete stop before removing the cut-off piece. Failure to follow this warning could result in serious personal injury

-32- G1023Z Series Heavy-Duty 10'' Table Saw

Dado Cutting

Commonly used in furniture joinery, a dado is a straight channel cut in the face of the workpiece. Dadoes can be cut using either a dado blade

(Figure 57) or a standard saw blade.

To use a stacked or wobble dado blade:

1. Disconnect the machine from the power source!

2. Remove the table insert, splitter guard, and

regular saw blade.

3. Attach and adjust the dado blade system as

recommended in the dado blade manufacturer’s instructions.

4. Install the dado table insert.

5. Raise the dado blade up to the desired depth

of cut (depth of dado channel desired).

Never perform a through cut operation with a dado blade. A dado blade was designed to make non-through cuts only. Failure to follow this warning could result in serious personal injury.

Dado operations present very real hazards requiring proper procedures to avoid serious injury. The chance of kickback is always greater when dado blades are used so extra care must be taken. Any movement of the stock away from the fence will cause kickback. Be certain that stock is flat and straight. Failure to follow these warnings could result in serious personal injury.

6. If dadoing along the long length of your work-

piece, adjust the distance between the fence and the inside edge of the blade to suit your

needs as shown in Figure 33.

Always use push sticks, featherboards, push paddles and other safety accessories whenever possible to increase safety and control during operations which require the blade guard and splitter to be removed from the saw. Failure to follow this warning could result in serious personal injury.

Never allow hands or arms to be above or behind the saw blade. Should kickback occur, the hands and arms could be pulled into the saw blade causing serious personal injury.

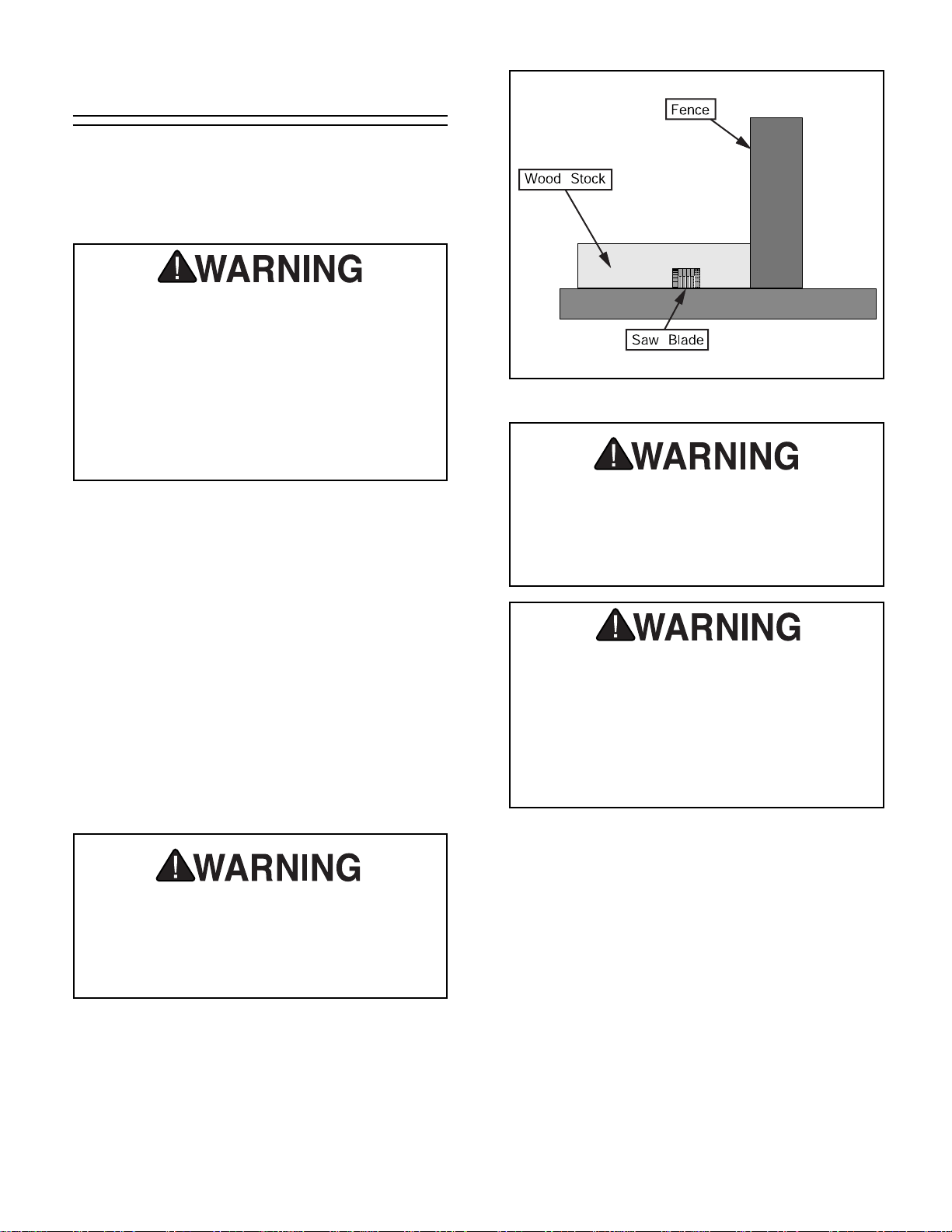

Figure 33. Single-blade dado cut.

7. Reconnect the saw to the power source.

8. With one finger ready to push the OFF but-

ton, turn the saw on. The blade should run smooth with no vibrations or wobbling.

9. When the blade has reached full speed, per-

form a test cut with a scrap piece of wood.

G1023Z Series Heavy-Duty 10'' Table Saw -33-

Using a standard saw blade:

1. Clearly mark the width of the dado cut on

your workpiece. Include marks on the edge of your workpiece so you can clearly identify your intended cut while the material is laying flat on the saw table.

2. Raise the blade up to the desired depth of

cut (depth of dado channel desired).

3. If dadoing along the long length of your work-

piece, adjust the fence so the blade is aligned with the inside of your dado channel

as shown in Figure 34.

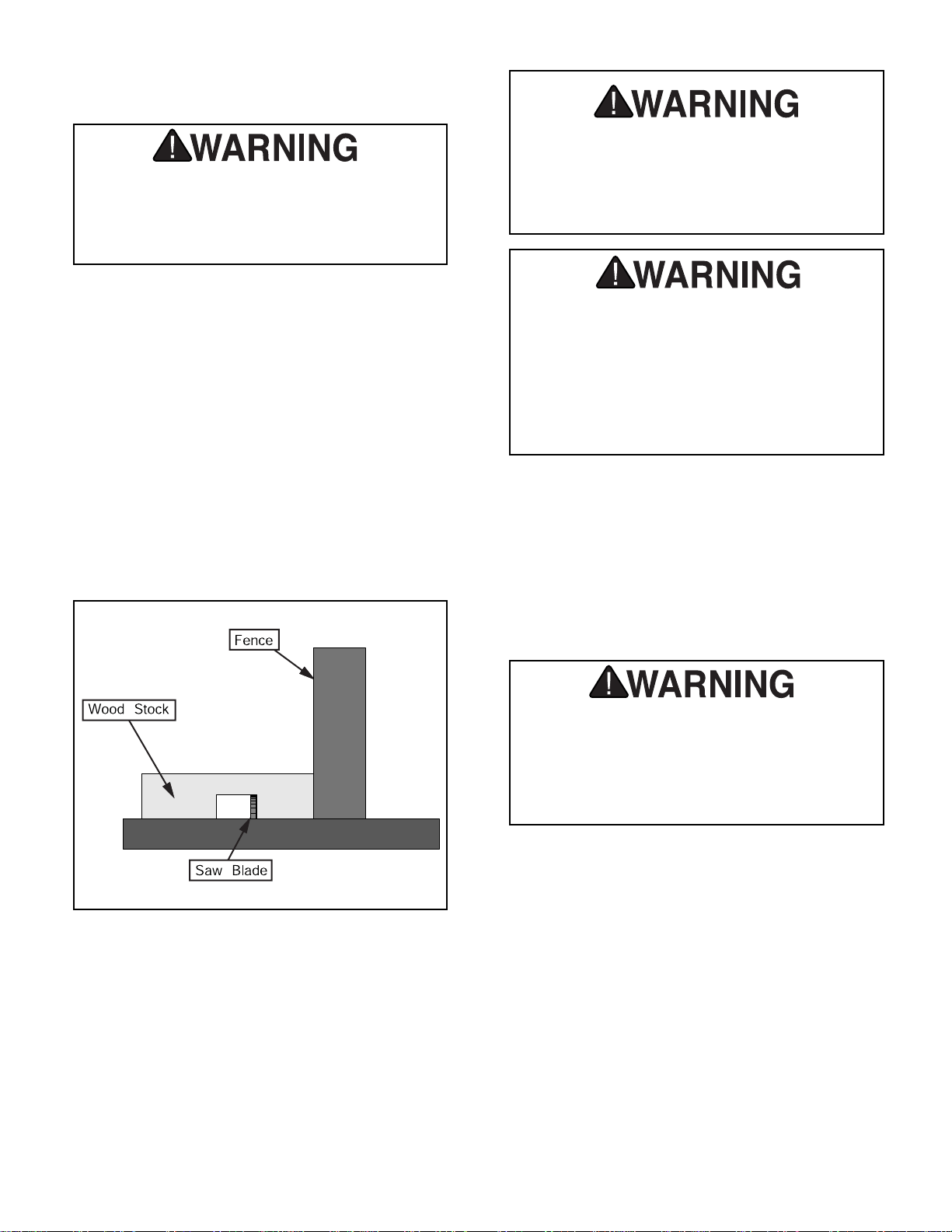

Figure 34. Single-blade dado cut.

Never allow hands or arms to be above or behind the saw blade. Should kickback occur, the hands and arms could be pulled into the saw blade causing serious personal injury.

10. If the cut is satisfactory, repeat with your fin-

ish stock.

ALWAYS replace the blade guard after dadoing is complete. Failure to follow this warning could result in serious personal injury.

4. Turn on the saw and allow the blade to reach

full speed.

5. Perform a test cut on a scrap piece of wood.

Determine if the depth of cut is correct.

6. If the cut is satisfactory, repeat with your fin-

ish stock.

Always turn the saw off and wait until the blade has come to a complete stop before adjusting the fence. Failure to follow this warning could result in serious personal injury.

-34- G1023Z Series Heavy-Duty 10'' Table Saw

7. Re-adjust the fence so the blade is aligned

with the other edge of the intended dado

channel. Be sure to keep the cuts within your

marks; otherwise, the dado will be too big.

8. Continue making cuts toward the center of

the dado with your subsequent cuts until the dado is complete.

Rabbet Cutting

Always replace the blade guard after dadoing is complete. Failure to follow this warning could result in serious personal injury.

To attach a sacrificial fence:

Rabbet cutting with a dado blade requires the use of a sacrificial fence attachment as shown in

Figure 35.

Commonly used in furniture joinery, a rabbet is a straight groove cut in the edge of the workpiece. Rabbets can be cut using either a dado blade

(Figure 29) or a standard saw blade.

Rabbet operations present very real hazards requiring proper procedures to avoid serious injury. The chance of kickback is always greater when dado blades are used so extra care must be taken. Any movement of the stock away from the fence will cause kickback. Be certain that stock is flat and straight. Failure to follow these warnings could result in serious personal injury.

Figure 35. Sacrificial fence.

Dado Insert

Rip Fence

Wood Screws

Sacrificial Fence

G1023Z Series Heavy-Duty 10'' Table Saw -35-

1. Disconnect the machine from the power source!

2. Cut a piece of wood that is as long and tall as

the metal fence and

⁄4" thick. This will be the sacrificial fence. Make sure the wood is a uniform thickness and free of knots and defects.

3. Attach the sacrificial fence to the metal fence

with screws or clamps.

4. Remove the blade guard/splitter assembly,

the table insert, and the regular saw blade from the arbor.

5. Install and adjust the dado blade system as

recommended in the dado blade instructions.

6. Adjust the saw blade to maximum height

needed for the rabbeting operation.

7. Raise the blade an additional

⁄4".

8. Slide the metal fence with the attached sac-

rificial fence along side the blade.

9. Using a felt pen, draw the blade profile onto

the sacrificial fence.

10. Remove the sacrificial fence from the metal

fence.

11. Using a bandsaw or jig saw, cut the marked

blade profile from the sacrificial fence.

12. Re-attach the sacrificial fence to the metal

fence with screws or clamps.

13. Slide the fence assembly over the saw blade. The blade should NOT touch the sacrificial

fence.

Cutting rabbets with the dado blade:

1. Adjust the saw blade to the maximum height

needed for the rabbeting operation.

Never perform a through cut operation with a dado blade. A dado blade was designed to make non-through cuts only. Failure to follow this warning could result in serious personal injury.

2. If rabbeting along the long length of your

workpiece, adjust the distance between the fence and the workpiece to suit your needs

as shown in Figure 36.

Figure 36. Rabbet cutting.

-36- G1023Z Series Heavy-Duty 10'' Table Saw

Never allow hands or arms to be above or behind the saw blade. Should kickback occur, the hands and arms can be pulled into the saw blade. Serious personal injury could result.

3. Reconnect the saw to the power source and

turn the saw on.

4. When the blade has reached full speed, per-

form a test cut with a scrap piece of wood.

5. If the cut is satisfactory, repeat with your fin-

ish stock.

Always replace the blade guard after rabbet cutting is complete. Failure to follow this warning could result in serious personal injury.

Cutting rabbets with the standard blade:

Cutting rabbets with a standard saw blade DOES NOT require the use of a sacrificial fence.

1. Clearly mark the width of the rabbet cut on

your workpiece. Include marks on the edge

of your workpiece so you can clearly identify your intended cut while the material is laying flat on the saw table.

2. Raise the blade up to the desired depth of

cut (depth of rabbet channel desired).

3. If the rabbet runs the length of the material,

adjust the fence so the blade is aligned with the inside of your rabbet channel as shown

in Figure 37.

Figure 37. Rabbet cutting.

G1023Z Series Heavy-Duty 10'' Table Saw -37-

4. Turn the saw on.

5. When the blade has reached full speed, per-

form a test cut with a scrap piece of wood.

6. If the cut is satisfactory, repeat with your fin-

ish stock.

7. Rotate the workpiece as shown in

Figure 38

8. Perform the second cut to complete the rab-

bet cut.

Figure 38. Rabbet cutting.

Always replace the blade guard after dadoing is complete. Failure to follow this warning could result in serious personal injury.

Never allow hands or arms to be above or behind the saw blade. Should kickback occur, the hands and arms can be pulled into the saw blade. Serious personal injury could result.

Always turn the saw off and wait until the blade has come to a complete stop before adjusting the fence. Failure to follow this warning could result in serious personal injury.

-38- G1023Z Series Heavy-Duty 10'' Table Saw

SECTION 7: MAINTENANCE

General

Regular periodic maintenance on your Model G1023Z Series Table Saw will ensure its optimum performance. Make a habit of inspecting your machine each time you use it.

Check for the following conditions and repair or replace when necessary:

1. Loose mounting bolts.

2. Worn switch.

3. Worn or damaged cords and plugs.

4. Damaged V-belt.

5. Any other condition that could hamper the

safe operation of this machine.

6. Inspect blades for damage.

7. Guard alignment and operation.

Disconnect power to the machine when performing any maintenance on the table saw. Failure to do this could result in serious personal injury.

Loose hair and clothing could get caught in machinery causing serious personal injury. Keep loose clothing rolled up and long hair tied up and away from machinery.

Projectiles thrown from the machine could cause serious eye injury. Wear safety glasses during maintenance.

G1023Z Series Heavy-Duty 10'' Table Saw -39-

V-Belt

The sealed ball bearings in the motor and throughout the Model G1023Z Series require no maintenance during their lifetime. When they do wear out, replacements can be obtained through the Grizzly Parts Department.

Lubricate the areas indicated below every 12 months:

BLADE ANGLING TRUNNION—The front and back trunnions each have a semi-circle groove that needs to be lubricated with an automotive wheel bearing grease.

BLADE HEIGHT TRUNNION—The blade height trunnion pivots on a steel rod. This should be lubricated with 6 or 7 drops of light machine oil.

WORM GEARS—These should be lubricated with an automotive wheel bearing grease.

Lubrication Table

The table is made from cast iron. If preventative measures are not taken, the table surface will rust. Regularly wipe sawdust from the table to prevent rust causing moisture from becoming trapped against the table. Regular applications of products like SLIPIT

will prevent rust as the saw is used on a daily basis. For long term storage, use products such as Boeshield T-9

. Both of these products

are available in the Grizzly catalog.

To ensure optimum power transmission from the motor to the blade, the V-belts must be in good condition and operate under the proper tension. When replacing V-belts, replace all three at the same time—even if they do not all appear worn.

Belt tension should be checked at least every 3 months; more often if using the table saw intensively.

The V-belts are accessed through the cavity on the right side of the saw. They link the arbor and motor pulleys.

To check V-belt tension:

1. Disconnect the machine from the power source!

2. With moderate pressure, push the center of

each V-belt.

3. Note the amount of deflection. Deflection

should be approximately

⁄2", similar to

Figure 39.

-40- G1023Z Series Heavy-Duty 10'' Table Saw

Figure 39. V-belt deflection.

To adjust V-belt tension:

1. Disconnect the machine from the power source!

2. Loosen the motor mount bolt.

3. Shift the motor up or down to increase or

decrease the V-belt tension. Tighten the motor mount bolt.

4. Check the V-belt tension again. Ensure that

the motor pulley and arbor pulley are lined up.

To replace the V-belts:

1. Disconnect the machine from the power source!

2. Remove the blade.

3. Adjust the arbor so it is up all the way and in

the 90° position.

4. Place a board under the motor and loosen

the motor mount bolt. Slowly lower the arbor until the motor rests on the board, allowing the belts to be loose on the pulleys.

5. Pull off the old V-belts and replace them with

new ones. Have the number from the belt ready when calling the service department for replacements.

6. Raise the arbor and remove the board to

adjust the V-belt tension.

7. Tighten the motor mount bolt.

G1023Z Series Heavy-Duty 10'' Table Saw -41-

Maintenance Performed

Approximate Hours Of Use

Maintenance Log

Date

-42- G1023Z Series Heavy-Duty 10'' Table Saw

45˚ & 90˚ Stops

1. Set your blade angle at zero as shown on the

angle indicator on the front of the saw and raise the blade several inches above the table.

2. Place a machinist’s square flat on the table

and slide it alongside the blade. The square should contact the blade evenly from bottom to top. Make sure that a blade tooth does not obstruct the movement of the square.

3. Adjust the handwheel until the square is

flush with the blade. Loosen the tilt indicator arrow, set to zero, and retighten. Loosen and adjust the stop bolt on the left side of the front trunnion to allow a 90° stop point. See

Figure 40 for details.

4. Turn the blade angle handwheel until the

angle indicator points at the desired angle.

5. Tighten the handwheel locking knob.

6. Repeat Steps 1-6 for setting the blade to 45°

and adjust the 45° stop bolt on the right side of the front trunnion. Use the 45° side of a combo square or a bevel gauge set at 45°.

Figure 40. Geared trunnion.

Disconnect power to the machine when performing any maintenance, assembly or adjustments. Failure to do this may result in serious personal injury.

Keep loose clothing rolled up and out of the way of machinery and keep hair pulled back.

Wear safety glasses during the entire adjustment process. Failure to comply may result in serious personal injury.

45˚ Stop Bolt

90˚ Stop Bolt

SECTION 8: SERVICE ADJUSTMENTS

G1023Z Series Heavy-Duty 10'' Table Saw -43-

Figure 42. Table mounting bolt holes.

6. If the blade tip does not touch the end of the

adjustable square similar to the first measurement, then the table will need to be adjusted.

7. To adjust the table, loosen the four bolts in the table mounting locations (see Figure 42) and slightly tap the table. Repeat Steps 1-5

until satisfactory. Do not forget to tighten the table mounting bolts when finished.

8. Now check to see if the blade remains paral-

lel to the miter slot when tilted to 45°.

9. Tilt the blade to 45° and repeat Steps 1-5. If

the blade is still parallel to the miter slot, continue on to the “Miter Gauge” instructions. Otherwise, continue with the next step.

10. If the blade was parallel to the miter slot at

90° but not at 45°, the table will need to be shimmed with metal shim stock. The shims are placed between the table and cabinet over each of the four table mounting bolts.

Blade Parallelism

Your table saw will give the best results if the miter slot and the rip fence are adjusted parallel to the blade. If either of these are not exactly parallel, your cuts and your finished work will be lower in quality, but more important, this condition increases the risk of kickback. Take the time to adjust your table saw properly. A few minutes now will be time well spent.

1. Disconnect the machine from the power source!

2. Use an adjustable square to measure the

distance from the miter slot to a carbide tip

on the blade as shown in Figure 41. Make

sure that the face of the adjustable square is even along the miter slot.

3. With the end of the adjustable square just

touching the tip, lock the square in place. Now, mark the carbide tip with a magic marker where you made this measurement.

4. Rotate that tip to the other end of the table

insert.

5. Slide the adjustable square down to the

other end of the table insert, and compare the distance from the marked blade tip to the

end of the adjustable square.

Figure 41. Adjusting blade to miter slot.

Table Mount Holes

Use caution and remain alert when working around the saw blade. Failure to follow this warning could result in serious personal injury or death.

-44- G1023Z Series Heavy-Duty 10'' Table Saw

11. Refer to Figures 43 & 44, for shim place-

ment. If the distance of A is shorter than B, shim(s) will need to be placed under corners #1 and #2. If the distance of B is shorter than A, shim(s) will need to be placed under corners #3 and #4. Very thin shim stock works well, just make sure they are all the same thickness, and you put an equal number under each of the two corners.

12. Tighten down one bolt a small amount and

then move on to each of the others, tightening each down the same amount. Continue to rotate through the bolts, tightening them a little each time until they are all secure.

13. Now recheck the blade to miter slot at 90° and 45° by repeating Steps 1-5. If the dis-

tance of A and B are equal, continue to the “Miter Gauge” instructions. If the distances

are still off, repeat Steps 9-12.

14. Once you feel you have the miter slot adjust-

ed to the blade, recheck all measurements and be sure the table mounting bolts are

secure. Repeat Step 12 on Page 25. If the

table is removed in the future, be sure to reinstall the shims the same way they came off.

Figure 43. 45°

blade parallelism measurement.

#1 Shim

45˚ Bevel

#3 Shim

#4 Shim

#2 Shim

Figure 44. 45°

blade parallelism measurement.

#1 Shim

#3 Shim

#2 Shim

45˚ Bevel

#4 Shim

G1023Z Series Heavy-Duty 10'' Table Saw -45-

Blade Alignment

The blade position can be adjusted slightly in case it contacts the table insert when raised or tilted. This adjustment can be made either by moving the whole trunnion assembly, or by just moving the arbor bracket. Try adjusting by moving the whole trunnion first, this is the easier of the two ways.

To adjust the blade position by moving the trunnion:

1. Disconnect the machine from the power source!

2. Remove the table and wings and set them to

one side. Be sure to note the position of the table shims. Replace them to their original position before re-attaching the table.

3. Loosen the four trunnion mounting bolts as shown in Figure 45, and nudge to either the

left or right depending on where the blade is hitting the saw.

The table and wings represent a very heavy load. DO NOT overexert yourself while lifting or moving the table and wings – get assistance.

Figure 45. Trunnion mounting bolts.

To adjust the blade position by moving the arbor bracket:

1. Disconnect the machine from the power source!

2. Remove the table and wings and set them to

one side. Be sure to note the position of the table shims. Replace them to their original position before re-attaching the table.

3. Loosen the bracket lock bolt shown in Figure 46.

4. Slowly slide the arbor bracket towards the

end of the shaft.

4. Reattach the table, making sure there is ade-

quate blade clearance through all blade adjustments. Recheck guard alignment to the blade and to the table top. Adjust as necessary and tighten down all the bolts before use.

5. If the blade is still contacting the insert, repeat Steps 1-4. Check all other adjustments.

6. Recheck the blade to miter slot adjustments,

and adjust as necessary.

Figure 46. Adjusting arbor bracket.

NOTICE

If you make the adjustment described in this section, check and adjust the blade splitter to make sure it aligns with the blade.

Bracket Lock Bolt

Trunnion Mount Bolts

Arbor Bracket

-46- G1023Z Series Heavy-Duty 10'' Table Saw

5. Moving the arbor bracket moves the V-belts

and pulleys out of alignment, so adjustment of the motor pulley is required. Simply loosen the setscrew in the middle motor groove pulley and slowly slide the pulley towards the end of the motor shaft. Once the V-belts are back in alignment, tighten the setscrew securely.

6. Re-attach the table, making sure there is

adequate blade clearance through all blade adjustments. Recheck guard alignment to the blade and to the table top. Adjust as necessary and tighten down all the bolts before use.

7. If the blade is still contacting the insert, repeat Steps 1-6. Check all other adjust-

ments.

8. Recheck the blade to miter slot adjustments,

and adjust as necessary.

G1023Z Series Heavy-Duty 10'' Table Saw -47-

-48- G1023Z Series Heavy-Duty 10'' Table Saw

-50- G1023Z Series Heavy-Duty 10'' Table Saw

SECTION 9: CLOSURE

The following pages contain general machine data, parts diagrams/lists, a troubleshooting guide and Warranty/Return information.

If you need parts or help in assembling your machine, or if you need operational information, call the Grizzly Service Department. Trained service technicians will be glad to help you.

If you have any comments regarding this manual, please write to Grizzly at the address below:

Grizzly Industrial, Inc.

/O Technical Documentation

P.O. Box 2069

Bellingham, WA 98227-2069

Important safety measures that are essential to the operation of this machine have been

explained in Section 1: Safety. While most safety

measures are generally universal, Grizzly reminds you that each workshop is different and safety rules should be considered as they apply to your specific situation.

We recommend you keep a copy of our current catalog for complete information regarding Grizzly's warranty and return policy. If you need additional technical information relating to this machine, or if you need general assistance or replacement parts, please contact the Service Department at the location listed below.

Grizzly Industrial, Inc. 1203 Lycoming Circle

Muncy, PA 17756

Phone: (570) 546-9663

Fax: (800) 438-5901

E-Mail: techsupport@grizzly.com

Web Site: http://www.grizzly.com.

Additional information sources are necessary to realize the full potential of this machine. Trade journals, woodworking magazines, and your local library are good places to start.

G1023Z Series Heavy-Duty 10'' Table Saw -51-

Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901

MACHINE DATA

SHEET

G1023Z / G1023ZX / G1023ZX3

10" HEAVY-DUTY CABINET SAW

Design Type .......................................................................... Floor Model,10" Tilting Arbor

Overall Dimensions:

Table Height Above Floor ........................................................................................34"

Table Size ..............................................................................27" Deep x 20

⁄8" Wide

Table Size w/ Extension Wings................................................27" Deep x

401⁄8" Wide

With Wings and Fence Rails and Fence..............................................50" W x 46

⁄2" D

Weight (Shipping) Z ..........................................................................................460 lbs.

Weight (Shipping) ZX ......................................................................................475 lbs.

Weight (Shipping) ZX3......................................................................................475 lbs.

Miter Gauge Slot ....................................................................................T-Slot

⁄8" x 3⁄4"

Footprint ........................................................................................................20" x 20"

Overall Height ..........................................................................................................38"

Capacities:

Maximum Blade Diameter ........................................................................................10"

Maximum Depth of Cut at 90

................................................................................31⁄8

Blade Tilt....................................................................................................0 - 45° Right

Maximum Depth of Cut at 45

................................................................................21⁄8"

Maximum Rip to Right of Blade (Standard)..............................................................25"

Maximum Rip to Right of Blade (Optional) ..............................................................48"

Maximum Rip to Left of Blade ................................................................................8

⁄2"

Distance Front of Table to Center of Blade..............................................................17"

Table in Front of Blade at Maximum Cut ................................................................12"

Maximum Width of Dado ........................................................................................

⁄16"

Construction:

Table ................................................................................ Precision Ground Cast Iron

Stand ................................................................................................Pre-Formed Steel

Miter Gauge ..................................................................................Cast Iron ⁄ Steel Bar

Trunnions ......................................................................................................Cast Iron

Spindle Bearings ................................................Sealed and Lubricated Ball Bearings

Fence..........................Single Lever, Front & Rear Locking, Steel and Cast Aluminum

Rails............................................................................................47" x 1

⁄2" Steel Angle

Guard ........................................................................................Steel and Clear Plastic

Wings ................................................................................................Ground Cast Iron

Motor:

Type (G1023Z & ZX / G1023ZX3) ......TEFC Capacitor Start Induction / Three-Phase

Horsepower (G1023Z / G1023ZX / G1023ZX3) ..........................3 HP ⁄ 5 HP / 5 HP

Phase (G1023Z / G1023ZX / G1023ZX3) ................................Single / Single / Three

Voltage ..................................................................................................................220V

Amps (G1023Z / G1023ZX / G1023ZX3) ............................................18A / 25A / 15A

Motor RPM....................................................................................................3450 RPM

Power Transfer ....................................................................................Triple Belt Drive

Switch ........................................................Magnetic with Thermal Overload Protector

Features:

..............................................................................................Shop Fox

Fence System

....................................................................................................................4" Dust Port

......................................................................................Enclosed Motor Cover, Hinged

Specifications, while deemed accurate, are not guaranteed.

-52- G1023Z Series Heavy-Duty 10'' Table Saw

001 P1023001 CABINET 002 P1023002 SCALE 003 P1023003 SELF TAPPING SCREW 004 P1023004 CLEANOUT DOOR

005A

PN08 HEX NUT 3⁄8"-16 006 P1023006 DOOR LATCH 007 P1023007 KNOB

⁄8"-16 X 11⁄2" 008 P1023008 HAND WHEEL LOCK 009 P1023009 HANDLE 010 P1023010 HAND WHEEL 011 PSS04 SETSCREW

⁄4"-20 X5⁄16" 012 PSB65 CAP SCREW 10-24 X 2" 013 P1023013 POINTER BRACKET 014 PS27 PHLP HD SCR

⁄16"-18 X3⁄8" 015 P1023015 POINTER 016 P1023016 FRONT TRUNNION 017 P1023017 PLATE 018 PS05 PHLP HD SCR

⁄16"-18 X 1" 019 PB16 HEX BOLT

⁄8"-16 X 11/2"

020 PLW04 LOCK WASHER

⁄8"

021 PN08 HEX NUT

⁄8"-16

22A PSS03 SETSCREW

⁄4"-20 X3⁄8" 023 P1023023 WORM 024 P1023024 COLLAR 025 PSS05 SETSCREW

⁄16"-18 X1⁄4" 026 P1023026 SHAFT 027 P1023027 PIN 028 PK02M KEY 5 X 5 X 40 029 P1023029 GEARED TRUNNION 030 PN02 HEX NUT

⁄16

"-18

031 PB03 HEX BOLT

⁄16"-18 X 1" 032 P1023032 FLANGE 033 P1023033 SHAFT 035 P1023035 GEARED BEARING HOUSING 036 PB16 HEX BOLT

⁄8"-16 X 11⁄2" 37A PLW04 LOCK WASHER

⁄8"

37B PK9 KEY

⁄4" X 1⁄4" X 13⁄4" 038 P6203 BEARING 62032RS 039 PR23M SNAP RING 40 040 P1023040 LOCK NUT

⁄8"-18 041 P1023041 COLLAR 042 P1023042 ARBOR PULLEY 043 PSS07 SETSCREW

⁄4" - 20 x1⁄2" 044 PK02M KEY 5 X 5 X 45 045 P1023045 BLADE ARBOR 047 P1023047 ARBOR FLANGE 048 P1023048 ARBOR NUT 48A P1023048A ARBOR WRENCH 050 P1023050 MOTOR FRAME SUPPORT 051 P1023051 CLIP 052 P1023052 PIVOT PIN 053 PB75 HEX BOLT

⁄

2"-13 X 4"

054 P1023054 V-BELTS, SET OF 3 055 P1023055 MOTOR PULLEY 056 P1023056 MOTOR 3 HP 220V 56A P1023056A MOTOR 5 HP 220V 56B P1023056B MOTOR 5 HP 3-PHASE

057 PB76 HEX BOLT 5⁄16"-18 X 15⁄8" 058 PB03 HEX BOLT

⁄16"-18 X 1"

060 PB07 HEX BOLT

⁄16"-18 X 3⁄4"

061 PW07 FLAT WASHER

⁄16" 062 P1026062 SUPPORT BRACKET 063 P1023063 FLANGE CASTING 064 PRP03 ROLL PIN

⁄16" X5⁄8"

065 PSB14 CAP SCREW

⁄8"-10 X 1"

066 PW02 FLAT WASHER

⁄8" 067 PK02M KEY 5 X 5 X 40 068 P1023068 SHAFT 069 PLN05 LOCK NUT

⁄4"-16 070 P1023070 REAR TRUNNION 071 P1023040 LOCK NUT

⁄8"-18 072 P1023072 BLADE GUARD SUPPORT 079 PSS07 SETSCREW

⁄4"-20 X1⁄2" 80-1 P1023080-1 SPRING CLIP 80-2 PS06 PHLP HD SCREW 10-24 X

⁄8'' 80B P1023080B STD TABLE INSERT 80D P1023080D DADO INSERT 081 P1023081 TABLE 082 PLW04 LOCK WASHER

⁄8"

083 PB24 HEX BOLT

⁄8"-16 X 11⁄4" 084 P1023084 EXTENSION WING 085 PLW05 LOCK WASHER

⁄16"

85A PLW07 LOCK WASHER

⁄2"

85B PN13 HEX NUT

⁄2"-13

85C PW01 FLAT WASHER

⁄2"

086 PB77 HEX BOLT

⁄16"-20 X 1" 087 G4573(3HP) SWITCH G1023Z 87A G4668(5HP) SWITCH G1023ZX 87B

G4674(5HP3)

SWITCH G1023ZX3 088 P1023088 SWITCH MOUNT BRACKET 089 PK02M KEY 5 X 5 X 40 090 PS201-1 SWITCH COVER SCREW 091 PS08 PHLP HD SCR 10-24 X

⁄4" 91A PW03 FLAT WASHER #10 91B PN07 HEX NUT 10-24 093 PSS02 SETSCREW

⁄16''-18 X3⁄8'' 094 P1023094 SPRING 095 P1023095 BALL 096 P1023096

SPECIAL SETSCREW 5⁄16''-18 X 11⁄4''

96A PSS08 SETSCREW 5⁄16''-18 X1⁄2'' 097 P1023097 BRASS WASHER 098 P1023098 POWER CORD 099 P1023099 MOTOR CORD 100 P1023100 LOGO PLATE 101 P1023101 DISCONNECT PWR LABEL 102 P1023102 SAFETY GLASSES LABEL 103 P1023103 USE GUARD LABEL 104 P1023104 READ MANUAL LABEL 105 P1023105 ELECTRICITY LABEL

106A

P1023Z106A WARNING ID LABEL G1023Z

106A P1023ZX106A

WARNING ID LABEL G1023ZX

106A P1023ZX3106A WARNING ID LABEL G1023ZX3

107 P1023107 DUST HOOD 108 P1023108 MOTOR COVER

REF# PART# DESCRIPTION

G1023Z Series Heavy-Duty 10'' Table Saw -53-

-54- G1023Z Series Heavy-Duty 10'' Table Saw

400 P1023400 COMPLETE MITER GAUGE 401 P1023401A KNOB

402A PW07 FLAT WASHER

⁄16" 403 P1023403 MITER GAUGE BODY 404 P1023404A MITER BAR

405A P1023405 RING 406A PFH26 FLAT HD SCR 10-24 X

⁄4"

407A PN07 HEX NUT 10-24 408A PSS32 SETSCREW 10-24 X

⁄4"

409A PSS29 SETSCREW 10-24 X

⁄4" 410 P1023410 STOP 411 P1023411 POINTER 412 P1023412 SCALE 413 P1023SL413 SETSCREW 10-24 X

⁄8" 414 P1023SL414 ROLL PIN 1.5 X 13 415 P1023SL415 MITER HINGE PIN

501 P1022174 GUARD 502 P1022171 HEX BOLT M6-1.0 X 40 503 PLN03M LOCK NUT M6-1.0

504 P1022162 SUPPORTING ARM 505 P1022173 PIVOT PIN 506 P1022175 RETAINER 507 P1022163 RETAINER 508 P1022176 SPRING 509 P1022167 SPACER 510 P1022073 SPLITTER 511 P1022164 PAWL 512 PRP20M ROLL PIN 4 X 22 513 P1022166 PIN 535 P1023535 U-CLAMP 536 P1023536 L-BRACKET 537 P1023537 LOCKING PLATE 538 PB26 HEX BOLT

⁄4"-20 X 11⁄2"

539 PW06 FLAT WASHER

⁄4"

540 PN05 HEX NUT

⁄4"-20

541 PB07 HEX BOLT

⁄16"-18 X 3⁄4"

542 PW07 FLAT WASHER

⁄16"

543 PN02 HEX NUT

⁄16"-18

REF# PART# DESCRIPTIONREF# PART# DESCRIPTION

G1023Z Series Heavy-Duty 10'' Table Saw -55-

SYMPTOM

Motor will not start.

Motor will not start; fuses or circuit breakers blow.

Motor overheats.

Motor stalls (resulting in blown fuses or tripped circuit).

Machine slows when operating.

Loud, repetitious noise coming from machine.

Blade is not square w/miter slot or fence is not square to blade.

Fence hits table top when sliding on to the table.

Blade does not reach 90°.

Blade hits insert at 45°.

Blade won’t go beneath table surface.

Hand wheels won’t turn.

POSSIBLE CAUSE

1. Low voltage.

2. Open circuit in motor or loose connections.

1. Short circuit in line cord or plug.

2. Short circuit in motor or loose connections.

3. Incorrect fuses or circuit breakers in power line.

1. Motor overloaded.

2. Air circulation through the motor restricted.

1. Short circuit in motor or loose connections.

2. Low voltage.

3. Incorrect fuses or circuit breakers in power line.

4. Motor overloaded.

1. Applying too much pressure to workpiece.

2. Belts loose.

1. Pulley setscrews or keys are missing or loose.

2. Motor fan is hitting the cover.

3. V-belts are defective.

1. Blade is warped.

2. Table top is not parallel to blade.

3. Fence is not parallel to blade.

1. Front rail is bolted too low on table.

2. Rear rail is bolted too low on the table.

1. 90° stop bolt is out of adjustment.

2. Pointer bracket is hitting before the blade reaches 90°.

1. Hole in insert is inadequate.

2. Table out of alignment.

3. Blade position is incorrect.

Table top too low.

1. Hand wheel key is inserted too far.

2. Bullets are wedged.

3. Roll pin or setscrew in worm gear is contacting geared trunnion.

CORRECTIVE ACTION

1. Check power line for proper voltage.

2. Inspect all lead connections on motor for loose or open connections.

1. Inspect cord or plug for damaged insulation and shorted wires.

2. Inspect all connections on motor for loose or shorted terminals or worn insulation.

3. Install correct fuses or circuit breakers.

1. Reduce load on motor.

2. Clean out motor to provide normal air circulation.

1. Inspect connections on motor for loose or shorted terminals or worn insulation.

2 Correct the low voltage conditions.

3. Install correct fuses or circuit breakers.

4. Reduce load on motor.

1. Feed workpiece slower.

2. Tighten belts.

1. Inspect keys and setscrews. Replace or tighten if necessary.

2. Tighten fan or shim cover.

3. Replace V-belts. See Maintenance.

1. Replace blade.

2. Make table parallel to blade. See Adjustments.

3. Make fence parallel to blade. See Adjustments.

1. Raise front rail.

2. Raise rear rail.

1. Adjust 90° stop bolt. See Adjustments.

2. File down the right side of the pointer bracket until the blade can reach 90°.

1. File or mill the hole in the insert.

2. Align table. See Adjustments.

3. Adjust blade position. See Adjustments.

Raise table top w/washers.

1. Remove hand wheel and adjust key.

2. Remove hand wheel and adjust bullets.

3. Inspect roll pins and setscrews in the worm gear. Tighten if necessary.

TROUBLESHOOTING GUIDE

-56- G1023Z Series Heavy-Duty 10'' Table Saw

Notes

G1023Z Series Heavy-Duty 10'' Table Saw -57-

-58- G1023Z Series Heavy-Duty 10'' Table Saw

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from

the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

WARRANTY AND RETURNS

CUT ALONG DOTTED LINE

9. How many of your woodworking machines are Grizzly? _____________

10. Which benchtop tools do you own? Check all that apply.

___1" x 42" Belt Sander ___6" - 8" Grinder ___5" - 8" Drill Press ___Mini Lathe ___8" Table Saw ___10" - 12" Thickness Planer ___8" - 10" Bandsaw ___Scroll Saw ___Disc/Belt Sander ___Spindle/Belt Sander ___Mini Jointer

___Other__________________________________________________

11. How many of the machines checked above are Grizzly? ____________

12. Which portable/hand held power tools do you own? Check all that apply.

___Belt Sander ___Orbital Sander ___Biscuit Joiner ___Palm Sander ___Circular Saw ___Portable Planer ___Detail Sander ___Saber Saw ___Drill/Driver ___Reciprocating Saw ___Miter Saw ___Router

___Other__________________________________________________

13. What machines/supplies would you like Grizzly Industrial to carry?

__________________________________________________________

14. What new accessories would you like Grizzly Industrial to carry?

__________________________________________________________

15. What other companies do you purchase your tools and supplies from?

__________________________________________________________

16. Do you think your purchase represents good value?

___Yes ___No

17. Would you recommend Grizzly Industrial to a friend?

___Yes ___No

18. Would you allow us to use your name as a reference for Grizzly customers

in your area? Note: We never use names more than three times.

___Yes ___No

19. Comments:_________________________________________________

__________________________________________________________

1. How did you learn about us?

___Advertisement ___Friend ___Catalog ___Card Deck ___World Wide Web

___Other__________________________________________________

2. Which of the following magazines do you subscribe to.

___American Woodworker ___Practical Homeowner ___Cabinetmaker ___Shop Notes ___Family Handyman ___Today’s Homeowner ___Fine Homebuilding ___WOOD ___Fine Woodworking ___Wooden Boat ___Home Handyman ___Woodshop News ___Journal of Light Construction ___Woodsmith ___Old House Journal ___Woodwork ___Popular Mechanics ___Woodworker ___Popular Science ___Woodworker’s Journal ___Popular Woodworking ___Workbench

___Other__________________________________________________

3. Which of the following woodworking/remodeling shows do you watch?

___Backyard America ___The New Yankee Workshop ___Home Time ___This Old House ___The American Woodworker ___Woodwright’s Shop

___Other__________________________________________________

4. What is your annual household income?

___$20,000-$29,999 ___$60,000-$69,999 ___$30,000-$39,999 ___$70,000-$79,999 ___$40,000-$49,999 ___$80,000-$89,999 ___$50,000-$59,999 ___$90,000 +

5. What is your age group?

___20-29 ___50-59 ___30-39 ___60-69 ___40-49 ___70 +

6. How long have you been a woodworker?

___0 - 2 Years ___8 - 20 Years ___2 - 8 Years ___20+ Years

7. How would you rank your woodworking skills?

___Simple ___Advanced ___Intermediate ___Master Craftsman

8. What stationary woodworking tools do you own? Check all that apply.

___Air Compressor ___Panel Saw ___Band Saw ___Planer ___Drill Press ___Power Feeder ___Drum Sander ___Radial Arm Saw ___Dust Collector ___Shaper ___Horizontal Boring Machine ___Spindle Sander ___Jointer ___Table Saw ___Lathe ___Vacuum Veneer Press ___Mortiser ___Wide Belt Sander

___Other__________________________________________________

Name ____________________________________________________________________________________ Street ____________________________________________________________________________________ City ______________________________________________________________State________Zip_________ Phone Number_______________________E-Mail_______________________FAX________________________

MODEL # G1023Z Series 10" Table Saw Order #___________________________________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.

WARRANTY CARD

Place

Stamp

Here

FOLD ALONG DOTTED LINE

GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

Name_______________________________

Street_______________________________

City______________State______Zip______

Send a Grizzly Catalog to a friend:

Buy Direct and Save with Grizzly® – Trusted, Proven and a Great Value!

Visit Our Website Today And Discover Why

Grizzly® Is The Industry Leader!

• SECURE ORDERING

• ORDERS SHIPPED WITHIN 24 HOURS

• E-MAIL RESPONSE WITHIN ONE HOUR

-OR-

Call Today For A

Full Color Catalog

FREE

Grizzly ZX, ZX3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
