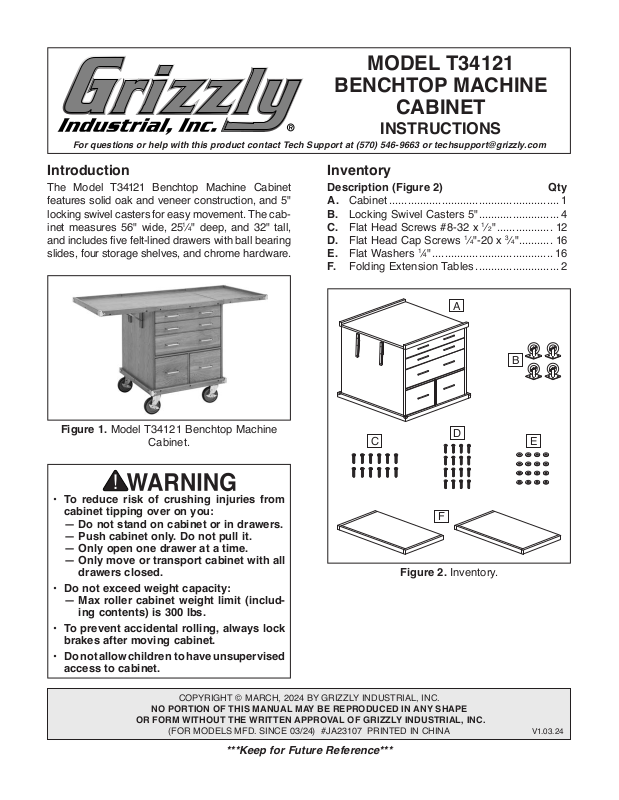

MODEL T34121

BENCHTOP MACHINE

CABINET

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T34121 Benchtop Machine Cabinet
features solid oak and veneer construction, and 5"
locking swivel casters for easy movement. The cab­inet measures 56" wide, 25
and includes five felt-lined drawers with ball bearing
slides, four storage shelves, and chrome hardware.

Figure 1. Model T34121 Benchtop Machine

Cabinet.

1

⁄4" deep, and 32" tall,

Inventory

Description (Figure 2) Qty

A. Cabinet ....................................................... 1

Locking Swivel Casters 5" .......................... 4

B.

Flat Head Screws #8-32 x 1⁄2 " .................. 12

C.

Flat Head Cap Screws 1⁄4"-20 x 3⁄4"........... 16

D.

E. Flat Washers 1⁄4" ....................................... 16

Folding Extension Tables ........................... 2

F.

A

B

C

D

E

• To reduce risk of crushing injuries from
cabinet tipping over on you:
— Do not stand on cabinet or in drawers.
— Push cabinet only. Do not pull it.
— Only open one drawer at a time.
— Only move or transport cabinet with all

drawers closed.

• Do not exceed weight capacity:
— Max roller cabinet weight limit (includ-

ing contents) is 300 lbs.

• To prevent accidental rolling, always lock
brakes after moving cabinet.

• Do not allow children to have unsupervised
access to cabinet.

COPYRIGHT © MARCH, 2024 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 03/24) #JA23107 PRINTED IN CHINA

***Keep for Future Reference***

F

Figure 2. Inventory.

V1.0 3.24

Wear safety glasses during
the entire setup process!

4.

Fold hinges down, align with threaded holes

in extension table, then fasten using (6)

1

#8-32 x

⁄2 " flat head screws (see Figure 4).

Assembly

Items Needed Qty

Safety Glasses (for each person) ................. 1 Pr.

Assistant
Hex Wrench 4mm
Phillips Head Screwdriver #2

To assemble cabinet:

With aid from an assistant, carefully turn cabi-

1.

Note: To avoid damaging wood finish, place

Attach (4) locking swivel casters to cabinet

2.

Locking

Caster

(1 of 4)

............................................................ 1

.............................................. 1

............................ 1

net upside down.

cabinet on a piece of cardboard or other non­scratching surface.

base with (16) 1⁄4"-20 x 3⁄4" flat head cap

1

screws and (16)

⁄4" flat washers, as shown in

Figure 3.

x16

x16

x12

Figure 4. Attaching folding extension tables.

5.

Repeat Steps 3–4 for other folding extension

table.

With help from an assistant, return cabinet to

6.

upright position and lock caster wheels.

Using Extension Tables

When raised, the extension tables provide extra
workspace; and when lowered, the tables provide
a more compact work surface.

Raising Extension Tables

Gently lift up on exterior edge of extension table
until both hinges click into place (see Figure 5)

Figure 3. Attaching locking swivel casters.

3. With threaded holes facing up, align (1) fold-

ing extension table front to back along side of
cabinet (see Figure 4).

-2-

Figure 5. Raising extension tables.

Model T 3 4121 (Mfd. Since 03/24)

Lowering Extension Tables

Simultaneously press up on both hinge release
tabs to unlock hinges, then gently lower exten­sion table until it rests against cabinet side (see

Figure 6).

Figure 6. Lowering extension tables.

Mounting Benchtop Machine

If the base of your benchtop machine has mounting
holes, it can be fastened to the cabinet to prevent
the machine from moving during operation and
causing accidental injury or damage.

Another option is a "direct mount" (see Figure 8)
where the machine is secured directly to the work­bench with lag screws and washers.

Lag Screw

Flat Washer

Machine Base

Workbench

Figure 8. "Direct Mount" setup.

The strongest mounting option is a "Through
Mount" (see Figure 7) where holes are drilled all
the way through the work surface—and hex bolts,
washers, and hex nuts are used to secure the
machine in place.

Hex
Bolt

Flat Washer

Machine Base

Workbench

Flat Washer

Lock Washer

Hex Nut

Figure 7. "Through Mount" setup.

Model T 3 4121 (Mfd. Since 03/24)

-3-
