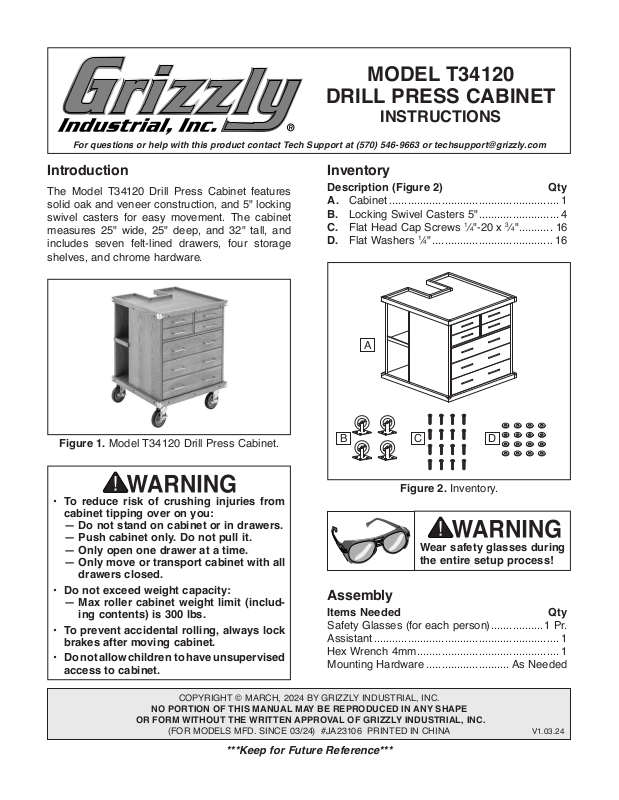

Page 1
MODEL T34120
DRILL PRESS CABINET
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T34120 Drill Press Cabinet features
solid oak and veneer construction, and 5" locking
swivel casters for easy movement. The cabinet
measures 25" wide, 25" deep, and 32" tall, and
includes seven felt-lined drawers, four storage
shelves, and chrome hardware.
Figure 1. Model T34120 Drill Press Cabinet.
Inventory
Description (Figure 2) Qty
A. Cabinet ....................................................... 1
Locking Swivel Casters 5" .......................... 4
B.
Flat Head Cap Screws 1⁄4"-20 x 3⁄4"........... 16
C.
D. Flat Washers 1⁄4" ....................................... 16
A
DCB
• To reduce risk of crushing injuries from
cabinet tipping over on you:
— Do not stand on cabinet or in drawers.
— Push cabinet only. Do not pull it.
— Only open one drawer at a time.
— Only move or transport cabinet with all
drawers closed.
• Do not exceed weight capacity:
— Max roller cabinet weight limit (includ-
ing contents) is 300 lbs.
• To prevent accidental rolling, always lock
brakes after moving cabinet.
• Do not allow children to have unsupervised
access to cabinet.
COPYRIGHT © MARCH, 2024 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 03/24) #JA23106 PRINTED IN CHINA
***Keep for Future Reference***
Figure 2. Inventory.
Wear safety glasses during
the entire setup process!
Assembly
Items Needed Qty
Safety Glasses (for each person) ................. 1 Pr.
Assistant
Hex Wrench 4mm
Mounting Hardware
............................................................ 1
.............................................. 1
........................... As Needed
V1.0 3.24
Page 2
To assemble cabinet:
1.
With aid of assistant, carefully turn cabinet
upside down.
Note: To avoid damaging wood finish, place
cabinet on a piece of cardboard or other nonscratching surface.
2. Attach (4) locking swivel casters to cabinet
base with (16) 1⁄4"-20 x 3⁄4" flat head cap
1
screws and (16)
⁄4" flat washers, as shown in
Figure 3.
Mounting Drill Press
If the base of your drill press has mounting holes,
it can be fastened to the cabinet to prevent
the machine from moving during operation and
causing accidental injury or damage.
The strongest mounting option is a "Through
Mount" (see Figure 5) where holes are drilled all
the way through the work surface—and hex bolts,
washers, and hex nuts are used to secure the
machine in place.
Locking
Caster
(1 of 4)
x16
Figure 3. Attaching locking swivel casters.
3. With help of assistant, return cabinet to
upright position and lock caster wheels.
4.
Complete cabinet assembly should resemble
Figure 4.
Hex
Bolt
Flat Washer
Machine Base
Workbench
Flat Washer
Lock Washer
Hex Nut
Figure 5. "Through Mount" setup.
Another option is a "direct mount" (see Figure 6)
where the machine is secured directly to the workbench with lag screws and washers.
Lag Screw
Figure 4. Complete cabinet assembly.
-2-
Flat Washer
Machine Base
Workbench
Figure 6. "Direct Mount" setup.
Model T 3 4120 (Mfd. Since 03/24)
