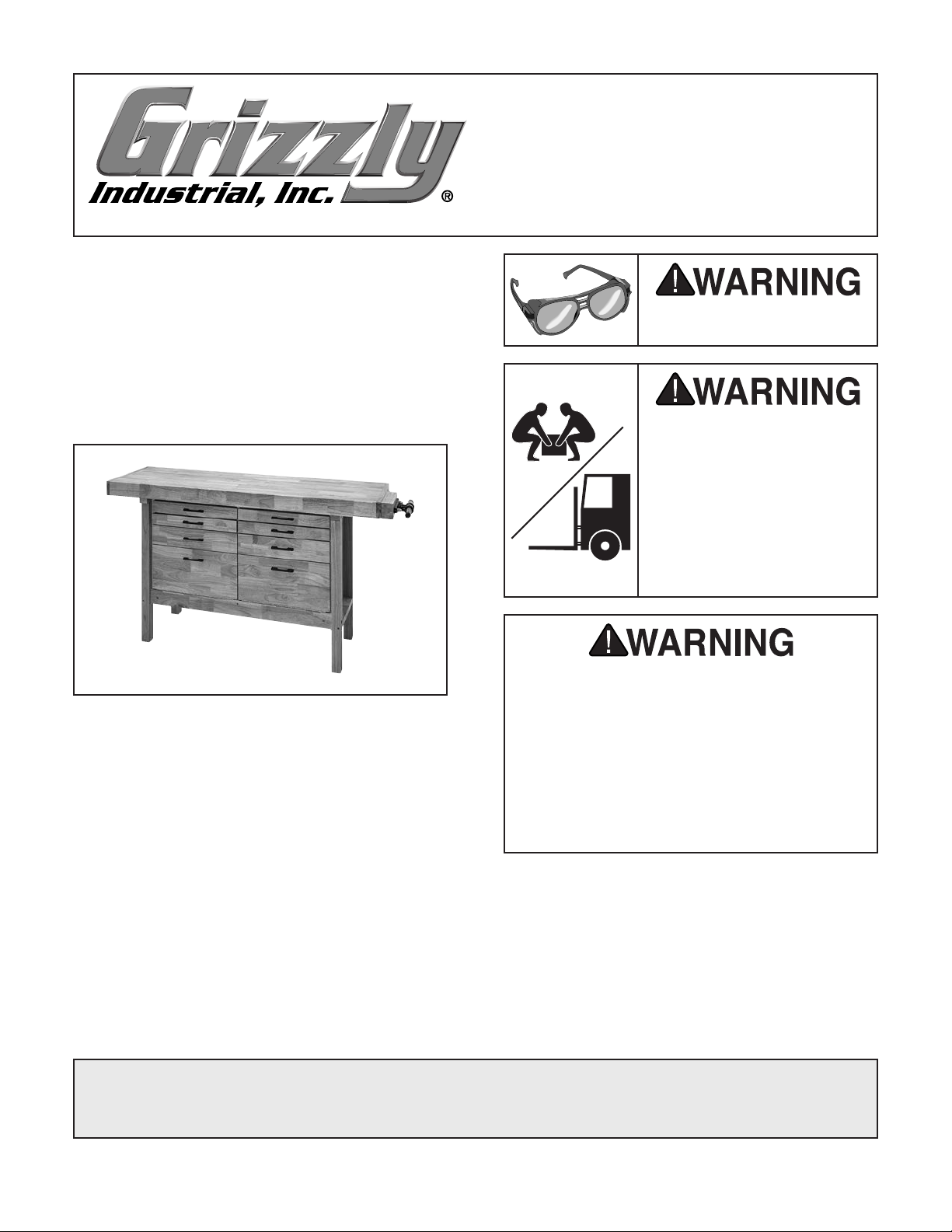

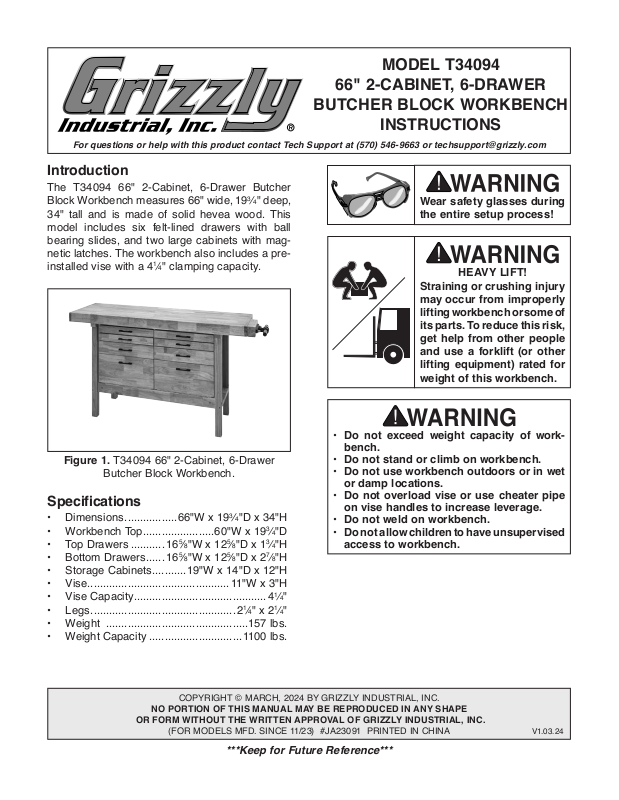

Grizzly T34094 User guide

MODEL T34094

66" 2-CABINET, 6-DRAWER

BUTCHER BLOCK WORKBENCH

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The T34094 66" 2-Cabinet, 6-Drawer Butcher
Block Workbench measures 66" wide, 19
34" tall and is made of solid hevea wood. This
model includes six felt-lined drawers with ball
bearing slides, and two large cabinets with mag­netic latches. The workbench also includes a pre­installed vise with a 4

1

⁄4" clamping capacity.

3

⁄4" deep,

Wear safety glasses during
the entire setup process!

HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting workbench or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this workbench.

Figure 1. T34094 66" 2-Cabinet, 6-Drawer

Butcher Block Workbench.

Specifications

• Dimensions ................. 66"W x 193⁄4"D x 34"H

• Workbench Top .......................60"W x 193⁄4"D

• Top Drawers ........... 165⁄8"W x 125⁄8"D x 13⁄4"H

• Bottom Drawers ...... 165⁄8"W x 125⁄8"D x 27⁄8"H

• Storage Cabinets ........... 19"W x 14"D x 12"H

• Vise .............................................. 11"W x 3"H

• Vise Capacity ........................................... 41⁄4"

• Legs ............................................... 21⁄4" x 21⁄4"

• Weight ..............................................157 lbs.

• Weight Capacity .............................. 110 0 lb s.

COPYRIGHT © MARCH, 2024 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 11/23) #JA23091 PRINTED IN CHINA

• Do not exceed weight capacity of work­bench.

• Do not stand or climb on workbench.

• Do not use workbench outdoors or in wet
or damp locations.

• Do not overload vise or use cheater pipe
on vise handles to increase leverage.

• Do not weld on workbench.

• Do not allow children to have unsupervised
access to workbench.

V1.0 3.24

***Keep for Future Reference***

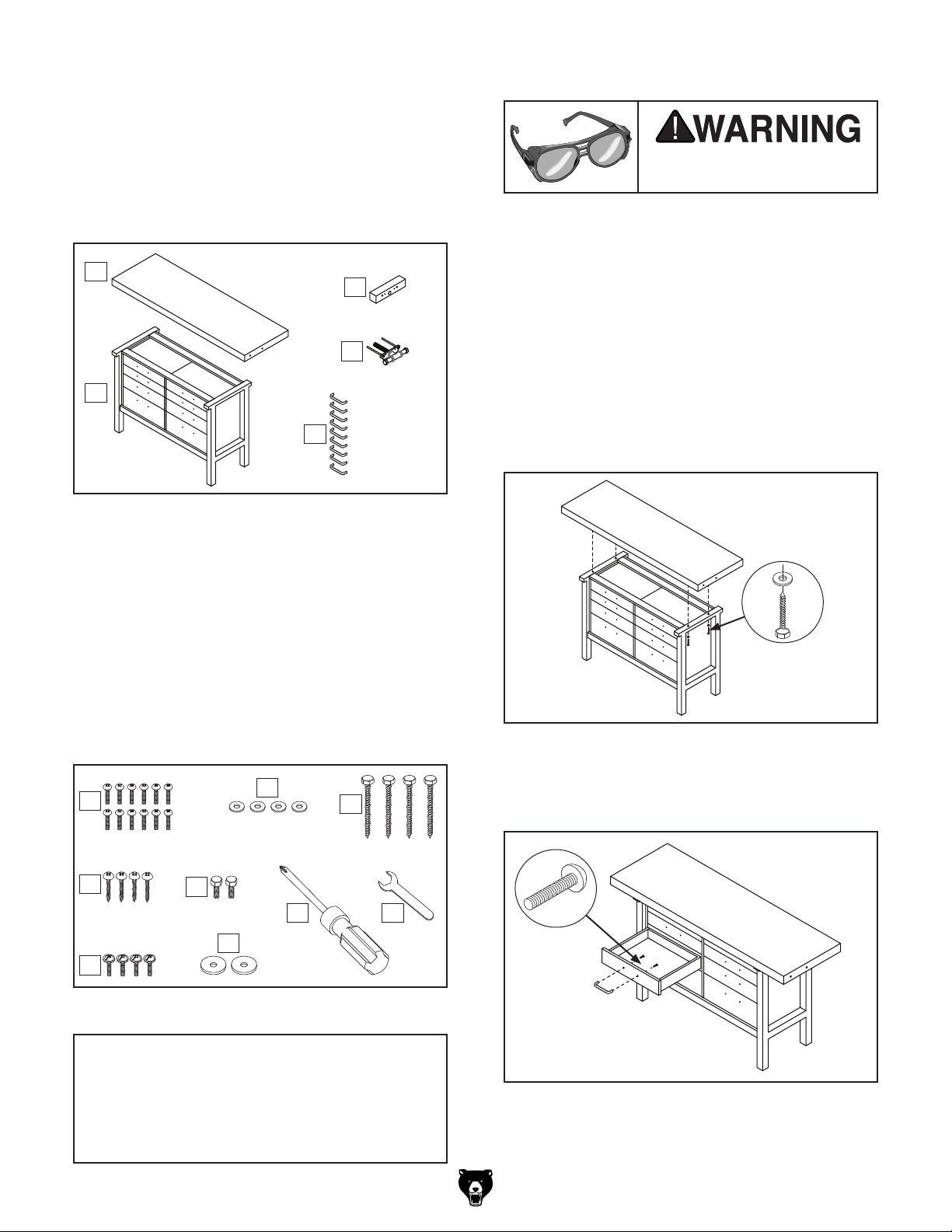

Inventory

Main (Figure 2) Qty

A. Workbench Top .......................................... 1

Vise Head ................................................... 1

B.

Vise Leadscrew Assembly ......................... 1

C.

Cabinet & Frame Assembly ....................... 1

D.

Handles ...................................................... 8

E.

A

B

Assembly

Assembly

Wear safety glasses during

Wear safety glasses during
the entire setup process!

the entire setup process!

Needed for Assembly

Needed for Assembly

• Additional Person ........................................ 1

• Additional Person ........................................ 1

• Safety Glasses (for each person) ........... 1 Pr.

• Safety Glasses (for each person) ........... 1 Pr.

• Square ......................................................... 1

• Square ......................................................... 1

C

D

E

Figure 2. Main inventory.

Fasteners & Tools (Figure 3) Qty

F. Phillips Head Screws M4-.7 x 40.............. 12

Flat Washers 8mm ..................................... 4

G.

Lag Bolts M8 x 60 ...................................... 4

H.

Tap Screw M6 x 30 .................................... 4

I.

Hex Bolts M8-1.25 x 15 .............................. 2

J.

Flange Screws M4-.7 x 22 .......................... 4

K.

Fender Washers 8mm ................................ 2

L.

Phillips Head Screwdriver #2 ..................... 1

M.

Open-End Wrench 13mm........................... 1

N.

F

G

H

To assemble workbench:

1. Place workbench top onto cabinet and frame

assembly with vise holes facing right, then
attach with (4) M8 x 60 lag bolts and (4) 8mm
flat washers (see Figure 4).

x 4

Figure 4. Attaching workbench top to frame.

2. Install (1) handle to (1) drawer using (2) M4-.7

x 40 Phillips head screws (see Figure 5).

I

K

Figure 3. Fasteners and tools.

J

NM

L

NOTICE

If you cannot find an item on this list, check
the mounting location or examine the pack­aging materials carefully. Some items are
pre-installed for shipping purposes.

-2-

x 4

Figure 5. Attaching handles to drawers.

3. Repeat Step 2 for remaining five drawers.

Model T34094 (Mfd. Since 11/23)

4. Install (1) handle on each cabinet front panel

using (2) M4-.7 x 22 flange screws, as shown
in Figure 6.

x 4

Figure 6. Installing handles on cabinets.

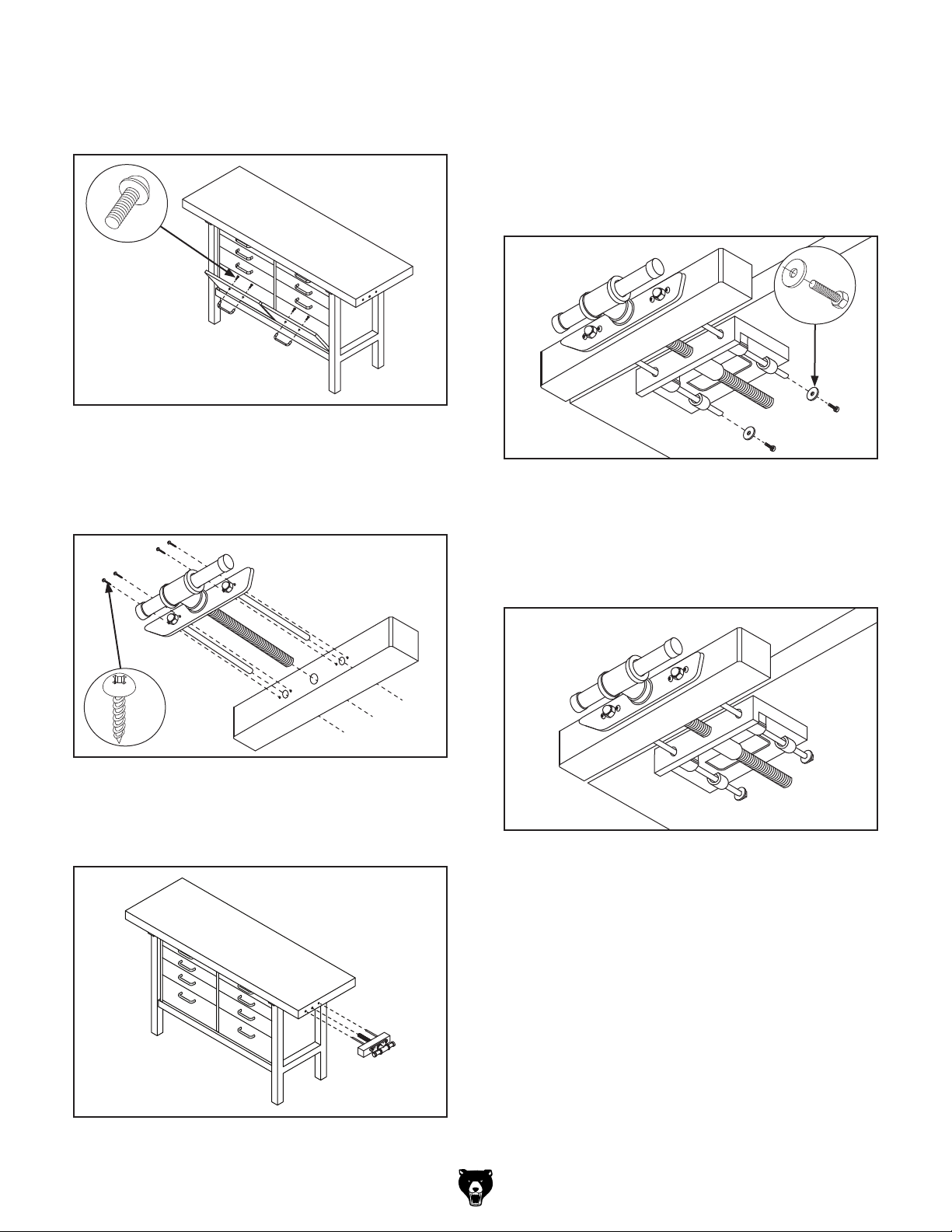

Feed vise leadscrew assembly through vise

5.

head and attach with (4) M6 x 30 tap screws
(see Figure 7).

Thread vise through leadscrew plate, then

7.

tighten until vise head makes contact with
workbench.

Attach (2) M8-1.25 x 15 hex bolts and (2)

8.

8mm fender washers to back of vise rods
(see Figure 9).

x 2

Figure 9. Installing vise assembly.

9. Completed vise installation should resemble
Figure 10. Test vise range of motion by turn-

ing handle counterclockwise to open and
clockwise to close.

x 4

Figure 7. Assembling vise components.

Insert vise assembly into holes in right edge

6.
of workbench top (see Figure 11).

Figure 8. Inserting vise assembly into

workbench top.

Figure 10. Vise assembly installed.

Model T34094 (Mfd. Since 11/23)

-3-

1

33

43

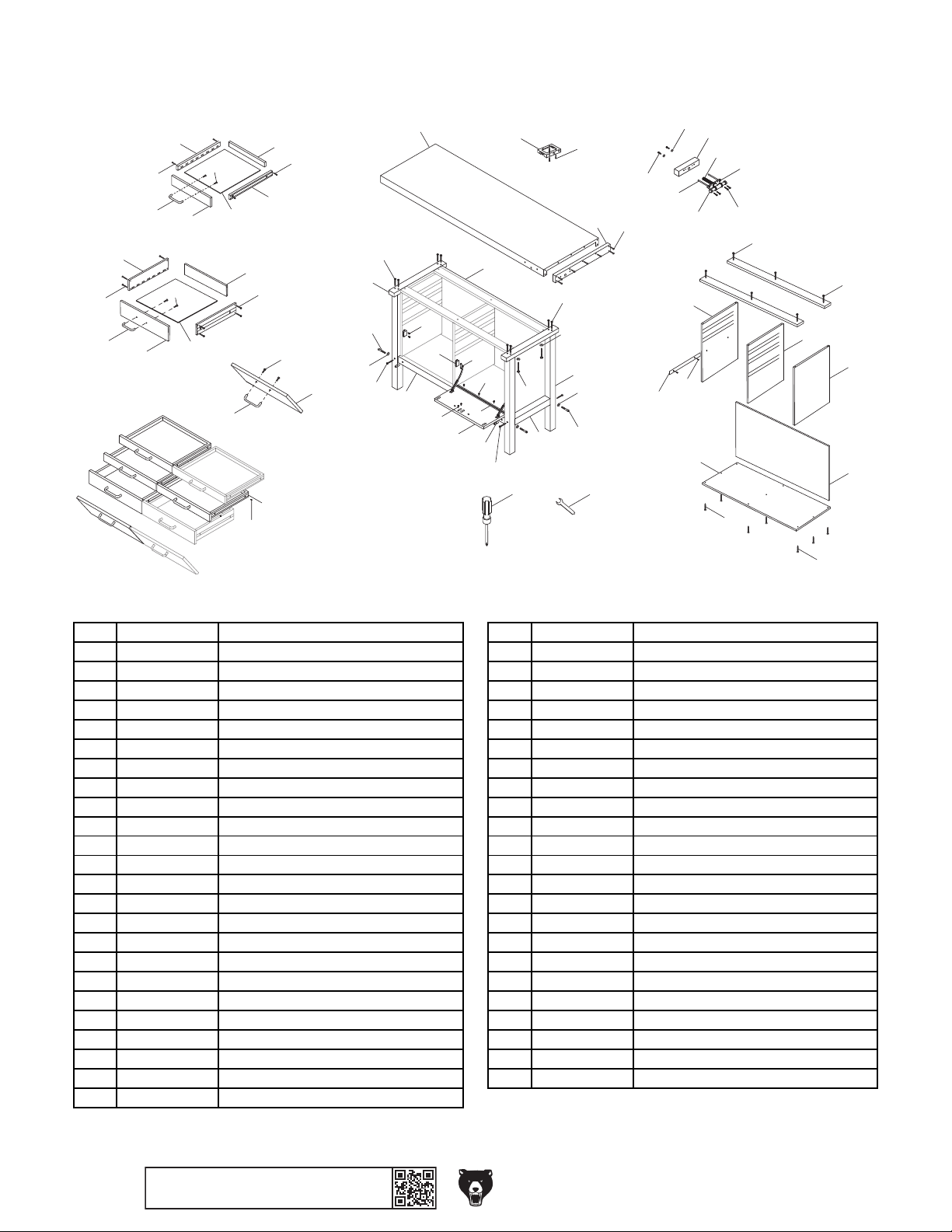

T34094 Parts Breakdown & List

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

25 PT34094025 HANDLE

43

25

22

21

43

25

19

35

18

24

35

25

24

36

23

43

17

19

20

46

43

16

38

3

41

45

44

30

31

27

28

34

32

26

2

40

29

31

43

6

43

44

39

10

9

47

7

39

8

16

42

37

38

4

38

41

5

45

49

48

17

14

15

13

36

12

11

43

REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON

1 PT34094001 WORKBENCH TOP 26 PT34094026 VISE ROD M12-1.75 X 25, 330L
2 PT34094002 WORKBENCH TRI M 27 PT34094027 VISE HEAD
3 PT34094003 LEG CROSSBAR, TOP 28 PT34094028 VISE LEADSCREW W/PLATE
4 PT34094004 WORKBENCH LEG 29 PT34094029 VISE HANDLE, WOOD
5 PT34094005 LEG CROSSBAR, BOTTOM 30 PT34094030 VISE LEADSCREW PLATE
6 PT34094006 CROSSBAR, TOP 31 PT34094031 TAP SCREW M6 X 30
7 PT34094007 CROSSBAR, BOTTOM 32 PT34094032 HEX BOLT M8-1.25 X 15
8 PT34094008 CABI NET HI NGE 33 PT34094033 FE NDER WAS HER 8MM
9 PT34094009 DOOR SUPPORT 34 PT34094034 ACORN NUT M12-1.75
10 PT34094010 MAGNET W/STRIP 35 PT34094035 PHLP HD SCR M4-. 7 X 40
11 PT34094011 CABINET PANEL, BACK 36 PT34094036 TAP SCREW M4 X 12
12 PT34094012 CABINET PANEL, BASE 37 PT34094037 LAG BOLT M8 X 60
13 PT34094013 CABINET SIDE PANEL, RIGHT 38 PT34094038 FLAT WASHER 8MM
14 PT34094014 CABINET SIDE PANEL, LEFT 39 PT34094039 TAP SCREW M3 X 8
15 PT34094015 CABINET PANEL, MIDDLE 40 PT34094040 TAP SCREW M6 X 40
16 PT34094016 CABINET DOOR 41 PT34094041 HEX BOLT M8-1.25 X 90
17 PT34094017 DRAWER SLI DE 42 PT34094042 DOWEL NUT M8 X 1. 25
18 PT34094018 SMALL DRAWER PANEL, FRONT 43 PT34094043 TAP SCREW M4 X 22
19 PT34094019 SMALL DRAWER PANEL, SIDE 44 PT34094044 TAP SCREW M4 X 30
20 PT34094020 SMALL DRAWER PANEL, BACK 45 PT34094045 TAP SCREW M4 X 55
21 PT34094021 LARGE DRAWER PANEL, FRONT 46 PT34094046 FLANGE SCREW M4-. 7 X 22
22 PT34094022 LARGE DRAWER PANEL, SIDE 47 PT34094047 TAP SCREW M4 X 14
23 PT34094023 LARGE DRAWER PANEL, BACK 48 PT34094048 WRENCH 13MM OPEN-END
24 PT34094024 DRAWER BASE PANEL 49 PT34094049 SCREWDRIVER PHI LLIPS #2
