Page 1

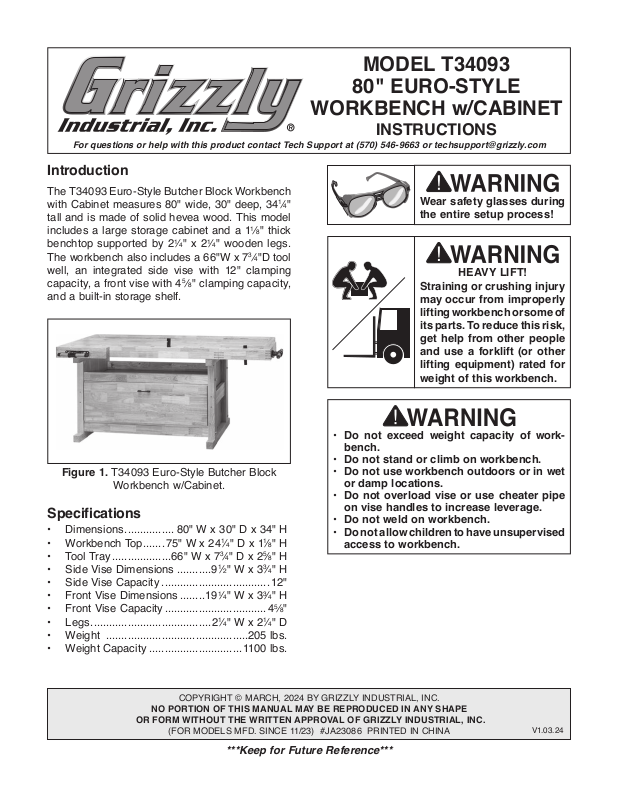

MODEL T34093
80" EURO-STYLE
WORKBENCH w/CABINET
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T34093 Euro-Style Butcher Block Workbench
with Cabinet measures 80" wide, 30" deep, 34
tall and is made of solid hevea wood. This model
includes a large storage cabinet and a 1
benchtop supported by 2
The workbench also includes a 66"W x 7
well, an integrated side vise with 12" clamping
capacity, a front vise with 4
and a built-in storage shelf.
Figure 1. T34093 Euro-Style Butcher Block
Workbench w/Cabinet.
1
⁄4" x 21⁄4" wooden legs.
5
⁄8" clamping capacity,
1
1
⁄8" thick
3
⁄4"D tool
⁄4"
Specifications
• Dimensions ................ 80" W x 30" D x 34" H
• Workbench Top .......75" W x 241⁄4" D x 11⁄8" H
• Tool Tray ...................66" W x 73⁄4" D x 25⁄8" H
• Side Vise Dimensions ...........91⁄2" W x 33⁄4" H
• Side Vise Capacity ...................................12"
• Front Vise Dimensions ........191⁄4" W x 33⁄4" H
• Front Vise Capacity ................................. 45⁄8"
• Legs ....................................... 21⁄4" W x 21⁄4" D
• Weight ..............................................205 lbs.
• Weight Capacity .............................. 110 0 lb s.
Wear safety glasses during
the entire setup process!
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting workbench or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this workbench.
• Do not exceed weight capacity of workbench.
• Do not stand or climb on workbench.
• Do not use workbench outdoors or in wet
or damp locations.
• Do not overload vise or use cheater pipe
on vise handles to increase leverage.
• Do not weld on workbench.
• Do not allow children to have unsupervised
access to workbench.
COPYRIGHT © MARCH, 2024 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/23) #JA23086 PRINTED IN CHINA
***Keep for Future Reference***
V1.03.24
Page 2

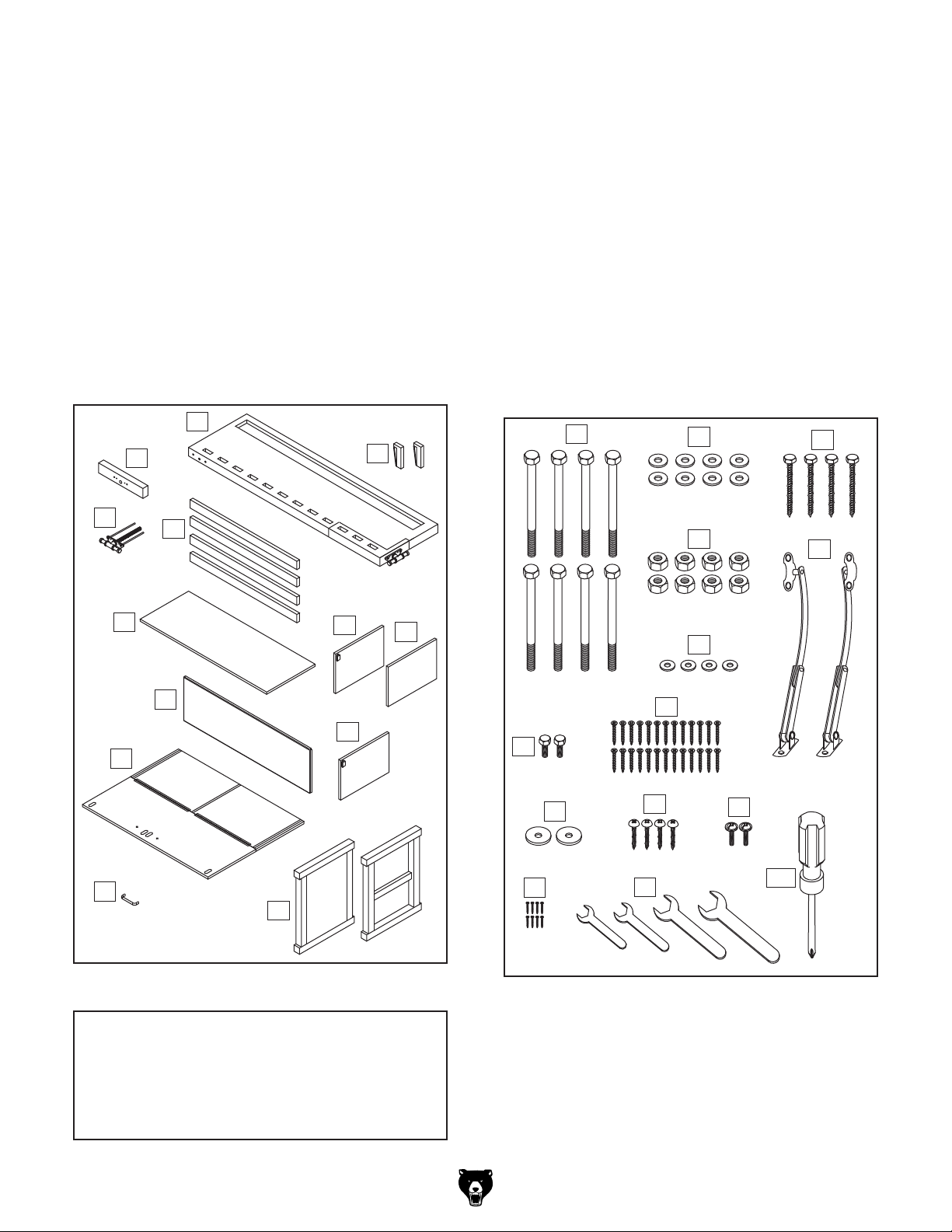

Inventory
Main (Figure 2) Qty
A. Workbench Top .......................................... 1
Bench Dogs ................................................ 2
B.
Vise Head ................................................... 1
C.
Vise Leadscrew Assembly ......................... 1
D.
Cross Beams .............................................. 4
E.
Cabinet Top Panel ...................................... 1
F.
Cabinet Side Panel, Left............................. 1
G.
Cabinet Side Panel, Right .......................... 1
H.
Cabinet Back Panel .................................... 1
I.
Cabinet Middle Panel ................................. 1
J.
Cabinet Base & Front Panel Assembly ...... 1
K.
Handle ........................................................ 1
L.
Workbench Legs (Left and Right) ........1 Ea.
M.
Fasteners & Tools (Figure 3) Qty
N. Hex Bolts M12-1.75 x 120 ........................... 8
Flat Washers 12mm ................................... 8
O.
Lag Bolts M8 x 80 ...................................... 4
P.
Hex Nuts M12-1.75 ..................................... 8
Q.
Door Supports (Left and Right) ............1 Ea.
R.
Flat Washers 8mm ..................................... 4
S.
Hex Bolts M8-1.25 x 15 .............................. 2
T.
Tap Screws M4 x 30 ................................. 26
U.
Fender Washers 8mm ................................ 2
V.
W. Tap Screws M6 x 30 ................................... 4
Flange Screws M4-.7 x 22 .......................... 2
X.
Tap Screws M4 x 12 ................................... 8
Y.
Open-End Wrenches
Z.
12, 13, 17, 19mm ..................................1 Ea.
AA. Phillips Head Screwdriver #2
..................... 1
A
G
B
H
J
T
C
D
F
K
E
I
N
V
W
O
Q
S
U
X
P
R
L
M
Figure 2. Main inventory.
NOTICE
If you cannot find an item on this list, check
the mounting location or examine the packaging materials carefully. Some items are
pre-installed for shipping purposes.
-2-
Y
Figure 3. Fasteners and tools.
Z
Model T34093 (Mfd. Since 11/23)
AA
Page 3

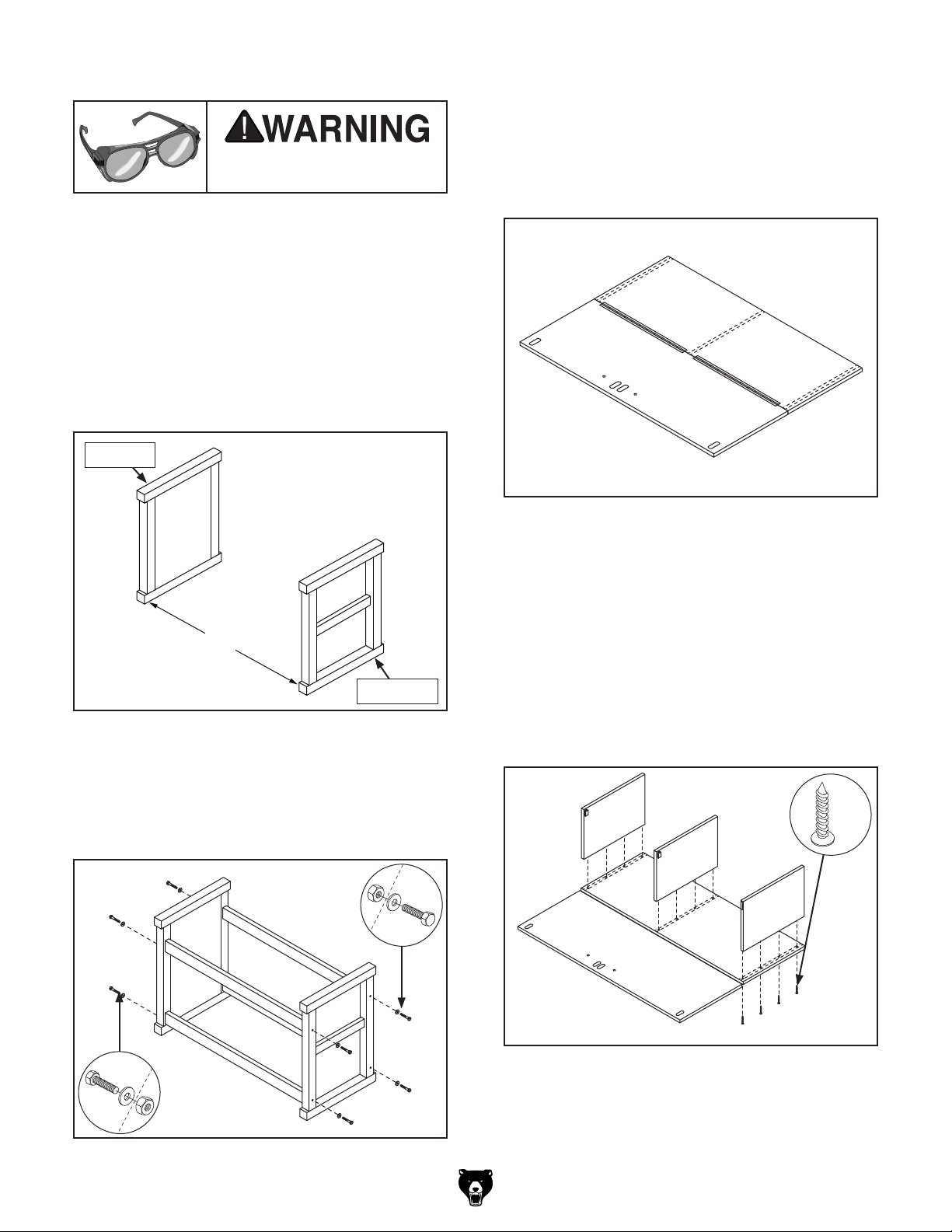

Assembly
3. Square workbench frame and fully tighten
fasteners from Step 2.
Wear safety glasses during
the entire setup process!
Needed for Assembly
• Additional Person ........................................ 1
• Safety Glasses (for each person) ........... 1 Pr.
• Square ......................................................... 1
To assemble workbench:
1. Position workbench legs roughly 48 inches
apart, as shown in Figure 4.
Left Leg
48"
4. Lay cabinet base and front panel assembly
on a flat protected surface with magnet strips
and hinges facing up (see Figure 6).
Figure 6. Cabinet base and front panel
assembly.
5. Slide cabinet side panels and cabinet middle
panel into grooves on cabinet base panel,
and secure using (12) M4 x 30 tap screws, as
shown in Figure 7.
Right Leg
Figure 4. Positioning workbench legs.
2. Attach (4) cross beams to workbench legs
with (8) M12-1.75 x 120 hex bolts, (8) 12mm
flat washers, and (8) M12-1.75 hex nuts (see
Figure 5). Do not fully tighten.
x 4
x 4
Note: Ensure magnets on side and middle
cabinet panels are facing outward and make
full contact with magnet strips on front cabinet panel when closed.
x 12
Figure 7. Attaching cabinet side panels, and
middle panel to base panel.
Figure 5. Attaching cross beams.
Model T34093 (Mfd. Since 11/23)
-3-

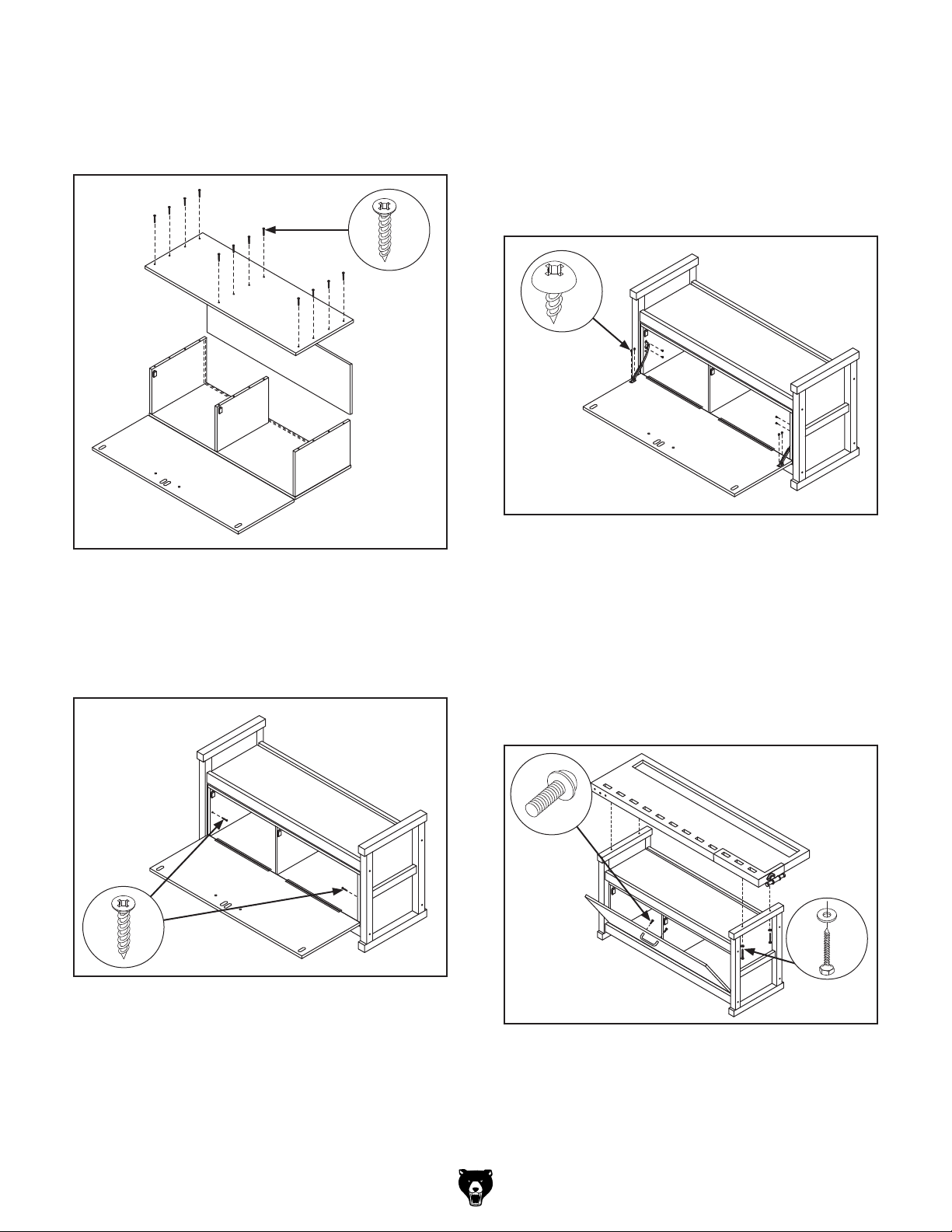

Page 4
6. Slide cabinet back panel into grooves on cab-
inet side and base panels and attach cabinet
top panel with (12) M4 x 30 tap screws, as
shown in Figure 8.
x 12
8. Position left door support on left side of cabinet and fasten to cabinet side and front panels using (4) M4 x 12 tap screws, as shown
in Figure 10.
9. Repeat Step 8 for right door support on right
side.
x 8
Figure 10. Attaching cabinet limiters.
Figure 8. Attaching cabinet back and top panels.
7. Place cabinet assembly between cross beams
of workbench frame, then open cabinet front
panel and fasten cabinet to workbench legs
using (2) M4 x 30 tap screws (see Figure 9).
x 2
Figure 9. Attaching cabinet to workbench frame.
10. Attach handle to cabinet front panel using (2)
M4-.7 x 22 flange screws (see Figure 11),
then close cabinet to test limiter range of
motion.
11. Place workbench top onto workbench frame
and secure with (4) M8 x 80 lag bolts and (4)
8mm flat washers, as shown in Figure 11.
x 2
x 4
-4-
Figure 11. Attaching workbench top and handle.
Model T34093 (Mfd. Since 11/23)

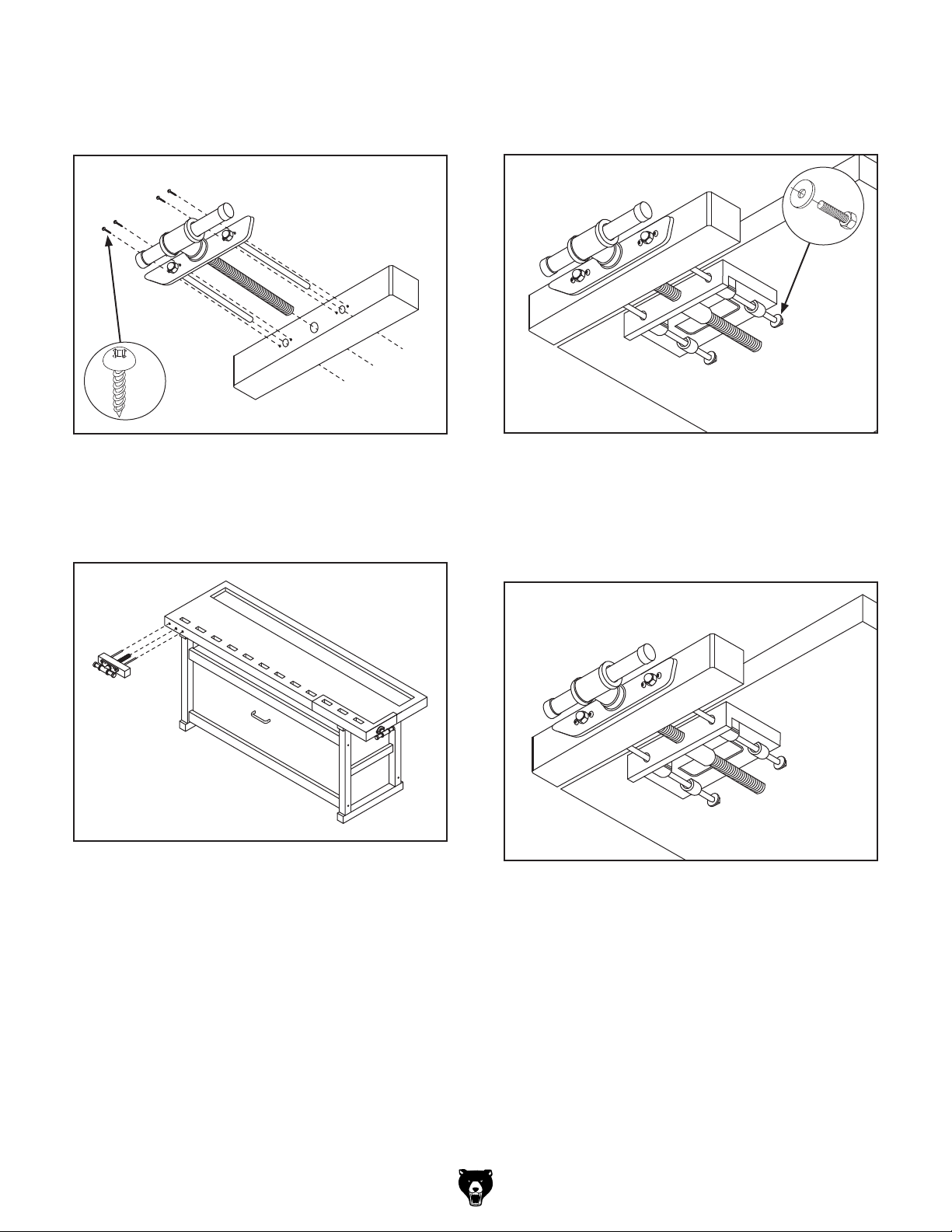

Page 5
12. Feed front vise leadscrew assembly through
front vise head and attach with (4) M6 x 30
tap screws (see Figure 12).
x 4
15.
Install (2) M8-1.25 x 15 hex bolts and (2)
8mm fender washers in back of vise rods
(see Figure 14).
x 2
Figure 12. Assembling vise components.
13. Insert front vise assembly through holes in
front left side of workbench, as shown in
Figure 13.
Figure 13. Installing vise components.
Thread vise through leadscrew plate and
14.
tighten until vise head makes contact with
workbench (see Figure 14).
Figure 14. Installing vise assembly.
16. Completed vise installation should resemble
Figure 15. Test vise range of motion by turn-
ing handle counterclockwise to open and
clockwise to close.
Figure 15. Vise assembly installed.
Model T34093 (Mfd. Since 11/23)
-5-
Page 6

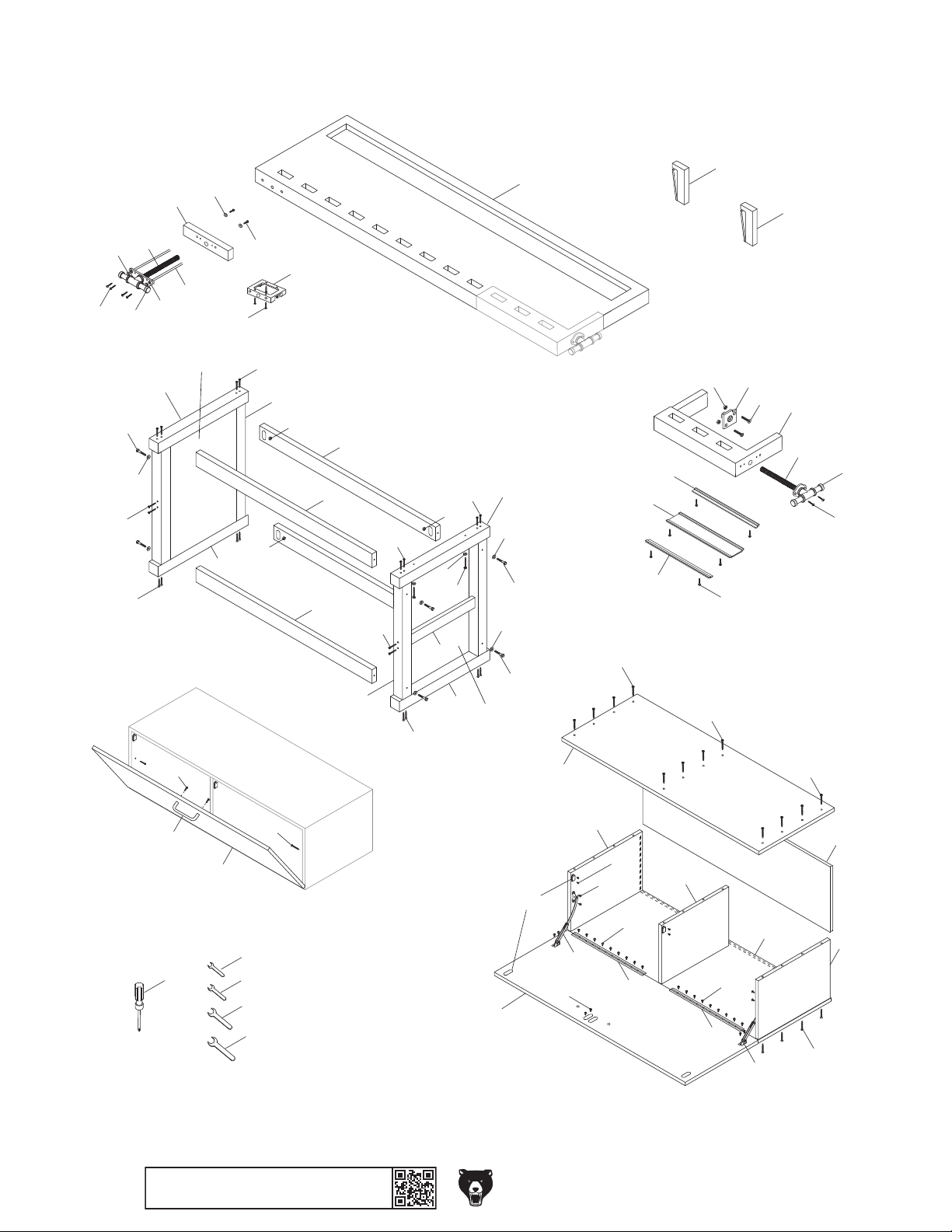

T34093 Parts Breakdown
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
38
41
43
34
43
23
37
22
2
37
21
20
53
40
46
32
6
6
31
45
25
26
27
38
38
1
39
24
38
43
5
35
7
2
36
33
3
35
43
37
34
37
34
4
54
7
35
4
7
43
43
5
43
28
30
29
32
44
15
14
52
-6-
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
32
48
49
50
14
51
18
42
8
9
47
42
42
16
19
11
13
42
19
17
Model T34093 (Mfd. Since 11/23)
32
12
10
32
Page 7
T34093 Parts List
27 PT34093027 SIDE VISE HANDLE, WOOD 54 PT34093054 LEG PANEL, RIGHT
REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON
1 PT34093001 WORKBENCH TOP 28 PT34093028 SIDE VISE RAIL, BACK
2 PT34093002 LEG CROSSBAR, TOP 29 PT34093029 SIDE VISE RAIL, FRONT
3 PT34093003 LEG CROSSBAR, MIDDLE 30 PT34093030 VISE SLI DE, SIDE
4 PT34093004 LEG CROSSBAR, BOTTOM 31 PT34093031 VISE LEADSCREW PLATE, SIDE
5 PT34093005 WORKBENCH LEG 32 PT34093032 TAP SCREW M4 X 30
6 PT34093006 BENCH DOG 33 PT34093033 LAG BOLT M8 X 80
7 PT34093007 CROSS BEAM 34 PT34093034 HEX BOLT M12-1.75 X 120
8 PT34093008 CABINET TOP PANEL 35 PT34093035 HEX NUT M12-1.75
9 PT34093009 CABINET SIDE PANEL, LEFT 36 PT34093036 FLAT WASHER 8MM
10 PT34093010 CABINET SIDE PANEL, RIGHT 37 PT34093037 FLAT WASHER 12 MM
11 PT34093011 CABINET MIDDLE PANEL 38 PT34093038 TAP SCREW M6 X 30
12 PT34093012 CABINET BACK PANEL 39 PT34093039 HEX BOLT M8-1.25 X 15
13 PT34093013 CABINET BASE PANEL 40 PT34093040 FE NDER WAS HER 8MM
14 PT34093014 CABI NET FRONT PANEL 41 PT34093041 ACORN NUT M12-1.75
15 PT34093015 HANDLE 42 PT34093042 TAP SCREW M4 X 12
16 PT34093016 DOOR SUPPORT, LEFT 43 PT34093043 TAP SCREW M4 X 80
17 PT34093017 DOOR SUPPORT, RI GHT 44 PT34093044 FLANGE SCREW M4-.7 X 22
18 PT34093018 MAG NET W/STRIP 45 PT34093045 FLAT HD CAP SCR M8-1.25 X 60
19 PT34093019 CABI NET HI NGE 46 PT34093046 HE X NUT M8- 1. 25
20 PT34093020 VISE ROD M12-1.75 X 25, 330L, FRONT 47 PT34093047 TAP SCREW M3 X 8
21 PT34093021 VISE HEAD, FRONT 48 PT34093048 WRENCH 1 2MM OPEN-END
22 PT34093022 VISE LEADSCREW W/PLATE, FRONT 49 PT34093049 WRENCH 1 3MM OPEN-END
23 PT34093023 FRONT VISE HANDLE, WOOD 50 PT34093050 WRENCH 1 7MM OPEN-END
24 PT34093024 VISE LEADSCREW PLATE, FRONT 51 PT34093051 WRENCH 1 9MM OPEN-END
25 PT34093025 VISE HEAD, SIDE 52 PT34093052 SCREWDRIVER PHI LLIPS #2
26 PT34093026 VISE LEADSCREW W/PLATE, SIDE 53 PT34093053 LEG PANEL, LEFT
Model T34093 (Mfd. Since 11/23)
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
-7-
Page 8
-8-
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T34093 (Mfd. Since 11/23)
Loading...
