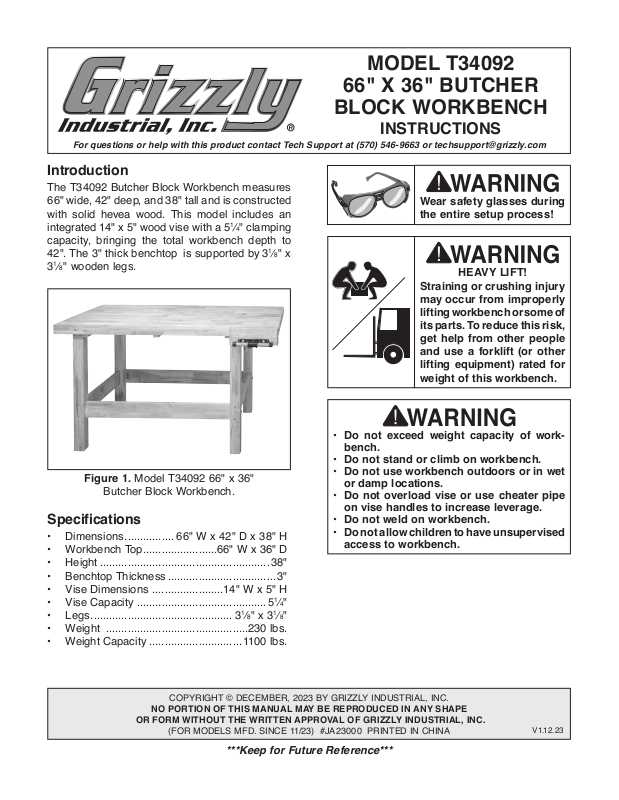

Page 1
MODEL T34092
66" X 36" BUTCHER
BLOCK WORKBENCH
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T34092 Butcher Block Workbench measures
66" wide, 42" deep, and 38" tall and is constructed
with solid hevea wood. This model includes an
integrated 14" x 5" wood vise with a 5
capacity, bringing the total workbench depth to
42". The 3" thick benchtop is supported by 3
1
⁄8" wooden legs.
3
1
⁄4" clamping
1
⁄8" x
Wear safety glasses during
the entire setup process!
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting workbench or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this workbench.
Figure 1. Model T34092 66" x 36"
Butcher Block Workbench.
Specifications
• Dimensions ................ 66" W x 42" D x 38" H
• Workbench Top ........................66" W x 36" D
• Height ....................................................... 38"
• Benchtop Thickness ................................... 3"
• Vise Dimensions .......................14" W x 5" H
• Vise Capacity ..........................................51⁄4"
• Legs .............................................. 31⁄8" x 31⁄8"
• Weight ..............................................230 lbs.
• Weight Capacity .............................. 110 0 lb s.
COPYRIGHT © DECEMBER, 2023 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/23) #JA23000 PRINTED IN CHINA
• Do not exceed weight capacity of workbench.
• Do not stand or climb on workbench.
• Do not use workbench outdoors or in wet
or damp locations.
• Do not overload vise or use cheater pipe
on vise handles to increase leverage.
• Do not weld on workbench.
• Do not allow children to have unsupervised
access to workbench.
V1.12.23
***Keep for Future Reference***
Page 2
Inventory
Main (Figure 2) Qty
A. Benchtop .................................................... 1
Vise Head ................................................... 1
B.
Vise Leadscrew Assembly ......................... 1
C.
Vise Leadscrew Plate ................................. 1
D.
Workbench Legs (Right & Left) ............1 Ea.
E.
Cross Beams .............................................. 2
F.
A
Assembly
Wear safety glasses during
the entire setup process!
Needed for Assembly
• Additional Person ........................................ 1
• Safety Glasses (for each person) ........... 1 Pr.
• Square ......................................................... 1
B
E
Figure 2. Main inventory.
Fasteners & Tools (Figure 3) Qty
G. Hex Bolts M12-1.75 x 150 ........................... 4
Open-End Wrenches 13, 17, 19mm ......1 Ea.
H.
Phillips Head Screwdriver #2 ..................... 1
I.
Flat Washers 12mm ................................... 4
J.
Lag Bolts M8 x 80 ...................................... 4
K.
Hex Bolts M8-1.25 x 16 .............................. 2
L.
Hex Nuts M12-1.75 ..................................... 4
M.
Flat Washers 8mm ..................................... 4
N.
Fender Washers 8mm ................................ 2
O.
Tap Screws M6 x 30 ................................... 8
P.
C
F
D
E
To assemble workbench:
1. Position workbench legs roughly 49 inches
apart, as shown in Figure 4.
49"
Figure 4. Positioning workbench legs.
2. Attach (2) cross beams to workbench legs
with (4) M12-1.75 x 150 hex bolts, 12mm flat
washers, and M12-1.75 hex nuts (see Figure
5).
G
M
K
J
N O P
Figure 3. Fasteners and tools.
L
IH
NOTICE
If you cannot find an item on this list, check
the mounting location or examine the packaging materials carefully. Some items are
pre-installed for shipping purposes.
-2-
x 4
Figure 5. Attaching cross beams.
3. Square workbench frame and fully tighten
fasteners from Step 2.
4. Lay benchtop upside down on a protected
surface, such as cardboard or a blanket.
Model T34092 (Mfd. 11/23)
Page 3
5. Fasten vise leadscrew plate to benchtop with
(4) M6 x 30 tap screws (see Figure 6).
x 4
Figure 6. Attaching vise leadscrew plate to
benchtop.
Thread vise assembly through leadscrew
8.
plate and tighten until vise head makes contact with workbench (see Figure 9).
Thread (2) M8-1.25 x 16 hex bolts and (2)
9.
8mm fender washers into back of vise rods
(see Figure 9).
x 4
6. Place benchtop on legs and attach with (4)
M8 x 80 lag bolts and 8mm flat washers (see
Figure 7).
x 4
Figure 7. Fastening benchtop to frame.
7. Feed vise leadscrew assembly through vise
head and attach with (4) M6 x 30 tap screws
(see Figure 8).
Figure 9. Installing vise assembly.
Completed vise installation should resemble
10.
Figure 10. Test vise range of motion by turn-
ing handle counterclockwise to open and
clockwise to close.
Figure 10. Vise assembly installed.
x 4
Figure 8. Assembling vise components.
Model T34092 (Mfd. 11/23)
-3-
Page 4
1
3
T34092 Parts Breakdown & List
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
12 PT34092012 FENDER WA SHER 8 MM
11
12
13
4
9
16
17
18
19
10
7
2
23
8
5
2
8
7
10
3
6
6
5
REF P ART # DES CRIPTI ON REF P ART # DES CRIPTI ON
1 PT34092001 WORKBENCH TOP 66" X 36" 13 PT34092013 VISE ROD M12-1.75 X 25, 330L
2 PT34092002 LEG ASSEMBLY 14 PT34092014 VISE HEAD
3 PT34092003 CROSS BEAM 15 PT34092015 VISE LEADSCREW ASSEMBLY
4 PT34092004 VISE LEADSCREW PLATE 16 PT34092016 VISE HANDLE, WOOD
5 PT34092005 HEX BOLT M12-1.75 X 150 17 PT34092017 TAP SCREW M6 X 30
6 PT34092006 HEX NUT M12-1.75 18 PT34092018 FLAT WA SHER 1 2MM
7 PT34092007 FLAT WASHER 8MM 19 PT34092019 ACORN NUT M1 2-1 . 7 5
8 PT34092008 FLAT WASHER 12 MM 20 PT34092020 WRENCH 13 MM OPE N-END
9 PT34092009 TAP SCREW M6 X 30 21 PT34092021 WRENCH 17 MM OPE N-END
10 PT34092010 LAG BOLT M8 X 80 22 PT34092022 WRENCH 19 MM OPE N-END
11 PT34092011 HEX BOLT M8-1.25 X 16 23 PT34092023 SCREWDRIVER PHILLI PS #2
14
15
20
21
22
-4-
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T34092 (Mfd. Since 11/23)
