MODEL T34091 80"
9-DRAWER EURO-STYLE
WORKBENCH
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T34091 9-Drawer Euro-Style Butcher Block
Workbench measures 80" wide, 30" deep, 34
tall and is made of solid hevea wood. This model
includes nine felt-lined drawers with ball bearing
slides, and a 1
also includes a recessed tool well, a side vise
with 12" clamping capacity, a front vise with 4
clamping capacity, and a built-in storage shelf.
1
⁄8" thick benchtop. The workbench
1
5
⁄4"
⁄8"
Wear safety glasses during
the entire setup process!
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting workbench or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this workbench.
Figure 1. T34091 9-Drawer Euro-Style Butcher
Block Workbench.
Specifications
• Dimensions ..............80" W x 30" D x 341⁄4" H
• Workbench Top .......75" W x 241⁄4" D x 11⁄8" H
• Tool Well ...................66" W x 73⁄4" D x 25⁄8" H
• Drawers .....................12" W x 141⁄4" D x 3" H
• Side Vise Dimensions ...........91⁄2" W x 33⁄4" H
• Side Vise Capacity ...................................12"
• Front Vise Dimensions ........191⁄4" W x 33⁄4" H
• Front Vise Capacity ................................. 45⁄8"
• Legs ....................................... 21⁄4" W x 21⁄4" D
• Weight ..............................................220 lbs.
• Weight Capacity .............................. 110 0 lb s.
COPYRIGHT © MARCH, 2024 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/23) #JA23082 PRINTED IN CHINA
• Do not exceed weight capacity of workbench.
• Do not stand or climb on workbench.
• Do not use workbench outdoors or in wet
or damp locations.
• Do not overload vise or use cheater pipe
on vise handles to increase leverage.
• Do not weld on workbench.
• Do not allow children to have unsupervised
access to workbench.
V1.0 3.24
***Keep for Future Reference***
Page 2

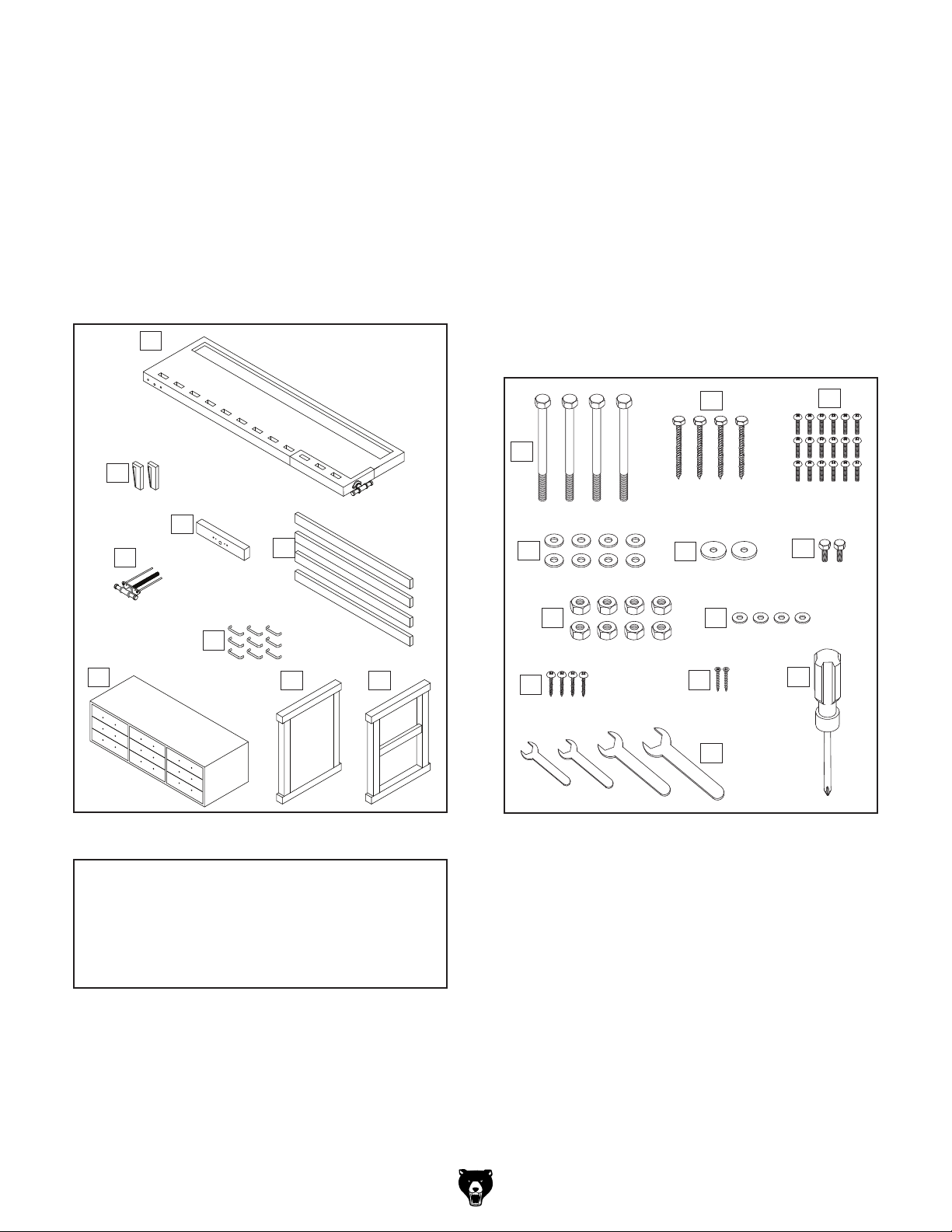

Inventory
Main (Figure 2) Qty
A. Workbench Top .......................................... 1
Bench Dogs ................................................ 2
B.
Front Vise Leadscrew Assembly ................ 1
C.
Front Vise Head ......................................... 1
D.
Cross Beams .............................................. 4
E.
Handles ...................................................... 9
F.
Drawer Cabinet ........................................... 1
G.
Workbench Leg (Left) ................................. 1
H.
Workbench Leg (Right) .............................. 1
I.
A
Fasteners & Tools (Figure 3) Qty
J. Hex Bolts M12-1.75 x 120 ........................... 8
Lag Bolts M8 x 80 ...................................... 4
K.
Phillips Head Screws M4-.7 x 40 ............ 18
L.
Flat Washers 12mm ................................... 8
M.
Fender Washers 8mm ................................ 2
N.
Hex Bolts M8-1.25 x 15 .............................. 2
O.
Hex Nuts M12-1.75 ..................................... 8
P.
Flat Washers 8mm ..................................... 4
Q.
Tap Screws M6 x 30 ................................... 4
R.
Tap Screws M4 x 30 ................................... 2
S.
Phillips Head Screwdriver #2 ..................... 1
T.
Open-End Wrenches
U.
12, 13, 17, 19mm ..................................1 Ea.
G
K
J
B
D
C
F
Figure 2. Main inventory.
E
H
I
M
N
P
R
Figure 3. Fasteners and tools.
Q
S
U
L
O
T
NOTICE
If you cannot find an item on this list, check
the mounting location or examine the packaging materials carefully. Some items are
pre-installed for shipping purposes.
-2-
Model T34091 (Mfd. Since 11/23)
Page 3

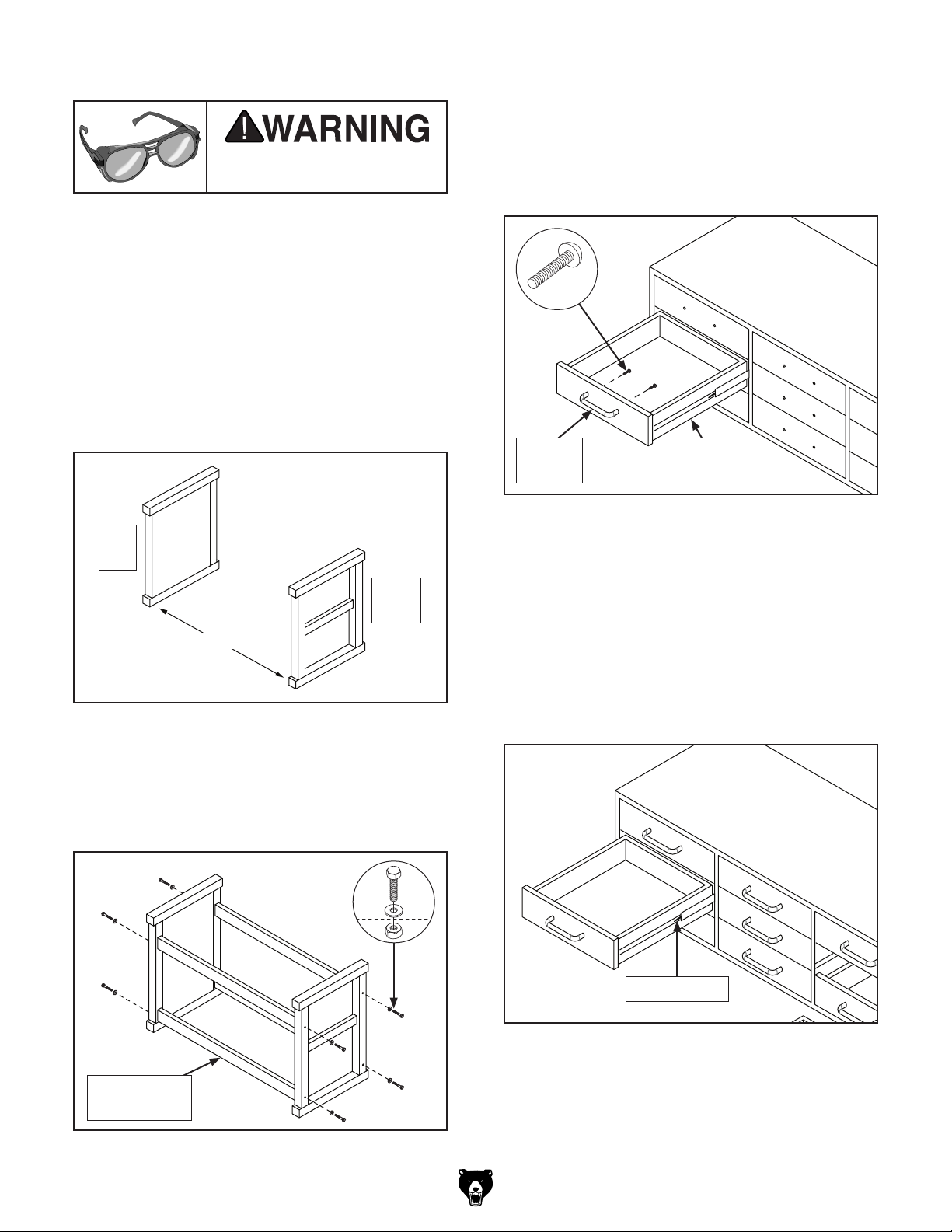

Assembly
Wear safety glasses during
the entire setup process!
Needed for Assembly
• Additional Person ........................................ 1
• Safety Glasses (for each person) ........... 1 Pr.
• Square ......................................................... 1
• Wrench or socket 17mm ............................. 1
To assemble workbench:
1. Position left and right workbench legs roughly
48" apart, as shown in Figure 4.
3. Square workbench frame and fully tighten
fasteners from Step 2.
4. Fasten handles to all 9 drawers using (18)
M4-.7 x 40 Phillips head screws, as shown in
FIgure 6.
x 18
Left
Leg
Right
Leg
48"
Figure 4. Positioning workbench legs.
2. Attach (4) cross beams to workbench legs
with (8) M12-1.75 x 120 hex bolts, (8) 12mm
flat washers, and (8) M12-1.75 hex nuts, as
shown in Figure 5. Do not fully tighten.
Handle
(1 of 9)
Figure 6. Installing handles.
5. Remove middle drawers on right and left
sides of cabinet (see Figure 7).
Note: To remove drawers, locate release
tabs on right and left sides of drawer slides
(see Figure 7). Simultaneously push down
on right tab and pull up on left to release locking mechanism, then gently pull drawer out of
cabinet.
Drawer
(1 of 9)
Cross Beam
(1 of 4)
Figure 5. Attaching crossbars.
Model T34091 (Mfd. Since 11/23)
x 8
Release Tab
Figure 7. Removing drawers.
-3-
Page 4

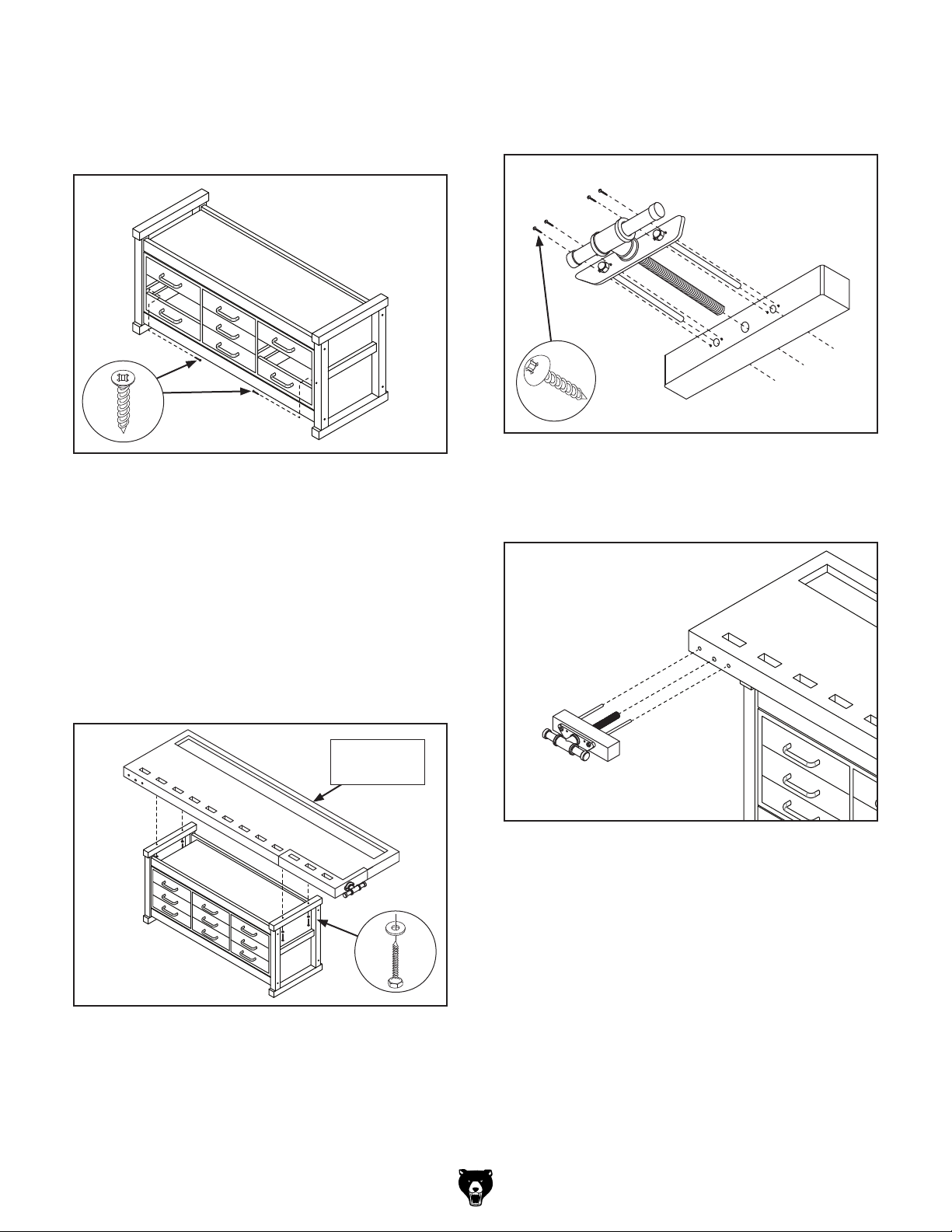

6. With help from an assistant, position drawer
cabinet between cross beams, and secure
to workbench frame with (2) M4 x 30 tap
screws, as shown in Figure 8.
Figure 8. Attaching drawer cabinet to workbench
frame.
7. Re-install drawers removed in Step 5.
Feed front vise leadscrew assembly through
9.
front vise head and attach with (4) M6 x 30
tap screws (see Figure 10).
x 4
Figure 10. Assembling vise components.
Insert front vise assembly into holes in front
10.
left side of workbench (see Figure 11).
Note: Ball bearing strips are delicate. Ensure
roller rails and drawer slides are correctly
aligned to avoid damage to bearings.
8. Place workbench top on workbench frame
and secure with (4) M8 x 80 lag bolts and (4)
8mm flat washers (see Figure 9).
Workbench
Top
x 4
Figure 11. Inserting face vise assembly into
workbench holes.
Figure 9. Attaching workbench top to frame.
-4-
Model T34091 (Mfd. Since 11/23)
Page 5

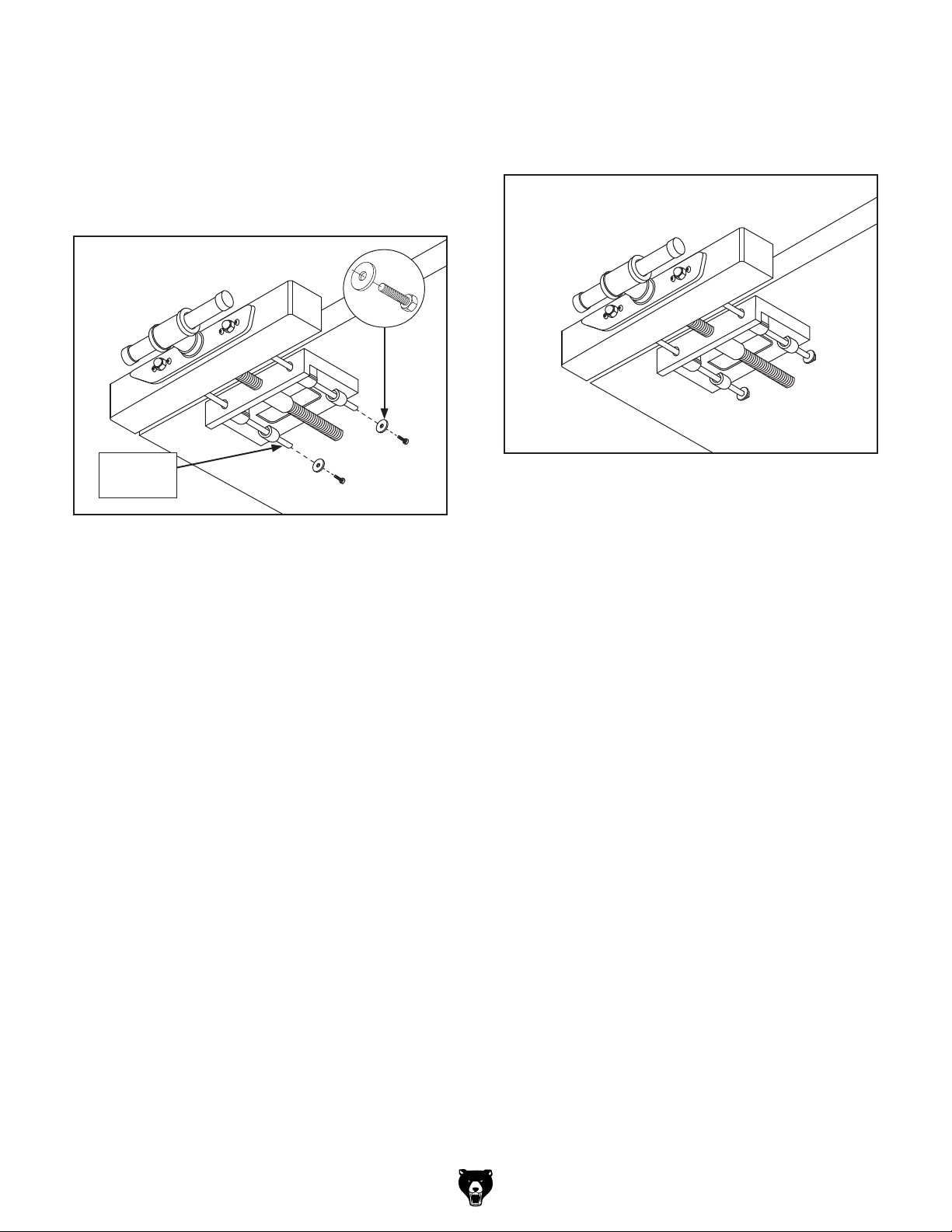

Thread vise through leadscrew plate, then
11.
tighten until vise head makes contact with
workbench.
12. Thread (2) M8-1.25 x 15 hex bolts and (2)
8mm fender washers into back of vise rods
(see Figure 12).
x 2
13. Completed vise installation should resemble
Figure 13. Test vise range of motion by turn-
ing handle counterclockwise to open and
clockwise to close.
Vise Rod
(1 of 2)
Figure 12. Installing vise assembly.
Figure 13. Vise assembly installed.
Model T34091 (Mfd. Since 11/23)
-5-
Page 6

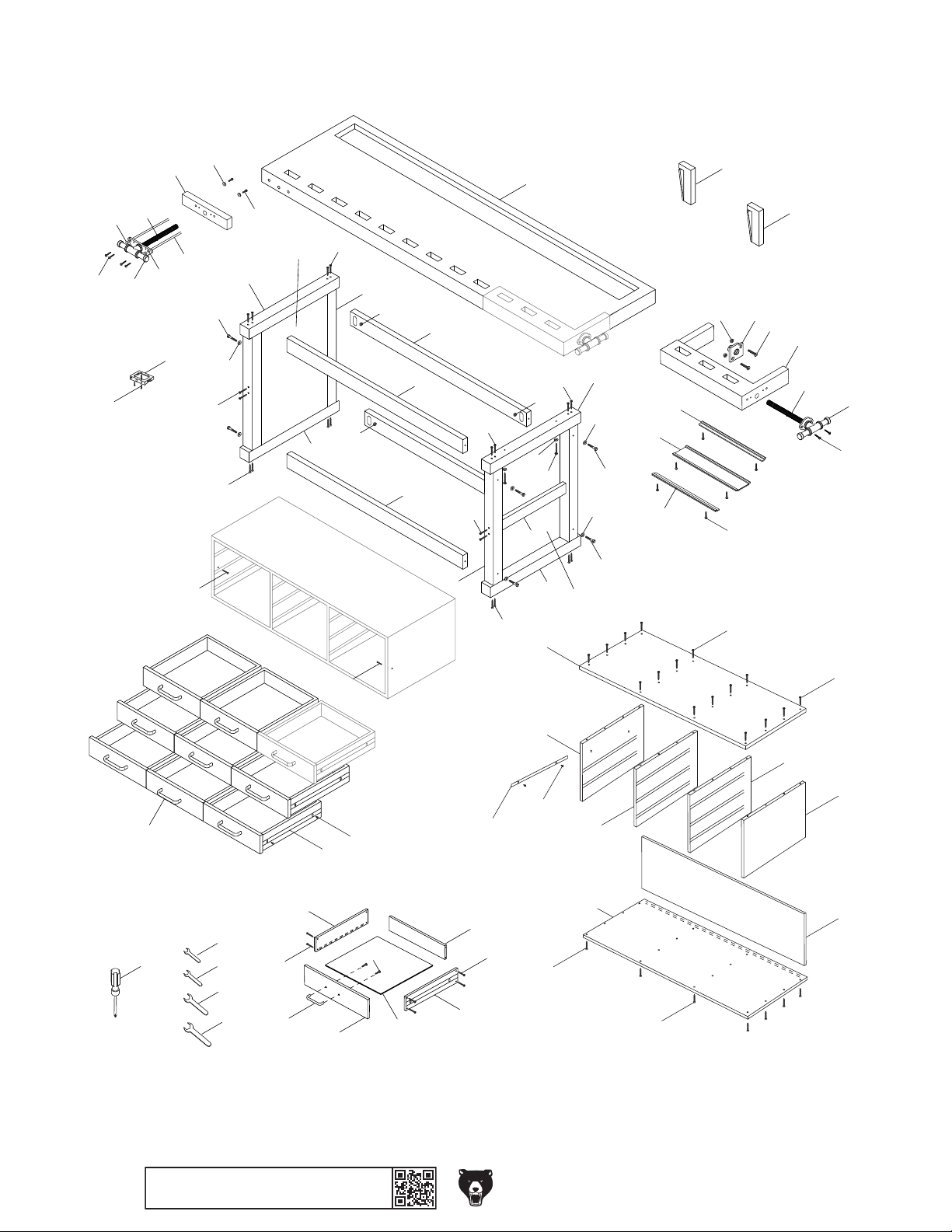

T34091 Parts Breakdown
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
40
43
40
24
23
22
39
25
21
33
42
35
45
39
45
47
6
6
32
46
26
27
28
40
40
33
1
41
53
2
45
5
36
7
2
38
34
3
36
8
4
45
54
39
39
29
31
35
30
35
7
36
4
7
45
45
5
45
20
52
48
49
50
51
33
20
17
14
15
33
44
37
19
16
18
14
33
9
44
33
13
33
11
10
11
12
33
-6-
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T34091 (Mfd. Since 11/23)
Page 7
T34091 Parts List
27 PT34091027 VISE LEADSCREW W/PLATE, SIDE 54 PT34091054 LEG PANEL, RIGHT
REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON
1 PT34091001 WORKBENCH TOP 28 PT34091028 SIDE VISE HANDLE, WOOD
2 PT34091002 LEG CROSSBAR, TOP 29 PT34091029 SIDE VISE RAIL, BACK
3 PT34091003 LEG CROSSBAR, MIDDLE 30 PT34091030 SIDE VISE RAIL, FRONT
4 PT34091004 LEG CROSSBAR, BOTTOM 31 PT34091031 VISE SLI DE, SIDE
5 PT34091005 WORKBENCH LEG 32 PT34091032 VISE LEADSCREW PLATE, SIDE
6 PT34091006 BENCH DOGS 33 PT34091033 TAP SCREW M4 X 30
7 PT34091007 CROSSBAR 34 PT34091034 LAG BOLT M8 X 80
8 PT34091008 CABINET PANEL, TOP 35 PT34091035 HEX BOLT M12-1.75 X 120
9 PT34091009 CABINET SIDE PANEL, LEFT 36 PT34091036 HEX NUT M12-1.75
10 PT34091010 CABINET SIDE PANEL, RIGHT 37 PT34091037 PHLP HD SCR M4-.7 X 40
11 PT34091011 CABINET PANEL, MIDDLE 38 PT34091038 FLA T WASHER 8MM
12 PT34091012 CABINET PANEL, BACK 39 PT34091039 FLAT WASHER 12 MM
13 PT34091013 CABINET PANEL, BASE 40 PT34091040 TAP SCREW M6 X 30
14 PT34091014 DRAWER S LI DE 41 PT34091041 HEX BOLT M8-1.25 X 15
15 PT34091015 DRAWER P ANEL , FRO NT 42 PT34091042 FENDE R WASHE R 8MM
16 PT34091016 DRAWER SIDE PANEL, RIGHT 43 PT34091043 ACORN NUT M12-1. 75
17 PT34091017 DRAWER SIDE PANEL, LEFT 44 PT34091044 TAP SCREW M4 X 12
18 PT34091018 DRAWER PANEL, BACK 45 PT34091045 TAP SCREW M4 X 80
19 PT34091019 DRAWER PANEL, BASE 46 PT34091046 FLAT HD CAP SCR M8-1.25 X 60
20 PT34091020 HANDLE 47 PT34091047 HEX NUT M8-1. 25
21 PT34091021 VISE ROD M12-1.75 X 25, 330L, FRONT 48 PT34091048 WRENCH 12MM OPEN- END
22 PT34091022 VISE HEAD, FRONT 49 PT34091049 WRENCH 13MM OPEN- END
23 PT34091023 VISE LEADSCREW W/PLATE, FRONT 50 PT34091050 WRENCH 17MM OPEN- END
24 PT34091024 FRONT VISE HANDLE, WOOD 51 PT34091051 WRENCH 19MM OPEN- END
25 PT34091025 VISE LEADSCREW PLATE, FRONT 52 PT34091052 SCREWDRIVER PHILLIPS #2
26 PT34091026 VISE HEAD, SIDE 53 PT34091053 LEG PANEL, LEFT
Model T34091 (Mfd. Since 11/23)
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
-7-
