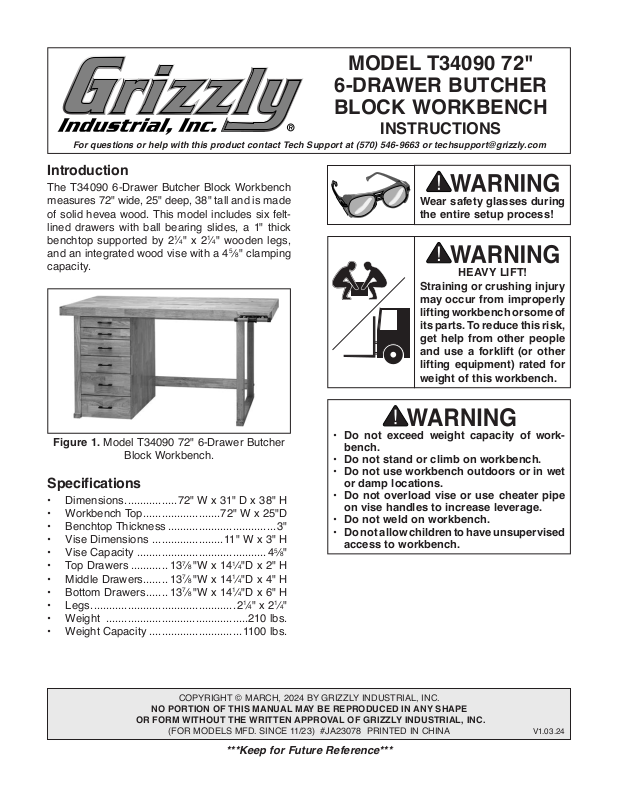

Page 1
MODEL T34090 72"
6-DRAWER BUTCHER
BLOCK WORKBENCH
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T34090 6-Drawer Butcher Block Workbench
measures 72" wide, 25" deep, 38" tall and is made
of solid hevea wood. This model includes six feltlined drawers with ball bearing slides, a 1" thick
benchtop supported by 2
and an integrated wood vise with a 4
capacity.
1
⁄4" x 21⁄4" wooden legs,
5
⁄8" clamping
Wear safety glasses during
the entire setup process!
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting workbench or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this workbench.
Figure 1. Model T34090 72" 6-Drawer Butcher
Block Workbench.
Specifications
• Dimensions ................. 72" W x 31" D x 38" H
• Workbench Top .........................72" W x 25"D
• Benchtop Thickness ................................... 3"
• Vise Dimensions .......................11" W x 3" H
• Vise Capacity ..........................................45⁄8"
• Top Drawers ............ 137⁄8 "W x 141⁄4"D x 2" H
• Middle Drawers ........ 137⁄8 "W x 141⁄4"D x 4" H
• Bottom Drawers ....... 137⁄8 "W x 141⁄4"D x 6" H
• Legs ............................................... 21⁄4" x 21⁄4"
• Weight ..............................................210 lbs.
• Weight Capacity .............................. 110 0 lb s.
COPYRIGHT © MARCH, 2024 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/23) #JA23078 PRINTED IN CHINA
• Do not exceed weight capacity of workbench.
• Do not stand or climb on workbench.
• Do not use workbench outdoors or in wet
or damp locations.
• Do not overload vise or use cheater pipe
on vise handles to increase leverage.
• Do not weld on workbench.
• Do not allow children to have unsupervised
access to workbench.
V1.03.24
***Keep for Future Reference***
Page 2

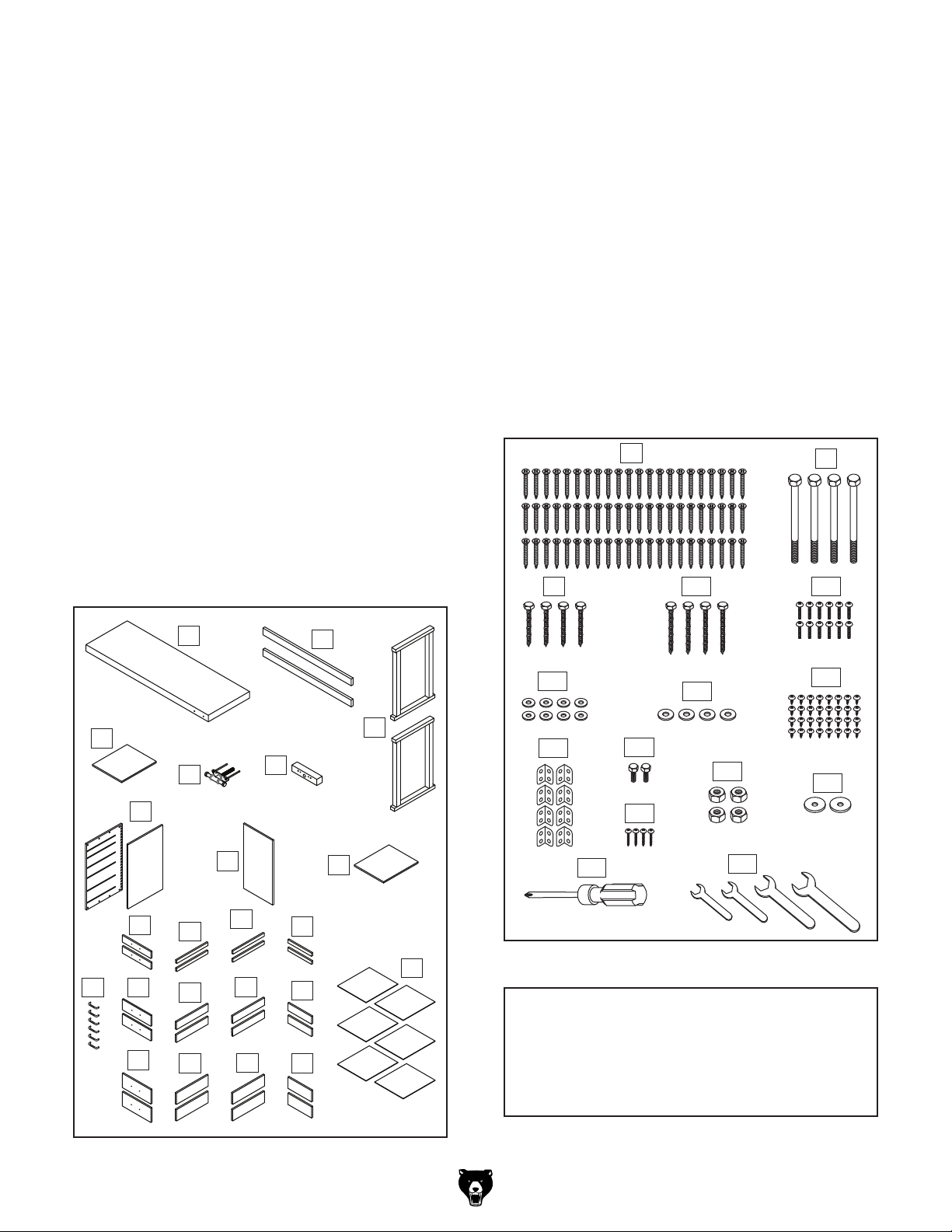

Inventory
Main (Figure 2) Qty
A. Workbench Top .......................................... 1
Crossbeams ............................................... 2
B.
Workbench Legs ........................................ 2
C.
Vise Head ................................................... 1
D.
Vise Leadscrew Assembly ......................... 1
E.
Cabinet Top Panel ...................................... 1
F.
Cabinet Side Panels w/Slides .................... 2
G.
Cabinet Back Panel .................................... 1
H.
Cabinet Base Panel .................................... 1
I.
Drawer Handles .......................................... 6
J.
Small Drawer Front Panels ......................... 2
K.
L. Small Drawer Left Panels ........................... 2
Small Drawer Right Panels ........................ 2
M.
Small Drawer Back Panels ......................... 2
N.
Medium Drawer Front Panels ..................... 2
O.
P. Medium Drawer Left Panels ....................... 2
Medium Drawer Right Panels ..................... 2
Q.
Medium Drawer Back Panels ..................... 2
R.
Large Drawer Front Panels ........................ 2
S.
T. Large Drawer Left Panels........................... 2
Large Drawer Right Panels ........................ 2
U.
Large Drawer Back Panels......................... 2
V.
Drawer Base Panels ................................... 6
W.
Fasteners (Figure 3) Qty
X. Tap Screws M4 x 30 ................................. 66
Hex Bolts M12-1.75 x 120 ........................... 4
Y.
Lag Bolts M8 x 50 ...................................... 4
Z.
Lag Bolts M8 x 60 ...................................... 4
AA.
Phillips Head Screws M4-.7 x 40.............. 12
AB.
Flat Washers 8mm ..................................... 8
AC.
Flat Washers 12mm ................................... 4
AD.
Tap Screws M4 x 12 ................................. 32
AE.
Corner Braces ............................................ 8
AF.
AG. Hex Bolts M8-1.25 x 15
AH. Tap Screws M6 x 30
Hex Nuts M12-1.75 ..................................... 4
AI.
Fender Washers 8mm ................................ 2
AJ.
Phillips Head Screwdriver #2 ..................... 1
AK.
AL. Open-End Wrenches
12, 13, 17, 19mm ..................................1 Ea.
X
Z
.............................. 2
.................................. 4
Y
AA
AB
A
F
E
G
H
K
O
J
L
P
D
M
Q
B
AC
C
AF
I
N
Figure 3. Fasteners and tools.
W
R
AG
AH
AK
AD
AI
AL
AE
AJ
NOTICE
If you cannot find an item on this list, check
S
T
U
V
the mounting location or examine the packaging materials carefully. Some items are
pre-installed for shipping purposes.
-2-
Figure 2. Inventory.
Model T34090 (Mfd. Since 11/23)
Page 3
Assembly
Wear safety glasses during
the entire setup process!
Needed for Assembly
• Additional Person ........................................ 1
• Safety Glasses (for each person) ........... 1 Pr.
• Square ......................................................... 1

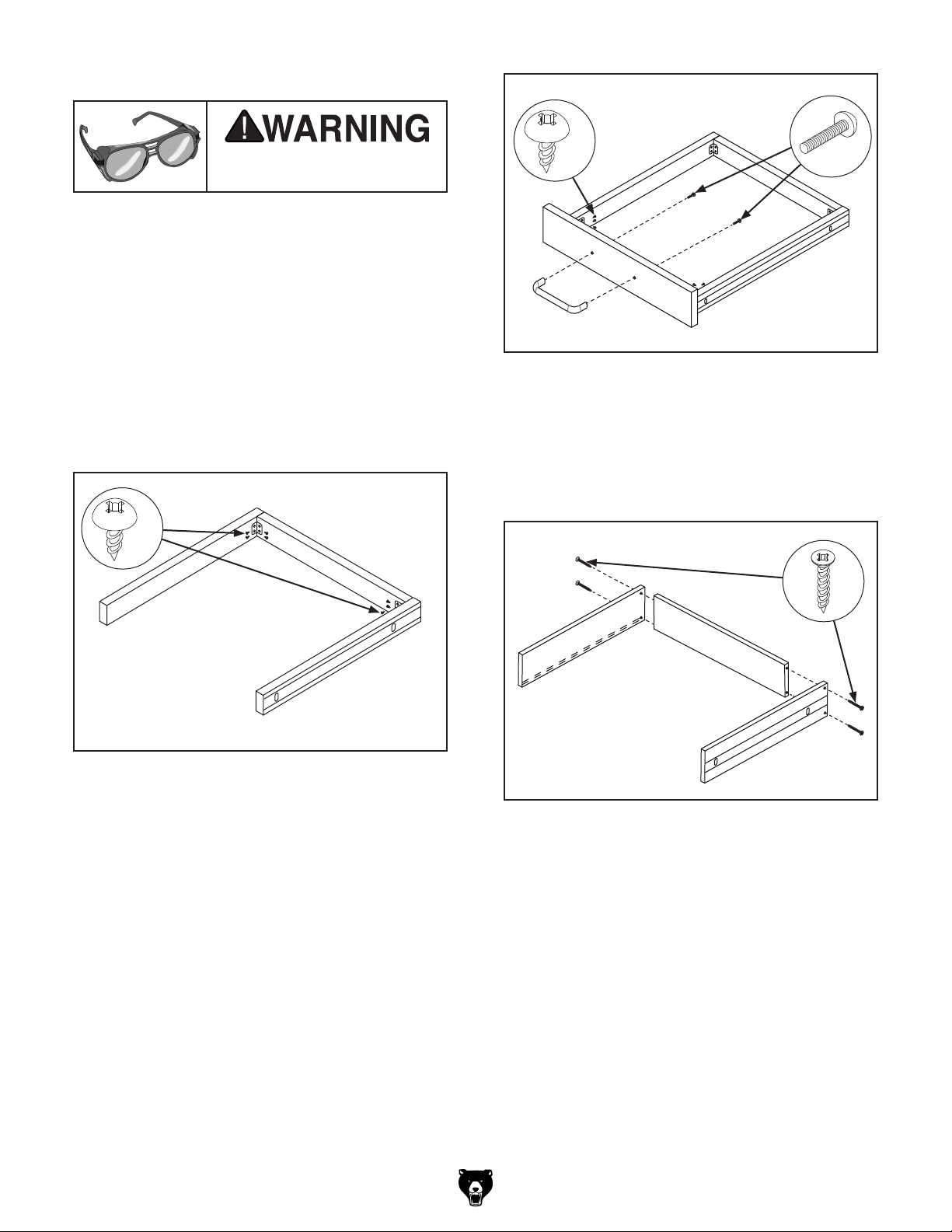

To assemble workbench:
Position (1) right and (1) left small drawer
1.
side panel against (1) small drawer back
panel and secure with (2) corner braces and
(8) M4 x 12 tap screws (see Figure 4).
x 8
x 8
Figure 5. Assembling drawer base panel, front
panel, and handle.
4.
Position (1) right and (1) left medium drawer
side panel against (1) medium drawer back
panel, and secure with (4) M4 x 30 tap
screws, as shown in Figure 6.
x 2
x 4
Figure 4. Attaching drawer sides to back panel.
2.
Slide (1) drawer base panel into slots in
drawer side panels, and attach (1) drawer
front panel using (2) corner braces, and (8)
M4 x 12 tap screws (see Figure 5).
3.
Attach (1) handle to drawer front panel with
(2) M4-.7 x 40 Phillips head screws, as
shown in Figure 5.
Model T34090 (Mfd. Since 11/23)
Figure 6. Attaching medium drawer sides and
back panel.
-3-
Page 4
5.
Slide (1) medium drawer base panel into
slots in drawer side panels, then attach (1)
medium drawer front panel using (4) M4 x 30
tap screws (see Figure 7).
x 2

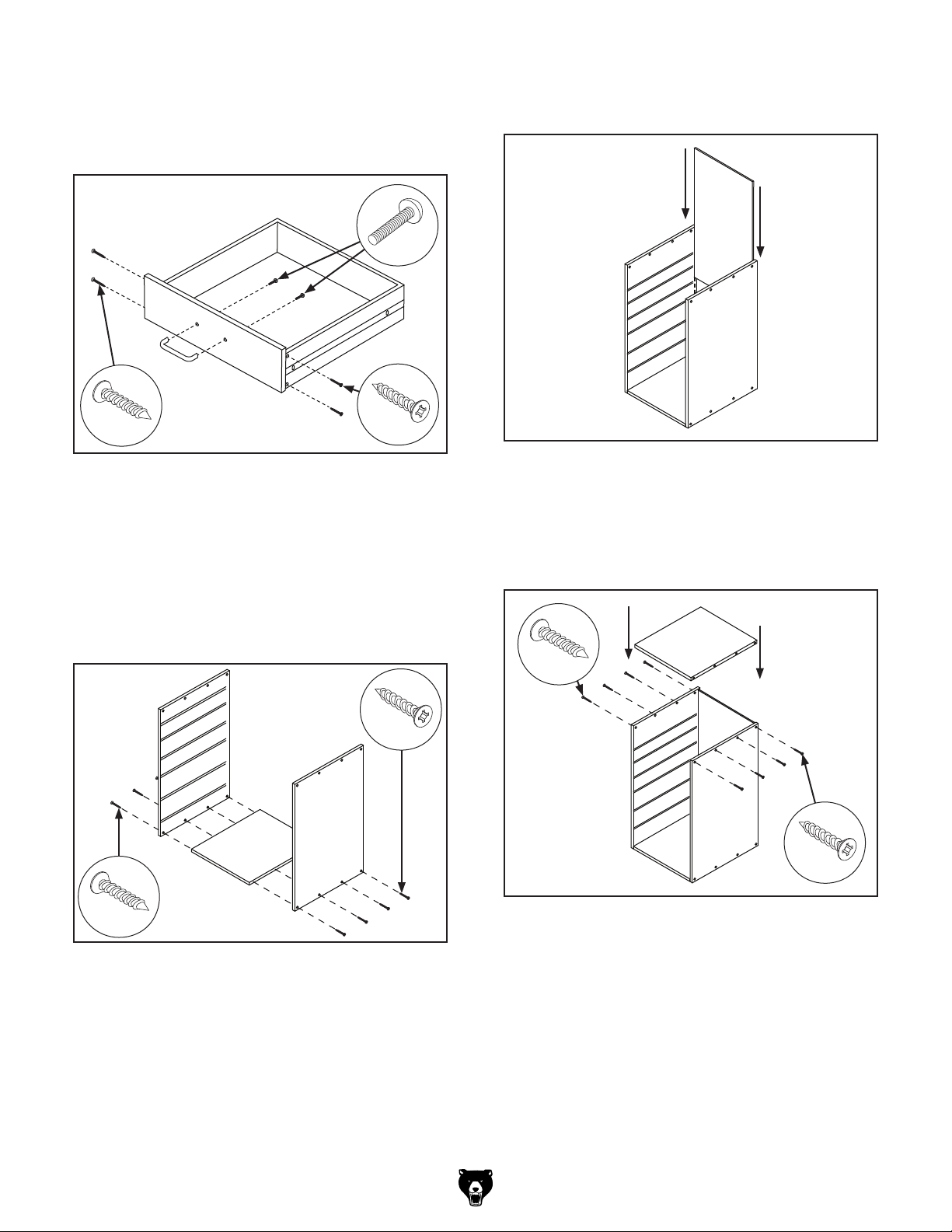

8. Slide cabinet back panel into grooves in cabinet base and side panels (see Figure 9).
x 2
Figure 7. Installing medium drawer base panel,
front panel, and handle.
Repeat Steps 4–5 for large drawers using
6.
(16) M4 x 30 tap screws for each drawer.
7. Secure cabinet side panels to cabinet base
panel using (8) M4 x 30 tap screws, as shown
in Figure 8.
x 2
x 4
Figure 9. Attaching cabinet back panel.
9. Slide groove in cabinet top panel onto top
edge of cabinet back panel and secure with
(8) M4 x 30 tap screws, as shown in Figure
10.
x 4
x 4
x 4
Figure 8. Securing cabinet side panels to
cabinet base panel.
-4-
Figure 10. Securing cabinet top panel.
Model T34090 (Mfd. Since 11/23)
Page 5

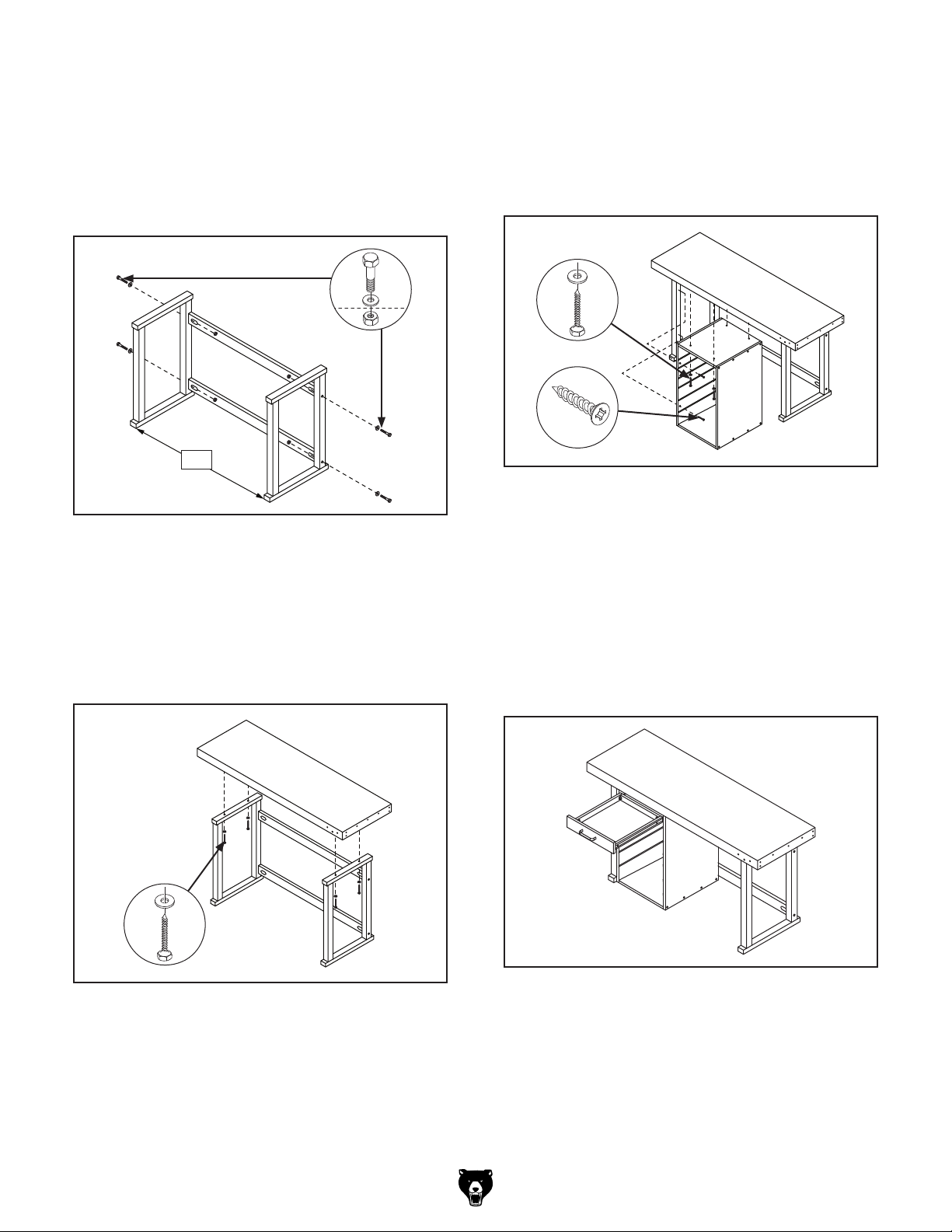

Position workbench legs approximately 54"
10.
apart (see Figure 11).
Secure crossbeams to table legs using (4)
11.
M12-1.75 x 120 hex bolts, (4) 12mm flat
washers, and (4) M12-1.75 hex nuts (see
Figure 11). Do not fully tighten.
14. Fasten drawer cabinet to workbench top
with (4) M8 x 50 lag bolts and (4) 8mm flat
washers, as shown in Figure 13.
15. Fasten drawer cabinet to left workbench leg
with (2) M4 x 30 tap screws (see Figure 13).
x 4
54"
Figure 11. Fastening crossbeams to legs.
12. Square workbench frame and fully tighten
fasteners from Step 11.
13. Place workbench top onto workbench frame
and secure with (4) M8 x 60 lag bolts and (4)
8mm flat washers (see Figure 12).
x 2
x 2
Figure 13. Fastening cabinet to workbench top
and leg.
Align drawer slides on top drawer with slides
16.
inside cabinet, then push in until drawers
click into place (see Figure 14).
Note: Ball bearing strips are delicate. Ensure
cabinet slides and drawer slides are properly
aligned prior to installation to avoid damaging
bearing strips.
x 4
Figure 12. Fastening workbench top to frame.
Model T34090 (Mfd. Since 11/23)
Figure 14. Installing drawers.
-5-
Page 6
17. Repeat Step 16 for all remaining drawers.
IMPORTANT: Ensure drawers are installed in
descending order, with small drawers on top
and large drawers on bottom.

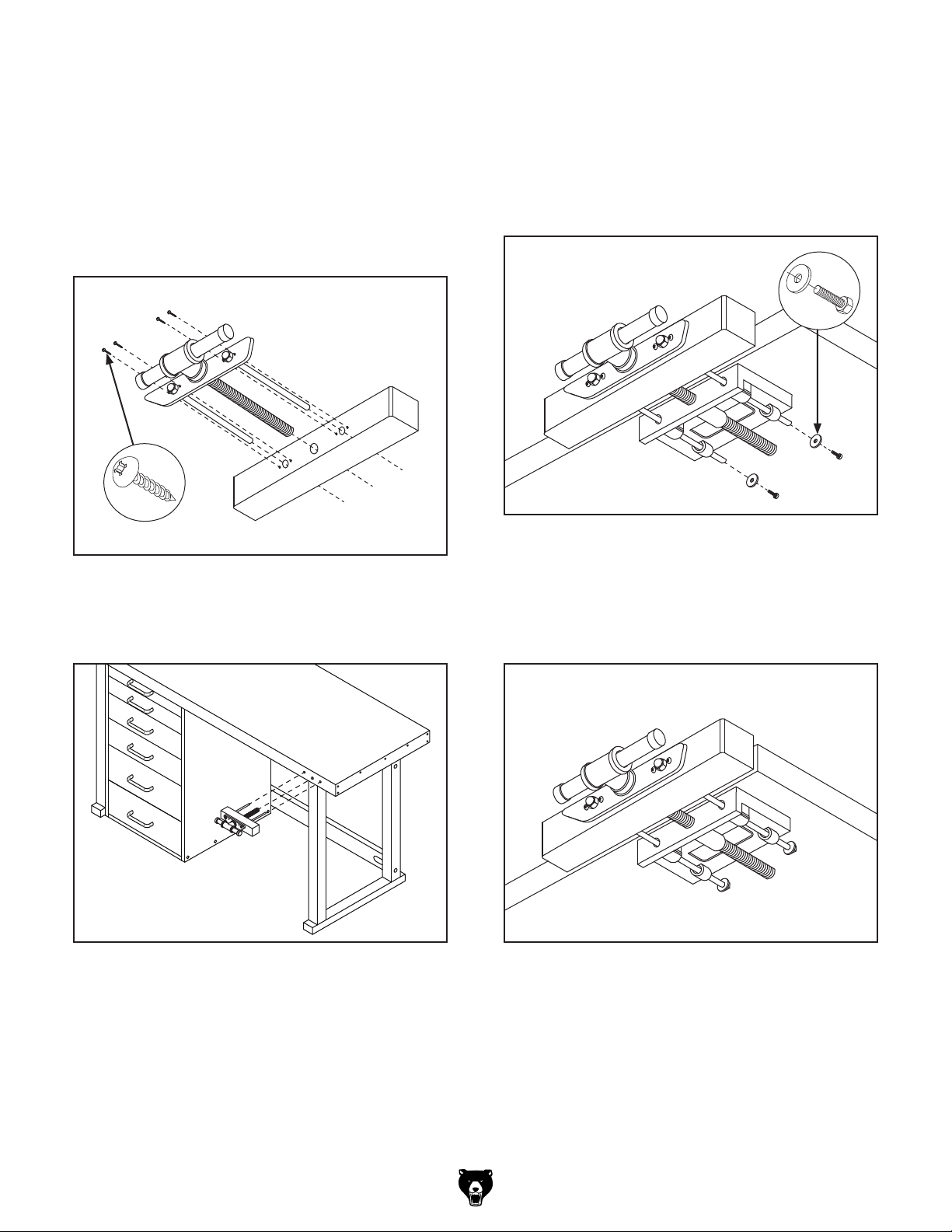

Feed vise leadscrew assembly through vise
18.
head and attach with (4) M6 x 30 tap screws
(see Figure 15).
x 4
20.
Thread vise through leadscrew plate and
tighten until vise head makes contact with
workbench.
21.
Install (2) M8-1.25 x 16 hex bolts and (2)
8mm fender washers on back of vise rods
(see Figure 17).
x 2
Figure 17. Installing vise assembly.
Figure 15. Assembling vise components.
Insert vise assembly into holes in front right
19.
side of workbench, as shown in Figure 16.
Figure 16. Assembling vise components.
22. Completed vise installation should resemble
Figure 18. Test vise range of motion by turn-
ing handle counterclockwise to open and
clockwise to close.
Figure 18. Vise assembly installed.
-6-
Model T34090 (Mfd. Since 11/23)
Page 7

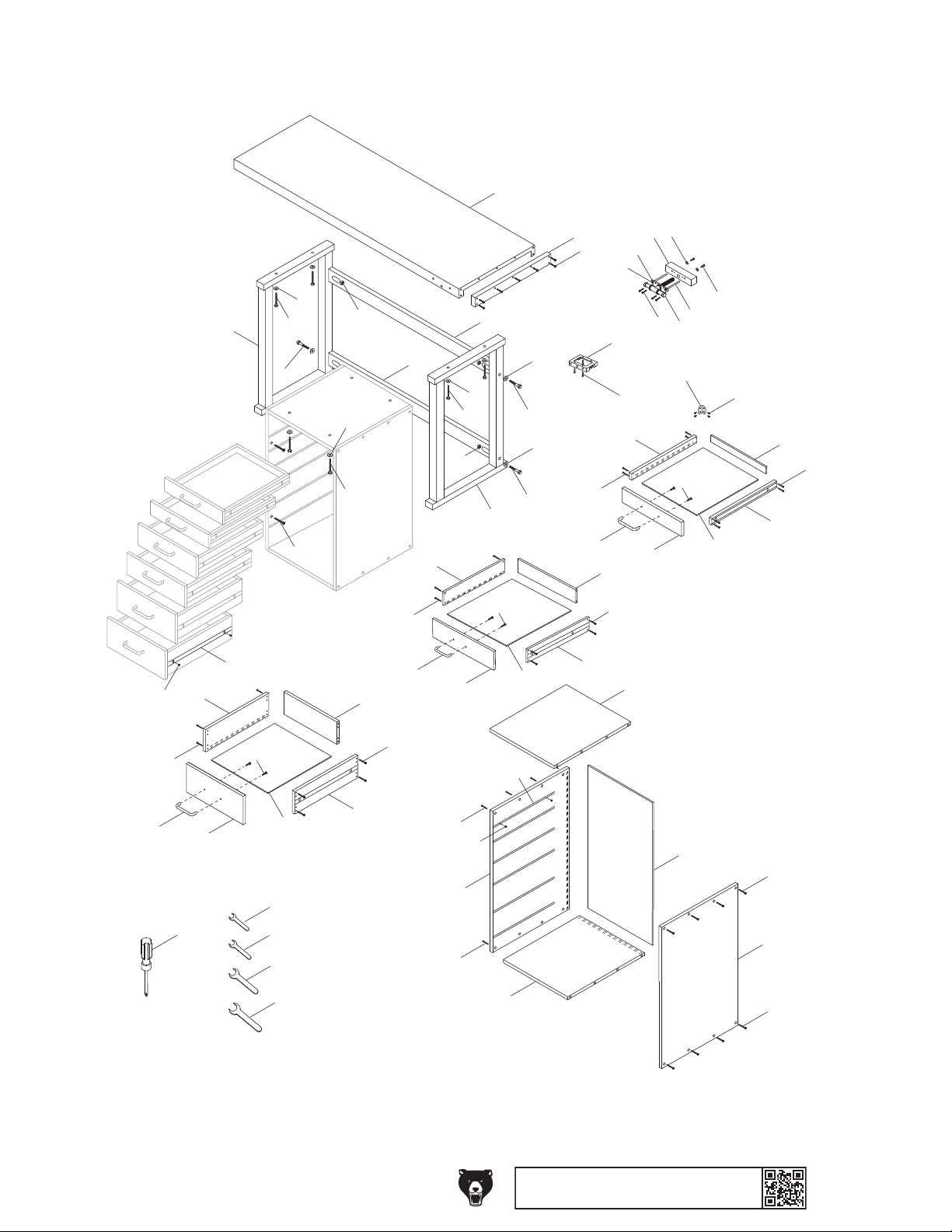

T34090 Parts Breakdown
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
1
48
49
3
4
40
38
26
27
22
6
46
28
29
31
27
35
34
30
34
24
27
27
33
12
18
34
17
31
35
12
28
37
2
39
13
5
41
26
16
27
28
15
25
47
36
39
29
36
29
6
25
46
14
26
33
20
27
19
10
33
21
45
25
32
42
43
44
Model T34090 (Mfd. Since 11/23)
23
27
27
26
8
11
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
9
27
7
27
-7-
Page 8
T34090 Parts List
25 PT34090025 DRA WER BO TTOM PANEL
REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON
1 PT34090001 WORKBENCH TOP 26 PT34090026 TAP SCREW M4 X 12
2 PT34090002 VISE ROD M12-1.75 X 25, 330L 27 PT34090027 TAP SCREW M4 X 30
3 PT34090003 VISE HEAD 28 PT34090028 PHLP HD SCR M4-.7 X 40
4 PT34090004 VISE LEADSCREW W/PLATE 29 PT34090029 HEX BOLT M12-1.75 X 120
5 PT34090005 VISE HANDLE, WOOD 30 PT34090030 LAG BOLT M8 X 50
6 PT34090006 LEG ASSEMBLY 31 PT34090031 LAG BOLT M8 X 60
7 PT34090007 CABINET RIGHT SIDE PANEL 32 PT34090032 WRE NCH 12MM O PEN-END
8 PT34090008 CABINET LEFT SIDE PANEL 33 PT34090033 DRA WER HANDL E
9 PT34090009 CABINET BACK PANEL 34 PT34090034 HEX NUT M12-1.75
10 PT34090010 CABINET TOP PANEL 35 PT34090035 FL AT WAS HER 8MM
11 PT34090011 CABINET BOTTOM PANEL 36 PT34090036 FL AT WAS HER 12MM
12 PT34090012 CROSSBEAM 37 PT34090037 HEX BOLT M8-1.25 X 15
13 PT34090013 S MALL DRAWER FRONT PA NEL 38 PT34090038 FE NDER WAS HER 8MM
14 PT34090014 SMALL DRAWER LEFT PANEL 39 PT34090039 TAP SCREW M6 X 30
15 PT34090015 SMALL DRAWER RIGHT PANEL 40 PT34090040 ACO RN NUT M12- 1. 75
16 PT34090016 SMALL DRAWER BACK PANEL 41 PT34090041 SMALL DRAWER CORNER BRACKET
17 PT34090017 ME DI UM DRA WER FRONT PANE L 42 PT34090042 WRE NCH 13MM O PEN-END
18 PT34090018 ME DI UM DRA WER LEFT PA NEL 43 PT34090043 WRENCH 1 7MM OP EN-E ND
19 PT34090019 ME DI UM DRA WER RIGHT PANEL 44 PT34090044 WRE NCH 19MM O PEN-END
20 PT34090020 ME DI UM DRA WER BACK P ANEL 45 PT34090045 SCREWDRIVER PHILLIPS #2
21 PT34090021 LARGE DRAWER FRONT PANEL 46 PT34090046 DRA WER SL I DE
22 PT34090022 LARGE DRAWER LEFT PANEL 47 PT34090047 VI SE LEADSCREW PLATE
23 PT34090023 LARGE DRAWER RIGHT PANEL 48 PT34090048 WO RKBE NCH TRI M
24 PT34090024 LARGE DRAWER BACK PANEL 49 PT34090049 TAP SCREW M6 X 50
-8-
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T34090 (Mfd. Since 11/23)
Loading...
