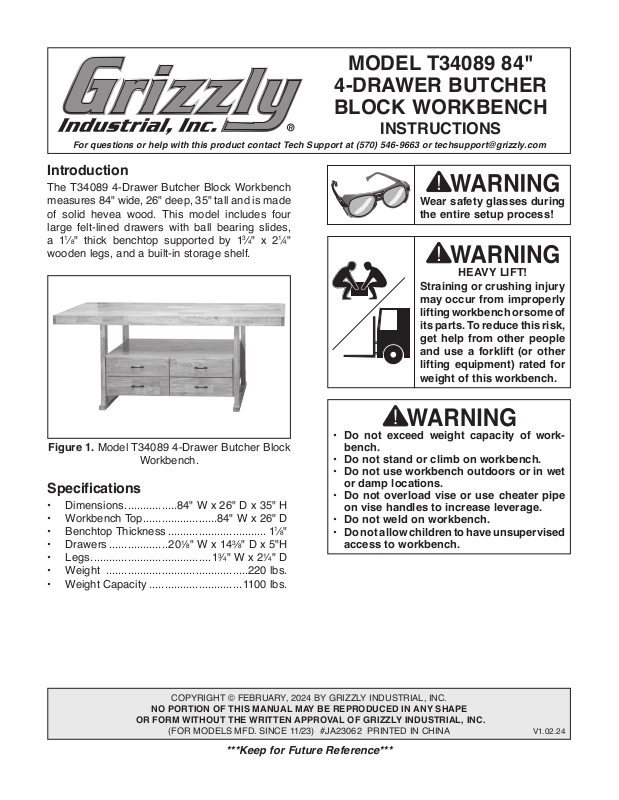

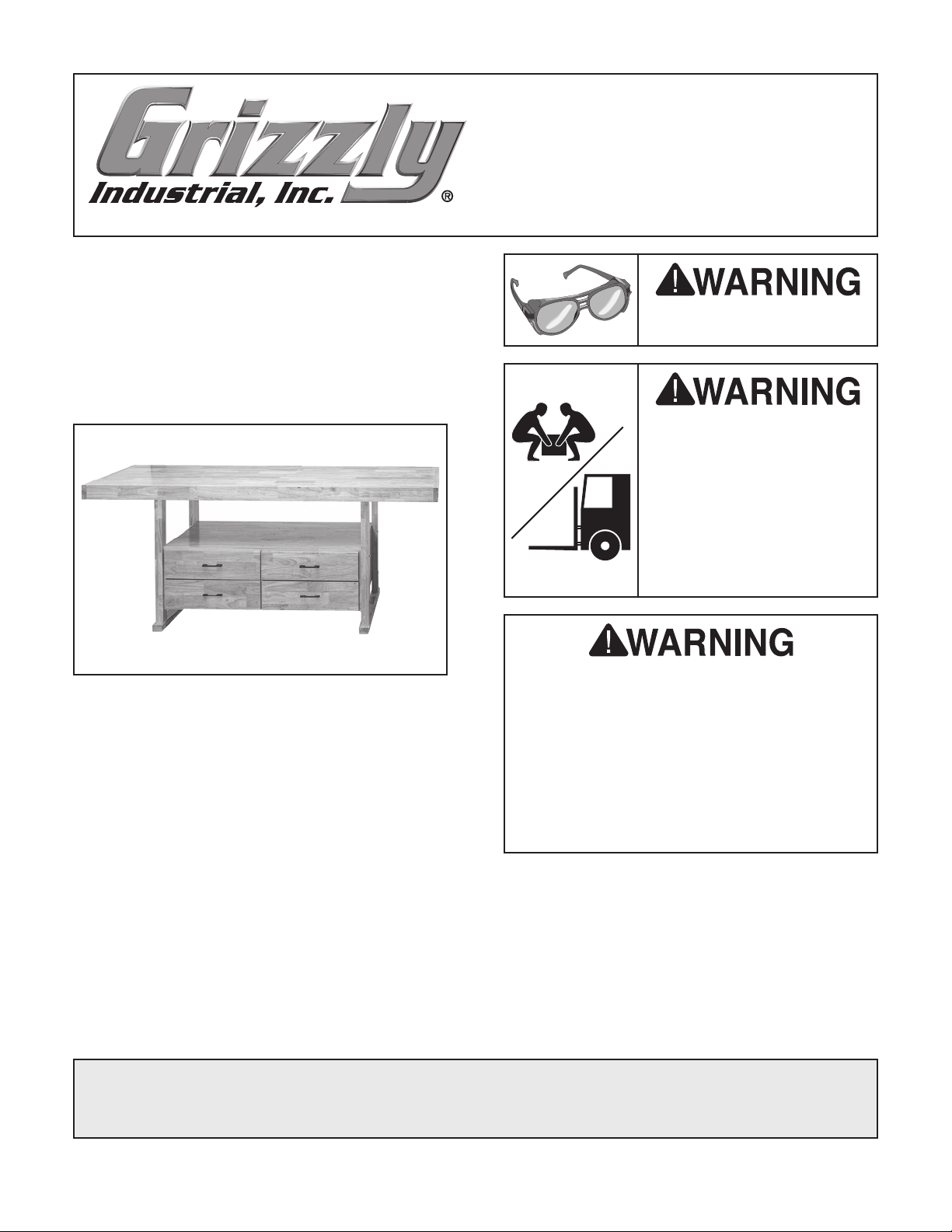

MODEL T34089 84"
4-DRAWER BUTCHER
BLOCK WORKBENCH
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T34089 4-Drawer Butcher Block Workbench
measures 84" wide, 26" deep, 35" tall and is made
of solid hevea wood. This model includes four
large felt-lined drawers with ball bearing slides,
1
⁄8" thick benchtop supported by 13⁄4" x 21⁄4"
a 1
wooden legs, and a built-in storage shelf.
Wear safety glasses during
the entire setup process!
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting workbench or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this workbench.
Figure 1. Model T34089 4-Drawer Butcher Block
Workbench.
Specifications
• Dimensions .................84" W x 26" D x 35" H
• Workbench Top ........................84" W x 26" D
• Benchtop Thickness ................................ 11⁄8"
• Drawers ...................201⁄8" W x 143⁄8" D x 5"H
• Legs ....................................... 13⁄4" W x 21⁄4" D
• Weight ..............................................220 lbs.
• Weight Capacity .............................. 110 0 lb s.
COPYRIGHT © FEBRUARY, 2024 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/23) #JA23062 PRINTED IN CHINA
• Do not exceed weight capacity of workbench.
• Do not stand or climb on workbench.
• Do not use workbench outdoors or in wet
or damp locations.
• Do not overload vise or use cheater pipe
on vise handles to increase leverage.
• Do not weld on workbench.
• Do not allow children to have unsupervised
access to workbench.
V1.02.24
***Keep for Future Reference***
Page 2
Inventory
Main (Figure 2) Qty
A. Workbench Top .......................................... 1
Workbench Leg Crossbars ......................... 4
B.
Workbench Legs ........................................ 4
C.
Cabinet Top Panel ...................................... 1
D.
Cabinet Back Panel .................................... 1
E.
Cabinet Base Panel .................................... 1
F.
Cabinet Middle Panel ................................. 1
G.
Cabinet Side Panels ................................... 2
H.
Drawer Handles .......................................... 4
I.
Drawer Base Panels ................................... 4
J.
K. Drawer Front Panels ................................... 4
Drawer Side Panels .................................... 8
L.
Drawer Back Panels ................................... 4
M.
A
B
Fasteners (Figure 3) Qty
N. Tap Screws M4 x 30 ................................. 62
Flat Washers 8mm ................................... 12
O.
Open-End Wrench 13mm ........................... 1
P.
Hex Bolts M8-1.25 x 70 .............................. 8
Q.
Lag Bolts M8 x 60 ...................................... 4
R.
Phillips Head Screwdriver #2 ..................... 1
S.
Tap Screws M4 x 50 ................................... 8
T.
Phillips Head Screws M4-.7 x 40................ 8
U.
O
N
P
D
C
E
G
F
H
Q
T
R
U
Figure 3. Fasteners.
S
NOTICE
If you cannot find an item on this list, check
JI
K
M
L
the mounting location or examine the packaging materials carefully. Some items are
pre-installed for shipping purposes.
-2-

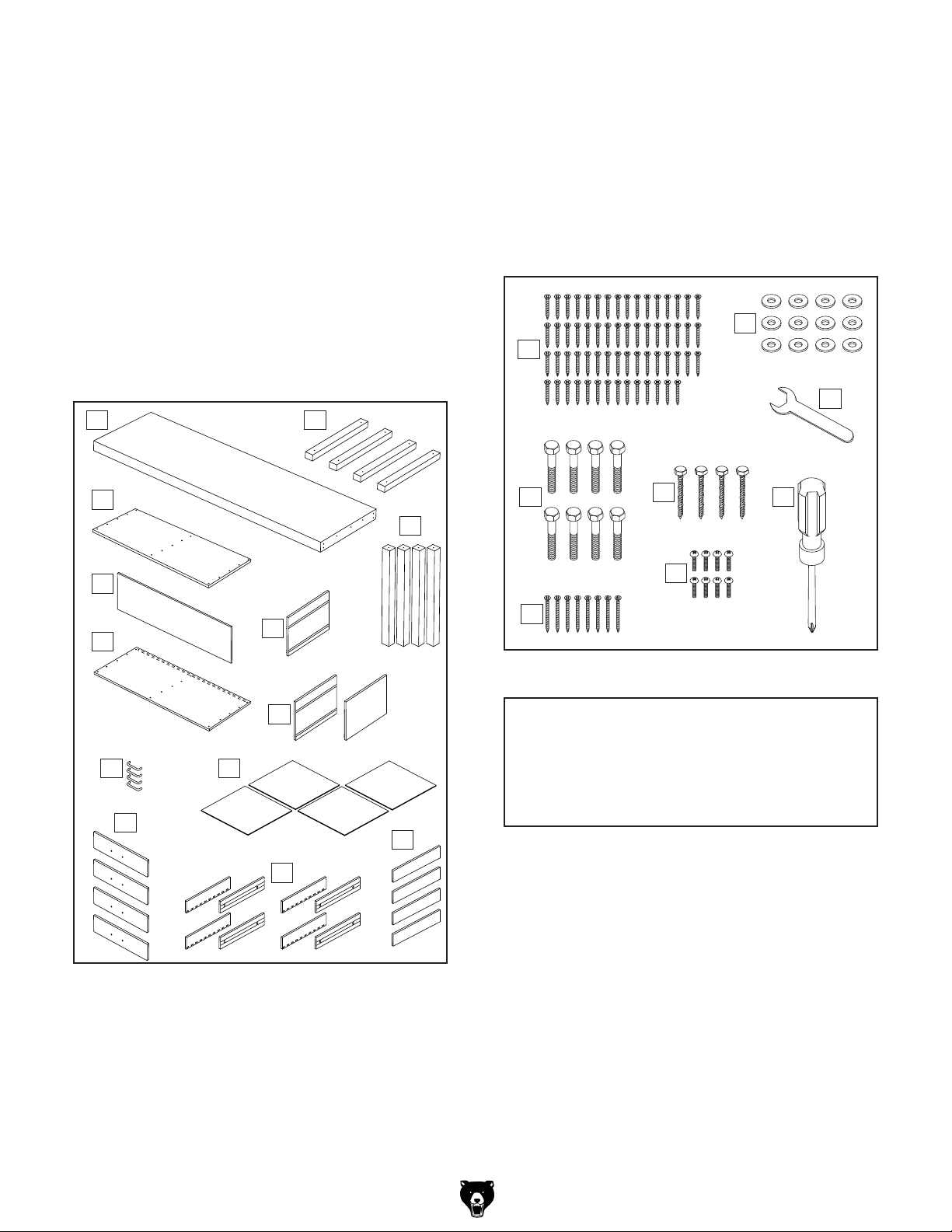

Figure 2. Inventory.
Model T34089 (Mfd. Since 11/23)
Page 3
Assembly
Wear safety glasses during
the entire setup process!
Needed for Assembly
• Additional Person ........................................ 1
• Safety Glasses (for each person) ........... 1 Pr.
• Square ......................................................... 1
To assemble workbench:
x 2
x 2
x 2
Fit (1) drawer back panel to (2) drawer side
1.
panels and secure with (4) M4 x 30 tap
screws, as shown in Figure 4.
x 4

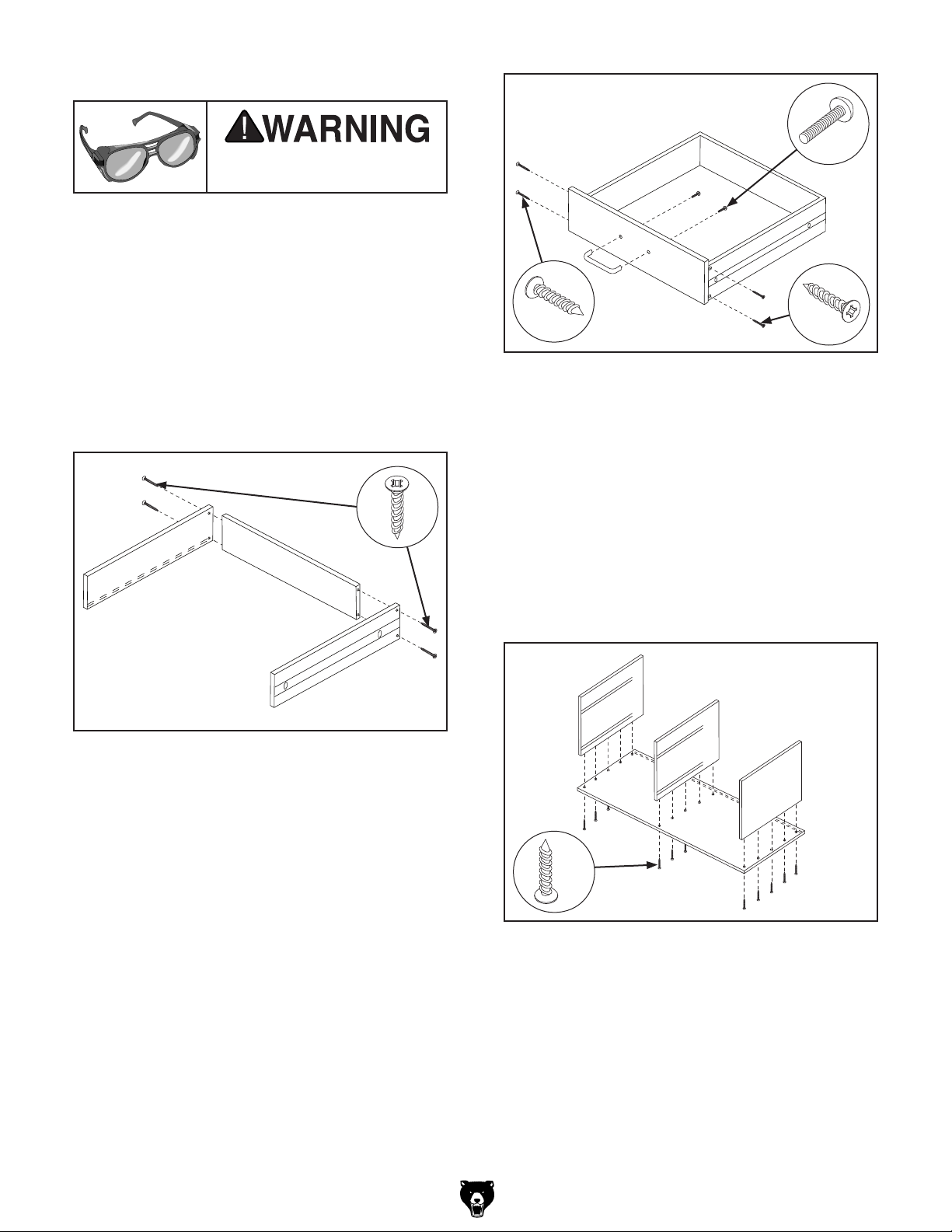

Figure 4. Attaching drawer side panels to back
panel.
2.
Slide (1) drawer base panel into slots in
drawer side panels, then attach (1) drawer
front panel using (4) M4 x 30 tap screws, as
shown in Figure 5.
Figure 5. Assembling drawer base panel, front
panel, and handle.
Repeat Steps 1–3 for three remaining
4.
drawers.
5.
Secure cabinet side panels and middle panel
to cabinet base panel using (15) M4 x 30 tap
screws, as shown in Figure 6.
IMPORTANT: Ensure drawer slides on cabi-
net side and middle panels pull out and away
from groove in cabinet base panel.
x 15
3. Attach (1) handle to drawer front panel with
(2) M4-.7 x 40 Phillips head screws (see
Figure 5).
Model T34089 (Mfd. Since 11/23)
Figure 6. Securing cabinet side and middle
panels to base panel.
-3-
Page 4
6.
Slide cabinet back panel into grooves in
cabinet side and base panels, and attach top
panel using (15) M4 x 30 tap screws (see
Figure 7).
x 15
Position workbench legs approximately 48"
8.
apart.
9. Attach drawer cabinet to workbench legs with
(8) M8-1.25 x 70 hex bolts and (8) 8mm flat
washers (see Figure 9). Do not fully tighten.
x 4
x 4
Figure 9. Attaching legs to drawer cabinet.

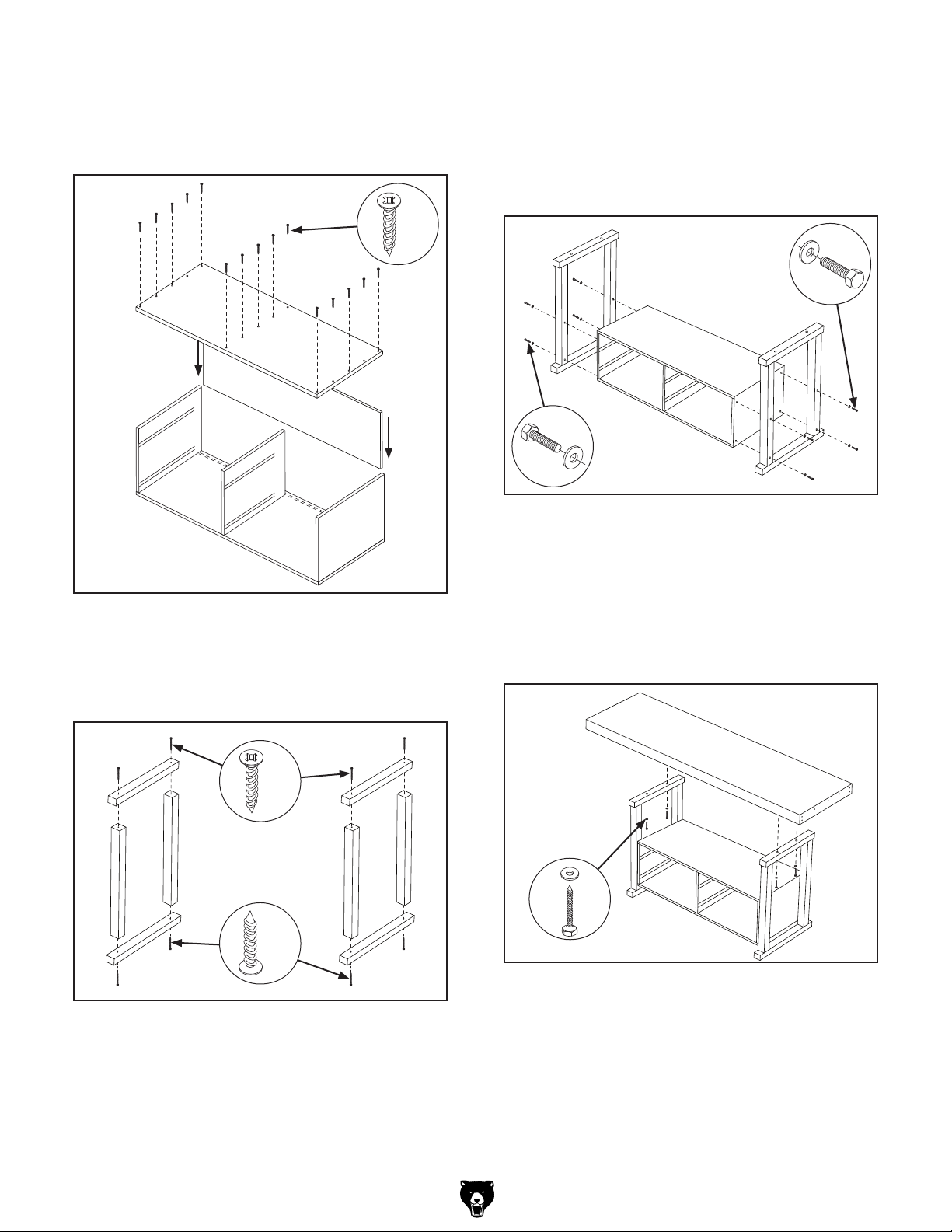

Figure 7. Attaching cabinet back and top.
7. Secure workbench leg crossbars to work-
bench legs using (8) M4 x 50 tap screws (see
Figure 8).
x 4
x 4
10. Square workbench frame, then fully tighten
fasteners from Step 9.
11. Place workbench top onto workbench frame
and secure with (4) M8 x 60 lag bolts and (4)
8mm flat washers (see Figure 10).
x 4
Figure 10. Fastening workbench top to frame.
Figure 8. Assembling workbench legs.
-4-
Model T34089 (Mfd. Since 11/23)
Page 5
12. Align drawer slides with slides mounted
inside cabinet and push drawers into place
(see Figure 11).
13. Repeat Step 12 for remaining drawers.
Complete assembly should resemble Figure
12.

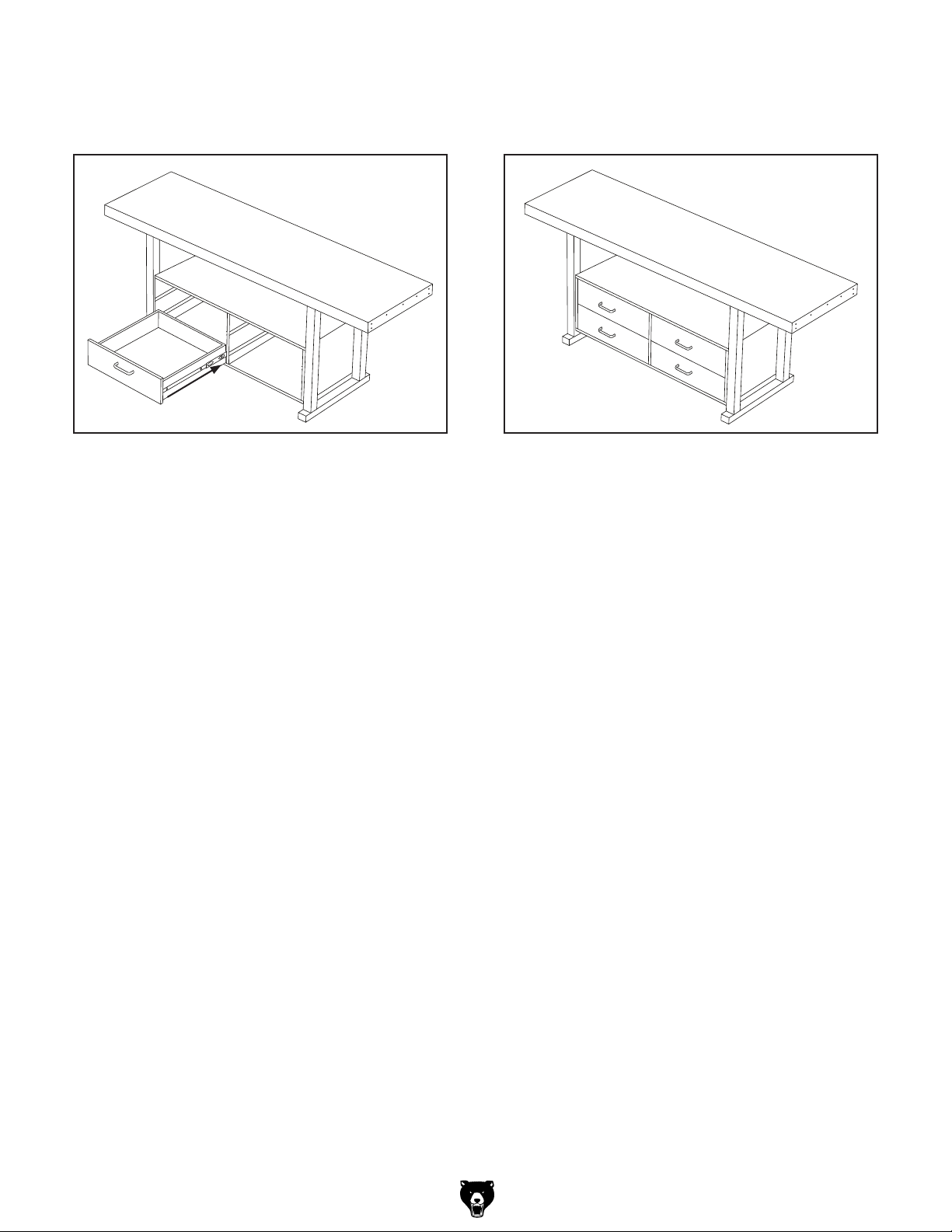

Figure 11. Installing drawers.
Figure 12. Final assembly.
Model T34089 (Mfd. Since 11/23)
-5-
Page 6
17

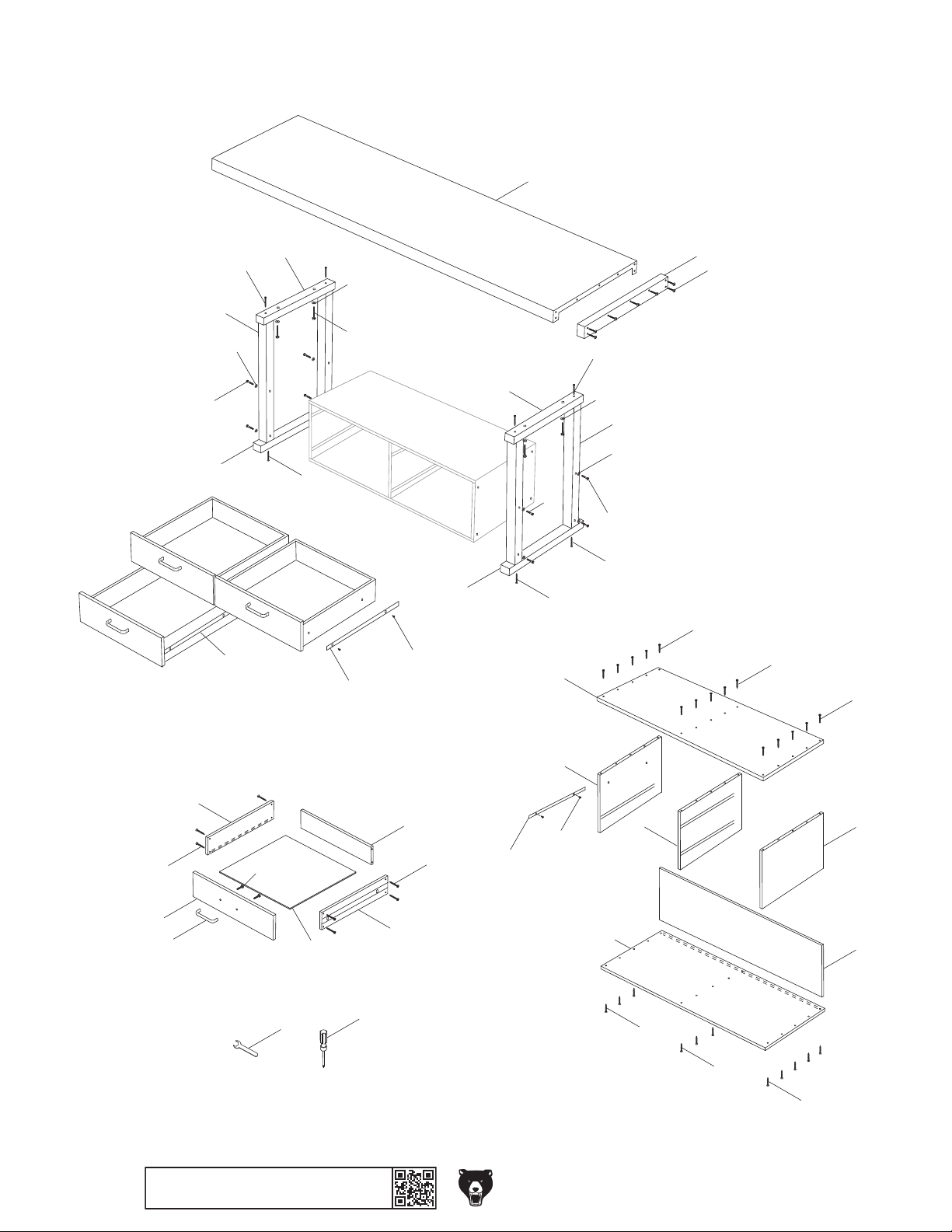

T34089 Parts Breakdown
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
1
18
2
16
20
3
16
19
9
22
16
2
19
2
16
20
3
20
18
16
4
20
2
15
25
26
17
17
17
7
14
15
22
17
11
10
-6-
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
21
23
12
24
17
13
9
8
6
17
17
Model T34089 (Mfd. Since 11/23)
7
5
Page 7
T34089 Parts List
13 PT34089013 DRA WE R RI GHT SI DE PANE L 26 PT34089026 TAP SCREW M6 X 50
REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON
1 PT34089001 WORKBENCH TOP 84" X 26" 14 PT34089014 DRAWER LEFT SI DE PANEL
2 PT34089002 WORKBENCH LEG CROSSBAR 15 PT34089015 DRAWER BACK PANEL
3 PT34089003 WORKBENCH LEG 16 PT34089016 TAP SCREW M4 X 50
4 PT34089004 CABINET TOP PANEL 17 PT34089017 TAP SCREW M4 X 30
5 PT34089005 CABINET BACK PANEL 18 PT34089018 HEX BOLT M8-1.25 X 70
6 PT34089006 CABINET BASE PANEL 19 PT34089019 LAG BOLT M8 X 60
7 PT34089007 CABINET SIDE PANEL 20 PT34089020 FL A T WAS HER 8MM
8 PT34089008 CABINET MIDDLE PANEL 21 PT34089021 PHLP HD SCR M4-.7 X 40
9 PT34089009 DRAWE R SLI DE 22 PT34089022 TAP SCREW M4 X 12
10 PT34089010 DRA WE R HANDL E 23 PT34089023 WRE NCH 1 3MM O PEN- END
11 PT34089011 DRA WE R FRONT P ANEL 24 PT34089024 SCREWDRI VER PHILLIPS #2
12 PT34089012 DRAWER BASE PANEL 25 PT34089025 WORKBE NCH END CAP
