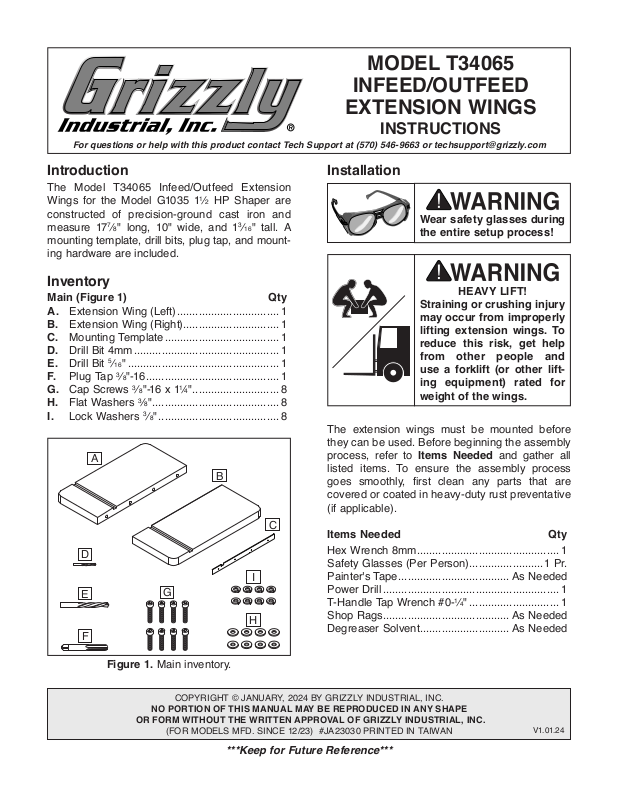

Page 1
MODEL T34065
INFEED/OUTFEED
EXTENSION WINGS
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T34065 Infeed/Outfeed Extension
Wings for the Model G1035 1
constructed of precision-ground cast iron and
measure 17
mounting template, drill bits, plug tap, and mounting hardware are included.
7
⁄8" long, 10" wide, and 13⁄16 " tall. A
1
⁄2 HP Shaper are
Inventory
Main (Figure 1) Qty
A. Extension Wing (Left) ................................. 1
Extension Wing (Right) ............................... 1
B.
Mounting Template ..................................... 1
C.
Drill Bit 4mm ............................................... 1
D.
Drill Bit 5⁄16 " ................................................. 1
E.
Plug Tap 3⁄8"-16 ........................................... 1
F.
Cap Screws 3⁄8"-16 x 11⁄4" ............................ 8
G.
Flat Washers 3⁄8" ......................................... 8
H.
Lock Washers 3⁄8" ....................................... 8
I.
A
B
C
D
I
E
F
G
H
Installation
Wear safety glasses during
the entire setup process!
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting extension wings. To
reduce this risk, get help
from other people and
use a forklift (or other lifting equipment) rated for
weight of the wings.
The extension wings must be mounted before
they can be used. Before beginning the assembly
process, refer to Items Needed and gather all
listed items. To ensure the assembly process
goes smoothly, first clean any parts that are
covered or coated in heavy-duty rust preventative
(if applicable).
Items Needed Qty
Hex Wrench 8mm .............................................. 1
Safety Glasses (Per Person)
Painter's Tape
Power Drill
T-Handle Tap Wrench #0Shop Rags
Degreaser Solvent
.................................... As Needed
......................................................... 1
......................................... As Needed
............................. As Needed
........................ 1 Pr.
1
⁄4" ............................. 1
Figure 1. Main inventory.
COPYRIGHT © JANUARY, 2024 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 12/23) #JA23030 PRINTED IN TAIWAN
***Keep for Future Reference***
V1.01.24
Page 2
To install extension wings:
3
9 PT34065009 MOUNTI NG TEMPLATE
1. DISCONNECT MACHINE FROM POWER!
2. Clean and inspect machine table edges.
IMPORTANT: Models manufactured after
12/23 come with pre-drilled screw holes.
If your Model G1035 has pre-drilled screw
holes on both sides, proceed to Step 10.
3. Align mounting template with top edge of
table (see Figure 2), and ensure key on
mounting template is aligned with table miter
slot.
Align extension wings with tapped holes and
10.
secure with (8) 3⁄8"-16 x 11⁄4" cap screws,
3
⁄8" lock washers, and 3⁄8" flat washers (see
Figure 3).
x 4
Note: G1035 models manufactured before
12/23 have (3) pre-drilled holes on right-hand
side, but (2) additional holes will still need to
be drilled to install right extension wing.
Pre-Drilled Holes
Mounting
Template
Miter Slot
Key
Figure 2. Positioning mounting template.
4. Tape mounting template in place.
Use 4mm bit to drill pilot holes through right
5.
side of table at (2) middle guide holes in
mounting template.
Repeat Steps 3–5 on left side of table, using
6.
all (4) guide holes in mounting template.
x 4
Figure 3. Attaching extension wings.
T34065 Parts Breakdown & List
5
1
2
4
6
7
8
9
REF PART # DES CRIPTI ON
1 PT34065001 EXTENSION WING (LEFT)
2 PT34065002 EXTENSI O N WI NG (RI GHT)
3 PT34065003 CAP SCREW 3/8-16 X 1-1/4
4 PT34065004 LOCK WASHER 3/8
5 PT34065005 FLAT WASHER 3/8
6 PT34065006 DRILL BI T 4MM
7 PT34065007 DRILL BI T 5/16
8 PT34065008 PLUG TAP 3/8-16
5
3
4
7. Remove mounting template.
8. Enlarge all (6) pilot holes using 5⁄16" drill bit.
Use 3⁄8"-16 plug tap to cut threads clockwise
9.
in freshly drilled holes.
-2-
Please Note: We do our best to stock replace-
ment parts when possible, but we cannot guarantee that all parts shown are available for purchase.
Call (800) 523-4777 or visit www.grizzly.com/
parts to check for availability.
Model T34065 (Mfd. 12/23)
