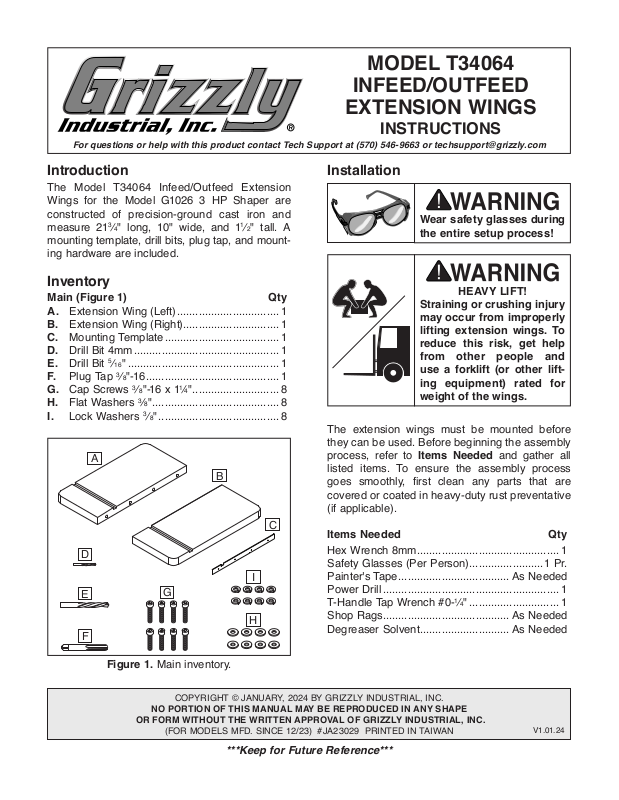

Page 1
MODEL T34064
INFEED/OUTFEED
EXTENSION WINGS
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction Installation
The Model T34064 Infeed/Outfeed Extension
Wings for the Model G1026 3 HP Shaper are
constructed of precision-ground cast iron and
measure 21
mounting template, drill bits, plug tap, and mounting hardware are included.
3
⁄4" long, 10" wide, and 11⁄2 " tall. A
Wear safety glasses during
the entire setup process!
Inventory
Main (Figure 1) Qty
A. Extension Wing (Left) ................................. 1
Extension Wing (Right) ............................... 1
B.
Mounting Template ..................................... 1
C.
Drill Bit 4mm ............................................... 1
D.
Drill Bit 5⁄16 " ................................................. 1
E.
Plug Tap 3⁄8"-16 ........................................... 1
F.
Cap Screws 3⁄8"-16 x 11⁄4" ............................ 8
G.
Flat Washers 3⁄8" ......................................... 8
H.
Lock Washers 3⁄8" ....................................... 8
I.
A
B
C
D
I
E
F
G
H
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting extension wings. To
reduce this risk, get help
from other people and
use a forklift (or other lifting equipment) rated for
weight of the wings.
The extension wings must be mounted before
they can be used. Before beginning the assembly
process, refer to Items Needed and gather all
listed items. To ensure the assembly process
goes smoothly, first clean any parts that are
covered or coated in heavy-duty rust preventative
(if applicable).
Items Needed Qty
Hex Wrench 8mm .............................................. 1
Safety Glasses (Per Person)
Painter's Tape
Power Drill
T-Handle Tap Wrench #0Shop Rags
Degreaser Solvent
.................................... As Needed
......................................................... 1
......................................... As Needed
............................. As Needed
........................ 1 Pr.
1
⁄4" ............................. 1
Figure 1. Main inventory.
COPYRIGHT © JANUARY, 2024 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 12/23) #JA23029 PRINTED IN TAIWAN
***Keep for Future Reference***
V1.01.24
Page 2
To install extension wings:
9 PT34064009 MOUNTI NG TEMPLATE
1. DISCONNECT MACHINE FROM POWER!
2. Clean and inspect machine table edges.
IMPORTANT: Models manufactured after
12/23 come with pre-drilled screw holes.
If your Model G1026 has pre-drilled screw
holes on both sides, proceed to Step 10.
3. Align mounting template with top edge of
table (see Figure 2), and ensure key on
mounting template is aligned with table miter
slot.
Mounting
Template
Miter Slot
Key
Figure 2. Positioning mounting template.
x 4
x 4
Figure 3. Attaching extension wings.
T34064 Parts Breakdown & List
3
5
1
4
6
7
8
9
5
3
2
4
4. Tape mounting template in place.
Use 4mm bit to drill pilot holes through
5.
table at each of (4) guide holes in mounting
template.
6. Repeat Steps 3–5 on opposite side of table.
7. Remove mounting template.
8. Enlarge all eight pilot holes using 5⁄16" drill bit.
Use 3⁄8"-16 plug tap to cut threads clockwise
9.
in drilled holes.
Align extension wings with tapped holes and
10.
secure with (8) 3⁄8"-16 x 11⁄4" cap screws,
3
⁄8" lock washers, and 3⁄8" flat washers (see
Figure 3).
REF PART # DES CRIPTI ON
1 PT34064001 EXTENSION WING (LEFT)
2 PT34064002 EXTENSI O N WI NG (RI GHT)
3 PT34064003 CAP SCREW 3/8-16 X 1-1/4
4 PT34064004 LOCK WASHER 3/8
5 PT34064005 FLAT WASHER 3/8
6 PT34064006 DRILL BI T 4MM
7 PT34064007 DRILL BI T 5/16
8 PT34064008 PLUG TAP 3/8-16
Please Note: We do our best to stock replace-
ment parts when possible, but we cannot guarantee that all parts shown are available for purchase.
Call (800) 523-4777 or visit www.grizzly.com/
parts to check for availability.
-2-
Model T34064 (Mfd. 12/23)
