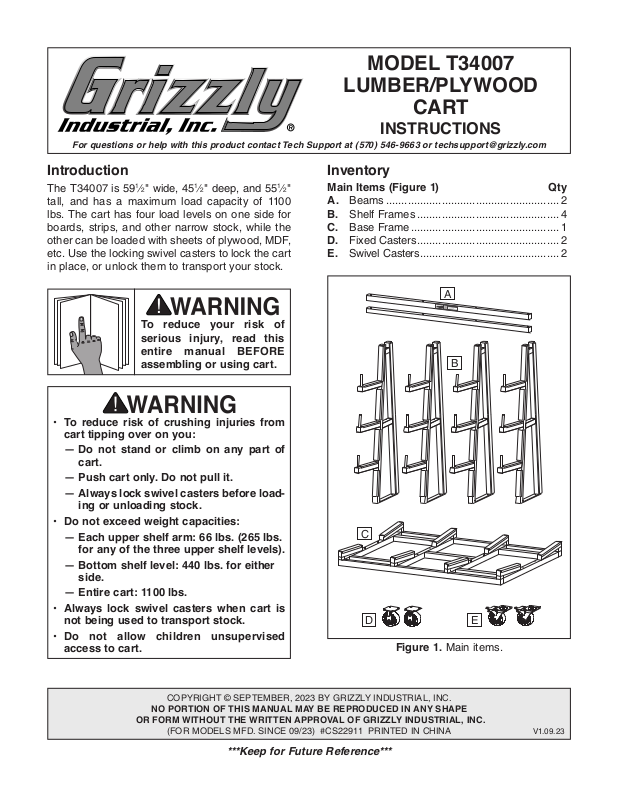

Page 1
MODEL T34007
LUMBER/PLYWOOD
CART
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T34007 is 591⁄2 " wide, 451⁄2 " deep, and 551⁄2 "
tall, and has a maximum load capacity of 1100
lbs. The cart has four load levels on one side for
boards, strips, and other narrow stock, while the
other can be loaded with sheets of plywood, MDF,
etc. Use the locking swivel casters to lock the cart
in place, or unlock them to transport your stock.
To reduce your risk of
serious injury, read this
entire manual BEFORE
assembling or using cart.
• To reduce risk of crushing injuries from
cart tipping over on you:
— Do not stand or climb on any part of
cart.
— Push cart only. Do not pull it.
— Always lock swivel casters before load-
ing or unloading stock.
• Do not exceed weight capacities:
— Each upper shelf arm: 66 lbs. (265 lbs.
for any of the three upper shelf levels).
— Bottom shelf level: 440 lbs. for either
side.
— Entire cart: 1100 lbs.
• Always lock swivel casters when cart is
not being used to transport stock.
• Do not allow children unsupervised
access to cart.

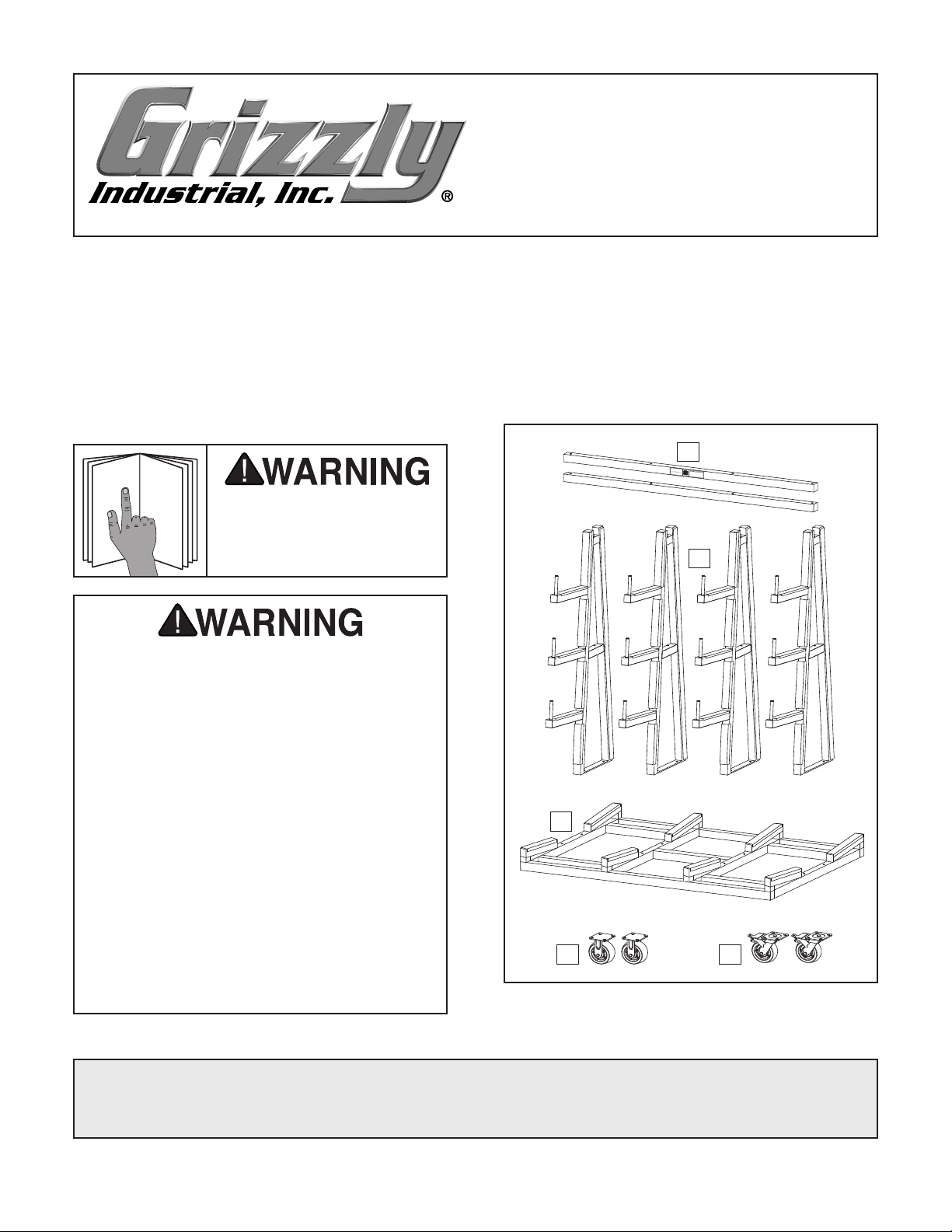

Inventory
Main Items (Figure 1) Qty
A. Beams ........................................................ 2
B. Shelf Frames .............................................. 4
C. Base Frame ................................................ 1
D. Fixed Casters .............................................. 2
E. Swivel Casters ............................................. 2
A
MODEL T34007
LUMBER/PLYWOOD CART
WARNING!
To reduce risk of serious injury when using cart:
1. Read and understand owner’s manual before using.
Date
2. Ensure cart is correctly set up before using.
SN
3. Never climb or stand on cart.
Mfd. for Grizzly in China
4. Always lock casters after moving.
5. Do not exceed weight capacities (upper levels: 265
lbs., bottom level: 440 lbs., total: 1100 lbs.).
B
C
D
Figure 1. Main items.
E
COPYRIGHT © SEPTEMBER, 2023 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 09/23) #CS22911 PRINTED IN CHINA
***Keep for Future Reference***
V1.0 9.23
Page 2

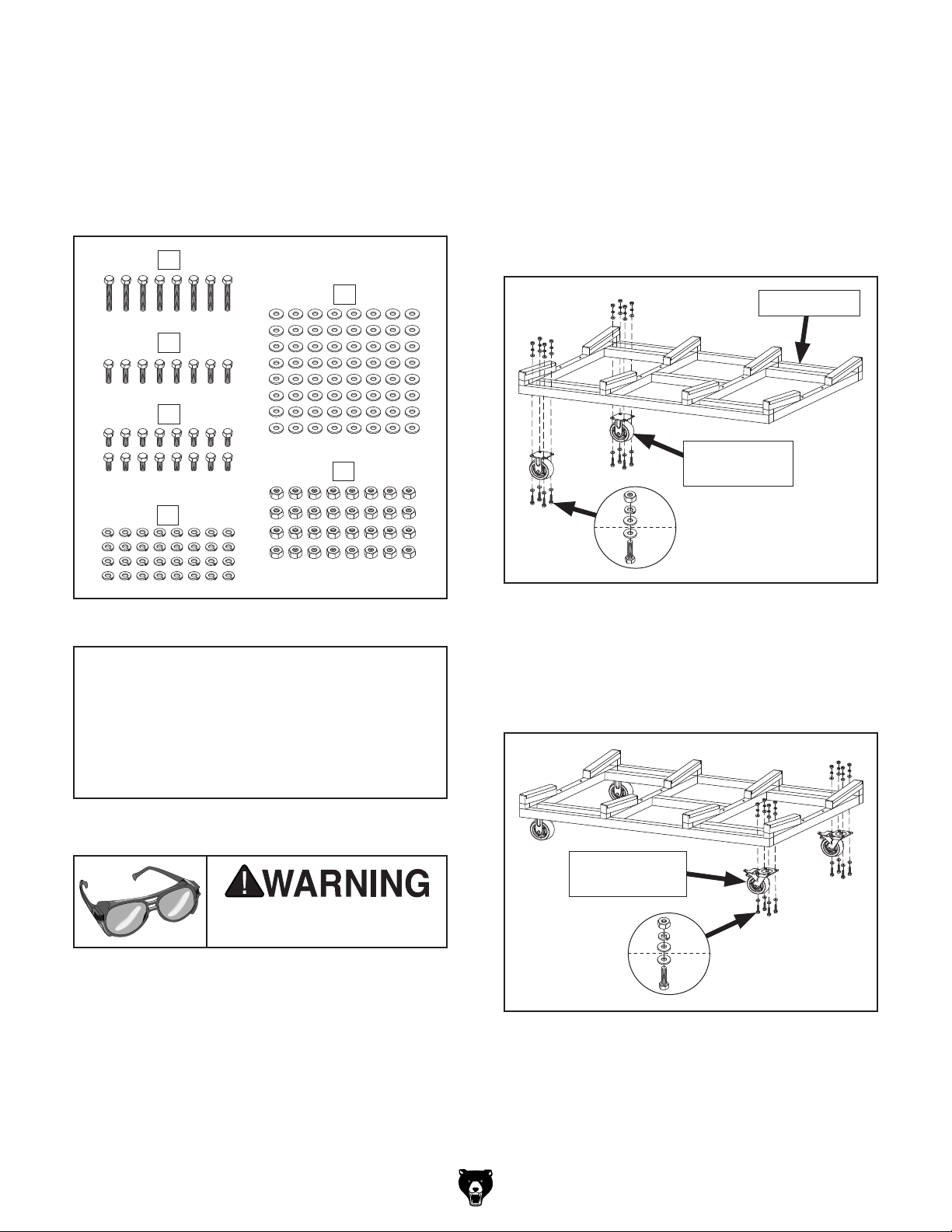

Fasteners (Figure 2) Qty
F. Hex Bolts M10-1.5 x 100............................. 8
G. Flat Washers 10mm ................................. 64
H. Hex Bolts M10-1.5 x 65 .............................. 8
I. Hex Bolts M10-1.5 x 25 ............................ 16
J. Hex Nuts M10-1.5 ...................................... 32
K. Lock Washers 10mm ................................ 32
F
To assemble cart:
1. Attach (2) fixed casters to base frame with
(8) M10-1.5 hex nuts, (8) 10mm lock washers,
(16) 10mm flat washers, and (8) M10-1.5 x 25
hex bolts (see Figure 3).
Note: Finger tighten all fasteners until told
otherwise later in instructions.
G
H
I
J
K
Figure 2. Fasteners.
NOTICE
If you cannot find an item on this list, carefully check around/inside the packaging
materials. Often, these items get lost in
packaging materials while unpacking or
they are pre-installed at the factory.
Base Frame
Fixed Caster
(1 of 2)
x 8
Figure 3. Attaching fixed casters to base frame.
2. Attach (2) swivel casters to base frame with
(8) M10-1.5 hex nuts, (8) 10mm lock washers,
(16) 10mm flat washers, and (8) M10-1.5 x 25
hex bolts (see Figure 4).
Assembly
Wear safety glasses during
the entire setup process!
Items Needed Qty
Safety Glasses (for each person) ................. 1 Pr.
Wrenches or Sockets 17mm .............................. 2
90˚ Square ......................................................... 1
-2-
Swivel Caster
(1 of 2)
x 8
Figure 4. Attaching swivel casters to base
frame.

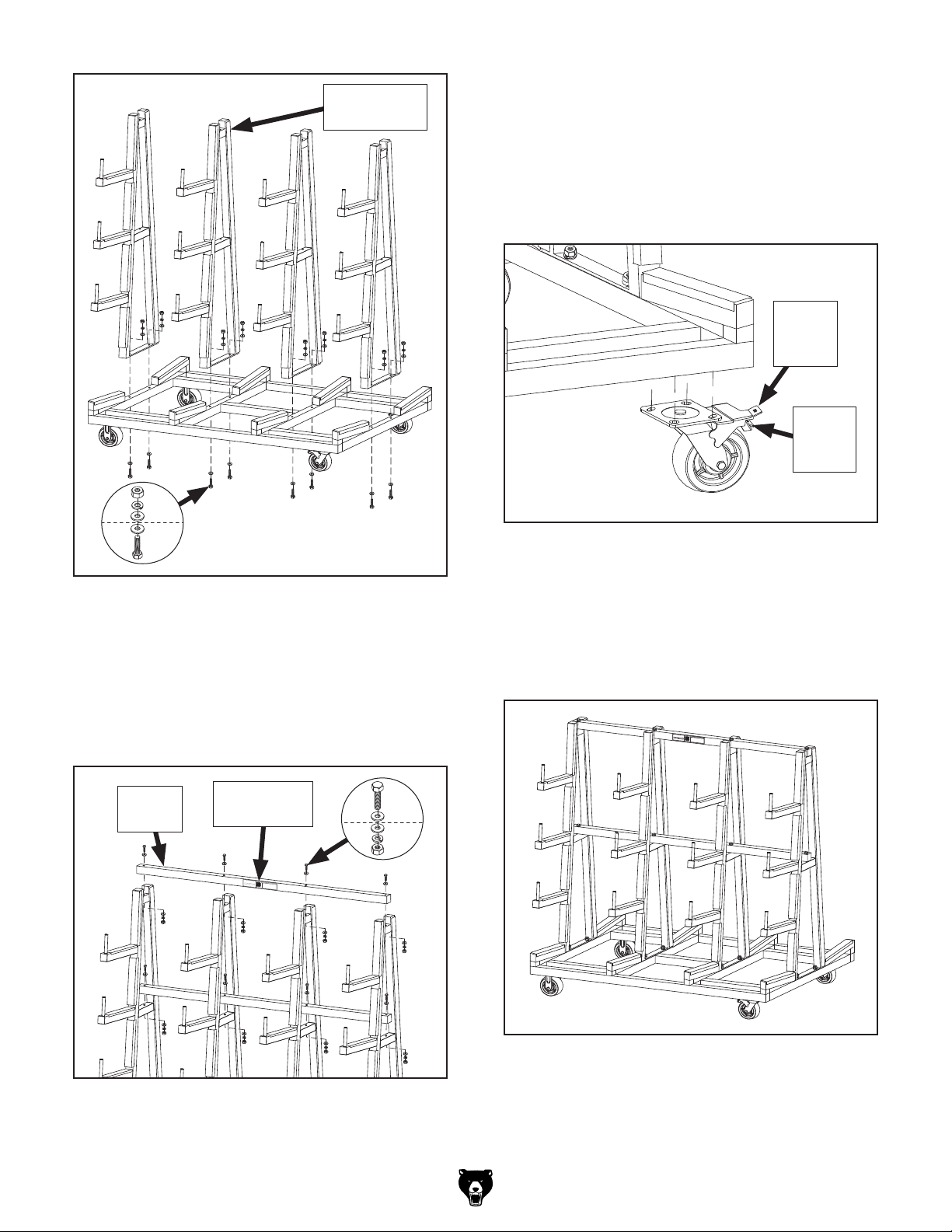

3. Attach (4) shelf frames to base frame with (8)
M10-1.5 hex nuts, (8) 10mm lock washers,
(16) 10mm flat washers, and (8) M10-1.5 x 65
hex bolts (see Figure 5).
Model T34007 (Mfd. Since 09/23)
Page 3
Shelf Frame
(1 of 4)
Locking Cart
When the Model T34007 is not being used to
transport stock, store the cart on a flat surface
and lock the two swivel casters. To lock the swivel
casters, press down on the caster lock pedals
(see Figure 7). To unlock the swivel casters,
press down on the caster unlock pedals.
Caster
Unlock
Pedal
Caster
Lock
Pedal
x 8
Figure 5. Attaching shelf frames to base frame.
4. Attach (2) beams to shelf frames with (8) M10-
1.5 x 100 hex bolts, (16) 10mm flat washers,
(8) 10mm lock washers, and (8) M10-1.5 hex
nuts (see Figure 6). Beam with machine ID
label should be installed on top and ID label
should face same direction as shelves.
Beam
(1 of 2)
Machine ID
Label
MODEL T34007
LUMBER/PLYWOOD CART
WARNING!
To reduce risk of serious injury when using cart:
1. Read and understand owner’s manual before using.
Date
2. Ensure cart is correctly set up before using.
SN
3. Never climb or stand on cart.
Mfd. for Grizzly in China
4. Always lock casters after moving.
5. Do not exceed weight capacities (upper levels: 265
lbs., bottom level: 440 lbs., total: 1100 lbs.).
x 8
Figure 7. Swivel caster in locked position.
Moving Cart
After loading the cart, unlock the swivel casters,
then push the cart from the rear, as shown in
Figure 8. Steering the cart with the swivel casters
at the rear will provide more control.
MODEL T34007
LUMBER/PLYWOOD CART
WARNING!
To reduce risk of serious injury when using cart:
1. Read and understand owner’s manual before using.
Date
2. Ensure cart is correctly set up before using.
SN
3. Never climb or stand on cart.
Mfd. for Grizzly in China
4. Always lock casters after moving.
5. Do not exceed weight capacities (upper levels: 265
lbs., bottom level: 440 lbs., total: 1100 lbs.).
Front
Rear
Figure 6. Attaching beams to shelf frames.
5. Square beams and frames, then tighten all
fasteners.
Model T34007 (Mfd. Since 09/23)
Figure 8. Front and rear of cart.
-3-
Page 4
21

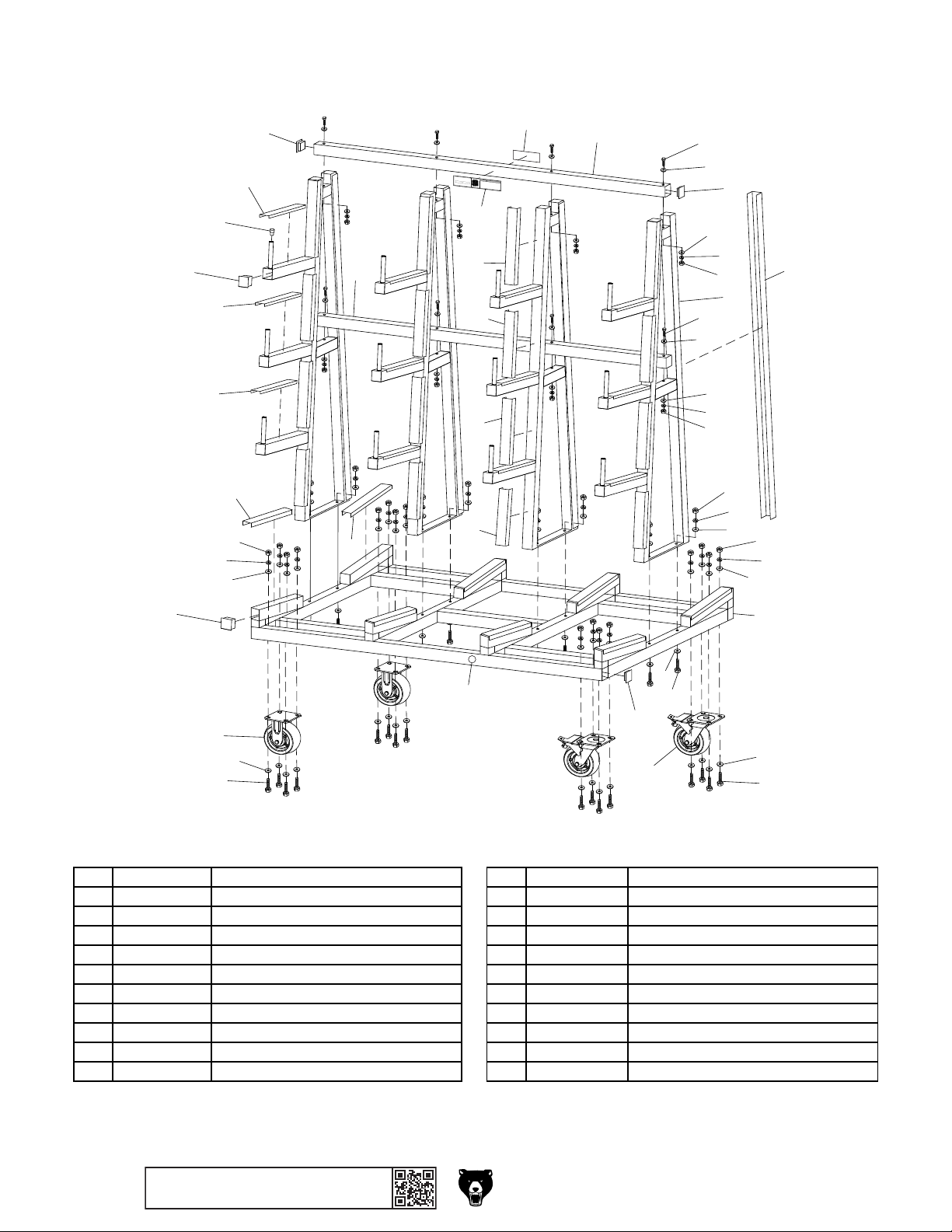

T34007 Parts Breakdown & List
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
9
MODEL T34007
LUMBER/PLYWOOD CART
WARNING!
To reduce risk of serious injury when using cart:
10
11
9
1
10
1. Read and understand owner’s manual before using.
Date
2. Ensure cart is correctly set up before using.
SN
3. Never climb or stand on cart.
Mfd. for Grizzly in China
4. Always lock casters after moving.
5. Do not exceed weight capacities (upper levels: 265
lbs., bottom level: 440 lbs., total: 1100 lbs.).
20
17
18
1
5
6
9
6
7
8
13
2
5
6
10
18
12
6
7
8
8
7
19
8
12
7
6
6
8
7
6
9
3
6
22
15
9
14
6
16
16
6
4
REF PART # DES CRIP TION REF PART # DES CRIP TION
1 PT34007001 BEAM 12 PT34007012 SHELF COVER 14-1/4" X 1-9/16"
2 PT34007002 SHELF FRAME 13 PT34007013 SHELF COVER 50-1/2" X 1-9/16"
3 PT34007003 BASE FRAME 14 PT34007014 CASTER, 5" FIXED
4 PT34007004 CASTER, 5" LOCKING SWIVEL 15 PT34007015 HEX BOLT M10-1.5 X 65
5 PT34007005 HEX BOLT M10-1.5 X 100 16 PT34007016 HEX BOLT M10-1.5 X 25
6 PT34007006 FLAT WASHER 10MM 17 PT34007017 SHELF COVER 11-5/8" X 1-9/16"
7 PT34007007 LOCK WASHER 10MM 18 PT34007018 SHELF COVER 8-1/4" X 1-9/16"
8 PT34007008 HEX NUT M10-1.5 19 PT34007019 SHELF COVER 6-3/8" X 1-9/16"
9 PT34007009 END CAP 20 PT34007020 MACHINE ID LABEL
10 PT34007010 SHELF COVER 13-1/4" X 1-9/16" 21 PT34007021 GRIZZLY LOGO LABEL
11 PT34007011 BUMPER PLUG 22 PT34007022 TOUCH-UP PAINT, GRIZZLY BLACK
-4-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T34007 (Mfd. Since 09/23)
