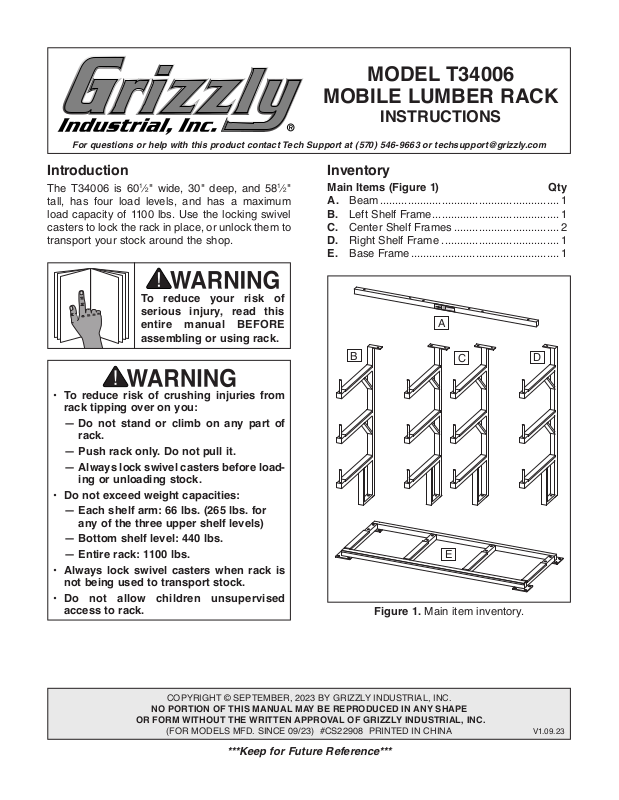

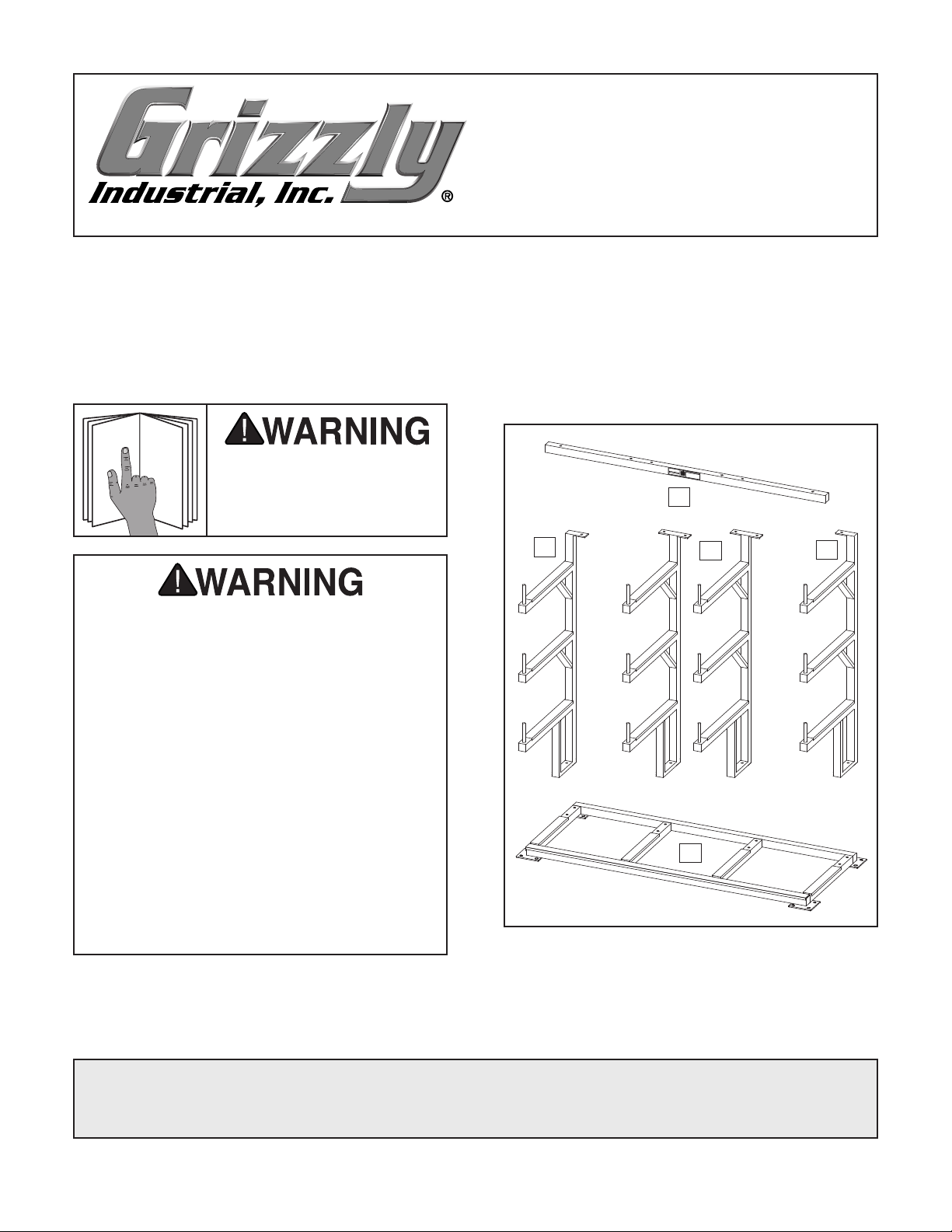

MODEL T34006
MOBILE LUMBER RACK
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T34006 is 601⁄2 " wide, 30" deep, and 581⁄2 "
tall, has four load levels, and has a maximum
load capacity of 1100 lbs. Use the locking swivel
casters to lock the rack in place, or unlock them to
transport your stock around the shop.
To reduce your risk of
serious injury, read this
entire manual BEFORE
assembling or using rack.
• To reduce risk of crushing injuries from
rack tipping over on you:
— Do not stand or climb on any part of
rack.
— Push rack only. Do not pull it.
— Always lock swivel casters before load-
ing or unloading stock.
• Do not exceed weight capacities:
— Each shelf arm: 66 lbs. (265 lbs. for
any of the three upper shelf levels)
— Bottom shelf level: 440 lbs.
— Entire rack: 1100 lbs.
• Always lock swivel casters when rack is
not being used to transport stock.
• Do not allow children unsupervised
access to rack.
Inventory
Main Items (Figure 1) Qty
A. Beam .......................................................... 1
B. Left Shelf Frame ......................................... 1
C. Center Shelf Frames .................................. 2
D. Right Shelf Frame ...................................... 1
E. Base Frame ................................................ 1
MODEL T34006
MOBILE LUMBER RACK
WARNING!
To reduce risk of serious injury when using rack:
Date
1. Read and understand owner’s manual before using.
SN
Mfd. for Grizzly in China
2. Ensure rack is correctly set up before using.
3. Never climb or stand on rack.
4. Always lock casters after moving.
5. Do not exceed weight capacities (upper levels: 265
lbs., bottom level: 440 lbs., entire cart: 1100 lbs.).
A
B
C
E
Figure 1. Main item inventory.
D
COPYRIGHT © SEPTEMBER, 2023 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 09/23) #CS22908 PRINTED IN CHINA
***Keep for Future Reference***
V1.0 9.23

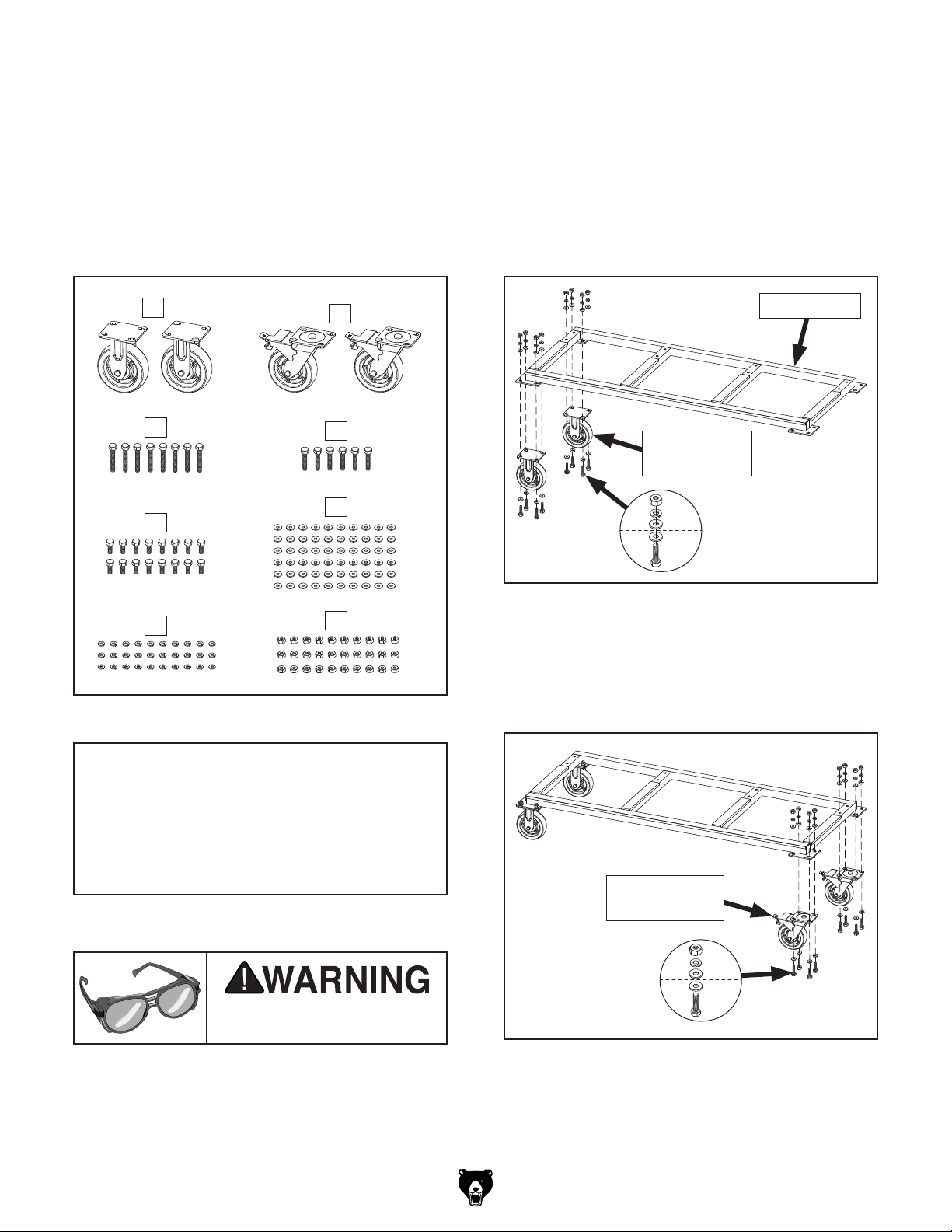

Page 2
Small Items (Figure 2) Qty
F. Fixed Casters .............................................. 2
G. Swivel Casters ............................................. 2
H. Hex Bolts M10-1.5 x 80 .............................. 8
I. Hex Bolts M10-1.5 x 65 .............................. 6
J. Hex Bolts M10-1.5 x 25 ............................ 16
K. Flat Washers 10mm ................................. 60
L. Lock Washers 10mm ................................ 30
M. Hex Nuts M10-1.5 ...................................... 30
To assemble rack:
1. Attach (2) fixed casters to base frame with
(8) M10-1.5 hex nuts, (8) 10mm lock washers,
(16) 10mm flat washers, and (8) M10-1.5 x 25
hex bolts (see Figure 3).
Note: Finger tighten all fasteners until told
otherwise later in instructions.
F
H
J
L
Figure 2. Small item inventory.
G
I
K
M
Base Frame
Fixed Caster
(1 of 2)
x 8
Figure 3. Attaching fixed casters to base frame.
2. Attach (2) swivel casters to base frame with
(8) M10-1.5 hex nuts, (8) 10mm lock washers,
(16) 10mm flat washers, and (8) M10-1.5 x 25
hex bolts (see Figure 4).
NOTICE
If you cannot find an item on this list, carefully check around/inside the packaging
materials. Often, these items get lost in
packaging materials while unpacking or
they are pre-installed at the factory.
Assembly
Wear safety glasses during
the entire setup process!
Items Needed Qty
Safety Glasses (for each person) ................. 1 Pr.
Wrenches or Sockets 17mm .............................. 2
90˚ Square ......................................................... 1
-2-
Swivel Caster
(1 of 2)
x 8
Figure 4. Attaching swivel casters to base
frame.
Model T34006 (Mfd. Since 09/23)

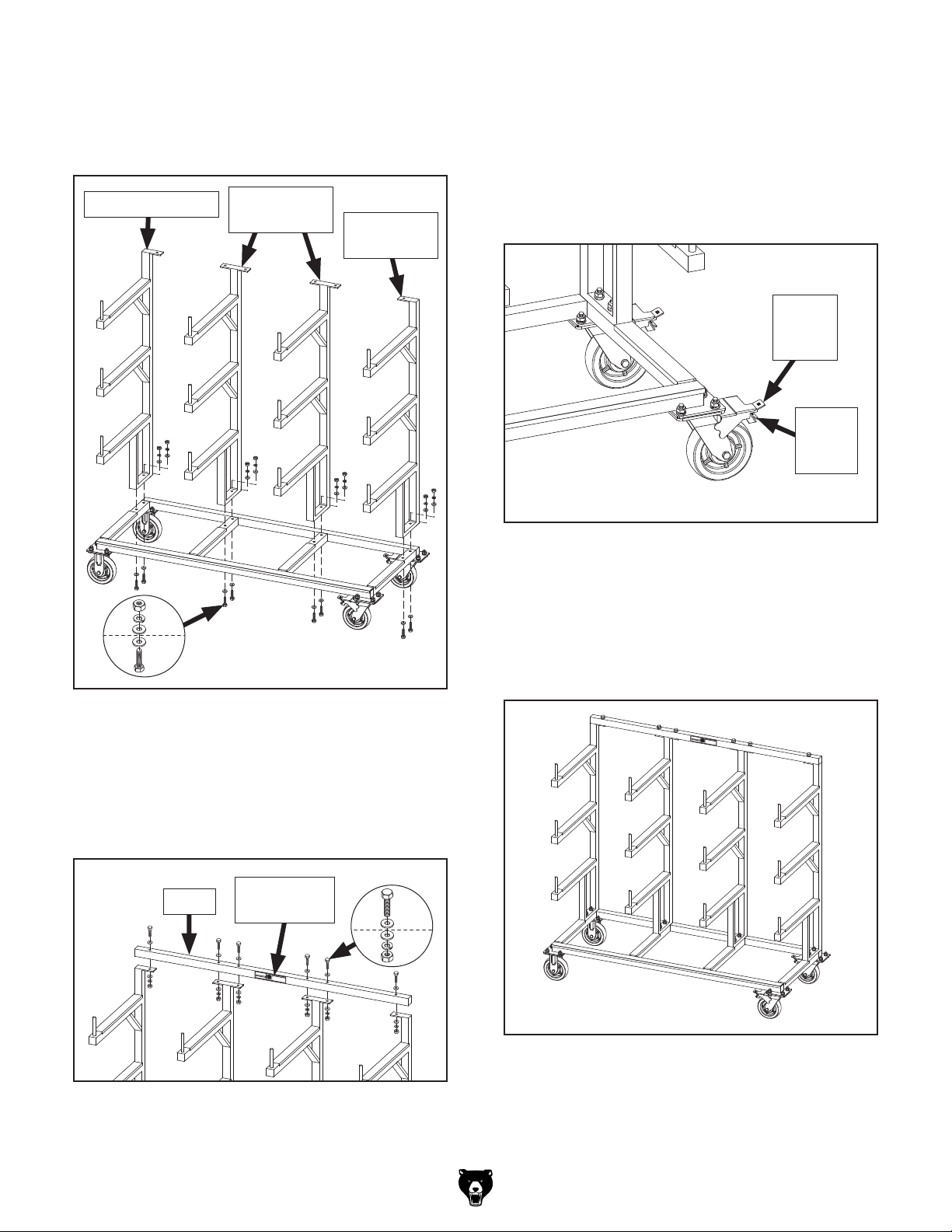

Page 3
3. Attach (4) shelf frames to base frame with (8)
M10-1.5 hex nuts, (8) 10mm lock washers,
(16) 10mm flat washers, and (8) M10-1.5 x 80
hex bolts (see Figure 5).
Left Shelf Frame
Center Shelf
Frames
Right Shelf
Frame
Locking Rack
When the Model T34006 is not being used to
transport stock, store the rack on a flat surface
and lock the two swivel casters. To lock the swivel
casters, press down on the caster lock pedals
(see Figure 7). To unlock the swivel casters,
press down on the caster unlock pedals.
Caster
Unlock
Pedal
Caster
Lock
Pedal
x 8
Figure 5. Attaching shelf frames to base frame.
4. Attach beam to shelf frames with (6) M10-1.5
x 65 hex bolts, (12) 10mm flat washers, (6)
10mm lock washers, and (6) M10-1.5 hex
nuts (see Figure 6). Machine ID label should
face same direction as shelves.
Beam
Machine ID
Label
MODEL T34006
MOBILE LUMBER RACK
WARNING!
To reduce risk of serious injury when using rack:
Date
1. Read and understand owner’s manual before using.
SN
Mfd. for Grizzly in China
2. Ensure rack is correctly set up before using.
3. Never climb or stand on rack.
4. Always lock casters after moving.
5. Do not exceed weight capacities (upper levels: 265
lbs., bottom level: 440 lbs., entire cart: 1100 lbs.).
x 6
Figure 7. Swivel caster in locked position.
Moving Rack
After loading the rack, unlock the swivel casters,
then push the rack from the rear, as shown in
Figure 8. Steering the rack with the swivel casters
at the rear will provide more control.
MODEL T34006
MOBILE LUMBER RACK
WARNING!
To reduce risk of serious injury when using rack:
Date
1. Read and understand owner’s manual before using.
SN
Mfd. for Grizzly in China
2. Ensure rack is correctly set up before using.
3. Never climb or stand on rack.
4. Always lock casters after moving.
5. Do not exceed weight capacities (upper levels: 265
lbs., bottom level: 440 lbs., entire cart: 1100 lbs.).
Front
Rear
Figure 6. Attaching beam to shelf frames.
5. Square beam and frames, then tighten all
fasteners.
Model T34006 (Mfd. Since 09/23)
Figure 8. Front and rear of rack.
-3-
Page 4
16

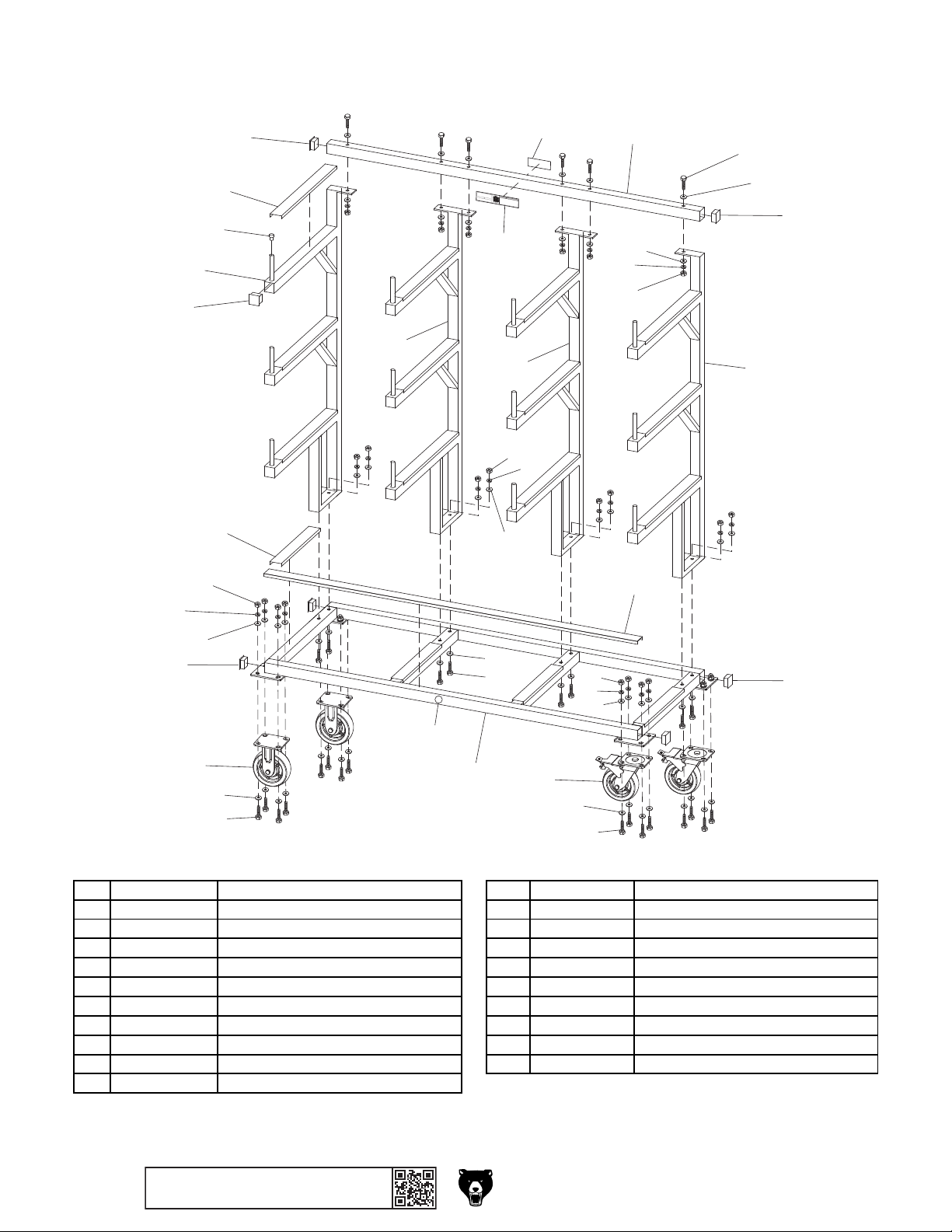

T34006 Parts Breakdown & List
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
9
18
10
11
12
9
19
1
5
MOBILE LUMBER RACK
MODEL T34006
WARNING!
To reduce risk of serious injury when using rack:
Date
1. Read and understand owner’s manual before using.
SN
Mfd. for Grizzly in China
2. Ensure rack is correctly set up before using.
3. Never climb or stand on rack.
4. Always lock casters after moving.
5. Do not exceed weight capacities (upper levels: 265
lbs., bottom level: 440 lbs., entire cart: 1100 lbs.).
6
9
20
6
7
8
17
17
2
8
7
6
8
13
7
6
9
6
15
8
9
7
6
21
14
6
3
4
6
16
REF PART # DES CRIP TION REF PART # DES CRIP TION
1 PT34006001 BEAM 12 PT34006012 SHELF COVER 13-3/4" X 1-9/16"
2 PT34006002 SHELF FRAME RIGHT 13 PT34006013 SHELF COVER 60-1/4" X 1-9/16"
3 PT34006003 BASE FRAME 14 PT34006014 CASTER, 5" FIXED
4 PT34006004 CASTER, 5" LOCKING SWIVEL 15 PT34006015 HEX BOLT M10-1.5 X 80
5 PT34006005 HEX BOLT M10-1.5 X 65 16 PT34006016 HEX BOLT M10-1.5 X 25
6 PT34006006 FLAT WASHER 10MM 17 PT34006017 SHELF FRAME CENTER
7 PT34006007 LOCK WASHER 10MM 18 PT34006018 SHELF FRAME LEFT
8 PT34006008 HEX NUT M10-1.5 19 PT34006019 GRIZZLY LOGO LABEL
9 PT34006009 END CAP 20 PT34006020 MACHINE ID LABEL
10 PT34006010 SHELF COVER 20-7/8" X 1-9/16" 21 PT34006021 TOUCH-UP PAINT, GRIZZLY BLACK
11 PT34006011 BUMPER PLUG
-4-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
