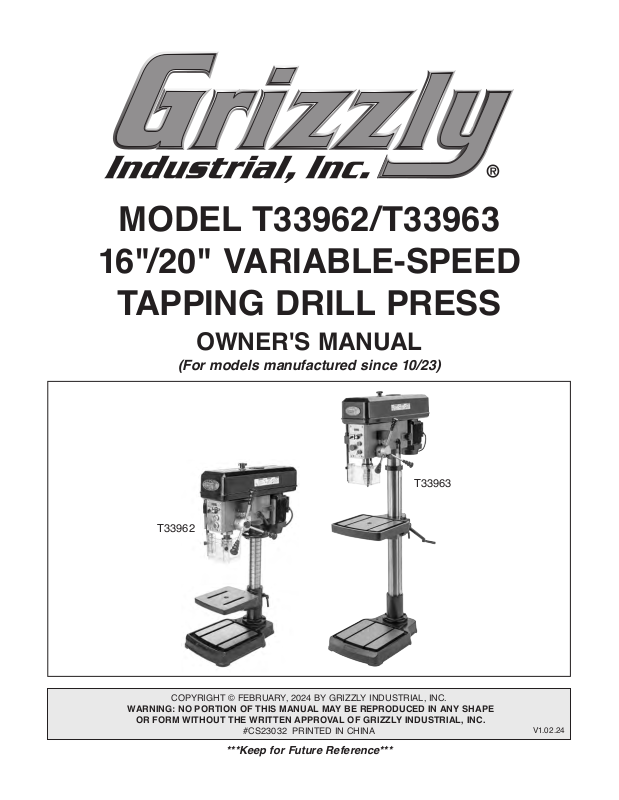

Page 1
MODEL T33962/T33963
16"/20" VARIABLE-SPEED
TAPPING DRILL PRESS
OWNER'S MANUAL
(For models manufactured since 10/23)
T33963
T33962
COPYRIGHT © FEBRUARY, 2024 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#CS23032 PRINTED IN CHINA
***Keep for Future Reference***
V1.0 2.24
Page 2
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Page 3
Table of Contents
INTRODUCTION ............................................... 2
Contact Info
Manual Accuracy
Identification
Controls & Components
Machine Data Sheet (T33962)
Machine Data Sheet (T33963)
SECTION 1: SAFETY
Safety Instructions for Machinery
Additional Safety for Drill Presses
SECTION 2: POWER SUPPLY
SECTION 3: SETUP
Needed for Setup
Unpacking
Inventory
Cleanup
Site Considerations
Bench Mounting (T33962)
Anchoring to Floor (T33963)
Assembly
Joining Drill Chuck & Arbor
Test Run
Spindle Break-In
SECTION 4: OPERATIONS
Operation Overview
Installing/Removing Arbor
Installing/Removing Cutting Tool
Positioning Table
Positioning Headstock
Adjusting Depth Stop
Adjusting Laser Guide
Spindle Speed
Drilling Spindle Speed Chart
Changing Spindle Speed Range
Drilling
Tapping
................................................... 2
........................................... 2
................................................... 3
................................. 4
...................... 7
...................... 9
..................................... 11
.................11
............... 13
...................... 14
....................................... 16
......................................... 16
.................................................... 16
...................................................... 17
........................................................ 18
...................................... 19
........................... 20
........................ 20
..................................................... 21
.......................... 24
....................................................... 24
.......................................... 27
............................ 29
..................................... 29
............................ 30
................. 32
.......................................... 32
................................ 33
................................... 34
................................. 35
............................................. 36
....................... 37
................. 38
.......................................................... 39
........................................................ 40
SECTION 5: ACCESSORIES
SECTION 6: MAINTENANCE
Schedule
Cleaning & Protecting
Lubrication
SECTION 7: SERVICE
Troubleshooting
Aligning Motor Pulley
Calibrating Depth Stop
Replacing LED/Laser Modules
SECTION 8: WIRING
Wiring Safety Instructions
Wiring Overview
Control Panel Wiring
Electrical Box Front Wiring Diagram
Electrical Box Rear Wiring Diagram
Depth Stop Micro Switch Wiring
Chip Guard Safety Switch Wiring
LED & Laser Module Wiring
Belt Cover Wiring
Motor Wiring
SECTION 9: PARTS
T33962 Main
T33963 Main
Labels & Cosmetics
WARRANTY & RETURNS
...................................................... 43
................................................... 43
................................... 45
........................................... 45
................................... 49
...................................... 54
........................................... 55
.................................... 56
......................................... 61
................................................ 61
....................................... 62
................................................ 62
................................................ 65
..................................... 68
......................... 42
......................... 43
.................................. 43
................................. 50
............................ 54
........................ 60
.............................. 69
.................... 51
............ 57
............ 58
.................. 60
................ 60
Page 4
We stand behind our machines! If you have questions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
from the
machine ID label. This will help us help you faster.
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Email: manuals@grizzly.com
We are proud to provide a high-quality owner’s
manual with your new machine!
We
instructions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
you receive is
slightly different than shown in the manual
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
check our
website for an updated version. W
current
manuals and
on our web-
site at
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the
serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.
INTRODUCTION
Contact Info
and manufacture date
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: (570) 546-9663
Email: techsupport@grizzly.com
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Manual Accuracy
made every effort to be exact with the
sometimes the machine
.
,
e post
manual updates for free
www.grizzly.com.
manufacture date and
Manufacture Date
Serial Number
-2-
Model T33962/T33963 (Mfd. Since 10/23)
Page 5
Identification
Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
Downfeed
Handle
(1 of 3)
Chip Guard
Lock Knob
(1 of 2)
Belt Cover
Belt Cover
Lock Knob
Motor
LED &
Laser Guide
Control
Panel
Depth Stop
& Scale
Chip Guard
Belt Tension
Lock Knob
(1 of 2)
Headstock
Lock Lever
Depth Stop
Lock Knob
Column
Headstock
Handwheel
(T33962 Only)
T33962 T33963
Chuck, Quill,
& Spindle
Table
Base
For Your Own Safety Read Instruction Manual Before Operating Drill Press
a) Wear eye protection.
b) Do not wear gloves, necktie, or loose clothing.
c) Clamp workpiece or brace against column to prevent rotation.
d) Use recommended speed for drill accessory and workpiece material.
Model T33962/T33963 (Mfd. Since 10/23)
-3-
Page 6
Controls &
To reduce your risk of
serious injury, read this
entire manual BEFORE
Components
B. Spindle Reverse Indicator Light: Illuminates
when spindle is turning counterclockwise
(when viewed from above) while tapping.
C. Spindle Speed Dial: Adjusts spindle speed
between 0–600 RPM when configured for low
speed range, or between 0–2100 RPM when
configured for high speed range.
D. Spindle ON Button: Starts spindle rotation.
using machine.
Refer to the following figures and descriptions to
become familiar with the basic controls and components of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.
Control Panel
A
B
J
C
E. Spindle OFF Button: Stops spindle rotation.
F. LED Button: Turns LED ON or OFF.
G. Laser Button: Turns laser guide ON or OFF.
H. REVERSE TAPPING Button: Reverses
spindle rotation while tapping to clear chips.
I. Emergency Stop Button: Turns machine
OFF and prevents it from turning ON. To
reset, twist button clockwise until it pops out.
J. Mode Switch: Selects drilling (D), tapping
(T), or neutral (0) operation mode.
LED & Laser Guide
K
D
I
E
H
F
G
Figure 1. Control panel components.
A. Spindle Speed Digital Readout: Displays
spindle speed (RPM).
-4-
L
Figure 2. LED & laser guide components
(T33963 shown).
K. LED: Illuminates work area.
L. Laser Guide: Projects crosshairs on table to
align workpiece to cutting tool.
Model T33962/T33963 (Mfd. Since 10/23)
Page 7
Headstock
M
S
Figure 3. Right headstock components (T33963
shown).
M. Belt Cover: Protects user from revolving pul-
leys and V-belts; removes for speed range
changes, maintenance, and service. When
belt cover is removed, safety switch stops
spindle and prevents it from starting.
N. Belt Cover Lock Knob: Secures belt cover.
O. Belt Tension Lock Knob (1 of 2): Locks
motor position.
N
O
P
Q
R
T
V
U
Figure 4. Left headstock components (T33962
shown).
T. Spindle Return Spring: Automatically
returns quill into headstock.
U. Chip Guard: Protects user from flying debris.
When chip guard is opened, micro switch
stops spindle and prevents it from starting.
Adjusts up and down and pivots out of the
way for tooling changes and maintenance.
V. Chip Guard Lock Knob (1 of 2): Loosens
to allow adjustment of chip guard extension;
tightens to secure chip guard extension.
P. Headstock Lock Lever: Loosens to allow
adjustment of headstock rotation on column;
tightens to lock headstock rotation.
Note: Model T33962 has additional head-
stock height adjustment.
Q. Downfeed Handle (1 of 3): Moves spindle
down when pulled down. Spindle automatically returns to top position when released.
R. Depth Stop Lock Knob: Loosens to allow
adjustment of depth stop; tightens to lock
depth stop.
S. Depth Stop & Scale: Displays spindle travel
and stops spindle travel at predetermined
drilling depth.
W
X
Figure 5. Under headstock components.
W. Quill: Houses spindle and spindle bearings.
X. Chuck: Accepts up to 5⁄8" shank cutting tools.
Model T33962/T33963 (Mfd. Since 10/23)
-5-
Page 8
Y
Figure 6. Headstock handwheel.
Table (T33963)
AB
AC
Y. Headstock Handwheel (T33962 Only):
Adjusts headstock up and down.
Table (T33962)
Z
AA
Figure 7. T33962 main table components.
Z. Tilt Scale: Displays current table tilt angle.
Figure 8. T33963 table components.
AB. Table Lock Handle (1 of 2): Loosens to
allow adjustment of table position on column;
tightens to lock table position.
AC. Table Height Crank: Adjusts table up and
down.
AA. Table Lock Handle: Loosens to allow adjust-
ment of table position on column; tightens to
lock table position.
-6-
Model T33962/T33963 (Mfd. Since 10/23)
Page 9
MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL T33962 16" BENCHTOP VARIABLE-SPEED TAPPING
DRILL PRESS
Product Dimensions:
Weight.............................................................................................................................................................. 194 lbs.
Width (side-to-side) x Depth (front-to-back) x Height............................................................... 16 x 28-1/2 x 39-1/2 in.
Footprint (Length x Width)..................................................................................................................... 20-1/2 x 14 in.
Shipping Dimensions:
Type..................................................................................................................................................... Cardboard Box
Content........................................................................................................................................................... Machine
Weight.............................................................................................................................................................. 204 lbs.
Length x Width x Height....................................................................................................................... 42 x 24 x 17 in.
Electrical:
Power Requirement........................................................................................................... 120V, Single-Phase, 60 Hz
Full-Load Current Rating....................................................................................................................................... 7.8A
Minimum Circuit Size.............................................................................................................................................. 15A
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length.............................................................................................................................................. 72 in.
Power Cord Gauge......................................................................................................................................... 16 AWG
Plug Included.......................................................................................................................................................... Yes
Included Plug Type................................................................................................................................................ 5-15
Switch Type.............................................................................................................................. ON/OFF Push Buttons
Inverter (VFD) Type................................................................................................................................... LSD-C7100
Inverter (VFD) Size............................................................................................................................................... 2 HP
Motors:
Main
Horsepower............................................................................................................................................. 3/4 HP
Phase.................................................................................................................................................... 3-Phase
Amps.............................................................................................................................................................. 3A
Speed.................................................................................................................................................. 910 RPM
Type........................................................................................................................................... TEFC Induction
Power Transfer ............................................................................................................................................ Belt
Bearings..................................................................................................... Shielded & Permanently Lubricated
Model T33962/T33963 (Mfd. Since 10/23)
-7-
Page 10
Main Specifications:
Operation Information
Type.................................................................................................................................................... Benchtop
Swing......................................................................................................................................................... 16 in.
Spindle Taper............................................................................................................................................ MT#2
Spindle Travel.................................................................................................................................... 3-15/16 in.
Max. Distance From Spindle to Column...................................................................................................... 8 in.
Max. Distance From Spindle to Table............................................................................................... 12-9/16 in.
Number of Spindle Speeds................................................................................................................... Variable
Range of Spindle Speeds............................................................................................... 0 - 600, 0 - 2100 RPM
Drilling Capacity (Mild Steel)................................................................................................................... 9/16 in.
Drilling Capacity (Cast Iron)...................................................................................................................... 3/4 in.
Drill Chuck Type................................................................................................................................ JT3 Keyed
Drill Chuck Size........................................................................................................................................ 5/8 in.
Tapping Capacity...................................................................................................................................... 1/2 in.
Spindle Information
Distance From Spindle to Base................................................................................................ 8-5/8 - 21-1/4 in.
Quill Diameter....................................................................................................................................... 2.045 in.
Table Information
Max. Table Tilt (Left/Right)..................................................................................................................... 45 deg.
Table Swivel Around Column............................................................................................................... 360 deg.
Max. Movement of Work Table.......................................................................................................... 8-13/16 in.
Table Length........................................................................................................................................ 11-1/8 in.
Table Width........................................................................................................................................... 9-3/4 in.
Table Thickness.................................................................................................................................. 1-1/16 in.
Floor-To-Table Height.................................................................................................................. 11 - 24-3/8 in.
Construction
Table.................................................................................................................................................... Cast Iron
Column....................................................................................................................................................... Steel
Spindle Housing................................................................................................................................... Cast Iron
Head.................................................................................................................................................... Cast Iron
Base..................................................................................................................................................... Cast Iron
Paint Type/Finish....................................................................................................................... Powder Coated
Other Related Information
Base Length...................................................................................................................................... 20-7/16 in.
Base Width........................................................................................................................................ 13-9/16 in.
Column Diameter................................................................................................................................... 2-3/4 in.
Quill Flange/Collar Diameter............................................................................................................... 2-9/16 in.
Depth Stop Type.......................................................................................................................................... Hub
Has Work Light............................................................................................................................................. Yes
Light Socket Type............................................................................................................................. 3 - 6V LED
Maximum Bulb Wattage............................................................................................................................ 0.5 W
Has Laser Guide.......................................................................................................................................... Yes
Laser Classification................................................................................................................................ Class II
Laser Wavelength.................................................................................................................................... 650nm
Laser Maximum Output.............................................................................................................................. 1mW
Other Specifications:
Country of Origin ................................................................................................................................................ China
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ........................................................................................................ 10 Minutes
Serial Number Location ................................................................................................................... Machine ID Label
ISO 9001 Factory .................................................................................................................................................. Yes
-8-
Model T33962/T33963 (Mfd. Since 10/23)
Page 11
MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL T33963 20" FLOOR VARIABLE-SPEED TAPPING
DRILL PRESS
Product Dimensions:
Weight.............................................................................................................................................................. 437 lbs.
Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 22 x 33-1/2 x 70 in.
Footprint (Length x Width)..................................................................................................................... 26 x 17-1/2 in.
Shipping Dimensions:
Type..................................................................................................................................................... Cardboard Box
Content........................................................................................................................................................... Machine
Weight.............................................................................................................................................................. 496 lbs.
Length x Width x Height....................................................................................................................... 63 x 28 x 24 in.
Electrical:
Power Requirement........................................................................................................... 120V, Single-Phase, 60 Hz
Full-Load Current Rating..................................................................................................................................... 15.2A
Minimum Circuit Size.............................................................................................................................................. 20A
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length.............................................................................................................................................. 72 in.
Power Cord Gauge......................................................................................................................................... 14 AWG
Plug Included.......................................................................................................................................................... Yes
Included Plug Type................................................................................................................................................ 5-15
Switch Type.............................................................................................................................................. Push Button
Inverter (VFD) Type................................................................................................................................... LSD-C7100
Inverter (VFD) Size............................................................................................................................................... 2 HP
Motors:
Main
Horsepower................................................................................................................................................ 1 HP
Phase.................................................................................................................................................... 3-Phase
Amps.............................................................................................................................................................. 4A
Speed.................................................................................................................................................. 910 RPM
Type........................................................................................................................................... TEFC Induction
Power Transfer ............................................................................................................................................ Belt
Bearings..................................................................................................... Shielded & Permanently Lubricated
Model T33962/T33963 (Mfd. Since 10/23)
-9-
Page 12
Main Specifications:
ISO 9001 Factory .................................................................................................................................................. Yes
Operation Information
Type........................................................................................................................................................... Floor
Swing......................................................................................................................................................... 20 in.
Spindle Taper............................................................................................................................................ MT#3
Spindle Travel...................................................................................................................................... 5-5/16 in.
Max. Distance From Spindle to Column.................................................................................................... 10 in.
Max. Distance From Spindle to Table............................................................................................. 31-15/16 in.
Number of Spindle Speeds................................................................................................................... Variable
Range of Spindle Speeds............................................................................................... 0 - 600, 0 - 2100 RPM
Drilling Capacity (Mild Steel)................................................................................................................. 1-1/8 in.
Drilling Capacity (Cast Iron)................................................................................................................... 1-1/4 in.
Drill Chuck Type................................................................................................................................ JT3 Keyed
Drill Chuck Size........................................................................................................................................ 5/8 in.
Tapping Capacity...................................................................................................................................... 1/2 in.
Spindle Information
Distance From Spindle to Base......................................................................................................... 46-9/16 in.
Quill Diameter....................................................................................................................................... 2.440 in.
Table Information
Table Swivel Around Column............................................................................................................... 360 deg.
Max. Movement of Work Table.......................................................................................................... 28-5/16 in.
Table Length........................................................................................................................................ 16-1/4 in.
Table Width................................................................................................................................................ 15 in.
Table Thickness.................................................................................................................................... 2-1/8 in.
Number of T-Slots............................................................................................................................................ 2
T-Slot Size.............................................................................................................................................. 9/16 in.
T-Slot Centers....................................................................................................................................... 7-1/4 in.
Floor-To-Table Height................................................................................................................ 17 - 45-5/16 in.
Construction
Table.................................................................................................................................................... Cast Iron
Column....................................................................................................................................................... Steel
Spindle Housing................................................................................................................................... Cast Iron
Head.................................................................................................................................................... Cast Iron
Base..................................................................................................................................................... Cast Iron
Paint Type/Finish....................................................................................................................... Powder Coated
Other Related Information
Base Length...................................................................................................................................... 25-9/16 in.
Base Width........................................................................................................................................ 17-5/16 in.
Column Diameter............................................................................................................................... 3-13/16 in.
Quill Flange/Collar Diameter........................................................................................................................ 3 in.
Depth Stop Type.......................................................................................................................................... Hub
Has Work Light............................................................................................................................................. Yes
Light Socket Type............................................................................................................................. 3 - 6V LED
Maximum Bulb Wattage............................................................................................................................ 0.5 W
Has Laser Guide.......................................................................................................................................... Yes
Laser Classification................................................................................................................................ Class II
Laser Wavelength.................................................................................................................................... 650nm
Laser Maximum Output.............................................................................................................................. 1mW
Other Specifications:
Country of Origin ................................................................................................................................................ China
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ........................................................................................................ 15 Minutes
Serial Number Location ................................................................................................................... Machine ID Label
-10-
Model T33962/T33963 (Mfd. Since 10/23)
Page 13
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Alerts the user to useful information about proper operation of the
NOTICE
machine to avoid machine damage.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, disconnect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machinery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unintended startup or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating
or observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
Always discon-
Model T33962/T33963 (Mfd. Since 10/23)
-11-
Page 14
may damage the wires inside. Do not handle
WEARING PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, or jewelry that
can become entangled in moving parts. Always tie
back or cover long hair. Wear non-slip footwear to
reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud
machinery. Extended exposure to this noise without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifications—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec-
ommended accessories. Using improper accessories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intended operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
-12-
Model T33962/T33963 (Mfd. Since 10/23)
Page 15
Additional Safety for Drill Presses
To avoid loss of
drilling control or bit breakage, only drill into a flat
surface that is approximately perpendicular to
tool/bit, tighten all table and headstock locks
Serious injury or death can occur from getting clothing, jewelry, or long hair entangled in
rotating spindle or bit/cutting tool. Contact with rotating bit/cutting tool can result in severe cuts
or amputation of fingers. Flying metal chips can cause blindness or eye injuries. Broken bits/
cutting tools, unsecured workpieces, chuck keys, or other adjustment tools thrown from rotating
spindle can strike nearby operator or bystanders with deadly force. To reduce the risk of these
hazards, operator and bystanders MUST completely heed hazards and warnings below.
EYE/FACE/HAND PROTECTION. Flying chips
created by drilling can cause eye injuries or blindness. Always wear a face shield in addition to
safety glasses. Always keep hands and fingers
away from drill bit/cutting tool. Avoid awkward
hand positions, where a sudden slip could cause
hand to move into bit/cutting tool.
AVOIDING ENTANGLEMENT. DO NOT wear
loose clothing, gloves, or jewelry. Tie back long
hair. Keep all guards in place and secure. Always
allow spindle to stop on its own. DO NOT stop
spindle using your hand or any other object.
REMOVING ADJUSTMENT TOOLS. Chuck key,
wrenches, and other tools left on machine can
become deadly projectiles when spindle is started.
Remove all loose items or tools used on spindle
immediately after use.
CORRECT SPINDLE SPEED. Using wrong spindle speed can cause bits/cutting tools to break
and strike operator or bystanders. Follow recommended speeds and feeds for each size/type of
bit/cutting tool and workpiece material.
SECURING BIT/CUTTING TOOL. Firmly secure
bit/cutting tool in chuck so it cannot fly out of
spindle during operation or startup.
DRILLING PREPARATION.
bit. Clear table of all objects before starting spindle. Never start spindle with bit pressed against
workpiece.
SECURING TABLE AND HEADSTOCK. To avoid
loss of control leading to accidental contact with
before operating drill press.
WORKPIECE CONTROL. An unsecured workpiece may unexpectedly shift, spin out of control, or be thrown if bit/cutting tool “grabs” during
operation. Clamp workpiece to table or in tablemounted vise, or brace against column to prevent
rotation. NEVER hold workpiece by hand during
operation. NEVER start machine with bit/cutting
tool touching workpiece; allow spindle to gain full
speed before drilling.
INSPECTING BIT/CUTTING TOOL. Damaged
bits/cutting tools may break apart during operation
and hit operator or bystanders. Dull bits/cutting
tools increase cutting resistance and are more
likely to grab and spin/throw workpiece. Always
inspect bits/cutting tools for sharpness, chips, or
cracks before each use. Replace dull, chipped, or
cracked bits/cutting tools immediately.
Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.
Model T33962/T33963 (Mfd. Since 10/23)
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equipment, or poor work results.
-13-
Page 16
SECTION 2: POWER SUPPLY
Before installing the machine, consider the availability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.
or equipment damage
may occur if machine is
not properly grounded
and connected to power
The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.
The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.
If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid overloading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.
For your own safety and protection of
Note: Circuit requirements in this manual apply to
a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, consult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.
A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power supply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)
This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:
Availability
Electrocution, fire, shock,
supply.
Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.
120V Circuit Requirements
Nominal Voltage .................... 110V, 115V, 120V
..........................................................60 Hz
Cycle
Phase
Power Supply Circuit
Plug/Receptacle
........................................... Single-Phase
T33962
T33963
............................................. 15 Amps
............................................. 20 Amps
............................. NEMA 5-15
Full-Load Current Rating
T33962 ................................................ 7.8 Amps
T33963
-14-
.............................................. 15.2 Amps
property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.
Model T33962/T33963 (Mfd. Since 10/23)
Page 17
Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is necessary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.
Check with a qualified electrician or service personnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with
We do not recommend using an extension cord
with this machine. If you must use an extension
cord, only use it if absolutely necessary and only
on a temporary basis.
Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).
Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:
Grounding & Plug Requirements
Two-prong outlets do not meet the
grounding requirements for this machine.
provided—if it will not fit the outlet, have a
This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!
GROUNDED
5-15 RECEPTACLE
Grounding Pin
5-15 PLUG
Extension Cords
Neutral Hot

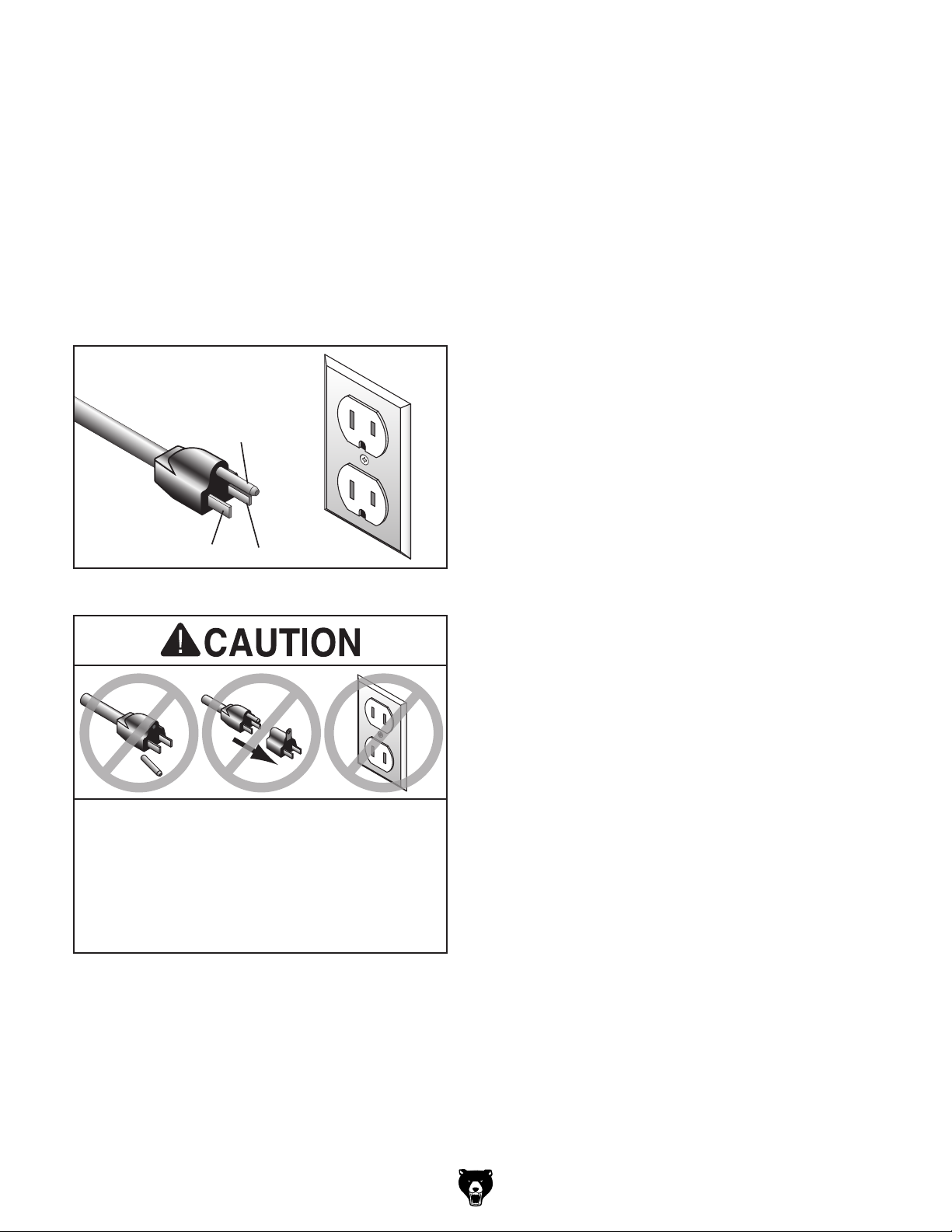

Figure 9. Typical 5-15 plug and receptacle.
SHOCK HAZARD!
Do not modify or use an adapter on the plug
qualified electrician install the proper outlet
with a verified ground.
Model T33962/T33963 (Mfd. Since 10/23)
Minimum Gauge Size
T33962 ...............................................16 AWG
T33963
Maximum Length (Shorter is Better)
...............................................12 AWG
.......50 ft.
-15-
Page 18
SECTION 3: SETUP
The following items are needed, but not included,
for the setup/assembly of this machine.
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
,
please
IMPORTANT: Save all packaging materials until
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
Needed for Setup
This machine presents
serious injury hazards
to untrained users. Read
through this entire manual to become familiar with
the controls and operations before starting the
machine!
Wear safety glasses during
the entire setup process!
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
Description Qty
• Safety Glasses (for each person) ............... 1
• Cleaner/Degreaser ..................... As Needed
• Disposable Rags ........................ As Needed
• Disposable Gloves ..................... As Needed
• Lifting Slings
(Rated for at least 275 lbs. for T33962) ..... 2
(Rated for at least 650 lbs. for T33963) ..... 2
• Forklift or Hoist
(Rated for at least 275 lbs. for T33962) ..... 1
(Rated for at least 650 lbs. for T33963) ..... 1
• Another Person .......................................... 1
• Phillips Screwdriver #2 (T33962 Only) ....... 1
• Mounting Hardware .................... As Needed
• Open-End Wrench 5⁄8" ................................ 1
• Acetone/Lacquer Thinner ........... As Needed
• Block of Wood ............................................ 1
Unpacking
-16-
If items are damaged
call us immediately at (570) 546-9663.
Model T33962/T33963 (Mfd. Since 10/23)
Page 19
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list, carefully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or they are pre-installed at the factory.

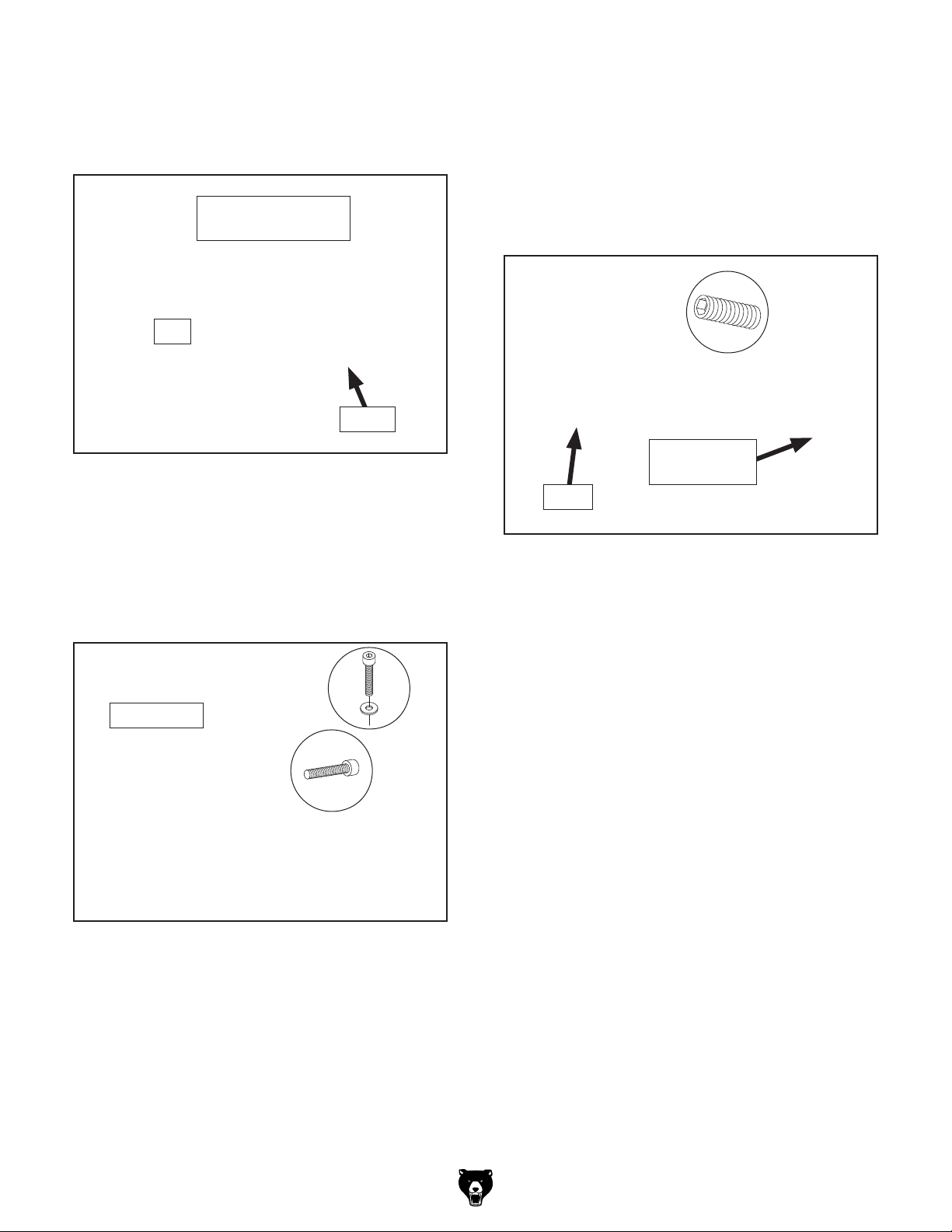

Main Inventory (Figure 10) Qty
A. Headstock .................................................. 1
B. Downfeed Handles ..................................... 3
C. Chip Guard ................................................. 1
D. Hex Wrenches 2.5, 3, 5mm .................. 1 Ea.
E. Drill Chuck Key ........................................... 1
F. Drift Key ...................................................... 1
G. Headstock Lock Assembly ......................... 1
H
J
I
K
Figure 11. T33962 additional inventory.
T33963 Only (Figure 12) Qty
L. Table Height Crank ..................................... 1
M. Drill Chuck JT3 & Arbor ............................. 1
N. Base Assembly .......................................... 1
L
A
D
F G
Figure 10. Main inventory.
T33962 Only (Figure 11
H. Arbor (Pre-installed in Headstock) ............. 1
I. Drill Chuck JT3 ........................................... 1
J. Phillips Head Screw M4-.7 x 16.................. 1
K. Base Assembly .......................................... 1
Model T33962/T33963 (Mfd. Since 10/23)
E
) Qty
B
C
M
N
Figure 12. T33963 additional inventory.
-17-
Page 20
Cleanup
parts of the
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preventative, but the following steps work well in a wide
variety of situations. Always follow the manufac-
turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
• Disposable rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
2.
3.
4.
Many cleaning solvents
work in a well-ventilated
Cleanup
Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avo id
using these products
to clean machinery.
Put on safety glasses.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
Wipe off the surfaces. If your cleaner/degreas-
er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.
are toxic if inhaled. Only
area.
NOTICE
Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted surfaces. Always test on a small, inconspicuous location first.
T23692—Orange Power Degreaser
A great product for removing the waxy shipping grease from the non-painted
machine during clean up.
Order online at
www.grizzly.com
OR
Call 1-800-523-4777
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
-18-
Figure 13. T23692 Orange Power Degreaser.
Model T33962/T33963 (Mfd. Since 10/23)
Page 21
Site Considerations
Weight Load
Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.
Space Allocation
Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the maintenance and service described in this manual.

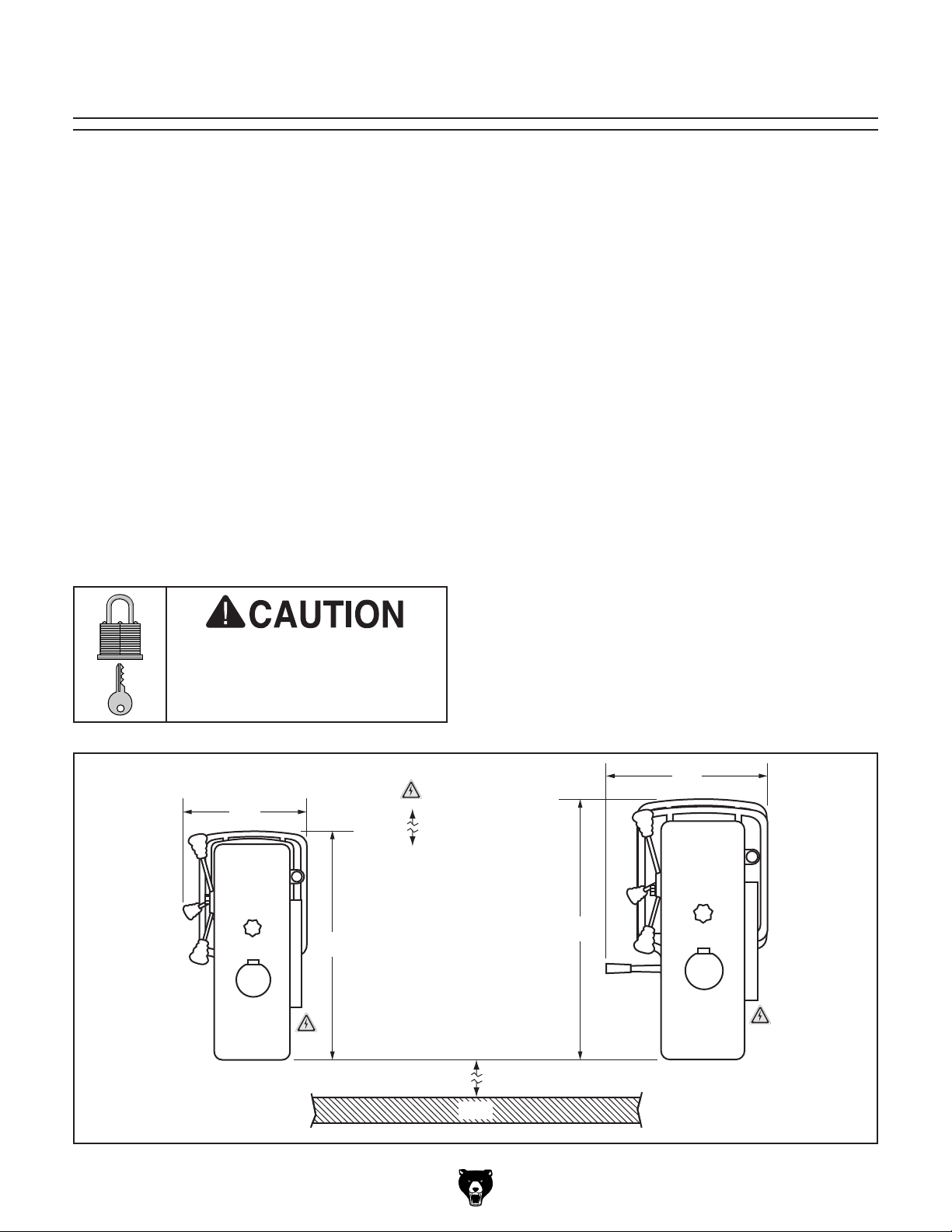

See below for required space allocation.
Physical Environment
The physical environment where the machine is
operated is important for safe operation and longevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
Place this machine near an existing power source.
Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or
other hazards. Make sure to leave enough space
around machine to disconnect power supply or
Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.
Machine Data Sheet for the weight
or bumps.
Electrical Installation
Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.
16"
T33962
28½"
apply a lockout/tagout device, if required.
Lighting
Electrical
=
Connection
= Min. 30"
33½"
22"
T33963
Figure 14. Minimum working clearances.
Model T33962/T33963 (Mfd. Since 10/23)
Wall
-19-
Page 22

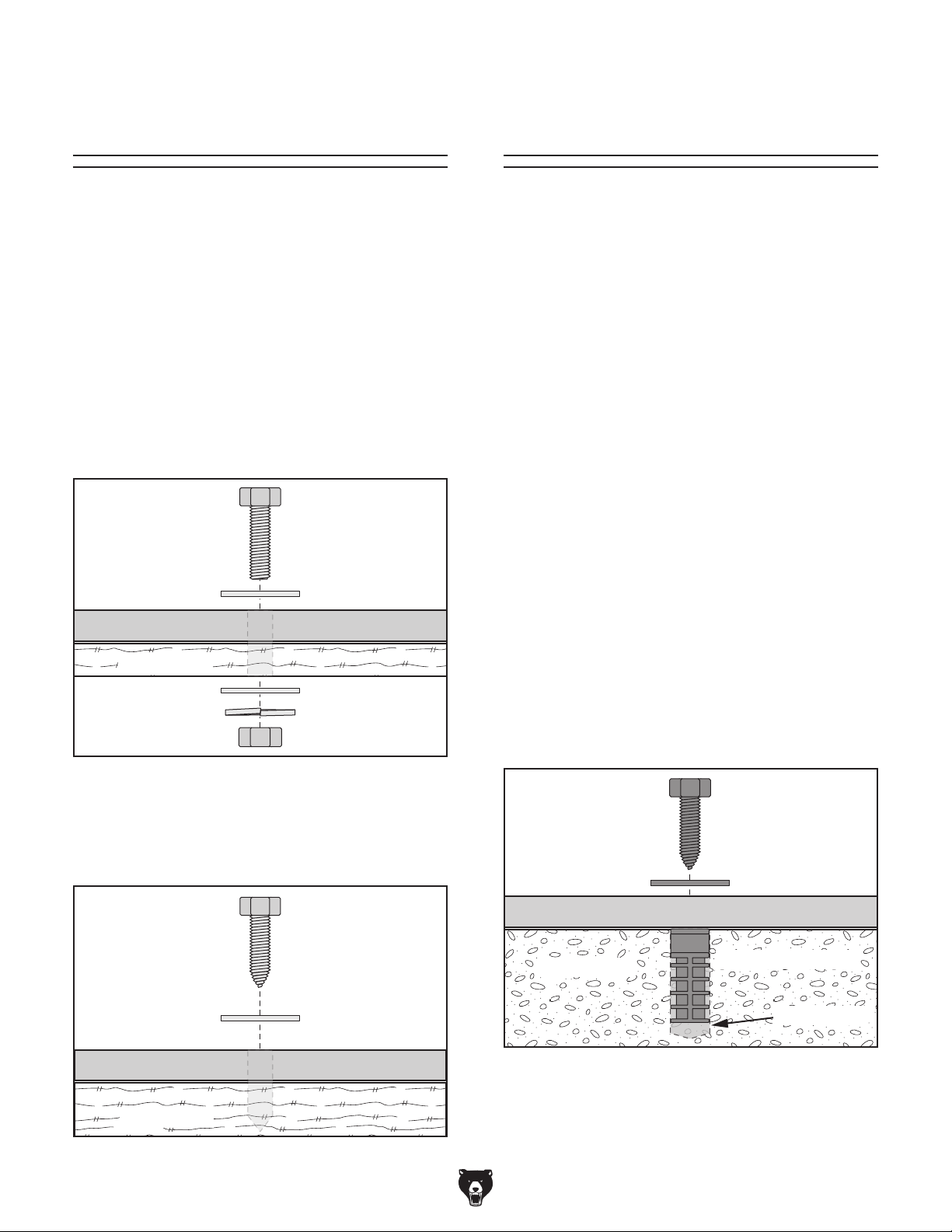

Anchoring machinery to the floor prevents tipping
or shifting and reduces vibration that may occur
during operation, resulting in a machine that runs
slightly quieter and feels more solid.
If the machine will be installed in a commercial or
workplace setting, or if it is permanently connected (hardwired) to the power supply, local codes
may require that it be anchored to the floor.
If not required by any local codes, fastening the
machine to the floor is an optional step. If you
choose not to do this with your machine, we recommend placing it on machine mounts, as these
provide an easy method for leveling and they have
vibration-absorbing pads.
Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a concrete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later, if needed. However, anytime
local codes apply, you MUST follow the anchoring
methodology specified by the code.
Bench Mounting
The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.
The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.
Anchoring to Floor
(T33962)
Number of Mounting Holes
Diameter of Mounting Hardware Needed
............................ 2
Hex
Bolt
..1⁄2"
(T33963)
Number of Mounting Holes
Diameter of Mounting Hardware
............................ 2
.................1⁄2"
Flat Washer
Machine Base
Workbench
Flat Washer
Another option is a "direct mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.
Figure 15. "Through Mount" setup.
Machine Base
Lock Washer
Hex Nut
Lag Screw
Flat Washer
Anchoring to Concrete Floors
Lag Screw
Flat Washer
Machine Base
Concrete
Figure 17. Popular method for anchoring
machinery to a concrete floor.
Lag Shield Anchor
Drilled Hole
-20-
Workbench
Figure 16. "Direct Mount" setup.
Model T33962/T33963 (Mfd. Since 10/23)
Page 23
Assembly
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
and gather
all
To ensure the assembly process
goes smoothly, first clean any
ered or coated in heavy-duty rust preventative (if
applicable).
listed items.
Needed for Setup
parts that are cov-
Use (2) lifting slings and lifting equipment to
4.
carefully lift headstock and slide it onto column (see Figure 19).
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
To assemble machine:
Place shipping box near final machine mount-
1.
ing location.
Remove small items from shipping box.
2.
3. Use lifting sling and lifting equipment to
remove base assembly from shipping box
and place assembly upright on base (see
Figure 18).
Column
Headstock
Figure 19. Headstock placed on column
(T33963 shown).
Note: For Model T33962, rotate headstock
handwheel clockwise (as viewed from above)
to lower headstock on column until column
protrudes out of belt cover (see Figure 20).
T33962 Only: Install M4-.7 x 16 Phillips
5.
head screw in column at location shown in
Figure 20.
Column
Base
Assembly
Figure 18. Base assembly upright (T33962
shown).
Model T33962/T33963 (Mfd. Since 10/23)
Headstock
Handwheel
Figure 20. T33962 placed on column and
headstock limit screw installed.
-21-
Page 24
6. Remove threaded clamp block from headstock lock assembly (see Figure 21).
Notches
Threaded
Clamp Block
Figure 21. Threaded clamp block location on
headstock lock assembly.
7.
Insert threaded clamp block removed in Step
6 into left side of headstock, as shown in
Figure 22.
Note: Notches in clamp blocks (see Figure
21) must press against column inside of
headstock in this step and Step 8 in order to
firmly secure headstock with lock lever.
Insert unthreaded clamp block and head-
8.
stock lock lever into right side of headstock,
and thread lock lever into threaded clamp
block (see Figure 23). Do not fully tighten
lock lever until instructed later.
Thread (3) downfeed handles into spindle
9.
hub (see Figure 23).
Unthreaded
Clamp Block
Spindle
Hub
Downfeed
Handle
(1 of 3)
Figure 23. Headstock lock assembly and
downfeed handles installed (T33962 shown).
10.
Adjust headstock on column so quill and con-
trol panel are centered over base, then fully
tighten headstock lock lever to secure.
Headstock
Lock Lever
Threaded
Clamp Block
Figure 22. Threaded clamp block inserted into
left side of headstock (T33963 shown).
Remove cap screw and flat washer at top of
11.
chip guard rail, then loosen rail lock collar cap
screw to remove lock collar (see Figure 24).
Lock Collar
Figure 24. Chip guard components to remove.
-22-
Model T33962/T33963 (Mfd. Since 10/23)
Page 25
12. Insert chip guard rail up through bottom of
mount on side of headstock, aligning notch
in rail with steel balls in mount, as shown in
Figure 25.
Rail Notch Aligned
with Steel Balls
Rail
Mount
15. T33962 Only: Remove arbor from spindle
(refer to Removing Arbor from Spindle on
Page 31).
T33963 Only: Install table height crank over
16.
worm shaft in table bracket shown in Figure
27, then tighten set screw in crank against flat
part of shaft to secure.
Figure 25. Chip guard rail notch aligned with
steel balls in mount.
13. Install rail lock collar against mount, as shown
in Figure 26. Tighten cap screw to secure.
Install flat washer and cap screw removed in
14.
Step 11.
Lock Collar
Table Height
Crank
Table
Figure 27. Table height crank installed.
Figure 26. Chip guard rail installed in mount.
Model T33962/T33963 (Mfd. Since 10/23)
-23-
Page 26
Joining Drill Chuck
5. Attempt to separate drill chuck and arbor by
hand —if they separate, repeat Steps 3–4.
Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.
If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The
table in the
SERVICE section of this manual can help.
DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine
Serious injury or death can result from
& Arbor
An arbor is included for the drill chuck that
comes with this machine. The following procedure
describes how to install the arbor in the chuck.
After the arbor is installed in the drill chuck, it
is very difficult to separate the assembly. If you
would like to use a different chuck in the future,
we recommend obtaining a new arbor.
Note: The drill chuck and arbor that come with
the Model T33963 are pre-joined. Refer to Step 5
below to confirm they are secure.
IMPORTANT: DO NOT install the drill chuck
and arbor assembly into the spindle until AFTER
the test run.
To join drill chuck and arbor:
Test Run
Troubleshooting
The Test Run consists of verifying the following:
1) The motor powers up and runs correctly, 2) the
chuck guard safety switch disables the machine
properly, 3) the belt cover safety switch disables
the machine properly, and 4) the Emergency Stop
button disables the machine properly.
1. Use acetone or lacquer thinner to clean drill
chuck and arbor mating surfaces, especially
the bore.
2. Retract chuck jaws completely into chuck.
3. Insert small end of arbor into chuck.
4. Hold assembly by the arbor and tap chuck
onto a block of wood with medium force, as
illustrated below.
using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.
may result in malfunction or unexpected results that can lead to serious injury,
death, or machine/property damage.

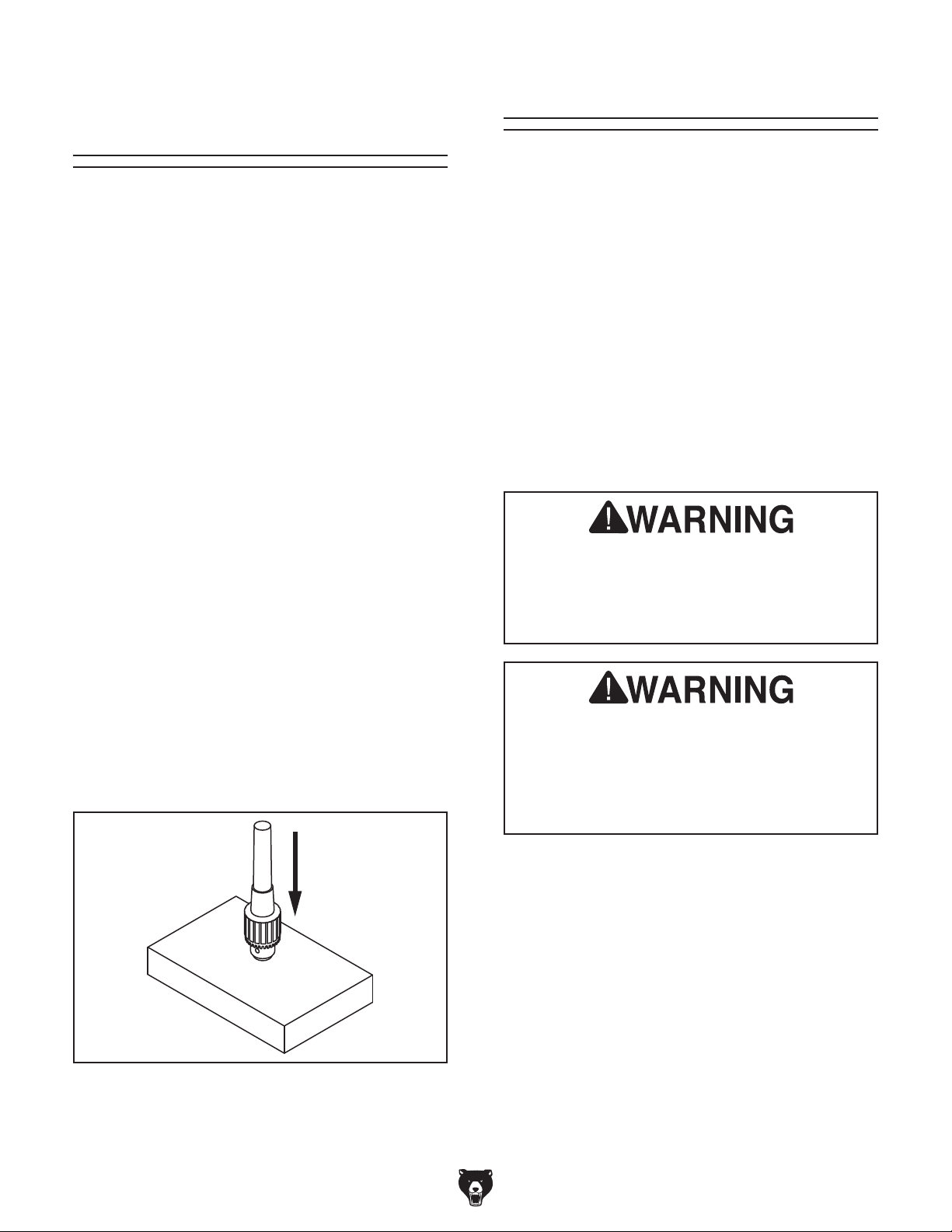

Figure 28. Tapping drill chuck/arbor on block of
wood.
-24-
Model T33962/T33963 (Mfd. Since 10/23)
Page 27
To test run machine:
Clear all setup tools away from machine.
1.
2. Press Emergency Stop button in (see Figure
29).
Turn spindle speed dial all the way counter-
3.
clockwise (see Figure 29).
Turn mode switch to neutral (0) position (see
4.
Figure 29).
Connect machine to power. Spindle speed
5.
digital readout (see Figure 29) will illuminate.
Spindle Speed
Digital Readout
Turn mode switch counterclockwise to drilling
7.
(D) mode.
Press green spindle ON (I) button (see
8.
Figure 29) and slowly rotate spindle speed
dial clockwise to full speed, then rotate
counterclockwise until spindle speed digital
readout displays about 60 RPM. Verify motor
starts up and runs smoothly without any
unusual problems or noises.
While being careful to avoid rotating spindle,
9.
pivot chip guard forward and away from
spindle (see Figure 31). Spindle should stop
rotating.
— If spindle does not stop, immediately
turn machine OFF and disconnect power.
Safety feature of chip guard safety switch
is NOT working properly and must be
replaced before further using machine.
Mode
Switch
Emergency
Stop Button
Figure 29. Location of power controls.
6.
Twist Emergency Stop button clockwise until
it springs out (see Figure 30). This resets
button so machine can start.
I
S
W
T
T
Spindle
Speed
Dial
Spindle
ON
Button
Chip Guard
Figure 31. Chip guard pivoted away from
spindle.
10.
Without pivoting chip guard back in place, try
to start spindle rotation by pressing spindle
ON button.
— If spindle does not start, safety feature of
chip guard is working correctly. Proceed to
Step 11.
Emergency Stop Button
Figure 30. Resetting button.
Model T33962/T33963 (Mfd. Since 10/23)
— If spindle does start, immediately turn
machine OFF and disconnect power.
Safety feature of chip guard is NOT working properly and must be replaced before
further using machine.
-25-
Page 28
11. Pivot chip guard back into place.
12. Press spindle ON button to start spindle
rotation.
While being careful to avoid rotating spindle,
13.
remove belt cover lock knob and flat washer
(see Figure 32).
Carefully lift belt cover from headstock (see
14.
Figure 32). Spindle should stop rotating.
— If spindle does not stop, immediately
turn machine OFF and disconnect power.
Safety feature of belt cover safety switch
is NOT working properly and must be
replaced before further using machine.
Belt Cover
Lock Knob &
Flat Washer
Belt Cover
Install belt cover and secure with flat washer
16.
and belt cover lock knob.
Press spindle ON button to start spindle
17.
rotation.
Press Emergency Stop button to turn machine
18.
OFF.
WITHOUT resetting Emergency Stop button,
19.
try to start spindle by pressing spindle ON
button. Spindle should not start.
— If spindle does not start, safety feature
of Emergency Stop button is working
correctly. Congratulations! Test Run is
complete. Complete Spindle Break-In
on Page 27 before proceeding with
operations.
— If spindle does start, immediately turn
machine OFF and disconnect power.
Safety feature of Emergency Stop button is NOT working properly and must be
replaced before further using machine.
Figure 32. Location of belt cover lock knob and
flat washer.
Without installing belt cover, try to start spin-
15.
dle rotation by pressing spindle ON button.
— If spindle does not start, safety feature of
belt cover is working correctly. Proceed to
Step 16.
— If spindle does start, immediately turn
machine OFF and disconnect power.
Safety feature of belt cover is NOT working properly and must be replaced before
further using machine.
-26-
Model T33962/T33963 (Mfd. Since 10/23)
Page 29
Spindle Break-In
The spindle break-in procedure distributes lubrication
reduce the risk
of early
if there are any "dry" spots
or areas where lubrication has settled in the bearings. You
placing
for the
first time when the machine is new or if it has been
sitting idle for longer than 6 months.
Always start the spindle break-in at the lowest
speed to minimize wear if there
dry spots.
Allow the spindle to run long enough to warm up
and distribute the bearing grease, then incrementally increase spindle speeds and repeat this process at each speed until reaching the maximum
spindle speed. Following the break-in procedure
in this progressive manner helps minimize any
potential wear that could occur before lubrication
is fully distributed.
throughout the bearings to
bearing failure
Belt Cover
Lock Knob
must complete this procedure before
operational loads on the spindle
are
Complete spindle bearing break-in procedure to prevent rapid wear and tear of spindle components once drill press is placed
into operation.
Belt Tension
Downfeed
Micro
Switch
Figure 33. Location of belt cover lock knob, belt
tension lock knobs, and downfeed micro switch.
— If V-belt is installed on upper motor and
spindle pulley sheaves (see Figure 34),
no adjustment is required, proceed to
Step 8.
— If V-belt is not installed on upper motor
and spindle pulley sheaves (see Figure
34), proceed to Step 3.
Motor
Pulley
V-Belt
Lock Knob
(1 of 2)
Spindle
Pulley
Tool Needed Qty
Open-End Wrench 5⁄8" ....................................... 1
To perform spindle break-in:
1. DISCONNECT MACHINE FROM POWER!
. Remove belt cover lock knob and flat washer
2
to remove belt cover (see Figure 33).
Model T33962/T33963 (Mfd. Since 10/23)
x 2
Figure 34. Spindle speed range adjustment
components.
. Loosen (2) belt tension lock knobs (see
3
Figure 33).
. Adjust (2) hex bolts shown in Figure 34 away
4
from motor to take tension off of V-belt.
. Move V-belt onto upper sheaves on pulleys
5
(see Figure 34).
-27-
Page 30
6
. After belt is positioned on pulleys, use hex
bolts from Step 4 to push motor away from
headstock and engage belt tension.
Note: Correct belt tension is set if belt flexes
1
⁄4" when thumb pressure is applied at mid-
point of belt between pulleys (see Figure 35).
Pulley
1
⁄4"
Deflection
Pulley
16. Press reverse tapping button (see Figure 36)
to reverse spindle rotation, and run spindle
counterclockwise at about 60 RPM for another 10 minutes.
Spindle
OFF
Button
Reverse Tapping
Button
Figure 36. Location of reverse tapping button
and spindle OFF button.

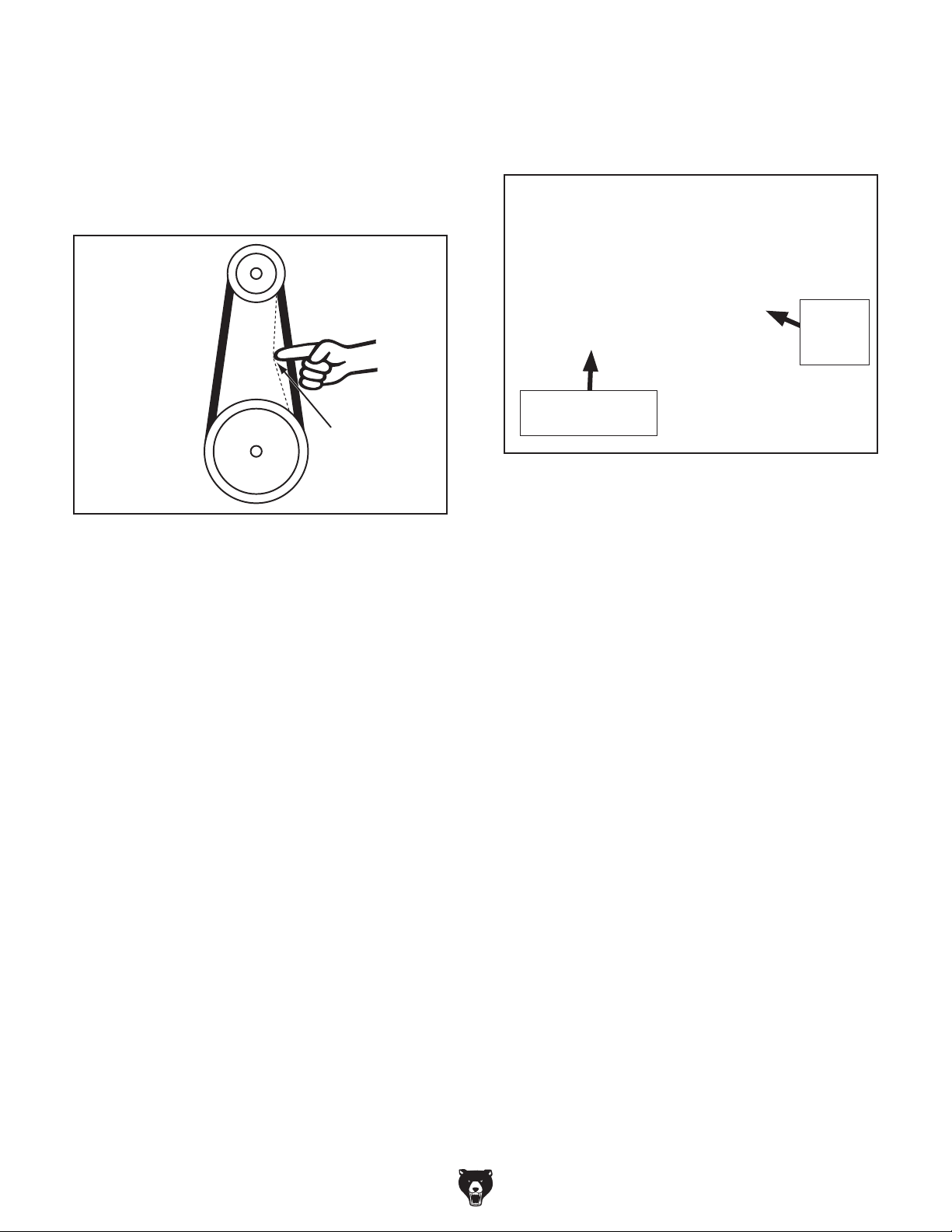

Figure 35. Checking belt tension.
. Tighten (2) belt tension lock knobs to secure.
7
. Install belt cover, and secure with flat washer
8
and belt cover lock knob removed in Step 2.
Make sure spindle area is free of obstructions.
9.
10. Connect machine to power.
Reset Emergency Stop button.
11.
Turn mode switch clockwise to tapping (T)
12.
mode.
Press spindle ON button to start spindle
13.
rotation.
Allow spindle to run clockwise (as viewed
14.
from above) at about 60 RPM for 10 minutes.
Use spindle downfeed handles to pull spindle
15.
down just enough to disengage downfeed
micro switch (see Figure 33 on Page 27).
Use downfeed handles to retract spindle
17.
back into headstock.
Use spindle speed dial to adjust spindle
18.
speed to about 200 RPM, then run spindle
in either direction for 10 minutes, using
downfeed micro switch and reverse tapping
button to reverse spindle rotation.
Repeat Step 18 for each speed listed below
19.
in progressive order:
a. 500 RPM
b. 1000 RPM
c. 2100 RPM
20. Press spindle OFF button to stop spindle
rotation (see Figure 36).
Congratulations! The spindle break-in is now
complete.
-28-
Model T33962/T33963 (Mfd. Since 10/23)
Page 31
SECTION 4: OPERATIONS
The purpose of this overview is to provide the
novice machine operator with a basic understanding of how the machine is used during operation,
so the
discussed
later in this manual
Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,
training from experienced
machine operators, and do additional research
outside of this manual by reading "how-to" books,
trade magazines, or websites.
To reduce your risk of
serious injury, read this
entire manual BEFORE
Keep hair, clothing, and
ing parts at all times.
Entanglement can result
in death, amputation, or
using machine.
To reduce risk of eye or face injury from
flying chips, always wear approved safety
glasses and a face shield when operating
this machine.
Operation Overview
machine controls/components
are easier to understand.
seek additional
To complete a typical operation, the operator
does the following:
jewelry away from mov-
severe crushing injuries!
If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable
for accidents caused by lack of training.
Model T33962/T33963 (Mfd. Since 10/23)
1. Examines workpiece to make sure it is suit-
able for drilling or tapping.
Puts on required safety glasses and face
2.
shield.
Firmly secures workpiece to table using vise
3.
or T-slot clamps.
Installs correct cutting tool for operation.
4.
5. T33962 Only: Adjusts table to correct tilt,
then locks it in place.
Adjusts table height, then locks it in place.
6.
7. Adjusts depth stop to desired drilling or tap-
ping depth.
Connects machine to power, starts spindle
8.
rotation, and uses spindle speed dial to set
spindle to appropriate spindle speed for
operation.
Performs drilling or tapping operation.
9.
10. When finished, turns machine OFF and dis-
connects it from power.
-29-
Page 32
Installing/Removing
Arbor
7
. Slide arbor into spindle socket while slowly
rotating chuck to line up tang on arbor with
slot in socket (see Figure 38).
Usually, once the chuck and arbor have been
properly mounted together, they are considered
semi-permanent connections. If you would like to
install a different chuck, we recommend getting a
new arbor for that chuck.
Installing Arbor in Spindle
Items Needed Qty
Acetone or Lacquer Thinner .............. As Needed
Rubber Mallet
To install arbor in spindle:
1. DISCONNECT MACHINE FROM POWER!
2. Pivot chip guard out of the way.
3. Join chuck and arbor (refer to Joining Drill
Chuck & Arbor on Page 24).
4. Rotate chuck on arbor until chuck jaws retract
into drill chuck body.
5. Use acetone or lacquer thinner to clean mating surfaces of arbor and spindle socket.
.................................................... 1
Spindle Socket
Arbor Tang
Figure 38. Example of arbor tang aligned with
spindle socket.
8
. Strike face of chuck from below with rubber-
faced mallet to seat arbor in spindle.
. Check seat by gently pulling down on chuck.
9
. Pivot chip guard back into place.
10
Scan this code to see a video of this installation process!
6. Fully tighten spindle nut shown in Figure 37.
Note: If nut is too loose, it may prevent arbor
from seating in spindle in following steps.
Spindle Nut
Figure 37. Location of spindle nut.
-30-
Model T33962/T33963 (Mfd. Since 10/23)
Page 33
Removing Arbor from Spindle
The arbor can be removed to install other Morse
Taper tooling in the spindle. On the Model T33962,
this tooling must be MT#2; on the Model T33963,
it must be MT#3. A drift key is included to help
remove the arbor or other tooling from the spindle.
Items Needed Qty
Drift Key ............................................................. 1
Metal Hammer
Towel or Cloth
To remove arbor from spindle:
................................................... 1
.................................... As Needed
Outer Slot
Inner Slot
1. DISCONNECT MACHINE FROM POWER!
. Pivot chip guard out of the way.
2
3. Rotate downfeed handles until drift key slot is
exposed in side of quill (see Figure 39).
Drift Key
Slot
Figure 39. Drift key slot exposed.
Move table up until it is 1⁄4" below bottom of
4.
chuck, and place towel or cloth under chuck.
5. Rotate spindle until inner drift key slot is
aligned with outer slot (see Figure 40). You
will see through spindle when slot is properly
aligned.
Figure 40. Example of inner and outer drift key
slots aligned.
6. Insert drift key into drift key slot, then tap drift
key with metal hammer (see Figure 41) until
chuck releases.
Figure 41. Example of using drift key to remove
arbor from spindle.
7. Use downfeed handles to retract quill back
into headstock.
. Pivot chip guard back into place.
8
Model T33962/T33963 (Mfd. Since 10/23)
-31-
Page 34
Installing/Removing
Cutting Tool
Any bit or tap you install in the chuck must be
tight enough that it will not come loose during
operation.
Items Needed Qty
Chuck Key ......................................................... 1
Rag ................................................................... 1
Positioning Table
Remove any loose items from the table surface
before adjusting the table position.
Positioning Model T33962 Table
The Model T33962 table moves vertically, rotates
360º around the column, and tilts 45º left or right
using the components shown in Figure 43.
Installing Drill Cutting Tool
1. DISCONNECT MACHINE FROM POWER!
2. Open drill chuck wide enough to accept
shank of cutting tool.
Insert cutting tool as far as possible into
3.
chuck WITHOUT allowing chuck jaws to
touch fluted portion of cutting tool, then handtighten chuck.
Note: Make sure small bits/taps are not
trapped between edges of two jaws; if they
are, re-install cutting tool or it will not be
secure enough to use for drilling/tapping.
Tighten chuck firmly with chuck key (see
4.
Figure 42), then remove chuck key from
chuck.
Tilt Scale &
Indicator
Table
Lock Handle
Figure 42. Example of tightening chuck.
Removing Cutting Tool
1. DISCONNECT MACHINE FROM POWER!
2. Use chuck key to open drill chuck, and catch
cutting tool with rag to protect hands.
-32-
Figure 43. Model T33962 table adjustment
components.
Adjusting Table Position on Column
1. While supporting table, loosen table lock
handle (see Figure 43).
. Position table around column and raise or
2
lower table as desired, then tighten table lock
handle to secure.
Model T33962/T33963 (Mfd. Since 10/23)
Page 35
Tilting Table
Tool Needed Qty
Wrench 19mm ................................................... 1
To tilt table:
Positioning
Headstock
1. Loosen flange nut shown in Figure 43 on
Page 32.
. Tilt table until pointer aligns with desired
2
angle on tilt scale (see Figure 43 on Page
32), then tighten flange nut from Step 1 to
secure.
Positioning Model T33963 Table
The Model T33963 table moves vertically and
rotates 360º around the column using the components shown in Figure 44.
Table Lock
Handle
(1 of 2)
The headstock rotates 360º around the column.
In addition, the Model T33962 headstock also
moves vertically on the column.
Drill press base must be secured to bench
or floor. Machine is top heavy and rotating
headstock will unbalance machine. Failure
to heed this warning could result in accidental injury or property damage.
Positioning Model T33962 Headstock
1. DISCONNECT MACHINE FROM POWER!
. Rotate headstock handwheel counterclock-
2
wise to move it up on column until it is touching bottom of headstock (see Figure 45).
. Loosen headstock lock lever (see Figure 45).
3
Table Height
Crank
Figure 44. Model T33963 table adjustment
components.
Raising/Lowering Table
1. Loosen (2) table lock handles (see Figure 44).
. Raise or lower table by rotating table height
2
crank (see Figure 44), then tighten table lock
handles to secure.
Rotating Table Around Column
1. Loosen (2) table lock handles (see Figure 44).
. Rotate table to desired location on column,
2
making sure to guide column rack with table
(see Figure 44), then tighten table lock handles to secure.
Headstock
Lock Lever
Headstock
Handwheel
Figure 45. Headstock adjustment components.
4. Position headstock around column and raise
or lower headstock by rotating headstock
handwheel (see Figure 45), then tighten
headstock lock lever to secure.
Model T33962/T33963 (Mfd. Since 10/23)
-33-
Page 36
Positioning Model T33963 Headstock
1. DISCONNECT MACHINE FROM POWER!
. Loosen headstock lock lever (see Figure 46).
2
Adjusting
Depth Stop
The Model T33962/T33963 has a depth stop that
allows you to drill or tap repeat, non-through holes
to the same depth every time. It is also equipped
with micro switches that stop and reverse the
spindle when the final tapping depth is achieved
in order to back out a tap.
To adjust depth stop:
Headstock
Lock
Lever
Figure 46. Location of headstock lock lever.
3. Position headstock around column, then
tighten headstock lock lever to secure.
1. DISCONNECT MACHINE FROM POWER!
2. Secure workpiece to table.
. Install correct cutting tool for operation.
3
Adjust table (and headstock height, if desired,
4.
for Model T33962), then lock it in place.
Loosen depth stop lock knob (see Figure 47).
5.
Depth Collar
Indicator
Depth Stop
Lock Knob
-34-
Figure 47. Location of depth stop components.
Use downfeed handles to lower spindle until
6.
cutting tool just contacts surface of workpiece.
With cutting tool contacting workpiece sur-
7.
face, rotate depth collar until indicator displays desired depth (see Figure 47).
Tighten depth stop lock knob to secure,
8.
then allow quill and spindle to return to top
position.
Model T33962/T33963 (Mfd. Since 10/23)
Page 37
Adjusting
Laser Guide
The laser guide should be checked and adjusted
for accuracy when you change cutting tools, raise
or lower the table (or the Model T33962 headstock), or change the workpiece thickness.
— If laser crosshairs align with indentation
you made in Step 5 (see Figure 49), no
adjustment is necessary.
— If laser crosshairs do not align with inden-
tation you made in Step 5 (see Figure
49), proceed to Step 7.
DO NOT look directly into laser. Eye injury
may result.
To adjust laser guide:
1. DISCONNECT MACHINE FROM POWER!
2. Secure workpiece to table.
. Install correct cutting tool for operation.
3
Adjust table (and headstock height, if desired,
4.
for Model T33962), then lock it in place.
Use downfeed handles to lower spindle until
5.
cutting tool just contacts surface of workpiece,
making a slight indentation in surface, then
raise spindle.
Connect drill press to power. Press laser but-
6.
ton (see Figure 48) to turn laser guide ON.
Indentation
Figure 49. Example of laser crosshairs aligned
with indentation on workpiece.
7.
Adjust laser modules in seat by hand (see
Figure 50), positioning them so crosshairs
align with indentation you made in Step 5.
Seat
(1 of 2)
Laser
Module
(1 o 2)
Laser
Button
Figure 48. Location of laser button.
Model T33962/T33963 (Mfd. Since 10/23)
Figure 50. Laser module adjustment
components (T33963 shown).
-35-
Page 38
Spindle Speed
*
Cutting speed, typically defined in feet per minute
(FPM), is the speed at which the edge of a tool
moves across the material surface.
Using the correct spindle speed is important for
safe and satisfactory results, as well as maximizing tool life.
To set the spindle speed for your operation, you
will need to: 1) Determine the best spindle speed
for the cutting task, 2) configure the machine for
the correct speed range, and 3) adjust the spindle
speed dial to produce the required spindle speed.
Refer to Determining Drilling Spindle Speed
and Determining Tapping Spindle Speed for
guidance on determining the best spindle speed
for drilling and tapping operations. Additionally,
the books Machinery’s Handbook or Machine
Shop Practice, and some internet sites, provide excellent recommendations for which cutting
speeds or feed speeds to use when calculating
the spindle speed. These sources also provide
a wealth of additional information about the variables that affect this speed and they are a good
educational resource.
Also, there are a large number of easy-to-use
spindle speed calculators that can be found on
the internet. These sources will help you take into
account the applicable variables in order to determine the best spindle speed for the operation.
When you are have determined the correct spindle speed for your operation, refer to Changing
Spindle Speed Range on Page 38 to configure your machine for the correct speed range.
Determining Drilling Spindle Speed
Many variables affect the optimum spindle speed
to use for any given drilling operation, but the two
most important are the recommended cutting
speed for the workpiece material and the diameter
of the cutting tool, as noted in the formula shown
in Figure 51.
*Recommended
Cutting Speed (FPM) x 12
Tool Dia. (in inches) x 3.14
Double if using carbide cutting tool
Figure 51. Drilling spindle speed formula.
Spindle
=
Speed
(RPM)
A recommended cutting speed is an ideal speed
for cutting a type of material in order to produce
the desired finish and optimize tool life. Refer to
the Spindle Speed Chart on Page 37 for additional information.
Determining Tapping Spindle Speed
There are a number of variables to consider when
determining the spindle speed for a power tapping
operation: the tap diameter, the flute style of the
tap; the number of chamfered threads on the tap;
the workpiece material; the depth of the intended
tap; and the coarseness of the thread pitch.
Turning a tap at too high of an RPM increases
the risk of it binding or breaking, and taps are
hardened and therefore difficult to remove if they
break off inside your workpiece. While some tapping setups will allow you to turn the spindle at a
higher RPM, we recommend setting the Model
T33962/T33963 as slow as possible (less than 80
RPM). This will allow you to observe the tap as it
threads to ensure the tap does not come loose in
the chuck and to back out the tap as needed to
clear chips or otherwise resolve any issues.
Most tapping operations require a lubricant or tapping fluid to aid in tapping threads. A list of suggested tapping lubricants based on material type
has been provided below.
MATERIAL TAPPING LUBRICANT
Plastics/Fiberglass Dry, Freezing Spray, Liquid Soap
Aluminum Soluble Oil
Aluminum Alloys
Gun Grade Metal
Brass
Copper
Grey Cast Iron Dry
Magnesium Alloy
Malleable Iron
Nimonic Alloy High Pressure Cutting Oil
Cast Iron Alloy
Carbon Steel
Mild Steel
Stainless Steel
Steel Alloys
Tool Steel
Soluble Oil, Light Base Oil, Lard
Oil
Neat Cutting OilBronze
Soluble Oil, Paraffin-Based
Lubricant
Sulfur-Based Cutting Oil
-36-
Model T33962/T33963 (Mfd. Since 10/23)
Page 39
Drilling Spindle Speed Chart
s
l
Sppaaddee//FFoorrssttnneerr BBiittss
l
Hoollee SSaawwss
l
Roosseettttee CCuutttteerrss
l
Teennoonn//PPlluugg CCuutttteerrss
l
Using Drilling Spindle Speed Chart
The chart shown in Figure 52 is intended as a
generic guide only. Always follow the manufacturer's speed recommendations if provided with
your drill bits, cutters, or hole saws. Exceeding
the recommended speeds may be dangerous to
the operator.
The speeds shown here are intended to get you
started. The optimum speed will always depend
on various factors, including tool diameter, drilling
pressure, material hardness, material quality, and
desired finish.
Often, when drilling materials other than wood,
some type of lubrication is necessary.
TTwwiisstt//BBrraadd PPooiinntt DDrriillll BBiitts
1/16" – 3/16" 3000 2500 2500 2500 3000 2500
13/64" – 3/8" 2000 1500 2000 1250 2500 1250
25/64" – 5/8" 1500 750 1500 750 1500 600
11/16" – 1" 750 500 1000 400 1000 350
SSoofftt WWooooddHHaarrdd WWooooddPPllaassttiiccBBrraassssAAlluummiinnuummMMiilldd SStteeeel
Lubrication Suggestions
Wood ...........................................................None
Plastics
Brass
Aluminum
Mild Steel
Larger bits turning at slower speeds tend
to grab workpiece aggressively. This can
result in operator's hand being pulled into
bit or workpiece being thrown with great
force. Always clamp workpiece to table to
prevent reduce risk of injury.
............................................Soapy Water
...............................Water-Based Lubricant
..................... Paraffin-Based Lubricant
............................. Oil-Based Lubricant
S
1-1/8" – 1-7/8" 1000 750
R
Carbide Insert Type 350 250
One-Piece Type 1800 500
T
SSoofftt WWooooddHHaarrdd WWooooddPPllaassttiiccBBrraassssAAlluummiinnuummMMiilldd SStteeeel
1/4" – 1/2" 2000 1500
9/16" – 1" 1500 1250
2–3" 500 350
H
1/2" – 7/8" 500 500 600 600 600 500
1" – 1-7/8" 400 400 500 500 500 400
2" – 2-7/8" 300 300 400 400 400 300
3" – 3-7/8" 200 200 300 300 300 200
4" – 5" 100 100 200 200 200 100
3/8" – 1/2" 1200 1000
5/8" – 1" 800 600
SSoofftt WWooooddHHaarrdd WWooooddPPllaassttiiccBBrraassssAAlluummiinnuummMMiilldd SStteeeel
SSoofftt WWooooddHHaarrdd WWooooddPPllaassttiiccBBrraassssAAlluummiinnuummMMiilldd SStteeeel
SSoofftt WWooooddHHaarrdd WWooooddPPllaassttiiccBBrraassssAAlluummiinnuummMMiilldd SStteeeel
Figure 52. Drilling spindle speed chart (RPMs).
Model T33962/T33963 (Mfd. Since 10/23)
-37-
Page 40
Changing Spindle
Speed Range
This machine has two speed ranges: a low speed
range that operates between 0–600 RPM, and a
high speed range that operates between 0–2100
RPM. The speed range is determined by how
the V-belt is installed on the motor and spindle
pulleys (see Figure 53).
Motor
Pulley
V-Belt
Spindle
Pulley
The V-belt transfers power from the motor to the
spindle. If the V-belt is worn or damaged in any
way, the drill press will not operate optimally, and
unnecessary wear on the moving parts will occur.
Whenever you are changing the spindle speed
range, inspect the V-belt for damage or wear and
replace it if necessary.
Use care when handling V-belt as it could
pinch your fingers. It may also be hot after
extended use, so wait to touch V-belt if
machine has been in use.
Tool Needed Qty
Open-End Wrench 5⁄8" ....................................... 1
To change spindle speed range:
1. DISCONNECT MACHINE FROM POWER!
x 2
Figure 53. Spindle speed range adjustment
components.
The low speed range is obtained when the V-belt
is positioned on the lower pulley sheaves, and
high speed range is obtained when the V-belt is
positioned on the upper pulley sheaves, as shown
in Figure 54.
LOW
Motor Pulley
Motor Pulley
LOW: 0–600 RPM
HIGH: 0–2100 RPM
Spindle Pulley
HIGH
Spindle Pulley
2. Determine correct spindle speed for operation (see Spindle Speed on Page 36).
. Remove belt cover lock knob and flat washer
3
to remove belt cover (see Figure 55).
. Loosen (2) belt tension lock knobs (see
4
Figure 55).
Belt Cover
Lock Knob
Belt Tension
Lock Knob
(1 of 2)
-38-
Figure 54. Belt configuration chart.
Figure 55. Location of belt cover and belt
tension lock knobs.
5
. Adjust (2) hex bolts shown in Figure 53 away
from motor to take tension off of V-belt.
Model T33962/T33963 (Mfd. Since 10/23)
Page 41
6. Move V-belt onto desired sheaves on motor
and spindle pulleys (see Figures 53–54 on
Page 38).
Drilling
— If V-belt is cracked, torn, excessively worn,
or damaged, replace it.
. After belt is positioned on pulleys, use hex
7
bolts from Step 5 to push motor away from
headstock and engage belt tension.
Note: Correct belt tension is set if belt flexes
1
⁄4" when thumb pressure is applied at mid-
point of belt between pulleys (see Figure 56).
Pulley
1
⁄4"
Deflection
Pulley
This drill press is designed for vertical drilling and
tapping operations. Use the following steps to
complete a typical drilling operation.
In order to prevent injury to operator and
bystanders, DO NOT clear chips from
workpiece surface while machine is ON or
use hands or compressed air to clear chips.
To complete a typical drilling operation:
. DISCONNECT MACHINE FROM POWER!
1
. Put on required safety glasses and face
2
shield.
. Secure workpiece to table or base.
3
. Install correct cutting tool for operation (refer
4
to Installing/Removing Arbor on Page 30
and Installing/Removing Cutting Tool on
Page 32).

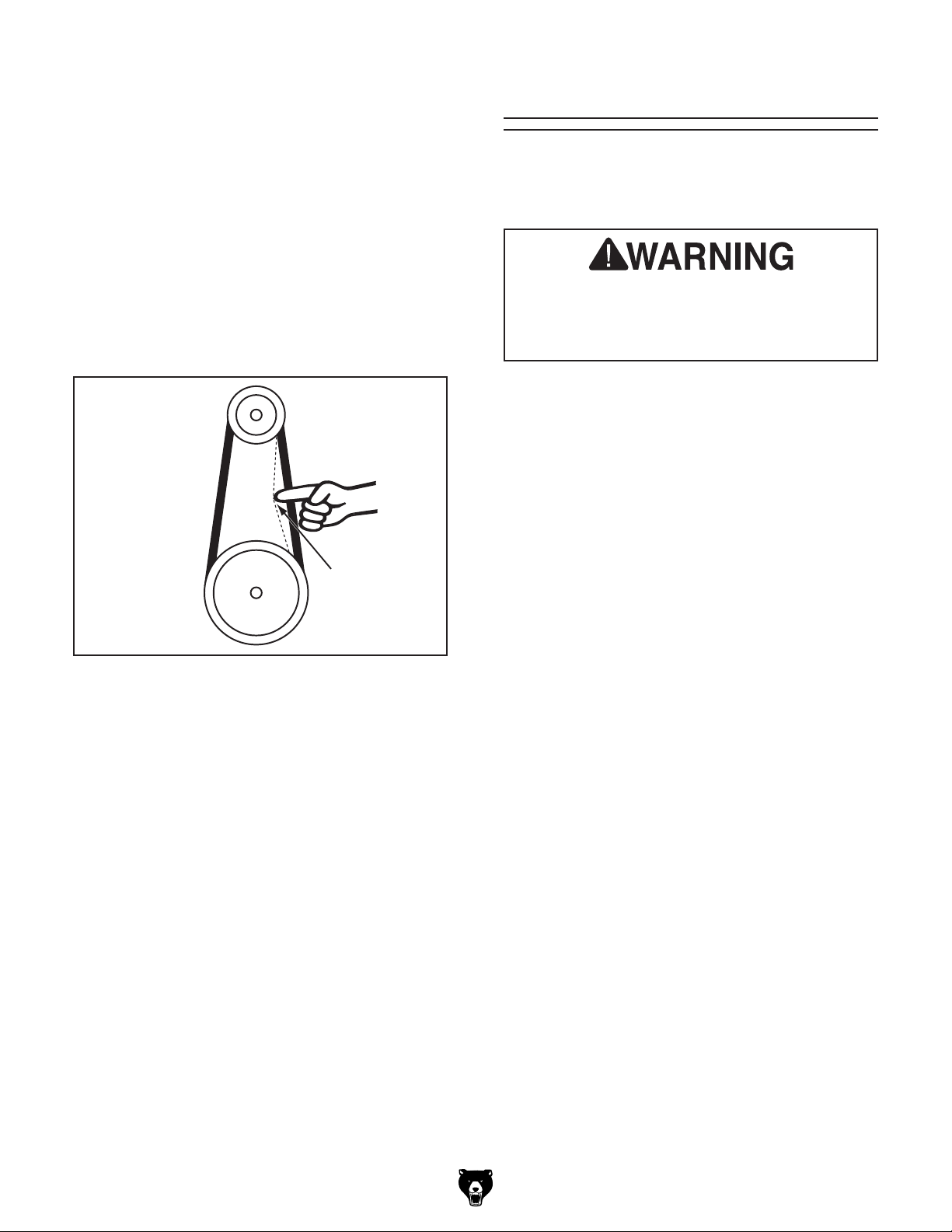

Figure 56. Checking belt tension.
1
— If V-belt has more than
⁄4" of deflection
when hex bolts are fully adjusted, replace
V-belt.
. Tighten (2) belt tension lock knobs to secure.
8
. Install belt cover, and secure with flat washer
9
and belt cover lock knob removed in Step 3.
. Position table and headstock for operation
5
(refer to Positioning Table on Page 32
and Positioning Headstock on Page 33).
. Adjust depth stop to desired drilling
6
depth (refer to Adjusting Depth Stop on
Page 34).
. Determine correct spindle speed for your
7
drilling operation (refer to Spindle Speed on
Page 36).
. Configure machine for required speed range,
8
if necessary (refer to Changing Spindle
Speed Range on Page 38).
. Connect machine to power.
9
. Adjust laser guide (refer to Adjusting Laser
10
Guide on Page 35).
Model T33962/T33963 (Mfd. Since 10/23)
-39-
Page 42
. Turn mode switch counterclockwise to drilling
11
(D) mode (see Figure 57).
. Press spindle ON button to start spindle rota-
12
tion (see Figure 57).
. Adjust spindle speed dial until spindle speed
13
digital readout displays spindle speed determined in Step 8 (see Figure 57).
Tapping
When in tapping mode on the Model T33962/
T33963, the spindle direction immediately alternates between forward and reverse when the
spindle reaches the drilling depth set by the depth
stop. This feature is critical because it backs the
tap out of a hole before it bottoms out and snaps
off.
Spindle Speed
Digital Readout
Spindle
Mode
Switch
Figure 57. Control panel components.
14. Allow spindle to reach spindle speed set in
Step 13, then use downfeed handles to lower
cutting tool into workpiece to perform drilling
operation.
. Allow spindle to return to top position.
15
. Turn machine OFF, allow spindle to come
16
to a complete stop, and DISCONNECT
MACHINE FROM POWER before removing
workpiece.
Speed
Dial
Spindle
ON
Button
The spindle direction can also be reversed when
the REVERSE TAPPING button is pressed after
the tap is engaged and prior to the drilling depth
being reached. This button will allow you to clear
waste chips out of the hole during the tapping
process or immediately back out a tap if you
notice the tap binding or slipping in the chuck.
Frequently removing waste chips will prevent galling and tap breakage.
The following steps describe a typical tapping
operation on this machine, but different taps and
operation requirements may vary. If you are unfamiliar with tapping on a drill press, we strongly
recommend that you read books, review industry
trade magazines, or get formal training before
attempting tapping projects.
Use correct diameter of drill bit to drill
pilot hole prior to beginning any tapping
operation. Attempting to cut threads into an
incorrectly sized hole can cause tap to snap
and eject splinters.
DO NOT use hand taps on this machine.
Hand taps are not designed to eject chips
during operation so they require a much
slower spindle RPM and feeding technique.
-40-
In order to prevent injury to operator and
bystanders, DO NOT clear chips from
workpiece surface while machine is ON or
use hands or compressed air to clear chips.
Model T33962/T33963 (Mfd. Since 10/23)
Page 43
To complete a typical tapping operation:
. DISCONNECT MACHINE FROM POWER!
1
. Put on required safety glasses and face
2
shield.
. Secure workpiece to table or base.
3
. Install correct tap for operation (refer to
4
Installing/Removing Arbor on Page 30
and Installing/Removing Cutting Tool on
Page 32).
. Position table and headstock for operation
5
(refer to Positioning Table on Page 32
and Positioning Headstock on Page 33).
Note: There must be at least 1⁄4" between tap
and workpiece for micro switches to engage
correctly for automatic spindle reverse feature to function.
13. Press spindle ON button to start spindle rotation (see Figure 58).
. Adjust spindle speed dial until spindle speed
14
digital readout displays spindle speed determined in Step 8 (see Figure 58).
Spindle Speed
Digital Readout
Spindle
Mode
Switch
REVERSE
TAPPING
Button
Speed
Dial
Spindle
ON
Button
. Determine maximum tapping depth and adjust
6
depth stop accordingly (refer to Adjusting
Depth Stop on Page 34).
Note: You MUST adjust stop to keep tap from
bottoming-out in order for spindle direction to
automatically reverse and back tap out.
. Determine correct spindle speed for your tap-
7
ping operation (refer to Spindle Speed on
Page 36).
Note: Do not exceed 80 RPM unless you
have researched and are familiar with speed
requirements of your operation.
. Configure machine for required speed range,
8
if necessary (refer to Changing Spindle
Speed Range on Page 38).
. Apply tapping fluid to contact point of tap and
9
workpiece (refer to Spindle Speed on Page
36 for list of recommended lubricants).
. Connect machine to power.
10
. Adjust laser guide (refer to Adjusting Laser
11
Guide on Page 35).
. Turn mode switch clockwise to tapping (T)
12
mode (see Figure 58).
Figure 58. Control panel components.
15. Allow spindle to reach spindle speed set in
Step 14.
. Use downfeed handles to slowly lower spin-
16
dle until tap begins threading into workpiece,
then release pressure on downfeed handles.
Observe tap as it threads. When preset depth
is reached, spindle will stop, reverse direction, and back out of hole.
— If chips build up, press REVERSE
TAPPING button (see Figure 58) to back
tap out a couple of threads to eject chips
from hole. Press button again to resume
tapping.
— If tap binds or slips in chuck, press
REVERSE TAPPING button (see Figure
58) to reverse spindle direction and back
tap completely out of hole. Do not resume
tapping until issue has been resolved.
. Allow spindle to return to top position.
17
. Turn machine OFF, allow spindle to come
18
to a complete stop, and DISCONNECT
MACHINE FROM POWER before removing
workpiece or clearing chips from surface.
Model T33962/T33963 (Mfd. Since 10/23)
-41-
Page 44
ACCESSORIES
Installing unapproved accessories may
order online at www.grizzly.com or call 1-800-523-4777
SECTION 5: ACCESSORIES
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.
SB1365—South Bend Way Oil-ISO 68
T26419—Syn-O-Gen Synthetic Grease
NOTICE
Refer to our website or latest catalog for
additional recommended accessories.
G8583—1⁄32"–5⁄8" x JT3 Keyless Drill Chuck
Industrial-grade keyless chucks are excellent
for quick cutting tool changes. Knurled grips
and exceptional accuracy make these chucks
an indispensable part of any shop. Use on drill
presses, lathe tailstocks and milling machines.
1
⁄32"–5⁄8" capacity with a Jacobs Taper #3 in back.
T26419
SB1365
Figure 60. Recommended lubrication products.
G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT® 11 Oz. Spray
Figure 61. Recommended products for
protecting unpainted cast-iron and steel.
Figure 59. G8583 1⁄32"–5⁄8" x JT3 Keyless Drill
Chuck.
-42-
Model T33962/T33963 (Mfd. Since 10/23)
Page 45
SECTION 6: MAINTENANCE
To reduce risk of shock or
accidental startup, always
disconnect machine from
Cleaning &
Protecting
power before adjustments,
maintenance, or service.
Schedule
For optimum performance from this machine, this
maintenance schedule must be strictly followed.
Ongoing
To minimize your risk of injury and maintain proper
machine operation, shut down the machine immediately if you ever observe any of the items below,
and fix the problem before continuing operations:
• Loose mounting bolts.
• Damaged tooling.
Damaged or missing chip guard.
•
Worn or damaged wires.
•
Worn or damaged buttons, switches, or dials.
•
Debris and built up grime.
•
Damaged V-belt.
•
Any other unsafe condition.
•
Cleaning the machine is relatively easy. Sawdust,
wood chips, and metal chips that have been
soaked with water-based cutting fluid or lubricant
left on the machine will invite oxidation and a
gummy residue build-up around the moving parts.
Vacuum excess wood chips and sawdust, and
wipe off the remaining dust with a dry cloth. If any
resin has built up, use a resin dissolving cleaner
to remove it. Use a brush and shop vacuum to
remove metal chips and debris from the work surface. Never blow off debris with compressed air,
as this will force chips deep into the mechanisms
and may cause injury to yourself or bystanders.
Protect the unpainted cast iron table and base by
wiping them clean after every use—this ensures
moisture from wood dust does not remain on bare
metal surfaces. Keep the table and base rust-free
with regular applications of metal protectant products like SLIPIT® (see Figure 61 on Page 42).
Lubrication
Weekly Maintenance
• Lubricate quill and column surfaces
(Page 44).
Monthly Check
• Check V-belt for damage or wear (Page 38).
• Lubricate quill rack and pinion (Page 44).
• Model T33963 Only: Lubricate column
rack (Page 44).
• Clean/vacuum dust buildup off of motor.
Model T33962/T33963 (Mfd. Since 10/23)
An essential part of lubrication is cleaning the
components before lubricating them.
This step is critical because grime and chips build
up on lubricated components, which makes them
hard to move. Simply adding more lubricant will
not result in smooth moving parts.
Lubricate components with recommended
products like those shown in Accessories on
Page 42.
DISCONNECT MACHINE FROM POWER
BEFORE PERFORMING LUBRICATION!
-43-
Page 46
Quill & Column Surfaces
Oi l Typ e .... Grizzly SB1365 or ISO 68 Equivalent
Oil Amount
Lubrication Frequency
Items Needed Qty
Mineral Spirits .................................... As Needed
Shop Rags
Move the spindle all the way down to access
the smooth surfaces of the quill. Adjust the table
height (and headstock height, for the Model
T33962) as necessary to access the entire length
of the column (see Figure 62). Clean both with
mineral spirits and shop rags.
Note: Avoid removing the grease from the column
rack on the Model T33963 and the quill racks on
both models.
Quill
Surface
Figure 62. Quill and column surfaces exposed
After cleaning, allow mineral spirits to dry, then
apply a thin coat of oil to the surfaces.
............................................Thin Coat
...........8 Hrs. of Operation
......................................... As Needed
Column
Surface
(T33962 shown).
Quill Rack & Pinion
Grease Type .... Grizzly T26419 or NLGI#2 Equiv.
Grease Amount
Lubrication Frequency
....................................Thin Coat
......... 90 hrs. of Operation
Move spindle all the way down to gain access to
quill rack (see Figure 63), then clean teeth with
mineral spirits, shop rags, and a brush.
Quill Rack
Column Rack
Figure 63. Example of quill and column racks
exposed.
Allow rack to dry, use a brush to apply a thin coat
of grease to the rack teeth, then fully raise/lower
the quill to distribute the grease.
Column Rack (Model T33963 Only)
Grease Type .... Grizzly T26419 or NLGI#2 Equiv.
Grease Amount
Lubrication Frequency
Items Needed Qty
Mineral Spirits .................................... As Needed
Shop Rags
Stiff Brushes
Clean the column rack teeth (see Figure 63) with
mineral spirits, shop rags, and a brush.
Allow the rack to dry, use a brush to apply a thin
coat of grease to the rack teeth, then fully raise/
lower the table to distribute the grease.
....................................Thin Coat
......... 90 hrs. of Operation
......................................... As Needed
...................................................... 2
Items Needed Qty
Mineral Spirits .................................... As Needed
Shop Rags
Stiff Brush
-44-
......................................... As Needed
.......................................................... 1
Model T33962/T33963 (Mfd. Since 10/23)
Page 47
Review the troubleshooting procedures in this section if a problem develops with your machine. If you need
replacement parts or additional help with a procedure, call our Technical Support.
the
serial number and manufacture date of your machine before calling.
SECTION 7: SERVICE
Troubleshooting
Motor & Electrical
Symptom Possible Cause Possible Solution
Machine does
not start, or
power supply
breaker
immediately
trips after
startup.
Machine
stalls or is
underpowered.
Machine has
vibration or
noisy operation.
1. Emergency Stop button depressed.
2. Chip guard open.
3. Belt cover removed.
4. Mode switch is in neutral (0) position.
5. Incorrect power supply voltage or circuit size.
6. Potentiometer at fault.
7. Power supply circuit breaker tripped or fuse
blown.
8. Motor wires connected incorrectly.
9. Wiring broken, disconnected, or corroded.
10. Spindle ON, spindle OFF, or Emergency Stop
button at fault.
11. Chip guard or belt cover safety switch at fault.
12. Mode switch at fault.
13. Braking resistor at fault.
14. VFD at fault.
15. Relay at fault.
16. Motor or motor bearings at fault.
1. Workpiece material unsuitable for machine.
2. Feed rate/cutting speed too fast.
3. Belt slipping/pulleys misaligned.
4. Motor wires connected incorrectly.
5. Pulley slipping on shaft.
6. Machine undersized for task.
7. Motor overheated.
8. Extension cord too long.
9. Mode switch at fault.
10. Motor or motor bearings at fault.
1. Motor or component loose.
2. V-belt worn, loose, pulleys misaligned, or belt
slapping cover.
1. Rotate Emergency Stop button head to reset.
2. Close guard.
3. Install belt cover.
4. Move mode switch to drilling (D) or tapping (T)
position.
5. Ensure correct power supply voltage and circuit size
(Page 14).
6. Test/replace if at fault.
7. Ensure circuit is free of shorts. Reset circuit breaker or
replace fuse.
8. Correct motor wiring connections (Page 54).
9. Fix broken wires or disconnected/corroded
connections (Page 54).
10. Replace button.
11. Replace safety switch.
12. Test/replace switch.
13. Test/replace if at fault.
14. Inspect VFD; replace if at fault.
15. Replace relay.
16. Replace motor.
1. Only cut wood with moisture below 20% and correct
type/size of metal.
2. Decrease feed rate/cutting speed (Page 36).
3. Clean/tension/replace belt (Page 38); ensure
pulleys are aligned (Page 49).
4. Correct motor wiring connections (Page 54).
5. Tighten/replace loose pulley/shaft.
6. Use sharp cutting tools; reduce feed rate; reduce
spindle RPM (Page 36); use cutting uid if possible.
7. Clean motor, let cool, and reduce workload.
8. Move machine closer to power supply; use shorter
extension cord (Page 15).
9. Test/replace switch.
10. Replace motor.
1. Replace damaged or missing bolt/nuts or tighten if
loose.
2. Inspect/replace belt. Realign pulleys if necessary
(Page 49).
Note: Please gather
Model T33962/T33963 (Mfd. Since 10/23)
-45-
Page 48
Motor & Electrical (Cont.)
Symptom Possible Cause Possible Solution
Machine has
vibration or
noisy operation.
Machine
operates in
reverse.
LED or laser
guide does not
illuminate.
Digital readout
does not work/
display is
incorrect.
REVERSE
TAPPING
button does not
reverse spindle
rotation while
tapping.
3. Pulley loose.
4. Machine is incorrectly mounted to oor or
workbench.
5. Motor mount loose/broken.
6. Spindle loose, improperly installed, or
damaged.
7. Workpiece loose.
8. Chuck or cutting tool at fault.
9. Motor fan rubbing on fan cover.
10. Spindle bearings at fault.
11. Motor bearings at fault.
1. Motor wire connections are wired out of
phase.
1. Lens covered with dust.
2. Wiring broken, disconnected, or corroded.
3. LED/laser module damaged/at fault.
4. LED/laser button at fault.
5. Transformer at fault.
1. Spindle speed sensor catching on pulley.
2. Wiring broken, disconnected, or corroded.
3. Spindle speed sensor at fault.
4. Digital readout is at fault.
1. Workpiece is too close to tap.
2. Spindle downfeed depth stop micro switch
needs to be adjusted.
3. Wiring broken, disconnected, or corroded.
4. REVERSE TAPPING button at fault.
5. Spindle downfeed micro switch at fault.
3. Secure pulley on shaft.
4. Shim base or tighten mounting hardware.
5. Tighten/replace.
6. Tighten loose spindle, re-install spindle ensuring
mating surfaces are clean, replace spindle if damaged.
7. Use correct holding xture and reclamp workpiece.
8. Replace unbalanced chuck; replace/sharpen cutting
tool; use correct feed rate.
9. Fix/replace fan cover; replace loose/damaged fan.
10. Test by rotating spindle; rotational grinding/loose shaft
requires bearing replacement.
11. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.
1. Correct phase polarity.
1. Clean lens.
2. Fix broken wires or disconnected/corroded
connections (Page 54).
3. Replace LED/laser module (Page 51).
4. Replace button.
5. Replace transformer.
1. Adjust sensor position.
2. Fix broken wires or disconnected/corroded
connections (Page 54).
3. Replace sensor.
4. Replace digital readout.
1. There must be at least 1⁄4" between tap and workpiece
for downfeed micro switch to disengage and allow
rotation reversal.
2. Adjust spindle downfeed micro switch so it disengages
when spindle is moved down.
3. Fix broken wires or disconnected/corroded
connections (Page 54).
4. Replace button.
5. Replace micro switch.
Operation
Symptom Possible Cause Possible Solution
Tools falls out
or loose in
chuck.
Chuck and
arbor fall out
or are loose in
spindle.
Table hard to
move.
-46-
1. Chuck jaws loose.
2. Excessive feed pressure.
1. Debris on chuck, arbor, or in spindle taper.
2. Excessive feed pressure.
1. Table locked.
2. Dirty or dry column surfaces.
3. Dirty or dry rack and pinion (T33963 only).
1. Tighten chuck jaws.
2. Decrease feed pressure and allow chips to clear.
1. Clean chuck, arbor, and spindle taper, then re-install
(Page 30).
2. Decrease feed pressure and allow chips to clear.
1. Disengage table lock(s) (Page 32).
2. Clean and lubricate column surfaces (Page 44).
3. Clean and lubricate rack and pinion (Page 44).
Model T33962/T33963 (Mfd. Since 10/23)
Page 49
Operation (Cont.)
Symptom Possible Cause Possible Solution
Breaking
cutting tools or
cutters.
Workpiece or
tool vibrates or
chatters during
operation.
Bad surface
nish.
Spindle
overheats.
Spindle does
not fully retract.
Cutting tool
drifts.
Cutting tool
slips in chuck
or stuck in
workpiece.
Workpiece
thrown from
table.
Backside of
workpiece
splinters.
Excessive
runout or
wobbling in
chuck/cutting
tool.
1. Spindle speed/feed rate too fast.
2. Taking too big of a cut at one time/utes of
cutting tool clogged with chips.
3. Improper cutting technique or type of cut for
tool/machine.
4. Cutting tool too small.
5. Cutting tool getting too hot/lack of cutting uid
or wrong cutting uid.
6. Spindle extended too far down during or at
beginning of operation.
1. Spindle extended too far down during or at
beginning of operation.
2. Headstock or table lock(s) not tight.
3. Workpiece not secure.
4. Spindle speed/feed rate too fast.
1. Lack of cutting uid/wrong cutting uid.
2. Spindle speed/feed rate too fast.
3. Dull or incorrect cutting tool.
4. Wrong rotation direction of cutting tool.
5. Workpiece not secure.
6. Spindle extended too far down during or at
beginning of operation.
1. Machine operated at high speeds for
extended period.
1. Debris on spindle/quill rack.
2. Worn return spring.
1. Dull/incorrectly sharpened cutting tool.
2. Cutting tool or chuck incorrectly installed.
3. Cutting tool is not designed for clockwise
rotation.
1. Chuck jaws loose.
2. Workpiece squeezing cutting tool.
3. Feed rate too fast.
4. Spindle speed/feed rate too slow.
1. Workpiece not secure.
2. Cutting tool too large for feed speed.
1. Scrap board not installed between table and
workpiece.
1. Debris between chuck-to-spindle mating
surfaces.
2. Cutting tool bent.
3. Cutting tool installed incorrectly.
4. Spindle bearings worn.
1. Reduce spindle speed (Page 36); reduce feed rate.
2. Decrease feed pressure and allow chips to clear.
3. Use right technique, tool, or machine for job.
4. Use larger cutting tool and slower feed rate.
5. Use coolant or oil for appropriate application; reduce
cutting speed (Page 36).
6. Fully retract spindle and raise table to increase rigidity.
1. Fully retract spindle and raise table to increase rigidity.
2. Tighten headstock (Page 33) and table lock(s)
(Page 32).
3. Properly clamp workpiece on table or in vise.
4. Reduce spindle speed (Page 36)/feed rate.
1. Use correct cutting uid for operation.
2. Reduce spindle speed (Page 36)/feed rate.
3. Sharpen cutting tool or select one that better suits
operation.
4. Reverse cutting tool direction.
5. Properly clamp workpiece on table or in vise.
6. Fully retract spindle and raise table to increase rigidity.
1. Allow machine to cool.
1. Clean and lubricate spindle/quill rack (Page 44).
2. Replace return spring.
1. Correctly sharpen cutting tool.
2. Correctly re-install cutting tool (Page 32) or chuck
(Page 30).
3. Only use cutting tools designed for clockwise rotation
on this machine.
1. Tighten chuck jaws.
2. Properly clamp workpiece on table or in vise.
3. Decrease feed rate.
4. Increase spindle speed (Page 36)/feed rate.
1. Properly clamp workpiece on table or in vise.
2. Use smaller cutting tool or decrease feed speed.
1. Install scrap board between table and workpiece.
1. Remove chuck, clean, deburr tapered chuck
and spindle mating surfaces, then reassemble
(Page 30).
2. Replace with straight cutting tool.
3. Install cutting tool correctly (Page 32).
4. Replace spindle bearings.
Model T33962/T33963 (Mfd. Since 10/23)
-47-
Page 50
Operation (Cont.)
Symptom Possible Cause Possible Solution
Tap snaps. 1. Lack of cutting uid/wrong cutting uid.
2. Operation requires more frequent chip
clearing.
3. Spindle speed too fast.
4. Misalignment between tap and pilot hole.
5. Wrong size pilot hole.
6. Wrong style of tap/tap has too many utes.
7. Tap bottomed out.
Tapped threads
are not smooth.
1. Tap cutting edges chipped or dull.
2. Chip packing.
3. Galling.
1. Use correct cutting uid for operation.
2. Frequently back out tap during operation to clear
chips.
3. Reduce spindle speed.
4. Fix alignment between tap and pilot hole.
5. Use correct diameter of drill bit to drill pilot hole.
6. Use spiral/spiral point tap/use tap with fewer utes to
provide extra chip room. Do not use hand taps with
this machine; hand taps require specic speeds and
feeds.
7. Set depth stop to less than workpiece thickness to
keep tap from bottoming out.
1. Replace tap.
2. Use spiral/spiral point tap; use tap with fewer utes
to provide extra chip room, and/or back out tap more
often during tapping operation.
3. Use proper coolant; reduce spindle speed.
-48-
Model T33962/T33963 (Mfd. Since 10/23)
Page 51
Aligning
Motor Pulley
Pulley alignment is an important factor in power
transmission and belt life. The pulleys should
be parallel to each other and in the same plane
(coplanar) for optimum performance.
Use a straightedge to check the pulley alignment,
as shown in Figure 64. The motor pulley can be
adjusted up and down on its shaft.
Figure 64. Example of checking pulley
alignment.
Tools Needed Qty
Hex Wrench 3mm .............................................. 1
Straightedge 24"
................................................ 1
3. Place straightedge against motor and spindle
pulleys (see Figure 66) and check that they
are aligned. There should be no space anywhere between straightedge and pulleys.
Motor
Pulley
Figure 66. Location of pulleys and motor pulley
set screw.
— If pulleys are aligned, no adjustment is
necessary. Install belt cover, and secure
with flat washer and belt cover lock knob
removed in Step 2.
— If pulleys are not aligned, proceed to
Step 4.
Spindle
Pulley
To align motor pulley:
1. DISCONNECT MACHINE FROM POWER!
. Remove belt cover lock knob and flat washer
2
to remove belt cover (see Figure 65).
Belt Cover
Lock Knob
Figure 65. Location of belt cover lock knob.
Model T33962/T33963 (Mfd. Since 10/23)
Use care when handling V-belt as it could
pinch your fingers. It may also be hot after
extended use, so wait to touch V-belt if
machine has been in use.
4
. Loosen set screw on motor pulley (see Figure
66), adjust pulley on shaft until it aligns with
spindle pulley, then tighten set screw.
. Install belt cover, and secure with flat washer
5
and belt cover lock knob removed in Step 2.
-49-
Page 52
Calibrating
Depth Stop
The depth stop allows you to drill multiple holes
at the same depth and also initiates the automatic
spindle rotation reverse function that is necessary
for tapping. The scale on this depth stop can be
calibrated if it ever becomes incorrect.
Items Needed Qty
Scrap Workpiece ............................................... 1
Phillips Head Screwdriver #2
To calibrate depth stop:
1. DISCONNECT MACHINE FROM POWER!
2. Secure scrap workpiece to table.
............................ 1
6. With cutting tool contacting workpiece surface, rotate depth collar until indicator displays desired depth (see Figure 67).
Tighten depth stop lock knob to secure,
7.
then allow quill and spindle to return to top
position.
. Put on required safety glasses and face
8
shield.
. Connect machine to power and drill a test
9
hole, then allow spindle to return to top position.
. Turn machine OFF, allow spindle to come
10
to a complete stop, and DISCONNECT
MACHINE FROM POWER.
. Measure depth of drilled hole.
11
Install cutting tool.
3.
Loosen depth stop lock knob (see Figure 67).
4.
Depth Collar
Indicator
Depth Stop
Lock Knob
Figure 67. Location of depth stop components.
5. Use downfeed handles to lower spindle until
cutting tool just contacts surface of workpiece.
— If hole depth is the same as desired depth
set in Step 6, no adjustment is necessary.
— If hole depth is not the same as desired
depth set in Step 6, proceed to Step 12.
Use downfeed handles to lower spindle until
12.
cutting tool just contacts surface of workpiece.
Loosen Phillips head screw securing indicator
13.
(see Figure 67).
Adjust indicator until it indicates depth of hole
14.
measured in Step 11.
While holding indicator in place, tighten screw
15.
from Step 13 to secure setting.
Repeat Steps 4–11 at different location on
16.
workpiece to test adjustment.
-50-
Model T33962/T33963 (Mfd. Since 10/23)
Page 53
Replacing LED/
Laser Modules
If the LED or either one of the laser modules
burns out and needs to be replaced, use the following applicable section to replace it. A wiring
diagram is provided in the wiring section beginning on Page 54 for your reference.
Replacing LED
Items Needed Qty
Phillips Head Screwdrivers
#1 ............................................................... 1
#2 with 61⁄2 " Shaft ....................................... 1
Flat Head Screwdriver 0.100"
Replacement LED Assembly (#PT33962173)
String (12" Minimum)
Wire Ferrule Terminal (18G)
Wire Ferrule Terminal (22G)
Wire Crimper
To replace LED:
1. DISCONNECT MACHINE FROM POWER!
..................................................... 1
......................................... 1
............................ 1
... 1
.............................. 1
.............................. 1
3. Remove (4) flange screws shown in Figure
69 to remove electrical box cover.
x 4
Electrical
Box Cover
Figure 69. Location of electrical box cover and
securing screws.
4. Adjust table so it is just under electrical box.
. Remove (3) Phillips head screws shown in
5
Figure 70 to remove VFD from electrical box,
then use table to support VFD to keep from
straining wire connections inside electrical
box.
2. Turn LED assembly (see Figure 68) coun-
terclockwise to remove LED from headstock,
then pull LED just enough to reveal connected wires.
LED
Assembly
Figure 68. Location of LED assembly. (T33963
shown).
VFD
x 3
Figure 70. Location of VFD and securing
screws.
Model T33962/T33963 (Mfd. Since 10/23)
-51-
Page 54

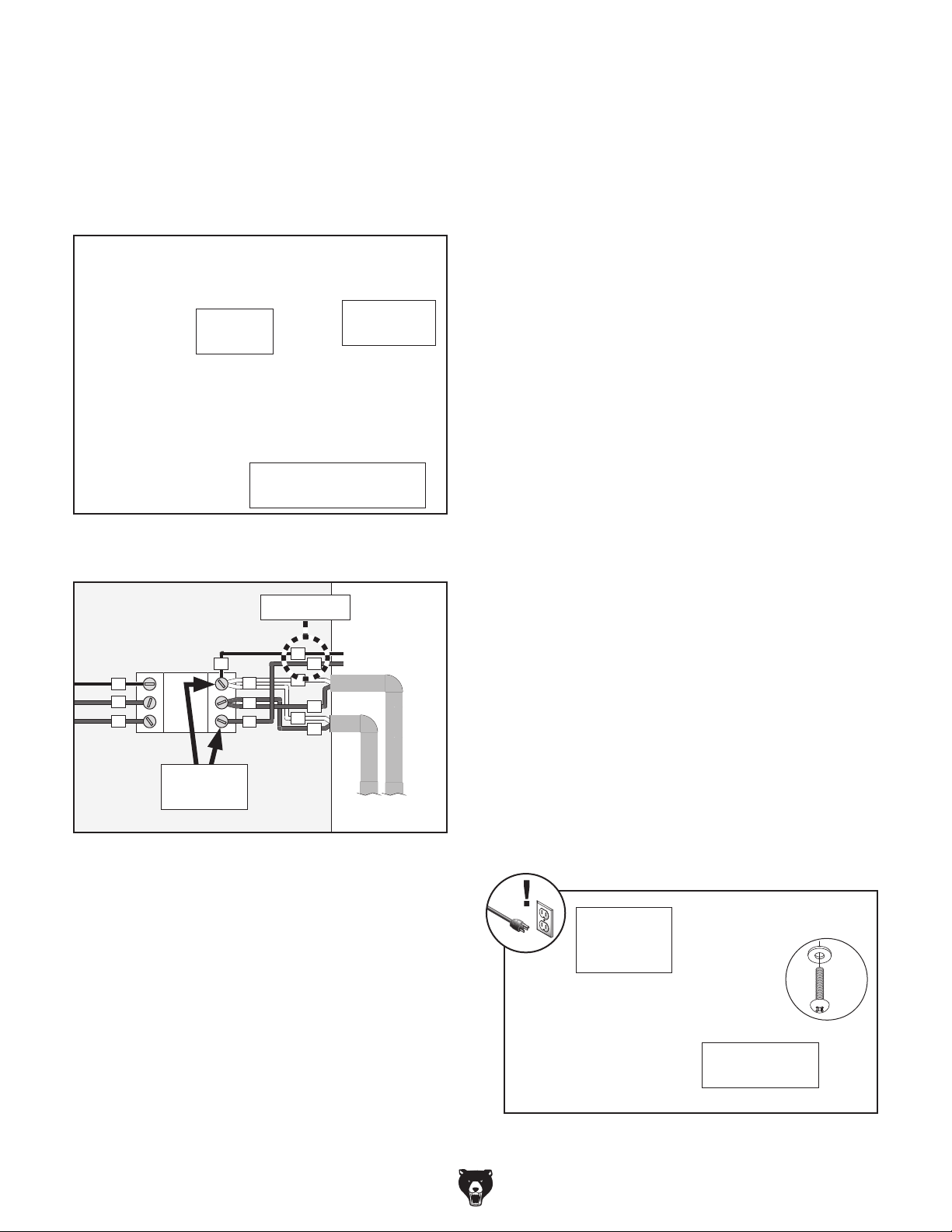

6. Disconnect 16 and 18 wire ferrule terminals
from headstock side of terminal block (see
Figures 71–72), then remove 16 and 18
wires from wire ferrule terminals.
Note: Discard wire ferrule terminals. They will
be replaced with new ones in later steps.
Terminal
Block
Headstock
Side
Wire Ferrule Terminal
(1 of 3)
Figure 71. Location of terminal block and wire
ferrule terminals.
LED Wires
16
16
17
18
16
17
18
16
16
16
(To LED
18
17
17
11. Pull untied end of string to thread new LED
wires through headstock and electrical box,
then untie string.
Attach (2) white and (1) black 16 wires
12.
together with new 18G wire ferrule terminal,
crimp ferrule, and attach ferrule to terminal
block, as shown in Figure 72.
Insert (1) red 18 wire into new 22G wire fer-
13.
rule terminal, crimp ferrule, and attach ferrule
to terminal block, as shown in Figure 72.
Install VFD and electrical box cover.
14.
15. Feed new LED wires into headstock and
thread new LED onto headstock threads.
Replacing Laser Module
Items Needed Qty
Phillips Head Screwdrivers
#1 ............................................................... 1
#2 with 61⁄2 " Shaft ....................................... 1
Flat Head Screwdriver 0.100"
Replacement Laser Module (#PT33962170)
String (12" Minimum)
......................................... 1
Wire Ferrule Terminals (18G)
Wire Crimper
..................................................... 1
To replace laser module:
1. DISCONNECT MACHINE FROM POWER!
............................ 1
..... 1
............................ 2
LED Wire
Terminals
(To Laser
Modules)
Figure 72. Terminal block wiring.
7.
Identify which 16 and 18 wires are connected
to LED by lightly tugging on LED.
Tie string to end of LED wires to aid in instal-
8.
lation of new LED.
While keeping hold of untied end of string at
9.
electrical box, fully remove LED assembly
from headstock, pulling wires with it. String
will follow cord path.
Remove string from LED wires, and tie it to
10.
end of new LED wires.
-52-
2. Remove (2) Phillips head screws and flat
washers securing faulty laser module in seat
and remove lower laser seat (see Figure 73).
Pull faulty laser module just enough to remove
3.
it from headstock (see Figure 73).
Lower
Laser Seat
(1 of 2)
x 2
Laser Module
(1 of 2)
Figure 73. Laser module removal components
(T33963 shown).
Model T33962/T33963 (Mfd. Since 10/23)
Page 55

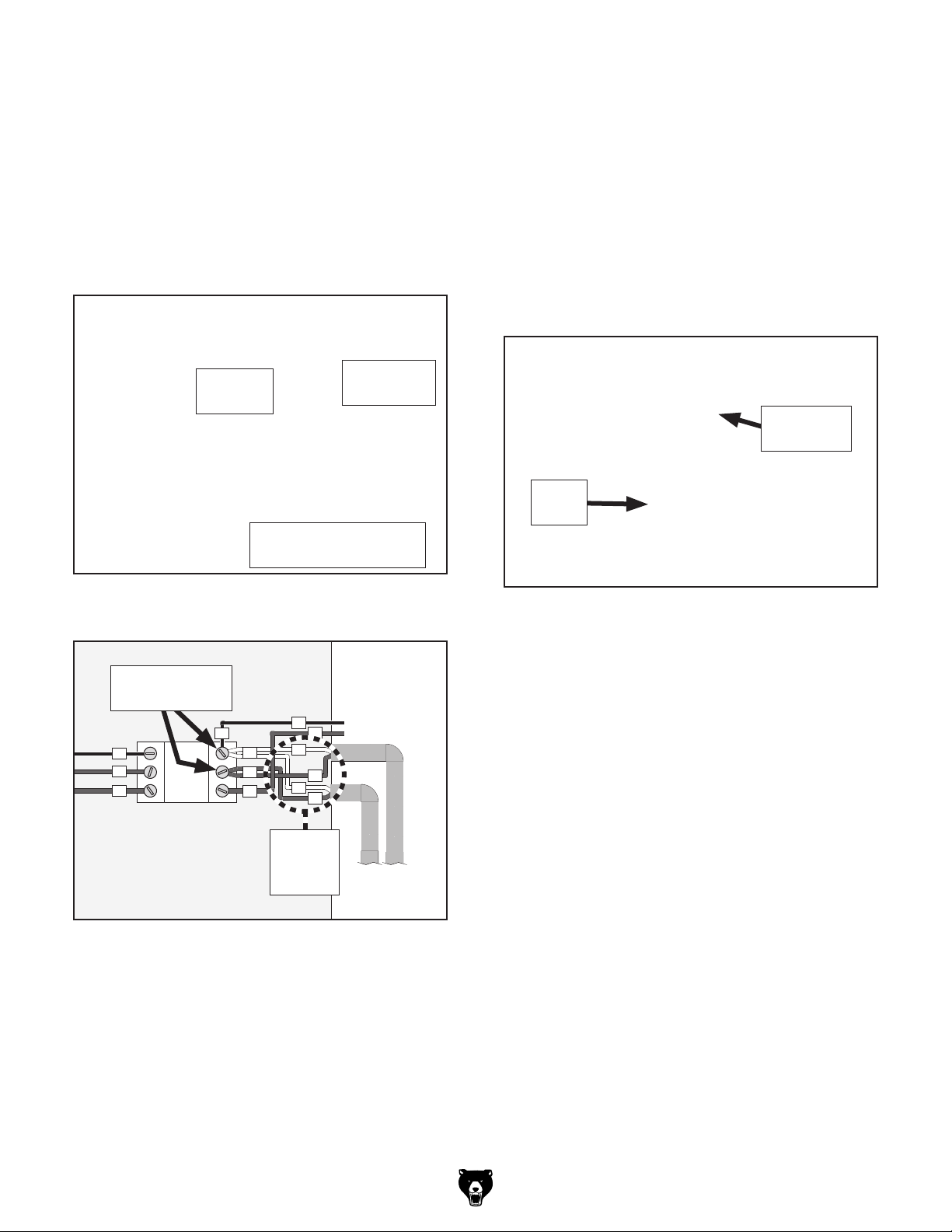

4. Complete Steps 3–5 of Replacing LED on
Page 51.
Disconnect 16 and 17 wire ferrule terminals
5.
from headstock side of terminal block (see
Figures 74–75), then remove 16 and 17
wires from wire ferrule terminals.
8.
While keeping hold of untied end of string
at electrical box, fully remove faulty laser
module from headstock, pulling wires with it.
String will follow cord path.
Remove string from faulty laser module wires,
9.
but leave string threaded through headstock.
Note: Discard wire ferrule terminals. They will
be replaced with new ones in later steps.
Terminal
Block
Headstock
Side
Wire Ferrule Terminal
(1 of 3)
Figure 74. Location of terminal block and wire
ferrule terminals.
Laser Module
Wire Terminals
16
16
17
18
16
17
18
16
16
16
(To LED
18
17
17
Laser
Module
Wires
(To Laser
Modules)
Figure 75. Terminal block wiring.
Remove upper laser seat and laser collar
10.
from faulty laser module (see Figure 76),
and place laser collar and upper laser seat on
new laser module cord.
Upper
Laser Seat
Laser
Collar
Figure 76. Laser seat components.
11. Tie string from Step 9 to end of new laser
module wires.
Pull untied end of string to thread new laser
12.
module wires through headstock and electrical box, then untie string.
Attach (2) white and (1) black 16 wires
13.
together with new wire ferrule terminal, crimp
ferrule, and attach ferrule to terminal block,
as shown in Figure 75.
Attach (2) red 17 wires together with new wire
14.
ferrule terminal, crimp ferrule, and attach ferrule to terminal block, as shown in Figure 75.
6.
Identify which 16 and 17 wires are connected
to faulty laser by lightly tugging on faulty
laser.
Tie string to end of faulty laser module wires
7.
to aid in installation of new laser module.
Model T33962/T33963 (Mfd. Since 10/23)
Install VFD and electrical box cover.
15.
16. Feed new laser module cord and laser mod-
ule into headstock, then secure with lower
laser seat and fasteners removed in Step 2.
Refer to Adjusting Laser Guide on Page
17.
35 to adjust laser modules.
-53-
Page 56

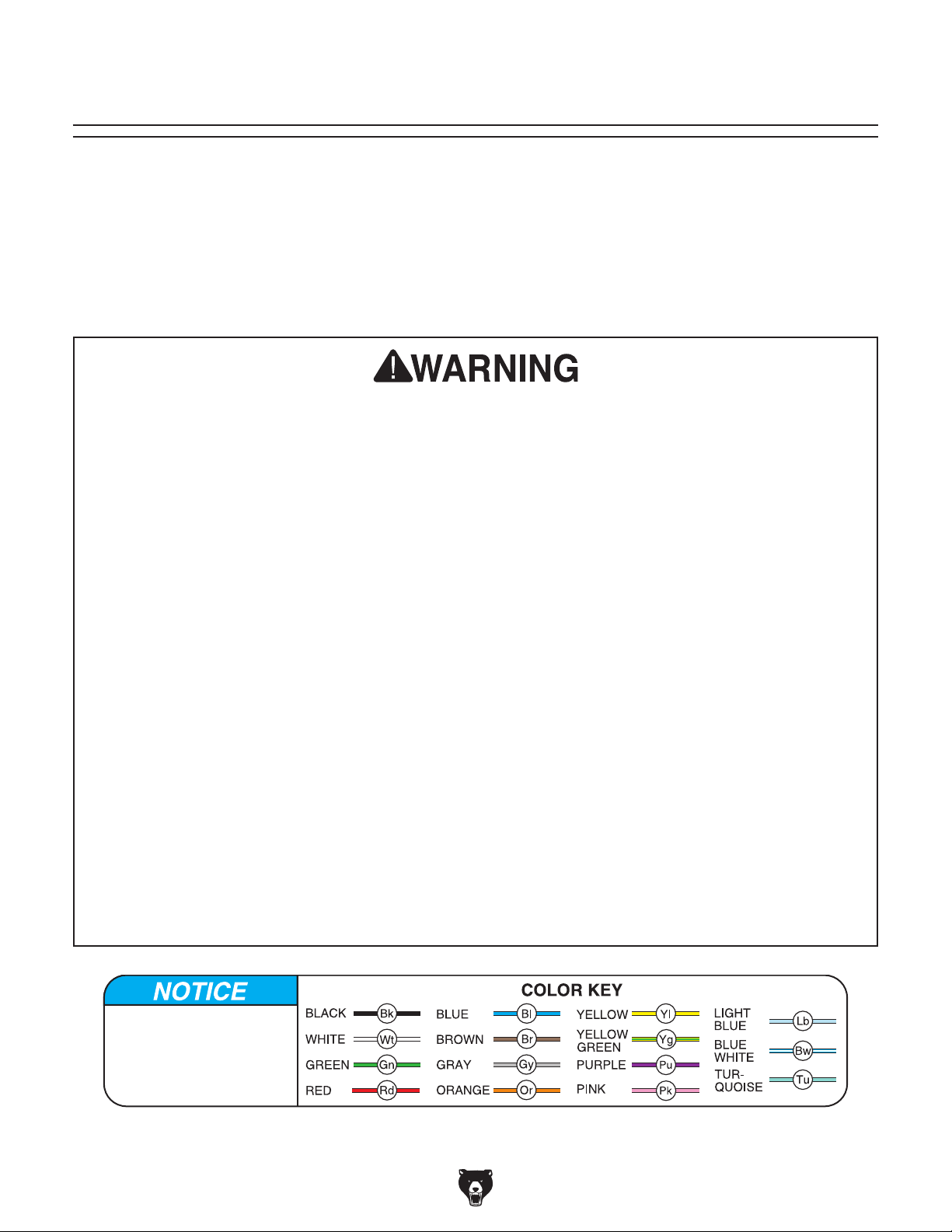

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one
stated in this manual, and study this section carefully.
If there are differences between your machine and what is shown in this section, call Technical Support at
(570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available.
number and manufacture date of your
machine before calling. This information can be found on the main machine label.
machine
SECTION 8: WIRING
Note: Please gather the serial
Wiring Safety Instructions
SHOCK HAZARD. Working on wiring that is con-
nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical components!
MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpredictable results, including serious injury or fire.
This includes the installation of unapproved aftermarket parts.
WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires disconnected or connected during any wiring task to
ensure tight connections.
CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.
WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious personal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.
MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.
CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.
EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information
included in this section, contact our Technical
Support at (570) 546-9663.
The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.
-54-
Model T33962/T33963 (Mfd. Since 10/23)
Page 57

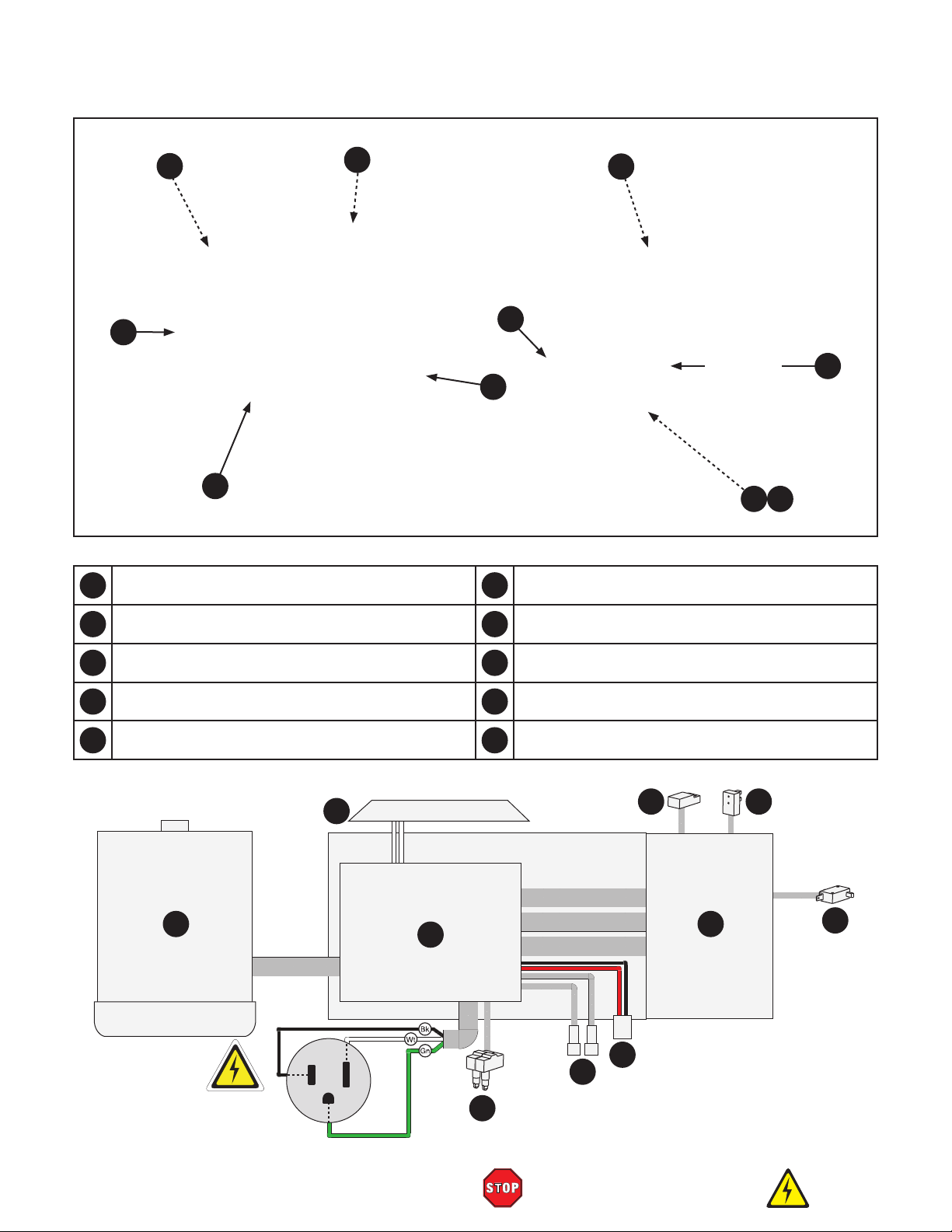

Wiring Overview
1
10
9
1
Braking Resistor (Page 61)
2
3
7
4
8
5
6
6
Laser Modules (Page 60)
2
Belt Cover Safety Switch (Page 61)
3
Spindle Speed Sensor (Page 61)
4
Depth Stop Micro Switches (Page 60)
5
LED (Page 60)
1
10
Hot
Neutral
7
Chip Guard Safety Switch (Page 60)
8
Control Panel (Page 56)
9
Electrical Box (Pages 57–59)
10
Motor (Page 61)
2
9
8
3
7
5
6
120 VAC
5-15 Plug
Model T33962/T33963 (Mfd. Since 10/23)
Ground
4
READ ELECTRICAL SAFETY
ON PAGE 54!
-55-
Page 58

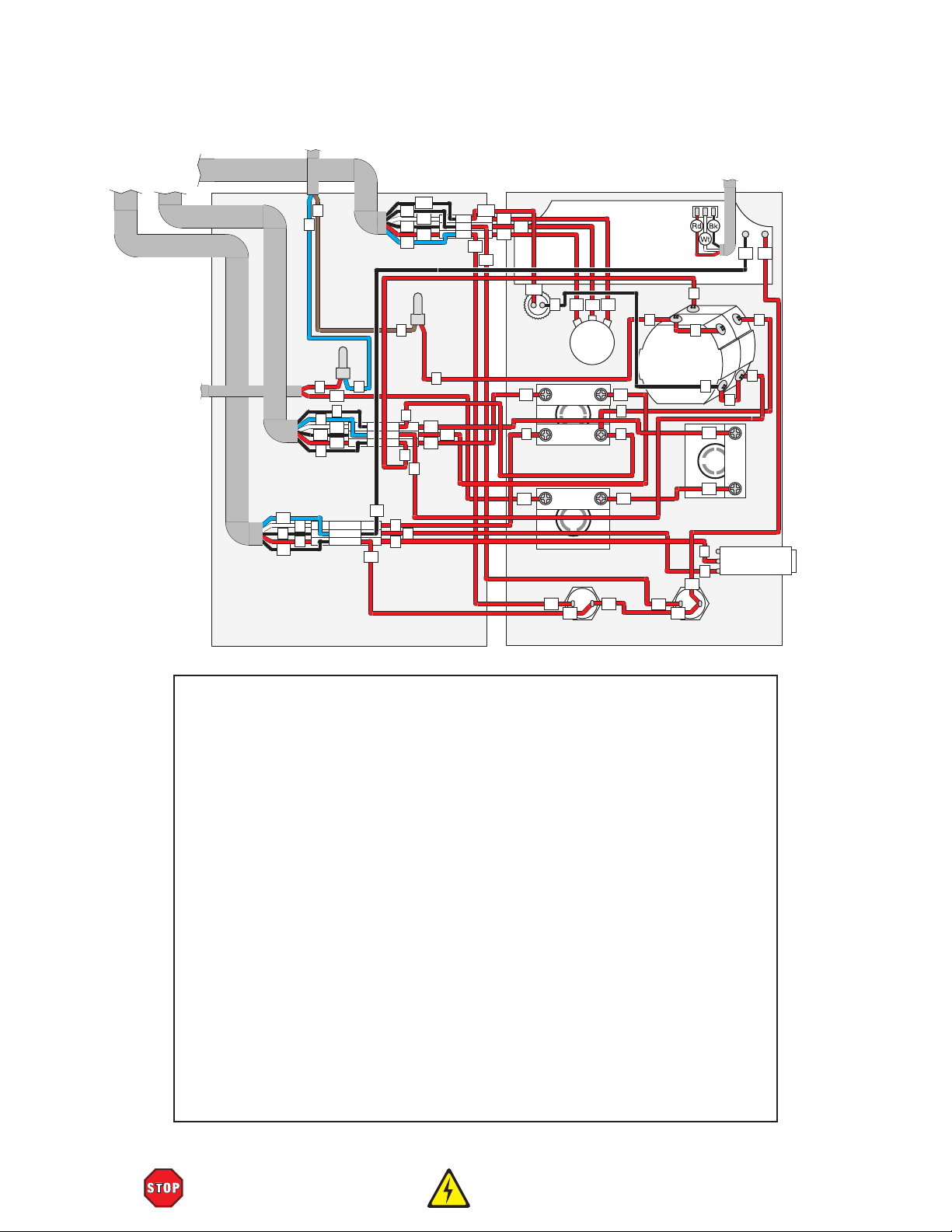

To Belt Cover Safety Switch
Control Panel Wiring
To Electrical
Box Rear
(Page 58)
To Chip Guard
Safety Switch
(Page 60)
(Page 61)
9
16
1
4
5
15
To Spindle Speed Sensor
(Page 61)
8
9
9
10
2
3
12
13
14
7
15
MA
17
20
21
22
18
8
2
12
14
7
3
16
1
4
5
MA
20
21
22
18
17
MA
3
Spindle
Reverse
Indicator
MARKET LED
8
13
3 4
14
1
4 3
Spindle ON Button
GOELE LA115-A5-10D
10
Spindle OFF Button
GOELE LA115-A5-10BN
18
YONGLI S012-A10P
21
COSMOS
B103
Potentiometer
2
1
15
LED Button
Spindle Speed DRO
DKLD CB07-12B
2022
8
Mode Switch
WHUROW LW26-10
13
2
2
11
15
Emergency Stop Button
17
15
Laser Button
YONGLI S012-A10P
16
7
1
5
GOELE LA115-A5-01ZS
15
3
8
7
4
8
3
3
12
1
2
11
5
KACON
K16-211
4
15
2
3
REVERSE
TAPPING
Button
Figure 77. Control panel wiring.
-56-
READ ELECTRICAL SAFETY
ON PAGE 54!
Model T33962/T33963 (Mfd. Since 10/23)
Page 59

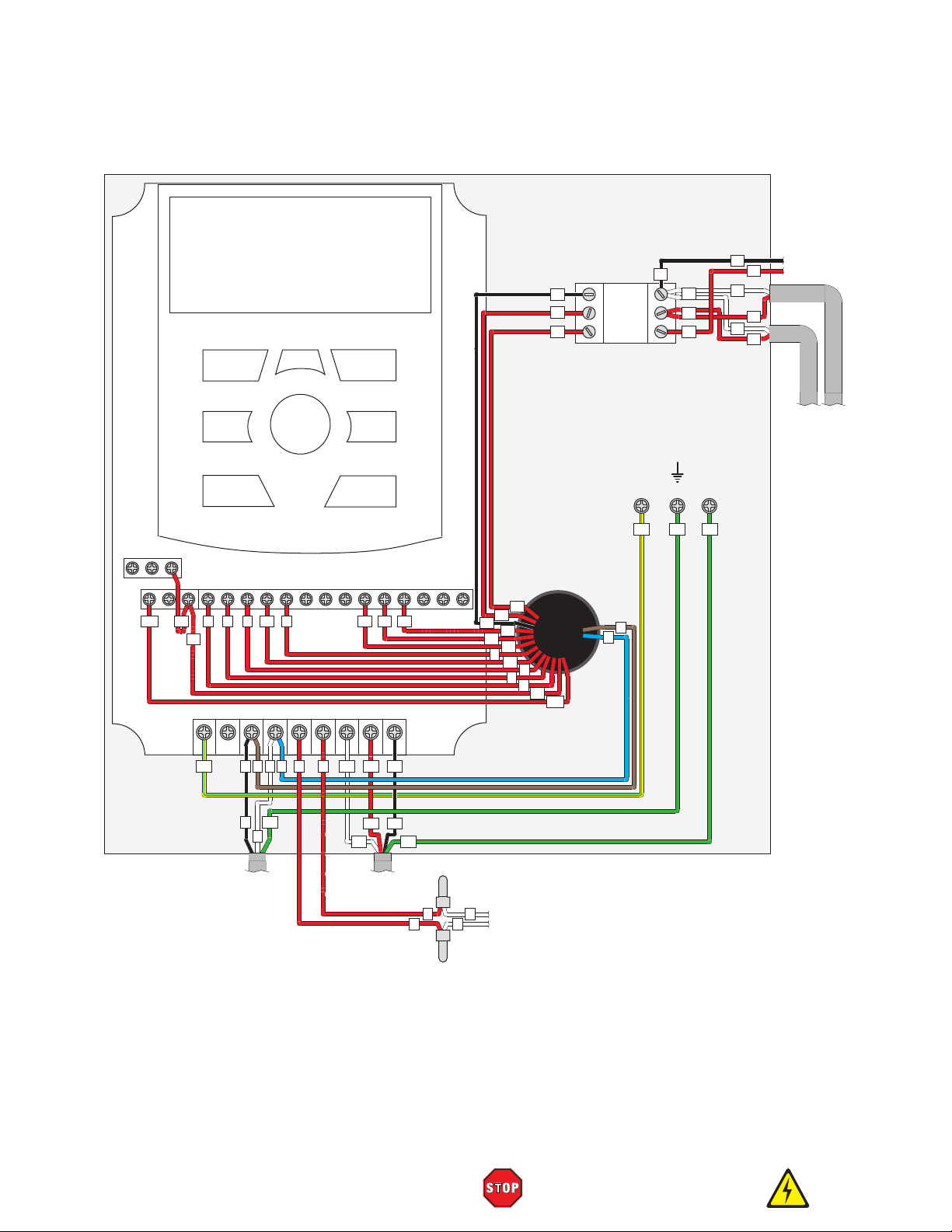

Electrical Box Front Wiring Diagram
ELECTRICAL BOX
(From Front)
VFD
LINGSHIDA
LSD-C7100-1.5KW-D
IN: 1PH/100–120V 15A 50–60Hz
OUT: 3PH/0–230V 7.5A 0–400Hz
M1 M2 24V
MA
MB MC SC S1 S2 S3 S4 S5 S6 AM
MA
14
G
6
551
L N P
B U
FC +10V FV FI
22 20 211214 3
V W
485+ 485-
17
16
20
6
To Electrical
Box Rear
(Page 58)
18
21
22
12
1
3
14
16
17
18
N
MA
16
16
17
18
Ground
PE PEPE
L
18
17
17
To LED
(Page 60)
16
16
16
To Laser
Modules
(Page 60)
U1
PE
N
L NL
PE
L
N
To Plug
(Page 55)
P
B
V1 W1
V1 W1
U1
To Motor
(Page 61)
Model T33962/T33963 (Mfd. Since 10/23)
PE
B
P
To Braking Resistor
B
P
(Page 61)
READ ELECTRICAL SAFETY
-57-
ON PAGE 54!
Page 60

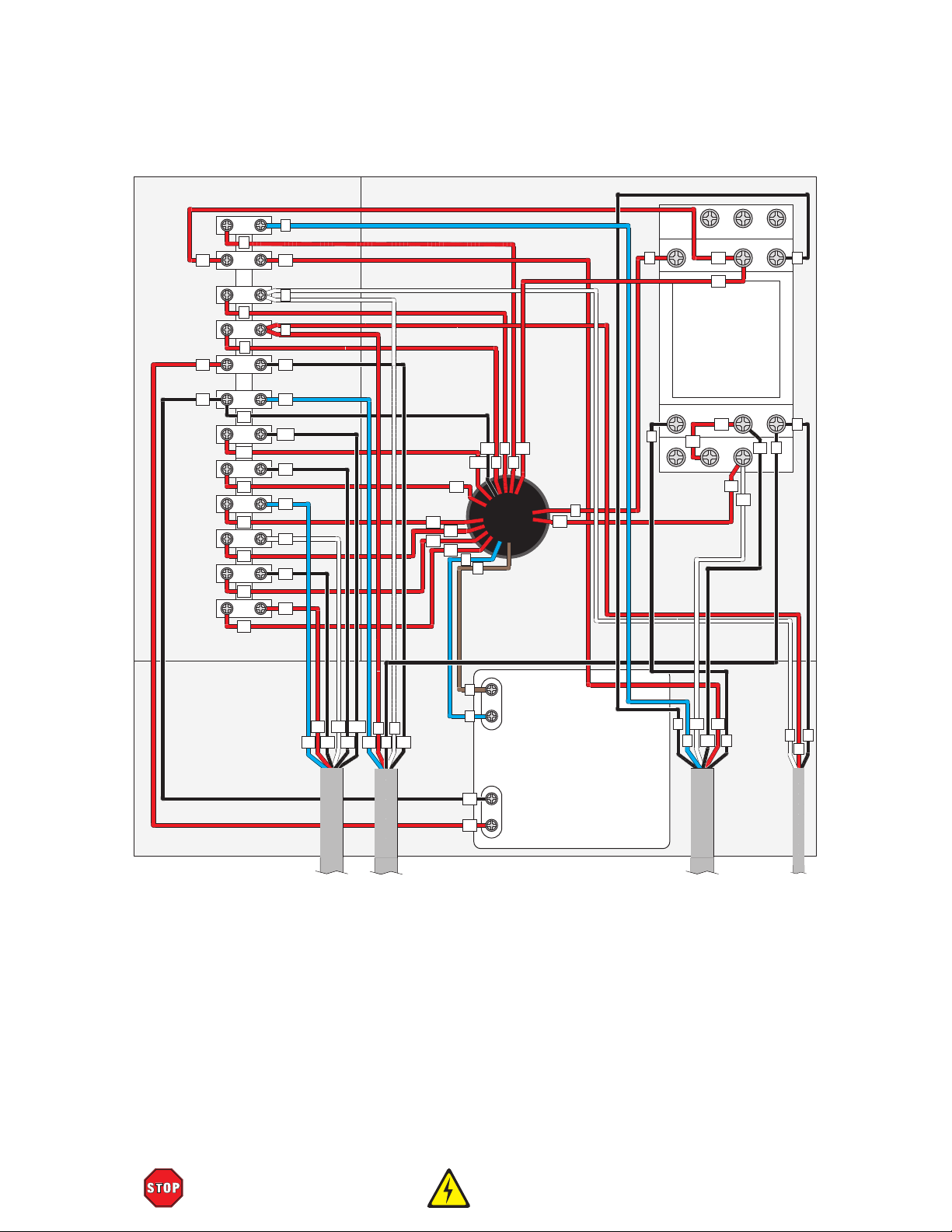

Electrical Box Rear Wiring Diagram
ELECTRICAL BOX
(From Rear)
3
3
3
14
15
16
14
14
1
1
1
5
5
5
15
15
16
16
16
MA
MA
MA
17
17
17
18
18
18
20
20
20
21
21
21
22
22
22
18
21
MA 3
17
20
22
N
L
To Electrical
16
1
14
5
Box Front
(Page 57)
6
12
6
7
3 2 1
6 5 4
14
14
Relay
YIJIA
YJ3N-GS 24VDC
Relay Holder
YIJIA
YJF11A-E
9 8 7
13
13
12 11 10
13
12
12
4
2
4
22 20
MA
21 17
18
5 1
16 154
To Control Panel
(Page 56)
AC-L
L
AC-N
N
Transformer
DKLD B26-7B
2 12
14
13
73
1 4
5
IN: 90–230VAC 50/60Hz
OUT: 5VDC 450mA
DC–
16
DC+
15
To Control Panel
(Page 56)
To Depth
Stop Micro
Switches
(Page 60)
-58-
READ ELECTRICAL SAFETY
ON PAGE 54!
Model T33962/T33963 (Mfd. Since 10/23)
Page 61
Figure 78. Electrical box wiring.
Model T33962/T33963 (Mfd. Since 10/23)
READ ELECTRICAL SAFETY
ON PAGE 54!
-59-
Page 62
Depth Stop Micro Switch Wiring
DEPTH STOP
(From Above)
NC
Downfeed
Micro Switch
CHNT
YBLXW-5/11Q1
NO
To Electrical
Box Rear
(Page 58)
5
1
4
COM
Chip Guard Safety Switch Wiring
CHIP GUARD MOUNT
(From Above)
9
NC
Chip Guard
Safety Switch
LEMA
KW7-03B
NO
COM
9
10
NC
12
Micro Switch
YBLXW-5/11Q1
14
NO
4 4
11
COM
To Control Panel
12
Reverse
CHNT
14
1
11
4
Figure 79. Depth stop micro switch wiring.
(Page 56)
-60-
LED & Laser Module Wiring
To Electrical Box Front
(Page 57)
16
18
161716
17
16
13210
18
LED
1W 3.5V
READ ELECTRICAL SAFETY
Laser Modules
DKLD LDBXQ03B
ON PAGE 54!
Figure 80. Chip guard safety switch wiring.
Figure 81. Laser module and LED wiring
(T33962 shown).
Model T33962/T33963 (Mfd. Since 10/23)
Page 63

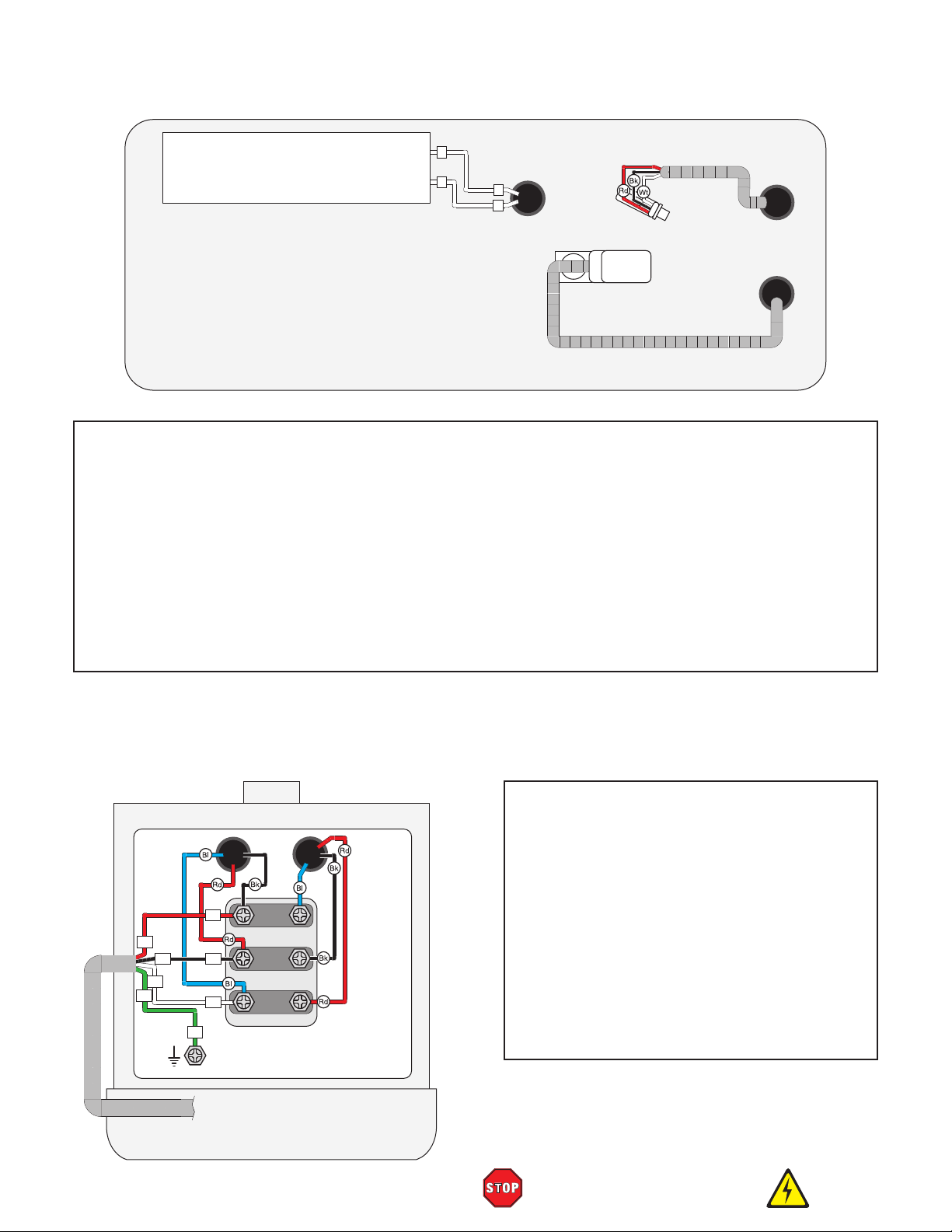

Belt Cover Wiring
Braking Resistor
LH150W100RJ
150W 100Ω
P
B
P
B
To Electrical Box Front
(Page 57)
BELT COVER
(From Above)
CHIIB
LJC1-3/24
Spindle Speed
Sensor
DKLD CB07-5C
Belt Cover
Safety Switch
To Control
Panel
(Page 56)
PE
Figure 82. Belt guard wiring.
Motor Wiring
V1
V1
W1
U1
PE
U1
W1
V1
U1
W1
Ground
To Electrical Box Front
(Page 57)
W2
U2
V2
Figure 83. T33962 motor junction box wiring.
220V MOTOR
Model T33962/T33963 (Mfd. Since 10/23)
READ ELECTRICAL SAFETY
ON PAGE 54!
-61-
Page 64

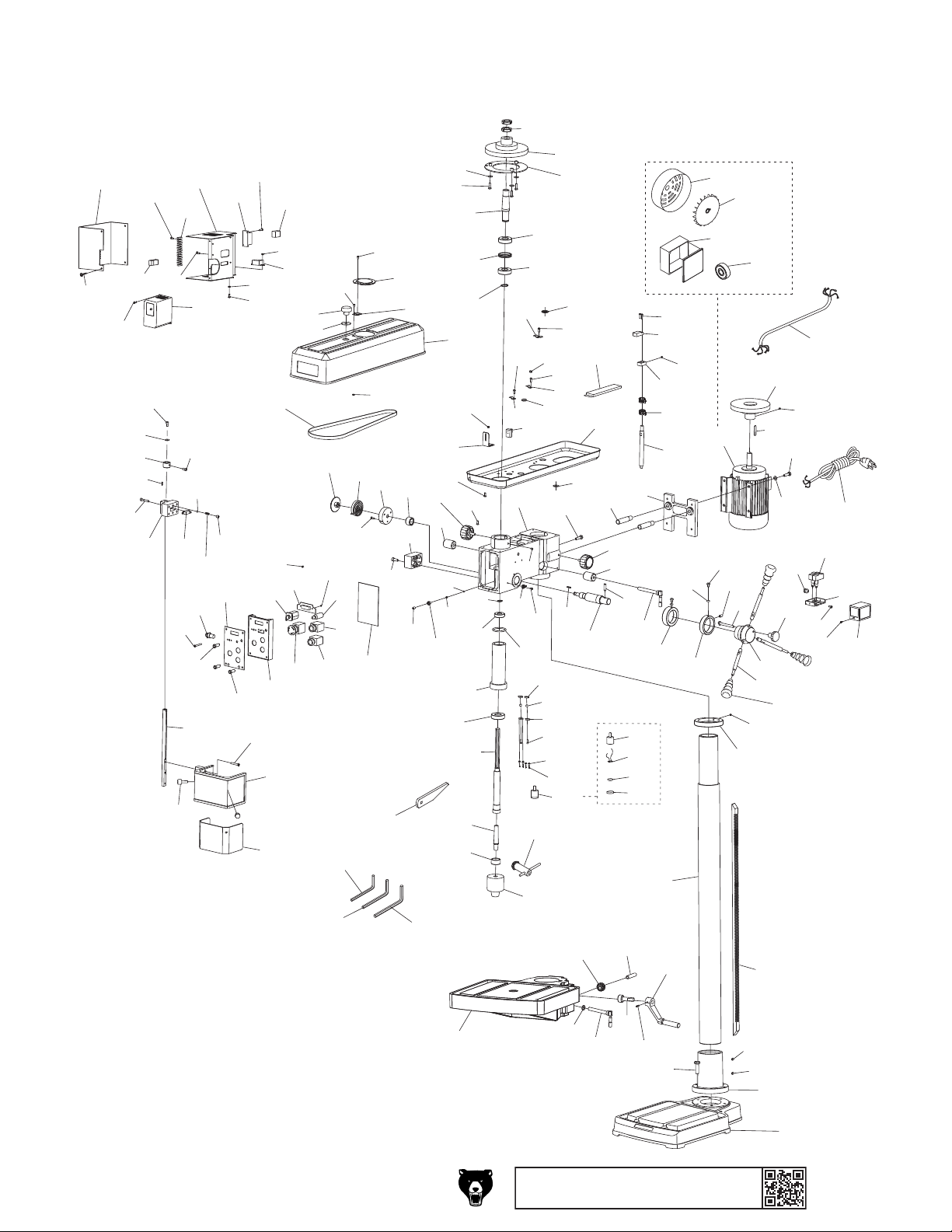

SECTION 9: PARTS
We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.
T33962 Main
167
195
204
186
174
130
129
128
127
131
126
143
146
202
122
133
144
131
125
119
114
124
154
132
147
123
153
50
201
178
200
118
136
148
139
16
112
135
134
191
161
102
151
117
190
101
105
70
164
116
152
115
163
69
56
110
188
194
105
139
68
192
104
121
109
103
67
120
179
139
150
76
106
107
108
100
61
60
25
24
22
85
83
81
37
76
29
28
76
101
32
86
78
78
51
38
20
82
31
23
26
26
149
50
27
26
33
96
158
80
172
171
172
170
174
173
160
159
76
79
76
138
203
87
169
94
189
34
52
49
97
61
63
35
71
39
72
47
46
196
197
198
199
36
62
165
187
91
90
89
77
88
183
40
92
45
41
182
184
156
140
48
73-1
73-3
73
137
53
73-2
43
73-4
42
44
186
185
99
74
11
1
58
56
193
157
75
57
55
16
54
59
-62-
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T33962/T33963 (Mfd. Since 10/23)
Page 65
REF
74 PT33962074 FLAT WASHE R 8MM 137 PT33962137 SET SCREW M5-.8 X 6
T33962 Main Parts List
REF P ART # DES CRIP TI ON
1 PT33962001 BASE 75 PT33962075 HEX BOLT M8-1.25 X 30
11 PT33962011 HEX BOLT M12-1.75 X 40 76 PT33962076 PHLP HD SCR M5-.8 X 12
16 PT33962016 SET SCREW M6-1 X 8 77 PT33962077 CABLE TIE
20 PT33962020 HEADSTOCK 78 PT33962078 CORD CLAMP SINGLE
22 PT33962022 DRI LL CHUCK J T3 5/8" 79 PT33962079 HEX NUT M5-. 8
23 PT33962023 SPINDLE NUT M30-1.5 LH 80 PT33962080 GROMMET 9/16"
24 PT33962024 DRI LL CHUCK ARBO R MT#2 X J T3 81 PT33962081 EXT RETAI NING RI NG 25MM
25 PT33962025 SPINDLE MT#2 82 PT33962082 SET SCREW M6-1 X 8
26 PT33962026 BALL BEARING 6205-2RS 83 PT33962083 B USHING
27 PT33962027 QUILL 85 PT33962085 SPINDLE PULLEY SHAFT
28 PT33962028 BALL BEARING 6203-2RS 86 PT33962086 CO RD CLAMP DOUB LE
29 PT33962029 EXT RETAI NING RI NG 20MM 87 PT33962087 GROMMET 9/16"
31 PT33962031 SPACER 50 X 58 X 4MM 88 PT33962088 PROXI MI TY SWITCH SHA FT
32 PT33962032 HEX NUT M16- 2 89 PT33962089 PROXI MITY S WI TCH MOUNT
33 PT33962033 FENDER WA SHE R 16MM 90 PT33962090 PRO XI MI TY SWI TCH CHI I B LJ C1-3/ 24
34 PT33962034 TABLE TILT SHAFT 91 PT33962091 PHLP HD SCR M4-.7 X 16
35 PT33962035 TABLE 92 PT33962092 SET SCREW M6-1 X 8
36 PT33962036 TABLE MOUNTING BRACKET 94 PT33962094 FOAM RING 7 X 22 X 3MM
37 PT33962037 FLANGE NUT M12-1.75 96 PT33962096 SPANNER NUT M2 4-1 . 5
38 PT33962038 HEAD STUD M12-1.75 X 60 97 PT33962097 BELT COVER SEAT
39 PT33962039 RIVET 2 X 2.5MM BLIND 99 PT33962099 KEY 6 X 6 X 45
40 PT33962040 TABLE TILT SCALE 100 PT33962100 BELT COVER
41 PT33962041 KNOB M8-1.25, D40 101 PT33962101 FENDER WA SHER 1 2MM
42 PT33962042 STANDOFF-RD MM M8-1.25X15,M12-1.75X14, 130 102 PT33962102 KNOB M12-1.75, 7-LOBE, D47
43 PT33962043 DOWNFEED HUB 103 PT33962103 SPRI NG HI NG E
44 PT33962044 KNOB M8-1.25, 7-LOBE, D22 104 PT33962104 COLUMN DO OR
45 PT33962045 DEPTH RI NG 105 PT33962105 PHLP HD SCR M4-.7 X 8
46 PT33962046 COLLAR DEPTH STOP 106 PT33962106 STEEL BALL 6.75MM
47 PT33962047 ROLL PIN 8 X 30 107 PT33962107 COMPRESSION SPRI NG 0.5 X 4.5 X 5.9MM
48 PT33962048 DEPTH PI N 108 PT33962108 SET SCREW M8-1.25 X 12
49 PT33962049 PINI ON SHA FT 109 PT33962109 HEX NUT M8 -1. 2 5
50 PT33962050 PHLP HD SCR M4-.7 X 8 110 PT33962110 INSULATION SHEET
51 PT33962051 DEPTH I NDI CATOR 112 PT33962112 CONTROL PANEL
52 PT33962052 DOWEL PIN 4 X 16 114 PT33962114 I NDI CATOR LI GHT MARKE T LED
53 PT33962053 CLAMP BOLT M8-1.25 X 75 115 PT33962115 OFF BUTTON GOELE LA115-A5-01BN
54 PT33962054 LIMI T SWI TCH BASE 116 PT33962116 ON BUTTON GOELE LA115-A5-10D
55 PT33962055 TAP SCREW M3.5 X 8 117 PT33962117 E-STOP BUTTON GOELE LA115-A5-01ZS
56 PT33962056 PHLP HD SCR M5-.8 X 10 118 PT33962118 MODE S WI TCH WHUROW LW2 6-1 0
57 PT33962057 LIMI T SWI TCH CHNT YBLXW- 5/ 11 Q1 119 PT33962119 PHLP HD SCR M5-.8 X 40
58 PT33962058 GROMMET 3/8" 120 PT33962120 RAI L MOUNT B LO CK
59 PT33962059 LIMI T SWI TCH COVER 121 PT33962121 CAP SCREW M8-1.25 X 20
60 PT33962060 CLAMP BLOCK M12-1.75 122 PT33962122 MI CRO SWI TCH LE MA KW7 -03 B
61 PT33962061 KNOB BOLT M8-1.25 X 18, 8-LOBE, D34 123 PT33962123 SET SCREW M10-1.5 X 8
62 PT33962062 FOLDING HANDLE M12-1.75 X 35, 110L 124 PT33962124 COMPRESSION SPRI NG 1 X 6 X 15.8MM
63 PT33962063 CLAMP BLOCK 125 PT33962125 STEEL BALL 8MM
67 PT33962067 SPACER 22 X 32 X 20MM 126 PT33962126 RAIL MOUNT ASSEMBLY
68 PT33962068 RETURN SPRI NG SE AT 127 PT33962127 CAP SCREW M6-1 X 35
69 PT33962069 FLAT COIL SPRING 128 PT33962128 ROLL PIN 3 X 10
70 PT33962070 RETURN SPRI NG COV ER 129 PT33962129 RAIL LOCK COLLAR
71 PT33962071 SLIDE BAR 130 PT33962130 FLAT WA SHER 6MM
72 PT33962072 MOTOR MOUNT 131 PT33962131 CAP SCREW M6-1 X 12
73 PT33962073 MOTOR 3/4HP 220V 3-PH 132 PT33962132 CHI P GUARD RA I L
73-1 PT33962073-1 MOTOR FA N COVE R 133 PT33962133 KNOB BOLT M6-1 X 20, D20 KD
73-2 PT33962073-2 MOTOR FA N 134 PT33962134 CHIP GUARD EXTENSION
73-3 PT33962073-3 J UNCTI ON BOX 135 PT33962135 CHI P GUA RD
73-4 PT33962073-4 BALL BEARING 6204ZZ 136 PT33962136 FLAT HD S CR M6-1 X 40
PART # DE S CRIP TION
Model T33962/T33963 (Mfd. Since 10/23)
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
-63-
Page 66
171 PT33962171 LASER COLLAR 204 PT33962204 TERMINAL BLOCK FERRULE 3P
T33962 Main Parts List (Cont.)
REF P ART # DE S CRIP TI ON REF P ART # DE S CRIP TI ON
137 PT33962137 SET SCREW M5-.8 X 6 172 PT33962172 LASER SEAT
138 PT33962138 HEX BOLT M10-1. 5 X 35 173 PT33962173 LED ASSEMBLY
139 PT33962139 HE X NUT M4- . 7 174 PT33962174 PHLP HD SCR M3-. 5 X 16
140 PT33962140 FOLDING HANDLE M12-1. 75 X 35, 55L 178 PT33962178 LED/LASER BUTTON YONGLI S012-A10P
143 PT33962143 PHLP HD SCR M4-. 7 X 16 179 PT33962179 FL AT WAS HER 6 MM
144 PT33962144 VFD LSD-D/C C7100-1.5KW-D 182 PT33962182 STEEL BALL 6MM
146 PT33962146 ELECTRI CAL BOX 183 PT33962183 STEEL BALL RING
147 PT33962147 RELAY HOLDER YJF11A-E 184 PT33962184 HEADS TOCK HA NDWHEEL
148 PT33962148 RELAY YIJ IA YJ3N-GS 24VDC 185 PT33962185 CO LUMN
149 PT33962149 RPM SENSOR DKLD CB07-5C 186 PT33962186 PHLP HD SCR M4-.7 X 16
150 PT33962150 S ENSO R MOUNT 187 PT33962187 COLUMN BASE
151 PT33962151 SPEED DRO DKLD CB07-12B 188 PT33962188 DRI FT KEY
152 PT33962152 POTENTI OMETER W/DIAL COSMOS B103 189 PT33962189 DRI LL CHUCK KEY 21MM TH 11T SD-14.8MM
153 PT33962153 CONTROL PANEL LABEL 190 PT33962190 HE X WRENCH 2 . 5MM
154 PT33962154 REVERSE TAPPI NG BUTTON KACON K16-211 191 PT33962191 HE X WRENCH 3 MM
156 PT33962156 FL AT WAS HER 1 2MM 192 PT33962192 HEX WRENCH 5MM
157 PT33962157 MOTOR PULLEY 193 PT33962193 MOTOR CORD 16G 4W 47"
158 PT33962158 PHLP HD SCR M6-1 X 20 194 PT33962194 POWER CORD 16G 3W 72" 5-15P
159 PT33962159 RP M I NDI CA TOR 195 PT33962195 FLANGE SCREW M5-. 8 X 10
160 PT33962160 SPI NDLE PULLEY 196 PT33962196 L ED HOUS I NG
161 PT33962161 TRA NSFORME R DKLD B 26-7B 197 PT33962197 LED
163 PT33962163 V-BELT 460J 198 PT33962198 LE NS
164 PT33962164 TAP SCREW M2.2 X 4.5 199 PT33962199 LED COVER
165 PT33962165 O-RING 4 X 3 200 PT33962200 LOCK WASHER 4MM
167 PT33962167 ELECTRI CAL BOX COVER 201 PT33962201 PHLP HD SCR M4-. 7 X 10
169 PT33962169 BRAKING RESISTOR 150W 100OHM 202 PT33962202 TERMI NAL BAR 12P M3 X 104 TM3
170 PT33962170 LASER MODULE DKLD LDBXQ03B 203 PT33962203 FL AT WAS HER 3MM
-64-
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T33962/T33963 (Mfd. Since 10/23)
Page 67
96
195
167
204
91
130
129
128
127
174
131
126
143
122
133
146
202
131
125
154
119
114
132
144
124
123
153
147
178
50
200
201
163
118
112
136
148
16
135
134
139
161
102
151
117
101
105
70
164
116
190
191
T33963 Main
179
158
85
152
115
56
69
110
105
139
68
121
188
104
103
67
120
109
192
150
76
61
60
106
107
108
100
139
27
26
24
23
83
81
78
76
29
28
25
86
76
20
51
149
82
50
31
189
22
26
26
172
79
80
138
171
172
170
203
174
173
160
159
87
76
76
78
52
94
49
7
169
97
71
61
63
47
10
72
62
196
197
198
199
46
91
90
89
77
88
165
4
11
92
45
73-1
73-3
73
48
137
73-2
53
13
73-4
43
42
14
6
157
99
74
41
75
58
44
16
56
55
193
194
57
54
59
Model T33962/T33963 (Mfd. Since 10/23)
140
9
16
3
5
15
2
1
-65-
8
156
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Page 68
73-3 PT33963073-3 J UNCTI O N BOX 136 PT33963136 FL AT HD SCR M6 -1 X 40
T33963 Main Parts List
REF PART # DESCRI PTIO N RE F PART # DESCRIPTI ON
1 PT33963001 BASE 73-4 PT33963073-4 BALL BEARING 6205ZZ
2 PT33963002 COLUMN BASE 74 PT33963074 FL AT WAS HER 8MM
3 PT33963003 HEX BOLT M12-1.75 X 45 75 PT33963075 HEX BOLT M8-1. 25 X 30
4 PT33963004 COLUMN 76 PT33963076 PHLP HD SCR M5-.8 X 12
5 PT33963005 ROLL PIN 8 X 30 77 PT33963077 CABLE TIE
6 PT33963006 RACK 78 PT33963078 CORD CLAMP SINGLE
7 PT33963007 GEAR 14T 79 PT33963079 HEX NUT M5-. 8
8 PT33963008 TABLE 80 PT33963080 GROMMET 9/16"
9 PT33963009 WORM SHA FT 81 PT33963081 E XT RETA I NI NG RI NG 25MM
10 PT33963010 GEAR SHAFT 82 PT33963082 SET SCREW M6-1 X 8
11 PT33963011 TABLE HEIGHT CRANK 83 PT33963083 BUS HI NG
13 PT33963013 COLUMN COLLAR 85 PT33963085 SPINDLE PULLEY SHAFT
14 PT33963014 SET SCREW M6-1 X 8 86 PT33963086 CO RD CLAMP DOUB LE
15 PT33963015 SET SCREW M8-1.25 X 10 87 PT33963087 GROMMET 9/16"
16 PT33963016 SET SCREW M6-1 X 10 88 PT33963088 P ROXI MI TY SWI TCH SHAFT
20 PT33963020 HEADS TOCK 89 PT33963089 P ROXI MITY S WI TCH MOUNT
22 PT33963022 DRIL L CHUCK J T3 5/ 8 90 PT33963090 P ROXI MI TY SWI TCH CHI I B LJ C1-3/ 24
23 PT33963023 SPINDLE NUT M36-1.5 LH 91 PT33963091 PHLP HD SCR M4-. 7 X 16
24 PT33963024 DRIL L CHUCK A RBOR MT#3 X J T3 92 PT33963092 SET SCREW M6-1 X 8
25 PT33963025 SPINDLE MT#3 94 PT33963094 FOAM RI NG 7 X 22 X 3MM
26 PT33963026 BALL BEARING 6206-2RS 96 PT33963096 S PANNER NUT M24 -1. 5
27 PT33963027 QUILL 97 PT33963097 BELT COVER SEAT
28 PT33963028 BALL BEARING 6204-2RS 99 PT33963099 KEY 8 X 7 X 45
29 PT33963029 EXT RE TAI NI NG RI NG 20 MM 100 PT33963100 BELT COVER
31 PT33963031 SPACER 60 X 70 X 5MM 101 PT33963101 FENDER WA SHER 1 2MM
41 PT33963041 KNOB M8-1.25, D40 102 PT33963102 KNOB M12-1. 75, 7-LOBE, D47
42 PT33963042 STANDOFF-RD MM M8-1. 25X15,M12-1.75X14,152 103 PT33963103 SPRI NG HI NG E
43 PT33963043 DOWNFEE D HUB 104 PT33963104 COLUMN DO OR
44 PT33963044 KNOB M8-1.25, 7-LOBE, D22 105 PT33963105 PHLP HD SCR M4-.7 X 8
45 PT33963045 DEPTH RI NG 106 PT33963106 STEEL BALL 6.75MM
46 PT33963046 COLLAR DEPTH STOP 107 PT33963107 COMPRESSION SPRING 0.5 X 4.5 X 5. 9MM
47 PT33963047 ROLL PIN 8 X 35 108 PT33963108 SET SCREW M8-1. 25 X 12
48 PT33963048 DEPTH P I N 109 PT33963109 HEX NUT M8 -1. 2 5
49 PT33963049 PI NI O N SHAFT 110 PT33963110 I NSULATION SHEET
50 PT33963050 PHLP HD SCR M4-.7 X 8 112 PT33963112 CONTROL PANEL
51 PT33963051 DEPTH I NDICATO R 114 PT33963114 I NDI CATOR LI GHT MARKE T LE D
52 PT33963052 DOWEL PIN 4 X 16 115 PT33963115 OFF BUTTON GOELE LA115-A5-01BN
53 PT33963053 CLAMP BOLT M8-1.25 X 75 116 PT33963116 ON BUTTON GOELE LA115-A5-10D
54 PT33963054 LI MI T S WI TCH B AS E 117 PT33963117 E-STOP BUTTON GOELE LA115-A5-01ZS
55 PT33963055 TAP SCREW M3.5 X 8 118 PT33963118 MO DE SWI TCH WHUROW LW26 -1 0
56 PT33963056 PHLP HD SCR M5-.8 X 10 119 PT33963119 PHLP HD SCR M5-.8 X 40
57 PT33963057 LI MI T S WI TCH CHNT Y BL XW-5 / 11Q 1 120 PT33963120 RAI L MOUNT BL OCK
58 PT33963058 GROMMET 3/8" 121 PT33963121 CAP SCREW M8-1.25 X 20
59 PT33963059 LI MI T S WI TCH CO VE R 122 PT33963122 MI CRO S WI TCH L EMA KW7- 03B
60 PT33963060 CLAMP BLOCK M12-1.75 123 PT33963123 SET SCREW M10-1.5 X 8
61 PT33963061 KNOB BOLT M8-1.25 X 19, 8-LOBE, D53 124 PT33963124 COMPRESSION SPRING 1 X 6 X 15.8MM
62 PT33963062 FOLDING HANDLE M12-1. 75 X 38, 117L 125 PT33963125 STEEL BALL 8MM
63 PT33963063 CLAMP BLOCK 126 PT33963126 RAIL MOUNT ASSEMBLY
67 PT33963067 SPACER 25 X 51 X 22.8MM 127 PT33963127 CAP SCREW M6-1 X 35
68 PT33963068 RETURN SP RI NG SEA T 128 PT33963128 ROLL PIN 3 X 10
69 PT33963069 FLAT COIL SPRING 129 PT33963129 RAIL LOCK COLLAR
70 PT33963070 RETURN SP RI NG COVE R 130 PT33963130 FLA T WAS HER 6MM
71 PT33963071 SLIDE BAR 131 PT33963131 CAP SCREW M6-1 X 12
72 PT33963072 MOTOR MO UNT 132 PT33963132 CHI P G UARD RAI L
73 PT33963073 MOTOR 1HP 220V 3-PH 133 PT33963133 KNOB BOLT M6-1 X 20, D20 KD
73-1 PT33963073-1 MOTO R FAN COV ER 134 PT33963134 CHIP GUARD EXTENSION
73-2 PT33963073-2 MOTO R FAN 135 PT33963135 CHI P G UARD
-66-
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T33962/T33963 (Mfd. Since 10/23)
Page 69
167 PT33963167 ELECTRICAL BOX COVER 204 PT33963204 TERMINAL BLOCK FERRULE 3P
T33963 Main Parts List (Cont.)
REF PART # DE SCRIP TION REF P ART # DES CRIPTI ON
137 PT33963137 SET SCREW M5-.8 X 6 169 PT33963169 BRAKING RESISTOR 150W 100OHM
138 PT33963138 HEX BOLT M10-1.5 X 35 170 PT33963170 LASER MODULE DKLD LDBXQ03B
139 PT33963139 HE X NUT M4 -. 7 171 PT33963171 LASER COLLAR
140 PT33963140 FOLDING HANDLE M12-1. 75 X 35, 55L 172 PT33963172 LASER SEAT
143 PT33963143 PHLP HD SCR M4-.7 X 16 173 PT33963173 LED ASSEMBLY
144 PT33963144 VFD LSD-D/C C7100-1.5KW-D 174 PT33963174 PHLP HD SCR M3-.5 X 16
146 PT33963146 ELECTRICAL BOX 178 PT33963178 LED/LASER BUTTON YONGLI S012-A10P
147 PT33963147 RELAY HOLDER YJF11A-E 179 PT33963179 FLA T WASHE R 6MM
148 PT33963148 RELAY YIJ IA YJ3N-GS 24VDC 188 PT33963188 DRI FT K EY
149 PT33963149 RPM SENSOR DKLD CB07-5C 189 PT33963189 DRILL CHUCK KEY 21MM TH 11T SD-14.8MM
150 PT33963150 S ENS OR MOUNT 190 PT33963190 HE X WRENCH 2. 5MM
151 PT33963151 SPEED DRO DKLD CB07-12B 191 PT33963191 HEX WRENCH 3 MM
152 PT33963152 POTENTIOMETER W/DIAL COSMOS B103 192 PT33963192 HE X WRENCH 5 MM
153 PT33963153 CONTROL PANEL LABEL 193 PT33963193 MOTOR CORD 14G 4W 47"
154 PT33963154 REVERSE TAPPING BUTTON KACON K16-211 194 PT33963194 POWER CORD 14G 3W 72" 5-15P
156 PT33963156 FL AT WA SHER 1 2MM 195 PT33963195 FLANGE SCREW M5-.8 X 10
157 PT33963157 MOTOR PULLEY 196 PT33963196 LED HO USI NG
158 PT33963158 PHLP HD SCR M6-1 X 20 197 PT33963197 LED
159 PT33963159 RP M I NDI CA TOR 198 PT33963198 LE NS
160 PT33963160 SPI NDLE PULLEY 199 PT33963199 LED COVER
161 PT33963161 TRA NSFORME R DKL D B26 -7B 200 PT33963200 LOCK WASHER 4MM
163 PT33963163 V-BELT 530J 201 PT33963201 PHLP HD SCR M4-. 7 X 10
164 PT33963164 TAP SCREW M2.2 X 4.5 202 PT33963202 TERMINAL BAR 12P M3 X 104 TM3
165 PT33963165 O-RING 4 X 3 203 PT33963203 FLA T WASHE R 3MM
Model T33962/T33963 (Mfd. Since 10/23)
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
-67-
Page 70

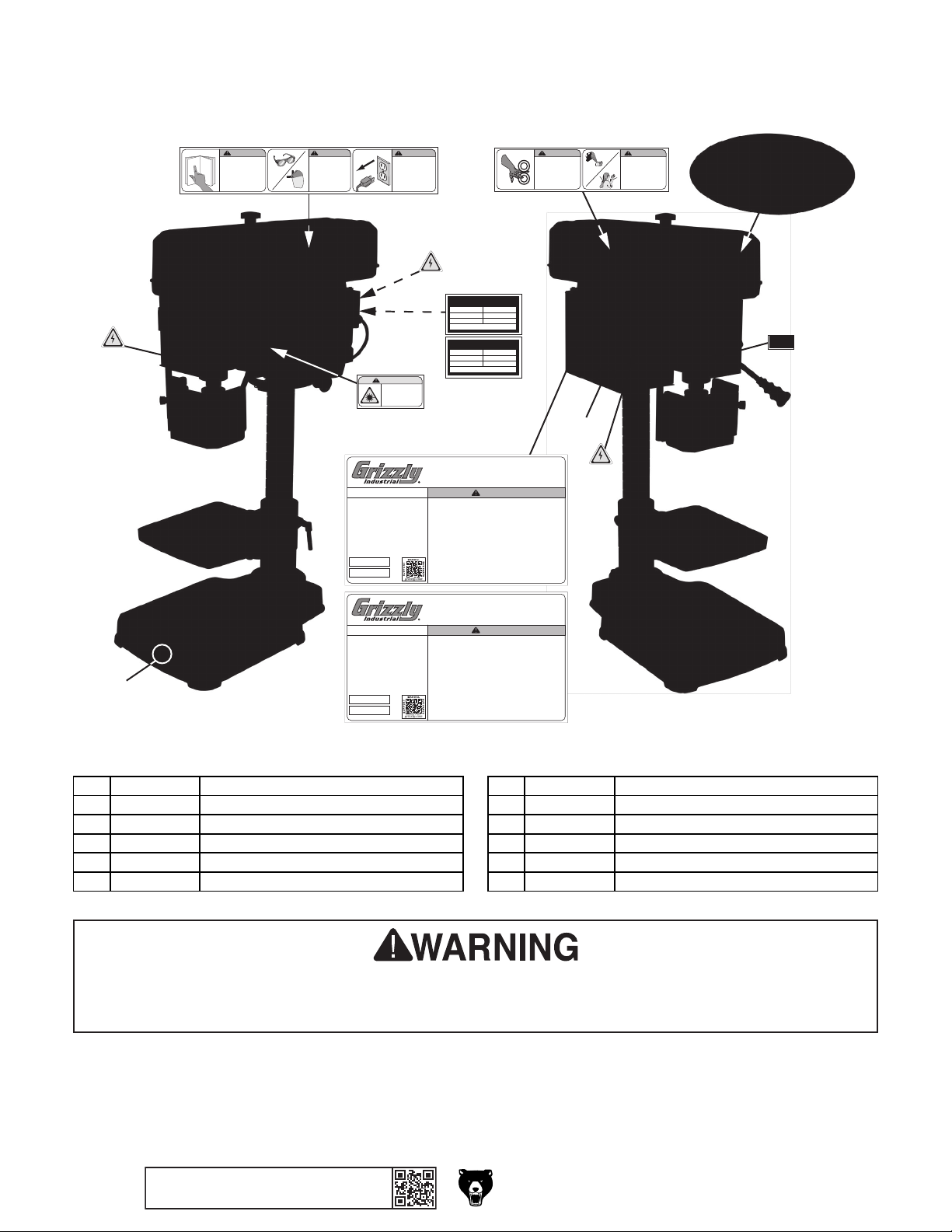

303
Labels & Cosmetics
306 PT33962306 TOUCH-UP PAINT, GRIZZLY GREEN 310 PT33962310 TOUCH-UP PAINT, GRIZZLY BLACK
305
310
WARNING!
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual, call
(800) 523-4777 or go to
www.grizzly.com.
301
WARNING!
EYE/FACE INJURY
HAZARD!
Always wear
ANSI-approved safety
glasses and face
shield when using this
machine.
WARNING!
INJURY/SHOCK
HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.
309
CAUTION!
LASER RADIATION!
Do not stare into beam.
Class: II
Wavelength: 650nm
Max. Output: 1mW
Specifications
Power Requirement: 120V, 1-Phase, 60 Hz, 15A
Full-Load Current Rating: 7.8A
Motor: 3/4 HP, 220V, 3-Phase, 60 Hz, 3A
Distance Spindle to Column: 8"
Max. Distance Spindle to Table: 12-9/16"
Max. Distance Spindle to Base: 21-1/4"
Spindle Speeds: 0–600, 0–2100 RPM
Spindle Travel: 3-15/16"
Spindle Taper: MT#2
Drilling Capacity (Mild Steel): 9/16"
Drilling Capacity (Cast Iron): 3/4"
Tapping Capacity: 1/2"
Weight: 194 lbs.
Date
S/N
Mfd. for Grizzly in China
Specifications
Power Requirement: 120V, 1-Phase, 60 Hz, 20A
Full-Load Current Rating: 15.2A
Motor: 1 HP, 220V, 3-Phase, 60 Hz, 4A
Distance Spindle to Column: 10"
Max. Distance Spindle to Table: 31-15/16"
Max. Distance Spindle to Base: 46-9/16"
Spindle Speeds: 0–600, 0–2100 RPM
Spindle Travel: 5-5/16"
Spindle Taper: MT#3
Drilling Capacity (Mild Steel): 1-1/8"
Drilling Capacity (Cast Iron): 1-1/4"
Tapping Capacity: 5/8"
Weight: 437 lbs.
Date
S/N
Mfd. for Grizzly in China
305
308
INDUCTION MOTOR
HP 3/4
AMPS 3
VOLTS 220
PHASE 3
HZ 60
RPM 910
CLASS F
INDUCTION MOTOR
HP 1
AMPS 4
VOLTS 220
PHASE 3
HZ 60
RPM 910
CLASS F
307
MODEL T33962
16" BENCHTOP VARIABLE-SPEED
TAPPING DRILL PRESS
To reduce risk of serious injury when using this machine:
1. Read and understand owner’s manual before operating.
2. Always wear approved safety glasses and a face shield.
3. Only plug power cord into a grounded outlet.
4. Disconnect power before setting up or servicing.
5. Avoid entanglement with spindle—tie back long hair, roll up long sleeves, and
6. Properly set up machine before starting.
7. Keep all guards and covers in place during operation.
8. Clamp workpiece to table to prevent rotation.
9. Avoid positioning hands where they could slip into rotating bits.
10. Always remove chuck keys and other tools before starting.
11. Never attempt to slow or stop spindle with hands or tools.
12. Use correct speeds for drill bits and workpiece material.
13. Always use a brush or vacuum to remove metal chips; DO NOT use your
14. Do not operate when tired or under influence of drugs or alcohol.
15. Do not expose to rain or use in wet locations.
16. Prevent unauthorized use by children/untrained users; restrict access or
To reduce risk of serious injury when using this machine:
1. Read and understand owner’s manual before operating.
2. Always wear approved safety glasses and a face shield.
3. Only plug power cord into a grounded outlet.
4. Disconnect power before setting up or servicing.
5. Avoid entanglement with spindle—tie back long hair, roll up long sleeves, and
6. Properly set up machine before starting.
7. Keep all guards and covers in place during operation.
8. Clamp workpiece to table to prevent rotation.
9. Avoid positioning hands where they could slip into rotating bits.
10. Always remove chuck keys and other tools before starting.
11. Never attempt to slow or stop spindle with hands or tools.
12. Use correct speeds for drill bits and workpiece material.
13. Always use a brush or vacuum to remove metal chips; DO NOT use your
14. Do not operate when tired or under influence of drugs or alcohol.
15. Do not expose to rain or use in wet locations.
16. Prevent unauthorized use by children/untrained users; restrict access or
WARNING!
DO NOT wear loose clothing, gloves, or jewelry.
hands, rags, or compressed air.
disable machine when unattended.
MODEL T33963
20" FLOOR VARIABLE-SPEED
TAPPING DRILL PRESS
WARNING!
DO NOT wear loose clothing, gloves, or jewelry.
hands, rags, or compressed air.
disable machine when unattended.
WARNING!
ENTANGLEMENT
HAZARD!
Always keep this
cover installed during
operation.
306
302
305
WARNING!
ENTANGLEMENT
HAZARD!
Tie back long hair, roll up
long sleeves, and remove
loose clothing, jewelry, or
gloves to prevent getting
caught in moving parts.
304
REVERSE
TAPPING
REF PART # DES CRIPTION REF PART # DES CRIPTION
301 PT33962301 COMBO WARNING LABEL 307 PT33962307 MACHINE ID LABEL (T33962)
302 PT33962302 ENTANGLEMENT HAZARD LABEL 307 PT33963307 MACHINE ID LABEL (T33963)
303 PT33962303 GRIZZLY MI NI NAME PLA TE 308 PT33962308 MOTOR LABEL (T33962)
304 PT33962304 REVERSE TAPPING LABEL 308 PT33963308 MOTOR LABEL (T33963)
305 PT33962305 ELECTRICITY LABEL 309 PT33962309 LASER LABEL
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-68-
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T33962/T33963 (Mfd. Since 10/23)
Page 71
WARRANTY & RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
For further information about the
scan the QR
code below
to be automatically directed to our warranty page.
warranty, visit https://www.grizzly.com/forms/warranty or
WARRANTY
Page 72
Loading...
