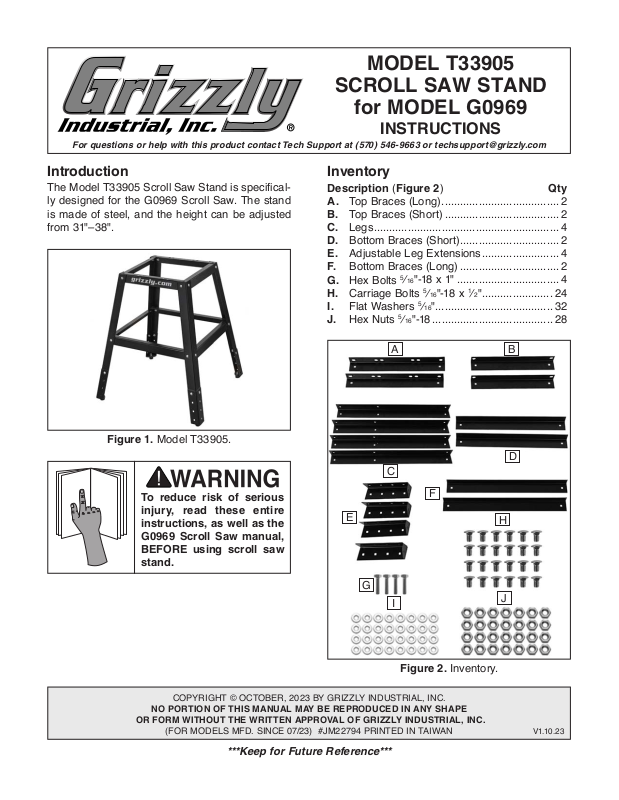

Page 1
MODEL T33905
SCROLL SAW STAND
for MODEL G0969
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T33905 Scroll Saw Stand is specifically designed for the G0969 Scroll Saw. The stand
is made of steel, and the height can be adjusted
from 31"–38".
Figure 1. Model T33905.
Inventory
Description (Figure 2) Qty
A. Top Braces (Long)...................................... 2
B. Top Braces (Short) ..................................... 2
C. Legs............................................................ 4
D. Bottom Braces (Short)................................ 2
E. Adjustable Leg Extensions......................... 4
F. Bottom Braces (Long) ................................ 2
G. Hex Bolts
H. Carriage Bolts
I. Flat Washers
J. Hex Nuts
5
⁄16 "-18 x 1" ................................. 4
5
⁄16 "-18 x 1⁄2 "....................... 24
5
⁄16 "...................................... 32
5
⁄16 "-18 ....................................... 28
A B
D
C
To reduce risk of serious
injury, read these entire
instructions, as well as the
G0969 Scroll Saw manual,
BEFORE using scroll saw
stand.
COPYRIGHT © OCTOBER, 2023 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 07/23) #JM22794 PRINTED IN TAIWAN
***Keep for Future Reference***
E
G
I
F
Figure 2. Inventory.
H
J
V1.1 0.23
Page 2
• This stand was specifically designed for
the G0969 Scroll Saw. DO NOT mount
any machine but the G0969 Scroll Saw on
this stand. Doing so could cause stand to
tip or collapse, resulting in serious personal injury or property damage.
• Periodically check all fasteners and tighten, if necessary, prior to use.
3. Attach (1) long bottom brace to (2) legs
5
with (2)
washers, and
⁄16"-18 x 1⁄2" carriage bolts, 5⁄16" flat
5
⁄16"-18 hex nuts, as shown in
Figure 4.
Note: Only hand tighten all fasteners for now.
You will be told when to tighten fasteners
later in these instructions.
Legs
Wear safety glasses during
the entire setup process!
Assembly
Items Needed Qty
Wrench or Socket 12mm................................... 1
Open-End Wrenches
Additional Person .............................................. 1
To assemble scroll saw stand:
1. Remove (4) leveling feet and (8)
nuts from G0969 Scroll Saw base and install
on (4) adjustable leg extensions, as shown in
Figure 3.
2. Attach (4) adjustable leg extensions to bot-
tom of legs with (8)
5
bolts,
⁄16" flat washers, and 5⁄16"-18 hex nuts
(see Figure 3).
9
⁄16 " .................................. 2
3
⁄8"-16 hex
5
⁄16"-18 x 1⁄2" carriage
x 2
Long Bottom
Brace
Figure 4. Long bottom brace attached to legs.
4. Repeat Step 3 with remaining (1) long bottom
brace and (2) legs.
5. Attach (2) leg assemblies with (2) short bot-
5
tom braces, (4)
5
⁄16" flat washers, and 5⁄16"-18 hex nuts, as
⁄16"-18 x 1⁄2" carriage bolts,
shown in Figure 5.
x 4
x 8
Adjustable
Leg Extension
(1 of 4)
x 4
Figure 3. Adjustable leg extensions attached to
legs.
-2-
Short Bottom
Brace (1 of 2)
Figure 5. Leg assemblies attached with short
bottom braces.
T33905 Scroll Saw Stand (Mfd. 07/23+)
Page 3
6. Attach (2) long top braces to legs with (4) 5⁄16"-
1
⁄2" carriage bolts, 5⁄16" flat washers, and
18 x
5
⁄16"-18 hex nuts, as shown in Figure 6.
Long Top
Brace
(1 of 2)
x 4
Figure 6. Long top braces attached to legs.
Mounting Model G0969 Scroll Saw
on Stand
Tools Needed Qty
Safety Glasses (for each person).................1 Pr.
Wrenches 12mm................................................ 2
To mount G0969 Scroll Saw on stand:
1. Place stand on flat, level surface.
2. With help from an assistant, position scroll
saw on stand.
5
3. Secure scroll saw to stand using (4)
5
x 1" hex bolts, (8)
5
⁄16"-18 hex nuts (see Figure 8).
⁄16" flat washers, and (4)
⁄16"-18
7. Attach (2) short top braces to legs with (4)
5
⁄16"-18 x 1⁄2" carriage bolts, 5⁄16" flat washers,
5
⁄16"-18 hex nuts, as shown in Figure 7.
and
Short Top
Brace
x 4
(1 of 2)
Figure 7. Short top brace attached to stand legs.
8. Ensure stand is level, side to side and front
to back, then tighten all fasteners installed in
Steps 3–7.
x 4
Figure 8. G0969 Scroll Saw mounted on stand.
T33905 Scroll Saw Stand (Mfd. 07/23+)
-3-
Page 4
T33905 Parts Breakdown & List
4
1
REF PART # DES CRIP TION REF PART # DES CRIP TION
6 PT33905006 HEX NUT 5/16-18 14 PT33905014
GRIZZLY.COM LABEL
2
13
3
14
5
6
2
11
12
7
8
1 PT33905001 HEX BOLT 5/16-18 X 1 7 PT33905007 B OTTOM BRACE (SHORT)
2 PT33905002 FLAT WASHER 5/16 8 PT33905008 BOTTOM BRACE (LONG)
3 PT33905003 TOP BRACE (SHORT) 11 PT33905011 CARRIAGE BOLT 5/16-18 X 1/2
4 PT33905004 TOP BRACE (LONG) 12 PT33905012 ADJUSTABLE LEG EXTENSION
5 PT33905005 LEG 13 PT33905013 COMBO WARNING LABEL
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-4-
BUY PARTS ON LINE AT GRIZ ZLY.COM!
Scan QR code to visit our Parts Store.
Model T33905 Scroll Saw Stand (Mfd. 07/23+)
