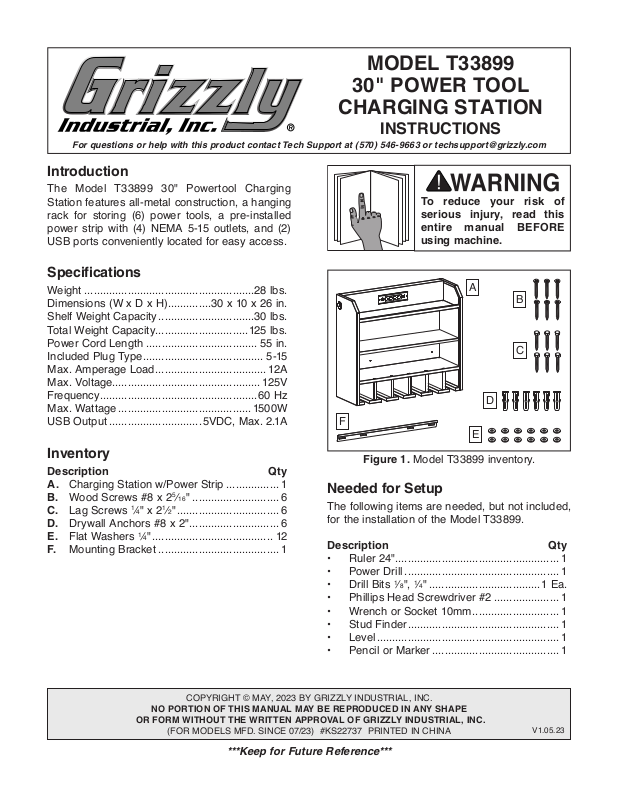

Page 1
To reduce your risk of
serious injury, read this
entire manual BEFORE
MODEL T33899
30" POWER TOOL
CHARGING STATION
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T33899 30" Powertool Charging
Station features all-metal construction, a hanging
rack for storing (6) power tools, a pre-installed
power strip with (4) NEMA 5-15 outlets, and (2)
USB ports conveniently located for easy access.
Specifications
Weight .......................................................28 lbs.
Dimensions (W x D x H)
Shelf Weight Capacity
Total Weight Capacity..............................125 lbs.
Power Cord Length
Included Plug Type
Max. Amperage Load
Max. Voltage................................................ 125V
Frequency
Max. Wattage
USB Output
...................................................60 Hz
........................................... 1500W
..............................5VDC, Max. 2.1A
..............30 x 10 x 26 in.
...............................30 lbs.
.................................... 55 in.
....................................... 5-15
.................................... 12A
F
using machine.
A
D
E
B
C
Inventory
Description Qty
A. Charging Station w/Power Strip ................. 1
Wood Screws #8 x 25⁄16 " ............................ 6
B.
Lag Screws 1⁄4" x 21⁄2 " ................................. 6
C.
Drywall Anchors #8 x 2" ............................. 6
D.
Flat Washers 1⁄4" ....................................... 12
E.
Mounting Bracket ....................................... 1
F.
COPYRIGHT © MAY, 2023 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 07/23) #KS22737 PRINTED IN CHINA

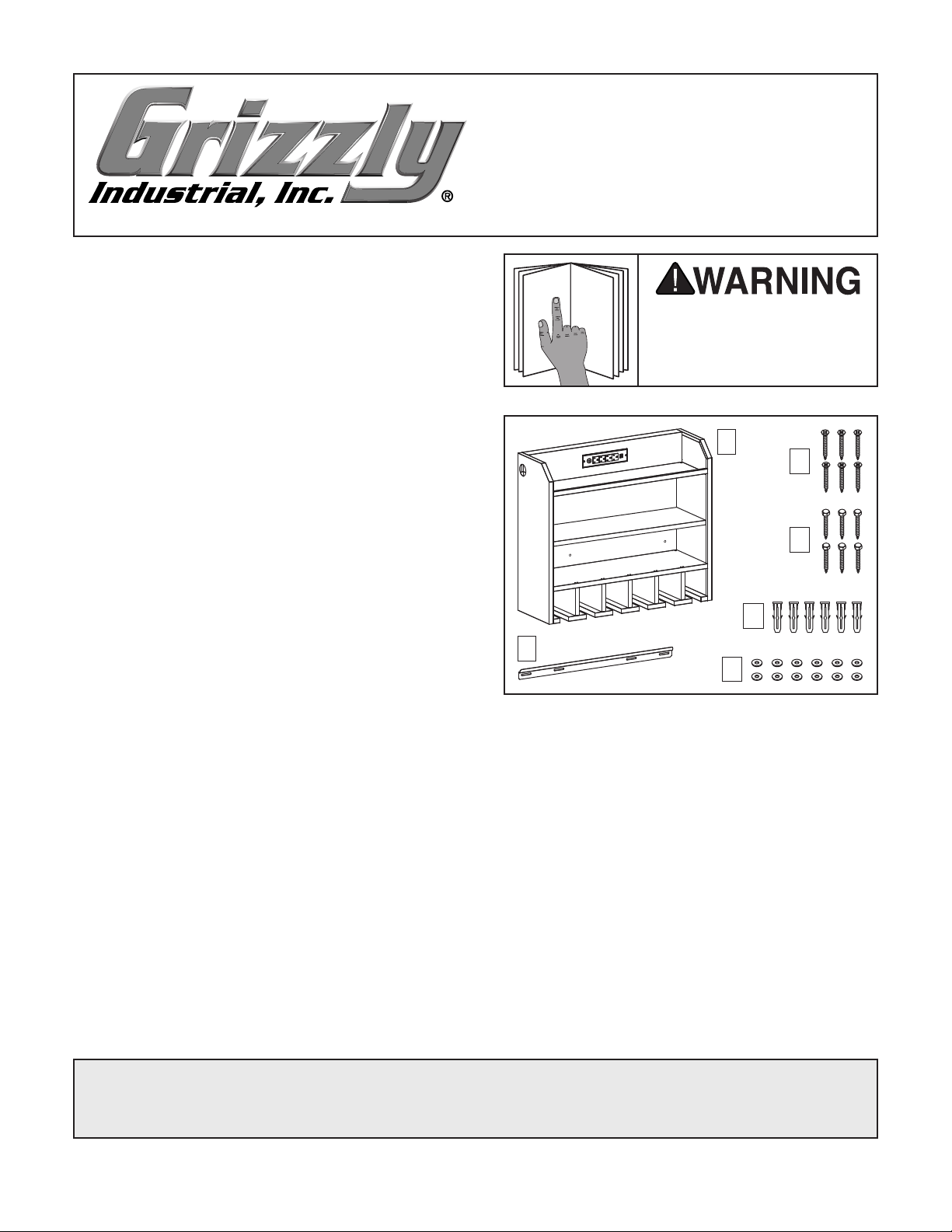

Figure 1. Model T33899 inventory.
Needed for Setup
The following items are needed, but not included,
for the installation of the Model T33899.
Description Qty
• Ruler 24" ..................................................... 1
• Power Drill .................................................. 1
• Drill Bits 1⁄8", 1⁄4" ....................................1 Ea.
• Phillips Head Screwdriver #2 ..................... 1
• Wrench or Socket 10mm ............................ 1
• Stud Finder ................................................. 1
• Level ........................................................... 1
• Pencil or Marker ......................................... 1
V1.0 5.23
***Keep for Future Reference***
Page 2
Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.
110V Circuit Requirements
This charging station is prewired to operate on a
power supply circuit that has a verified ground and
meets the following requirements:
Nominal Voltage
..........................................................60 Hz
Cycle
Phase
........................................... Single-Phase
Power Supply Circuit
Plug/Receptacle
.................... 110V, 115V, 120V
......................... 15 Amps
............................. NEMA 5-15
A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the
building and the power strip. The power supply
circuit used for this power strip must be sized to
safely handle the full-load current drawn from the
power strip for an extended period of time. (If this
power strip is connected to a circuit protected by
fuses, use a time delay fuse marked D.)
Grounding & Plug Requirements
This power strip MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
• Do not connect to plug receptacle via
extension cords or in series with other
power strips.
• Keep electrical connections clear of flammable materials.
• Keep electrical connections dry. Do not
use in damp or wet conditions.
• Do not connect devices to power strip
that draw more than listed power strip
rating. Equipment must be used in accordance with any instructions or labeling.
• Power strips are designed for use with
low-powered loads, such as battery chargers. Not designed for use with highpowered loads, such as space heaters or
microwaves.
• Do not run cord under floor coverings or
where it may be tripped over.
• Not intended for outdoor use.
• Prevent unauthorized use by children or
untrained users.
Resetting Circuit Breaker
The Model T33899 includes a 12A circuit breaker
on the front of the power strip to help protect from
electrical failure.
To reset circuit breaker:
1. DISCONNECT STATION FROM POWER!
This power strip is equipped with a power cord
that has an equipment-grounding wire and a
grounding plug. Only insert plug into a matching
receptacle (outlet) that is properly installed and
grounded in accordance with all local codes and
ordinances. DO NOT modify the provided plug!
GROUNDED
5-15 RECEPTACLE
Grounding Pin
5-15 PLUG
Neutral Hot

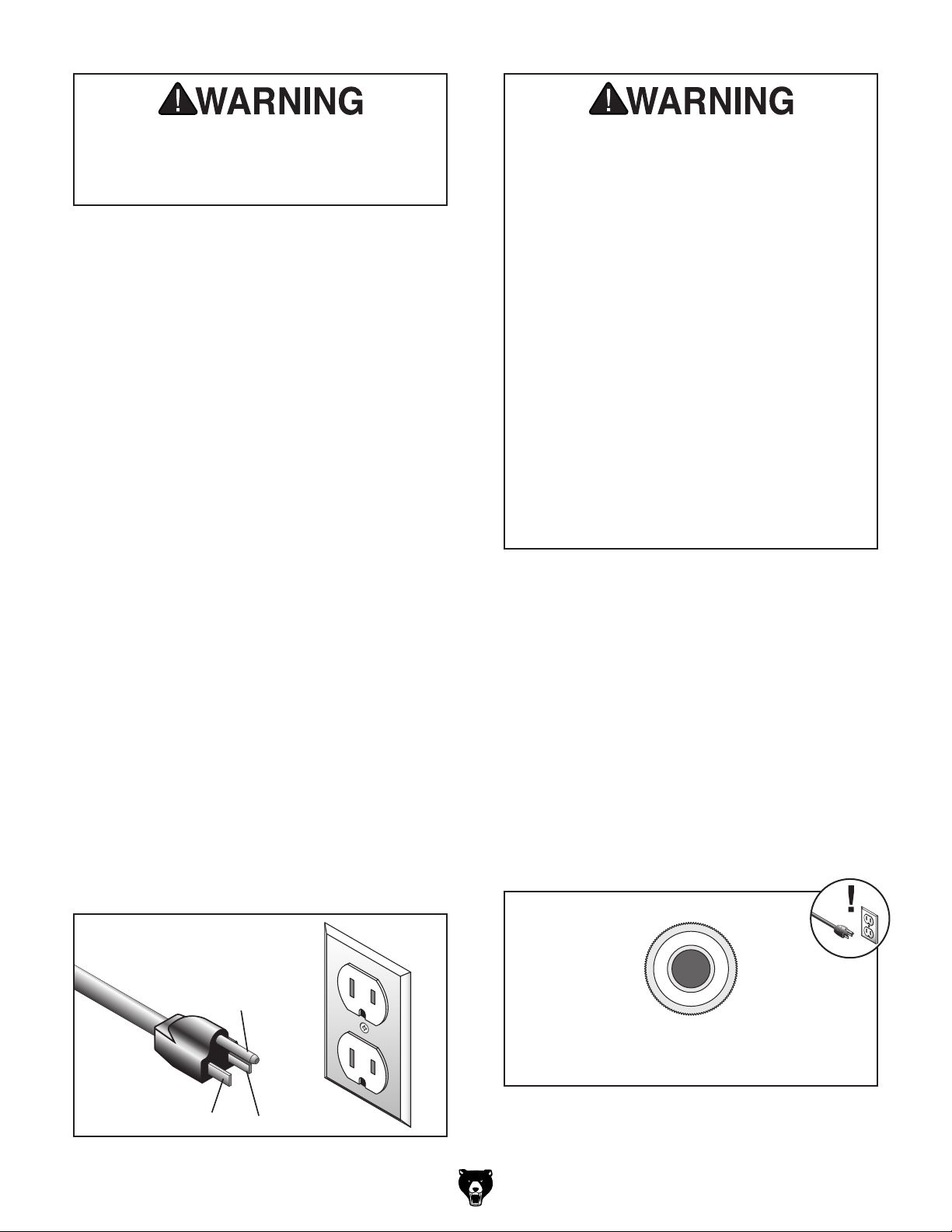

Figure 2. Typical 5-15 plug and receptacle.
-2-
Disconnect any accessories connected to
2.
charging station.
Press center circuit breaker button in until it
3.
locks in place (see Figure 3).
PRESS TO RESET
O
T
R
S
S
E
R
P
E
S
E
T
CIRCUIT BREAKER
Button
Figure 3. Resetting circuit breaker.
4. Re-connect station to power supply.
Model T33899 (Mfd. Since 07/23)
Page 3
Charging station mounting location must be
able to support 125 lbs. total weight capacity. Never exceed weight capacity of 30 lbs.
per shelf/125 lbs. total.

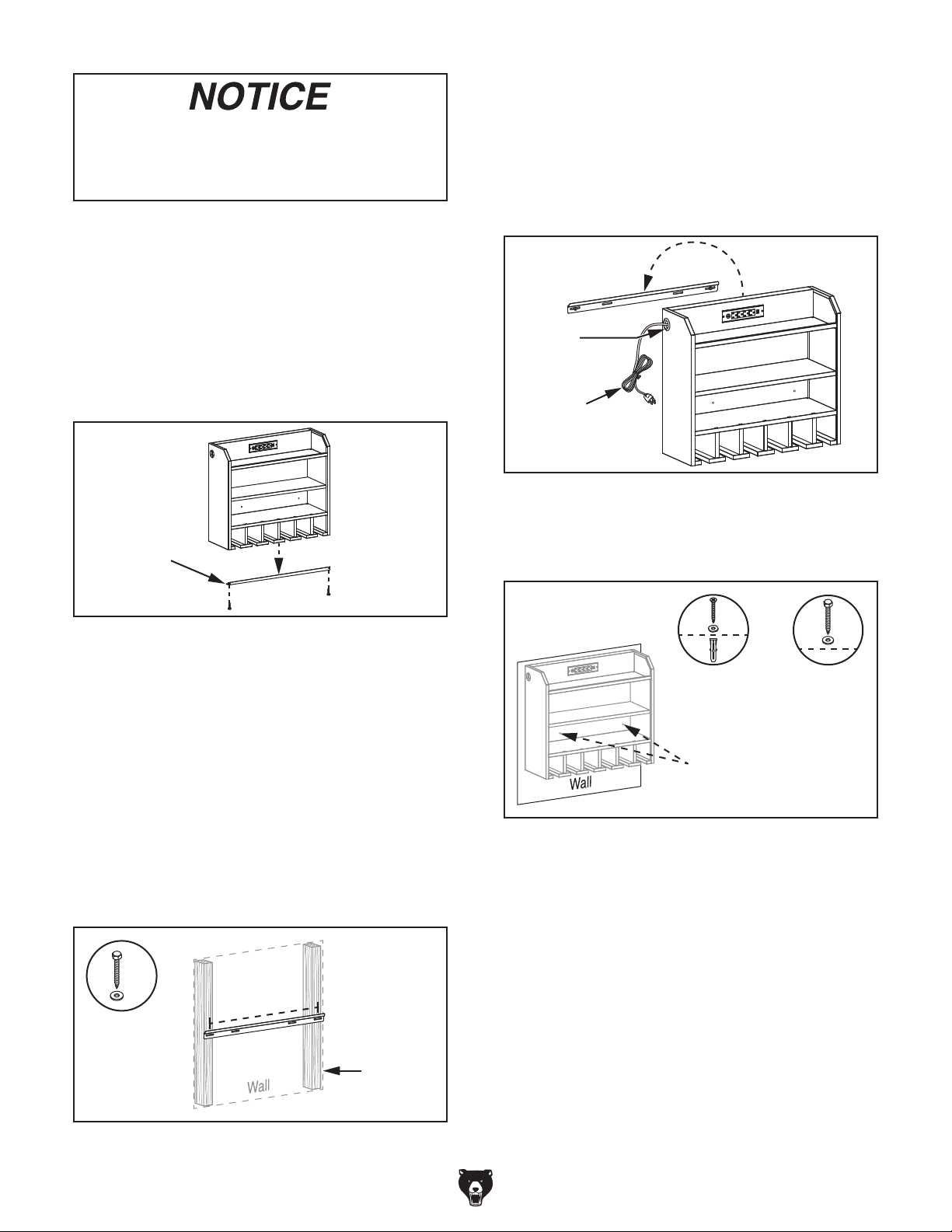

Mounting Charging Station
The Model T33899 is mounted to wood studs and
drywall using the included mounting hardware.
4. Drill pilot holes in locations marked in Step 3,
then install mounting bracket into wood studs
using (2) lag screws and flat washers.
5. Feed power cord through hole in charging station, then place charging station on
mounting bracket (see Figure 6).
To mount charging station:
1. Remove (2) fasteners and (1) shipping brack-
et from charging station (see Figure 4).
Shipping
Bracket
Figure 4. Removing shipping bracket.
2. Determine mounting height, then position
mounting bracket over desired location.
Note: Top of charging station will be approxi-
1
mately 1
⁄2" above holes in mounting bracket.
Position charging station so power strip and
shelving can be easily accessed.
Hole
Power
Cord
Figure 6. Placing charging station.
6. Drill (2) pilot holes into wall through holes in
station interior (see Figure 7).
x 2
or
Interior Holes
x 2
3. Mark locations for a minimum of (2) pilot holes
through mounting bracket (see Figure 5).
Place level on bracket when marking holes to
help maintain uniformity.
x 2
16"
Stud
(1 of 2)
Figure 5. Positioning mounting bracket.
Model T33899 (Mfd. Since 07/23)
Figure 7. Positioning interior mounting locations.
7. Secure charging station to wall using includ-
ed fasteners:
— If securing to wood studs, install (2) lag
screws and flat washers.
— If securing to drywall, use (2) drywall
anchors, wood screws, and flat washers.
8. Connect power cord to a power supply that
meets the minimum specifications given in
Circuit Requirements on Page 2.
-3-
Page 4
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523 - 4777 or visit our online parts store at www.grizzly.com to check for availability.
REF PART # DES CRIPTI ON
T30309—Grizzly PRO 20V 11-Tool Master Kit
Have instant power at your fingertips with professional-duty 20V Grizzly PRO cordless tools and
accessories! Eleven great tools that all operate
on the same low profile and incredibly lightweight
lithium-ion batteries. Every tool comes with a oneyear warranty!

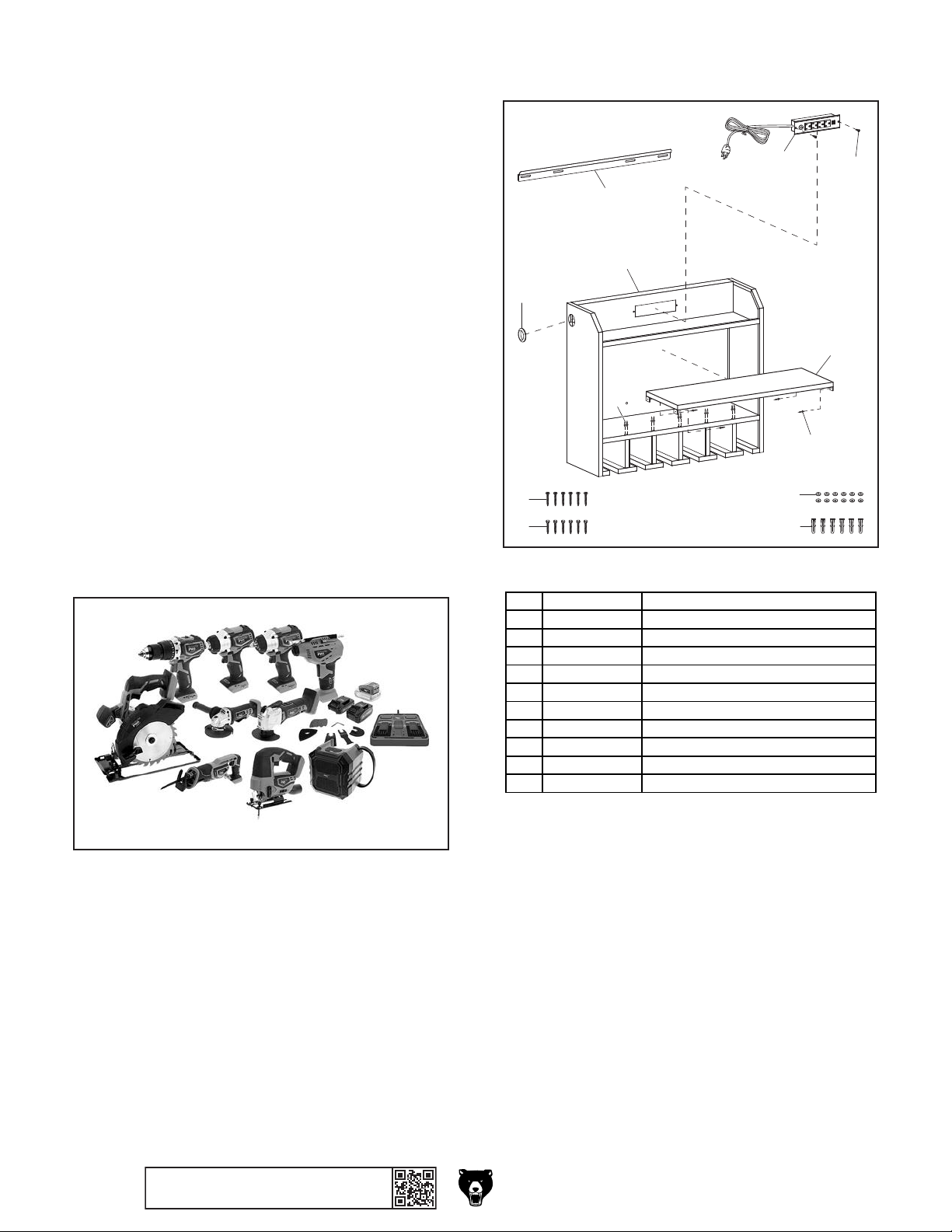

T33899 Parts Breakdown & ListAccessories
5
3
10
Grizzly PRO 20V 11-Tool Master Kit Includes:
T30290 Grizzly PRO Hammer Drill
T30291 Grizzly PRO Impact Driver
3
T30292 Grizzly PRO
⁄8" Impact Wrench
T30293 Grizzly PRO Circular Saw
T30294 Grizzly PRO Reciprocating Saw
T30295 Grizzly PRO Jigsaw
T30296 Grizzly PRO Oscillating Tool
T30298 Grizzly PRO Inflator w/ LCD Panel
T30299 Grizzly PRO Angle Grinder
T30300 Grizzly PRO Bluetooth Speaker
T30301 Grizzly PRO USB Adaptor
T30304 Grizzly PRO 2.0Ah Li-Ion Batteries (2)
T30305 Grizzly PRO 4.0Ah Li-Ion Battery
T30303 Grizzly PRO 2.4A Dual Port Charger
1
6
2
11
11
7
8
1 PT33899001 CHARGI NG STATI ON
2 PT33899002 INTERI OR SHE LF
3 PT33899003 MOUNTING B RACKE T
5 PT33899005 POWER STRIP DBEC BY213-M042K
6 PT33899006 RUBBER GRO MMET 40 MM
7 PT33899007 WOOD SCREW #8 X 2-5/16
8 PT33899008 LAG SCREW 1/4 X 2-1/2
9 PT33899009 FLAT WASHER 1/4
10 PT33899010 FLAT HD SCR M4 -. 7 X 8
11 PT33899011 RIVET 3 X 10MM BLIND, STEEL
12 PT33899012 DRYWALL ANCHOR #8 X 2
9
12
Figure 8. T30309 Grizzly PRO 20V 11-Tool
Master Kit.
-4-
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
Model T33899 (Mfd. Since 07/23)
