MODEL T33850

ROUTER TABLE WING

OWNER'S MANUAL

(For models manufactured since 08/23)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN22856 PRINTED IN TAI WAN

***Keep for Future Reference***

V1.0 9.23

Page 2

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Page 3

Table of Contents

INTRODUCTION ............................................... 2

Contact Info Description Manual Accuracy Specifications Identification Controls & Components

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Router Tables

SECTION 2: SETUP

Unpacking Needed for Setup Inventory Assembly Attaching Router Table Wing Attaching Router to Mounting Plate Dust Collection

SECTION 3: OPERATIONS

Operation Overview

................................................... 2

..................................................... 2

........................................... 2

................................................. 2

................................................... 3

................................. 4

....................................... 5

.................. 5

............... 7

......................................... 8

...................................................... 8

........................................... 8

........................................................ 9

....................................................... 9

......................... 9

............. 14

............................................. 16

............................ 17

..................................... 17

Stock Inspection Requirements Table T-Slot

Aligning Fence with Table T-Slot.................. 19

Adjusting Fence Adjusting Router Bit Guard Using Table Inserts Edge Jointing Profile Routing Routing Small Stock Free-Hand Routing

SECTION 4: MAINTENANCE

Schedule Cleaning & Protecting

SECTION 5: SERVICE

Troubleshooting Aligning Mounting Plate

SECTION 6: PARTS

............................................................. 28

Main

WARRANTY & RETURNS

.................................................. 18

........................................... 19

...................................... 20

............................................... 21

............................................. 22

.................................... 22

...................................... 23

...................................................... 25

.................................. 25

................................... 26

........................................... 26

............................... 27

....................................... 28

.............................. 29

................... 18

.......................... 20

......................... 25

IMPORTANT NOTICE!

Modifications Required for Mounting the Model T33850 Router Table Wing

If you intend to mount the router table wing to the table saw extension wing, you will have to drill two holes in the rear rail of the table saw to secure the rail to the router table wing mounting brackets.

The universal mounting plate that is included with the Model T33850 does not have pre-drilled mounting holes to hold your router. This is because different brands of routers have different base mounting hole configurations. To properly use this router table, you will have to drill holes in the mounting plate that match the base mounting hole configuration of your router.

The procedures above will require a drill, the correct size drill bits, and possibly additional fasteners for mounting the router.

Before performing any modifications on the mounting plate or the table saw rear rail, read the entire SETUP section in this manual to make sure the person making the modifications is capable of performing the required tasks. It is imperative that your router is firmly secured to the router mounting plate, and that the table saw wing is securely mounted to the table saw before performing any operations.

Page 4

INTRODUCTION

Manual AccuracyContact Info

We stand behind our products! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the serial number and manufacture date. This will help us help you faster.

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: techsupport@grizzly.com

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: manuals@grizzly.com

We are proud to offer this document with your new router table wing! We've made every effort to be exact with the instructions, specifications, drawings, and photographs of the model we used when writing this manual. However, sometimes we still make an occasional mistake.

Also, owing to our policy of continuous improvement, your router table wing may not exactly match the manual. If you find this to be the case, and the difference between the manual and router table wing leaves you in doubt, immediately call our technical support for updates or clarification.

For your convenience, we post all available documentation on our website at www.grizzly.com. Any updates to this document will be reflected on our website as soon as complete.

Specifications

Description

The Model T33850 Router Table Wing is designed to fit on the Grizzly Model G0962 and G0962A40 10" table saws and the Shop Fox Model W1837 10" table saw.

Product Weight ..........................................22 lbs.

Tab le S ize Table T-Slot Size Plate Size Plate Insert Size Number of Table Inserts Inside Diameter of Table Inserts Fence Board Size Fence T-Slot Size Dust Port Size

................................ 27 x 15-7/8 x 1 in.

........................................3/4 in.

......................11-13/16 x 7-7/8 x 3/8 in.

......................................2-1/ 2 in.

.................................... 5

............... 1/2, 1, 1-1/4, 1-1/2, 2 in.

................... 14 x 2-7/8 x 3/4 in.

.......................................1/4 in.

.........................................2-1/ 2 in.

-2-

Model T33850 (Mfd. Since 08/23)

Page 5

Identification

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

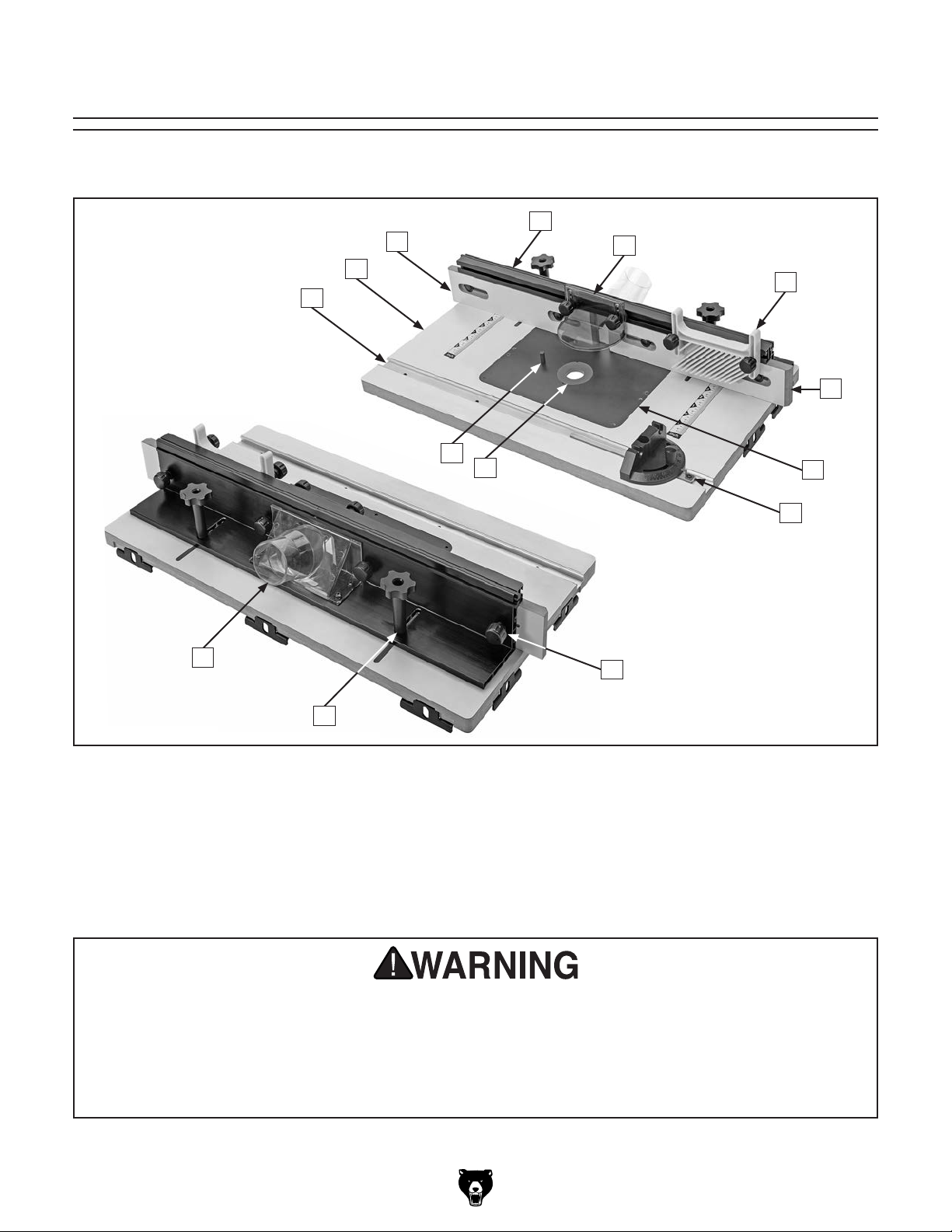

A. T-Slot 3⁄4"

Router Table Wing

B. C. Outfeed Fence D. Fence Base E. Router Bit Guard F. Featherboard G. Infeed Fence

H. Mounting Plate I. Miter Gauge J. Table Insert K. Starting Pin L. Fence Board Lock Knob (1 of 4) M. Fence Base Lock Knob (1 of 2) N. DustPort2 1⁄2"

For Your Own Safety Read Instruction Manual Before Operating Router Table

a) Wear eye protection. b) Always keep router bit guard in place and in proper operating condition.

) Feed workpiece AGAINST rotation of router bit.

) Keep fingers away from revolving bit; use fixtures when necessary.

) Do not use awkward hand positions.

Model T33850 (Mfd. Since 08/23)

-3-

Page 6

Controls &

Components

To reduce your risk of serious injury, read this entire manual BEFORE using product.

Refer to the following figures and descriptions to become familiar with the basic controls and components of this item. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this item.

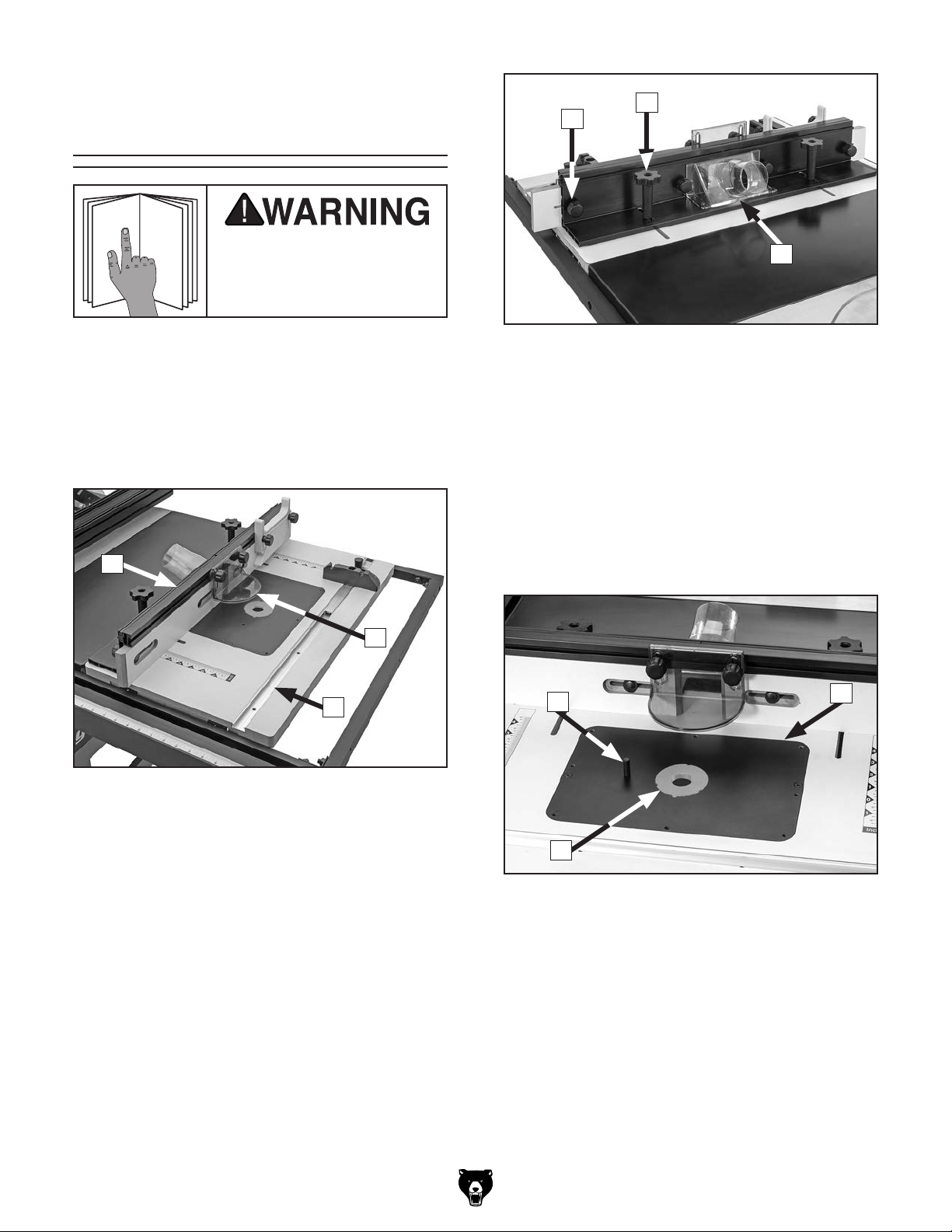

Figure 2. Router table controls (rear).

D. Fence Board Lock Knob (1 of 4): Tighten

and loosen infeed/outfeed fences for side-toside adjustment.

E. Fence Base Lock Knob (1 of 2): Tighten

and loosen fence base for front-to-rear adjustment.

F. Dust Port: 2 1⁄2" dust port connects to user's

dust-collection system.

Figure 1. Router table controls (front).

A. Fence: Provides workpiece support during

router operations. T-slots allow attachment of hold-downs, featherboards, etc.

B. Router Bit Guard: Provides workpiece vis-

ibility while shielding user during operations.

C. T-Slot: Provides secure attachment point

for router table accessories, such as miter gauge, jigs, featherboards, etc.

Figure 3. Mounting plate components.

G. Starting Pin: Supports workpiece during

beginning of freehand cuts.

H. Mounting Plate: Attaches router to table.

I. Table Insert: Provides additional workpiece

control and safety near bit during operations.

-4-

Model T33850 (Mfd. Since 08/23)

Page 7

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.

This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’smanualBEFOREusingmachine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

Model T33850 (Mfd. Since 08/23)

-5-

Page 8

may damage the wires inside. Do not handle

WEARING PROPER APPAREL. Do not wear loose clothing, gloves, neckties, or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

thisowner’smanualorthemanufacturerforrec-

ommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord

cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-6-

Model T33850 (Mfd. Since 08/23)

Page 9

Additional Safety for Router Tables

Serious cuts, amputation, entanglement, or death can occur from contact with spinning bit. Improperly secured bits or spindle parts/fasteners can fly off and strike nearby operators or bystanders with great force. Flying dust or debris from cutting operation can cause eye injuries or blindness. To minimize risk of getting hurt or killed, anyone operating router MUST completely heed hazards and warnings below.

AVOIDING AMPUTATION. To avoid making con-

tact with spinning router bit, never place hands directly over or in front of bit. As one hand approaches bit, move it away and over to other side. Always keep hands at least 6" away from spinning bit.

SECURING LEVERS AND KNOBS. Never operate router table without first making sure all lock levers and knobs are tight, and all fence hardware and guide rails are secure. Otherwise, workpiece can slip out of alignment while cutting and cause injury from kickback.

DO NOT FORCE WORKPIECE. Never force materials past router. Let router bit do the work. Excessive force is likely to result in poor cutting results and will cause kickback conditions that could cause serious personal injury.

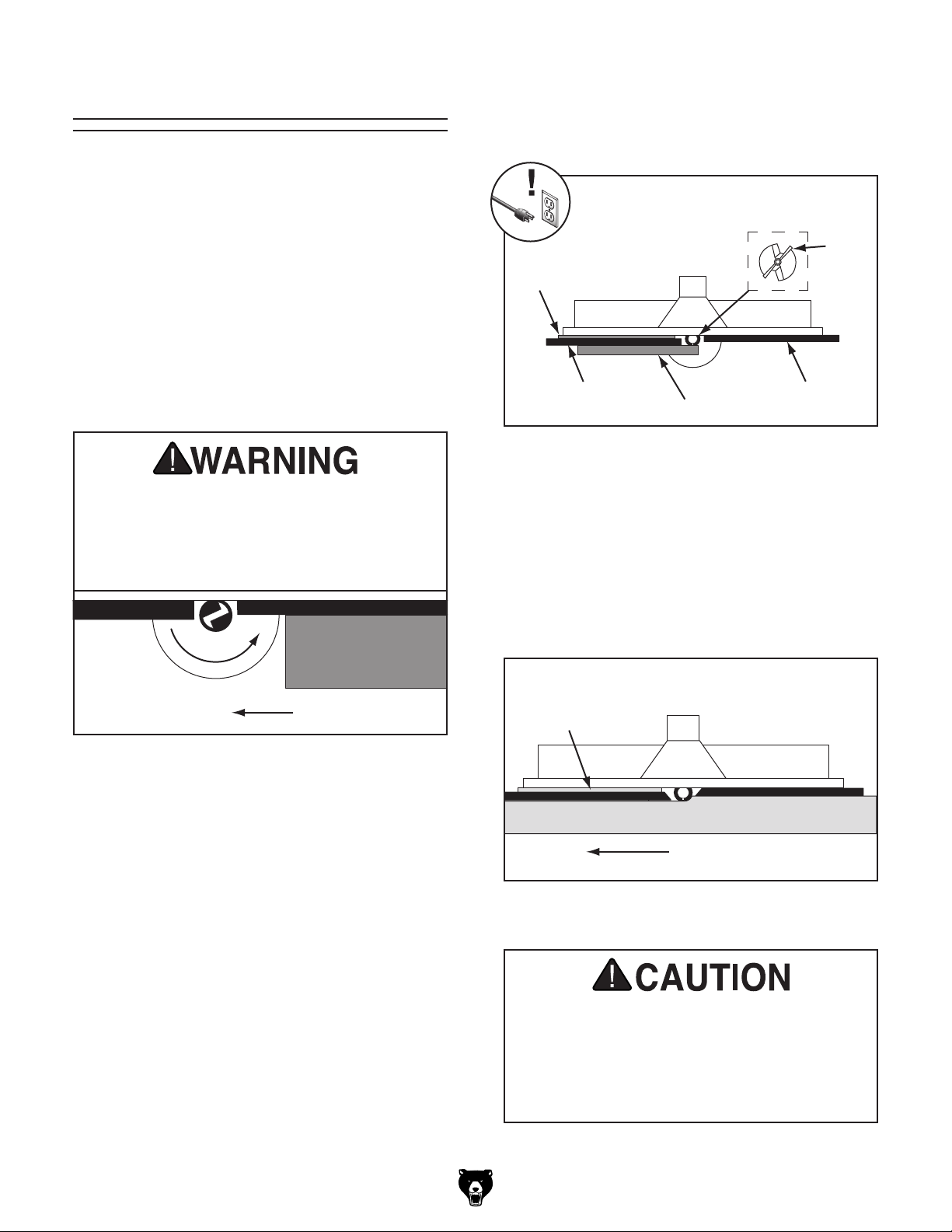

BLIND CUTTING. Keep router bit on underside of workpiece when making blind cuts. This will decrease risk of accidental contact with spinning bit.

ROUTER BIT ROTATION. Always feed workpiece against rotation direction of bit. Otherwise, workpiece could be aggressively pulled from your hands, drawing them into spinning bit.

ROUTER BIT HEIGHT. Keep any unused portion of bit below the table surface to minimize risk of your hand contacting spinning bit.

ROUTER BIT SPEED. Do not exceed recommended speed of any router bit. Doing so can cause bit to fracture or explode and cause injury.

CUTTING SUPPORT. NEVER cut workpiece without using a fence, jig, or miter gauge as a support guide. Otherwise, workpiece could be aggressively pulled from your hands, drawing them into spinning bit.

WORKPIECE SIZING. NEVER use workpiece shorter than 6" without special fixtures or jigs. Otherwise, workpiece can become trapped between fence and router bit, which could draw your hands into spinning bit.

USING SAFETY GUARDS. To prevent amputation or other injuries, always use a guard. Fabricate additional guards or jigs for special circumstances. Use an overhead guard if fence is removed.

TRIPPING HAZARD. To prevent tripping over power cord of router when not in use, always disconnect it and safely store it out of way.

APPROPRIATE WORKPIECES. Danger of kickback and injury is increased when workpiece has knots, holes, or foreign objects in it. Warped stock should be flattened with a jointer before you shape it with router.

TESTING ROTATION. With router disconnected from power, rotate router spindle to test any new setup to ensure proper bit clearance before starting router.

INSTALLING ROUTER BIT. Insert at least bit shank into collet, and allow between shank and bottom of collet to ensure bit is securely installed.

⁄8" of clearance

⁄4 of

Model T33850 (Mfd. Since 08/23)

-7-

Page 10

SECTION 2: SETUP

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

This product presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before using this product!

Wear safety glasses during the entire setup process!

Unpacking

If items are damaged

call us immediately at (570) 546-9663.

Like all machinery there is potential danger when using this item. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this item with respect and caution to reduce risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

Needed for Setup

The following items are needed, but not included, for the setup/assembly of this product.

Description Qty

• Assistant ..................................................... 1

• Safety Glasses (Per Person) ...............1 Pair

• Straightedge 24" ......................................... 1

• Phillips Head Screwdriver #2 ..................... 1

• Masking Tape ............................. As Needed

• Razor Blade ................................................ 1

• Marker or Pencil ......................................... 1

• Dust-Collection System .............................. 1

• Dust Hose 21⁄2 " ........................................... 1

• Hose Clamps 21⁄2 " ...................................... 2

• Table Saw Owner's Manual ........................ 1

• Router Owner's Manual .............................. 1

• Drill ............................................................. 1

-8-

Model T33850 (Mfd. Since 08/23)

Page 11

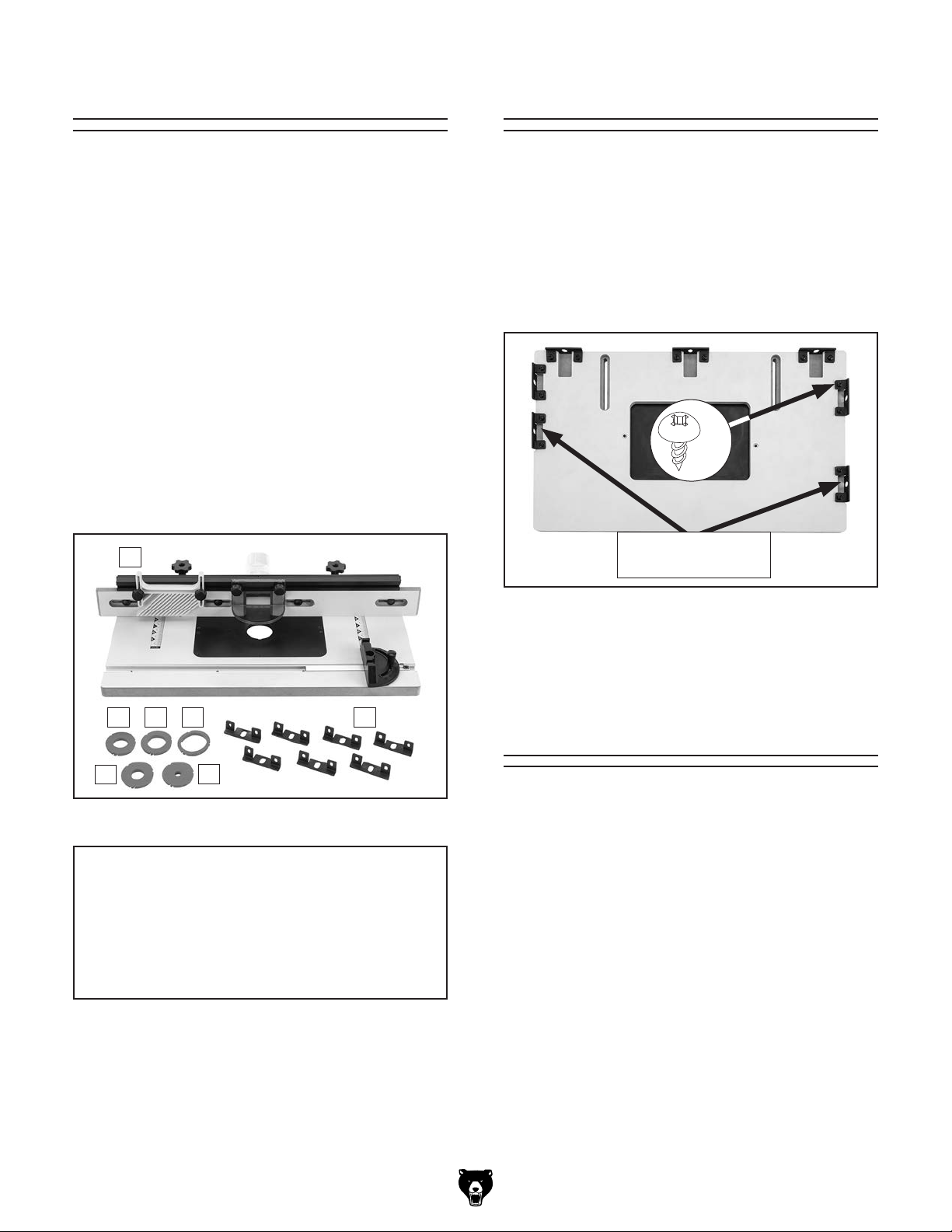

Inventory

Assembly

The following is a list of items shipped with your item. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Box 1 (Figure 4) Qty

A. Router Table Wing Assembly ..................... 1

Mounting Brackets ...................................... 7

Table Insert 1⁄2 " ........................................... 1

Table Insert 1" ............................................ 1

Table Insert 11⁄4" .......................................... 1

Table Insert 11⁄2 " ......................................... 1

Table Insert 2" ............................................ 1

Tap Screws M5.5 x 13 (not shown) ...........14

Assembling the Model T33850 consists of installing the mounting brackets on the router table.

To assemble router table wing:

1. Install (7) mounting brackets in pockets on

underside of router table with (14) M5.5 x 13 tap screws, as shown in Figure 5.

x14

Mounting Brackets

(2 of 7)

Figure 5. Mounting brackets installed on

underside of router table.

E F G

Figure 4. T33850 inventory.

NOTICE

If you cannot find an item on this list, carefully check around/inside the product and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Attaching Router

Table Wing

The Model T33850 is designed to be mounted between the front and rear rails on the right-hand side of the table saw and bolted to either the table saw extension wing or to the main table once the extension wing has been removed.

If you choose to remove the table saw extension wing and bolt the router wing to the main table, you will have to drill two mounting holes in the rear rail to complete the installation.

Before beginning the procedures below, be sure to read the entire installation section.

Model T33850 (Mfd. Since 08/23)

-9-

Page 12

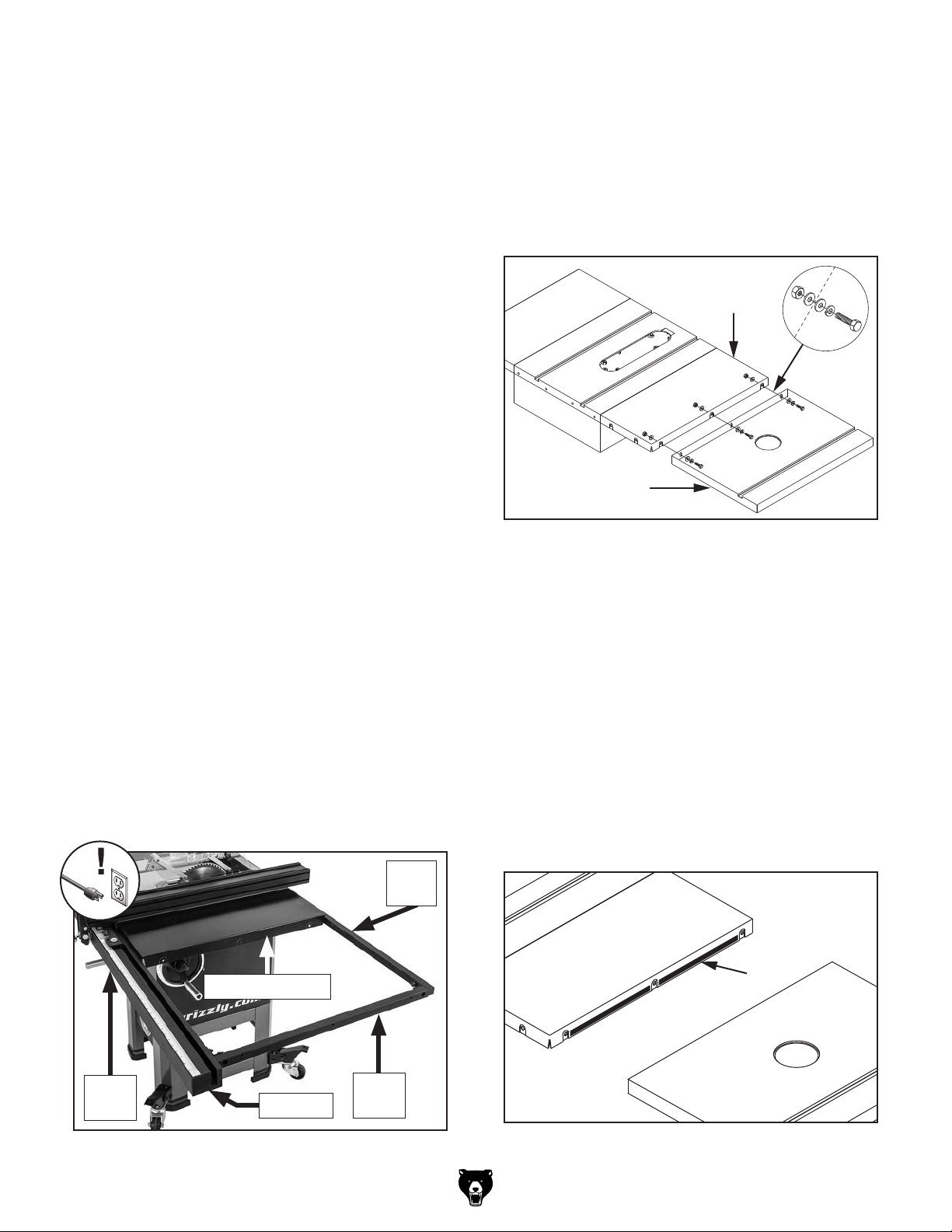

Attaching Router Table Wing to Extension Wing

Items Needed Qty

Hex Bolts M6-1.25 x 25 ..................................... 3

Hex Bolts M8-1.25 x 25 Flat Washers 6mm Lock Washers 6mm Hex Nuts M8-1.25

Hex Nuts M6-1................................................... 3

Cap Screws M8-1.25 x 25 Wrenches or Sockets 12, 13mm Hex Wrench 6mm Phillips Head Screwdriver #2 Straightedge 36" Masking Tape Razor Blade Drill Bit 10mm

Drill ................................................................... 1

Assistant

To attach router table wing to extension wing:

............................................................ 1

................................................ 1

.................................... As Needed

....................................................... 1

.................................................... 1

..................................... 2

............................................ 6

........................................... 3

.............................................. 4

................................. 2

.................1 Ea.

.............................................. 1

............................ 1

Remove fence from router table wing.

7. While assistant holds router table wing, attach

wing to table saw extension wing on righthand side of saw using (3) M6-1 x 25 hex bolts, (3) 6mm lock washers, (6) 6mm flat washers, and (3) M6-1 hex nuts (see Figure

7). Hand-tighten for now.

Extension

Wing

x 3

Router Table

Wing

DISCONNECT TABLE SAW FROM POWER!

2. Remove table saw fence from main table.

3. Remove tap screw and rail cap on right-hand

side of front rail, then remove rail brace (see Figure 6).

Remove (8) hex nuts securing front rail to

table saw (see Figure 6), then slide front rail away from table saw. Be careful not to stretch wires connecting ON/OFF switch to motor.

Remove (8) cap screws and (4) hex nuts

securing rear rail to table saw (see Figure 6).

Rear

Rail

Extension Wing

Figure 7. Attaching router table wing to saw

table extension wing.

Place straightedge across saw table and

router table wing to make sure combined table surface is flat.

— If combined table surface is flat, continue

with Step 9.

— If outside edge of router table wing tilts

down, remove wing and place strips of masking tape along bottom edge of extension wing to shim router table up and even with table saw from side to side (see Figure 8).

Tape

Front

Rail

Figure 6. Components on Model G0962A40.

-10-

Rail Cap

Rail

Brace

Figure 8. Using tape to shim router table up.

Model T33850 (Mfd. Since 08/23)

Page 13

— If outside edge of router table wing tilts up,

remove router table wing and place strips of masking tape along top edge of extension wing to shim router table wing down and even with table saw from side to side (see Figure 9).

Tape

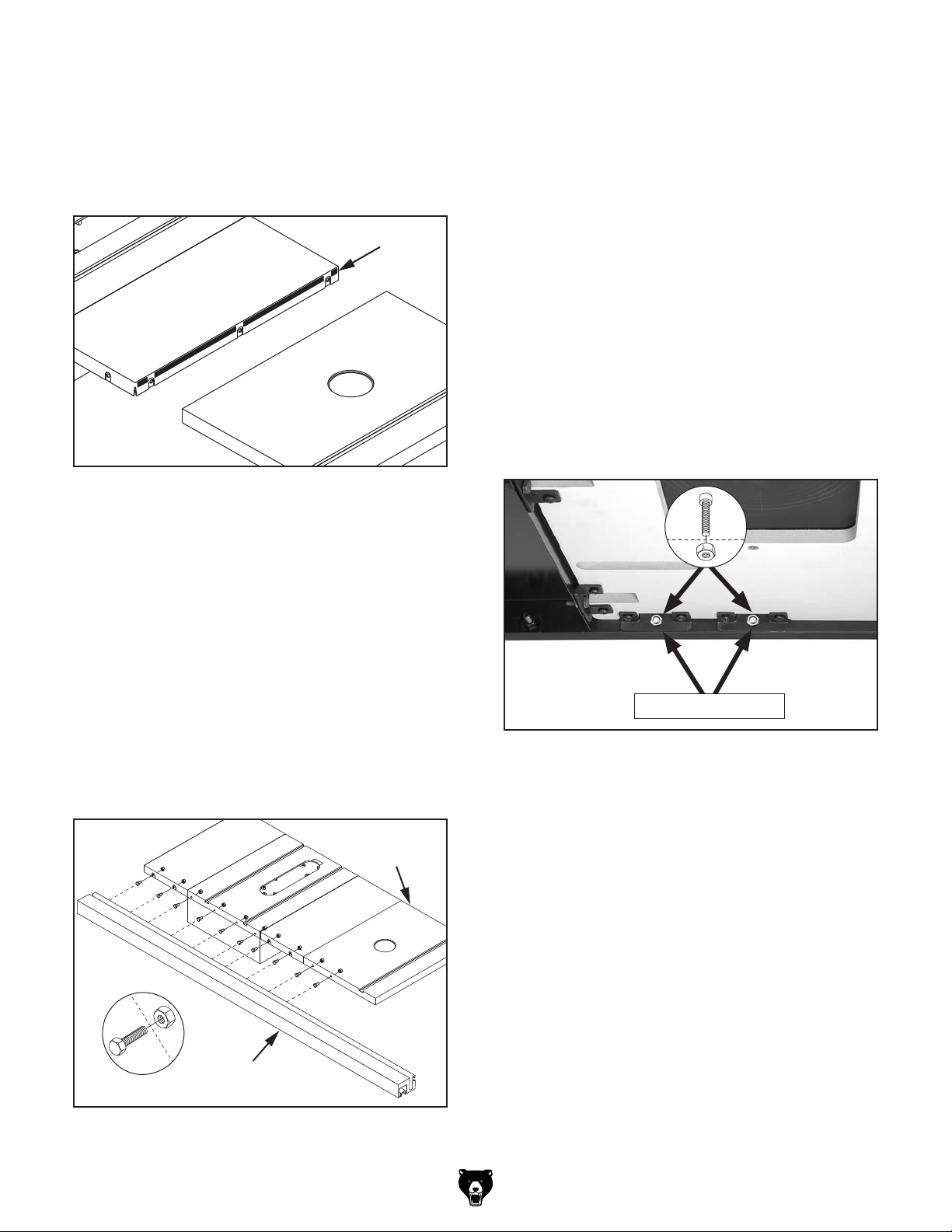

Figure 9. Positioning tape to shim router table

down.

Install rear rail on table saw using fasteners

11.

removed in Step 5.

Use a pencil to mark positions of (2) holes to

12.

be drilled in rear rail to secure (2) mounting brackets on router table wing.

13.

Remove rear rail from table saw, and drill (2)

10mm holes at locations marked on rear rail in Step 12.

Note: Holes should go through front and rear

walls of rail.

Install rear rail on table saw.

14.

15. Attach router table wing to rear rail with (2)

M8-1.25 x 25 cap screws and M8-1.25 hex nuts (see Figure 11).

Note: After re-installing router table, remove

all excess masking tape with a razor blade.

Insert (2) M8-1.25 x 25 hex bolts into T-slot

on right-hand side of front rail.

Align (10) hex bolts in fence rail with holes

10.

in extension wing (left), main table, extension wing (right), and router table wing (see Figure 10), then insert bolts into tables. Be sure scale on fence rail is facing up. Thread (10) M8-1.25 hex nuts onto hex bolts. Handtighten for now.

Router Table

Wing

x 2

Mounting Brackets

Figure 11. Router table wing attached to rear

rail.

16. Tighten all fasteners.

17. Install rail brace and rail cap removed in Step 3.

x 10

Figure 10. Attaching front rail to main table,

extension tables, and router wing table.

Model T33850 (Mfd. Since 08/23)

Table Saw

Fence

-11-

Page 14

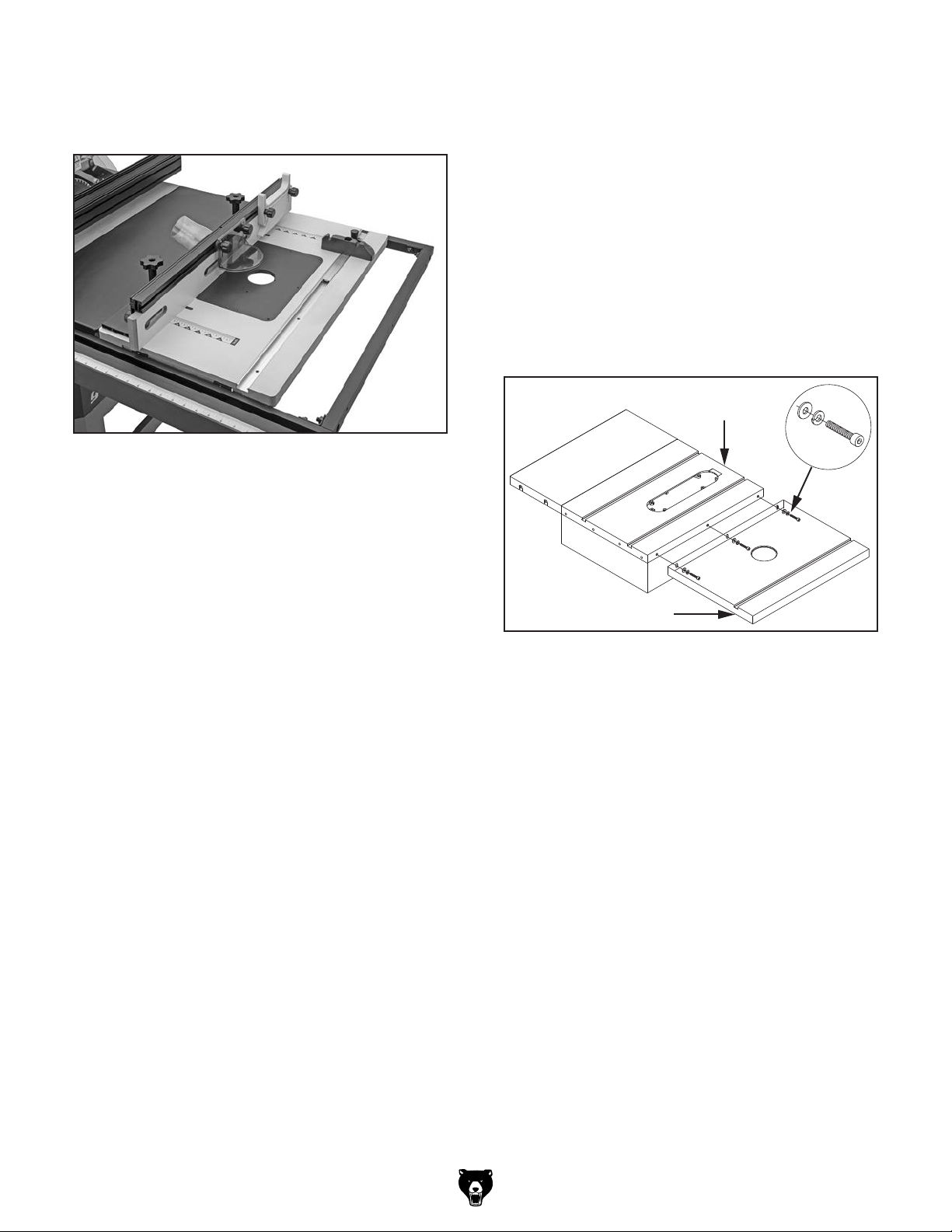

18.

Place table saw fence on main table, and

install fence assembly on router table (see

Figure 12).

5. Remove (8) cap screws and (4) hex nuts

securing rear rail to table saw (see Figure 6 on Page 10).

Remove (3) cap screws, flat washers, and

lock washers securing table saw extension wing to main table on right-hand side of saw.

Remove fence from router table wing.

8. While assistant holds router table wing, attach

wing to table saw main table on right-hand side of saw using fasteners (see Figure 13) removed in Step 6. Hand-tighten for now.

Main Table

Figure 12. Router table wing attached to

extension wing.

Attaching Router Table Wing to Main Table

Items Needed Qty

Wrench or Socket 13mm ................................... 1

Hex Wrenches 6, 8mm Phillips Head Screwdriver #2 Straightedge 36" Masking Tape Razor Blade Assistant

To attach router table wing to main table:

DISCONNECT TABLE SAW FROM POWER!

2. Remove table saw fence from main table.

3. Remove rail cap on right-hand side of front

Remove (8) hex nuts securing front rail to

............................................................ 1

rail, then remove rail brace (see Figure 6 on Page 10).

table saw (see Figure 6 on Page 10), then slide front rail away from table saw. Be careful not to stretch wires connecting ON/OFF switch to motor.

................................................ 1

.................................... As Needed

....................................................... 1

................................ 1 Ea.

............................ 1

x 3

Router Table Wing

Figure 13. Attaching router table wing to main

table.

Place straightedge across saw table and

router table wing to make sure combined table surface is flat.

— If combined table surface is flat, continue

with Step 10.

— If outside edge of router table wing tilts

down, remove wing and place strips of masking tape along bottom edge of extension wing to shim router table up and even with table saw from side to side (see Figure 14).

-12-

Model T33850 (Mfd. Since 08/23)

Page 15

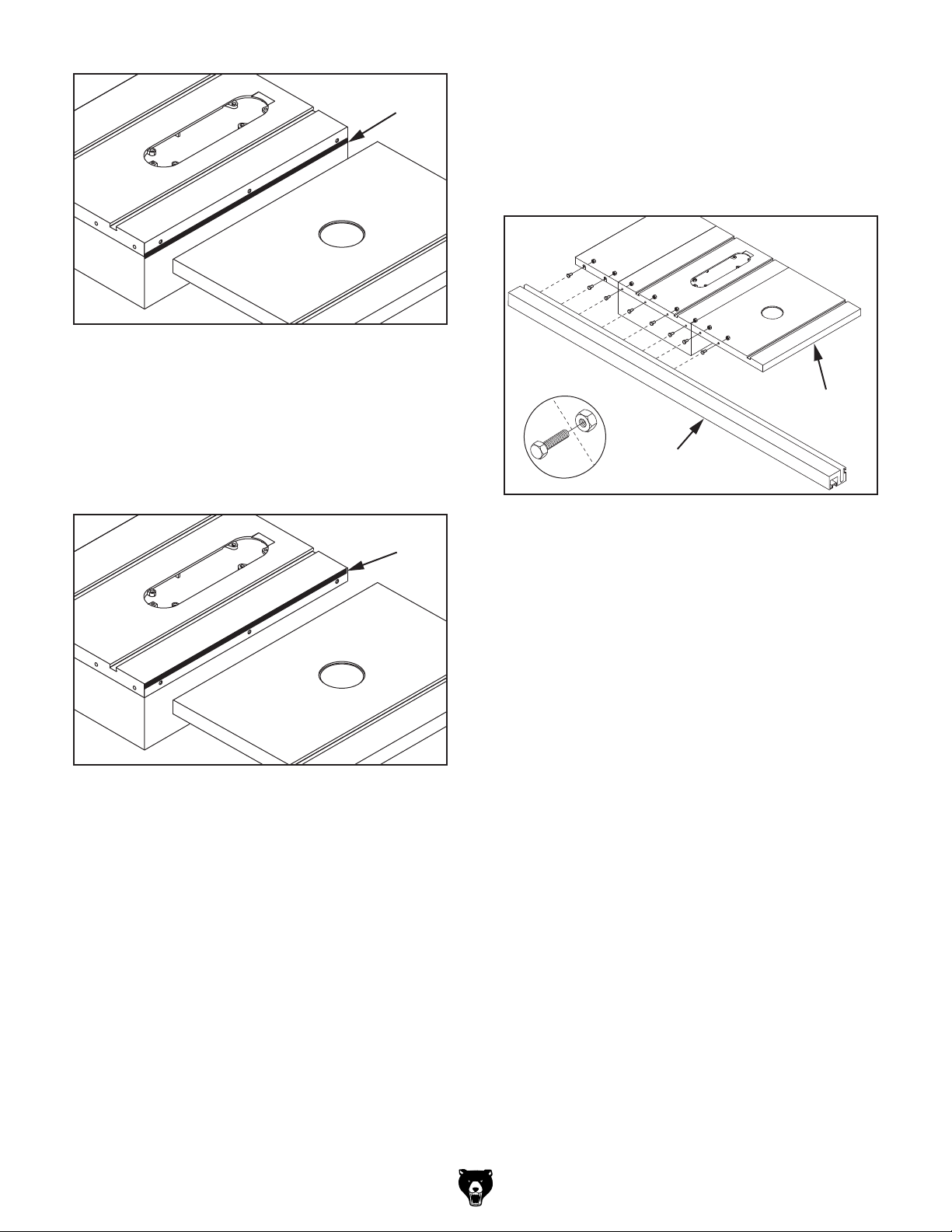

Tape

Figure 14. Using tape to shim router table up.

— If outside edge of router table wing tilts up,

remove router table wing and place strips of masking tape along top edge of extension wing to shim router table wing down and even with table saw from side to side (see Figure 15).

Tape

Align (8) hex bolts in fence rail with holes in

10.

extension wing, main table, and router table wing, then insert bolts into tables (see Figure

16). Be sure scale on fence rail is facing up. Thread (8) M8-1.25 hex nuts onto hex bolts. Hand-tighten for now.

Router Table

Wing

x 8

Figure 16. Attaching front rail to extension table,

main table, and router wing table.

11.

Install rear rail on table saw using fasten-

ers removed in Step 5. Use two of these to attach router table wing to rail (see Figure 11 on Page 11).

Table Saw

Fence

Figure 15. Positioning tape to shim router table

down.

Note: After re-installing router table, remove

all excess masking tape with a razor blade.

Tighten all fasteners.

12.

13. Install rail brace and rail cap removed in Step 3.

Place table saw fence on main table, and

14.

install fence assembly on router table. See Figure 12 on Page 12 for an example of how router table wing should appear once attached.

Model T33850 (Mfd. Since 08/23)

-13-

Page 16

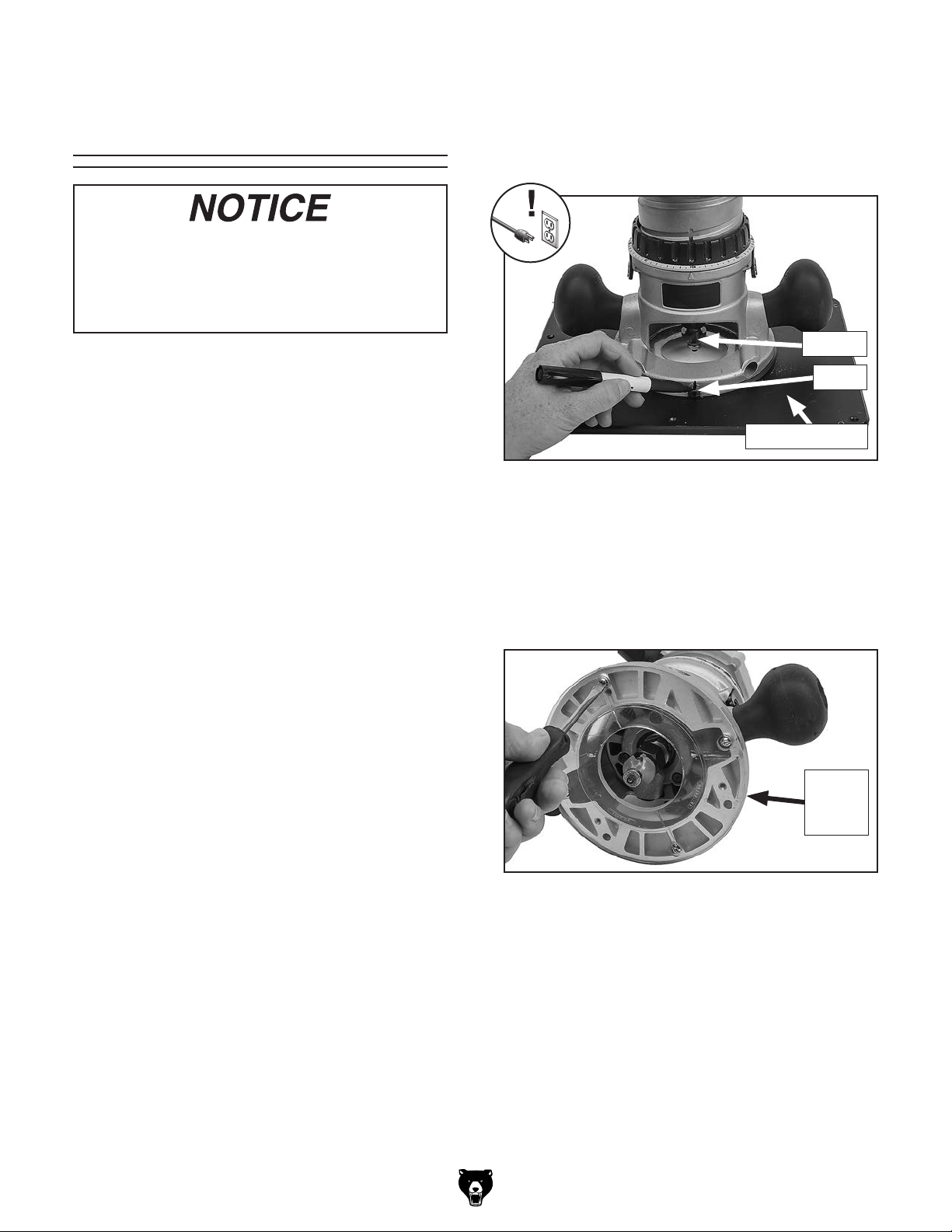

Attaching Router to

Mounting Plate

Router attachment requires permanent modification of router table mounting plate! Before attaching router, thoroughly read procedure below and make sure you can perform required tasks.

Items Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Masking Tape or Marker Center Punch Drill Press or Hand-Held Drill Countersink Drill Bit

The router mounting plate included with the T33850 is designed to attach to the bottom of your router in the same manner as the router base. We recommend using the router base as a template for the hole pattern to be drilled in the mounting plate.

..................................................... 1

.................... As Needed

............................ 1

........................................... 1

Note: Consider access to router controls

before finalizing router location. It may be necessary to slightly adjust alignment if holes in router base plate overlap or are too close to starter pin holes.

Spindle

Marks

Mounting Plate

Figure 17. Marking center of router base, router

base plate, and mounting plate with spindle.

5. Remove router base plate (see Figure 18).

Note: Keep fasteners used to secure router

base plate.

IMPORTANT: When deciding how to orient router in relation to router table wing, consider access to all router controls, adjustment knobs, lock levers, and power switch.

To attach router to mounting plate:

DISCONNECT ROUTER FROM POWER!

2. Mark front of mounting plate with tape or

erasable marker.

Remove (2) Phillip head screws from mount-

ing plate, lift mounting plate out of table opening, and lay it bottom-side-up on a protected working surface to prevent scratching top surface of mounting plate.

Set router on mounting plate (see

4. Figure 17) and align spindle with center of

insert. Use marker to mark center curve of router base, router base plate, and mounting plate.

Router

Base Plate

Figure 18. Example of removing typical base

plate from router.

-14-

Model T33850 (Mfd. Since 08/23)

Page 17

6. Center router base plate on mounting plate (see Figure 19), keeping marks made in Step 4 aligned.

Use router base plate as template to align

with pilot holes on bottom-side surface of mounting plate, as shown in Figure 19.

Mounting Plate Starting Pin Hole

Router

Base Plate

10. Align holes in mounting plate with threaded

holes in router base, and use fasteners removed in Step 5 to secure router to mounting plate, as shown in Figure 21.

Note: If original fasteners are not long enough

to properly secure router to mounting plate, use longer fasteners purchased from your local hardware store.

Mounting

Fasteners

Figure 19. Example of marking holes on

mounting plate.

Note: Use center punch to mark any router

base plate mounting holes that do not align with pilot holes on mounting plate.

8. Use drill press or hand-held drill with guide to drill holes through mounting plate.

Note: Use drill bit slightly larger in diameter

than fasteners used to secure base plate to router to ease installation in following steps.

Drill countersink holes on top surface of

mounting plate, using drill holes as guides for countersinks (see Figure 20 for example). This allows fasteners to sit slightly below top surface of mounting plate and reduces risk of kickback from a workpiece catching on fasteners during routing operations.

Router

Bit

Figure 21. Securing mounting plate to router

base.

If router unexpectedly moves or router bit contacts mounting plate or fence board during operation, serious personal injury could result from the router bit or flying debris. ALWAYS make sure router is firmly secured to mounting plate before beginning any cutting operations.

Insert mounting plate and router into router

11.

table wing opening, then secure with (2) Phillips head screws removed in Step 3.

Make sure mounting plate and router table

12. wing are evenly aligned (see Aligning Mounting Plate on Page 27).

Mounting

Plate

A B

Drill Countersink

Figure 20. Example of drill hole and countersink.

Model T33850 (Mfd. Since 08/23)

-15-

Page 18

Dust Collection

Routers create a lot of wood chips/dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust-collection system.

Recommended CFM at Dust Port: 150 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must consider these variables: (1) CFM rating of the dust collector, (2) hose type and length between the dust collector and the product, (3) number of branches or wyes, and (4) amount of other open lines throughout the system. Explaining how to calculate these variables is beyond the scope of this manual. Consult an expert or purchase a good dust collection "how-to" book.

To connect dust-collection system to router table wing:

Fit 21⁄2" dust hose over dust port (see

1. Figure 22) and secure in place with a hose

clamp, or connect a shop vacuum hose.

21⁄2" Dust Port

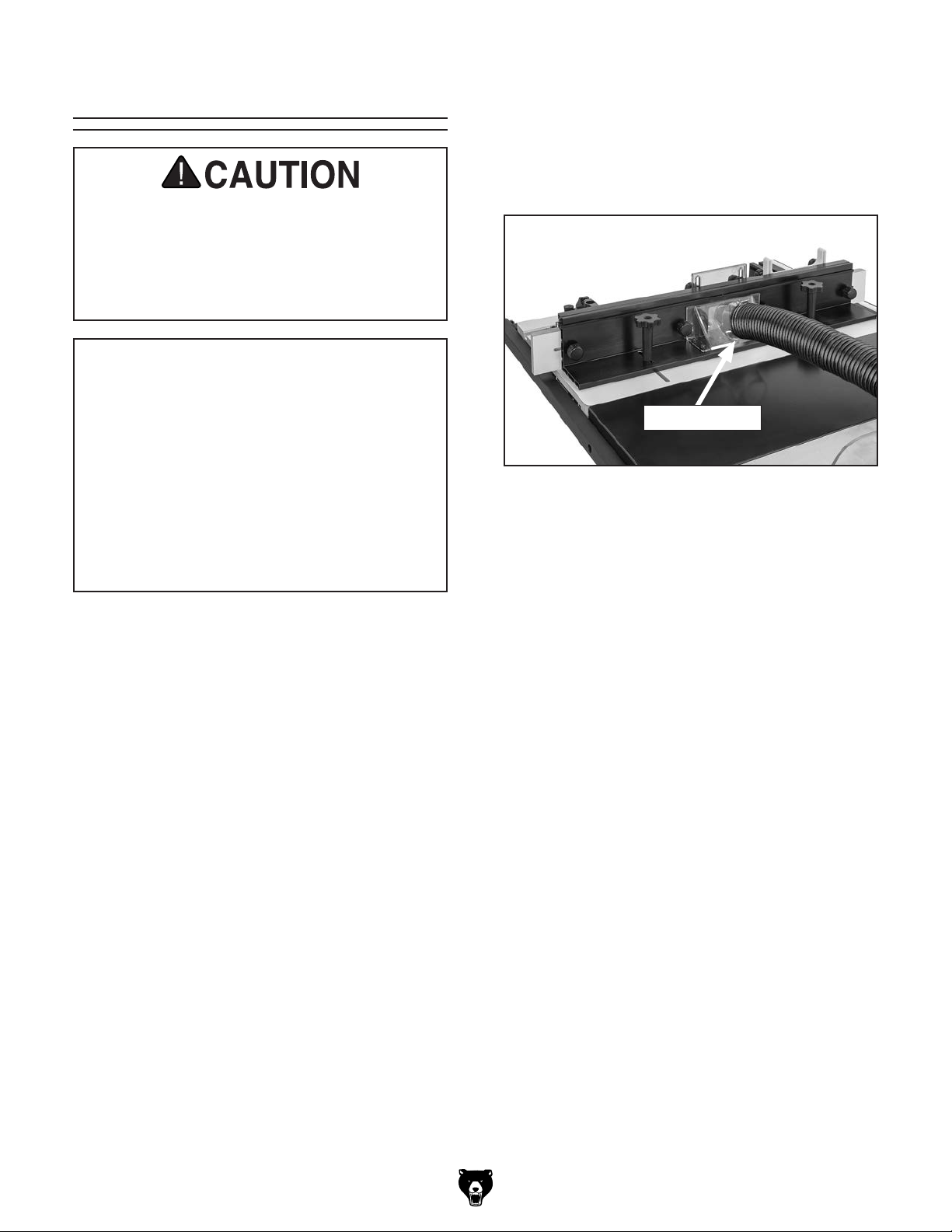

Figure 22. Dust port on fence assembly.

2. Tug hose to make sure it does not come off.

Note: A tight fit is necessary for proper

performance.

-16-

Model T33850 (Mfd. Since 08/23)

Page 19

SECTION 3: OPERATIONS

Keep hair, clothing, and

ing parts at all times. Entanglement can result in death, amputation, or

To reduce your risk of serious injury, read this entire manual BEFORE using this product.

Eye injuries, respiratory problems, or hearing loss can occur while operating this product. Wear personal protective equipment to reduce your risk from these hazards.

Operation Overview

To complete a typical operation, the operator does the following:

Examines workpiece to make sure it is suit-

able for routing.

Adjusts infeed and outfeed fences close to

bit for maximum workpiece support, then secures fence boards.

Adjusts bit height for desired cutting profile.

4. Adjusts fence position to establish depth of

cut.

Wears safety glasses, a respirator, and hear-

ing protection. Locates push sticks or blocks if needed.

jewelry away from mov-

severe crushing injuries!

If you are not experienced with this type of product, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Verifies direction of router bit rotation is cor-

rect for operation, starts dust collector, then starts router.

IMPORTANT: For small or odd-shaped

workpieces, a zero-clearance fence or jig is used.

Holds workpiece firmly and flatly against table

and fence, then pushes workpiece into bit at a steady and controlled rate until workpiece moves completely beyond router bit.

WARNING: Keep workpiece firmly against

table and fence, and keep hands away from spinning router bit during entire cut.

Stops router, then stops dust collector.

Model T33850 (Mfd. Since 08/23)

-17-

Page 20

Always follow these rules when choosing and routing stock:

•

stock that contains large or

Injury to the operator or damage to the workpiece can occur if a knot becomes dislodged during the cutting opera-

•

against the grain direction.

lihood of kickback, as well as tearout on the

•

with the grain produces a better

Cutting with the grain is described as feeding the stock on the router table so the grain points down and toward you as viewed on the edge

If the grain changes direction along the edge of the board, decrease the cutting depth and make additional passes.

• Scrape all glue off the workpiece before

Glue deposits on the workpiece, hard or soft, will gum up the router bit, produce poor results, and increase the risk of

• Remove foreign objects from the work-

Make sure that any stock you process with the router is clean and free of dirt, nails, staples, tiny rocks, or any other foreign objects that could damage the router bit and be thrown from the machine with significant

Wood stacked on a concrete or dirt

surface can have small pieces of concrete or

• Make sure all stock is sufficiently dried

Wood with a moisture content over 20% will cause unnecessary wear on the router bits, produce poor cutting results, and increase the risk of kickback. Excess moisture can also hasten rust and corrosion.

Inspection

Stock Inspection

Requirements

DO NOT cut loose knots.

tion.

DO NOT cut

Cutting against the grain increases the like-

workpiece.

Routing finish and is safer for the operator.

jointing.

kickback.

piece.

speed/force.

Note:

stone pressed into the surface.

before routing.

of the stock (see Figure below).

Note:

End View

Outfeed

Fence

Direction of Feed

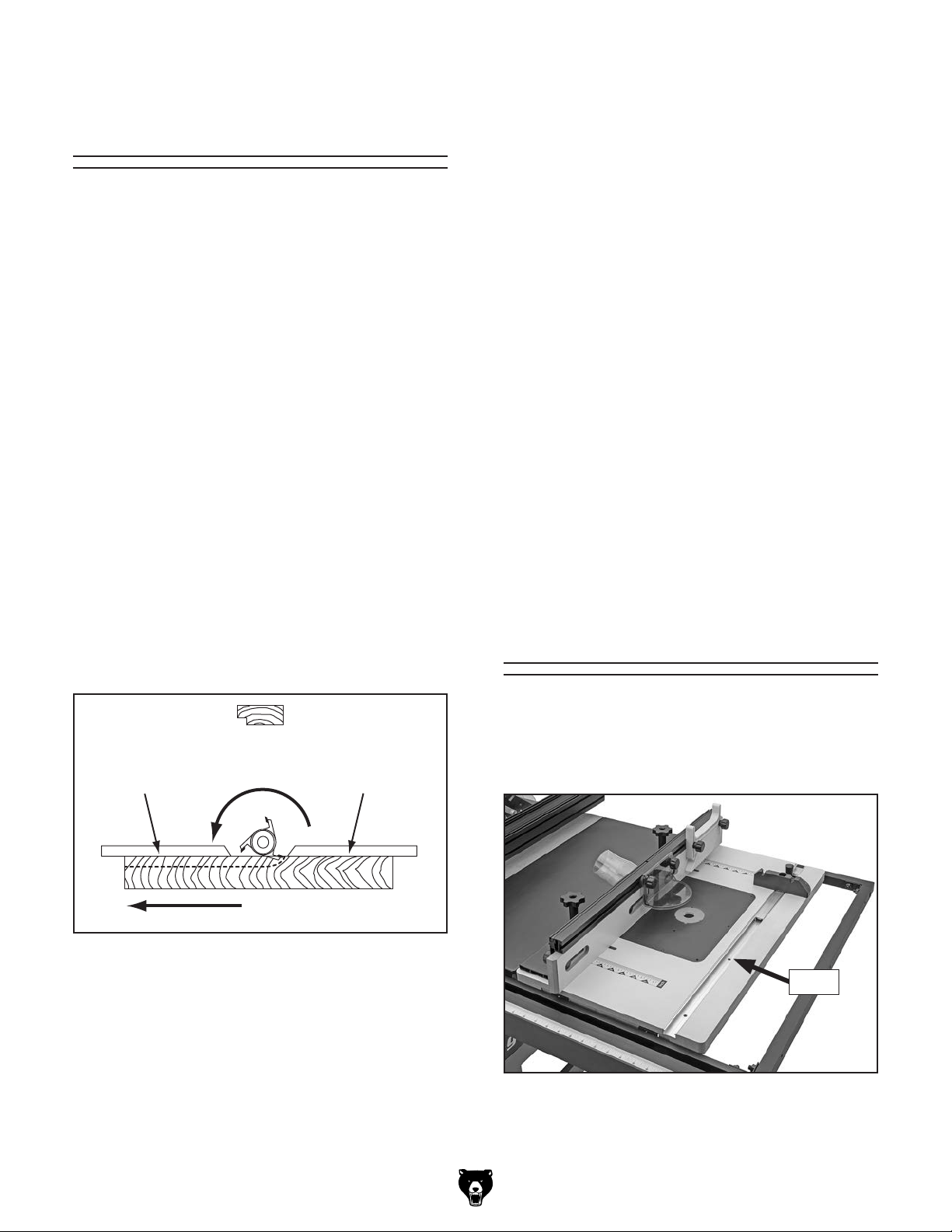

Figure 23. Proper grain alignment with the router

• Only process natural and man-made wood

-18-

bit.

products. Your router is designed to cut only natural wood fiber products. It is NOT designed to cut metal, glass, stone, tile, products with lead-based paint, or products that contain asbestos. Cutting these materials with a router may lead to injury.

Infeed Fence

Table T-Slot

The Model T33850 includes a 3⁄4" T-slot (see Figure 24) that can be used for attaching router table accessories like a miter gauge, jig, or featherboard.

T-slot

Figure 24. Location of table T-slot.

Model T33850 (Mfd. Since 08/23)

Page 21

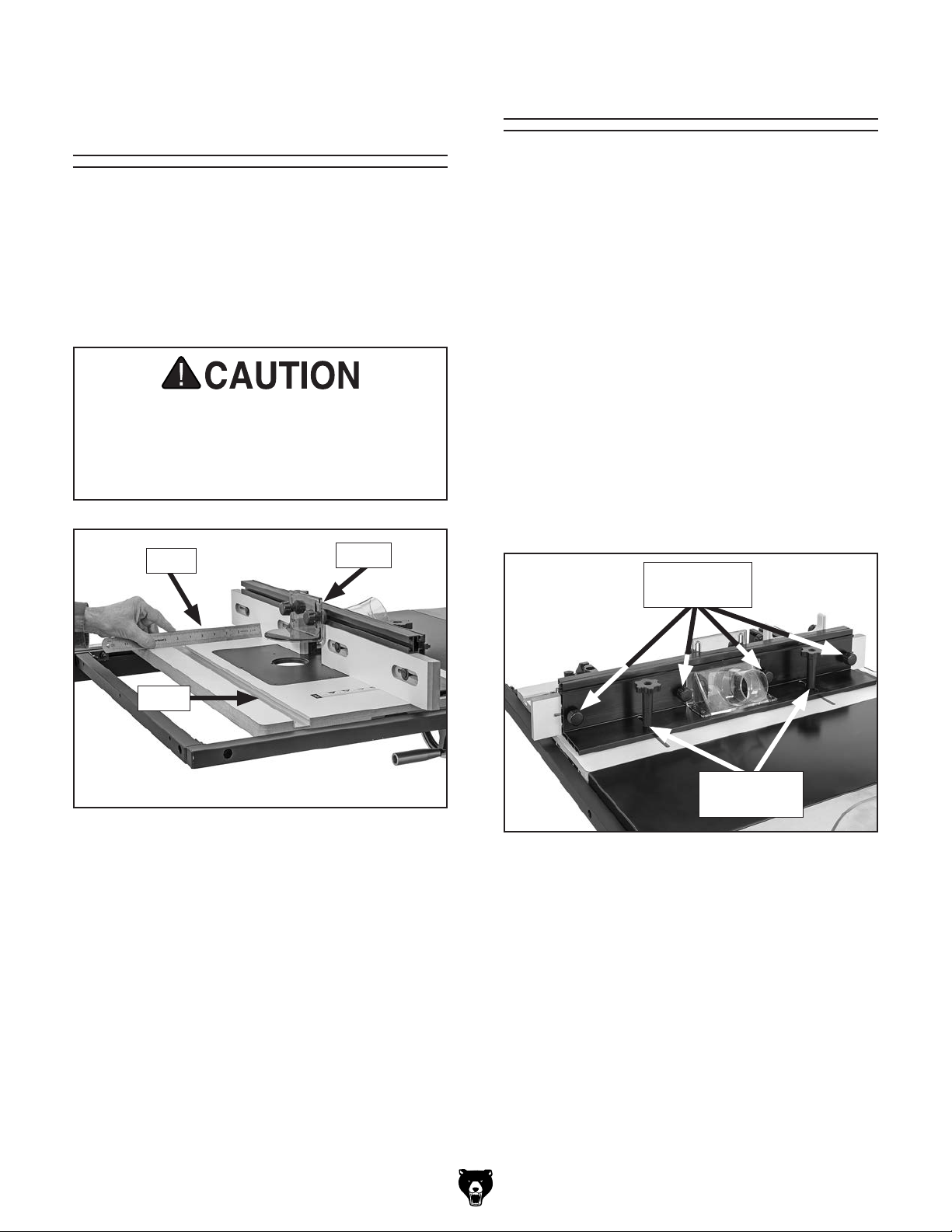

Aligning Fence

with Table T-Slot

When using a miter gauge, it is important to make sure the fence is parallel with the table T-slot. This will help ensure the workpiece does not bind or kick back during operation. Use a fine ruler to make the distance equal between the fence and the T-slot along the full length of the table (see

Figure 25).

To avoid workpiece kickback or binding when using a miter gauge with this router table, ALWAYS make sure fence is parallel with table T-slot before beginning routing operations.

Adjusting Fence

The fence assembly on the Model T33850 has an infeed fence and an outfeed fence. These can be moved side to side to increase or decrease the space around the router bit.

IMPORTANT: Fences should be adjusted as close to the bit as possible without touching in order to minimize risk of injury and produce best results.

To adjust the fences side to side, loosen the four fence board lock knobs (see Figure 26) and adjust the fence boards. Tighten all knobs when complete.

To move the fence assembly from front to back, loosen the two fence base lock knobs (see Figure

26) and slide the fence assembly into position. Tighten the knobs when complete.

Ruler

T-Slot

Figure 25. Adjusting fence parallel with table

T-slot.

Fence

Fence Board

Lock Knobs

Fence Base Lock Knobs

Figure 26. Fence components.

Model T33850 (Mfd. Since 08/23)

-19-

Page 22

Adjusting

Router Bit Guard

A transparent bit guard is included with the Model T33850 to minimize operator exposure to the spinning router bit. The bit guard adjusts up and down and side to side to accommodate different router bits and different workpiece sizes (see Figure 27). For your own safety, the bit guard must be positioned vertically not more than and centered horizontally on the gap between the infeed and outfeed fences.

⁄8" above the workpiece,

Using Table Inserts

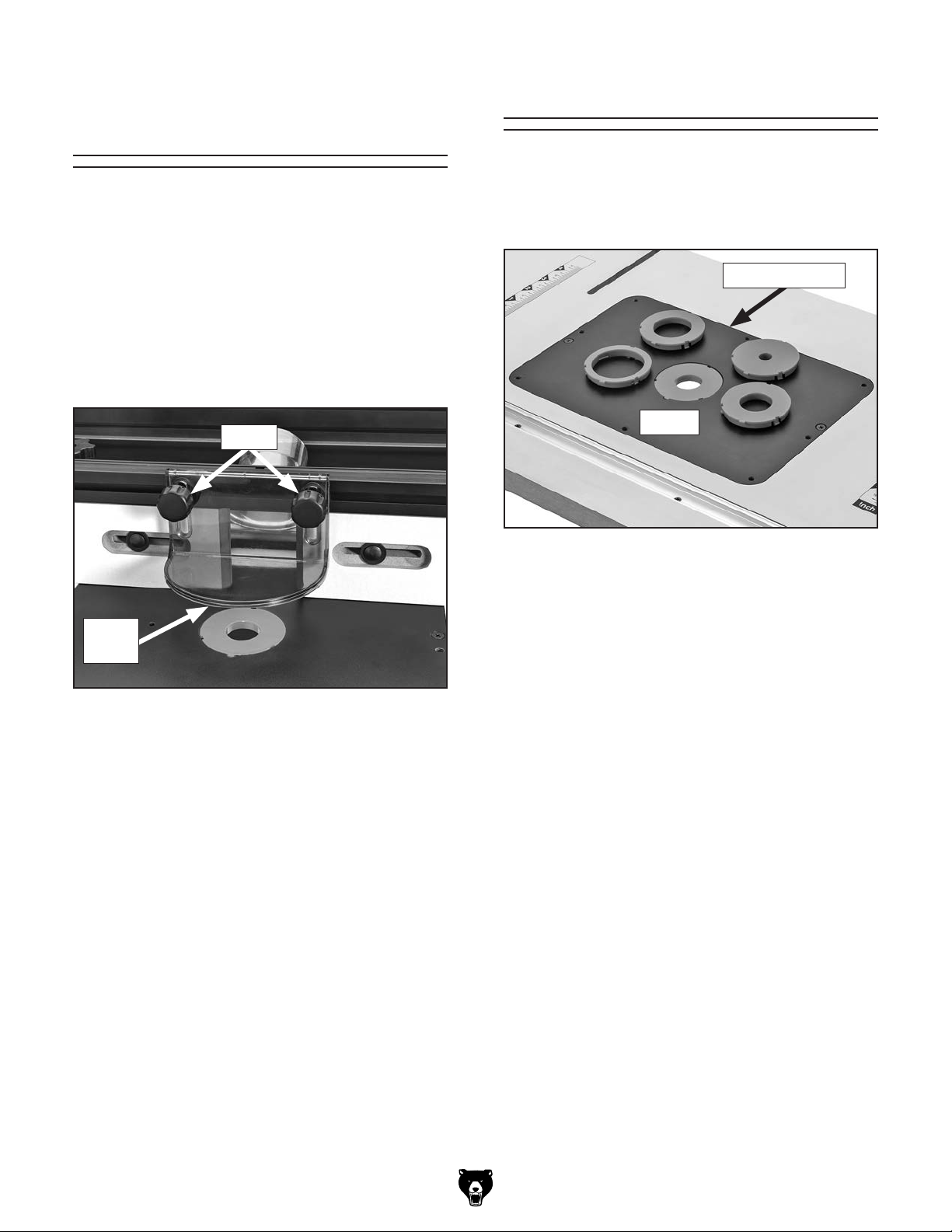

The Model T33850 includes five table inserts: 1⁄2 ", 1",1 1⁄4",1 1⁄2 ", and 2" (see Figure 28). These fit into the mounting plate and provide additional safety and control near the router bit during operations.

Mounting Plate

Knobs

Bit

Guard

Figure 27. Router bit guard components.

Inserts

Figure 28. Table inserts.

Always install the smallest table insert into the mounting plate that still allows the router bit to freely rotate. This provides maximum support and stability to the workpiece during operation, which increases safety.

-20-

Model T33850 (Mfd. Since 08/23)

Page 23

Edge Jointing

Jointing the edge of a board requires a straightcutting router bit to remove wood from the face of the board. The result is a perfectly flat and square edge.

To edge joint with a straight-cutting router bit, a spacer needs to be installed between the outfeed fence and fence base. A piece of wood that has been planed to be of equal thickness with holes for mounting works well. The thickness of the spacer with depend on and be equal to the amount of material being removed from the face of the workpiece.

Place straightedge against outfeed fence

board, then adjust fence assembly so straightedge is just against bit flute, as illustrated in Figure 29.

Top View

Straight

Router Bit

(Enlarged)

Spacer

Outfeed

Fence

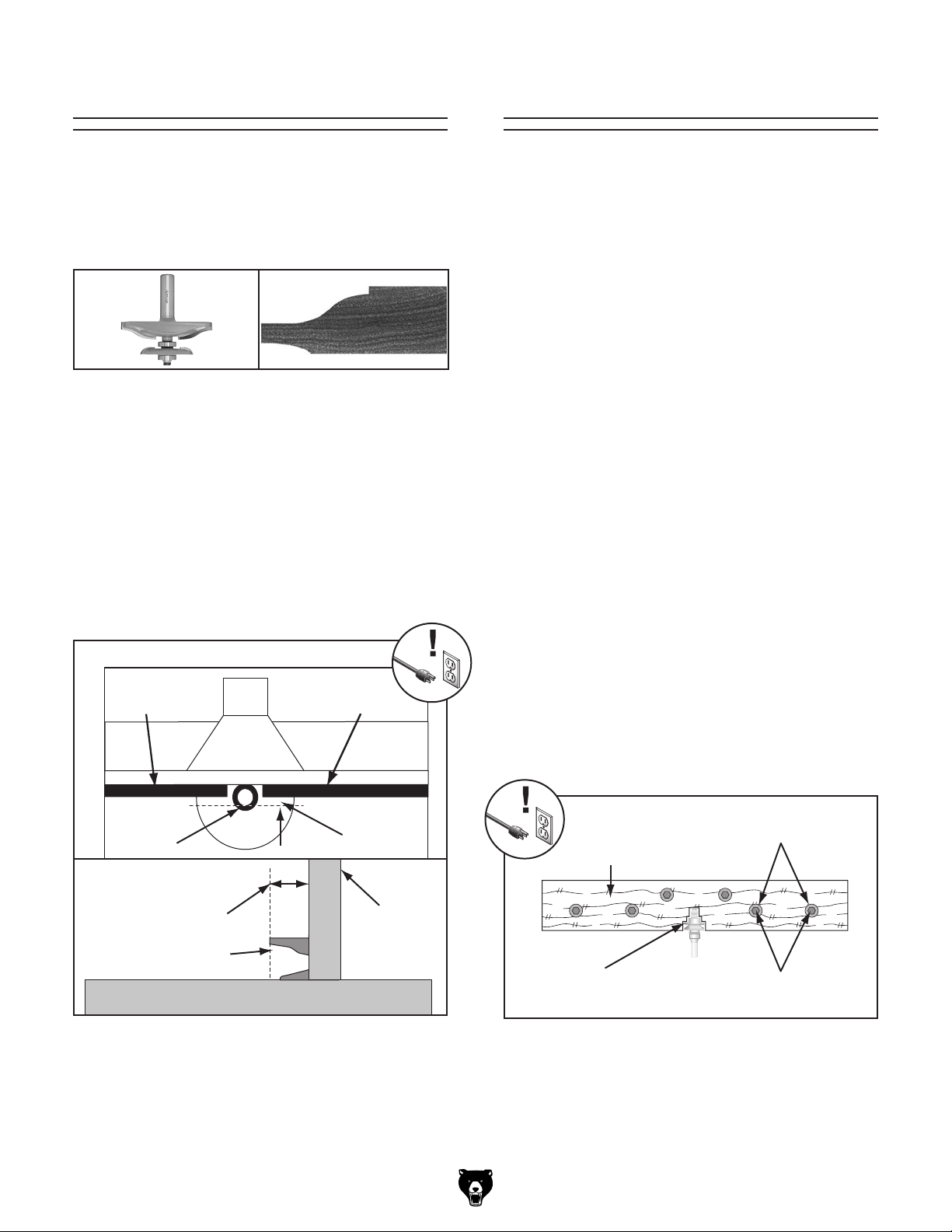

Figure 29. Measuring fence setup for edge

jointing (guard removed for clarity).

Straightedge

Infeed Fence

Bit

Flute

Always feed workpiece against router bit rotation direction, as illustrated below. Otherwise, workpiece could be aggressively pulled from your hands, drawing them into spinning router bit.

Bit

Rotation

To joint edge of a workpiece:

DISCONNECT ROUTER FROM POWER!

2. Secure straight-cutting bit in router according

to manufacturer's instructions.

Install table insert.

Workpiece

Feed Direction

7. Make sure fence is parallel with table T-slot (see Aligning Fence with Table T-Slot on Page 19), then lock fence assembly and bit guard in place, and tighten all knobs.

Connect router to power, then perform cut

8. (see Figure 30).

Top View

Spacer

Workpiece

Cutting Direction

Figure 30. Edge jointing (guard removed for

clarity).

4. Insert spacer (not included with item) between

outfeed fence and fence base. Width of spacer will determine amount of material removed with each pass.

IMPORTANT: To reduce risk of kickback, DO

NOT take more than

Raise bit just above top of workpiece, then

rotate it by hand until cutting flute is perpendicular to fence.

Model T33850 (Mfd. Since 08/23)

⁄16" off during a single pass.

To reduce risk of hand injury from accidental contact with spinning router bit, ALWAYS make sure fence and router bit guard are properly positioned and secured before connecting router to power (does not apply to free-hand routing).

-21-

Page 24

Profile Routing Routing Small Stock

For creating decorative edges or removing different shapes of material out of a workpiece, profile routing provides a variety of options. For instance, the Grizzly Model C1409 Ogee Bit (see Figure 31) will produce a pattern like the one below.

Figure 31. Model C1409 Ogee Bit.

To cut a profile into a workpiece:

1. DISCONNECT MACHINE FROM POWER!

2. Secure bit in router according to router manu-

facturer's instructions.

Raise router bit to desired height, then adjust

fence so it sits behind the bit the same distance as desired depth-of-cut (see Figure 32).

Top View

Feeding small stock past the router bit increases the risk of kickback from the workpiece slipping into the space between the fence and bit. If you must rout small stock, use a zero-clearance fence board. This will provide greater protection for the operator, better workpiece support, and reduced tearout on narrow or fragile stock.

To make a zero-clearance fence:

DISCONNECT ROUTER FROM POWER!

2. Remove infeed/outfeed fences from fence

base.

Select piece of straight, smooth stock that is

same height and thickness as infeed/outfeed fences and approximately 36" long.

Cut outline of spindle and router bit from cen-

ter of the stock selected in Step 3, as shown in Figure 33.

Note: Make outline as close as possible to

router bit and spindle without interfering with rotation.

Outfeed Fence

Bit

Infeed Fence

Depth-of-Cut

Side View

Infeed

Depth-of-Cut

Bit

Table

Figure 32. Profile routing setup.

Make sure both infeed/outfeed fences are

parallel with table if using T-slot.

Lock fence in place, tighten all knobs, con-

nect router to power, then perform cut.

Fence

Create countersunk mounting holes in zero-

clearance fence board (see Figure 33) to secure new fence and router bit guard to base.

Countersunk

holes

Wood stock

Cut out profile

of cutter & spindle

Figure 33. Example of a zero-clearance fence

board.

Mount with

flat head screws

-22-

Model T33850 (Mfd. Since 08/23)

Page 25

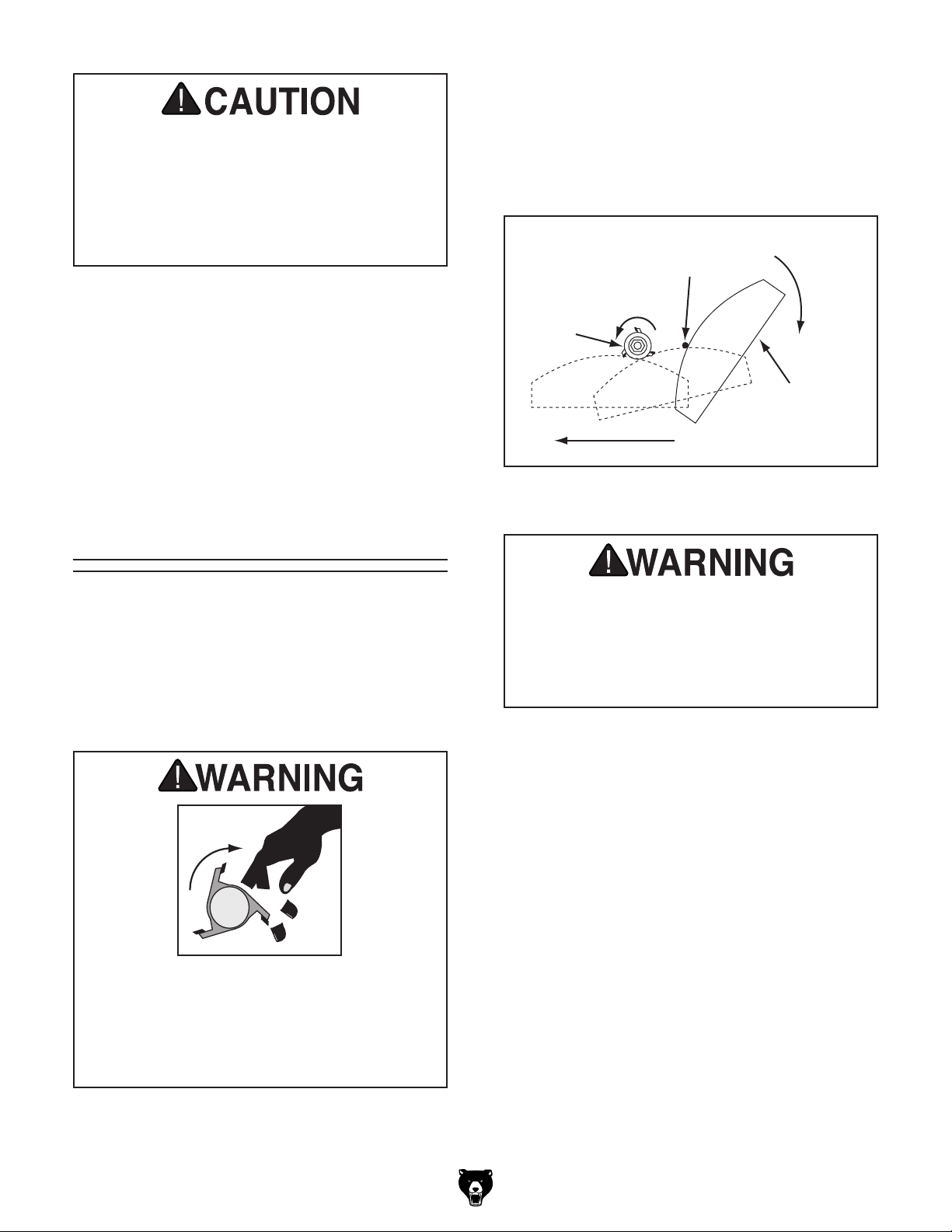

ALWAYS use hold-downs or featherboards and push sticks when shaping small or narrow stock. These devices keep your hands away from spinning router bit and sufficiently support stock to allow a safe and effective cut, reducing risk of personal injury.

To reduce the likelihood of kickback when freehand routing, use the starting pin or a block (see Figures 34–35 for examples). This will allow you to anchor and slowly pivot the workpiece into the bit as the cut is started, making the operation more stable and safe.

Swing

Starting Pin

6. Secure zero-clearance fence board and

router bit guard to fence base, then make sure fence is parallel with table T-slot (see

Aligning Fence with Table T-Slot on Page

19).

Check for proper clearance, connect router

table to power, then make test cut to verify results.

Free-Hand Routing

Irregular or free-hand routing takes a high degree of skill and dexterity and is done without the protection and aid of the fence and router bit guard. The most dangerous part of free-hand routing is beginning the cut, when the router bit first contacts the workpiece. It tends to jerk or kick back, presenting an injury hazard to the operator.

Rub

Collar

Figure 34. Illustration of free-hand routing using

ALWAYS use an auxiliary jig and extreme care when free-hand routing. Routing without fence and router bit guard greatly increases risk of accidental contact with spinning router bit, causing serious personal injury.

a starting pin.

Workpiece

Feed Direction

Free-hand or irregular routing greatly increases the chance that the operator may lose control of the workpiece, which could result in serious personal injury. Therefore, a starting pin or block and a custom guard or workpiece holding jig MUST be used.

Model T33850 (Mfd. Since 08/23)

-23-

Page 26

To free-hand rout:

DISCONNECT ROUTER FROM POWER!

5. Insert starting pin in hole on mounting plate or clamp a starting block to table (see Figure

35).

2. Fabricate a jig to use with workpiece that

matches desired finished shape, then attach it to workpiece (see Figure 35).

Note: Make sure any fasteners used will not

make contact with the router bit during routing operation. Hot glue can be used as an alternative.

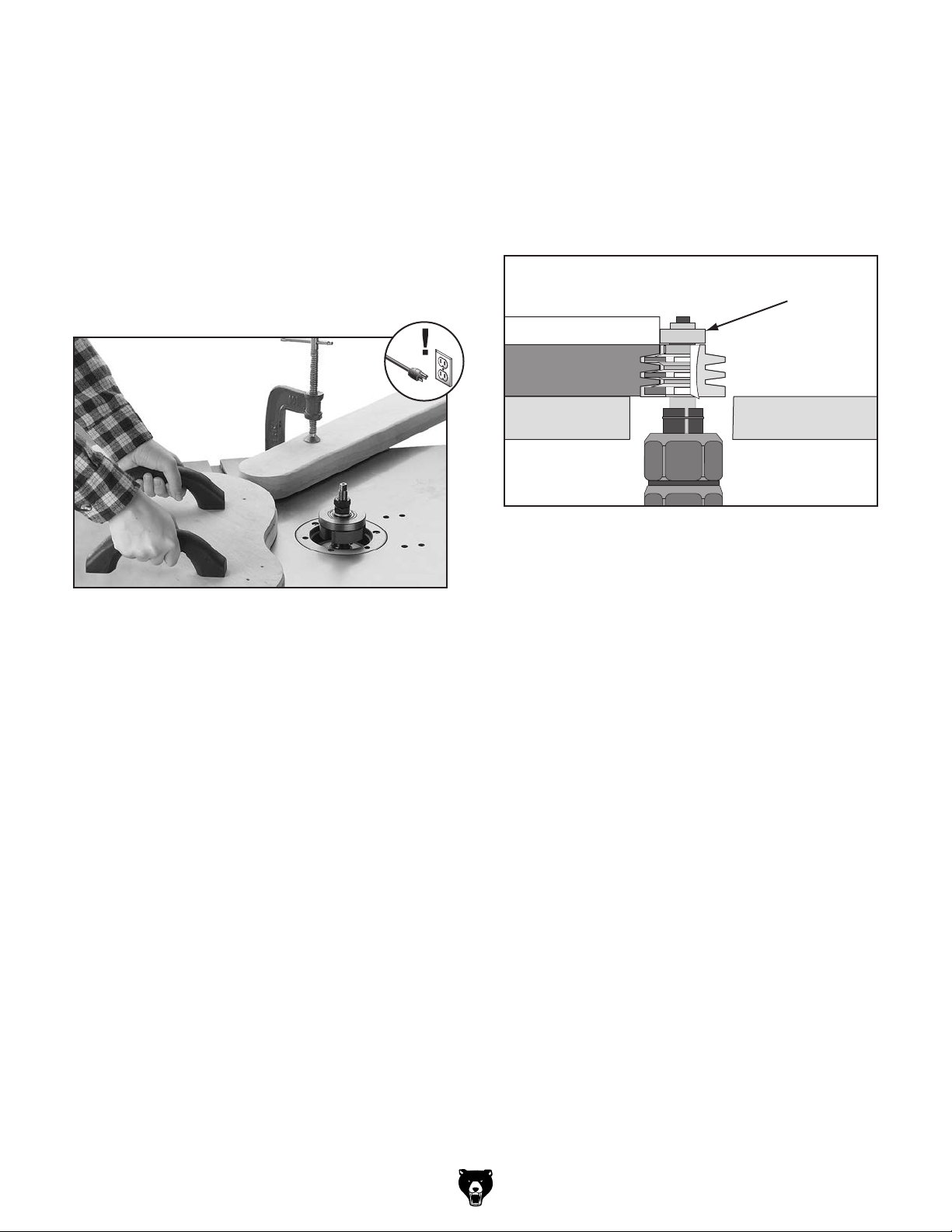

Figure 35. Example of using a jig with a starting

block.

Remove fence from table.

Install a router bit with bearing guide as

directed by router manufacturer's instructions, then raise it to desired height (see Figure 36).

Bearing

Guide

Template

Workpiece

Figure 36. Using a template and bearing guide

for free-hand routing.

Rest workpiece against starting pin, turn rout-

er ON, then slowly pivot and feed workpiece into router bit. After cut is started, move workpiece against guide bearing and away from starting pin.

4. If possible, fabricate and mount a custom

guard over the bit that safely protects your hands from spinning router bit.

-24-

Model T33850 (Mfd. Since 08/23)

Page 27

SECTION 4: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from

Cleaning &

Protecting

power before adjustments, maintenance, or service.

Schedule

For optimum performance from this accessory, this maintenance schedule must be strictly followed.

Ongoing

To maintain a low risk of injury and proper accessory operation, if you ever observe any of the items below, stop using the accessory immediately and fix the problem before continuing operations:

• Loose mounting bolts.

• Loose mounting plate fasteners

• Damaged router bit. Any other unsafe condition that could hamper

•

the safe operation of the router table wing.

Cleaning the Model T33850 is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin dissolving cleaner to remove it.

Be sure to dry or clean any water, oil, or chemical solvents that come into contact with the table. These may eat away or warp the table.

Weekly Maintenance

• Clean/vacuum dust buildup from router and

T-slot on router table wing and infeed and outfeed fence boards.

Model T33850 (Mfd. Since 08/23)

-25-

Page 28

SECTION 5: SERVICE

Review the troubleshooting procedures in this section if a problem develops with your item. If you need replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather the

serial number and manufacture date of your item before calling.

Troubleshooting

Operations

Symptom Possible Cause Possible Solution

Workpiece catches on mounting plate.

1. Mounting plate and table not evenly aligned.

1. Align mounting plate (Page 27).

Workpiece catches on infeed/outfeed fence boards.

Workpiece catches on gap between infeed/outfeed fe nce boards.

Workpiece is burned when cut.

Fuzzy grain.

Chipping.

Divots in edge of cut.

1. Fence and table T-slot not parallel. 1. Align fence with table T-slot (Page 19).

1. Workpiece too small for fence. 1. Create zero-clearance fence for operation

(Page 22).

1. Router bit dull.

2. Feeding workpiece too slowly.

3. Router bit spinning in wrong direction.

4. Depth of cut too deep.

1. Wood may have high moisture content or surface wetness.

2. Router bit dull.

1. Knotsorconictinggraindirectioninwood.

2. Nicked or chipped router bit.

3. Feeding workpiece too fast.

4. Depth of cut too deep.

5. Cutting against wood grain.

1. Inconsistent feeding speed.

2. Inconsistent pressure against fence.

3. Fence not adjusted correctly.

1. Replace router bit.

2. Increase feed rate.

3. Reverse direction of router bit.

4. Take a smaller depth of cut. (Always reduce cutting depth when working with hard woods.)

1. Inspect workpiece moisture content; allow to dry if moisture is more than 20% (Page 18).

2. Replace router bit.

1. Inspect workpiece for knots and grain direction; only use clean stock (Page 18).

2. Replace router bit.

3. Decrease feed rate.

4. Take a smaller depth of cut. (Always reduce cutting depth when working with hard woods.)

5. Cut with grain of wood (Page 18).

1. Use consistent feed rate.

2. Apply constant pressure.

3. Adjust fence correctly (Page 19).

-26-

Model T33850 (Mfd. Since 08/23)

Page 29

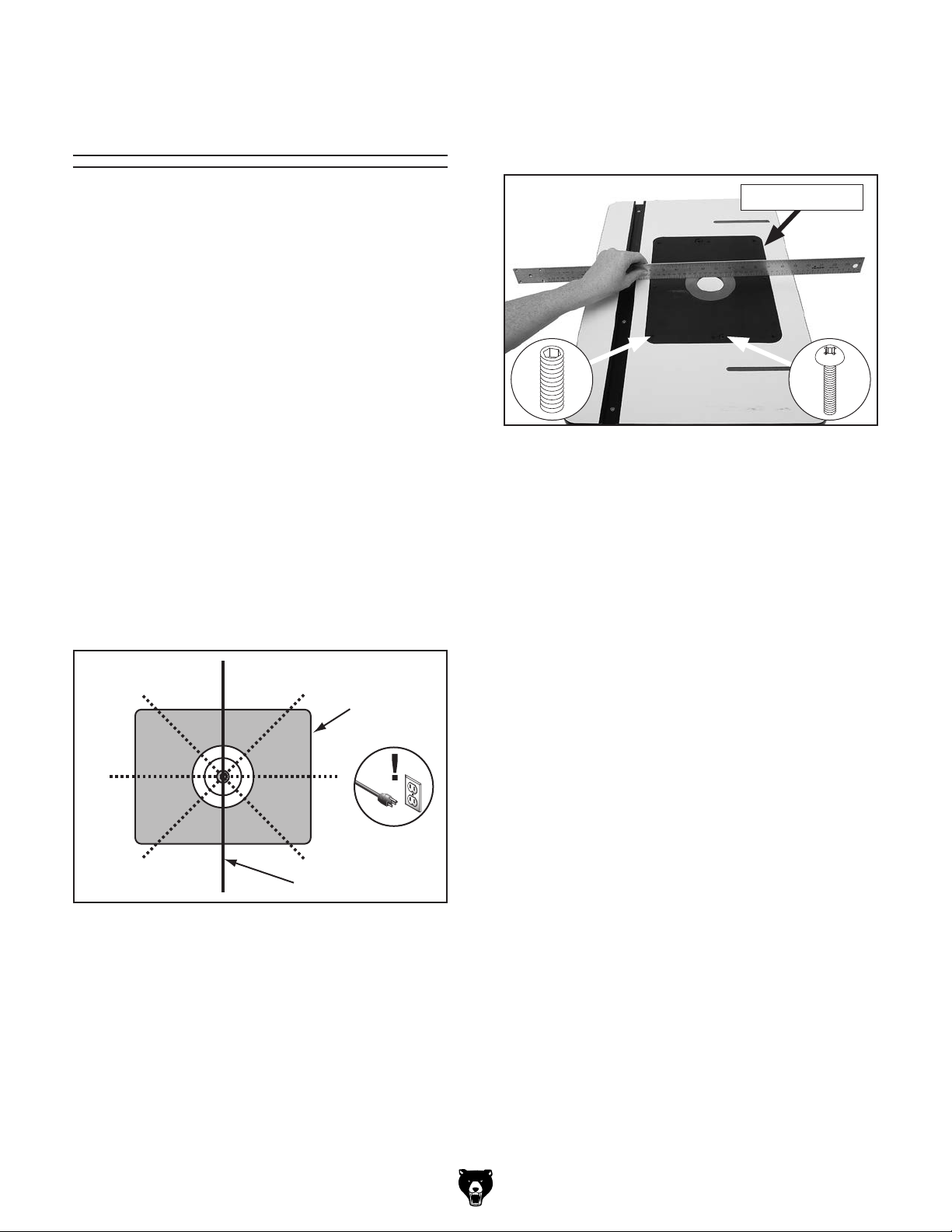

Aligning

Straightedge

Mounting

Plate

Table Surface

Mounting Plate

Adjust set screws (see Figure 38) in mount-

ing plate as necessary so that straightedge lies flat on table surface at all positions of pattern.

To ensure a workpiece does not catch on the mounting plate and cause kickback, the mounting plate must be aligned evenly with the top of the table.

Tools Needed: Qty

Hex Wrench 3mm .............................................. 1

Phillips Head Screwdriver #2 Straightedge 48"

To align mounting plate:

DISCONNECT ROUTER FROM POWER!

2. Remove fence assembly from router table.

3. Remove (2) Phillips head screws that secure

mounting plate to table.

Lay straightedge across mounting plate, table

insert, and table surfaces in pattern shown in Figure 37.

................................................ 1

............................ 1

Mounting Plate

x 8

Figure 38. Example of using a straightedge to

align mounting plate with table surface.

Repeat Steps 4–5 as needed until mounting

plate is aligned with table surface.

Secure mounting plate to table with Phillips

head screws removed in Step 3.

x 2

Figure 37. Pattern for aligning mounting plate to

Model T33850 (Mfd. Since 08/23)

table.

-27-

Page 30

SECTION 6: PARTS

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.

Main

REF PART # DESCRIP TI ON REF PART # DESCRIP TI ON

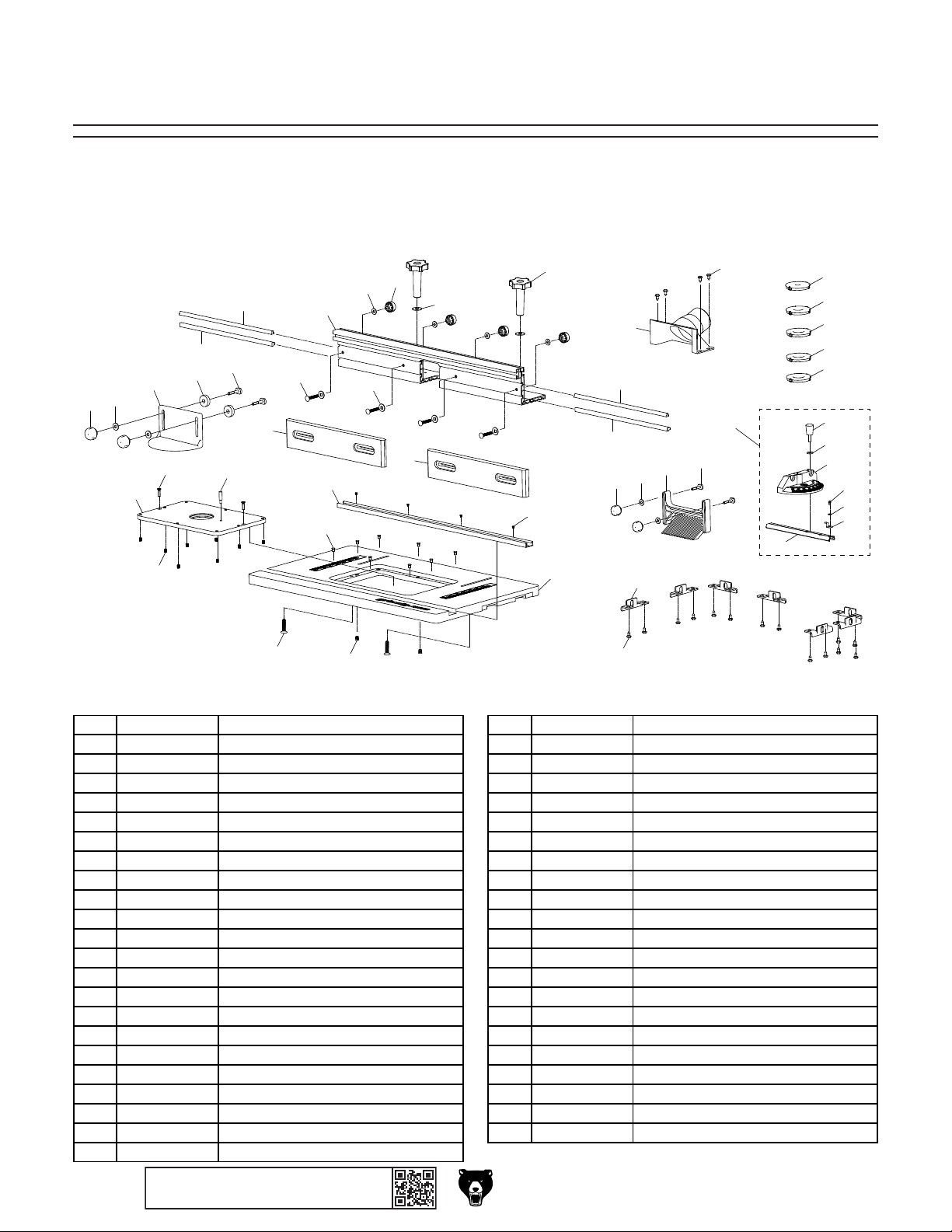

1 PT33850001 TABLE 25 PT33850025 ROUTER BIT GUARD 2 PT33850002 THREADED INSERT M5-.8 X 9.5 26 PT33850026 SPACER 6 X 12 X 7 3 PT33850003 SET SCREW M6-1 X 8 27 PT33850027 FLAT WASHER 5MM 4 PT33850004 TAP SCREW M2.9 X 10 28 PT33850028 KNOB M5-.8, D27, 8-LOBE 5 PT33850005 T-SLOT TRACK 29 PT33850029 T-BOLT M6-1 X 30 6 PT33850006 T-BOLT M8-1.25 X 40 30 PT33850030 FEATHERBOARD 7 PT33850007 MOUNTING PLATE 31 PT33850031 DUST PORT 2-1/2" 8 PT33850008 FLAT HD SCR M5-.8 X 20 32 PT33850032 KNOB M6-1, D27, 8-LOBE 9 PT33850009 SET SCREW M6-1 X 8 33 PT33850033 FLAT WASHER 6MM 10 PT33850010 STARTING PIN 34 PT33850034 MITER GAUGE 11 PT33850011 MOUNTING BRACKET 35 PT33850035 MITER BAR 12 PT33850012 TAP SCREW M5.5 X 13 36 PT33850036 PHLP HD SCR M4-.7 X 6 14 PT33850014 FENCE BOARD (LEFT) 37 PT33850037 FLAT WASHER 4MM 15 PT33850015 FENCE BOARD (RIGHT) 38 PT33850038 POINTER 16 PT33850016 FENCE 39 PT33850039 T-BOLT M5-.8 X 30 17 PT33850017 CARRIAGE BOLT M6-1 X 40 40 PT33850040 PHLP HD SCR M6-1 X 10 18 PT33850018 CARRIAGE WASHER 7 X 1.5 X 20 41 PT33850041 TABLE INSERT 1/2" 19 PT33850019 T-SLOT COVER 1/8" X 14" 42 PT33850042 TABLE INSERT 1" 20 PT33850020 T-SLOT COVER 1/4" X 14" 43 PT33850043 TABLE INSERT 1-1/4" 21 PT33850021 FLAT WASHER 6MM 44 PT33850044 TABLE INSERT 1-1/2" 22 PT33850022 KNOB M6-1, D27, 8-LOBE 45 PT33850045 TABLE INSERT 2" 23 PT33850023 FLAT WASHER 8MM 46 PT33850046 MITER GAUGE ASSEMBLY 24 PT33850024 KNOB M8-1.25, 6-LOBE, D49.5

41 42

43 44

36 37 38

-28-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model T33850 (Mfd. Since 08/23)

Page 31

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,

negligence,accidents,repairsoralterationsorlackofmaintenance.ThisisGrizzly’ssolewrittenwarranty

and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.

InnoeventshallGrizzly’sliabilityunderthiswarrantyexceedthepurchasepricepaidfortheproductand

any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will

thenissue youa “ReturnNumber,’’whichmust beclearly posted onthe outsideas wellas theinside of

the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To you can applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY

Page 32
