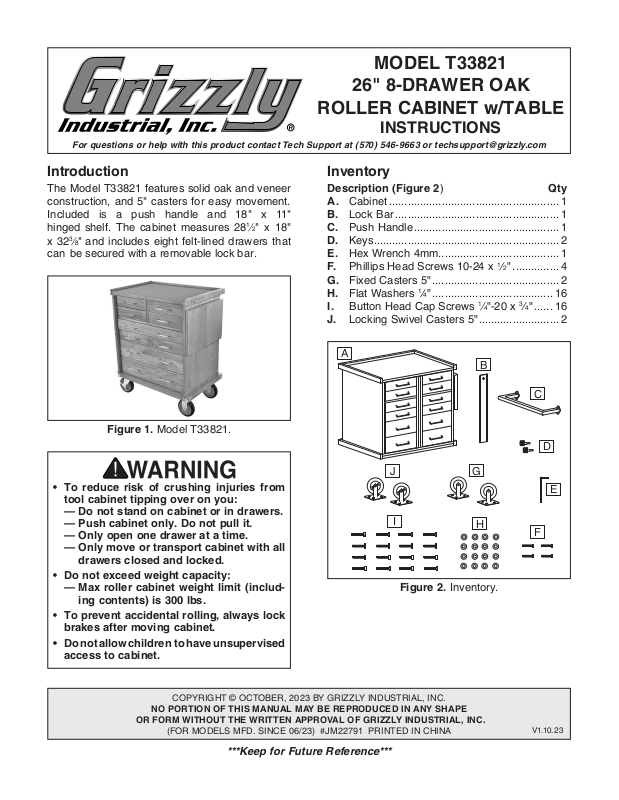

MODEL T33821
26" 8-DRAWER OAK
ROLLER CABINET w/TABLE
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
troduction
In
The Model T33821 features solid oak and veneer
construction, and 5" casters for easy movement.
Included is a push handle and 18" x 11"
hinged shelf. The cabinet measures 281⁄2" x 18"
x 323⁄8" and includes eight felt-lined drawers that
can be secured with a removable lock bar.
Figure 1. Model T33821.
Inventory
Description (Figure 2)
A. Cabinet ....................................................... 1
Lock Bar ..................................................... 1
B.
Push Handle ............................................... 1
C.
Keys ............................................................ 2
D.
Hex Wrench 4mm ....................................... 1
E.
Phillips Head Screws 10-24 x 1⁄2 " ............... 4
F.
Fixed Casters 5" ......................................... 2
G.
Flat Washers
H.
Button Head Cap Screws
I.
Locking Swivel Casters 5" .......................... 2
J.
A
1
⁄4" ....................................... 16
1
⁄4"-20 x 3⁄4" ...... 16
B
Qty
C
D
• To reduce risk of crushing injuries from
tool cabinet tipping over on you:
— Do not stand on cabinet or in drawers.
— Push cabinet only. Do not pull it.
— Only open one drawer at a time.
— Only move or transport cabinet with all
drawers closed and locked.
• Do not exceed weight capacity:
— Max roller cabinet weight limit (includ-
ing contents) is 300 lbs.
• To prevent accidental rolling, always lock
brakes after moving cabinet.
• Do not allow children to have unsupervised
access to cabinet.
COPYRIGHT © OCTOBER, 2023 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 06/23) #JM22791 PRINTED IN CHINA
***Keep for Future Reference***
J
I
Figure 2. Inventory.
G
E
H
F
V1.1 0.23
Wear safety glasses during
the entire setup process!
Assembly
Items Needed Qty
Safety Glasses (for each person) .................1 Pr.
Phillips Head Screwdriver #2 ............................ 1
Shop Rags ......................................... As Needed
Assistant ............................................................ 1
x16
To assemble cabinet:
1. Align push handle with pre-drilled holes in cabi-
net and secure with (4) 10-24 x 1⁄2" Phillips head
screws (see Figure 3).
x 4
Push
Handle
Figure 3. Push bar attached to cabinet.
2. With aid of assistant, carefully turn cabinet
upside down.
Note: To avoid damaging wood finish, place
cabinet on a piece of cardboard or other nonscratching surface.
Figure 4. Caster wheels attached.
4. With help of assistant, return cabinet to
upright position and lock caster wheels.
Using Lock Bar
The lock bar can be used to support the folding
table, to secure the drawers in the closed position,
or stored out of the way until needed.
Supporting Folding Table
1. Insert key into lock, and rotate key full right.
Tab will extend from tip of lock bar.
2. Raise folding table (see Figure 5).
3. Insert wood tongue at bottom of lock bar into
groove in base trim on right-hand side of
cabinet (see Figure 5).
4. Align tab at top of lock bar with groove in
underside of table, and lower table onto tab
(see Figure 5).
Folding Table
3. Attach (4) caster wheels to cabinet base with
(16) 1⁄4"-20 x 3⁄4" button head cap screws and
1
⁄4" flat washers (see Figure 4).
IMPORTANT: Swivel caster wheels must
be installed on same end of cabinet as push
handle to ensure good steering control.
-2-
Lock Bar
Base Trim
Figure 5. Lock bar positioned to support folding
table.
T33821 Scroll Saw Stand (Mfd. 06/23+)
Securing Drawers
1. Ensure drawers are fully closed.
2. Insert key into lock, and rotate key full left so
tab is concealed in tip of lock bar.
3. Insert wood tongue at bottom of lock bar into
groove in base trim at front of cabinet.
4. Press lock bar against face of cabinet so it is
flush with table top, then rotate key full right
to lock in position (see Figure 6).
Lock
Lock Bar
Base Trim
Storing
1. Insert key into lock, and rotate key full left so
tab is concealed.
2. Insert wood tongue at bottom of lock bar into
groove in base trim on left-hand side of cabinet (see Figure 7).
3. Press lock bar against face of cabinet so it is
flush with table top, then rotate key full right
to lock in position (see Figure 7).
Lock
Lock Bar
Base Trim
Figure 6. Lock bar positioned to secure drawers.
Figure 7. Lock bar secured in storage position.
T33821 Scroll Saw Stand (Mfd. 06/23+)
-3-
