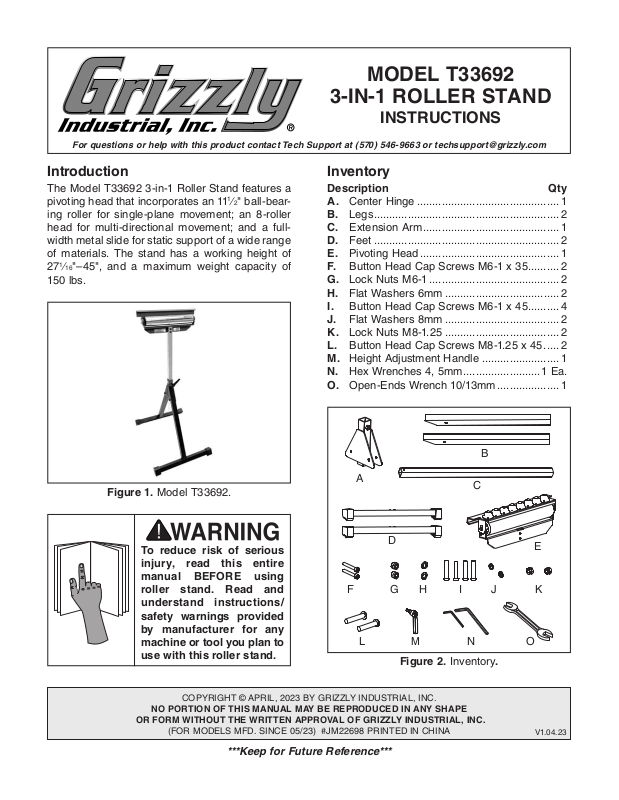

Grizzly T33692 User guide

MODEL T33692

3-IN-1 ROLLER STAND

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T33692 3-in-1 Roller Stand features a
pivoting head that incorporates an 11
ing roller for single-plane movement; an 8-roller
head for multi-directional movement; and a full­width metal slide for static support of a wide range
of materials. The stand has a working height of

1

⁄16"–45", and a maximum weight capacity of

27
150 lbs.

1

⁄2 " ball-bear-

Inventory

Description Qty

A. Center Hinge .............................................. 1

Legs ............................................................ 2

B.

Extension Arm ............................................ 1

C.

Feet ............................................................ 2

D.

Pivoting Head ............................................. 1

E.

Button Head Cap Screws M6-1 x 35 .......... 2

F.

Lock Nuts M6-1 .......................................... 2

G.

Flat Washers 6mm ..................................... 2

H.

Button Head Cap Screws M6-1 x 45 .......... 4

I.

Flat Washers 8mm ..................................... 2

J.

Lock Nuts M8-1.25 ..................................... 2

K.

Button Head Cap Screws M8-1.25 x 45 ..... 2

L.

Height Adjustment Handle ......................... 1

M.

Hex Wrenches 4, 5mm .........................1 Ea.

N.

Open-Ends Wrench 10/13mm .................... 1

O.

B

A

Figure 1. Model T33692.

To reduce risk of serious
injury, read this entire
manual BEFORE using
roller stand. Read and
understand instructions/
safety warnings provided
by manufacturer for any
machine or tool you plan to
use with this roller stand.

COPYRIGHT © APRIL, 2023 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 05/23) #JM22698 PRINTED IN CHINA

***Keep for Future Reference***

F G

D

H

L

M

Figure 2. Inventory.

C

E

I J K

N

O

V1.04.23

• DO NOT exceed roller stand weight
capacity of 150 lbs. Sudden change in
dynamic load at maximum weight capac­ity could cause roller stand to tip or
collapse, resulting in serious personal
injury or property damage.

• Make sure roller stand legs are fully
extended and roller stand is on flat sur­face before using.

• Stand height should be set level with bot­tom of workpiece.

• Fully tighten height adjustment handle
lever before placing a workpiece on roller
stand.

• Do not loosen or try to adjust height
adjustment lever while stand is support­ing workpiece.

• Periodically check all fasteners and tight­en, if necessary, prior to use.

Failure to follow warnings can result in seri­ous personal injury or property damage.

To assemble 3-in-1 roller stand:

Attach feet to legs using (4) M6-1 x 45 button

1.

head cap screws (see Figure 3).

x 4

Figure 3. Attaching feet to legs.

Insert legs into center hinge and secure with

2.

(2) M8-1.25 x 45 button head cap screws, (2)
8mm flat washers, and (2) M8-1.25 lock nuts
(see Figure 4).

Wear safety glasses during
the entire setup process!

Assembly

Items Needed Qty

Safety Glasses (for each person) .................1 Pr.

Shop Rags

......................................... As Needed

T33692

x 2

Figure 4. Attaching legs to center hinge.

-2-

Model T33692 (Mfd. 05/23)

3. Insert extension arm into center hinge
and thread height adjustment handle through
center hinge into extension arm to secure
(see Figure 5).

Height

Extension

Arm

T33692

Adjustment

Handle

Figure 5. Attaching extension arm and height

adjustment handle.

Extend legs fully to ensure roller stand is

4.

stable.

6.

Check roller stand. It should look similar to

the one shown in Figure 7.

PINCH HAZARD!

Keep hands away from
hinge area when
closing roller stand.

when using this roller stand:

To reduce risk of serious injury

1. Read owner’s manual before using.

2. Ensure roller stand is correctly set up before using.

3. Always wear ANSI-approved eye protection.

4. Do not exceed maximum weight capacity of 150 lbs.

T33692

Figure 7. T33692 assembled.

Attach pivoting head to top of extension arm

5.

with (2) M6-1 x 35 button head cap screw,
(2) 6mm flat washers, and (2) M6-1 lock nuts
(see Figure 6).

T33692

x 2

Figure 6. Installing pivoting head.

Adjusting Head

Lift up on head to disengage pivot stop, then
rotate head into positive stop at desired position.
Positive stop does not allow further movement
(see Figure 8).

Flat

Surface

Roller

Ball

Figure 8. Three head positions.

111⁄2"

Ball

Bearing

Roller

Model T33692 (Mfd. 05/23)

-3-
