MODEL T33683
WOOD LATHE
TOOL HOLDER
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T33683 holds chisels and other tooling
for wood lathes. It easily mounts on the bedways
and can be conveniently rotated 360° during
operations for quick access to all your tools. The
tray measures 12
drilled 1
1
⁄4" holes to accept a wide variety of tools.
1
⁄4" across and includes 14 pre-
Inventory
Contents (Figure 2) Qty
A. Mounting Bar .............................................. 1
Clamp Plate ................................................ 1
B.
Z-Bar Adapter ............................................. 1
C.
Too l Tray ..................................................... 1
D.
Z-Bar 3⁄8" ..................................................... 1
E.
Lock Washer 8mm ..................................... 1
F.
Flat Washer 8mm ....................................... 1
G.
Lock Washer 10mm ................................... 1
H.
Fender Washer 10mm ................................ 1
I.
Hex Bolt M8-1.25 x 25 ................................ 1
J.
Hex Bolt M10-1.5 x 40 ................................ 1
K.
D
A
B
C
E

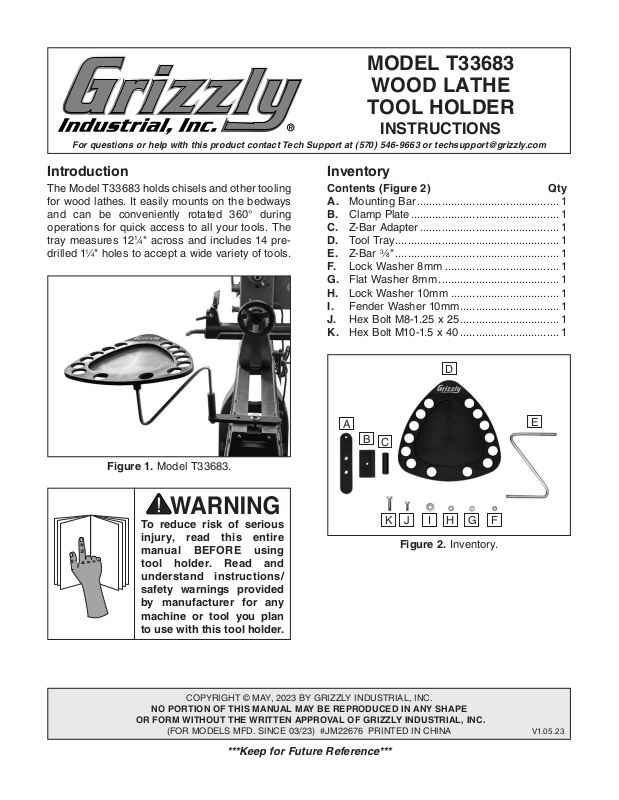

Figure 1. Model T33683.
To reduce risk of serious
injury, read this entire
manual BEFORE using
tool holder. Read and
understand instructions/
safety warnings provided
by manufacturer for any
machine or tool you plan
to use with this tool holder.
COPYRIGHT © MAY, 2023 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 03/23) #JM22676 PRINTED IN CHINA
***Keep for Future Reference***
Figure 2. Inventory.
FGHIK J
V1.05.23
Page 2
Installation
Installing the Model T33683 consists of securing
the clamp plate, mounting bar, adapter, Z-bar, and
tool tray to the lathe.
Attach Z-bar adapter to mounting bar with
3.
M8-1.25 x 25 hex bolt, 8mm lock washer, and
8mm flat washer (see Figure 4).
To install tool holder:
Position clamp plate under both bedways
1.
(see Figure 3).
Position mounting bar over top of bedways
2.
and attach to clamp plate with M10-1.5 x 40
hex bolt, 25mm fender washer, and 10mm
lock washer (see Figure 3).
Note: There are (2) mounting holes in the
mounting bar. Choose the one that provides
the greatest work area clearance.
Mounting Bar
Mounting
Holes
Clamp
Plate
Z-Bar
Adapter
Figure 4. Z-bar adapter attached to mounting
Insert Z-bar fully into adapter (see Figure 5).
4.
Place tool tray on Z-bar (see Figure 5).
5.
Mounting
Bar
bar.
Tool Tray
Bedways
Figure 3. Mounting bar installed on bedways.
Z-Bar
Figure 5. Wood lathe tool holder installed.
Z-Bar
Adapter
-2-
Model T33683 (Mfd. Since 3/23)
