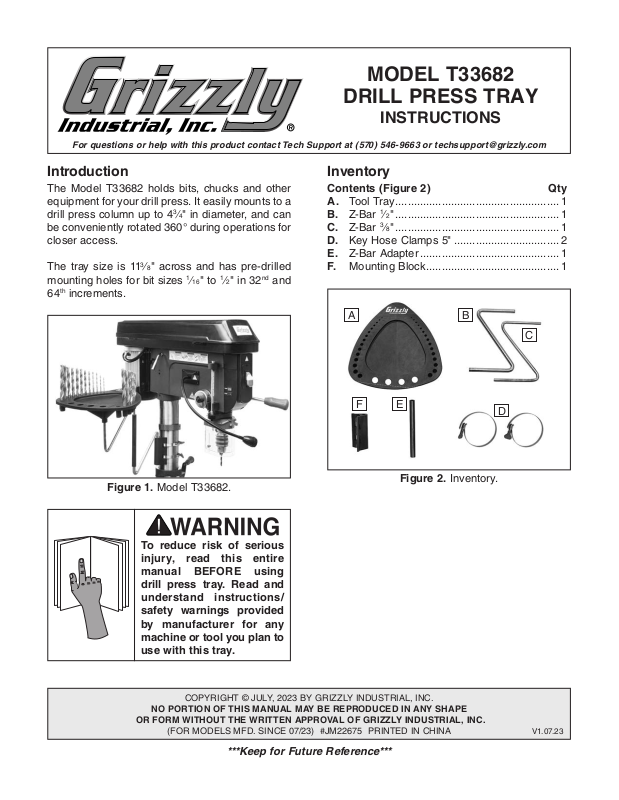

Page 1
MODEL T33682
DRILL PRESS TRAY
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T33682 holds bits, chucks and other
equipment for your drill press. It easily mounts to a
drill press column up to 4
be conveniently rotated 360° during operations for
closer access.
The tray size is 11
3
mounting holes for bit sizes
th
increments.
64
3
⁄4" in diameter, and can
⁄8" across and has pre-drilled
1
⁄16" to 1⁄2 " in 32nd and
Inventory
Contents (Figure 2) Qty
A. Tool Tray ..................................................... 1
Z- Bar 1⁄2 " ..................................................... 1
B.
Z-Bar 3⁄8" ..................................................... 1
C.
Key Hose Clamps 5" .................................. 2
D.
Z-Bar Adapter ............................................. 1
E.
Mounting Block ........................................... 1
F.
A B
C
F
E
D
Figure 1. Model T33682.
Figure 2. Inventory.
To reduce risk of serious
injury, read this entire
manual BEFORE using
drill press tray. Read and
understand instructions/
safety warnings provided
by manufacturer for any
machine or tool you plan to
use with this tray.
COPYRIGHT © JULY, 2023 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 07/23) #JM22675 PRINTED IN CHINA
***Keep for Future Reference***
V1.07.23
Page 2
Installation
Installing the Model T33682 consists of clamping
the mounting block to the drill press column, and
installing the Z-bars, adapter, and tool tray.
To install drill press tray:
Unscrew hose clamp key until band is free of
1.
shroud, then repeat with second hose clamp.
Feed clamp bands through slots in mounting
2.
block, then slide clamp bands underneath
drill press rack (see Figure 3).
Note: Do not position clamps over rack. They
will interfere with movement of drill press
column.
Position mounting block on drill press column
3.
(see Figure 3).
Note: Position mounting block high enough
on column so it does not interfere with table
movement.
Mount 1⁄2" Z-bar into mounting block
5.
(see Figure 4).
1
⁄2" Z-Bar
Mounting
Block
1
Figure 4.
⁄2" Z-bar installed.
6. Mount Z-bar adapter on 1⁄2" Z-bar
(see Figure 5).
Note: Z-bar adapter has one end drilled at 3⁄8"
1
and one end drilled at
Mount 3⁄8" Z - b a r i n t o Z - b a r a d a p t e r
7.
⁄2".
(see Figure 5).
Insert clamp bands in shrouds and tighten
4.
until snug (see Figure 3).
Mounting
Block
Key Hose
Clamps
(1 of 2)
Mounting
Block
Slot
(1 of 2)
Clamp
(1 of 2)
Column
Rack
Insert tool tray on top of 3⁄8" Z - b a r
8.
(see Figure 5).
Z-Bar
Adapter
Tool Tray
3
⁄8" Z-Bar
Figure 5. Drill press tray installed.
Figure 3. Mounting block attached on drill press
column.
-2-
Model T33682 (Mfd. Since 07/23)
