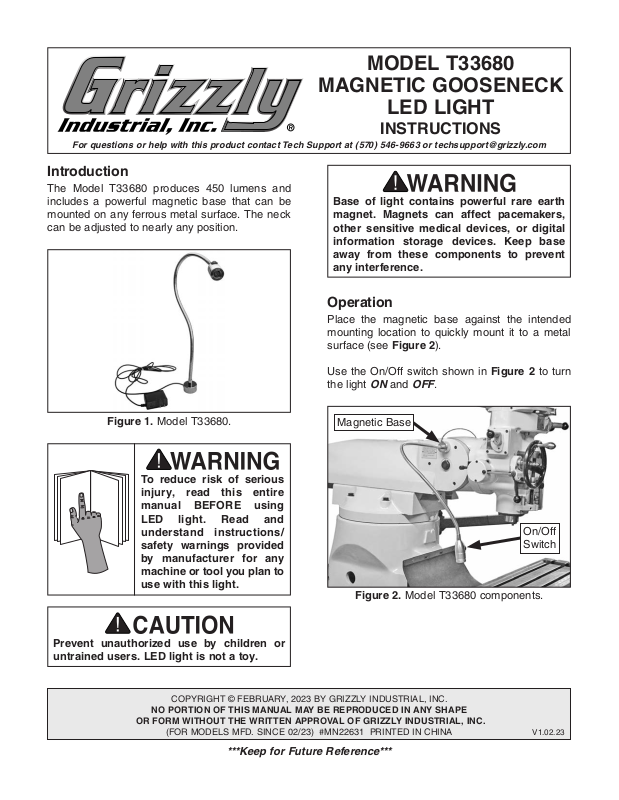

Page 1
MODEL T33680
MAGNETIC GOOSENECK
LED LIGHT
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T33680 produces 450 lumens and
includes a powerful magnetic base that can be
mounted on any ferrous metal surface. The neck
can be adjusted to nearly any position.
Base of light contains powerful rare earth
magnet. Magnets can affect pacemakers,
other sensitive medical devices, or digital
information storage devices. Keep base
away from these components to prevent
any interference.
Operation
Place the magnetic base against the intended
mounting location to quickly mount it to a metal
surface (see Figure 2).
Figure 1. Model T33680.
To reduce risk of serious
injury, read this entire
manual BEFORE using
LED light. Read and
understand instructions/
safety warnings provided
by manufacturer for any
machine or tool you plan to
use with this light.
Prevent unauthorized use by children or
untrained users. LED light is not a toy.
Use the On/Off switch shown in Figure 2 to turn
the light ON and OFF.
Magnetic Base
On/Off
Switch
Figure 2. Model T33680 components.
COPYRIGHT © FEBRUARY, 2023 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 02/23) #MN22631 PRINTED IN CHINA
***Keep for Future Reference***
V1.0 2.23
Page 2
120V Circuit Requirements
This tool is prewired to operate on a power supply
circuit that has a verified ground and meets the
following requirements:
Nominal Voltage .................... 110V, 115 V, 120V
..........................................................60 Hz
Cycle
Phase
Power Supply Circuit
Plug/Receptacle
........................................... Single-Phase
......................... 15 Amps
............................. NEMA 5 -15
AC/DC Adapter
This tool has a non-polarized AC/DC adapter
(both blades are the same width). This plug will
fit in a polarized or non-polarized outlet. If it does
not fit, contact a qualified electrician to install the
proper outlet. Do not change the plug in any way.
Extension Cords
When using extension cords, make sure the cords
are rated for outdoor use. Outdoor use cords are
marked with a "W-A" or a "W" to signify their rating. Always check to make sure that the extension
cords are in good working order and free of any
type of damage, such as exposed wires, cuts,
creased bends, or missing prongs.
Extension cords cause voltage drop, which may
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes.
When using extension cords, always choose the
shortest cord possible, with the greatest-sized
gauge.
When servicing use only identical replacement
parts.
5-15 Receptacle
AC/DC
Adapter
Figure 3. Typical AC/DC adapter and receptacle.
Neutral
Hot
Below is a list of minimum gauge sizes needed for
running this tool at different lengths:
25 Feet
50 Feet
100 Feet
Over 100 Feet
.................................................... 18AWG
.................................................... 16AWG
.................................................. 16AWG
.................... Not Recommended
-2-
Model T33680 (Mfd. Since 2/23)
