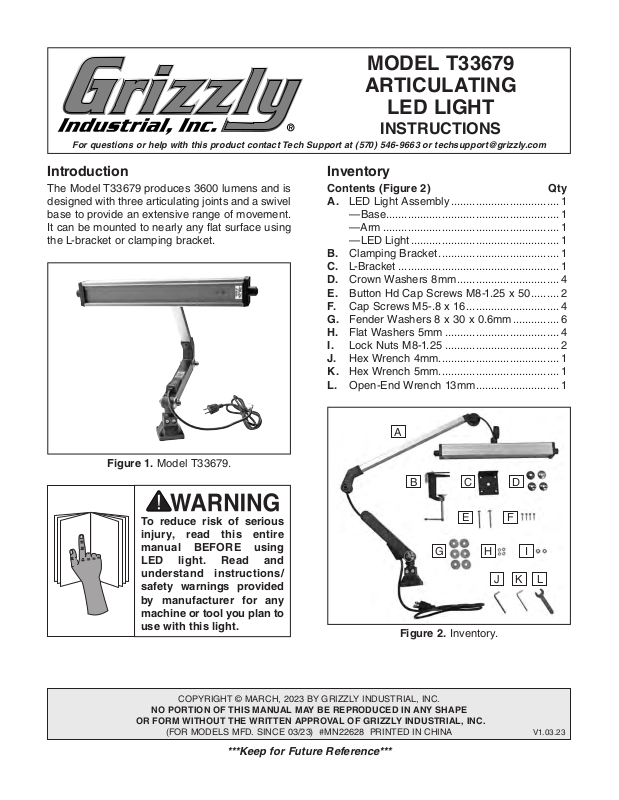

Page 1
MODEL T33679
ARTICULATING
LED LIGHT
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T33679 produces 3600 lumens and is
designed with three articulating joints and a swivel
base to provide an extensive range of movement.
It can be mounted to nearly any flat surface using
the L-bracket or clamping bracket.
Figure 1. Model T33679.
Inventory
Contents (Figure 2) Qty
A. LED Light Assembly ................................... 1
—Base........................................................ 1
—Arm ......................................................... 1
—LED Light ................................................ 1
Clamping Bracket ....................................... 1
B.
L-B r ac k e t .................................................... 1
C.
Crown Washers 8mm ................................. 4
D.
Button Hd Cap Screws M8-1.25 x 50 ......... 2
E.
Cap Screws M5-.8 x 16 .............................. 4
F.
Fender Washers 8 x 30 x 0.6mm ............... 6
G.
Flat Washers 5mm ..................................... 4
H.
Lock Nuts M8-1.25 ..................................... 2
I.
Hex Wrench 4mm ....................................... 1
J.
Hex Wrench 5mm ....................................... 1
K.
Open-End Wrench 13mm ........................... 1
L.
A
B C D
To reduce risk of serious
injury, read this entire
manual BEFORE using
LED light. Read and
understand instructions/
safety warnings provided
by manufacturer for any
machine or tool you plan to
use with this light.
COPYRIGHT © MARCH, 2023 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 03/23) #MN22628 PRINTED IN CHINA
***Keep for Future Reference***
Figure 2. Inventory.
E F
G H I
J K L
V1.0 3.23
Page 2

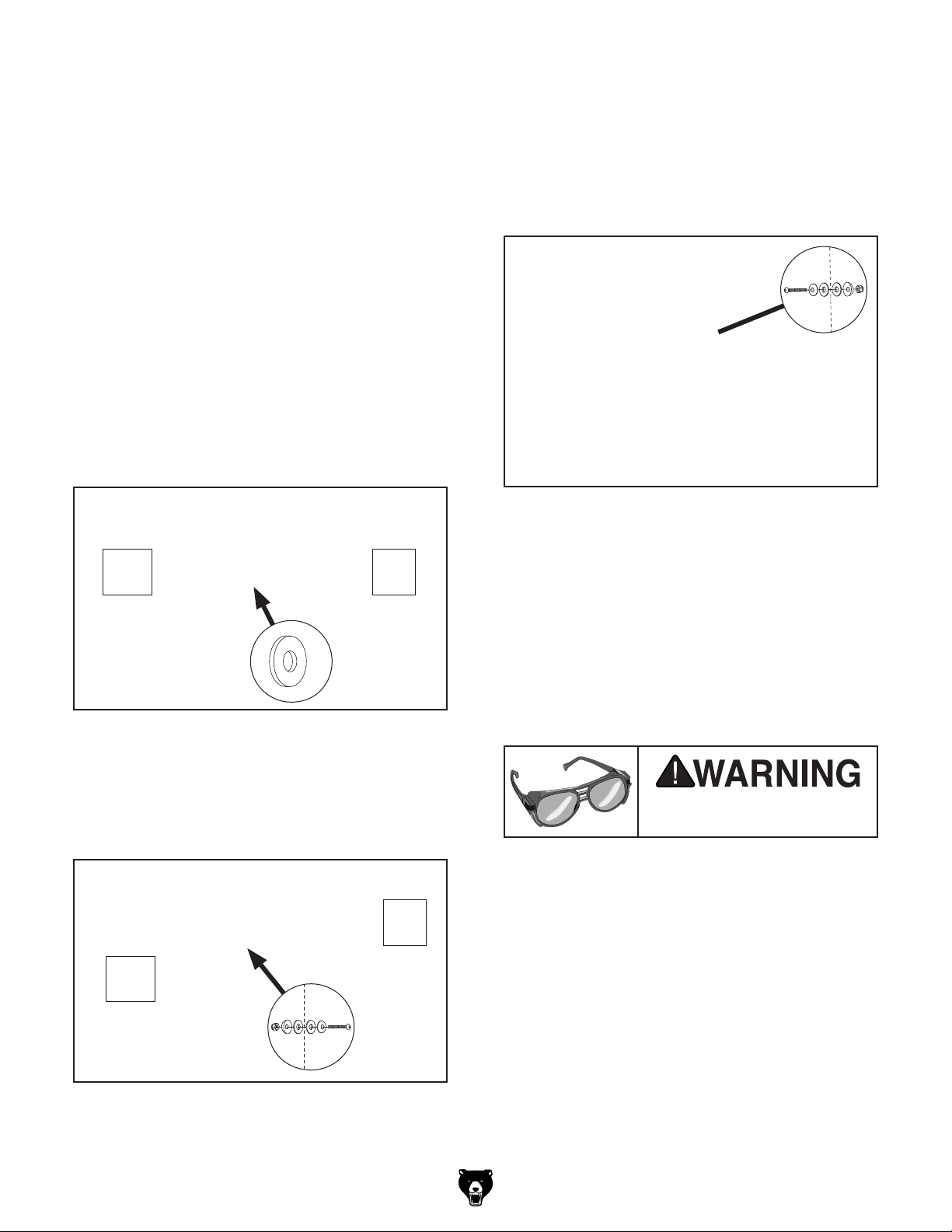

Assembly
Assembling the Model T33679 consists of securing the upper and middle articulating joints with
the supplied fasteners.
To assemble light:
Position (1) 8 x 30 x 0.6mm fender washer
1.
on each side of joint at lower end of LED arm
(see Figure 3).
Slide base arm connector over LED arm joint
2.
(see Figure 3) so fender washers are captured and holes are aligned.
Note: Be sure side of base arm with power
cord faces nearest electrical outlet, and that
power cord does not interfere with machine
function.
4. Press joint half at upper end of LED arm into
joint half on back of light (see Figure 5).
Use (1) M8-1.25 x 50 button head cap screw,
5.
(2) 8 x 30 x 0.6mm fender washers, (2) 8mm
crown washers, and (1) M8-1.25 lock nut to
secure joint halves (see Figure 5).
Figure 5. Upper joint halves assembled.
Base
Arm
x2
Figure 3. Assembling joint components.
Use (1) M8-1.25 x 50 button head cap screw,
3.
(2) 8 x 30 x 0.6mm fender washers, (2) 8mm
crown washers, and (1) M8-1.25 lock nut to
secure joint components (see Figure 4).
Base
Arm
LED
Arm
LED
Arm
Mounting with L-Bracket
The L-bracket includes three mounting holes for
use with fasteners up to
Items Needed Qty
Mounting Fasteners ........................... As Needed
................................................................. 1
Pencil
Power Drill
Drill Bit
To mount light with L-bracket:
Place L-bracket over intended mounting loca-
1.
tion, and use a pencil to mark position of
holes to be drilled.
......................................................... 1
............................................................... 1
1
⁄4" diameter.
Wear safety glasses while
operating drill.
Figure 4. Joint components assembled.
-2-
Model T33679 (Mfd. Since 3/23)
Page 3
Note: If L-bracket is positioned directly over
mounting surface (see Figure 6), allow mini-
1
mum
⁄4" clearance between mounting sur-
face and L-bracket for cap screws and flat
washers to be installed in Step 4.
L-Bracket
Minimum 1⁄4"
Clearance
Mounting Holes
4. Attach base of LED light to L-bracket with (4)
M5-.8 x 16 cap screws and 5mm flat washers
(see Figure 8).
x 4
Figure 6.
Example of L-bracket positioned over
mounting surface.
L-Bracket
Mounting Holes
Figure 7. Example of L-bracket positioned away
from mounting surface.
Drill holes at center of each marked position
2.
according to size of fasteners to be used.
3. Position L-bracket over drilled holes and
secure with fasteners.
Figure 8. LED light mounted on L-bracket.
Mounting with Clamping Bracket
Loosen the clamp handle until the mouth of the
clamp will slide onto the mounting surface. Tighten
the clamp handle until the clamp is secure, then
mount the light on the clamp using (4) M5-.8 x 16
cap screws and 5mm flat washers (see Figure 9).
x 4
Model T33679 (Mfd. Since 3/23)
Figure 9.
Clamp
Clamp
Handle
LED light mounted on clamping
bracket.
-3-
Page 4
use an adapter on the plug provided—if
it will not fit the outlet, have a qualified
electrician install the proper outlet with a
120V Circuit Requirements
This tool is prewired to operate on a power supply
circuit that has a verified ground and meets the
following requirements:
Nominal Voltage .................... 110V, 115 V, 120V
..........................................................60 Hz
Cycle
Phase
Power Supply Circuit
Plug/Receptacle
........................................... Single-Phase
......................... 15 Amps
............................. NEMA 5-15
Grounding & Plug Requirements
This tool MUST be grounded. In the event of
certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
This tool is equipped with a power cord that has
an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!
GROUNDED
5-15 RECEPTACLE
Operation
Press the ON/OFF button shown in Figure 11
once to turn the LED light ON; press the button
again to turn the light OFF.
ON/OFF
Button
Figure 11. Location of ON/OFF button.
Apply light pressure at each of the articulating
joints to manuever the light to the desired position.
To rotate the light from side to side, loosen the
cap screws shown in Figure 12, rotate the light
to the desired position, then tighten the screws to
secure.
Grounding Pin
5-15 PLUG
Neutral Hot
Figure 10. Typical 5-15 plug and receptacle.
SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this tool. Do not modify or
x 2
Figure 12. Location of cap screws in base.
verified ground.
-4-
Model T33679 (Mfd. Since 3/23)
