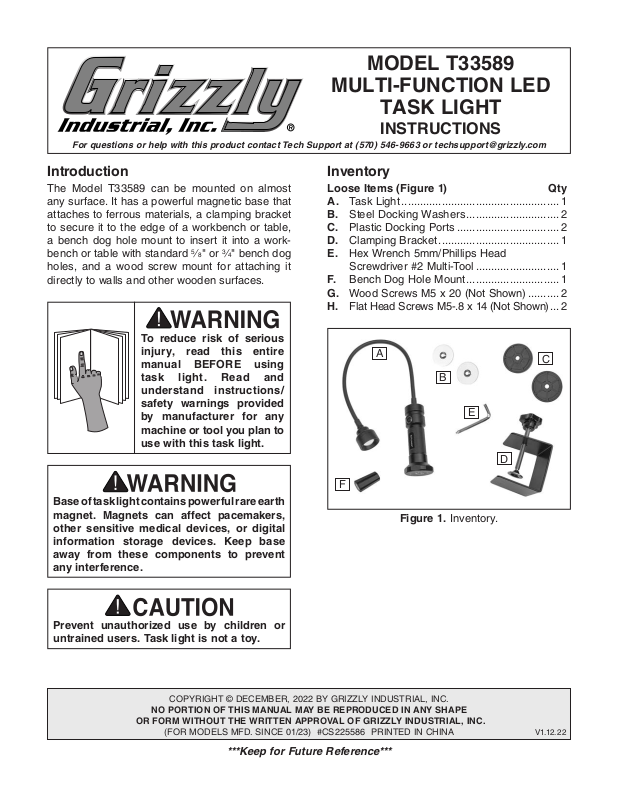

Page 1
MODEL T33589
MULTI-FUNCTION LED
TASK LIGHT
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T33589 can be mounted on almost
any surface. It has a powerful magnetic base that
attaches to ferrous materials, a clamping bracket
to secure it to the edge of a workbench or table,
a bench dog hole mount to insert it into a workbench or table with standard
holes, and a wood screw mount for attaching it
directly to walls and other wooden surfaces.
To reduce risk of serious
injury, read this entire
manual BEFORE using
task light. Read and
understand instructions/
safety warnings provided
by manufacturer for any
machine or tool you plan to
use with this task light.
5
⁄8" or 3⁄4" bench dog
Inventory
Loose Items (Figure 1) Qty
A. Task Light ................................................... 1
Steel Docking Washers .............................. 2
B.
Plastic Docking Ports ................................. 2
C.
Clamping Bracket ....................................... 1
D.
Hex Wrench 5mm/Phillips Head
E.
Screwdriver #2 Multi-Tool ........................... 1
Bench Dog Hole Mount .............................. 1
F.
Wood Screws M5 x 20 (Not Shown) .......... 2
G.
Flat Head Screws M5-.8 x 14 (Not Shown) ... 2
H.
A
B
E
D
C
Base of task light contains powerful rare eart h
magnet. Magnets can affect pacemakers,
other sensitive medical devices, or digital
information storage devices. Keep base
away from these components to prevent
any interference.
Prevent unauthorized use by children or
untrained users. Task light is not a toy.
COPYRIGHT © DECEMBER, 2022 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 01/23) #CS225586 PRINTED IN CHINA
***Keep for Future Reference***
F

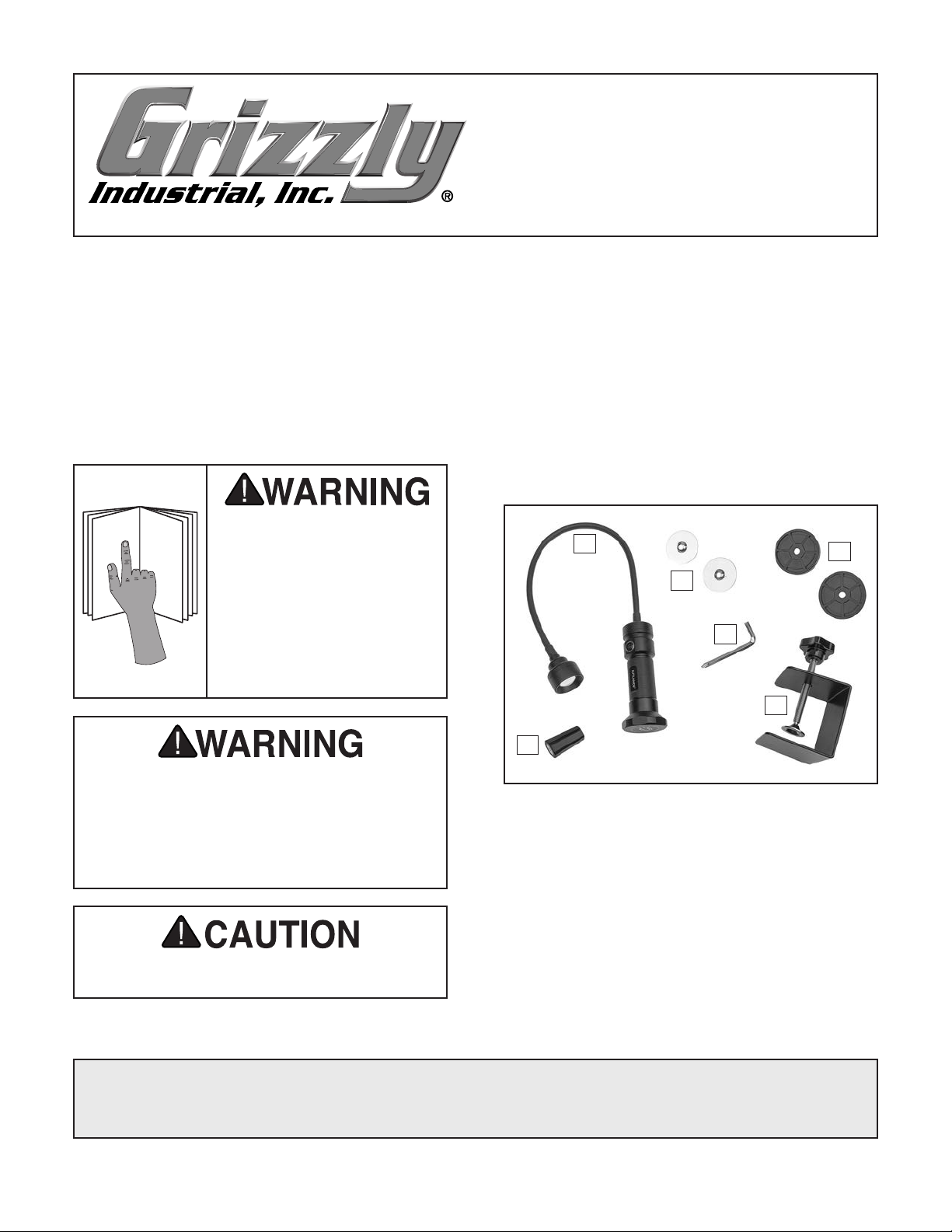

Figure 1. Inventory.
V1.12.22
Page 2
Assembly
Items Needed Qty
Batteries AAA .................................................... 4
To assemble light:
1. Turn base on task light counterclockwise to
remove magnetic base and battery tray (see
Figure 2).
Operation
Press the power button shown in Figure 4 once
to activate the task light high beam, and press the
button twice to activate the low beam.
Power
Button
Figure 4. Location of power button.
Magnetic Base
Figure 2. Location of magnetic base.
Install (4) AAA batteries in battery tray (see
2.
Figure 3).
Install battery tray so arrow on compartment
3.
faces power button (see Figure 3), then
secure with base.
Battery
Tray
Place the magnetic base against a desired mounting location to quickly mount it to metal surfaces,
or refer to Mounting with Clamp, Mounting
in Bench Dog Hole, or Mounting with Wood
Screw for additional mounting options.
Keep fingers away from magnetic base when
mounting task light to docking washer or
other magnetic surface. Magnet is powerful
and may pinch small appendages between
magnet and surface.
Mounting location must be strong/thick
enough to fully support weight of task light
and resist magnetic force of removing task
light base or mounting surface may be
damaged.
AAA Battery
(1 of 4)
Figure 3. Batteries installed in tray, and tray
arrow facing power button.
-2-
Power
Button
Model T33589 (Mfd. Since 01/23)
Page 3

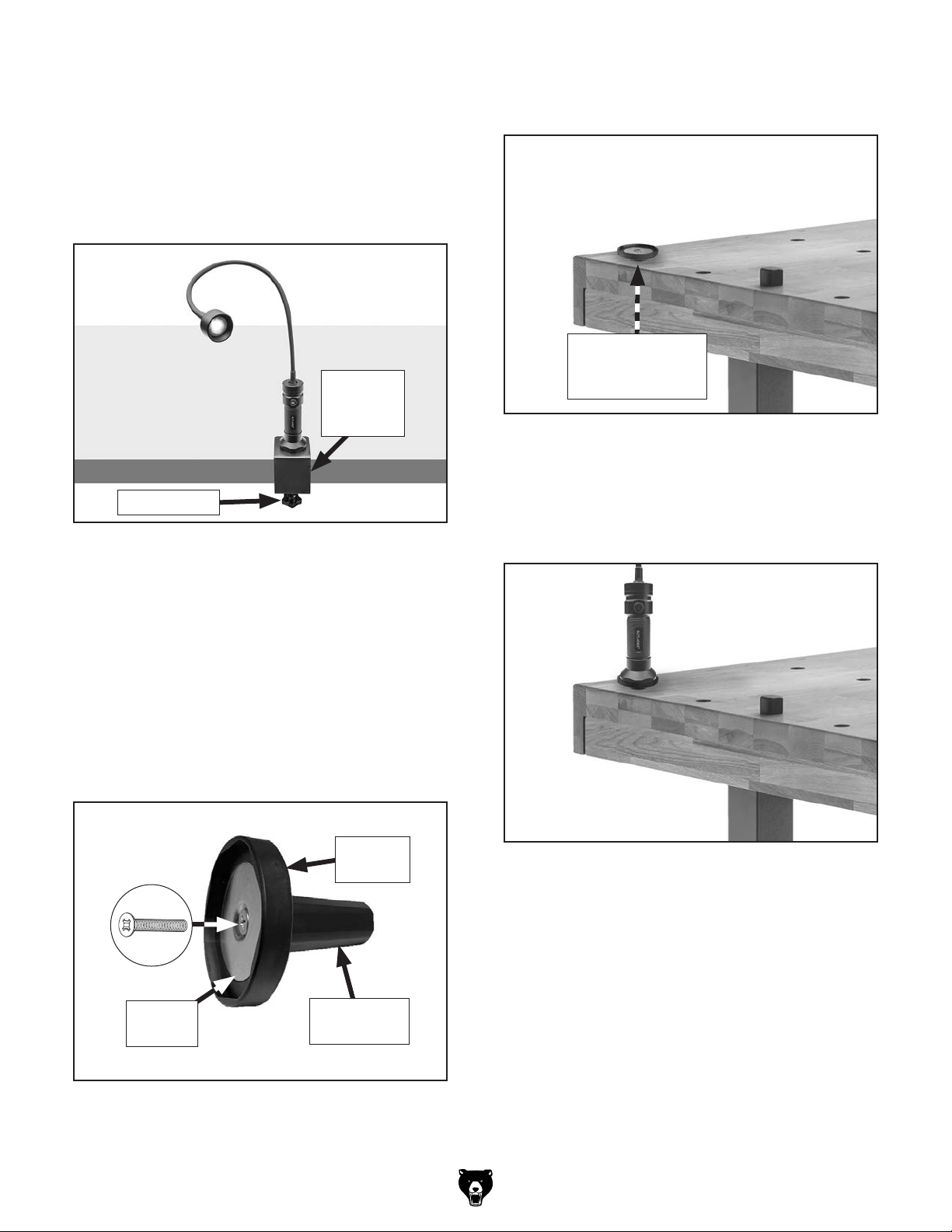

Mounting with Clamp
Loosen the clamp knob (see Figure 5) until the
clamp will accept the edge of the desired table,
workbench, etc. Tighten the clamp knob until the
clamp is secure, then place the magnetic base
of the task light onto one of the flat panels of the
clamp bracket to attach the task light.
Alternate
Mounting
Surface
Press bench dog hole mount into desired
2.
bench dog hole (see Figure 7).
Bench Dog
Hole Mount
(Hidden in Table)
Figure 7. Bench dog hole mount in bench dog
hole.
Clamp Knob
Figure 5. Task light mounted with clamp.
Mounting in Bench Dog Hole
Item Needed Qty
Phillips Head Screwdriver #2 ............................ 1
To mount light in bench dog hole:
Attach (1) plastic docking port and (1) steel
1.
docking washer to bench dog hole mount
with (1) M5-.8 x 14 flat head screw (see
Figure 6).
Docking
Port
3. Align magnetic base of task light with outline
of docking port, then place base onto docking
washer to attach light (see Figure 8).
Figure 8. Task light mounted in bench dog hole.
Docking
Washer
Figure 6. Docking port, docking washer, and
bench dog hole mount assembled.
Model T33589 (Mfd. Since 01/23)
Bench Dog
Hole Mount
-3-
Page 4
Mounting with Wood Screw
Tools Needed Qty
Power Drill ......................................................... 1
Drill Bit
Phillips Screwdriver Bit #2
Mounting location must be strong/thick
enough to fully support weight of task light
and resist magnetic force of removing task
light base or mounting surface may be
damaged.
To mount light with wood screw:
1
⁄8" ......................................................... 1
................................. 1
Wear safety glasses while
operating drill.
3. Align magnetic base of task light with outline
of docking port, then place base onto docking
washer to attach light (see Figure 10).
Figure 10. Task light mounted with wood screw.
1
Drill
1.
⁄8" diameter pilot hole at desired mount-
ing location in workbench, wall, etc.
Insert M5 x 20 wood screw through (1) steel
2.
docking washer and (1) plastic docking port,
then thread screw into hole drilled in Step 1
(see Figure 9).
Docking
Washer
Docking
Port
Figure 9. Wood screw inserted through docking
washer and port and threaded into mounting
hole.
-4-
Model T33589 (Mfd. Since 01/23)
