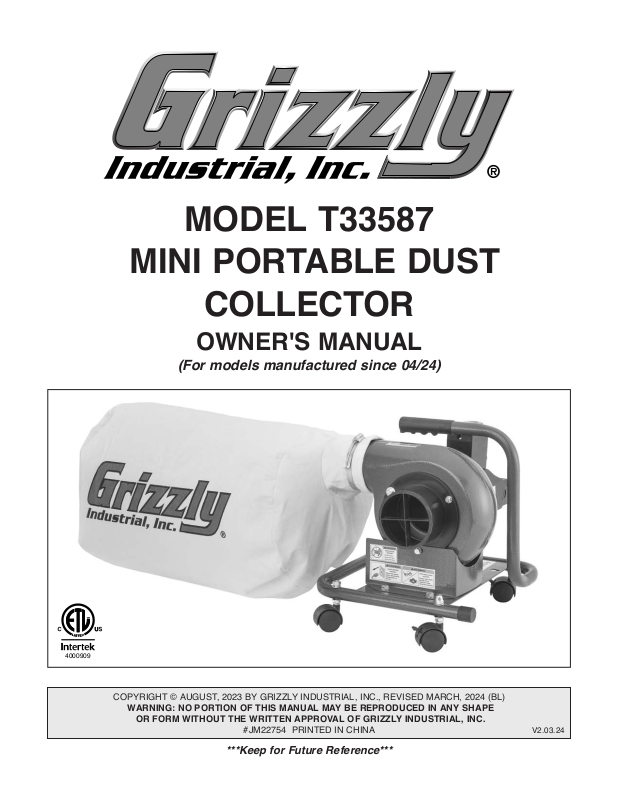

MODEL T33587

MINI PORTABLE DUST

COLLECTOR

OWNER'S MANUAL

(For models manufactured since 04/24)

4000909

COPYRIGHT © AUGUST, 2023 BY GRIZZLY INDUSTRIAL, INC., REVISED MARCH, 2024 (BL)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#JM22754 PRINTED IN CHINA

***Keep for Future Reference***

V2.03.24

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info
Manual Accuracy
Identification
Controls & Components
Machine Data Sheet

.................................................................................................................................2

.........................................................................................................................2

................................................................................................................................3

..............................................................................................................4

....................................................................................................................5

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Dust Collectors

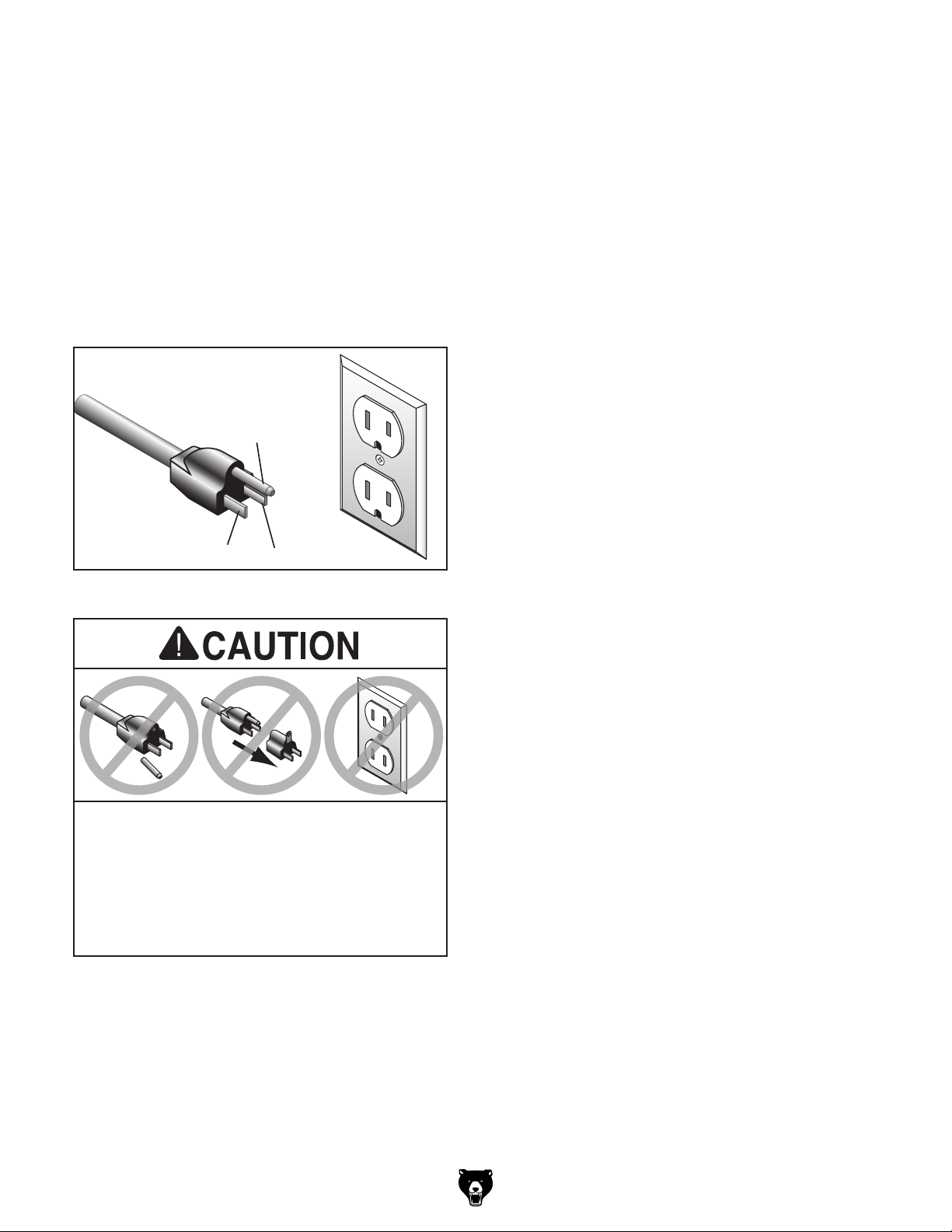

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup
Unpacking

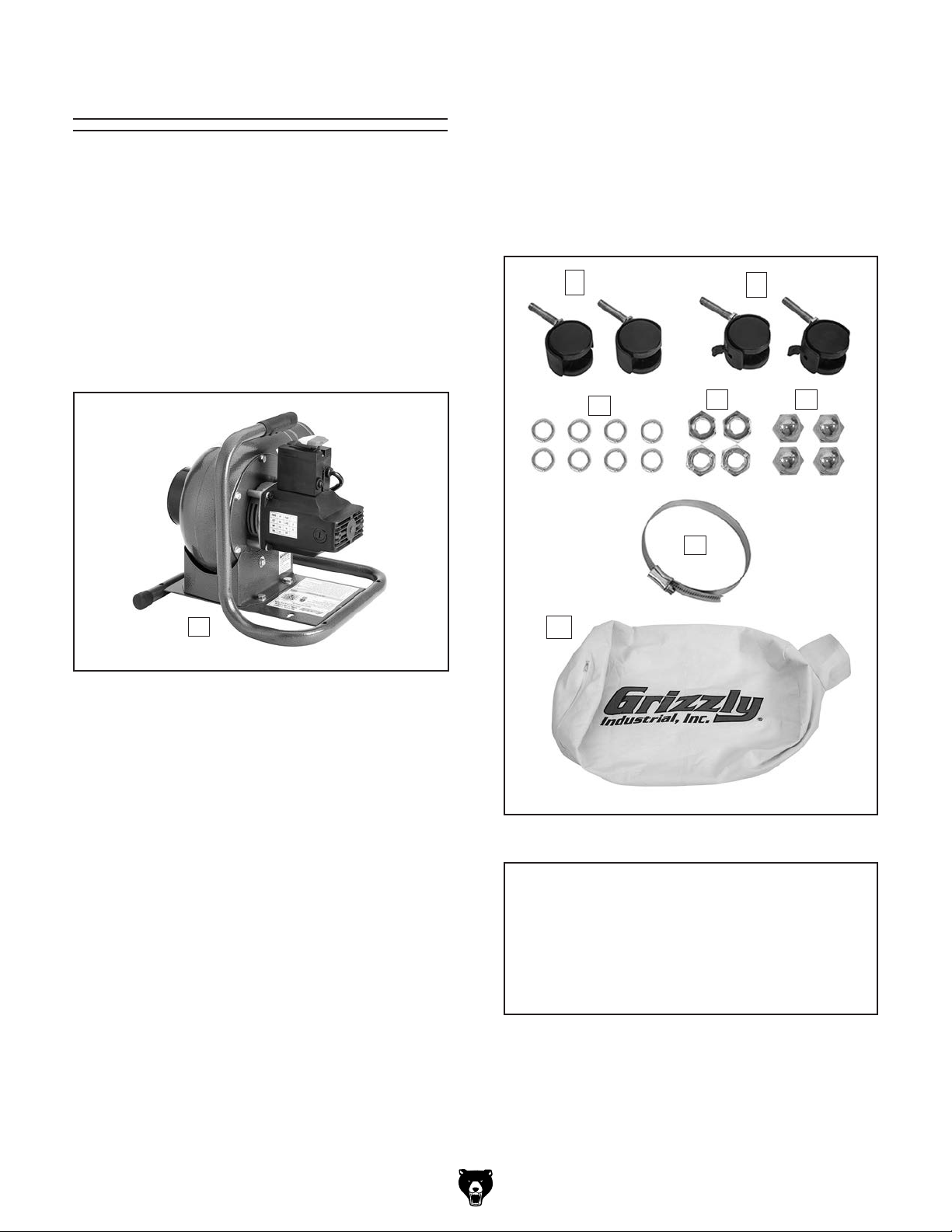

Inventory
Hardware Recognition Chart
Site Considerations
Assembly

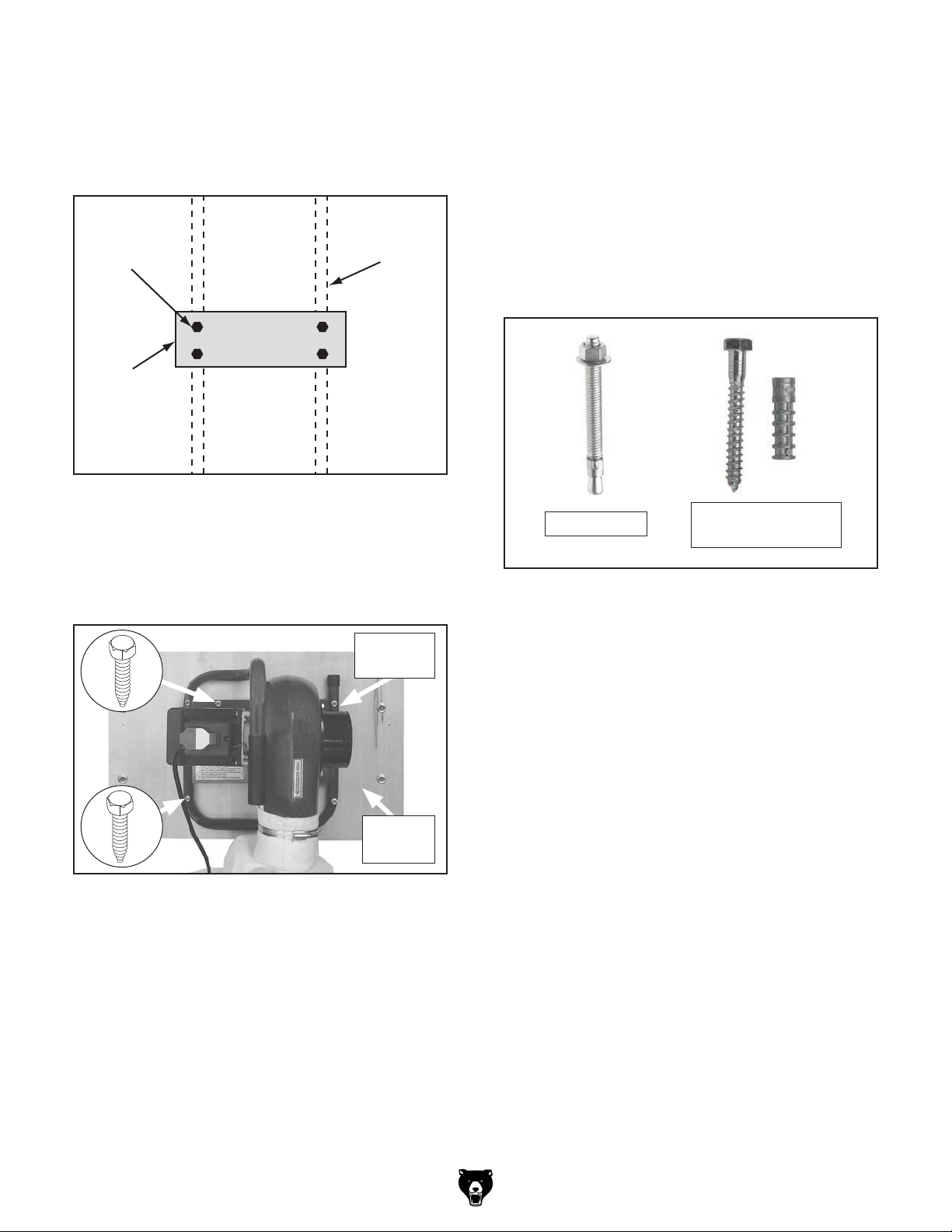

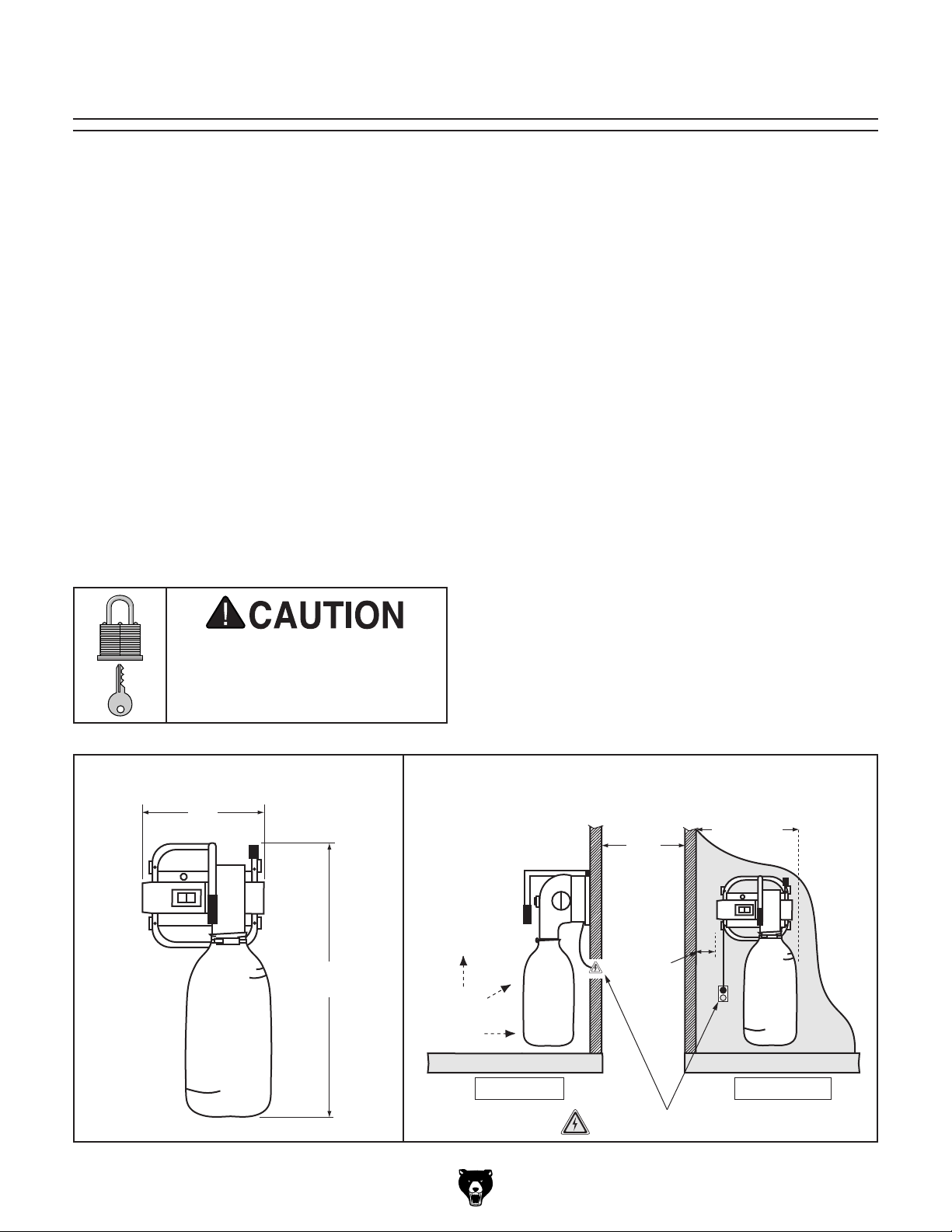

Wall Mounting
Collection System
Test Run

SECTION 4: OPERATIONS

General

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule
Lubrication
Machine Storage
Emptying Filter Bag
Replacing Filter Bag
Tightening Impeller
Checking/Replacing Motor Brushes

.................................................................................................................................12

....................................................................................................................................13

...................................................................................................................................16

....................................................................................................................................20

......................................................................................................................................21

...................................................................................................................................24

.................................................................................................................................24

....................................................................................................................... 7

....................................................................................................................... 12

......................................................................................................................12

...................................................................................................................15

............................................................................................................................16

.....................................................................................................................18

............................................................................................................ 21

......................................................................................................... 22

........................................................................................................ 24

.......................................................................................................................24

...................................................................................................................24

..................................................................................................................25

....................................................................................................................25

................................................................................................7

..........................................................................................9

...................................................................................................... 10

.....................................................................................................14

..........................................................................................25

SECTION 7: SERVICE

Troubleshooting

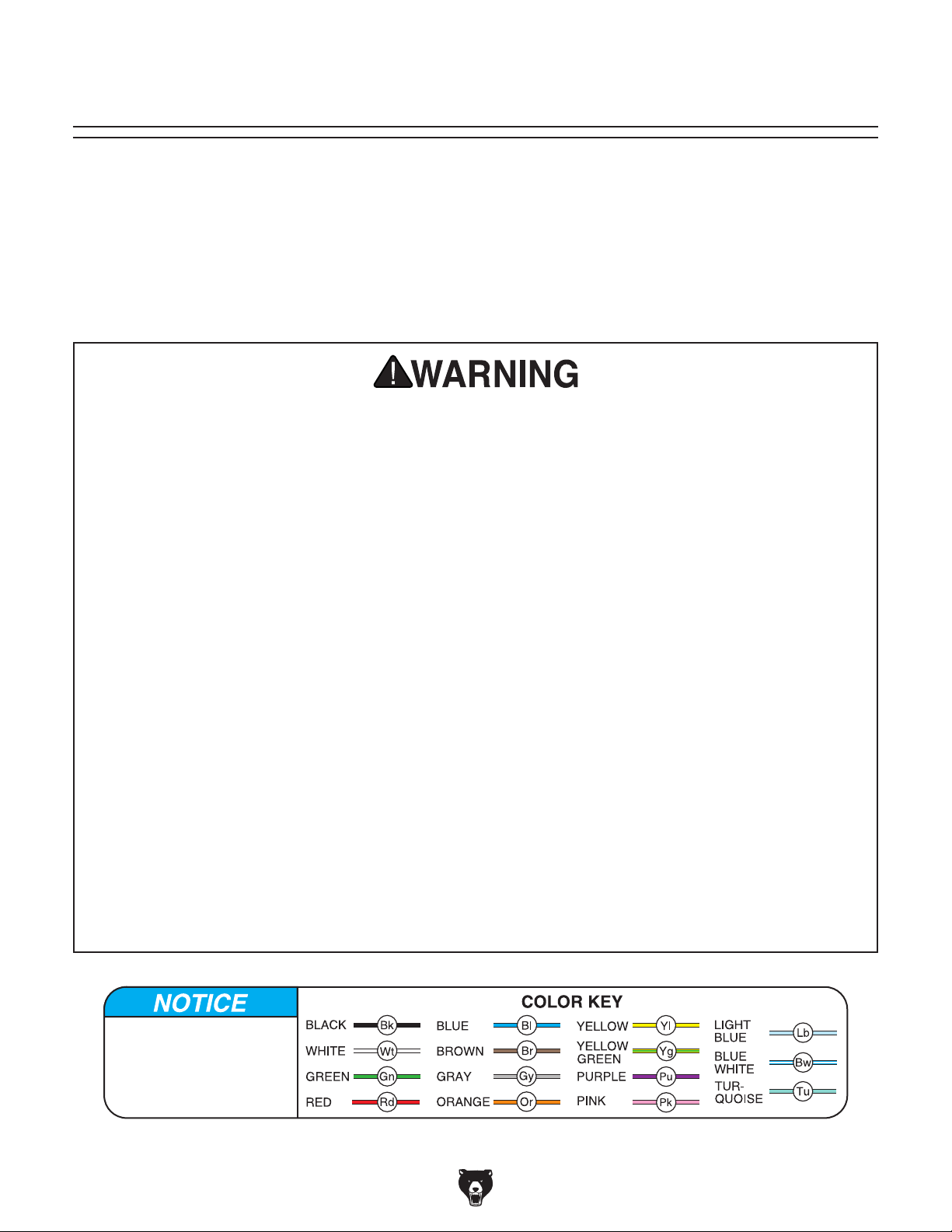

SECTION 8: WIRING

Wiring Safety Instructions

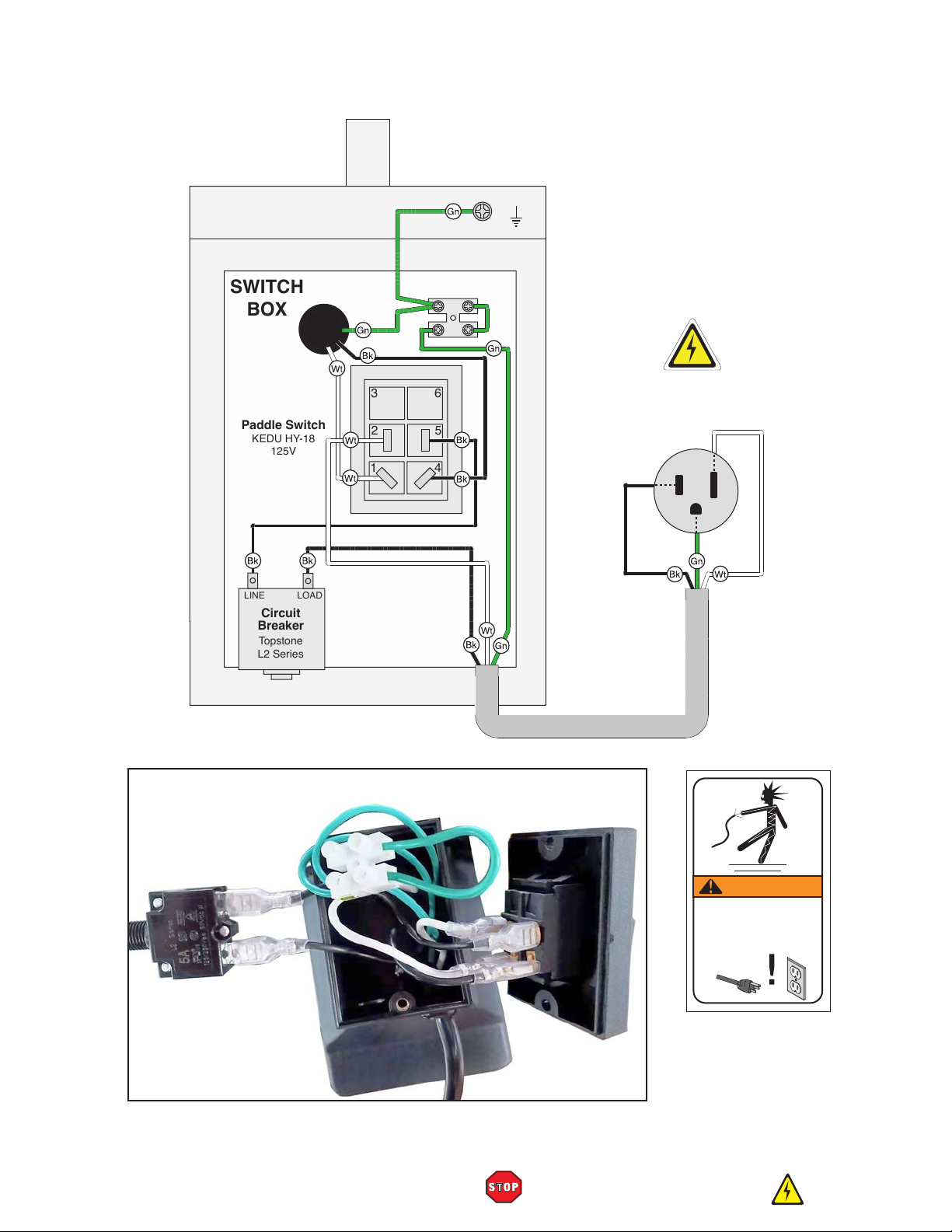

Wiring Diagram

SECTION 9: PARTS

...........................................................................................................................................30

Main

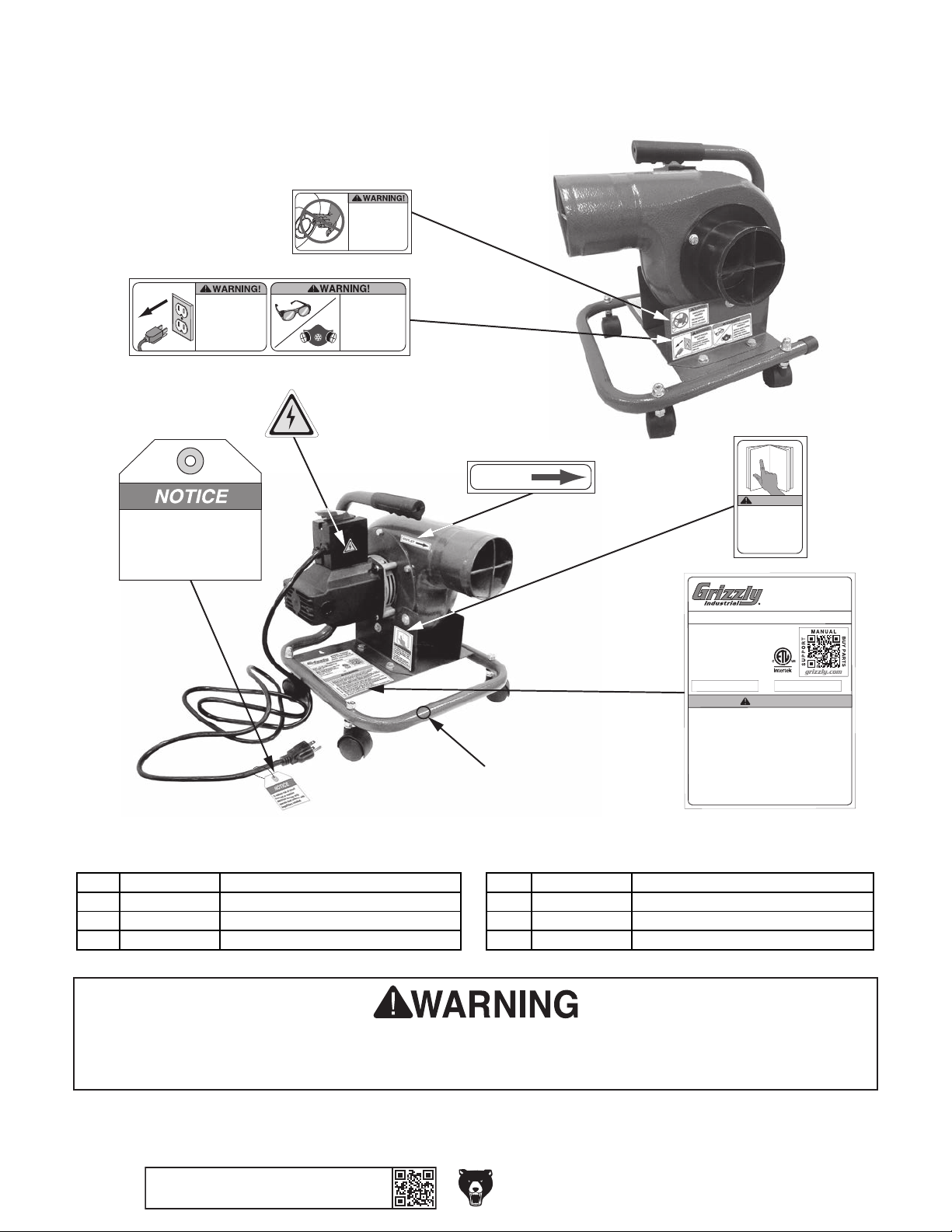

Labels & Cosmetics

WARRANTY & RETURNS

................................................................................................................... 26

.........................................................................................................................26

...................................................................................................................... 28

.........................................................................................................................29

....................................................................................................................... 30

..................................................................................................................32

.........................................................................................................28

.............................................................................................................. 33

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the

serial number

from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

manufacture date and

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

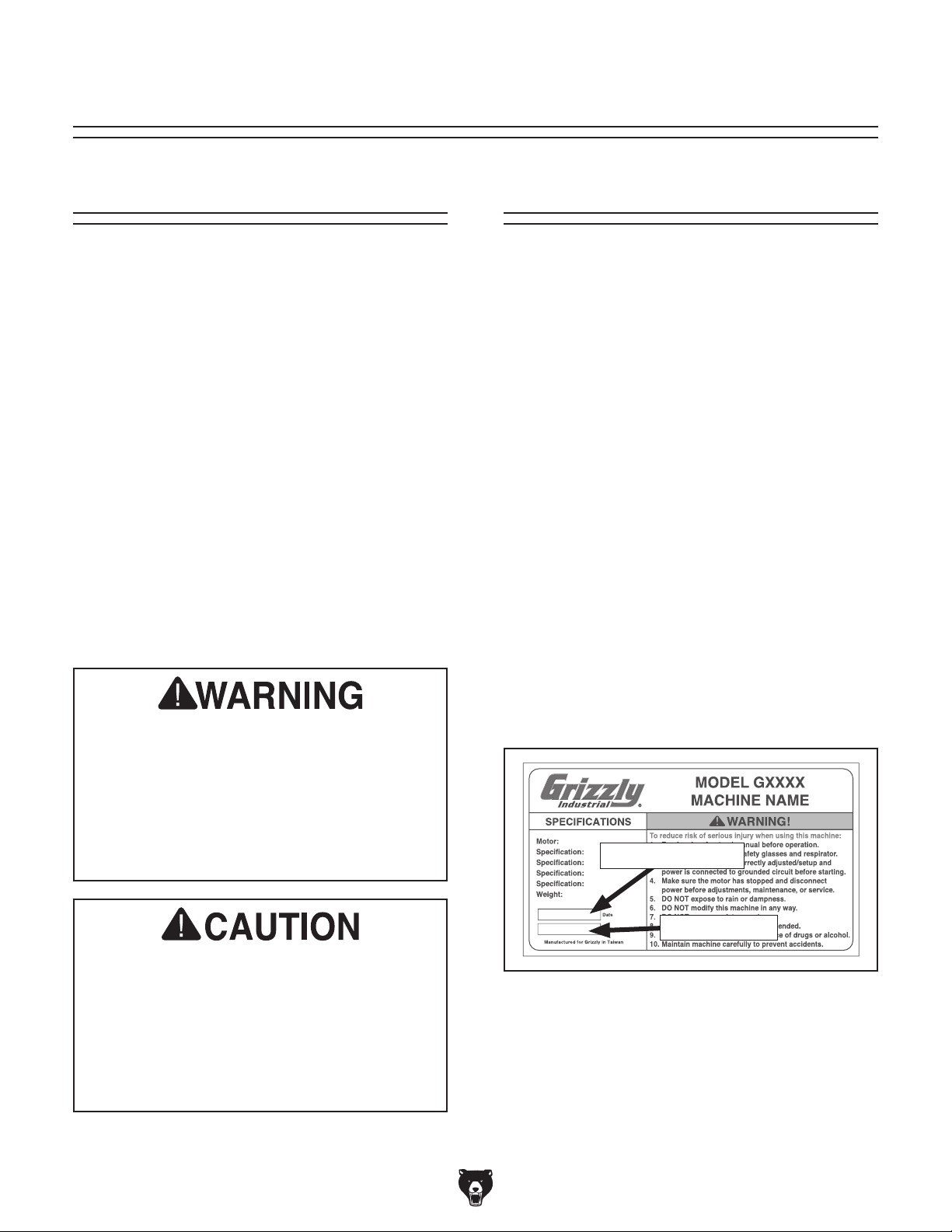

Manufacture Date

Serial Number

-2-

Model T33587 (Mfd. Since 04/24)

To reduce your risk of
serious injury, read this
entire manual BEFORE

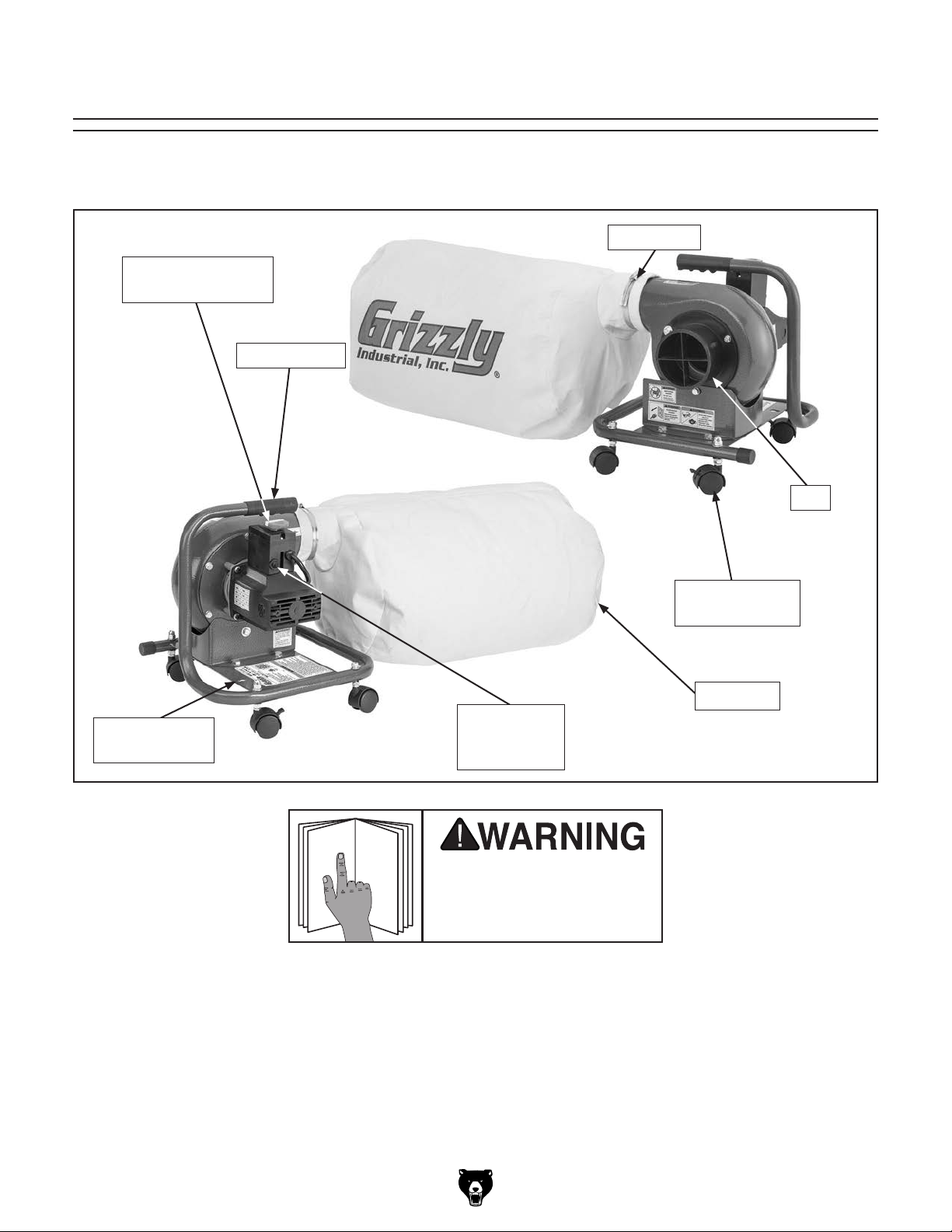

Identification

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Bag Clamp

ON/OFF Switch

w/Removable Key

Carry Handle

Inlet

Wall Mounting

Hole (1 of 2)

Locking Caster

(1 of 2)

Filter Bag

Circuit

Breaker

Reset Button

using machine.

Model T33587 (Mfd. Since 04/24)

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

Main Controls & Components

A. Inlet: Allows connection of 4" duct to machine.

B. ON/OFF Switch w/Removable Disabling

Key: Turns motor ON/OFF. Removal of yel-

low key disables switch, preventing motor
operation.

Filter Bag: Collects up to 12 gallons of wood

C.

dust and filters to 2.5 microns.

D. Circuit Breaker Reset Button: Allows

machine to be restarted when motor becomes
overloaded or overheated. To reset, discon­nect machine from power and allow motor
to cool. Reconnect machine to power, press
button and restart machine. If machine does
not start, disconnect from power and allow
motor to cool for longer period of time.

Casters: Provide support and directional

E.

movement. Two casters lock to secure dust
collector in place.

A

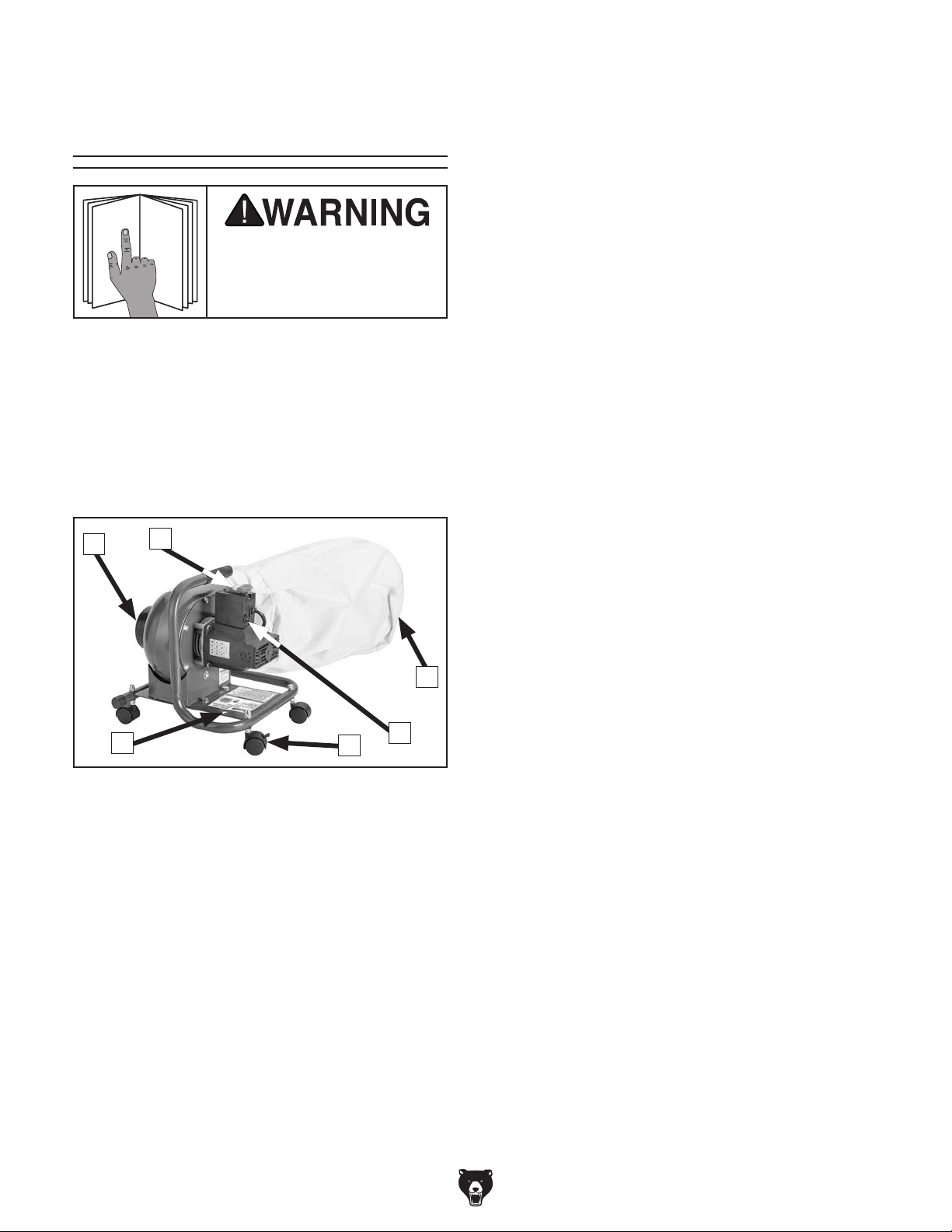

Figure 1. Main controls and components.

B

F

E

Wall Mount Holes: Allow mounting of dust

F.

collector to wall.

C

D

-4-

Model T33587 (Mfd. Since 04/24)

MACHINE DATA

Filtration Rating.................................................................................................................................. 2.5 Micron

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T33587 MINI PORTABLE DUST COLLECTOR

Product Dimensions:

Weight................................................................................................................................................................ 16 lbs.

Width (side-to-side) x Depth (front-to-back) x Height............................................................... 13 x 34-1/2 x 14-1/2 in.

Footprint (Length x Width)..................................................................................................................... 13-1/2 x 13 in.

Shipping Dimensions:

Type..................................................................................................................................................... Cardboard Box

Content........................................................................................................................................................... Machine

Weight................................................................................................................................................................ 21 lbs.

Length x Width x Height....................................................................................................................... 16 x 16 x 15 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 120V, Single Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................... 5.7A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.............................................................................................................................................. 90 in.

Power Cord Gauge......................................................................................................................................... 18 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 5-15

Switch Type.................................................................................................. Paddle Safety Switch w/Removable Key

Motors:

Main

Horsepower............................................................................................................................................. 1/2 HP

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 5.7A

Speed................................................................................................................................................ 4500 RPM

Type..................................................................................................................................................... Universal

Power Transfer ......................................................................................................................................... Direct

Bearings..................................................................................................... Shielded & Permanently Lubricated

Main Specifications:

Operation

Dust Collector Type....................................................................................................................... Single-Stage

Approved Dust Types................................................................................................................................ Wood

Filter Type.................................................................................................................................................... Bag

Airflow Performance............................................................................................................................ 525 CFM

Max Static Pressure (at 0 CFM)................................................................................................................ 11 in.

Main Inlet Size............................................................................................................................................. 4 in.

Machine Collection Capacity At One Time....................................................................................................... 1

Maximum Material Collection Capacity.................................................................................................... 12 gal.

Filter Information

Model T33587 (Mfd. Since 04/24)

-5-

Bag Information

Number Of Filter Bags...................................................................................................................................... 1

Filter Bag Diameter.................................................................................................................................... 13 in.

Filter Bag Length....................................................................................................................................... 21 in.

Impeller Information

Impeller Type...................................................................................................................................... Radial Fin

Impeller Size................................................................................................................................................ 6 in.

Impeller Blade Thickness........................................................................................................................ 5/32 in.

Construction

Filter Bag...................................................................................................................................................... Felt

Frame......................................................................................................................................................... Steel

Caster...................................................................................................................................................... Plastic

Impeller...................................................................................................................................................... Nylon

Paint Type/Finish...........................................................................................................................

Body.......................................................................................................................................

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 30 Minutes

Serial Number Location .................................................................................................................................. ID Label

Sound Rating .............................................................................................................................................. 79 - 81 dB

Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................................................... Yes

Steel Sheet Metal

Powder Coat

Features:

Felt Bag w/Zipper and 2.5-Micron Filtration Rating
Circuit Breaker for Overload Protection
Steel Base Can Be Used with Included Casters or Mounted to a Wall

-6-

Model T33587 (Mfd. Since 04/24)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’smanualBEFOREusingmachine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating
or observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model T33587 (Mfd. Since 04/24)

-7-

may damage the wires inside. Do not handle

WEARING PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, or jewelry that
can become entangled in moving parts. Always tie
back or cover long hair. Wear non-slip footwear to
reduce risk of slipping and losing control or acci­dentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise with­out hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

thisowner’smanualorthemanufacturerforrec-

ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord

cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-8-

Model T33587 (Mfd. Since 04/24)

connect from power supply, and allow impeller

dust collector, disconnect from power, and wait

Additional Safety for Dust Collectors

Long-term respiratory damage can occur from using dust collectors without proper use of a
respirator. Fire or explosions can result in smoke inhalation, serious burns, or death—if machine
is used to collect incorrect materials, is operated near potential explosion sources, or ducting is
improperly grounded. Entanglement, amputation, or death can occur if hair, clothing, or fingers
are pulled into the inlet. To reduce the risk of these hazards, operator and bystanders MUST
completely heed the hazards and warnings below.

INTENDED USE. Collecting the wrong materi-

als can result in serious inhalation hazards, fire,
explosions, or machine damage. This machine is
ONLY designed to collect wood dust and chips
from woodworking machines. DO NOT use it to
collect silica, polyurethane, toxic fumes, metal dust
or shavings, lead paint, drywall, asbestos, biohaz­ards, explosive dusts, flammable or combustible
liquids or fumes, nor burning or smoking material.

WEAR A RESPIRATOR. Fine dust that is too
small to be caught in filter will be blown into ambi­ent air. Always wear a NIOSH-approved respira­tor during operation and for a short time after to
reduce your risk of permanent respiratory damage.
Never collect dust from any hazardous material.

IMPELLER HAZARDS. To reduce risk of entan­glement or contact with impeller, DO NOT place
hands, hair, clothing, or tools in or near open dust
collection inlet during operation, and keep small
animals and children away. The powerful suction
could easily pull them into impeller.

HAZARDOUS DUST. Dust exposure created while
using machinery may cause cancer, birth defects,
or long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material,
and always wear a NIOSH-approved respirator.

EMPTYING DUST. When emptying bag or drum,
wear respirator and safety glasses. Empty dust
away from ignition sources and into approved
container.

OPERATING LOCATION. To reduce respiratory
exposure to fine dust, locate permanently installed
dust collectors away from working area or in anoth­er room. DO NOT place dust collector where it can
be exposed to rain or moisture, which creates a
shock hazard and will reduce life of machine.

POWER DISCONNECT. Turn machine OFF, dis-

to completely stop before leaving machine unat­tended, or doing any maintenance or service.

REGULAR CLEANING. To reduce risk of start­ing a fire, regularly check/empty collection bags
or drum to avoid buildup of fine dust, which can
increase risk of fire. Regularly clean surrounding
area where machine is operated—excessive dust
buildup on overhead lights, heaters, electrical pan­els, or other heat sources will increase risk of fire.

SUSPENDED DUST PARTICLES. To reduce risk
of death or injury caused by explosions or fires, DO
NOT operate in areas where these risks are high,
including spaces near pilot lights, open flames, or
other ignition sources.

AVOID I NG SPARKS. To reduce risk of fire, avoid
collecting any metal objects or stones. These can
possibly produce sparks when they strike impeller,
which can smolder in wood dust for a long time
before a fire is detected. If you accidentally cut
into wood containing metal, immediately turn OFF

for impeller to stop. Then empty bag or drum into
approved airtight metal container.

FIRE SUPPRESSION. Only operate dust collector
in locations that contain fire suppression system or
have fire extinguisher nearby.

STATIC ELECTRICITY. To reduce risk of fire or
explosions caused by sparks from static electricity,
ground all ducting using grounding wire.

DUST ALLERGIES. Dust from certain woods will
cause an allergic reaction. Make sure you know
what type of wood dust you will be exposed to in
case of an allergic reaction.

Model T33587 (Mfd. Since 04/24)

-9-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.

120V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit
Plug/Receptacle

........................................... Single-Phase

......................... 15 Amps

............................. NEMA 5-15

supply.

Full-Load Current Rating

Full-Load Current Rating at 120V .... 5.7 Amps

-10-

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Model T33587 (Mfd. Since 04/24)

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with

We do not recommend using an extension cord
with this machine. If you must use an extension
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding & Plug Requirements

Two-prong outlets do not meet the
grounding requirements for this machine.

provided—if it will not fit the outlet, have a

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

Neutral Hot

Figure 2. Typical 5-15 plug and receptacle.

SHOCK HAZARD!

Do not modify or use an adapter on the plug

qualified electrician install the proper outlet
with a verified ground.

Model T33587 (Mfd. Since 04/24)

Minimum Gauge Size ........................... 16 AWG

Maximum Length (Shorter is Better)

.......50 ft.

-11-

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT: Save all packaging materials until
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

Needed for Setup

The following items are needed, but not included,
for the setup/assembly of this machine.

Description Qty

• Safety Glasses (for each person) ........ 1 Pair

• Respirator (for each person) ...............1 Pair

• Open-End Wrenches 13mm ....................... 1

• Flat Head Screwdriver 1⁄2" ........................... 1

• Mounting Fasteners .................... As Needed

• Stud Finder ................................................. 1

• Drill and Bits ............................... As Needed

• Marker/Pencil .............................................. 1

• Level ........................................................... 1

• Support Board (

• An Assistant ............................................... 1

• Hammer Drill .............................................. 1

• Masonry Bit ................................................ 1

1

⁄2 " Thick Min.) ... As Needed

Unpacking

If items are damaged

call us immediately at [phone].

-12-

Model T33587 (Mfd. Since 04/24)

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

Loose Components (Figure 4) Qty
B.

Casters 2" ................................................... 2

C. Locking Casters 2" ..................................... 2

D. Flat Washers 8mm ..................................... 8

E. Hex Nuts M8-1.25 ....................................... 4

F. Acorn Nuts M8-1.25 .................................... 4

G. Bag Clamp 4" ..............................................1

H. Filter Bag .....................................................1

Machine (Figure 3) Qty

A. Dust Collector ..............................................1

A

Figure 3. Model T33587.

B

D

G

H

C

E F

Model T33587 (Mfd. Since 04/24)

Figure 4. Loose components.

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-13-

Hardware Recognition Chart

USE THIS CHART TO MATCH UP
HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.

Flat
Head
Cap
Screw

-14-

5mm

5mm

Model T33587 (Mfd. Since 04/24)

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Physical Environment

The physical environment where the machine is
operated is important for safe operation and lon­gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,

Place this machine near an existing power source.
Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or
other hazards. Make sure to leave enough space
around machine to disconnect power supply or

Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.

Machine Data Sheet for the weight

or bumps.

Electrical Installation

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

Floor Operation Wall Mounting

13"

341⁄2"

apply a lockout/tagout device, if required.

Lighting

Keep

Area

Clear

Floor

Side View

Wall

Minimum
Motor
Cooling
Air Gap

Minimum

18

3"

Front View

"

Floor

Model T33587 (Mfd. Since 04/24)

= Electrical Connection

Figure 5. Minimum working clearances.

-15-

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to

and gather

all

To ensure the assembly process
goes smoothly, first clean any
ered or coated in heavy-duty rust preventative (if
applicable).

3. Fit filter bag over outlet and secure with pro­vided bag clamp (see Figure 7).

Needed for Setup

listed items.

parts that are cov-

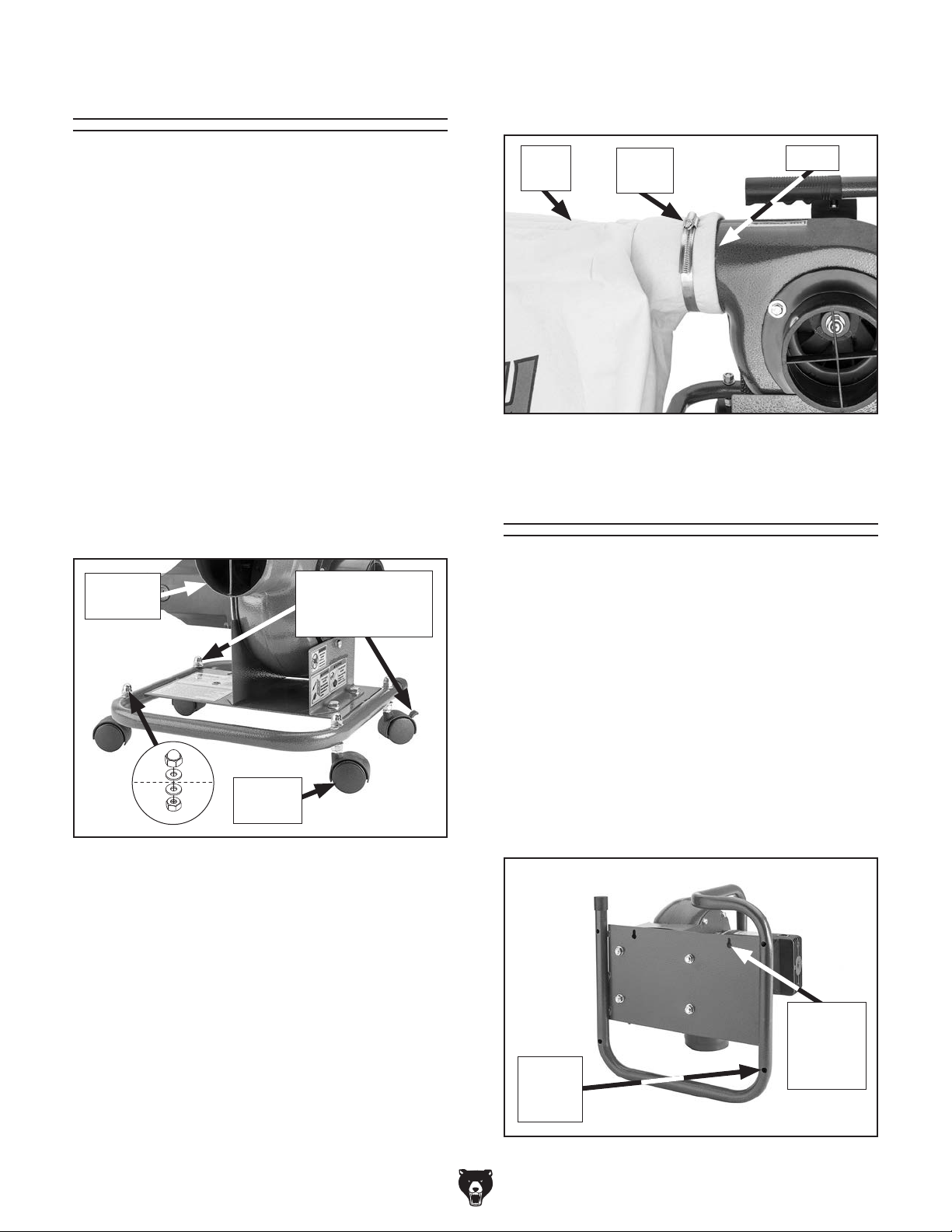

To assemble machine:

1. Thread (1) M8-1.25 hex nut with (1) 8mm flat

washer onto caster, insert it through hole in
dust collector base, then secure caster with
(1) 8mm flat washer and (1) M8-1.25 acorn nut
(see Figure 6).

Note: Install locking casters parallel to each

other. DO NOT install locking casters in
opposite corners.

Dust

Collector

Locking Casters

Mounted Parallel

To Each Other

Filter

Bag

Figure 7. Filter bag installed on outlet.

Bag

Clamp

Outlet

Wall Mounting

The Model T33587 can be operated as a mounted
unit, as shown in Figure 10 on Page 17. If
mounting the machine to the wall, remove the
casters and use the four caster holes or the two
slotted wall mounting holes in the dust collector
base as a template to mark mounting hole loca­tions.

x 4

Figure 6. Casters attached to dust collector.

Repeat Step 1 to install remaining casters.

2.

-16-

Casters

(1 of 4)

Mount the unit so the collection bag just touches
the floor when fully inflated. This will eliminate
undue bag stretching and stress on the collector
body when the bag begins to fill. Be sure the floor
surface is smooth so the bag will not catch and
rip.

Wall

Mounting

Caster

Holes

(1 of 4)

Figure 8. Location of mounting holes.

Model T33587 (Mfd. Since 04/24)

Holes

(1 of 2)

To mount dust collector to wood-framed wall
(with or without drywall):

Mount support board to wall studs with lag

1.
screws (see Figure 9).

Lag Screws

Support
Board

Figure 9. Use of support board to mount

T33587.

2. Using (2) wall mounting holes or (4) caster
holes, mark hole locations on support board
(see Figure 10).

Wall Stud

3. With assistance from another person, mount

dust collector to support board with appropri­ate fasteners (not included).

To mount dust collector to concrete or mason­ry wall:

With assistance from another person,

1.

mount dust collector to wall with lag shield
anchors and lag screws or anchor studs
(see Figure 11).

Anchor Stud

Figure 11. Typical fasteners for mounting dust

collector base to masonry or concrete wall.

Lag Shield Anchor

and Lag Screw

Collector

x 2

x 4

Figure 10. Example of support board mounting.

Base

Support

Board

Model T33587 (Mfd. Since 04/24)

-17-

Collection System

Plastic Blast

Gate

Copper

Ground Wire

Metal Duct

External

Ground Wire

Internal

Ground Wire

Flex-Hose

Ground

Screw

We also recommend wrapping the outside of all
plastic ducts with bare copper wire to ground
the outside of the system against static electrical

buildup.Wire connections at Y’sand T’s should

be made with wire nuts.

Attach the bare ground wire to each stationary
woodworking machine and attach to the dust
collector frame with a ground screw as shown
in the

below. Ensure that each machine is
continuously grounded to the grounding terminal
in your electric service panel.

Material Selection

You have many choices regarding dust collection
ducting, but flexible hose is the most common
for this size of machine. However, be aware that
there is a fire or explosion hazard if plastic duct
material is used for dust collection without being
grounded against static electrical charge build-up.

Flexible rubber hose, polyethylene, plastic flex­hose and other flexible ribbed hose is gener­ally used for short runs. There are many different
types of flex hose on the market today. These are
manufactured from materials such as polyethyl­ene, PVC, cloth hose dipped in rubber and even
metal, including steel and aluminum.

If using flex-hose, you should choose one of the
many types that are designed specifically for
the movement of solid particles, i.e. dust, grains
and plastics. However, the cost of specifically
designed flexible duct can vary greatly. Grizzly
offers polyethylene and steel flex hose.

Be sure that you extend the bare copper wire
down all branches of the system. Do not forget
to connect the wires to each other with wire nuts
when two branches meet at a "Y" or "T" connec­tion.

Ensure that the entire system is grounded. If using
plastic blast gates to direct air flow, the grounding
wire must be jumped (Figure 12) around the blast
gate without interruption to the grounding system.

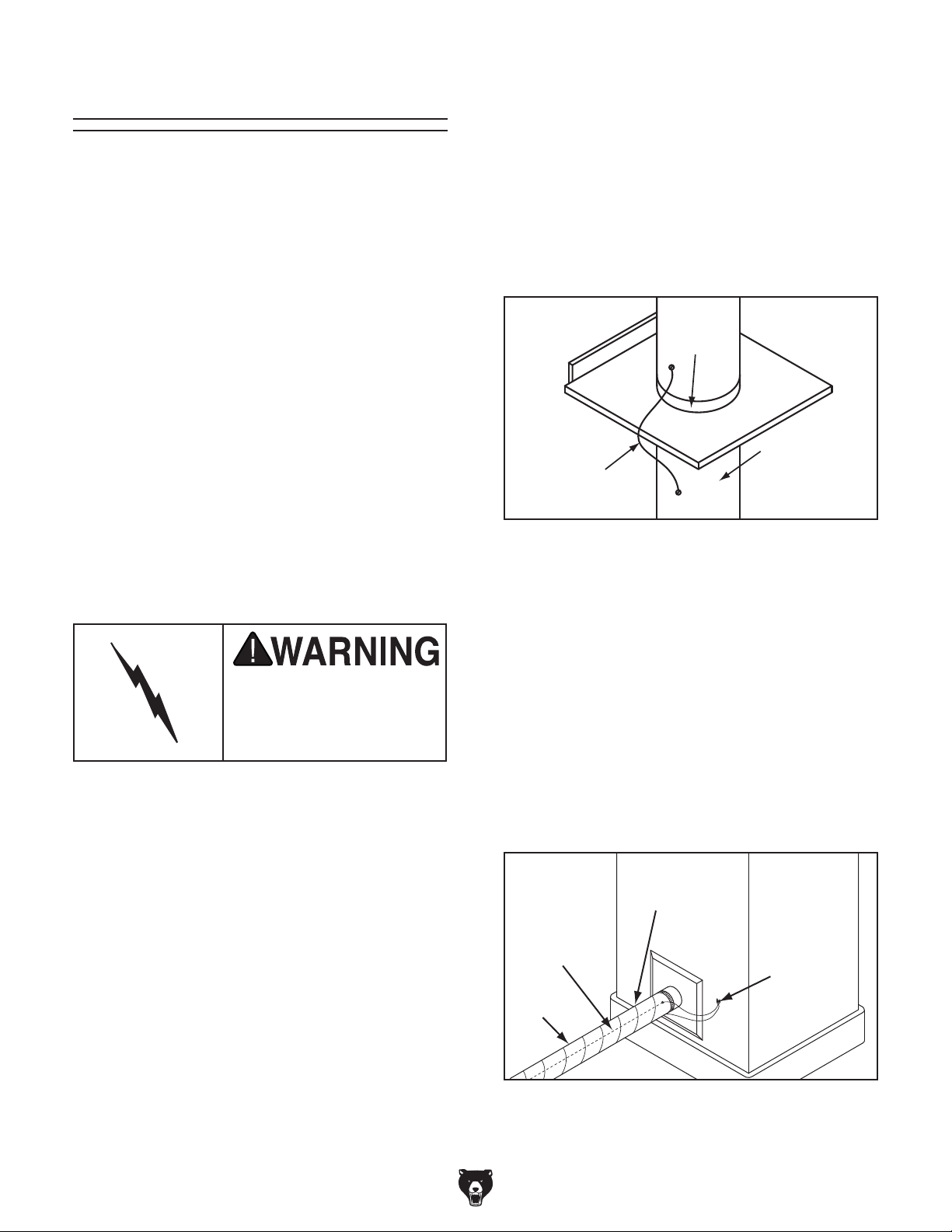

Figure 12. Ground jumper wire when using

plastic blast gates or elbows and metal duct.

Always guard against
static electrical build up
by grounding all dust
collection lines.

Duct Grounding

Plastic flex-hose is an insulator, and dust particles
moving against the walls of the hose creates a
static electrical build up. This charge will build
until it discharges to a ground. If a grounding
medium is not available to prevent static electrical
build up, the electrical charge will arc to the near­est grounded source. This electrical discharge
may cause an explosion and subsequent fire
inside the system.

To protect against static electrical build up inside
a non-conducting duct, a bare copper wire should
be placed inside the duct along its length and
grounded to the dust collector. You must also
confirm that the dust collector is continuously
grounded through the electrical circuit to the elec­tric service panel.

-18-

figure

Figure 13. Flex-hose grounded to machine.

Model T33587 (Mfd. Since 04/24)

Dust Collection

Since each machine produces a different amount
of sawdust, the requirements for the minimum
amount of CFM to move that sawdust is unique
to the machine (for example, a planer produces
more sawdust than a table saw). Knowing this
required CFM is important to gauging which size
of duct to use.

Refer to the

below for a close estimation of
the airflow each machine requires. Keep in mind
that machines that generate the most sawdust
should be placed closest to the dust collector.
If the machine has multiple dust ports, the total
CFM required is the sum of all ports.

If the machine does not have a built-in dust port,
use

to determine which size of

dust port to install.

figure

Machine

Dust Port Size

2" 98

2.5" 150

3" 220

4" 395

Figure 14. Approximate required airflow for

machines, based on dust port size.

Approximate

Required CFM

the following table

Machine Average Dust Port Size

Tab le Saw ...................................................... 4"

Miter/Radial-Arm Saw
Jointer (6" and smaller)
Jointer (8"-12")
Thickness Planer (13" and smaller)
Thickness Planer (14"-20")
Shaper
Router (mounted to table)
Bandsaw

Lathe..............................................................4"

Disc Sander (12" and smaller)
Disc Sander (13-18")
Belt Sander (6" and smaller)
Belt Sander (7"-9")
Edge Sander (6" x 80" and smaller)
Edge Sander (6" x 80" and larger)
Drum Sander (24" and smaller)
Drum Sander (24" and larger)
Widebelt Sander (18" and smaller)
Widebelt Sander (24"–37" single head)
Widebelt Sander (24"_51" double head)

........................................................... 4"

............................................... 5"

........................................................ 4"

.................................... 2"

.................................4"

............... 4"

............................6"

.............................. 2"

....................... 2"

......................................4"

.........................2"

........................................3"

.............. 4"

................ 5"

............... 2 x 4"

.................4 x 4"

................ 5"

..2 x 6"

.5 x 4"

Figure 15. Typical ducting sizes and port sizes for

various machines.

Model T33587 (Mfd. Since 04/24)

-19-

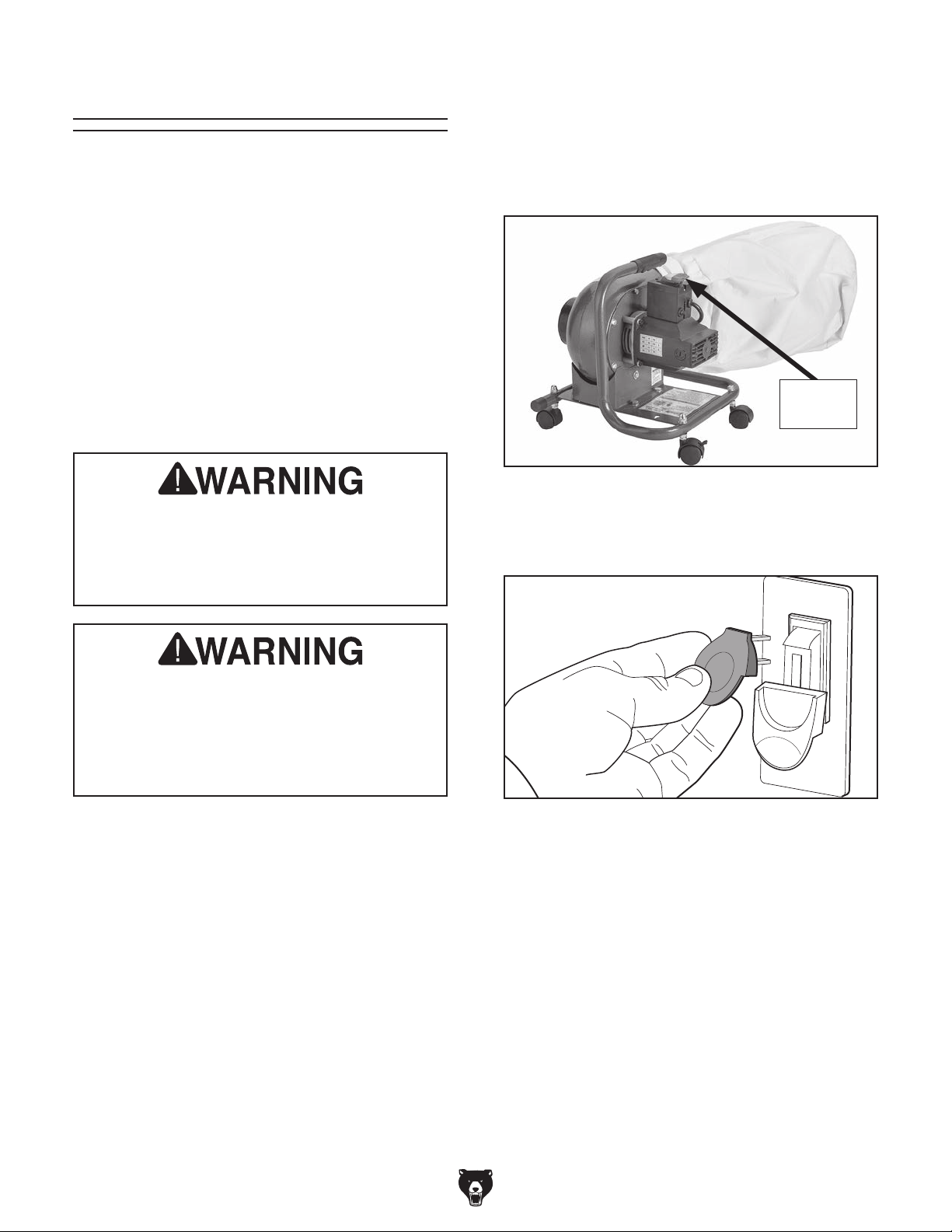

Test Run

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Troubleshooting

The test run consists of verifying the following: 1)
The motor powers up and runs correctly, and 2)
the safety disabling mechanism on the ON/OFF
switch works correctly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

4. Use ON/OFF switch to turn machine ON

(see Figure 16), verify motor operation, and
then turn machine OFF.

Motor should run smoothly and without

unusual problems or noises.

ON/OFF

Switch

Figure 16. Location of ON/OFF switch.

Remove switch disabling key from ON/OFF

5.
switch, as shown in Figure 17.

may result in malfunction or unexpect-

death, or machine/property damage.

To test run the machine:

1. Clear all setup tools away from machine.

2. Connect machine to dust collection system or

cover inlet.

IMPORTANT: DO NOT operate dust collec-

tor without first connecting it to dust collection
system or covering inlet. Otherwise, lack of
airflow resistance will cause motor to operate
at full amperage load, which could trip your
circuit breaker or blow fuse.

Connect machine to power supply.

3.

-20-

Figure 17. Removing switch disabling key from

paddle switch.

Try to start machine with paddle switch.

6.

Machine should not start.

— If machine does not start, switch disabling

feature is working as designed.

— If machine does start, immediately stop

the machine. Switch disabling feature is
not working correctly. This safety feature
must work properly before proceeding with
regular operations. Call Tech Support for
help.

Model T33587 (Mfd. Since 04/24)

SECTION 4: OPERATIONS

To reduce your risk of
serious injury, read this
entire manual BEFORE

To reduce risk of eye injury from flying

using machine.

chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.

General

Keep in mind that the dust collector is intended for
single machine use and is not designed to draw
dust through long ducting runs and multiple ports
simultaneously.

To complete a typical operation, the operator
does the following:

Positions machine near dust collector and

1.

uses appropriate ducting to connect machine
to dust collector.

Connects ducting ground.

2.

3. Turns woodworking machine ON, then turns

dust collector ON.

DO NOT put hands or small
objects near inlet opening
during operation. Objects
sucked into inlet will meet
with impeller blade. Failure
to heed this warning could
result in personal injury or
property damage.

Never place dust collector in room with
open flames or pilot lights. There is a risk of
explosion if too much fine dust is dispersed
into air with open flame present.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Model T33587 (Mfd. Since 04/24)

Performs woodworking operation.

4.

5. Turns woodworking machine OFF, then turns

dust collector OFF.

Tips for Optimum Performance

• Keep duct between dust collector and

machine as short as possible. We do not rec­ommend using more than 10' of ducting. The
simpler the system, the more efficient and
less costly it will be.

Ridges inside flexible hose greatly increase

•

static pressure loss, which reduces suction
performance.

• Keep ducting directional changes to a mini-

mum. The more curved fittings you use, the
greater the loss of suction at woodworking
machine.

Gradual directional changes are more effi-

•

cient than sudden directional changes (i.e.,
use 45° elbows in place of 90° elbows when­ever possible).

-21-

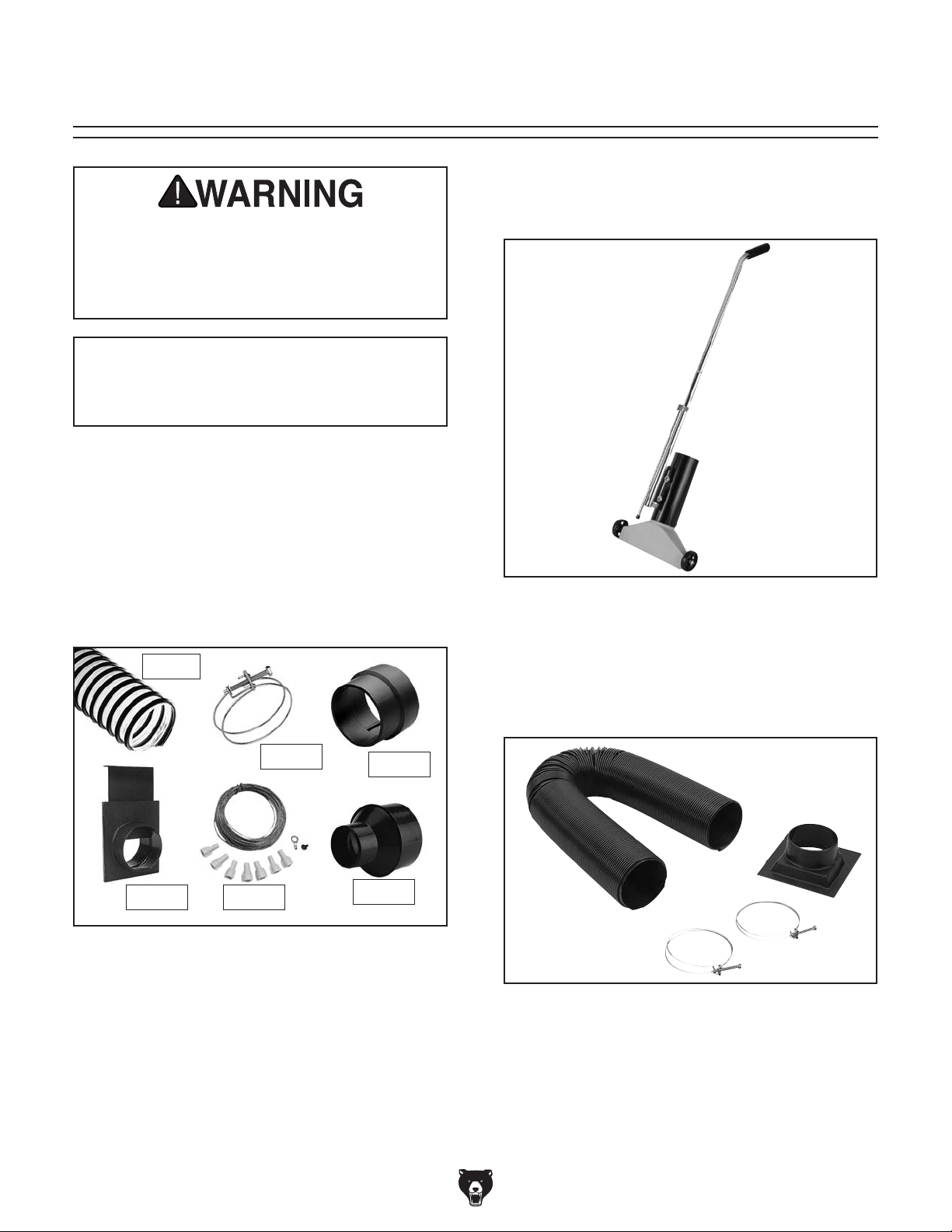

SECTION 5: ACCESSORIES

Installing unapproved accessories may

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

D4206—Clear Flexible Hose 4" x 10'
W1317—Wire Hose Clamp 4"

W2046—Shop Vacuum Adapter 2 
W1044—Dust Collection Adapter 2

W1053—Grounding Kit
W1007—Plastic Blast Gate 4"

We've hand picked a selection of dust collection
components commonly needed to connect the
Model T33587 to basic machinery.

D4206

1

⁄2" x 2 1⁄2"

1

⁄2" x 4"

G2752—Rolling Floor Sweep

12" wide nozzle and free-standing tripod. Fitting
on the head will accept 4" hose (not included).

Figure 19. G2752 Rolling Floor Sweep.

W1054—Dust Collection Kit #1

Designed for a one machine hook-up, kit #1
comes complete with installation instructions and
an accessories list for expanding your dust collec­tion system in the future.

W1317

W1007

Figure 18. Dust collection accessories.

-22-

W1053

W1044

W2046

Figure 20. W1054 Dust Collection Kit #1.

Model T33587 (Mfd. Since 04/24)

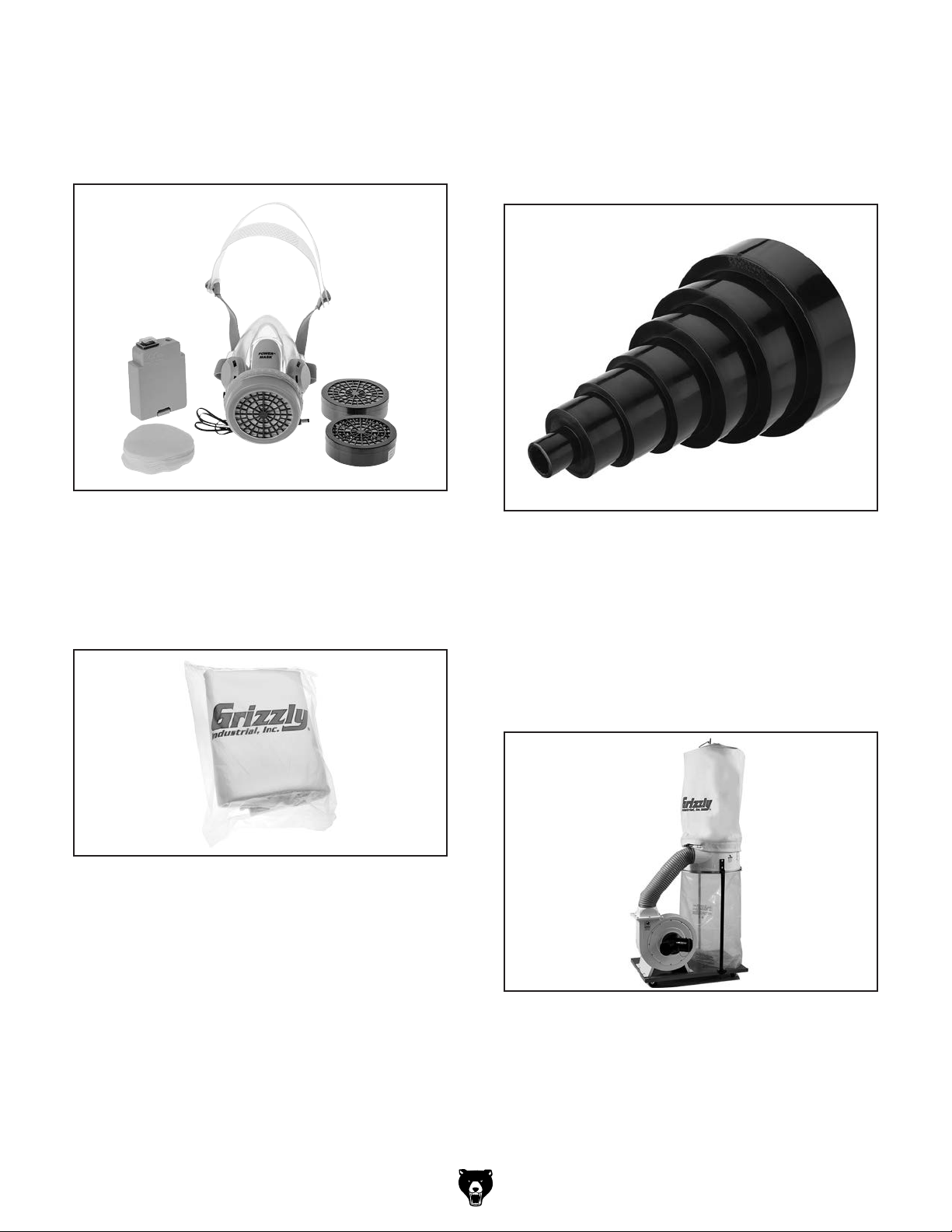

T30024—Powered Respirator Kit

Breathing wood dust could cause severe respira­tory illnesses. This kit is a lightweight, comfort­able, and easy-to-carry device for protecting the
airways from small particulates.

Figure 21. T30024 Powered Respirator Kit.

T33948—2.5-Micron Filter Bag

For use with the T33587. This non-woven 2.5­micron rated filter bag includes a zipper at the
bottom of the bag for easy disposal of your dust
and debris.

W1039—Universal Adapter, 91⁄2"L x 6"W x 6"D

Seven-step adapter provides a multitude of dust
collection reducing options. Simply cut away
unneeded steps with a hacksaw. Outside diam-

1

eter step sizes include 1", 2", 2

1

6". Wall thickness is

⁄8".

⁄2 ", 3", 4", 5" and

Figure 23. W1039 Universal Adapter.

G1029Z2P—2 HP Dust Collector with Aluminum
Impeller - Polar Bear Series

This 2 HP dust collector with aluminum impeller
is designed to capture dust and wood chips from
woodworking machines. The G1029Z2P has an
air suction capacity of 1550 CFM, and it features
a 2.5-micron top bag to capture the fine dust par­ticles that normally end up all over your shop.

Figure 22. T33948 2.5-Micron Filter Bag.

Model T33587 (Mfd. Since 04/24)

Figure 24. G1029Z2P Dust Collector with

Aluminum Impeller - Polar Bear Series.

-23-

SECTION 6: MAINTENANCE

accidental startup, always
disconnect machine from

To reduce risk of shock or

power before adjustments,
maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged filter bag.
Worn or damaged wires.

•
Full filter bag.

•
Any other unsafe condition.

•

Machine Storage

When the dust collector is not in use, unplug the
power cord from the power source. Place the
cord away from potential damage sources, such
as high traffic areas, sharp objects, heat sources,
harsh chemicals, water, damp areas, etc.

Emptying Filter Bag

Always empty the filter bag when it is about 1⁄2
full. Emptying the filter bag allows the machine
to operate at a much higher level of efficiency.
Always wear the appropriate respirator or dust
mask and safety glasses when emptying the filter
bag. Small dust particles can escape the bag dur­ing emptying, causing them to become airborne
and easily inhaled. This microscopic airborne dust
is extremely unhealthy to breathe and can cause
serious health problems.

Weekly Maintenance

• Clean/vacuum dust buildup off machine body

and motor.

Lubrication

Since all bearings are shielded and permanently
lubricated, simply leave them alone until they
need to be replaced. Do not lubricate them.

-24-

To reduce risk of eye injury from flying
chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when emptying or replacing filter bag.

To empty filter bag:

DISCONNECT MACHINE FROM POWER!

1.

2. Unzip bag over suitable container located

away from open flames or pilot lights.

Zip bag shut.

3.

Model T33587 (Mfd. Since 04/24)

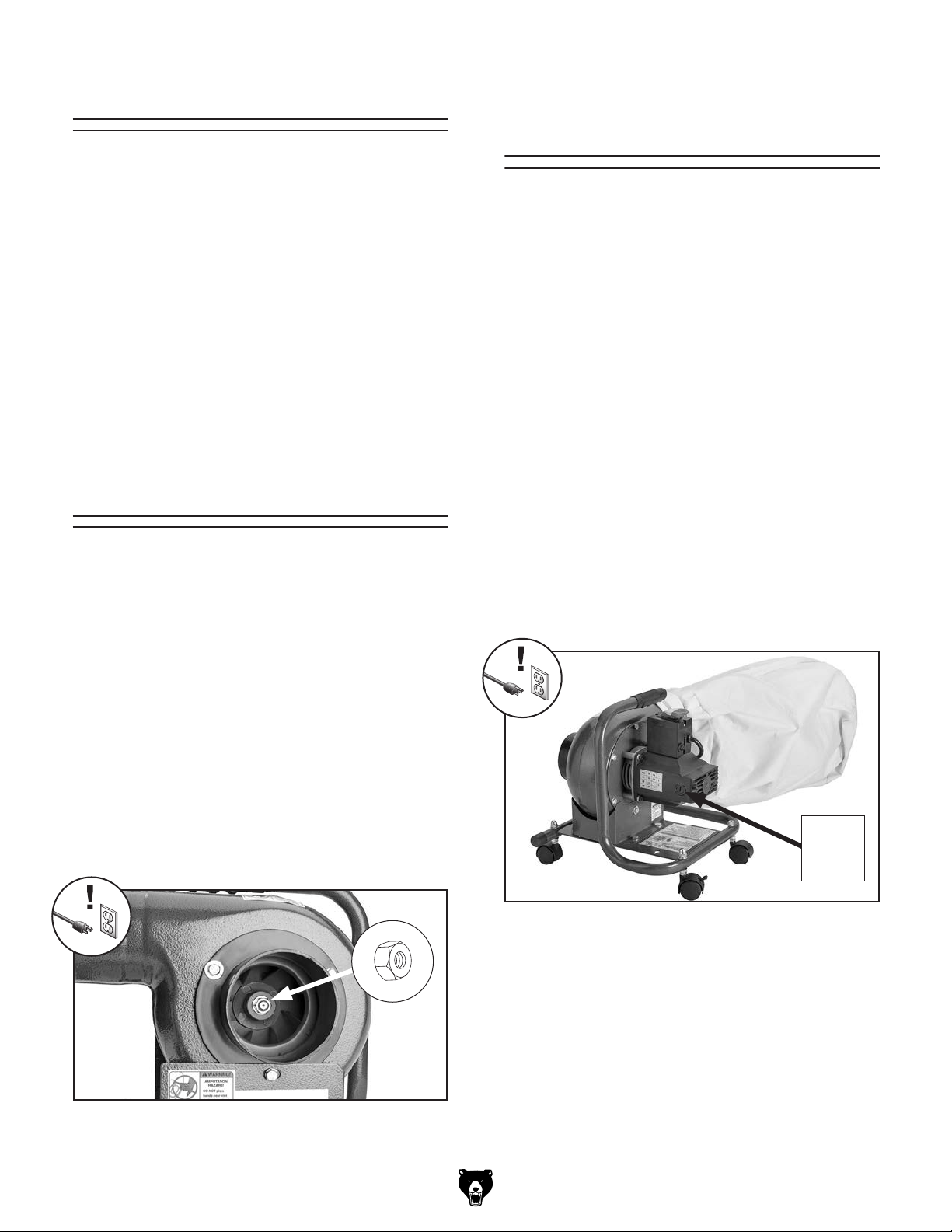

Replacing Filter Bag

With normal wear and use the filter bag will even­tually need to be replaced. There is no specific
determination for replacement intervals, but bags
generally last between 1 and 3 years depending
on use.

Replacement Filter Bag

Replace filter bag when:

• There is a lack of airflow and reduced dust

collection performance.

Holes form in filter bag.

•
Filter bag is accidently washed.

•
Filter bag contaminated with bacteria or mold.

•

................ Model T33948

Tightening Impeller

Periodically check the impeller to make sure it is
tight on the motor shaft. Any unusual vibration
or noise may be an indication the impeller has
loosened.

Checking/Replacing

Motor Brushes

The model T33587 is equipped with two long-life
carbon brushes—one on each side of the motor.
The brush life is affected by motor loads and
usage. Worn brushes will result in intermittent
operation and difficulty starting the motor. If either
brush is worn down to
both brushes as a set.

Items Needed Qty

Flat Head Screwdriver 1⁄2" .................................. 1

Motor Brushes (PT33587038)

To check/replace motor brushes:

1. DISCONNECT MACHINE FROM POWER!

Unscrew plastic brush covers, and remove

2.

motor brush assemblies (see Figure 26).

Note: As you remove brush assembly, make

note of carbon tip orientation. If acceptable,
re-install in same way.

1

⁄4" (6mm) or less, replace

........................... 2

Tool Needed Qty

Open-End Wrench 13mm .................................. 1

To tighten impeller:

1. DISCONNECT MACHINE FROM POWER!

Remove inlet.

2.

3. Tighten impeller hex nut as necessary

(see Figure 25).

Brush
Cover

(1 of 2)

Figure 26. Brush cover location.

3. Measure length of carbon tip. If carbon tip is

worn down to
brush assemblies with new ones.

Insert brush assemblies back into motor, and

4.

re-install plastic caps.

1

⁄4" (6mm) or less, replace both

Figure 25. Impeller hex nut location.

4. Install inlet.

Model T33587 (Mfd. Since 04/24)

-25-

SECTION 7: SERVICE

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need
replacement parts or additional help with a procedure, call our Technical Support.

the

serial number and manufacture date of your machine before calling.

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does
not start, or
power supply
breaker
immediately
trips after
startup.

Machine
stalls or is
underpowered.

Machine has
vibration or
noisy operation.

1. Switch disabling key removed.

2. Machine circuit breaker tripped or at fault.

3. Incorrect power supply voltage or circuit size.

4. Power supply circuit breaker tripped or fuse
blown.

5. Wiring broken, disconnected, or corroded.

6. Motor brushes worn out.

7. ON/OFF switch at fault.

8. Motor or motor bearings at fault.

1. Dust collection ducting problem.

2. Filter bag clogged/at fault.

3. Motor brushes worn out.

4. Dust collector undersized.

5. Motor overheated, tripping machine circuit
breaker.

6. Extension cord too long.

7. Motor or motor bearings at fault.

1. Motor or component loose.

2. Mobile stand fasteners loose or casters not
adjusted properly.

3. Motor bearings at fault.

1. Install switch disabling key (Page 20).

2. Reset circuit breaker on switch (Page 4).

3. Ensure correct power supply voltage and circuit size

(Page 10).

4. Ensure circuit is free of shorts. Reset circuit breaker

(Page 4).

5. Fix broken wires or disconnected/corroded
connections.

6. Remove/replace brushes (Page 25).

7. Replace switch.

8. Replace motor.

1. Clear blockages, seal leaks, use smooth wall duct,
eliminate bends (Page 21).

2. Emptyandcleanlterbag(Page 25).

3. Remove/replace brushes (Page 25).

4. Move closer to machine/upgrade to larger dust
collector.

5. Clean motor, let cool, and reduce workload. Reset
breaker (Page 4).

6. Move machine closer to power supply; use shorter
extension cord (Page 11).

7. Replace motor.

1. Replace damaged or missing bolts/nuts or tighten if
loose.

2. Tighten mobile stand fasteners/adjust casters.

3. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

Note: Please gather

-26-

Model T33587 (Mfd. Since 04/24)

Operation

Symptom Possible Cause Possible Solution

Loud,
repetitious
noise, or
excessive
vibration
coming from
dust collector
(non-motor
related).

Dust collector
does not
adequately
collect dust
or chips; poor
performance.

Emptyinglter

bag does not
improve dust
collection
performance.

Dust collector
blows sawdust
into the air.

1. Dustcollectornotonatsurfaceand

wobbles/casters not locked.

2. Swivel caster fasteners loose or not installed
properly.

3. Machine incorrectly mounted to wall/mounted
unevenly.

4. Impeller damaged and unbalanced.

5. Impeller loose on motor shaft.

1. Filter bag full.

2. Ducting blocked/restricted.

3. Dust collector too far away from point of
suction; duct clamps not properly secured;
too many sharp bends in ducting.

4. Woodwet/greenanddustnotowing

smoothly through ducting.

5. Ducting has one or more leaks.

6. Ducting and ports are incorrectly sized.

7. Dust collector undersized.

1. Filter bag clogged and at end of life.

1. Filter bag not properly clamped and secured.

2. Filter bag has hole(s).

1. Stabilize dust collector; lock casters.

2. Tighten fasteners or re-install casters.

3. Tighten/replace mounting hardware.

4. Disconnect dust collector from power; inspect impeller
for cracks or damage; replace impeller if damaged.

5. Secure impeller (Page 25); replace motor and impeller
as a set if motor shaft and impeller hub are damaged.

1. Emptylterbag(Page 24).

2. Remove ducting from dust collector inlet and unblock
restriction. A plumbing snake may be necessary.

3. Relocate dust collector closer to point of suction; re­secure duct; remove sharp bends (Page 21).

4. Only collect dust from wood with less than 20%
moisture content.

5. Seal/eliminate ducting leaks.

6. Installcorrectlysizedductsandttings(Page 19).

7. Upgrade to larger dust collector.

1. Replacelterbag(Page 25).

1. Securelterbag,makingsurelterbagclampistight.

(Page 16).

2. Replacelterbag(Page 25).

Model T33587 (Mfd. Since 04/24)

-27-

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one
stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available.

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-28-

Model T33587 (Mfd. Since 04/24)

SWITCH

BOX

Paddle Switch

KEDU HY-18

125V

LOAD

LINE

Circuit

Breaker

Topstone
L2 Series

5

241

3

6

Wiring Diagram

Ground

120 VAC

5-15 Plug

Neutral

Hot

Ground

Figure 27. Switch box wiring.

Model T33587 (Mfd. Since 04/24)

WARNING!

SHOCK HAZARD!

Disconnect power
before working on
wiring.

READ ELECTRICAL SAFETY

ON PAGE 28!

-29-

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Main

41 40

38

39

47

46

49

27

35

20

37

34

36

15

32

44

48

45

31

27

30

28

26

15

19

14

25

24

23

22

21

16

42

18

14

15

48

15

13

12

8

11

1

7

6

2

5

4

9

10

-30-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

43

3

Model T33587 (Mfd. Since 04/24)

REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON

Main Parts List

1 PT33587001 FRAME 25 PT33587025 MOTOR FLANGE
2 PT33587002 END CAP 26 PT33587026 GASKET 42 X 83 X 2.5
3 PT33587003 CASTER 2" LOCKING 27 PT33587027 LOCK WASHER 5MM
4 PT33587004 HEX NUT M8-1.25 28 PT33587028 HEX BOLT M5-.8 X 10
5 PT33587005 FLAT WASHER 8MM 30 PT33587030 KEY 4 X 4 X 20
6 PT33587006 FLAT WASHER 8MM 31 PT33587031 MOTOR MOUNT
7 PT33587007 ACORN NUT M8-1.25 32 PT33587032 SWITCH COVER
8 PT33587008 HANDLE GRIP 34 PT33587034 PHLP HD SCR M3-.5 X 12
9 PT33587009 FLAT WASHER 8MM 35 PT33587035 PADDLE SWITCH KEDU HY18 125V
10 PT33587010 HEX NUT M8-1.25 36 PT33587036 PHLP HD SCR M5-.8 X 20
11 PT33587011 COLLECTOR BRACKET 37 PT33587037 LOCK WASHER 5MM
12 PT33587012 FLAT WASHER 8MM 38 PT33587038 MOTOR BRUSH
13 PT33587013 HEX BOLT M8-1.25 X 16 39 PT33587039 COVER
14 PT33587014 FLAT WASHER 6MM 40 PT33587040 STRAIN RELIEF TYPE-5/16
15 PT33587015 HEX BOLT M6-1 X 14 41 PT33587041 POWER CORD 90" 5-15P 3W
16 PT33587016 COLLECTOR BODY 42 PT33587042 GASKET 102 X 128 X 1.5
18 PT33587018 INLET 4" 43 PT33587043 CASTER 2" SWIVEL
19 PT33587019 BAG CLAMP 4" 44 PT33587044 TAP SCREW M4 X 10
20 PT33587020 FILTER BAG 2.5 MICRON 45 PT33587045 SWITCH BOX
21 PT33587021 HEX NUT M10-1.5 46 PT33587046 MOTOR 1HP 120V 1/2-PH
22 PT33587022 FLAT WASHER 10MM 47 PT33587047 FLAT WASHER 5MM
23 PT33587023 IMPELLER 6" NYLON 48 PT33587048 FENDER WASHER 6MM
24 PT33587024 GASKET 160 X 184 X 1.5 49 PT33587049 CIRCUIT BREAKER TOPSTONE TC-1

Model T33587 (Mfd. Since 04/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-31-

102

REF P ART # DES CRIPTIO N REF P ART # DES CRIP TI ON

Labels & Cosmetics

101

AMPUTATION

HAZARD!

DO NOT place

hands near inlet

during operation!

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.

103

To reduce risk of circuit
overload or machine
electrical damage, only
operate dust collector with
bags/filters installed.

104

EYE/LUNG INJURY

HAZARD!

Always wear safety
glasses and a
respirator when
using this machine.

OUTLET

108

105

106

WARNING!

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call [phone] or
go to www.grizzly.com.

MODEL T33587

MINI PORTABLE

DUST COLLECTOR

Motor: 1/2 HP, 120V, 1-Ph, 60 Hz
Full-Load Current Rating: 5.7A
Inlet Size: 4"
Airflow Performance: 525 CFM
Max. Static Pressure: 11"
Filter Bag Rating: 5 Micron
Weight: 16 lbs.

Mfd. for Grizzly in China

To reduce the risk of serious injury when using this machine:

1. Read and understand owner ’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Only use this machine to collect wood dust/chips—never

5. Always disconnect power before servicing or cleaning.

6. Do not expose to rain or use in wet areas.

7. Keep hands, long hair, and loose clothing away from inlet.

8. Never leave machine unattended during operation.

9. Do not use if cord, plug, or any other electrical equipment

10. Do not use without filter bag in place.

11. Prevent unauthorized use by children or untrained users.

Specifications

4000909

Date

WARNING!

use to collect glass, metal, liquids, asbestos, silica, animal
parts, biohazards, burning material/ashes, etc.

becomes damaged—promptly repair!

107V2

S/N

101 PT33587101 AMPUTATION HAZARD LABEL 105 PT33587105 OUTLET LABEL
102 PT33587102 COMBO WARNING LABEL 106 PT33587106 READ MANUAL LABEL
103 PT33587103 NOTICE HANG TAG 107V2 PT33587107V2 MACHINE ID LABEL V2.04.24
104 PT33587104 ELECTRICITY LABEL 108 PT33587108 TOUCH-UP PAINT, GRIZZLY GREEN

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-32-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model T33587 (Mfd. Since 04/24)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,

negligence,accidents,repairsoralterationsorlackofmaintenance.ThisisGrizzly’ssolewrittenwarranty

and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.

InnoeventshallGrizzly’sliabilityunderthiswarrantyexceedthepurchasepricepaidfortheproductand

any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will

thenissue youa “ReturnNumber,’’ whichmust beclearlyposted ontheoutside aswellas theinsideof

the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

For further information about the

scan the QR

code below

to be automatically directed to our warranty page.

warranty, visit https://www.grizzly.com/forms/warranty or

WARRANTY
