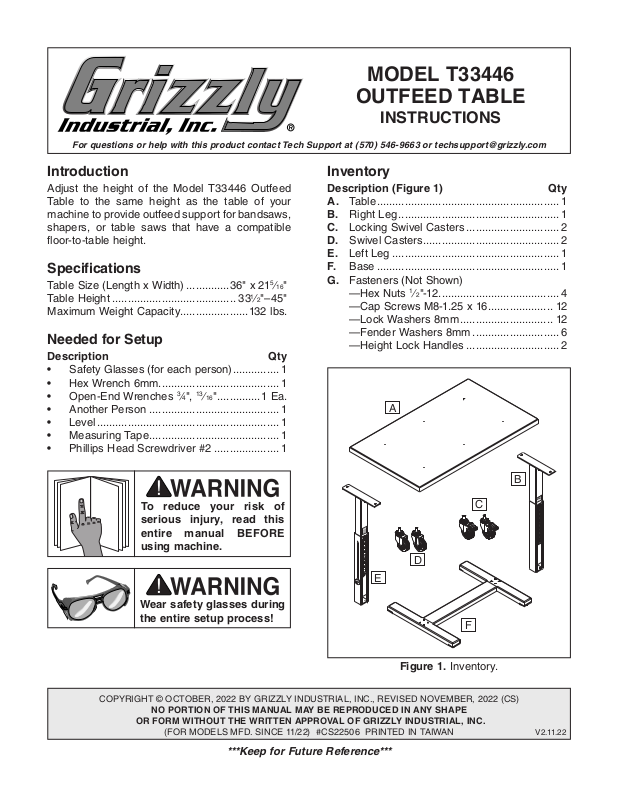

Page 1
MODEL T33446
To reduce your risk of
serious injury, read this
entire manual BEFORE
OUTFEED TABLE
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
Adjust the height of the Model T33446 Outfeed
Table to the same height as the table of your
machine to provide outfeed support for bandsaws,
shapers, or table saws that have a compatible
floor-to-table height.
Specifications
Table Size (Length x Width) ..............36" x 215⁄16"
Table Height ........................................ 33
Maximum Weight Capacity......................132 lbs.
1
⁄2 "–45"
Needed for Setup
Description Qty
• Safety Glasses (for each person) ............... 1
• Hex Wrench 6mm ....................................... 1
• Open-End Wrenches
• Another Person .......................................... 1
• Level ........................................................... 1
• Measuring Tape .......................................... 1
• Phillips Head Screwdriver #2 ..................... 1
3
⁄4", 13⁄16" ..............1 Ea.
Inventory
Description (Figure 1) Qty
A. Table ........................................................... 1
B. Right Leg .................................................... 1
C. Locking Swivel Casters .............................. 2
D. Swivel Casters ............................................ 2
E. Left Leg ...................................................... 1
F. Base ........................................................... 1
G. Fasteners (Not Shown)
— Hex Nuts
— Cap Screws M8-1.25 x 16 ..................... 12
— Lock Washers 8mm .............................. 12
— Fender Washers 8mm ............................ 6
— Height Lock Handles .............................. 2
1
⁄2 "-12 ....................................... 4
A
C
T33446
using machine.
D
E
Wear safety glasses during
the entire setup process!
gri zz ly. com
F

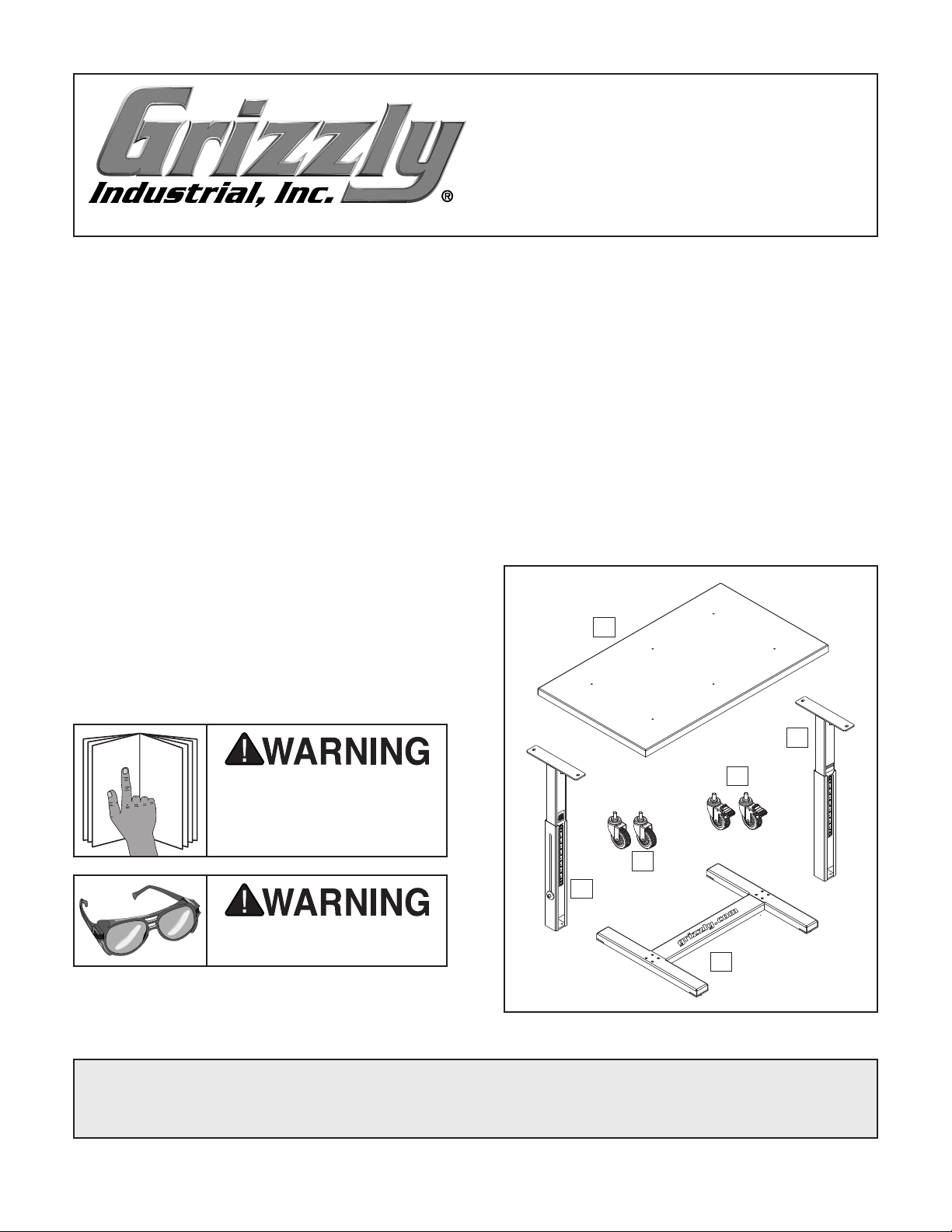

Figure 1. Inventory.
COPYRIGHT © OCTOBER, 2022 BY GRIZZLY INDUSTRIAL, INC., REVISED NOVEMBER, 2022 (CS)
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/22) #CS22506 PRINTED IN TAIWAN
***Keep for Future Reference***
B
NOTICE
DO NOT exceed
maximum weight
capacity of 150 lbs.
V2.11.22
Page 2
Assembly
The Model T33466 must be fully assembled.
Before beginning the assembly process, refer to
Needed for Setup and gather all listed items.
4. Fully tighten screws from Step 2.
1
5. Thread
⁄2 "-12 hex nuts all the way onto
casters.
To assemble table:
1. Place table face down on ground. Use spare
cardboard from box to protect table surface.
2. Attach (2) legs to table with (4) M8-1.25 x 16
cap screws, 8mm lock washers, and 8mm
fender washers (see Figure 2). Hand-tighten
screws for now.
Note: Scales on legs should face same
direction and pre-installed cap screws on legs
should face outward (see Figure 2).
Pre-Installed
Cap Screw
(1 of 2)
Leg
(1 of 2)
Table
x 4
6. Thread (2) swivel casters into one end of
base (see Figure 4).
7. Thread (2) locking swivel casters into remain-
ing base holes (see Figure 4).
Locking
Swivel
Casters
Swivel
Casters
Figure 4. Casters installed.
8. Replace (2) pre-installed cap screws and
washers shown in Figure 5 with (2) 8mm
fender washers and height lock handles.

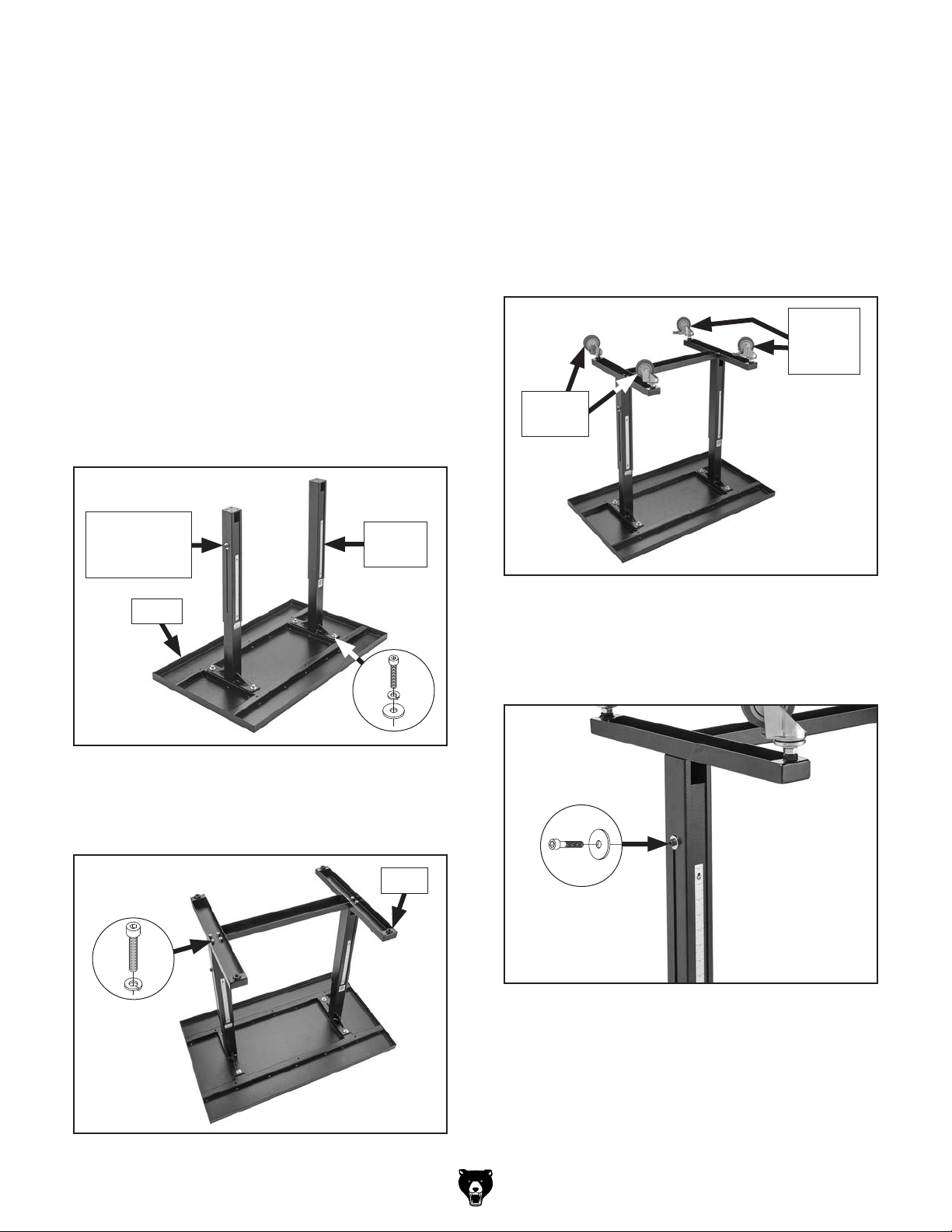

Figure 2. Legs attached to table.
3. Attach base to legs with (8) M8-1.25 cap
screws and 8mm lock washers (see Figure 3).
Base
x 8
Figure 3. Base attached to legs.
-2-
x 2
Figure 5. Location of pre-installed cap screws
and washers.
9. Turn table right-side up with help of assistant.
10. Place level on table and thread swivel casters
up or down in base until table is level.
Model T33446 (Mfd. Since 11/22)
Page 3
11. Tighten caster hex nuts against base to
secure setting, then press down on tab to
lock locking casters.
12. Measure distance from table surface to
ground.
Adjusting Table Height
It is easiest if an assistant holds the outfeed
table at the desired height while you stabilize the
frame and tighten the lock handles. To adjust the
outfeed table alone, place a foot on the base to
keep it in place while making adjustments.
— If distance is equal to value indicated by
height indicator on each leg scale (see
Figure 6), no adjustment is necessary.
Assembly is complete.
— If distance is not equal to value indicated
by height indicator on each leg scale (see
Figure 6), proceed to Step 13.
13. Loosen (2) Phillips head screws on each
scale(s) that needs adjustment (see Figure 6).
Height
Indicator
(1 of 2)
x 2
To adjust the height with a tape measure, first
measure the height of your machine table. Loosen
the height lock handles, raise or lower the table
until both scales display the desired height, then
tighten the lock handles.
To adjust the height with a straightedge or other
leveling tool, lower the outfeed table all the way.
Place the tool on the surface of your machine
table and over the outfeed table (see Figure 7).
Loosen the height lock handles, lift the table until
the outfeed table surface is flush against the
straightedge, then tighten the lock handles.
Straightedge

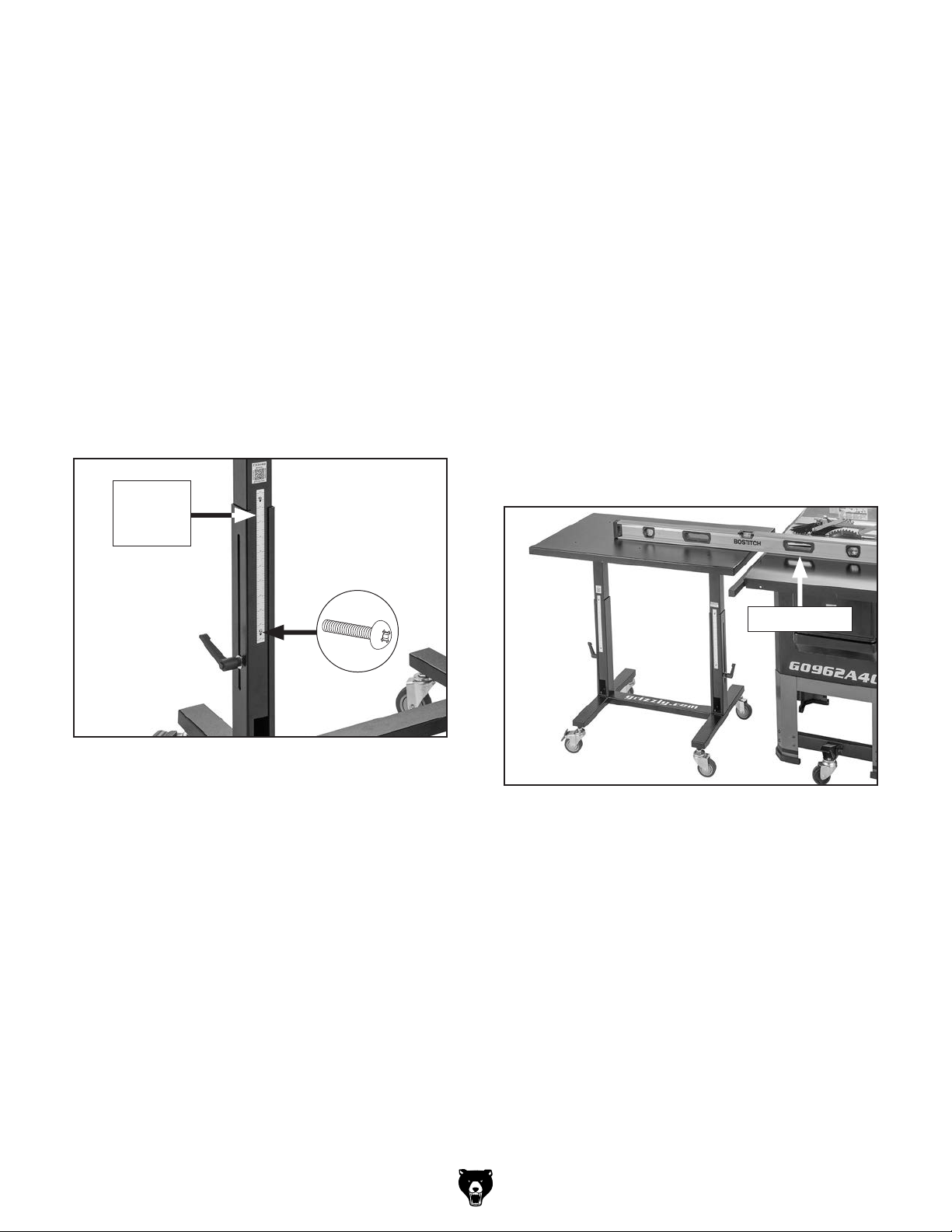

Figure 6. Location of scale height indicators and
Phillips head screws.
14. Adjust scale(s) until height indicators indicate
distance measured in Step 12, then tighten
screws to secure.
Model T33446 (Mfd. Since 11/22)
Figure 7. Example of using straightedge to
match machine table height.
-3-
Page 4
T33446 Parts Breakdown & List
REF P ART # DES CRIP TION REF PART # DES CRIP TION
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
17
1
4
3
9V2
NOTICE
DO NOT exceed
maximum weight
capacity of 150 lbs.
2
19
9V2
4
14
T33446
18
7
8
15
16
10V2
11V2
5
13
20
gri zz ly. com
13
3
2
6
12
1 PT33446001 TABLE 11V2 PT33446011V2 LEG LEFT V2.11.22
2 PT33446002 CAP SCREW M8-1.25 X 16 12 PT33446012 CASTER 1/2-12 X 25, SWIVEL LOCKING
3 PT33446003 LOCK WASHER 8MM 13 PT33446013 HEX NUT 1/ 2-12
4 PT33446004 FENDER WAS HER 8 MM 14 PT33446014 FIXED HANDLE M8-1.25 X 25, 65L
5 PT33446005 BASE 15 PT33446015 GASKET 10 X 28 X 1MM FI BER
6 PT33446006 CASTER 1/2-12 X 25, SWIVEL 16 PT33446016 GASKET 5 X 28 X 1MM FI BER
7 PT33446007 SCALE 17 PT33446017 TOUCH-UP PA I NT, GRI ZZLY BLACK
8 PT33446008 PHLP HD SCR M4-.7 X 8 18 PT33446018 QR CODE LABEL
9V2 PT33446009V2 EXTENSION BRACE V2.11.22 19 PT33446019 CAPACITY LABEL
10V2 PT33446010V2 LEG RIGHT V2.11.22 20 PT33446020 GRIZZLY.COM LABEL
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
-4-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T33446 (Mfd. Since 11/22)
