Grizzly T33295 User guide

MODEL T33295

2/3 HP VARIABLE-SPEED

7-ROLLER POWER FEEDER

OWNER'S MANUAL

(For models manufactured since 03/23)

COPYRIGHT © APRIL, 2023 BY GRIZZLY INDUSTRIAL, INC.

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#JM22639 PRINTED IN TAIWA N

***Keep for Future Reference***

V1.0 4.23

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info ................................................................................................................................ 2

Manual Accuracy ........................................................................................................................ 2

Identification ............................................................................................................................... 3

Controls & Components ............................................................................................................. 4

SECTION 1: SAFETY ....................................................................................................................... 8

Safety Instructions for Machinery ............................................................................................... 8

Additional Safety for Power Feeders ....................................................................................... 10

SECTION 2: POWER SUPPLY ...................................................................................................... 11

SECTION 3: SETUP ....................................................................................................................... 13

Unpacking ................................................................................................................................ 13

Needed for Setup ..................................................................................................................... 13

Inventory ................................................................................................................................... 13

Hardware Recognition Chart .................................................................................................... 14

Cleanup .................................................................................................................................... 15

Site Considerations .................................................................................................................. 15

Assembly .................................................................................................................................. 16

Base Mounting ......................................................................................................................... 18

Checking Gearbox Oil Level .................................................................................................... 19

Test Run ................................................................................................................................... 20

SECTION 4: OPERATIONS ........................................................................................................... 21

Operation Overview.................................................................................................................. 21

Basic Use & Care ..................................................................................................................... 22

Changing Speeds ..................................................................................................................... 23

Adjusting Roller Angle .............................................................................................................. 23

SECTION 5: ACCESSORIES ......................................................................................................... 25

SECTION 6: MAINTENANCE......................................................................................................... 27

Schedule .................................................................................................................................. 27

Cleaning & Protecting .............................................................................................................. 27

Lubrication ................................................................................................................................ 27

SECTION 7: SERVICE ................................................................................................................... 30

Troubleshooting ........................................................................................................................ 30

Replacing Rollers ..................................................................................................................... 31

SECTION 8: WIRING ...................................................................................................................... 32

Wiring Safety Instructions ........................................................................................................ 32

Wiring Diagram......................................................................................................................... 33

SECTION 9: PARTS ....................................................................................................................... 34

Main .......................................................................................................................................... 34

Column & Stand ....................................................................................................................... 36

Labels & Cosmetics ................................................................................................................. 38

WARRANTY & RETURNS ............................................................................................................. 41

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the

serial number

from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model T33295 (Mfd. Since 03/23)

To reduce your risk of
serious injury, read this
entire manual BEFORE

Identification

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

B

C

A

R

Q

P

D

E

F

G

O

N

H

M

I

J

K

L

A. Horizontal Travel Handwheel
B. Vertical Column
C. Horizontal Travel Lock
D. Upper Elbow-Joint Lock
E. Lower Elbow-Joint Lock
F. Swivel Lock Pin
G. Control Panel
H. Upper Elbow Joint
I. Vertical Travel Crank Handle

Model T33295 (Mfd. Since 03/23)

J. Overarm Shaft
K. Vertical Travel Lock
L. Rotation Lock
M. Rollers
N. Rotation Knob
O. Motor
P. Chain Cover
Q. Lower Elbow-Joint
R. Base

using machine.

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

Control Panel

B. Forward Feed Direction Button :
Selects forward feed direction. When pressed,

green light above button illuminates, indicat­ing button is selected. To change feed direc­tion, press feed direction button opposite of
currently selected feed direction twice (2X).
New feed direction will be set at lowest speed
(7 FPM). Press variable-speed adjustment
dial twice to restore original feed rate.

C. SET Button: Enables changes to feed rate.

When pressed, selected feed rate flashes on
control panel for 10 seconds, during which
time feed rate can be selected with variable­speed adjustment dial. When panel stops
flashing, feed rate is locked—until SET but­ton is pressed again.

D. Reverse Feed Direction Button ( ):
Selects reverse feed direction. Green light

below button illuminates, indicating button is
selected.

( )

A

G

F

Figure 1. Control panel.

A. Variable-Speed Adjustment Dial: Starts

and stops motor and controls feed rate from
7–86 FPM. To start motor, press dial until it
beeps and control panel glows red. To stop
motor, press dial again. To adjust feed rate,
press SET button, then rotate dial clockwise
to increase feed rate or counterclockwise to
decrease feed rate.

B

C

D

E

E. ON/OFF Button: Turns machine ON or OFF.

In ON position, digital readout illuminates.

F. Gearbox Sight Glass: Displays oil level.

G. Feed Speed Digital Readout: Displays feed

rate in feet per minute (FPM).

-4-

Model T33295 (Mfd. Since 03/23)

Power Feeder & Column Controls

N

J

H

Figure 2. Location of column controls.

H. Angle Adjustment Scale: Indicates angle

that power feeder assembly is rotated relative
to overarm shaft. Loosen hex bolts on upper
elbow-joint to allow rotation; tighten hex bolts
to secure power feeder angle.

I. Horizontal Travel Lock: Locks horizontal

position of power feeder.

J. Vertical Travel Crank Handle: Adjusts ver-

tical position of overarm shaft and power
feeder (when vertical travel lock is loosened).

K. Vertical Travel Lock: Locks power feeder

height setting.

I

K

O

L

Figure 3. Location of power feeder and column

L. Horizontal Travel Handwheel: Moves over-

arm shaft horizontally and adjusts lateral
position of power feeder (when horizontal
travel lock (I) is loosened).

M. Rotation Lock: Allows vertical column to

rotate when loosened. Prevents vertical col­umn from rotating when tightened.

N. Upper Elbow-Joint Lock: Allows lower

elbow and power feeder to rotate around
upper elbow. Tighten to secure lower elbow.

O. Lower Elbow-Joint Lock: Allows power

feeder to rotate on its axis when swivel lock
pin is disengaged. Tighten to secure power
feeder swivel position.

M

P

controls.

Model T33295 (Mfd. Since 03/23)

P. Swivel Lock Pin: Allows power feeder to

rotate when disengaged. Locks power feeder
in horizontal position when engaged in either
of two detents.

-5-

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T33295 2/3 HP VARIABLE‐SPEED 7‐ROLLER POWER

FEEDER

Product Dimensions:

Weight.............................................................................................................................................................. 119 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................................ 37-1/2 x 20-1/2 x 29-1/2 in.

Footprint (Length x Width)......................................................................................................................... 5-1/2 x 6 in.

Shipping Dimensions:

Carton #1

Type........................................................................................................................................... Cardboard Box

Content................................................................................................................................................. Machine

Weight...................................................................................................................................................... 57 lbs.

Length x Width x Height............................................................................................................. 25 x 14 x 13 in.

Must Ship Upright.......................................................................................................................................... No

Carton #2

Type........................................................................................................................................... Cardboard Box

Content...................................................................................................................................................... Stand

Weight...................................................................................................................................................... 72 lbs.

Length x Width x Height............................................................................................................ 30 x 13 x 12 in.

Must Ship Upright.......................................................................................................................................... No

Electrical:

Power Requirement.......................................................................................................... 220V, Single Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................... 2.3A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length................................................................................................................................................. 9 ft.

Power Cord Gauge......................................................................................................................................... 18 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 6-15

Switch Type................................................................................................................................ Push-Button ON/OFF

Motors:

Main

Main Specifications:

Workpiece Capacities

-6-

Horsepower........................................................................................................................... 500 Watt (2/3 HP)

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 2.3A

Speed....................................................................................................................................... 350 - 4800 RPM

Type.......................................................................................................................................................... BLDC

Power Transfer ................................................................................................................................. Gear Drive

Bearings..................................................................................................... Shielded & Permanently Lubricated

Minimum Workpiece Length........................................................................................................................ 6 in.

Model T33295 (Mfd. Since 03/23)

Operation Info

Number of Feed Speeds....................................................................................................................... Variable

Feed Speeds.................................................................................................................................... 7 - 86 FPM

Swing.................................................................................................................................................... 360 deg.

Vertical Movement................................................................................................................................. 7-1/2 in.

Horizontal Movement........................................................................................................................... 16-3/4 in.

Rotation................................................................................................................................... Forward/Reverse

Roller Info

Number of Rollers............................................................................................................................................. 7

Roller Width.......................................................................................................................................... 2-3/8 in.

Roller Diameter.................................................................................................................................... 2-5/16 in.

Roller Suspension..................................................................................................................................... 3/8 in.

Maximum Height Rollers Parallel Table Surface................................................................................... 7-1/2 in.

Construction Info

Roller...................................................................................................................................................... Rubber

Housing...................................................................................................................................... Cast Aluminum

Supports............................................................................................................................................... Cast Iron

Column................................................................................................................................................. Cast Iron

Paint Type/Finish.................................................................................................................................... Enamel

Other

Column Diameter................................................................................................................................... 2-1/4 in.

Other Specifications:

Country of Origin .............................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 45 Minutes

Serial Number Location .................................................................................................................................. ID Label

ISO 9001 Factory .................................................................................................................................................. Yes

Features:

7 Spring-Powered Rollers
Variable-Speed Adjustment Dial
Crank Handle Vertical Adjustment
Rack-and-Pinion Horizontal Movement
Large Feed Speed Digital Readout
Push-Button ON/OFF Switch and Feed Direction
7 Rollers Allow for Safe Handling of Shorter Workpieces
Shorter Distance Between Rollers Allow for More Contact and Control of Workpiece

Model T33295 (Mfd. Since 03/23)

-7-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-8-

Model T33295 (Mfd. Since 03/23)

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model T33295 (Mfd. Since 03/23)

-9-

Additional Safety for Power Feeders

Serious injury or death can occur from getting hands, clothing, or jewelry entangled in moving
parts of power feeder or being pulled into cutting tool on attached machinery. Workpieces
ejected by attached machine can strike operator or bystanders with significant force, causing
impact injuries. To minimize risk of injury, anyone operating this machine MUST completely
heed hazards and warnings below.

HAND SAFETY. To reduce risk of accidental

entanglement/pinch injuries between power feed­er rollers and workpiece, or contact with blade/cut­ter of associated machine, keep hands away from
rotating parts of power feeder. Turn power feeder
and associated machine OFF before removing
chips, sawdust, or cutoffs—DO NOT use your
hands.

INSTALLING GUARDS. To reduce risk of kick­back and accidental contact with blade/cutter
of associated machine, always install guards,
fences, and hold-downs before starting attached
machine and power feeder. Repair or replace
guards promptly if they become damaged.

KICKBACK. Occurs when workpiece is ejected
from machine at a high rate of speed. To reduce
risk of kickback-related injuries (blindness, broken
bones, bruises, amputation, severe lacerations,
and death), use quality workpieces and proper
setup or maintenance of power feeder or associ­ated machine. Never stand in path of workpiece.

VERIFY EACH SETUP. An improperly adjusted
power feeder can increase risk of kickback,
because it will continue feeding even if stock is
not properly positioned for cut. Ensure that power
feeder is set up correctly and firmly secured
before feeding workpiece.

FEATHERBOARD. When cutting long or large
stock that is difficult to feed properly, use a feath­erboard with power feeder (on the infeed side) to
maintain even pressure and control of workpiece
against fence, and to help reduce risk of kickback.

FEED WORKPIECE PROPERLY. To reduce risk
of kickback, verify blade or cutter of associated
machine is at full speed before feeding stock
with power feeder. Avoid feeding workpiece too
quickly. Always verify power feeder wheels are
slightly lower than workpiece to ensure it will not
slip during cutting operation. Stop power feeder
BEFORE stopping cutting tool.

WORKPIECE SUPPORT. Loss of workpiece con­trol while feeding can increase risk of kickback.
Support workpiece continuously during opera­tion as required. Use auxiliary stands or support
tables for long or wide stock.

ADJUSTMENTS/MAINTENANCE. Make sure
power feeder and associated machine are turned
OFF, disconnected from power, and all moving
parts are completely stopped before doing adjust­ments or maintenance.

ATTACHED MACHINERY. Follow all warnings
and safety information for attached machine doing
cutting work.

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

-10 -

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

Model T33295 (Mfd. Since 03/23)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Full-Load Current Rating at 220V .... 2.3 Amps

Model T33295 (Mfd. Since 03/23)

Circuit Requirements

Nominal Voltage .........20 8V, 22 0V, 230V, 24 0V

Cycle .......................................................... 60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 15 Amps

Plug/Receptacle ............................. NEMA 6-15

-11-

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding Requirements

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

No adapter should be used with plug. If

process. DO NOT connect to power until

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

Grounding Pin

Figure 4. Typical 6-15 plug and receptacle.

plug does not fit available receptacle, or if
machine must be reconnected for use on a
different type of circuit, reconnection must
be performed by an electrician or qualified
service personnel, and it must comply with
all local codes and ordinances.

-12-

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................18 AWG

Maximum Length (Shorter is Better).......50 ft.

Model T33295 (Mfd. Since 03/23)

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

at [phone].

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

The following items are needed, but not included,
for the setup/assembly of this machine.

Unpacking

If items are damaged

call us immediately

Save all packaging materials until

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency replacements can be
obtained at your local hardware store.

Box 1 (Figure 5) Qty

A. Power Feeder Assembly ............................ 1

B. Lower Elbow-Joint ...................................... 1

C. Base Bolt Pattern Template ........................ 1

D. Indicator Sticker .......................................... 1

E. Angle Adjustment Scale ............................. 1

F. Rotation Knob M10-1.5 ............................... 1

Needed for Setup

Description Qty

• Safety Glasses (for each person) ............... 1

• Cleaner/Degreaser .................... As Needed

• Shop Rags .................................. As Needed

• Disposable Gloves ..................... As Needed

• Hex Wrench 4, 5, 8mm ........................1 Ea.

• Phillips Head Screwdriver #2 ..................... 1

• C-Clamps ................................................... 2

• 12" 2x4 Wood Block ................................... 1

• Open-End Wrench 12, 14mm, 11⁄16" ......1 Ea.

• Power Drill .................................................. 1

• Drill Bit & Tap ............................................. 1

• Optional Mounting Hardware ...... As Needed

• Thread Locking Fluid .................. As Needed

• Gear Oil (80-90W) ...................... As Needed

A

F

Box 2 (Figure 6) Qty

G. Base and Vertical Column Assembly ......... 1

H. Overarm Shaft ............................................ 1

I. Hex Bolts M12-1.75 x 50 (Mounting) ........... 4

J. Lock Washers 12mm (Mounting) ................ 4

K. Vertical Travel Crank Handle ...................... 1

L. Upper Elbow-Joint ...................................... 1

G

E

Figure 5. Box 1 inventory.

L

Figure 6. Box 2 inventory.

B

D

K

C

H

I

J

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

Model T33295 (Mfd. Since 03/23)

Inventory

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-13-

Hardware Recognition Chart

USE THIS CHART TO MATCH UP
HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.

Flat
Head
Cap
Screw

-14-

5mm

5mm

Model T33295 (Mfd. Since 03/23)

Cleanup

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2. Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak

3.

scrape off as much as you can first, then wipe

4.

then coat all unpainted surfaces with a quality

Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein­forcement to support the weight of the machine
and workpiece materials.

or disable start switch or

Consider anticipated workpiece sizes and addi­tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the

Site Considerations

Workbench Load

Placement Location

37½"

20½"

Put on safety glasses.

for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,

off the rest with the rag.

Repeat Steps 2–3 as necessary until clean,

metal protectant to prevent rust.

NOTICE

Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted sur­faces. Always test on a small, inconspicu­ous location first.

Model T33295 (Mfd. Since 03/23)

Figure 7. Minimum working clearances.

Note: Power feeder can rotate 360° around the

vertical column, so be sure to situate machine so
it can freely rotate. The machine is shown here
with the overarm shaft fully extended.

Children and visitors may be
seriously injured if unsuper­vised around this machine.
Lock entrances to the shop

power connection to prevent
unsupervised use.

-15-

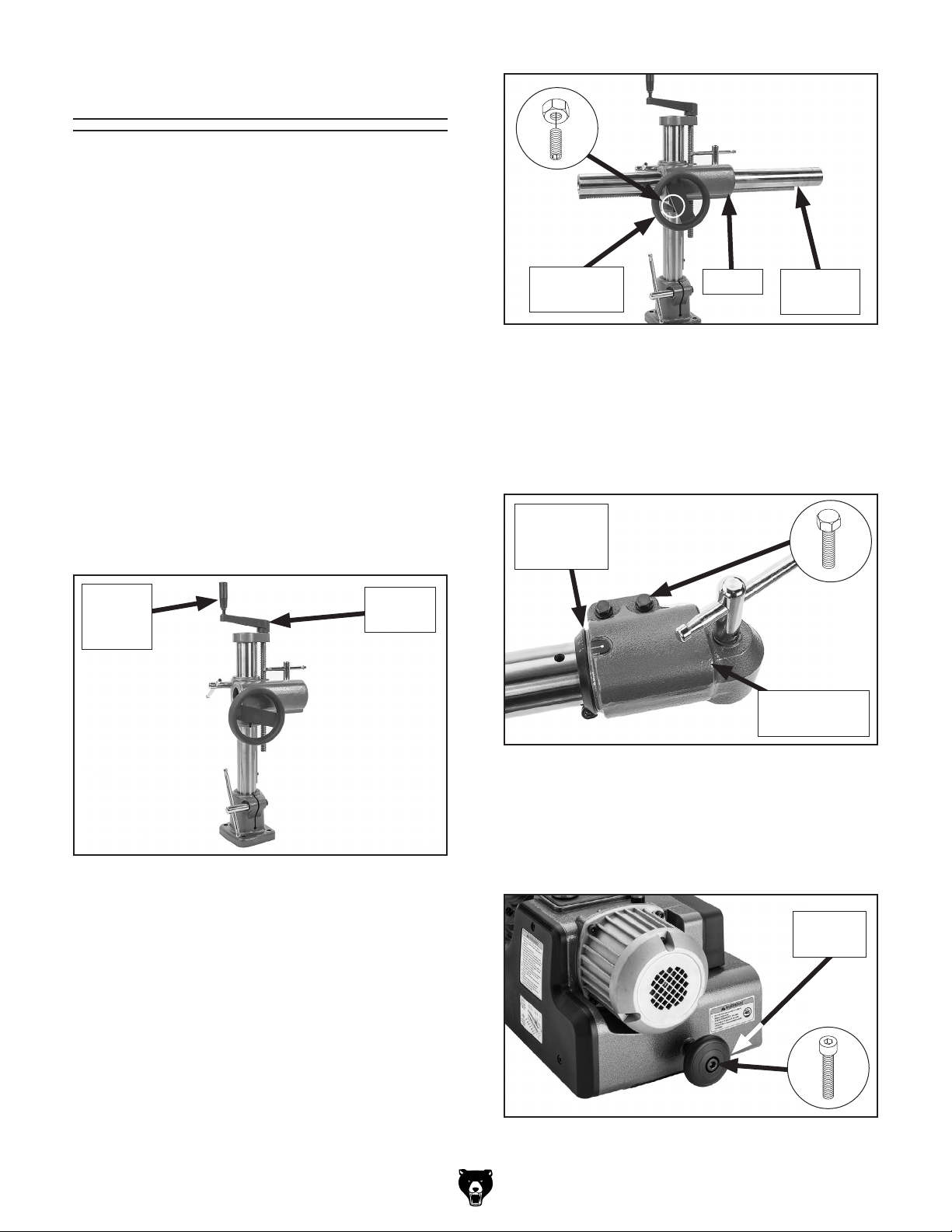

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to

and gather

all

To ensure the assembly process

goes smoothly, first clean any

cov­ered or coated in heavy-duty rust preventative (if
applicable).

listed items.

Needed for Setup

parts that are

Tip: We recommend using a set of C-clamps to
temporarily secure the base while assembling the
power feeder to prevent it from tipping. You will
mount the power feeder to the machine table after
completing the assembly process. Refer to Base
Mounting on Page 18 for specific details.

To assemble machine:

1. Place vertical column assembly onto machine

table top, then attach vertical travel handle to
vertical crank shown in Figure 8.

Vertical

Travel

Handle

Vertical

Crank

Horizontal

Handwheel

Figure 9. Overarm shaft installed onto vertical

column.

4. Slide angle adjustment scale onto overarm

shaft, slide upper elbow-joint onto overarm
shaft, then secure for now by tightening one
of the hex bolts shown in Figure 10.

Angle

Adjustment

Scale

Sleeve

Overarm

Shaft

x 2

Upper Elbow-

Joint

Figure 8. Vertical travel handle installed.

2. Loosen hex nut and set screw under hori-

zontal handwheel shown in Figure 9, then
remove horizontal handwheel.

3. Feed overarm shaft into sleeve of vertical
column (see Figure 9). Re-install handwheel
and engage gears with overarm shaft teeth.
Tighten set screw and hex nut just enough to
secure handwheel.

Note: Do not overtighten set screw or hand-

wheel will not rotate.

-16 -

Figure 10. Angle adjustment scale installed onto

upper elbow-joint.

5. Attach rotation knob to power feeder (see
Figure 11) using pre-installed cap screw,

flange nut, and (2) flat washers.

Rotation

Knob

Figure 11. Rotation knob installed.

Model T33295 (Mfd. Since 03/23)

6. Thread lower elbow-joint lever all the way

into threads of axial hub on power feeder
(see Figure 12).

8. Position upper elbow-joint so internal
threads contact those inside lower elbow­joint, then fully tighten upper elbow-joint lock
(see Figure 14).

Lower

Elbow-Joint

Lever

Axial Hub

Figure 12. Attaching lower elbow-joint.

7. Loosen vertical and horizontal travel locks and

rotation lock, then use horizontal handwheel
and vertical travel handle to position upper
elbow-joint directly over hub of lower elbow­joint (see Figure 13).

Tip: Place a short (approx. 12" long) 2x4

under power feeder to make it level with table
top and make it easier to connect upper and
lower elbow-joints during next step.

Upper

Elbow-Joint

Lock

Figure 14. Upper elbow-joint lock fully tightened.

9. Adjust rollers parallel to table top, then tight-
en hex bolts shown in Figure 15.

10. Remove backing from indicator line sticker

and install in recess on upper elbow-joint, as
shown in Figure 15.

11. Position angle adjustment scale so it just
contacts upper elbow-joint, align "0" on
scale with indicator line, then tighten screw
(see Figure 15).

Upper

Elbow-Joint

Lower

Elbow-Joint

Rotation

Lock

Figure 13. Upper and lower elbow-joints aligned.

2x4

Indicator

Line

Sticker

"0"

Angle

Adjustment

Scale

Figure 15. Angle adjustment scale and indicator

line sticker installed.

Model T33295 (Mfd. Since 03/23)

-17-

Base Mounting

Position the power feeder on the table top to
determine where to drill the base mounting holes
in order to maximize power feeder swing and
adjustment options.

Use the included base bolt pattern template to
align the mounting holes. Consider the available
mounting choices for your needs: Through-Bolt

Mounting and Direct Mounting (discussed on
Page 19).

With either mounting choice, leave room to oper­ate the hand cranks and lock levers to position the
rubber rollers parallel with the table surface and
approximately
workpiece.

1

⁄8" lower than the thickness of the

Also, aim the front of the power feeder slightly
towards the machine fence (see Figure 16)
with approximately 1° to 1.5° toe-in toward the
machine fence, so the rubber rollers lightly push
the workpiece against the fence during cutting
operations.

If cutting long or large stock that is difficult to feed
properly, use a featherboard before the power
feeder (on the infeed side) to maintain even pres­sure and control of the workpiece against the
fence.

7-Roller

Models

Table SawShaper

Blade

Feed

Feed

Cutter

Fence

Jointer

Feed

Cutterhead

Optional

Featherboard

Fence

Figure 16. Typical power feed mounting on a shaper, jointer, and table saw.

Fence

-18-

Model T33295 (Mfd. Since 03/23)

Through-Bolt Mounting

We recommend mounting the power feeder to the
machine table with through bolts, nuts, and wash­ers (see Figure 17). This provides the most rigid­ity and clamping strength to prevent the feeder
base from twisting out of alignment during use.
However, if under-table support webs interfere
with washer or nut locations, drill and thread holes
directly into the table (Direct Mounting). Use the
included mounting template as a guide.

Feeder
Base

Bolt

Flat Washer

Checking Gearbox

Oil Level

Before starting the machine for the first time,
check the oil level in the gearbox. The gearbox
has the proper amount of oil when the sight glass
is filled approximately halfway. DO NOT mix oil
types.

Items Needed Qty

Hex Wrench 4mm .............................................. 1

Gear Oil 80-90W ............................... As Needed

To check gearbox oil level:

1. Rotate machine so chain cover is facing up.

Machine Table

Flat Washer

Table Support
Webbing

Lock Washer

Locking Hex Nut

Figure 17. Through-bolt mounting.

Direct Mounting

Use the included mounting template to drill and
tap the table so the power feeder base can be
directly mounted to the table surface (see Figure

18). Use medium-grade liquid thread-locking com­pound on all threads. If the table is less than
thick where the holes will be drilled and tapped,
or if support webbing interferes, the threads may
strip or loosen during power feeder use. Thread­locking compound is not a permanent solution.
Revert to the Through-Bolt Mounting or clamp­ing kit options.

3

⁄8"

2. Locate gearbox sight glass beneath control
panel (see Figure 19).

Gearbox

Sight Glass

Oil Plug

Figure 19. Oil plug and gearbox sight glass

locations.

— If sight glass is filled approximately

halfway, then gearbox oil level is okay.
Proceed to Test Run.

Feeder
Base

Machine Table

Table Support
Webbing

Bolt

Lock Washer

Flat Washer

Apply Medium Grade
Thread-Locking Compound

Figure 18. Direct mounting.

Model T33295 (Mfd. Since 03/23)

— If sight glass is not filled approximately

halfway, then you need to add more oil.
Proceed to Step 3.

3. Remove chain cover.

4. Remove oil plug (see Figure 19) and add

gear oil until sight glass is filled approximately
halfway, then replace oil plug.

5. Install chain cover and rotate power feeder
back into position for operation.

-19 -

Test Run

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

To test run machine:

1. Clear all setup tools away from machine.

2. Adjust and lock power feeder so rollers are

held approximately 1" above machine table
and nothing will interfere with roller rotation.

3. Connect power feeder to power supply.

Troubleshooting

The Test Run consists of verifying the following:

1) The motor powers up and runs correctly, and 2)
the control panel works correctly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

may result in malfunction or unexpect-

death, or machine/property damage.

For the following Test Run steps, refer to Figure 20.

4. Press ON/OFF button. Digital readout will

illuminate.

5. Press SET button, and use variable-speed
adjustment dial to select 10 FPM on readout.
Number will flash for 10 seconds, then glow
steadily.

6. P r e s s f o r w a r d f e e d d i r e c t i o n b u t t o n
( ), then press and hold variable-speed
adjustment dial until you hear a beeping sound
and outside edge of panel glows red. Motor
should run smoothly and without unusual
problems or noises. Rollers should rotate in a
counterclockwise direction (when viewed from
top).

— If motor or rollers do not function cor-

rectly, disconnect from power and refer
to Troubleshooting on Page 30 before
completing Test Run.

7. Press variable-speed adjustment dial. Rollers
should stop rotating.

— If rollers stop rotating, variable-speed

adjustment dial is functioning correctly.
Proceed to Step 8.

Readout

Variable-

Speed

Adjustment

Dial

Figure 20. Readout illuminated.

-20-

ON/

OFF

Button

Forward

Direction

Reverse

Direction

Feed

Button

Set

Button

Feed

Button

— If rollers do not stop rotating, variable-

speed adjustment dial is NOT function­ing correctly. Contact Grizzly Technical
Support before preceding with Test Run.

8. P r e s s r e v e r s e f e e d d i r e c t i o n b u t t o n
( ), then press and hold variable-speed
adjustment dial until you hear a beep and
control panel glows red. Rollers should rotate
in clockwise direction (when viewed from top).

9. Press variable-speed adjustment dial to stop
rollers.

Test Run is complete.

Model T33295 (Mfd. Since 03/23)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

To reduce risk of eye injury from flying

Operation Overview

To complete a typical operation, the operator
does the following:

1. Examines workpiece to make sure it is suit-

able for cutting operation.

machine controls/components

are easier to understand.

seek additional

, and do additional research

using machine.

chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.

2. Adjusts machine cutter/blade and fence for

desired operation.

3. Checks outfeed side of machine for proper

support and to make sure workpiece can
safely pass all the way through cutter/blade
without interference.

4. Loosens upper elbow-joint lock and points

power feeder 1° to 1.5° toward machine
fence, so rollers will lightly push workpiece
against fence during cutting operations, then
tightens elbow-joint lock.

5. Loosens vertical travel lock and lower elbow-

joint lock, then adjusts position of power feed­er so rollers are parallel with table surface
and 1⁄8" lower than thickness of workpiece,
then tightens all locks.

6. Checks to make sure rollers are clear of cut-

ter or blade.

7. (Optional) positions featherboard on infeed

side for cutting long or large stock that is dif­ficult to feed properly.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Model T33295 (Mfd. Since 03/23)

8. Sets feed speed and direction using control

panel.

9. Puts on safety glasses and a respirator.

10. Starts machine, then starts power feeder.

Feeds stock into power feeder, maintaining
firm pressure on workpiece against table and
fence.

11. Stops power feeder, then stops machine.

-21-

Basic Use & Care

You MUST assemble all guards, fences, and
hold-downs before starting your machine or
power feeder. Failure to heed this warning
could result in amputation or death!

Next, adjust power feeder so the rollers are parallel
with the table surface and approximately 1⁄8" lower
than the thickness of the workpiece, as shown in
Figure 22. This ensures that the workpiece will
not slip or hang during a cut. Always double check
that the power feeder rollers are always slightly
lower than the workpiece before you begin feed­ing operations. Otherwise, the workpiece may slip
and kick back.

Power feeders reduce kickback hazards and
improve cutting results by feeding in a consistent
and stable manner. Remember, DO NOT stand in
the path of potential kickback. When not in use,
support the power feeder with a wooden block so
the rollers are raised above the table and do not
compress from the weight of the power feeder.

The lock levers and hand cranks allow you to
adjust the power feeder tracking and height to
accommodate many workpiece sizes. Before
loosening any lock lever, always support the
power feeder with a block of wood so the power
feeder does not drop and cause damage.

Adjust the power feeder so it is toed-in approxi­mately 1° to 1.5° towards the machine fence, as
shown in Figure 21. This adjustment will ensure
that the power feeder rollers slightly push the
workpiece against the fence during cutting opera­tions. Use a featherboard on the infeed side to
assist with feeding long or large stock.

Roller

Approx. 1/8"

Workpiece

Machine Table

Figure 22. Rollers adjusted approximately 1⁄8"

below workpiece.

1° to 1.5° Angle

Optional

Featherboard

Feed

Figure 21. Example of power feeder toe-in on

table saw.

-22-

Model T33295 (Mfd. Since 03/23)

Changing Speeds

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

maintenance, or service.

Adjusting Roller

Angle

The Model T33295 can be positioned to feed
workpieces so the rollers are angled relative to
the machine fence from 45°–90°. For example, it
can be positioned at 90° to feed stock against a
fence, or positioned at 45° for making bevel cuts
on a jointer.

Variable-Feed Speeds ...................... 7–86 FPM

Users can change the feed rate by adjusting the
variable-speed adjustment dial on the control
panel.

To change speed:

1. Press SET button on control panel, as shown

in Figure 23.

Note: Current feed rate will flash for up to

10 seconds, after which SET button must be
pressed again to adjust feed rate.

Use the controls shown in Figure 24 to position
the power feeder for incline feeding.

Upper Elbow-

Joint Lock

Lower Elbow-

Joint Lock

Rotation Knob

Figure 24. Location of controls for re-positioning

power feeder for incline feeding.

x 2

Variable-Speed

Adjustment Dial

Figure 23. Location of SET button and variable-

speed adjustment dial on control panel.

2. Rotate variable-speed adjustment dial to

desired feed rate.

Model T33295 (Mfd. Since 03/23)

SET

Button

Tools Needed Qty

Open-End Wrench or Socket 14mm ................. 1

To position power feeder for vertical/incline
feeding:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen rotation lock and swing power feeder
off of machine table (see Figure 24).

3. Loosen (2) hex bolts on upper elbow-joint,

rotate upper elbow to desired angle, then
tighten hex bolts (see Figure 24) to secure
setting.

4. Loosen upper elbow-joint lock and lower
elbow-joint lock (see Figure 24).

-23-

5. While holding onto rotation knob with one

hand, disengage swivel lock pin, rotate power
feeder clockwise (flip it upside down) so it is
oriented as shown in Figure 25, then move it
back over table and up against fence.

Swivel

Lock Pin

(Side View)

Power
Feeder

Power
Feeder

Wheel

Table

Figure 27. Example of power feeder set up for

45° feeding operation on jointer.

Workpiece

Jointer
Fence
at 45º

Rotation Knob

Figure 25. Example of rotating power feeder for

vertical or incline feeding.

6. Lower power feeder and adjust it as needed

so rollers are parallel with workpiece and
workpiece is firmly against fence, as shown
in Figures 26–27.

(Side View)

Power

Feeder

Power Feeder Roller

Workpiece

Fence

7. Tighten all locks on power feeder and vertical
column.

8. Repeat Steps 2–7 in reverse order to repo­sition power feeder for non-angle feeding
operations.

Table

Figure 26. Example of power feeder set up for

90° feeding operation on shaper against a fence.

-24-

Model T33295 (Mfd. Since 03/23)

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

T28172 —14" x 39" Heavy-Duty Roller Table
T28369 —14" x 78" Heavy-Duty Roller Table
T28370 —14" x 118 " Heavy-Duty Roller Table

Increase material handling and processing effi­ciency with one or more of these Heavy-Duty
Roller Tables. Ideal for easily positioning material
for cross cutting or cutting to length using a chop
saw or metal cutting bandsaw. Simply place a
roller table on one or both sides of your saw and
production time is automatically improved!

T27630—Lumber Rack 6-Shelf System

The T27630 Lumber Rack 6-Shelf System is just
the thing for your shop. Easy to install into a sturdy
wall, each shelf can hold up to 100 pounds and
uses 1" powder-coated steel supports for a clean,
long-lasting support of your workpieces.

Figure 29. T27630 Lumber Rack 6-Shelf

System.

T33851—Replacement Roller for T33295
These 23⁄8" wide x 25⁄16" diameter rollers are
made from synthetic rubber and fit the T33295.

Figure 30. T33851 Replacement Roller.

Figure 28. Heavy-duty roller tables.

Model T33295 (Mfd. Since 03/23)

-25-

order online at www.grizzly.com or call 1-800-523-4777

G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT® 12 Oz. Spray

Use on cast iron table surfaces and other unpaint­ed metal surfaces to reduce sliding friction and
hangups. This product also reduces rust and pre­vents resin build-up.

T26419—Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized hydrocar­bon basestocks that are compounded with special
thickeners and additives to make Syn-O-Gen
non-melt, tacky, and water resistant. Extremely
low pour point, extremely high temperature oxida­tion, and thermal stability produce a grease that is
unmatched in performance.

Figure 33. Recommended product for machine

lubrication.

Figure 31. SLIPIT® gel and spray.

Basic Eye Protection

T32323—Woodturners Face Shield
T32401—EDGE Brazeau Safety Glasses, Clear
T32402—EDGE Khor G2 Safety Glasses, Tint
T32404—EDGE Mazeno Safety Glasses, Clear

T32323 T32401

T32402

Figure 32. Assortment of basic eye protection.

T32404

H8255—Grease Gun
The single hand lever pump action and a flex­ible nozzle allows this heavy-duty Grease gun
to access hard-to-reach places. It uses standard

1

⁄2 oz. grease cartridges, or can be easily con-

14
verted to allow filling from a bulk container or
filler pump.

Figure 34. H8255 Grease Gun.

-26-

Model T33295 (Mfd. Since 03/23)

SECTION 6: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged rollers.

• Worn or damaged switch, cord, and plug.

• Any other unsafe condition.

Every 8 Hours of Operation

• Check gearbox oil level (Page 19).

• Lubricate chains and sprockets (Page 29).

• Lubricate vertical travel leadscrew

(Page 29).

• Lubricate lock levers (Page 29).

• Lubricate overarm rack (Page 29).

Monthly Maintenance

• Lubricate roller and chain grease fittings

(Page 28).

• Change gearbox oil—after first month

(Page 28).

Every 6 Months

• Change gearbox oil (Page 28).

Model T33295 (Mfd. Since 03/23)

Cleaning &

Protecting

Cleaning the Model T33295 is relatively easy.
Frequently blow off sawdust with compressed air.
This is especially important for internal working
parts and the motor. Dust build-up around the
motor will decrease its lifespan. If rollers become
loaded up with pitch, oil, or other residues, wipe
with a clean rag and soap and water. Keep min­eral spirits away from plastic parts or painted sur­faces to avoid damage.

Lubrication

Other than the lubrication points covered in this
section, all other bearings are internally lubricated
and sealed at the factory. Simply leave them
alone unless they need to be replaced.

Before performing any lubrication task,
DISCONNECT MACHINE FROM POWER!

IMPORTANT: Before adding lubricant, clean any
debris and grime from fill hole/grease fitting and
immediate area to prevent contamination of new
lubricant.

Use the schedule below and the following instruc­tions to properly lubricate the other components
that require lubrication.

Frequency

Lubrication Task

Roller & Chain Grease
Fittings

Gearbox 1000 Hrs.

Chains & Sprockets 8 Hrs.

Vertical Travel Leadscrew 8 Hrs.

Lock Levers 8 Hrs.

Overarm Rack 8 Hrs.

(Hours of

Operation)

200 Hrs.

Page

Ref.

28

28

29

29

29

29

-27-

Items Needed Qty

NLGI#2 Grease or Equivalent ........... As Needed

ISO 32 Oil or Equivalent .................... As Needed

80-90W Gear Oil ............................... As Needed

Clean Shop Rags .............................. As Needed

Mineral Spirits .................................... As Needed

Brushes ............................................. As Needed

1-Gallon Catch Pan ........................................... 1

Grease Gun 1⁄8" NPT ......................................... 1

Hex Wrenches 3, 4mm ................................1 Ea.

Roller Lubrication & Chain Grease
Fittings

Lube Type ............. T26419 or NLGI#2 Equivalent

Amount ................................................1–2 Pump

Lubrication Frequency .......200 Hrs. of Operation

Grease Gun ....................................................... 1

Wipe the roller lubrication points and chain grease
fittings clean and lubricate with one pump from
a grease gun filled with NLGI#2 grease (see
Figures 35–36). Spread the grease around the
roller lubrication points. It will be necessary
to remove the chain cover to access the chain
grease fittings.

Gearbox

Lube Type ................................. 80-90W Gear Oil

Amount ...................................................4.05 Oz.

Lubrication Frequency:

• 200 Hrs./First Month of Operation

• 1000 Hrs./6 Months of Operation

The gearbox should be drained and refilled after
the first month or 200 hours of use. For the
remaining life of the power feeder, change oil
every six months or 1000 hours of use.

To change gearbox oil:

1. DISCONNECT MACHINE FROM POWER!

2. Rotate power feeder off of machine table,

remove chain cover, and tighten rotation lock.

3. Rotate power feeder upside down so chains
face down.

4. Place drain pan under plug labeled "OIL,"
then remove plug (see Figure 37) and drain
oil.

Roller Lubrication Points

Figure 35. Location of roller lubrication points.

Grease Fittings

Oil Sight

Glass

Plug

Figure 37. Location of gearbox plug/oil drain and

sight glass.

5. Rotate power feeder 180 degrees so chains
are facing up, fill gearbox with oil until oil level
is at halfway point in sight glass, then replace
plug.

6. Install chain cover and rotate power feeder
back into position for operation.

Figure 36. Location of chain grease fittings

(chain cover removed).

-28-

Model T33295 (Mfd. Since 03/23)

Chains & Sprockets

Lube Type ............. T26419 or NLGI#2 Equivalent

Amount .................................................Thin Coat

Lubrication Frequency ...........8 Hrs. of Operation

Lock Levers

Lube Type ........................... ISO 32 or Equivalent

Amount .................................................Thin Coat

Lubrication Frequency ...........8 Hrs. of Operation

Use mineral spirits to clean any debris and built­up grime. To prevent rust and binding, brush the
sprockets and chains (see Figure 38) with a light
film of NLGI#2 grease. It will be necessary to
remove the chain cover to access the chain and
sprockets.

Sprockets

(4 of 8)

Chains (3 of 7)

Figure 38. Location of chain and sprockets

(chain cover removed).

Vertical Travel Leadscrew

Lube Type ............. T26419 or NLGI#2 Equivalent

Amount .................................................Thin Coat

Lubrication Frequency ...........8 Hrs. of Operation

Use mineral spirits to clean any debris and built­up grime. Brush a thin coat of lubricant on the
threads of the leadscrew (see Figure 39), then
rotate leadscrew through its full path to distribute
the grease.

To prevent rust and binding, periodically clean
and oil all lock-lever and leadscrew threads
(see Figure 40) with light machine oil.

Figure 40. Location of levers to lubricate.

Overarm Rack

Lube Type ............. T26419 or NLGI#2 Equivalent

Amount .................................................Thin Coat

Lubrication Frequency ...........8 Hrs. of Operation

Clean the overarm rack teeth (see Figure 41) with
mineral spirits, shop rags, and a brush. When dry,
use a brush to apply a thin coat of grease to the
teeth, then move the overarm back and forth sev­eral times to distribute the grease.

Vertical

Travel

Leadscrew

Figure 39. Vertical travel leadscrew.

Model T33295 (Mfd. Since 03/23)

Overarm

Rack

Figure 41. Overarm rack teeth.

-29-

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Motor does not
start or power
supply breaker
(or fuse) trips
immediately
upon startup.

Machine
stalls or is
underpowered.

Machine has
vibration or
noisy operation.

1. Blown fuse.

2. Incorrect power supply voltage or circuit size.

3. Power supply circuit breaker tripped or fuse
blown.

4. Wiring broken, disconnected, or corroded.

5. ON/OFF switch at fault.

6. Circuit board at fault.

7. Motor or motor bearings at fault.

1. Workpiece crooked; fence loose or
misadjusted.

2. Gearbox at fault.

3. Circuit board at fault.

4. Pulley/sprocket slipping on shaft.

5. Motor overheated.

6. Extension cord too long.

7. Motor or motor bearings at fault.

1. Motor or component loose.

2. Incorrectly mounted.

3. Workpiece loose.

4. Rollers protruding unevenly.

5. Motor bearings at fault.

1. Replace fuse/ensure no shorts.

2. Ensure correct power supply voltage and circuit size.

3. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.

4. Fix broken wires or disconnected/corroded
connections.

5. Replace ON/OFF switch.

6. Inspect/replace if at fault.

7. Test/repair/replace.

1. Straighten or replace workpiece/adjust fence.

2. Replace broken or slipping gears.

3. Inspect/replace if at fault.

4. Tighten/replace loose pulley/shaft.

5. Clean motor, let cool, and reduce workload.

6. Move machine closer to power supply; use shorter

extension cord.

7. Replace motor.

1. Replace damaged or missing bolts/nuts or tighten if
loose.

2. Adjust or tighten mounting hardware.

3. Move rollers closer to workpiece (Page 22).

4. Adjust rollers.

5. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

Operations

Symptom Possible Cause Possible Solution

Workpiece
jams when
feeding under
rollers.

Workpiece slips
while passing
beneath rollers.

Workpiece cut
is burnt.

-30-

1. Rollers positioned too low.

2. Feeder at wrong angle.

1. Rollers positioned too high.

2. Workpiece too dusty.

3. Rollers dirty or oily.

4. Feed speed too fast.

5. Worn roller(s).

6. Rollers loose.

1. Feed speed too slow.

2. Dull cutter or blade.

1. Raise feeder (Page 22).

2. Adjust angle (Page 23).

1. Lower power feeder roller 1⁄8" lower than height of
workpiece (Page 22).

2. Wipe dust off workpiece.

3. Clean roller surface with soap and warm water.

4. Reduce feed speed.

5. Replace roller(s) (Page 31).

6. Tighten rollers (Page 31).

1. Increase feed speed.

2. Install sharp cutter or blade.

Model T33295 (Mfd. Since 03/23)

Operations (Cont.)

accidental startup, always
disconnect machine from

Symptom Possible Cause Possible Solution

Rough finish or
chipped grain
on workpiece.

Workpiece
hangs up and
does not enter
the machine.

Error message
on control
panel (E1, E2,
E3).

Replacing Rollers

1. Feed speed too fast.

2. Dull cutter or blade.

3. Power feeder angle not toed-in to keep
workpiece against fence.

1. Rollers positioned too high. 1. Lower power feeder roller 1⁄8" lower than height of

1. (E1) Motor failed to start; workpiece jammed.

2. (E2) Circuit board temperature too high.

3. (E3) Motor temperature too high.

1. Reduce feed speed.

2. Replace with sharp cutter or blade.

3. Adjust power feeder so it is toed in 1° to 1.5° toward

fence (Page 22).

workpiece (Page 22).

1. Remove jammed workpiece.

2. Allow circuit board to cool.

3. Allow motor to cool.

2. Remove hex nut and washer that secure
roller (see Figure 42).

To reduce risk of shock or

power before adjustments,
maintenance, or service.

Over time, the rubber rollers will wear down or
become damaged. When this occurs, they can be
easily replaced.

Items Needed Qty

Socket

11

⁄16" ......................................................... 1

Socket Wrench .................................................. 1

Replacement Rollers (Model T33851). . As Needed

To replace roller:

1. DISCONNECT MACHINE FROM POWER!

Hex Nut

Figure 42. Roller hex nut location.

3. Remove and replace roller.

4. Install hex nut and washer and tighten.

Model T33295 (Mfd. Since 03/23)

-31-

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-32-

Model T33295 (Mfd. Since 03/23)

Wiring Diagram

J011240

220V

BLDC Motor

L1
L2

ON/OFF

Digital Readout

Button

L1
L2

U

V

W

U

V

W

L1

L2

GND

PE

Fuses

8A 250V
8A 250V

CN1

CN2

F1

F2

RS485

Circuit Board

SUT-19522

JACKCON

1000µF

200V

Circuit Board

Pu

W

BT-220-RT-V1

+

JACKCON

1000µF

200V

-

CN2

V

U

Ground

+

-

L1
L2

Ground

Pu

ON

1

2

G

Hot

220

VAC

Hot

6-15 Plug

Figure 43. Motor circuit board wiring. Figure 44. Digital readout circuit board.

Model T33295 (Mfd. Since 03/23)

READ ELECTRICAL SAFETY

ON PAGE 32!

-33-

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Main

38

32

88

82

50-1

50-2

50-3

50

80

19

86

51

89

18

85

50-5

84

81

83
87

50-4

7

17

22

15

14

16

23

24

1

6

2

5

26

4

3

20

28

27

25

70

52

L1

L1

L2

L2

L3

L3

13

12

68

67

66

55

69

9

9

20

20

9

20

9

58

57

54

92

91

59

21

56

53

21

71

74

73

72

21

8

9

60

46

48

61

47

62

64

63
65

63-1

63-4

63-2

63-3

63-5

43

37

36

30

35

31

34

45

33

44

41

42

29

11

40

39

38

10

49

75

76

78

90

77

79

-34-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model T33295 (Mfd. Since 03/23)

REF P ART # DES CRIP TI ON REF P ART # DES CRIPTION

SPEE D ADJ USTMENT DI A L

Main Parts List

1 PT33295001 SPLINED DRIVESHAFT 50-2 PT33295050-2
2 PT33295002 BLOCK JOINT 12MM 50-3 PT33295050-3
3 PT33295003 BUTTON HD CAP S CR M5-1 . 0 X 9 50-4 PT33295050-4
4 PT33295004 INT TOOTH WASHER #10 50-5 PT33295050-5
5 PT33295005 DRIVESHAFT LINKAGE 51 PT33295051 TAP SCREW M4 X 12
6 PT33295006 CROSS PIN 4.5 X 21.8 52 PT33295052 STRAIN RELIEF TYPE-3 PG11
7 PT33295007 KEYED DRIVESHAFT 53 PT33295053 CIRCUI T BOA RD COVER
8 PT33295008 EXT RETAI NING RI NG 17 MM 54 PT33295054 CAP SCREW M5-.8 X 25
9 PT33295009 GREASE FITTING M6-1 STRAIGHT 55 PT33295055 WI RE CLAMP
10 PT33295010 POWER FEEDER BODY 56 PT33295056 TAP SCREW M4 X 8
11 PT33295011 BUSHING 35MM 17ID X 35OD X 5L 57 PT33295057 CONTROL LER CI RCUIT B OARD
12 PT33295012 OIL SI GHT GLASS 58 PT33295058 CAP SCREW M5-.8 X 40
13 PT33295013 OIL SI GHT GLASS PANEL 59 PT33295059 FUSE 8A 250V 0.25" FAST-ACTING, GLASS
14 PT33295014 PIVOT BUSHING 60 PT33295060 SPACER
15 PT33295015 BUS HI NG 61 PT33295061 O-RING 59.4 X 3.1 G60
16 PT33295016 HEX NUT M18-1. 5 62 PT33295062 MOTOR OIL SEAL
17 PT33295017 CHAI N BUSHI NG 63 PT33295063 MOTOR 400W 220V V1
18 PT33295018 I NT TOOTH WA SHER 23. 5MM 63-1 PT33295063-1
19 PT33295019 HEX NUT M22-1. 5 63-2 PT33295063-2
20 PT33295020 TORSION SPRING (LEFT) 63-3 PT33295063-3
21 PT33295021 TORS I ON SP RI NG (RI GHT) 63-4 PT33295063-4
22 PT33295022 SHOLDER BOLT M8-1.25 63-5 PT33295063-5
23 PT33295023 LOCK WASHER 8MM 64 PT33295064 LOCK WASHER 6MM
24 PT33295024 HEX NUT M8-1. 25 65 PT33295065 CAP SCREW M6-1 X 20
25 PT33295025 ROLLER PIVOT HOUSING 66 PT33295066 CAP SCREW M5-.8 X 12
26 PT33295026 BUS HI NG 67 PT33295067 FLA T WASHER 5MM
27 PT33295027 I NT TOOTH WA SHER 23. 5MM 68 PT33295068 LOCK WASHER 5MM
28 PT33295028 HEX NUT M22-1. 5 69 PT33295069 GROUND WIRE 18G 1W 24MM
29 PT33295029 WORM GEAR 30T 70 PT33295070 ON/OFF SWITCH FI NGLAI R16-503AD
30 PT33295030 WORM G EAR SHAFT 71 PT33295071 SPACER 14 X 22 X 12MM
31 PT33295031 KEY 6 X 6 X 18 72 PT33295072 ROLLER 59MM X 60MM
32 PT33295032 EX T RETAI NI NG RI NG 15 MM 73 PT33295073 SPLINED WASHER 14MM
33 PT33295033 BALL BEARING 6003ZZ 74 PT33295074 HEX NUT M12-1.75
34 PT33295034 OIL SEAL 17 X 32 X 7MM 75 PT33295075 CHAI N CO VER
35 PT33295035 O-RING 71.4 X 3.1 G72 76 PT33295076 CAP SCREW M6-1 X 20
36 PT33295036 WORM GEAR COVER 77 PT33295077 CAP SCREW M6-1 X 30
37 PT33295037 CAP SCREW M6-1 X 16 78 PT33295078 BOTTOM COVER
38 PT33295038 SPROCKET 12T X 3/8" 79 PT33295079 BUTTO N HD CAP SCR M5- . 8 X 10
39 PT33295039 WAVY WASHER 17MM 80 PT33295080 LOWER ELBOW PIVOT JOINT
40 PT33295040 BUS HI NG 81 PT33295081 CAP SCREW M8-1.25 X 25
41 PT33295041 CHAI N 14S 82 PT33295082 LOCK PIN
42 PT33295042 CHAI N 12S 83 PT33295083 LOWER ELBOW JOINT
43 PT33295043 CHAI N 21S 84 PT33295084 LOCATING PIN
44 PT33295044 O-RING 11.8 X 2.4 P12 85 PT33295085 COMPRESSION SPRING 0.8 X 8 X 23
45 PT33295045 OIL FILL PLUG 86 PT33295086 PIVOT LOCK KNOB M6-1, 22D
46 PT33295046 KNOB M10-1.5, D65D, ROUND KD 87 PT33295087 LOCKING SHAFT M16-1.5 X 82
47 PT33295047 CAP SCREW M10-1.5 X 50 88 PT33295088 ADJUSTABLE HANDLE 108L
48 PT33295048 FLA T WASHER 10 MM 89 PT33295089 ROLL PIN 6 X 22
49 PT33295049 FLANGE NUT M10-1.5 90 PT33295090 POWER CORD 3W 18G 72" 6-15P
50 PT33295050 DRO 91 PT33295091 MOTO R CI RCUI T BOARD
50-1 PT33295050-1

92 PT33295092 PHLP HD SCR M4-.7 X 8

DRO COVER PLATE
DRO COVER
DRO CI RCUI T BOA RD
TAP SCREW M3 X 8

MOTOR FAN CO VER
BUTTON HD CAP SCR M5- . 8 X 1 2
MOTOR FAN
BALL BEARING 6005-2RS (FRONT)
BALL BEARING 6201-2RS (REAR)

Model T33295 (Mfd. Since 03/23)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

-35-

Column & Stand

109

123

120

107

122
121

110

114

135

137

112

111

113

136

124

116

134

115

119

126

115

117

116

118

125

130

129

131

127

140

128

139

141

138

150

147

145

146

151

148

144

-36-

108

105

106

101

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

104

103

102

132

133

142

143

149

Model T33295 (Mfd. Since 03/23)

Column & Stand Parts List

REF P ART # DES CRIPTIO N RE F P ART # DES CRIPTION

101 PT33295101 VERTICAL COLUMN BASE ASSY 127 PT33295127 ROLL PIN 6 X 36
102 PT33295102 VERTICAL COLUMN BASE 128 PT33295128 ELEVATION HANDLE ASSEMBLY
103 PT33295103 HEX BOLT M12-1.75 X 75 129 PT33295129 HOLLOW HANDLE 25 X 69, 10
104 PT33295104 INT TOOTH WA SHER 12MM 130 PT33295130 CAP SCREW M10-1.5 X 85
105 PT33295105 FLAT WASHER 12MM 131 PT33295131 HE X NUT M10 -1.5
106 PT33295106 SLIDING T-HANDLE 200MM 132 PT33295132 ROLL PIN 6 X 36
107 PT33295107 HEX BOLT M12-1.75 X 50 133 PT33295133 HANDWHEEL TYPE-17 160D X 17MM
108 PT33295108 LOCK WASHER 12MM 134 PT33295134 PINION
109 PT33295109 VERTICAL COLUMN ASSEMBLY 135 PT33295135 SET SCREW M8-1.25 X 25 DOG-PT
110 PT33295110 VERTI CA L COL UMN 136 PT33295136 LOCK WASHER 8MM
111 PT33295111 VERTI CA L COL UMN RACK 137 PT33295137 HEX NUT M8-1 . 25
112 PT33295112 CAP SCREW M5-.8 X 10 138 PT33295138 OVER ARM SHAFT 720MM
113 PT33295113 CAP SCREW M5-.8 X 16 139 PT33295139 OVER ARM SHAFT RACK 650MM
114 PT33295114 ELEVATING BRACKET 140 PT33295140 CAP SCREW M5-.8 X 10
115 PT33295115 HEX BOLT M12-1.75 X 75 141 PT33295141 ANGLE DIAL SCALE
116 PT33295116 LOCK WASHER 12MM 142 PT33295142 PHLP HD SCR M4-. 7 X 15
117 PT33295117 FLAT WASHER 12MM 143 PT33295143 HE X NUT M4- . 7
118 PT33295118 SLIDING T-HANDLE 150MM 144 PT33295144 UPPER ELBOW JOINT
119 PT33295119 ELEVATION LEADSCREW 145 PT33295145 STRAIN RELIEF TYPE-1 6MM
120 PT33295120 FINNED ANCHO R M8-1 . 25 146 PT33295146 LOCK WASHER 10MM
121 PT33295121 FLAT WASHE R 8MM 147 PT33295147 HEX BOLT M10-1.5 X 50
122 PT33295122 CAP SCREW M8-1.25 X 25 148 PT33295148 POINTER PANEL
123 PT33295123 COLUMN CAP 149 PT33295149 LOCKING SHAFT M16-2
124 PT33295124 LEADSCRE W BUSHI NG 150 PT33295150 T-HANDLE, 150MM W/HOLE FOR PIN
125 PT33295125 FLAT WASHER 17 X 30 X 0.5MM 151 PT33295151 ROLL PIN 6 X 22
126 PT33295126 ELEVATION HANDLE ARM 130L

Model T33295 (Mfd. Since 03/23)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

-37-

• Do not expose to rain or use in

206

REF PART # DESCRIP TION REF PART # DESCRIP TION

201 PT33295201 WATER EXPOSURE WARNING LABEL 205 PT33295205 LUBRI CATI ON NOTI CE
202 PT33295202 ELECTRICITY LABEL 206 PT33295206 MACHINE ID LABEL
203 PT33295203 SLIP ROLL WARNING 207 PT33295207 COMBO WARNING LABEL
204 PT33295204 OPERATION WARNING LABEL

208 PT33295208 TOUCH-UP PAINT, GRIZZLY GREEN

damp locations.

• AVERTISSEMENT!: Ne pas
exposer à la pluie et ne pas
utiliser dans les emplacements
humides.

HAZARD!

WARNING!

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call [phone] or
go to www.grizzly.com.

WARNING!

ENTANGLEMENT

Tie back long hair, roll up
long sleeves, and remove
loose clothing, jewelry, or
gloves to prevent getting
caught in moving parts.

207

DISCONNECT
POWER BEFORE
ADJUSTMENTS,
MAINTENANCE, OR
SERVICE.

201

Labels & Cosmetics

208

202

CRUSHING

INJURY HAZARD!

Do not place hands
between top and
bottom rollers.
Crushing injuries may
occur.

203

WARNING

To reduce risk of serious injury when using:

1. Read and understand owner’s manual before
operating.

2. Always wear eye protection.

3. Only plug power cord into a grounded outlet.

4. Keep hands away from rotating wheels or other
moving parts that could cause entanglement.

5. Keep guards in place at all times.

6. Do not wear loose clothing, gloves, jewelry, or
other items that can get entangled. Tie back
long hair and roll up sleeves.

7. Disconnect power before servicing, adjusting.

8. Do not operate under influence of drugs,
alcohol, or when tired.

9. Properly install and adjust machine before
starting.

10. Adjust wheel height for each workpiece
thickness to reduce risk of kickback.

11. Do not use with workpieces shorter than
specified minimum length.

204

1

Every 1000

Hours 80-90W

Gear Oil

2

Every 200

Hours NLGI

2 Grease

MODEL T33295
EASY FEEDER

Specifications

Power Requirement: 220V, 1-Ph, 15A, 60 Hz
Motor: 500 Watt (2/3 HP), 220V, 1-Ph, 60 Hz, 2.3A
Feed Speed: 7–86 FPM (Variable)
Roller Width: 2-3/8'', Roller Suspension: 3/8''
Minimum Workpiece Length: 6''
Movement: 7-1/2'' (Vertical), 16-3/4'' (Horizontal)
Weight: 119 lbs.

Date

Mfd. for Grizzly in Taiwan

S/N

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-38-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model T33295 (Mfd. Since 03/23)

2

2

2

2

2

2

2

2

2

2

1

2

2

2

2

205

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To
you can
applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY
