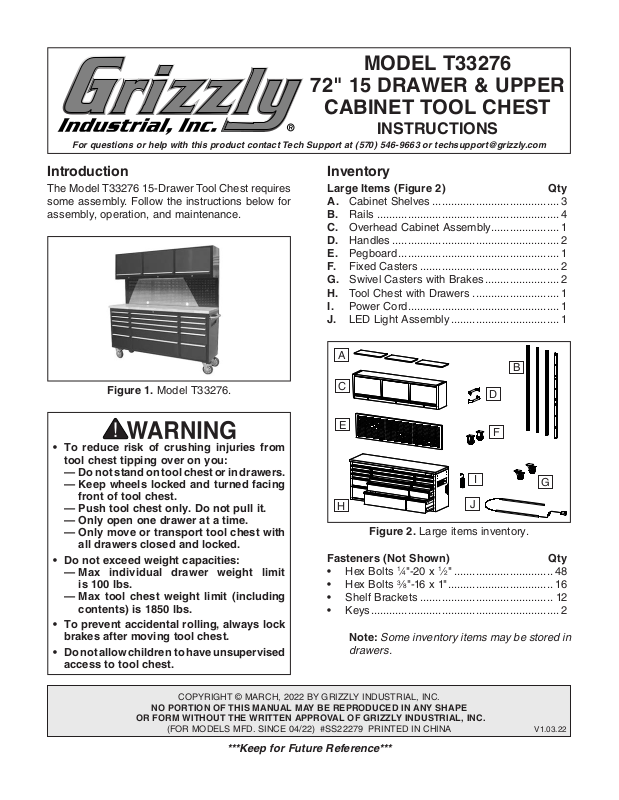

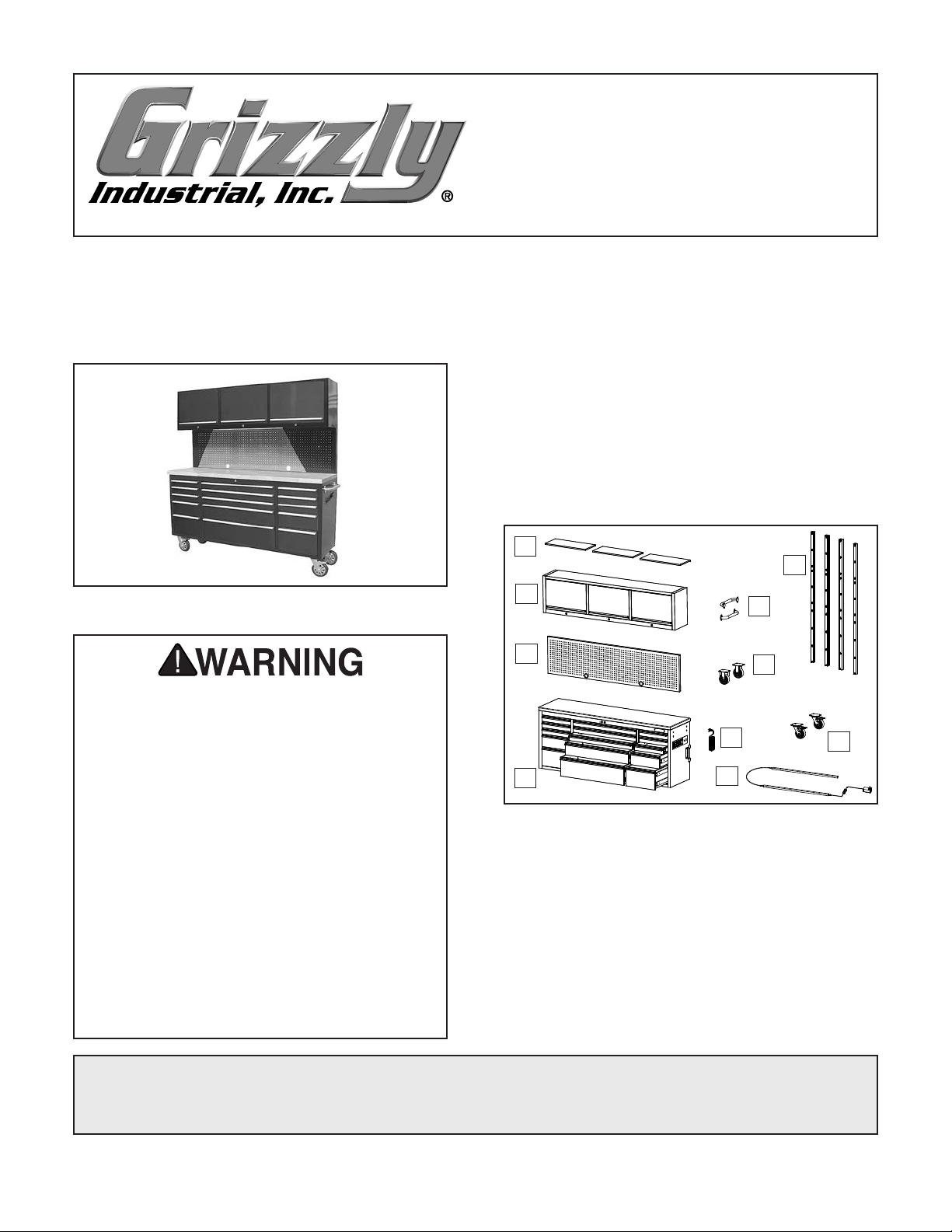

Grizzly T33276 User guide

MODEL T33276

72" 15 DRAWER & UPPER

CABINET TOOL CHEST

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T33276 15-Drawer Tool Chest requires
some assembly. Follow the instructions below for
assembly, operation, and maintenance.

Figure 1. Model T33276.

• To reduce risk of crushing injuries from
tool chest tipping over on you:
— Do not stand on tool chest or in drawers.
— Keep wheels locked and turned facing

front of tool chest.
— Push tool chest only. Do not pull it.
— Only open one drawer at a time.
— Only move or transport tool chest with

all drawers closed and locked.

• Do not exceed weight capacities:
— Max individual drawer weight limit

is 100 lbs.

— Max tool chest weight limit (including

contents) is 1850 lbs.

• To prevent accidental rolling, always lock
brakes after moving tool chest.

• Do not allow children to have unsupervised
access to tool chest.

Inventory

Large Items (Figure 2) Qty

A. Cabinet Shelves ......................................... 3

B. Rails ........................................................... 4

C. Overhead Cabinet Assembly ...................... 1

. Handles ...................................................... 2

D

. Pegboard .................................................... 1

E

. Fixed Casters ............................................. 2

F

Swivel Casters with Brakes ........................ 2

G.

Tool Chest with Drawers ............................ 1

H.

Power Cord ................................................. 1

I.

LED Light Assembly ................................... 1

J.

A

B

C

E

H

Figure 2. Large items inventory.

Fasteners (Not Shown) Qty

• Hex Bolts 1⁄4"-20 x 1⁄2 " ................................ 48

• Hex Bolts 3⁄8"-16 x 1" .................................. 16

• Shelf Brackets ........................................... 12

• Keys ............................................................. 2

Note: Some inventory items may be stored in

drawers.

D

F

I

J

G

COPYRIGHT © MARCH, 2022 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 04/22) #SS22279 PRINTED IN CHINA V1.0 3.22

***Keep for Future Reference***

Needed for Setup

Description Qty

• Additional Person ....................................... 1

• Open-End Wrenches 7⁄16", 9⁄16" ..............1 Ea.

Assembly

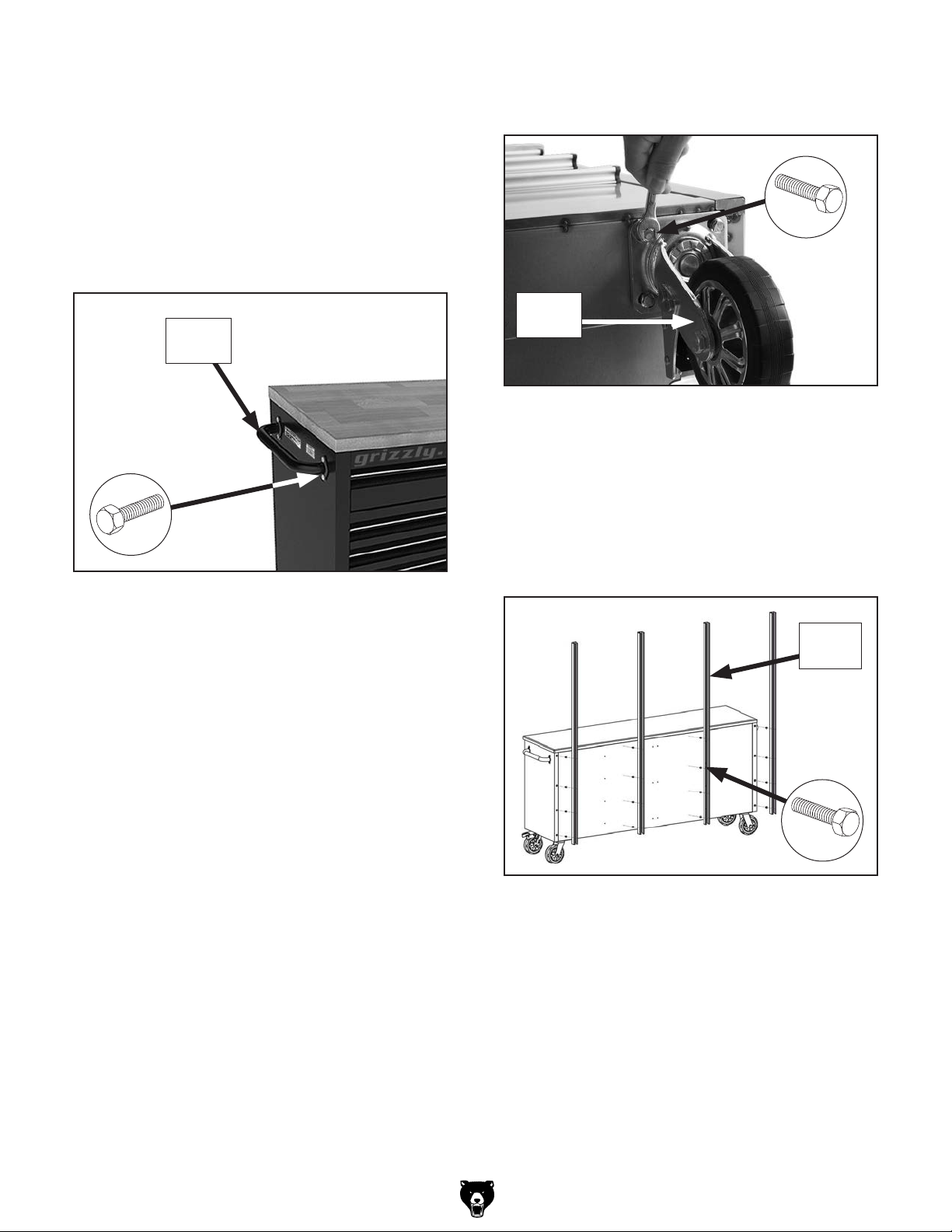

1. Attach handle to each side of tool chest with

(4) 1⁄4"-20 x 1⁄2" hex bolts (see Figure 3). Do
not over-tighten!

Handle
(1 of 2)

4. Attach each caster using (4) 3⁄8"-16 x 1" hex
bolts (see Figure 4).

x 16

Caster

(1 of 4)

Figure 4. Example of caster installation.

Note: Install swivel casters on right side of

tool chest.

Return tool chest to upright position.

5.

x 4

Figure 3. Example of handle installed.

2. Remove casters and hardware from bottom

drawer.

With help from another person, lay back of

3.

tool chest flat on floor.

Note: We recommend sweeping the floor

clean and laying down a piece of cardboard
or blanket to prevent scratching the finish
during this step.

Attach (4) rails to tool cabinet with (4) 1⁄4"-20

6.

Note: Before tightening hex bolts, make sure

1

⁄2" hex bolts for each rail (see Figure 5).

x

Rail

(1 of 4)

x 16

Figure 5. Rail installation.

to slide rails up so that hex bolts sit in bottom
of rail slots.

-2-

Model T33276 (Mfg. Since 4/22)

Pre install (12) 1⁄4"-20 x 1⁄2" hex bolts to peg

7.

board, but do not thread on completely (see
Figure 6).

Align hex bolts on pegboard with slots in

8.

rails. Allow bolts to rest at bottom of slot, and
tighten to secure pegboard.

x 12

Figure 6. Pegboard installation.

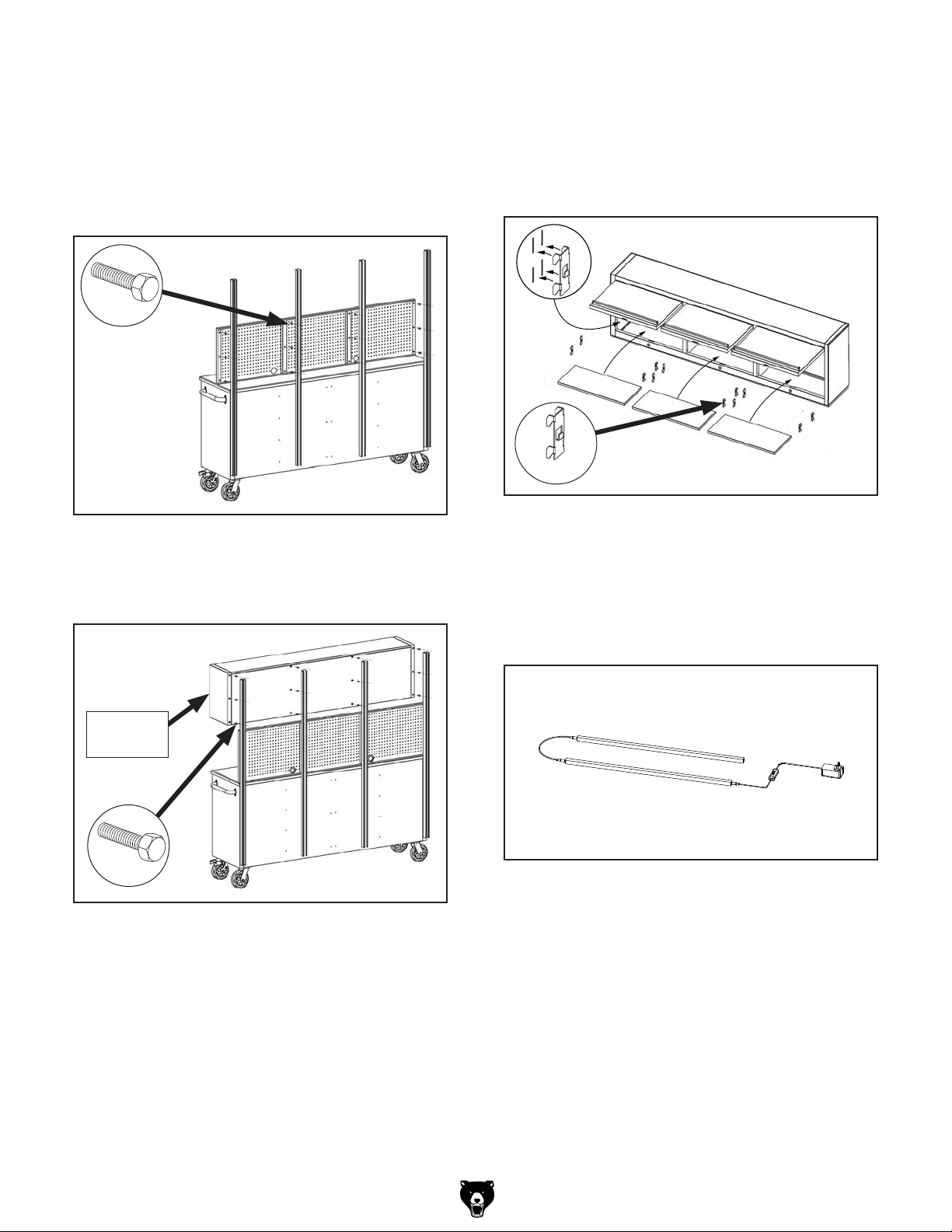

Attach cabinet assembly to rails with (12) 1⁄4"-

9.

1

⁄2" hex bolts (see Figure 7).

20 x

10. Insert (4) shelf brackets inside upper cabinet
at desired height. Place shelf on shelf brackets
(see Figure 8).

11. Repeat Step 9 for other shelves (see
Figure 8).

x 12

Figure 8. Shelf installation.

Connect lights from LED light assembly (see

12.
Figure 9) and install pegboard.

Note: LED light assembly is magnetic and

can be installed anywhere on pegboard.

Cabinet

Assembly

x 12

Figure 7. Cabinet installation.

Figure 9. LED light assembly.

Model T33276 (Mfg. Since 4/22)

-3-

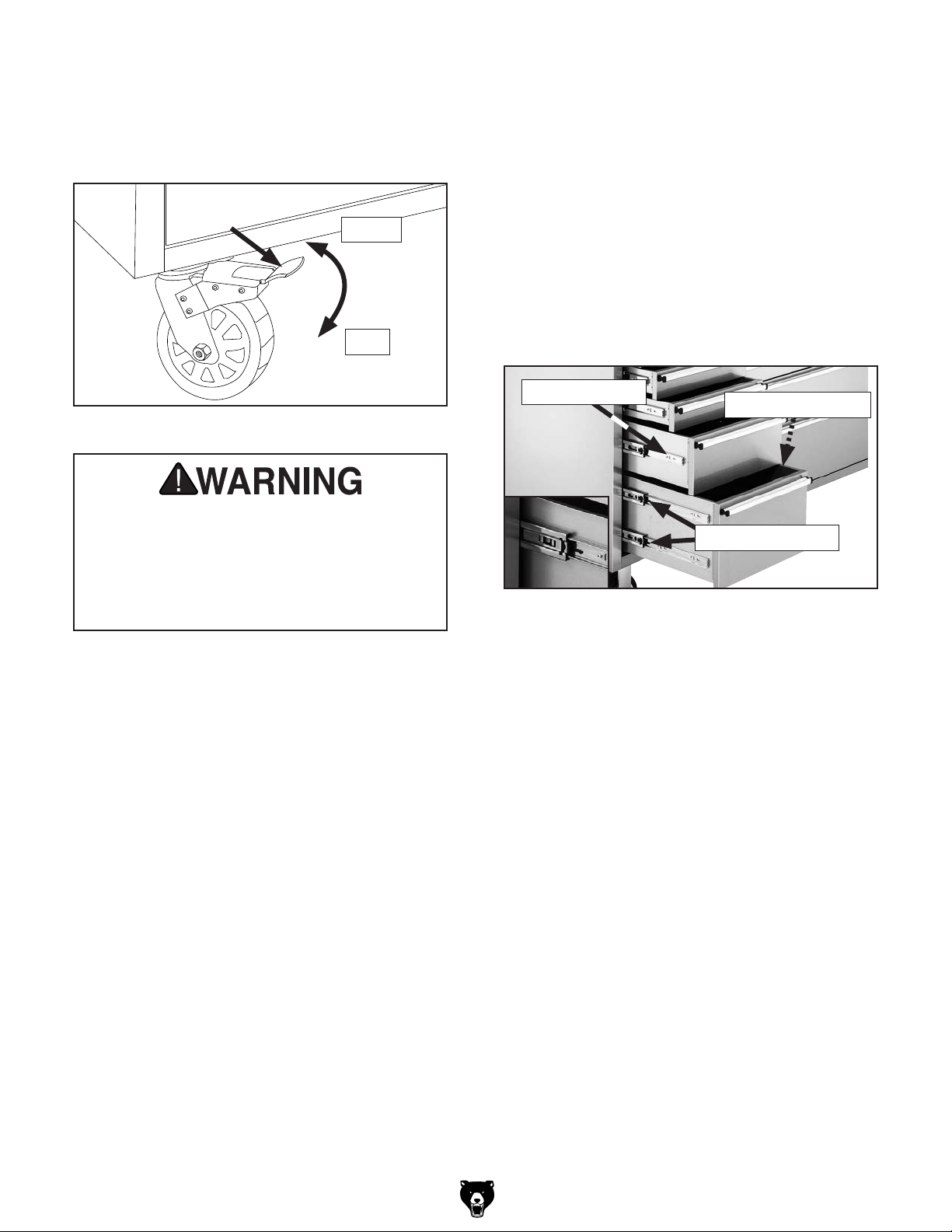

Locking Caster

To lock caster, press down on caster lock (see
Figure 10). Secure each corner caster to ensure
tool cabinet will not shift position.

Caster Lock

Unlock

Lock

Removing & Installing Drawers

The drawers can be removed and re-installed if
necessary.

To remove and install drawers:

Fully extend drawer and remove contents.

1.

2. Push left locking tab down and hold, then pull
right locking tab up and hold (see Figure 11).

Note: Larger lower drawers feature two

guides per side.

Figure 10. Location of caster lock.

Tool chests can tip and cause crushing
injury when wheels are not set up properly.
When stationary, wheels should always
be locked and turned facing the front of
the tool chest to avoid injury and prevent
tipping accidents.

Maintenance

• Use soft, clean cloth and soapy water (use
regular dish soap) to remove grease, dirt, or
oil. Do not use solvents or flammable clean­ing liquids.

• Lubricate drawer slides as needed with dry
lubricant, such as Grizzly's Model G4682
Spraway Dry Coating Lube.

• Use graphite to lubricate lock annually.

Drawer Runner

Figure 11. Example of location of drawer locking

tabs.

3. Pull drawer out to remove.

To re-install, insert drawer runners into slides

4.

(see Figure 11) and push drawer completely
in. The locking tabs will automatically snap
into place to secure drawer in slides.

Right Locking Tab

Left Locking Tabs

Locking Drawers & Cabinets

Use the included keys to secure the drawers and
cabinets. Only completely closed drawers and
cabinets will lock.

-4-

Model T33276 (Mfg. Since 4/22)

Power Strip

or equipment damage

The T33276 features a pre-installed power strip
with (4) 5-15 outlets and (2) USB ports conveniently
located for easy access. The included power strip
has the following ratings:

Max. Amperage Load .................................. 12A

Max. Voltage

..........................................................60 Hz

Cycle
Max. Wattage
USB Output

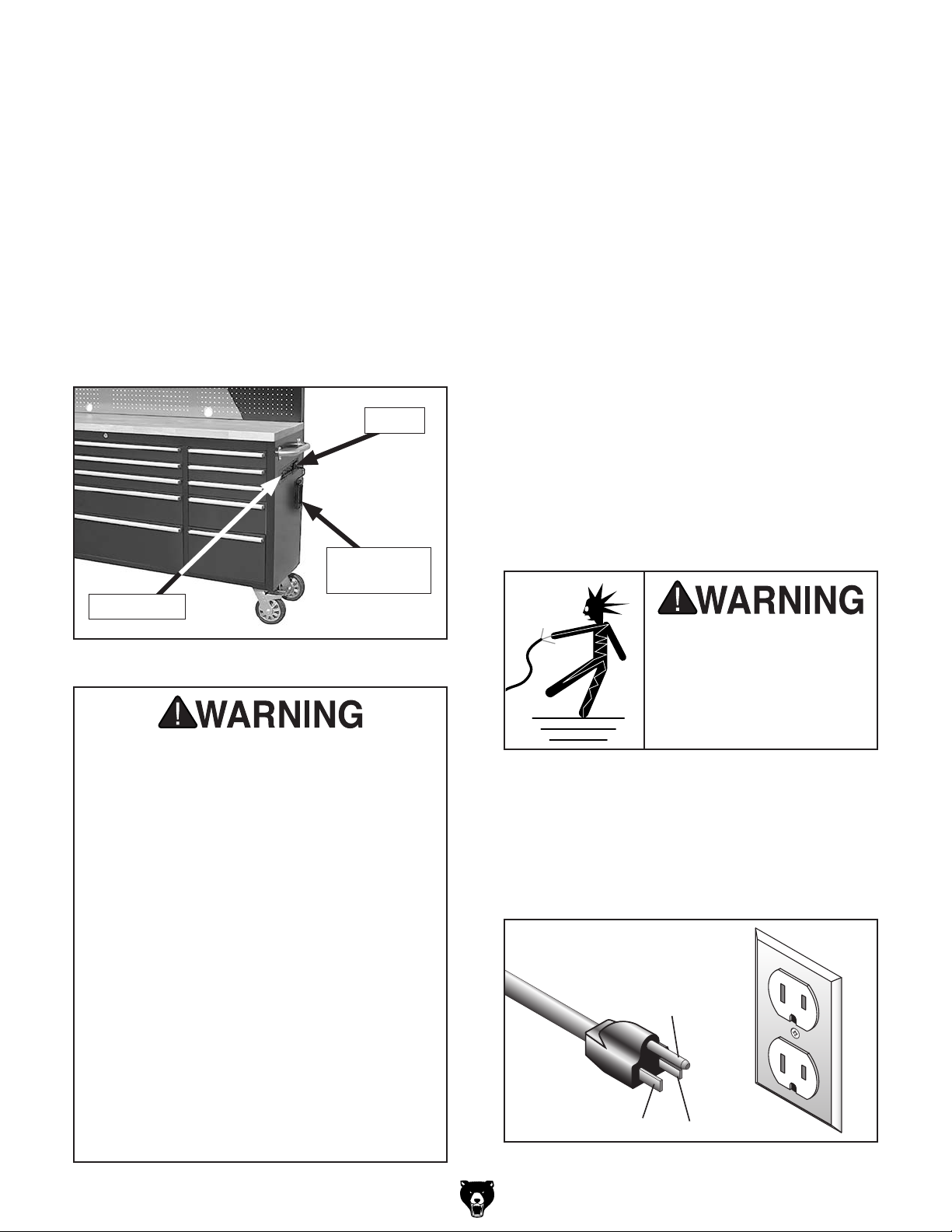

Plug the provided power cord into the power strip
socket (see Figure 12).

Power Strip

Figure 12. Power strip and plug location.

• Do not connect to plug receptacle via
extension cords or in series with other
power strips.

• Keep electrical connections clear of flam­mable materials.

• Keep electrical connections dry. Do not
use in damp or wet conditions.

• Do not connect devices to power strip
that draw more than listed power strip
rating. Equipment must be used in accor­dance with any instructions or labeling.

• Power strips are designed for use with
low-powered loads, such as battery char­gers. Not designed for use with high­powered loads, such as space heaters or
microwaves.

• Do not run cord under floor coverings or
where it may be tripped over.

• Not meant for outdoor use.

• Prevent unauthorized use by children or
untrained users.

..............................................125V

..........................................1500W

............................ 5VDC, Max. 2.1A

Socket

Power Cord

w/Plug

110V Circuit Requirements

This tool chest is prewired to connect to a power
supply circuit that has a verified ground and
meets the following requirements:

Nominal Voltage .................... 110V, 115 V, 120V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit

A power supply circuit includes all electrical equip­ment between the breaker box or fuse panel in the
building and the power strip. The power supply
circuit used for this power strip must be sized to
safely handle the full-load current drawn from the
power strip for an extended period of time. (If this
power strip is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

........................................... Single-Phase

......................... 15 Amps

Grounding & Plug Requirements

This power strip MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

Electrocution, fire, shock,

may occur if power strip
is not properly grounded
and connected to power
supply.

This power strip is equipped with a power cord
that has an equipment-grounding wire and a
grounding plug. Only insert plug into a matching
receptacle (outlet) that is properly installed and
grounded in accordance with all local codes and
ordinances. DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Neutral Hot

Figure 13. Typical 5-15 plug and receptacle.

Model T33276 (Mfg. Since 4/22)

-5-

20

21

12

5

22

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

19

28

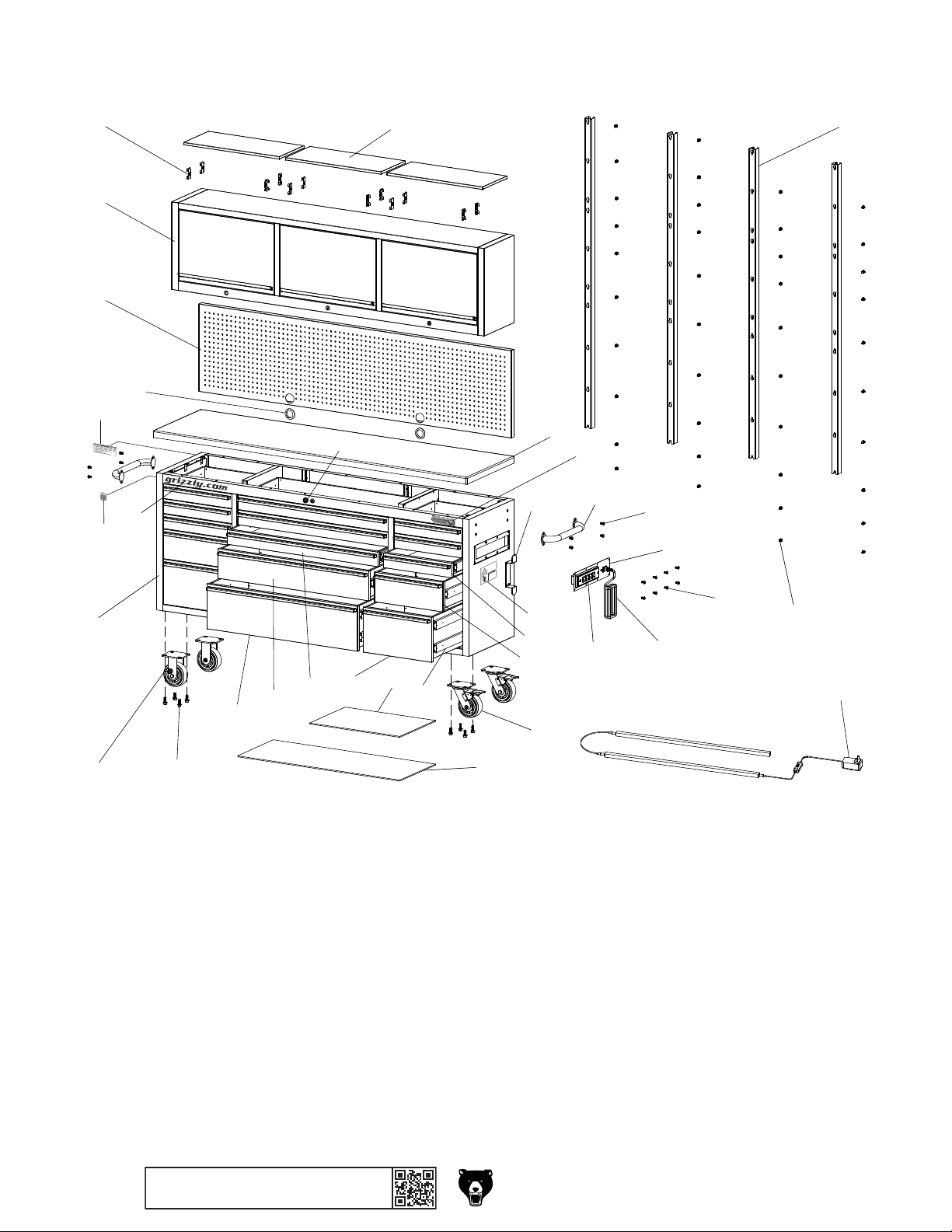

T33276 Parts Breakdown

1

4

11

25

26

31

10

3

27

29

FIRE HAZARD!

Do not connect
equipment with
higher amperage
rating than this
receptical.

• 110V

• Single-Phase

• 12 Amps Max.

34

24

23

13

14

33

30

32

9

7

35

17

16

15

18

6

2

8

-6-

BUY PARTS ONLINE AT GRIZZLY.C OM!

Scan QR code to visit our Parts Store.

Model T33276 (Mfd. Since 04/22)

T33276 Parts List

REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON

1 PT33276001 GROMMET 19 PT33276019 PEGBOARD
2 PT33276002 HEX BOLT 3/ 8-16 X 1 20 PT33276020 CABINET SHELF
3 PT33276003 HEX BOLT 1/ 4-20 X 1/2 21 PT33276021 SHELF BRACKET
4 PT33276004 LOCK SET WITH 2 KEYS 22 PT33276022 CABI NET RAI L
5 PT33276005 CASTER, 6" FIXED 23 PT33276023 LED LIGHT ASSEMBLY
6 PT33276006 CASTER, 6" SWIVEL WITH BRAKE 24 PT33276024 HEX BOLT 1/4-20 X 1/2
7 PT33276007 DRAWER LI NER, SMALL 25 PT33276025 GRIZZLY NAMEPLATE
8 PT33276008 DRAWER LI NER, LARGE 26 PT33276026 GRIZZLY.COM LABEL
9 PT33276009 TOOL CHEST BODY 27 PT33276027 QR CODE LABEL
10 PT33276010 HANDLE 28 PT33276028 WARNI NG LABEL
11 PT33276011 WOOD TO P 29 PT33276029 MOUNTI NG PLATE
12 PT33276012 CABINET BODY 30 PT33276030 POWER STRIP 18G 3W 6"
13 PT33276013 DRAWER, OUTER TO P 31 PT33276031 POWER CORD BRACKET
14 PT33276014 DRAWER, OUTER MI DDLE 32 PT33276032 POWER CORD 18G 3W 72" 5-15P/C14
15 PT33276015 DRAWER, OUTER L OWER 33 PT33276033 POWER STRIP LABEL
16 PT33276016 DRAWER, CENTER TO P 34 PT33276034 PHLP HD SCR 8-32 X 1/2
17 PT33276017 DRAWER, CENTER MI DDLE 35 PT33276035 DRAWER SLIDE SET
18 PT33276018 DRAWER, CENTER L OWER

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

Model T33276 (Mfd. Since 04/22)

BUY PARTS ONLINE AT GRIZZLY.C OM!

Scan QR code to visit our Parts Store.

-7-

-8-

BUY PARTS ONLINE AT GRIZZLY.C OM!

Scan QR code to visit our Parts Store.

Model T33276 (Mfd. Since 04/22)
