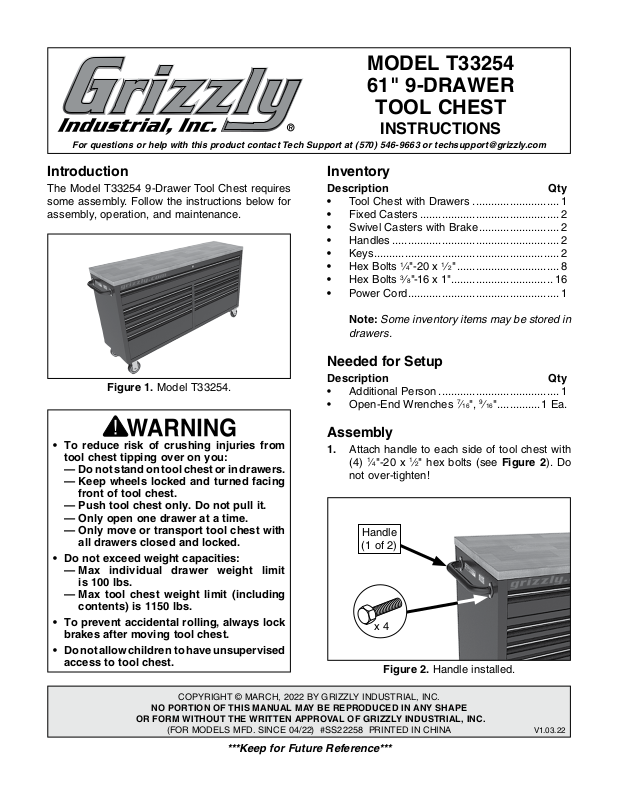

Page 1

MODEL T33254 61" 9-DRAWER

TOOL CHEST

INSTRUCTIONS

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

Introduction

The Model T33254 9-Drawer Tool Chest requires some assembly. Follow the instructions below for assembly, operation, and maintenance.

Figure 1. Model T33254.

• To reduce risk of crushing injuries from tool chest tipping over on you: — Do not stand on tool chest or in drawers. — Keep wheels locked and turned facing

front of tool chest. — Push tool chest only. Do not pull it. — Only open one drawer at a time. — Only move or transport tool chest with

all drawers closed and locked.

• Do not exceed weight capacities: — Max individual drawer weight limit

is 100 lbs.

— Max tool chest weight limit (including

contents) is 1150 lbs.

• To prevent accidental rolling, always lock brakes after moving tool chest.

• Do not allow children to have unsupervised access to tool chest.

Inventory

Description Qty

• Tool Chest with Drawers ............................ 1

• Fixed Casters ............................................. 2

• Swivel Casters with Brake .......................... 2

• Handles ...................................................... 2

• Keys ............................................................ 2

• Hex Bolts

• Power Cord ................................................. 1

Note: Some inventory items may be stored in

drawers.

⁄4"-20 x 1⁄2 " ................................. 8

⁄8"-16 x 1"................................. 16

Needed for Setup

Description Qty

• Additional Person ....................................... 1

• Open-End Wrenches

⁄16", 9⁄16" ..............1 Ea.

Assembly

1. Attach handle to each side of tool chest with

⁄4"-20 x 1⁄2" hex bolts (see Figure 2). Do

(4) not over-tighten!

Handle (1 of 2)

x 4

Figure 2. Handle installed.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 04/22) #SS22258 PRINTED IN CHINA

***Keep for Future Reference***

V1.0 3.22

Page 2

2. Remove casters and hardware from bottom drawer.

3. With help from another person, lay back of tool chest flat on floor.

Removing & Installing Drawers

The drawers can be removed and re-installed if necessary.

To remove and install drawers:

Note: We recommend sweeping the floor

clean and laying down a piece of cardboard or a blanket to prevent scratching the finish during this step.

4. Attach each caster using (4) bolts (see Figure 3).

Caster

(1 of 4)

Figure 3. Example of caster installation.

5. Return tool chest to upright position.

⁄8"-16 x 1" hex

x 16

Locking Caster

To lock caster, press down on caster lock (see Figure 4). Secure each corner caster to ensure tool chest will not shift position.

Caster Lock

Unlock

1. Fully extend drawer and remove contents.

2. Push left locking tab down and hold, then pull right locking tab up and hold (see Figure 5).

Note: Larger lower drawers feature two

guides per side.

Left Locking Tab

Drawer Runner

Right Locking

Tabs

Figure 5. Location of drawer locking tabs.

3. Pull drawer out to remove.

4. To re-install, insert drawer runners into slides

(see Figure 5) and push drawer completely in. Locking tabs will automatically snap into place to secure drawer in slides.

Lock

Figure 4. Location of caster lock.

Tool chests can tip and cause crushing injury when wheels are not set up properly. When stationary, wheels should always be locked and turned facing the front of the tool chest to avoid injury and prevent tipping accidents.

-2-

Locking Drawers

Use the included keys to secure the drawers. Only completely closed drawers will lock.

Maintenance

• Use soft, clean cloth and soapy water (use

regular dish soap) to remove grease, dirt, or oil. Do not use solvents or flammable cleaning liquids.

• Lubricate drawer slides as needed with dry

lubricant, such as Grizzly's Model G4682 Sprayway Dry Coating Lube.

• Use graphite to lubricate lock annually.

Model T33254 (Mfd. Since 4/22)

Page 3

Power Strip

or equipment damage

The T33254 features a pre-installed power strip with (4) 5-15 outlets and (2) USB ports, conveniently located for easy access. The included power strip has the following ratings:

Max. Amperage Load .................................. 12A

Max. Voltage ..............................................125V

Cycle ..........................................................60 Hz

Max. Wattage ..........................................1500W

USB Output ............................ 5VDC, Max. 2.1A

Plug the provided power cord into the power strip socket (see Figure 6).

110V Circuit Requirements

This tool chest is prewired to connect to a power supply circuit that has a verified ground and meets the following requirements:

Nominal Voltage .................... 110V, 115 V, 120V

Cycle ..........................................................60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 15 Amps

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the power strip. The power supply circuit used for this power strip must be sized to safely handle the full-load current drawn from the power strip for an extended period of time. (If this power strip is connected to a circuit protected by fuses, use a time delay fuse marked D.)

Socket

Power

Cord with

Power Strip

Figure 6. Power strip and plug location.

• Do not connect to plug receptacle via extension cords or in series with other power strips.

• Keep electrical connections clear of flammable materials.

• Keep electrical connections dry. Do not use in damp or wet conditions.

• Do not connect devices to power strip that draw more than listed power strip rating. Equipment must be used in accordance with any instructions or labeling.

• Power strips are designed for use with low-powered loads, such as battery chargers. Not designed for use with highpowered loads, such as space heaters or microwaves.

• Do not run cord under floor coverings or where it may be tripped over.

• Not meant for outdoor use.

• Prevent unauthorized use by children or untrained users.

Plug

Grounding & Plug Requirements

This power strip MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

Electrocution, fire, shock,

may occur if power strip is not properly grounded and connected to power supply.

This power strip is equipped with a power cord that has an equipment-grounding wire and a grounding plug. Only insert plug into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances. DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Neutral Hot

Figure 7. Typical 5-15 plug and receptacle.

Model T33254 (Mfd. Since 4/22)

-3-

Page 4

T33254 Parts Breakdown & List

REF PART # DES CRIP TION REF PART # DES CRIP TION

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.

310

• 110V

• Single-Phase

• 12 Amps Max.

FIRE HAZARD!

Do not connect equipment with higher amperage rating than this receptical.

1 PT33254001 DRAWER SLIDE SET 13 PT33254013 DRAWER, MI DDLE 2 PT33254002 HEX BOLT 3/ 8-16 X 1 14 PT33254014 DRAWER, TOP 3 PT33254003 HEX BOLT 1/ 4-20 X 1/2 15 PT33254015 GRIZZLY NAMEPLATE 4 PT33254004 LOCK SET WITH 2 KEYS 16 PT33254016 POWER CORD 18G 3W 72" 5-15P/C14 5 PT33254005 CASTER, 6" FIXED 17 PT33254017 POWER CORD BRACKET 6 PT33254006 CASTER, 6" SWIVEL WITH BRAKE 18 PT33254018 QR CODE LABEL 7 PT33254007 DRAWER LI NER, SMA LL 19 PT33254019 WARNING LABEL 8 PT33254008 DRAWER LI NER, LA RGE 20 PT33254020 GRIZZLY. COM LABEL 9 PT33254009 CABINET BODY 21 PT33254021 POWER STRIP 18G 3W 6" 10 PT33254010 HANDLE 22 PT33254022 MOUNTI NG PLATE 11 PT33254011 WOOD TOP 23 PT33254023 POWER STRIP LABEL

PT33254012 DRAWER, LOWER

PT33254024 PHLP HD SCR 8-32 X 1/ 2

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-4-

BUY PARTS ONLINE AT GRIZZLY.C OM!

Scan QR code to visit our Parts Store.

Model T33254 (Mfd. Since 04/22)
