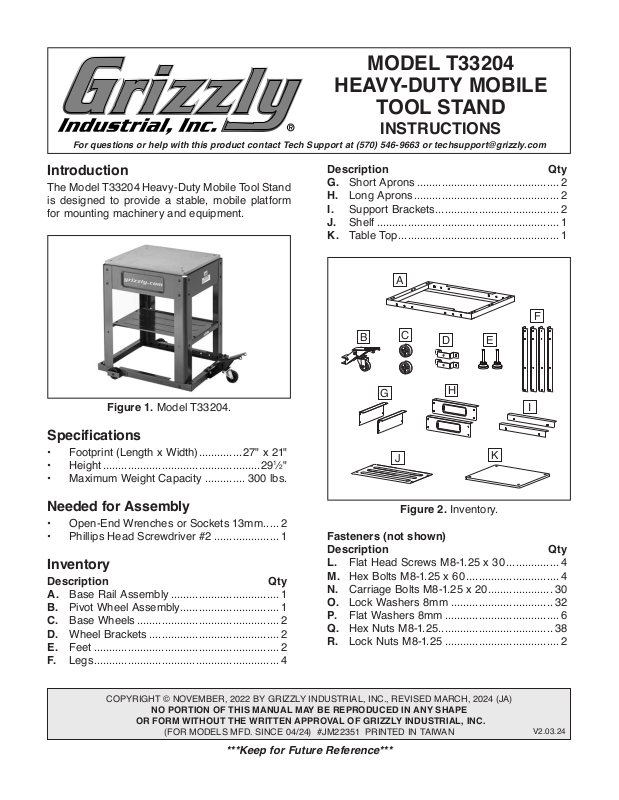

Grizzly T33204 User guide

MODEL T33204
HEAVY-DUTY MOBILE
TOOL STAND
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T33204 Heavy-Duty Mobile Tool Stand is designed to provide a stable, mobile platform for mounting machinery and equipment.
Figure 1. Model T33204.
Specifications
Footprint (Length x Width) .............. 27" x 21"
• Height ...................................................29
Maximum Weight Capacity ............. 300 lbs.
1
2 "
Description
G. Short Aprons .............................................. 2
Long Aprons ............................................... 2
H.
Support Brackets ........................................ 2
I.
Shelf ........................................................... 1
J.
Table Top .................................................... 1
K.
Qty
A
G
C
J
D E
H
K
B
F
I
Needed for Assembly
Open-End Wrenches or Sockets 13mm ..... 2
Phillips Head Screwdriver #2 ..................... 1
Inventory
Description Qty
A. Base Rail Assembly ................................... 1
Pivot Wheel Assembly................................ 1
B.
Base Wheels .............................................. 2
C.
Wheel Brackets .......................................... 2
D.
Feet ............................................................ 2
E.
Legs ............................................................ 4
F.
COPYRIGHT © NOVEMBER, 2022 BY GRIZZLY INDUSTRIAL, INC., REVISED MARCH, 2024 (JA)
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 04/24) #JM22351 PRINTED IN TAIWAN
***Keep for Future Reference***
Figure 2. Inventory.
Fasteners (not shown) Description
L. Flat Head Screws M8-1.25 x 30 ................. 4
Hex Bolts M8-1.25 x 60 .............................. 4
M.
Carriage Bolts M8-1.25 x 20 ..................... 30
N.
Lock Washers 8mm ................................. 32
O.
Flat Washers 8mm ..................................... 6
P.
Hex N u t s M8-1. 25 ..................................... 38
Q.
Lock Nuts M8-1.25 ..................................... 2
R.
Qty
V2.03.24
To reduce your risk of serious injury, read this entire manual BEFORE
Short Apron
(1 of 2)
Long Apron
(1 of 2)
using machine.
Assembly
This Heavy-Duty Mobile Tool Stand must be fully assembled before it can be used. Before begin­ning the assembly process, refer to Needed for
Assembly and gather all listed items.
To assemble stand:
Attach (1) support bracket to (2) legs with (2)
1.
M8-1.25 x 20 carriage bolts, (2) 8mm lock washers, and (2) M8-1.25 hex nuts. Repeat with remaining (1) support bracket and (2) legs (see Figure 3).
x 2
Support Bracket
x 16
Leg
(1 of 4)
Figure 4. Assembling legs and aprons.
Attach shelf to support brackets with (4)
4.
M8-1.25 x 20 carriage bolts, (4) 8mm lock washers, and (4) M8-1.25 hex nuts (see Figure 5).
x 4
Legs
Figure 3. Installing support brackets.
2. Attach (1) short apron (see Figure 4) to each
of the (2) leg assemblies created in Step 1 using (8) M8-1.25 x 20 carriage bolts, (8) 8mm lock washers, and (8) M8-1.25 hex nuts.
Attach (2) long aprons (see Figure 4) to
3.
assembled (2) short aprons and leg assem­blies with (8) M8-1.25 x 20 carriage bolts, (8) 8mm lock washers, and (8) M8-1.25 hex nuts.
-2-
Figure 5. Installing shelf.
5. Mount (2) leveling feet to base rail assembly
with (2) M8-1.25 hex nuts and (2) 8mm lock washers (see Figure 6).
Base Rail
Assembly
Leveling
Feet
Figure 6. Installing leveling feet.
T33204 HD Mobile Tool Stand (Mfd. 04/24)
x 2
6.
Carefully turn table upside down.
7. Install side of base rail assembly with leveling
feet assembly on legs with (2) M8-1.25 x 20 carriage bolts, (2) 8mm lock washers, and (2) M8-1.25 hex nuts (see Figure 7).
x 2
Figure 7. Installing legs on base.
Attach pivot wheel assembly to short rail on
10.
base rail assembly with leveling feet using (2) M8-1.25 x 60 hex bolts, (2) 8mm flat washers, and (2) M8-1.25 hex nuts (see Figure 9).
x 2
Figure 9. Installing pivot wheel assembly.
Return table to upright position and attach top
11.
with (4) M8-1.25 x 30 flat head screws, (4) 8mm flat washers, and (4) M8-1.25 hex nuts (see Figure 10).
Install (2) wheel brackets (see Figure 8)
8.
on either side of long rails with (4) M8-1.25 x 20 carriage bolts, (4) 8mm lock washers, and (4) M8-1.25 hex nuts.
Install (2) wheels (see Figure 8) in wheel
9.
brackets with (2) M8-1.25 x 60 hex bolts and (2) M8-1.25 lock nuts.
x 4
x 2
x 4
Figure 10. Installing table top.
Figure 8. Installing wheels and wheel brackets.
T33204 HD Mobile Tool Stand (Mfd. 04/24)
-3-
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
15
11
REF PART # DES CRIP TION REF PART # DES CRIP TION
T33204 Parts Breakdown & List
14
1
4
3
24
5
15
12
16
7
13
9
17
8
3
13
15
16
10
griz zl y.com
20
12
18
16
13
T33204
300 lb. max weight capacity. DO NOT exceed. Stand may tip or collapse, and crushing injury may occur.
4
22
2
23
NOTICE
Lift wheel lock to secure table in position.
21
12
19
6
16
17
1 PT33204001 TABLE 13 PT33204013 LOCK WASHER 8MM 2 PT33204002 SHELF 14 PT33204014 FLAT HD SCR M8-1.25 X 30 3 PT33204003 LONG APRON 15 PT33204015 CARRI AGE BOLT M8-1.25 X 20 4 PT33204004 SHORT APRON 16 PT33204016 HEX NUT M8 -1. 2 5 5 PT33204005 LEG 17 PT33204017 FLAT WA SHER 8MM 6 PT33204006 LONG BASE RAIL 18 PT33204018 LOCK NUT M8-1.25 7 PT33204007 SHORT BASE RAIL 19 PT33204019 PIVOT WHEEL ASSEMBLY 8 PT33204008 WHEEL BRACKET 20 PT33204020 GRI ZZLY.COM LABEL 9 PT33204009 SUPPORT BRACKET 21 PT33204021 NOTICE LABEL 10 PT33204010 BASE WHEEL 22 PT33204022 CAUTI ON LABEL
11 PT33204011 RUBBER LEVELI NG FOOT 23 PT33204023 QR CODE LABEL 12 PT33204012 HEX BOLT M8-1. 25 X 60 24 PT33204024 TOUCH-UP PAI NT, GRIZZLY GRE EN
-4-
BUY PARTS ONLI NE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
T33204 HD Mobile Tool Stand (Mfd. 04/24)
