MODEL T33127

4000909

BENCHTOP HOLLOW-CHISEL

MORTISER

OWNER'S MANUAL

(For models manufactured since 05/24)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#SS22100 PRINTED IN CHINA

***Keep for Future Reference***

V2.04.24

Page 2

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Page 3

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info Manual Accuracy Identification Machine Data Sheet

.................................................................................................................................2

.........................................................................................................................2

................................................................................................................................3

....................................................................................................................4

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Mortising Machines

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup Unpacking Inventory Hardware Recognition Chart Cleanup Site Considerations Bench Mounting Assembly Joining Drill Chuck & Arbor Test Run

SECTION 4: OPERATIONS

Operation Overview Installing Mortising Chisel Adjusting Fence Adjusting Hold-Down Adjusting Depth Stop Adjusting Hand Lever Cutting a Mortise Installing Drill Chuck & Arbor

.................................................................................................................................11

....................................................................................................................................12

.....................................................................................................................................14

...................................................................................................................................15

....................................................................................................................................19

....................................................................................................................... 6

........................................................................................................ 9

........................................................................................................................11

......................................................................................................................11

.....................................................................................................13

...................................................................................................................14

........................................................................................................................15

.......................................................................................................18

............................................................................................................ 20

..................................................................................................................20

.........................................................................................................21

........................................................................................................................22

.................................................................................................................23

................................................................................................................23

................................................................................................................24

.......................................................................................................................24

....................................................................................................25

................................................................................................6

....................................................................................8

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule Cleaning & Protecting Lubrication

SECTION 7: SERVICE

Troubleshooting Replacing Gas Spring

SECTION 8: WIRING

Wiring Safety Instructions Wiring Diagram

SECTION 9: PARTS

Main Labels & Cosmetics

WARRANTY & RETURNS

...................................................................................................................................28

...............................................................................................................28

.................................................................................................................................28

................................................................................................................... 29

.........................................................................................................................29

...............................................................................................................31

...................................................................................................................... 32

.........................................................................................................................33

....................................................................................................................... 34

...........................................................................................................................................34

..................................................................................................................36

.............................................................................................................. 37

......................................................................................................... 26

........................................................................................................ 28

.........................................................................................................32

Page 4

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model T33127 (Mfd. Since 05/24)

Page 5

Identification

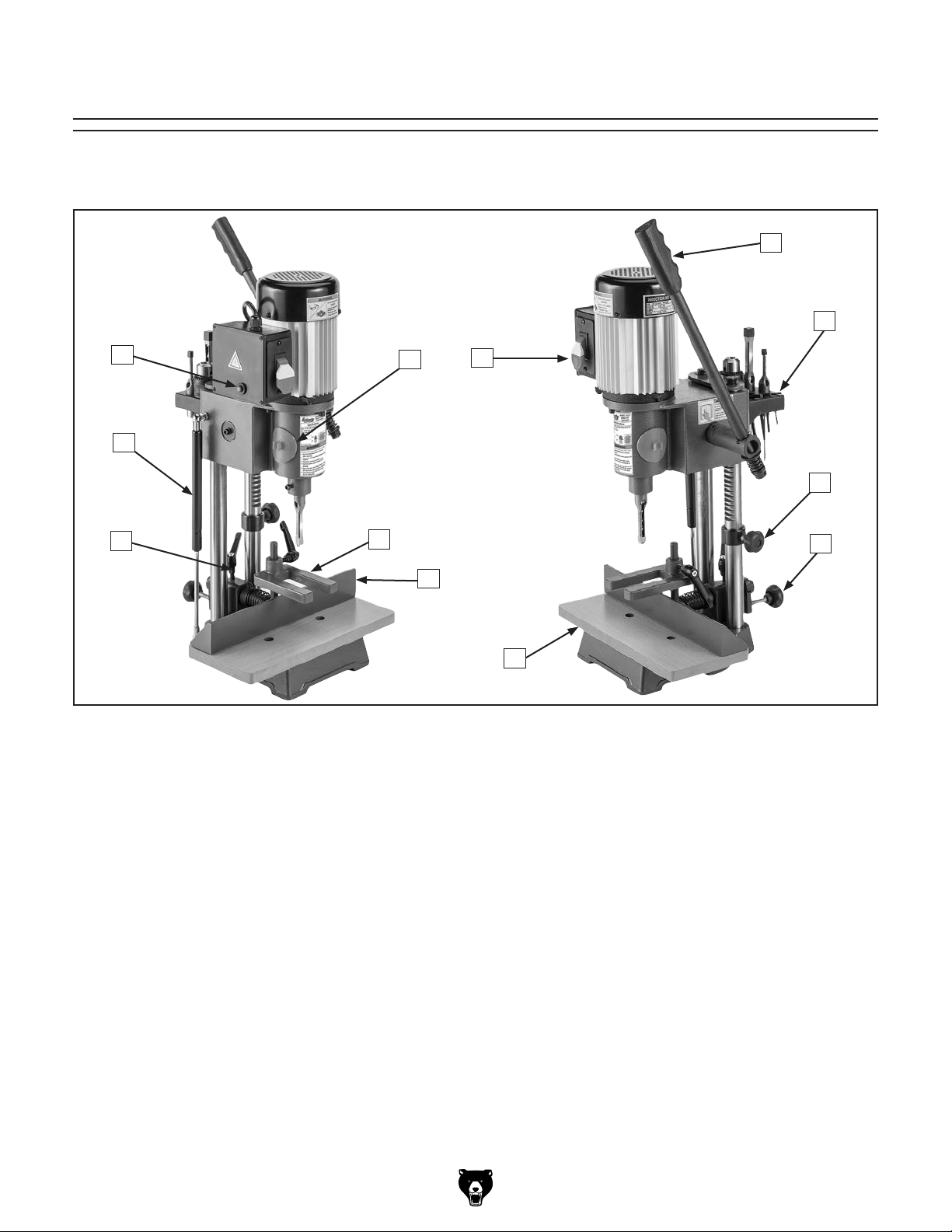

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

A. Reset Button: Allows machine to be restart-

ed after thermal overload protection has tripped motor. To reset button, place ON/OFF switch in OFF position, wait a few minutes for motor to cool, then press reset button. If button does not stay depressed, allow motor to cool off longer, then try again.

F. Depth Stop: Limits depth headstock can

travel.

G. Fence Micro-Adjustment Bracket: Provides

fine control of fence movement.

H. Table: Supports workpiece.

B. Chuck Access Cover: Provides access to

chuck inside of headstock.

C. ON/OFF Switch: Starts and stops motor.

Yellow key can be removed to disable switch.

D. Hand Lever: Raises and lowers headstock.

E. Storage Rack: Stores chisels, hex wrench-

es, and extra drill chuck.

Model T33127 (Mfd. Since 05/24)

I. Fence: Moves to position workpiece under

chisel.

J. Hold-Down: Holds workpiece down when

chisel is raised after mortising operation.

K. Fence Lock Handle: Locks fence. When

loosened, allows fence to move.

L. Gas Spring: Supports headstock.

-3-

Page 6

MACHINE DATA

Collar Size................................................................................................................................................ 3/4 in.

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL T33127 BENCHTOP HOLLOW‐CHISEL MORTISER

Product Dimensions:

Weight................................................................................................................................................................ 60 lbs.

Width (side-to-side) x Depth (front-to-back) x Height............................................................... 13-1/2 x 22 x 30-1/2 in.

Footprint (Length x Width).............................................................................................................................. 10 x 8 in.

Shipping Dimensions:

Type..................................................................................................................................................... Cardboard Box

Content........................................................................................................................................................... Machine

Weight................................................................................................................................................................ 67 lbs.

Length x Width x Height....................................................................................................................... 24 x 12 x 11 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 120V, Single-Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................... 3.4A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length................................................................................................................................................. 6 ft.

Power Cord Gauge......................................................................................................................................... 18 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 5-15

Switch Type.................................................................................................. Paddle Safety Switch w/Removable Key

Motors:

Main

Horsepower............................................................................................................................................. 1/2 HP

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 3.4A

Speed................................................................................................................................................ 1720 RPM

Type........................................................................................................................................... TEFC Induction

Power Transfer ............................................................................................................................... Direct Drive

Bearings..................................................................................................... Shielded & Permanently Lubricated

Main Specifications:

Operation

Spindle Travel........................................................................................................................................ 4-1/4 in.

Spindle Taper............................................................................................................................................... B16

Number of Spindle Speeds............................................................................................................................... 1

Range of Spindle Speeds.................................................................................................................. 1720 RPM

Cutting Capacities

Maximum Stock Width......................................................................................................................... 13-3/8 in.

Maximum Stock Thickness.......................................................................................................................... 4 in.

Maximum Mortising Depth........................................................................................................................... 3 in.

Maximum Chisel Travel......................................................................................................................... 4-7/8 in.

Maximum Distance Column to Chisel.................................................................................................... 5-1/8 in.

Maximum Chisel Size............................................................................................................................... 1/2 in.

-4-

Model T33127 (Mfd. Since 05/24)

Page 7

Table Information

Table Size Length................................................................................................................................ 13-1/2 in.

Table Size Width.......................................................................................................................................... 6 in.

Table Size Thickness................................................................................................................................ 3/4 in.

Chuck Information

Chuck Type.............................................................................................................................................. Keyed

Chuck Size................................................................................................................................................ 1/2 in.

Chuck Capacity......................................................................................................................................... 1/2 in.

Construction

Base..................................................................................................................................................... Cast Iron

Head.................................................................................................................................................... Cast Iron

Table......................................................................................................................................................... Wood

Paint Type/Finish................................................................................................................................. Urethane

Column....................................................................................................................................................... Steel

Fence................................................................................................................................................... Cast Iron

Other

Handle Length..................................................................................................................................... 14-1/2 in.

Head Drive................................................................................................................................... Rack & Pinion

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 15 Minutes

Serial Number Location .................................................................................................................................. ID Label

ISO 9001 Factory .................................................................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................................................... Yes

Features:

Multi-Position Handle Dual Support Columns Adjustable Depth Stop Extra Drill Chuck for Drill Press Operations Chuck Guard Adjustable Wood Chip Shield Spring-Tensioned Fence Storage Rack for Tools Gas Spring for Operational Assistance Multiple Cast Iron Components Includes 1/4", 3/8" and 1/2" Chisels Adjustable Hold-Down

Model T33127 (Mfd. Since 05/24)

-5-

Page 8

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-6-

Model T33127 (Mfd. Since 05/24)

Page 9

may damage the wires inside. Do not handle

WEARING PROPER APPAREL. Do not wear loose clothing, gloves, neckties, or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for rec-

ommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord

cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

Model T33127 (Mfd. Since 05/24)

-7-

Page 10

Additional Safety for Mortising Machines

The primary risks of operating a mortising machine are as follows: You can be seriously injured or killed by getting clothing, jewelry, or long hair entangled with the chisel. Your fingers can be amputated or you can be seriously cut by the chisel. You can be blinded or hurt by flying wood chips, broken cutting tools, workpieces, or tools left in chuck after adjustment. To reduce your risk of serious injury when operating this machine, completely heed and understand the following:

HAND PROTECTION. Do not place your hands

under or near chisel while spindle is in motion. Chisels are sharp and may become hot during operation! Allow chisels to cool before handling. Always use caution when handling, especially when installing or removing.

USING CORRECT MATERIALS. Mortising materials such as metals, plastics, and glass can result in serious personal injury and machine damage. Do not use machine for anything except mortising in wood.

CHISEL COMPATIBILITY. Mortising chisels can fly out of chuck at operator if not properly secured, causing serious personal injury. Make sure mortising chisel fits a minimum of

/2" into chuck.

INSPECT CUTTING TOOLS. Inspect chisels and augers for sharpness, chips, or cracks before each use. Replace dull, chipped, or cracked cutting tools immediately.

INSPECT MACHINE. Loose chisels and augers can be ejected at operator, and headstock can fall if not properly secured, causing serious personal injury. Inspect machine for smooth head casting movement, loose augers/chisels, loose nuts/bolts, and lock levers before connecting machine to power and operating. Correct any problems before use.

SECURE WORKPIECE TO TABLE. Clamp workpiece to table or secure in a vise mounted to table, so workpiece cannot unexpectedly shift or spin during operation. NEVER hold workpiece by hand during operation.

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to lessen the possibility of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

-8-

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

Model T33127 (Mfd. Since 05/24)

Page 11

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage may occur if machine is not properly grounded and connected to power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect machine to power before completing setup process. DO NOT connect to power until instructed later in this manual.

120V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle Phase Power Supply Circuit

........................................... Single-Phase

......................... 15 Amps

supply.

Full-Load Current Rating

Full-Load Current Rating at 120V......3.4 Amps

Model T33127 (Mfd. Since 05/24)

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

-9-

Page 12

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with

We do not recommend using an extension cord with this machine. If you must use an extension cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Grounding & Plug Requirements

Two-prong outlets do not meet the grounding requirements for this machine.

provided—if it will not fit the outlet, have a

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug. Only insert plug into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances. DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

Neutral Hot

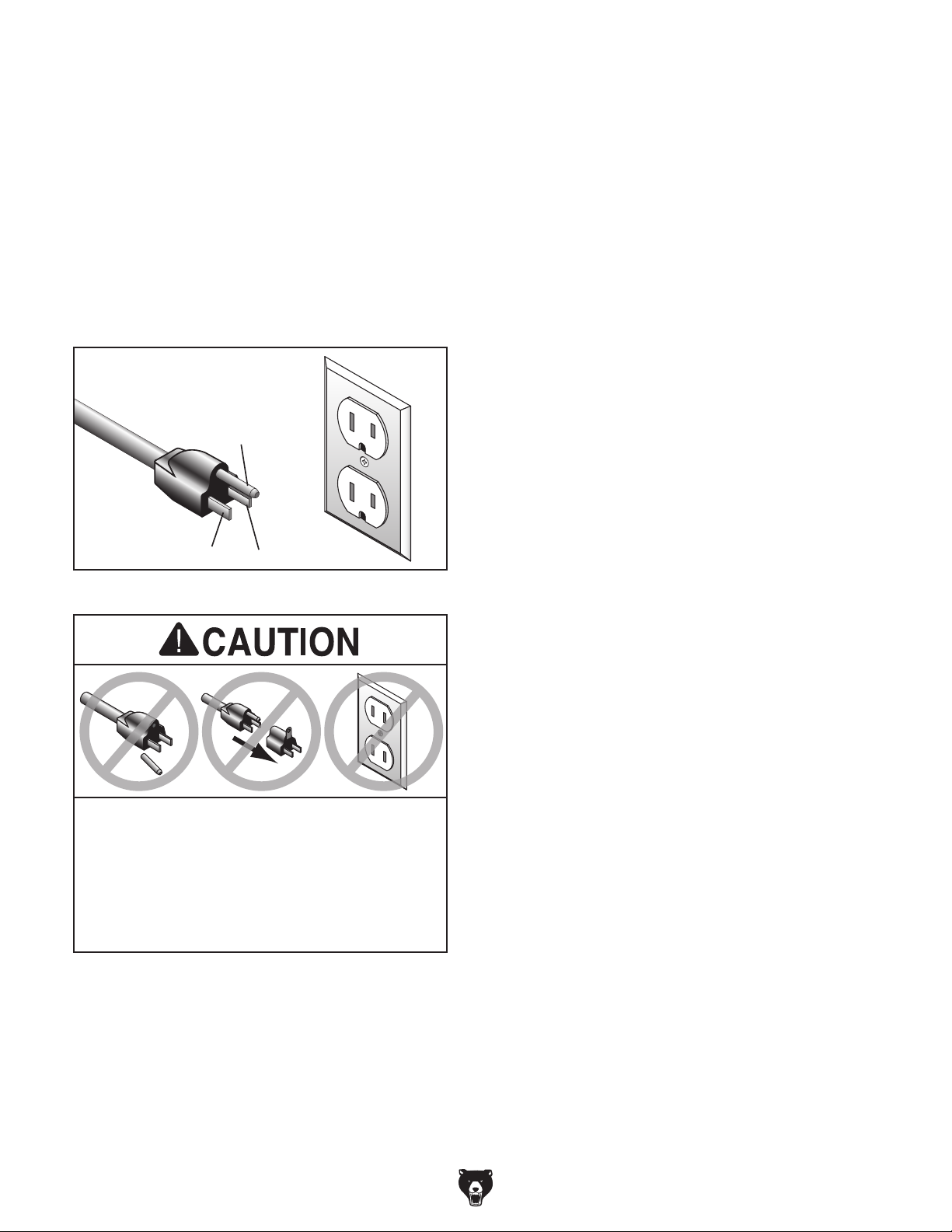

Figure 1. Typical 5-15 plug and receptacle.

SHOCK HAZARD!

Do not modify or use an adapter on the plug

qualified electrician install the proper outlet with a verified ground.

-10-

Minimum Gauge Size ........................... 16 AWG

Maximum Length (Shorter is Better)

Model T33127 (Mfd. Since 05/24)

.......50 ft.

Page 13

SECTION 3: SETUP

The following items are needed, but not included, for the setup/assembly of this machine.

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Needed for Setup

Description Qty

• Safety Glasses ........................................... 1

• Phillips Screwdriver #2 ............................... 1

• Phillips Screwdriver #4 ............................... 1

• Flat Head Screwdriver 1⁄4"........................... 1

• Open-End Wrench 17mm ........................... 1

• Hex Wrench 3mm ....................................... 1

• Block of wood ............................................. 1

• Cleaner/Degreaser ..................... As Needed

• Disposable Shop Rags ............... As Needed

• Mounting Hardware .................... As Needed

• Acetone/Lacquer Thinner ........... As Needed

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Unpacking

If items are damaged

call us immediately at (570) 546-9663.

This machine and its components are very heavy. Get lifting help if needed.

Wear safety glasses during the entire setup process!

Model T33127 (Mfd. Since 05/24)

-11-

Page 14

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Inventory Qty

A. Fence ......................................................... 1

Hand Lever ................................................. 1

C. Hold-Down .................................................. 1

Micro-Adjustment Bracket .......................... 1

Hold-Down Rod .......................................... 1

Hand Lever Clutch ...................................... 1

G. Arbor ........................................................... 1

Chuck ......................................................... 1

I. Mortising Chisel and Auger Drill Bit 1⁄2 " ...... 1

Mortising Chisel and Auger Drill Bit 3⁄8"...... 1

Mortising Chisel and Auger Drill Bit 1⁄4" ...... 1

L. Chuck Guard .............................................. 1

Tool Storage Rack ...................................... 1

Work Table ................................................. 1

Hardware (Not Shown) ............................... 1

— Chuck Key .............................................. 1

—Compression Spring 19 x 28mm —Compression Spring 25 x 28mm —Compression Spring 33 x 80mm

—Hex Wrenches 3, 4, 5, 6mm ................... 4

—Flat Head Screws M8-1.25 x 20mm........ 2

—Cap Screws M6-1 x 15mm —Flat Washers 6mm —Shoulder Bolt M10-1.5 x 40mm —Hex Nut M10-1.5 —Fender Washer 13mm —Fender Washer 19mm —Bushing —Adjustable Handle

⁄4" ............................................. 1

.................................. 2

..................................... 1

............................ 1

................................... 1

............ 1

...................... 2

............... 1

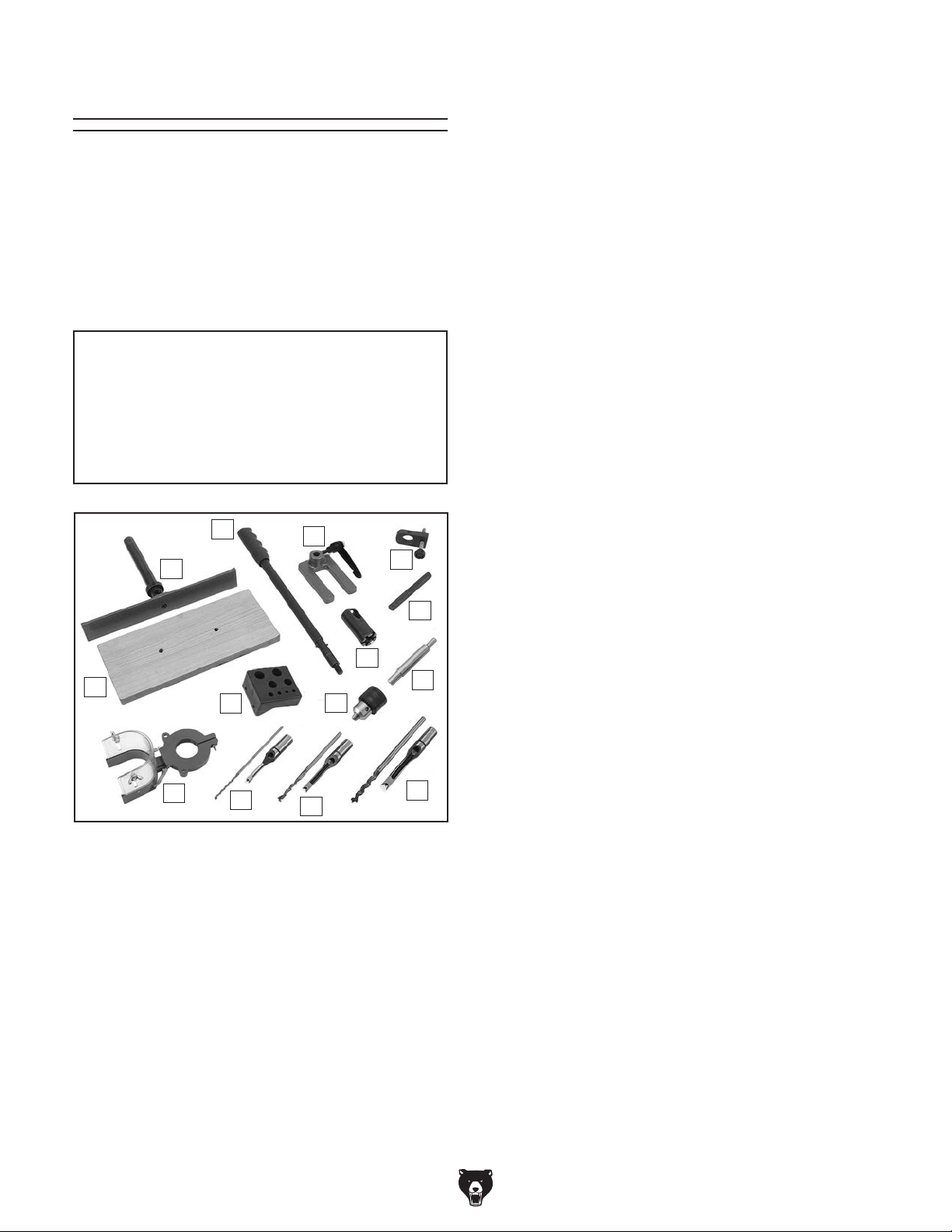

Figure 2. T33127 inventory.

-12-

Model T33127 (Mfd. Since 05/24)

Page 15

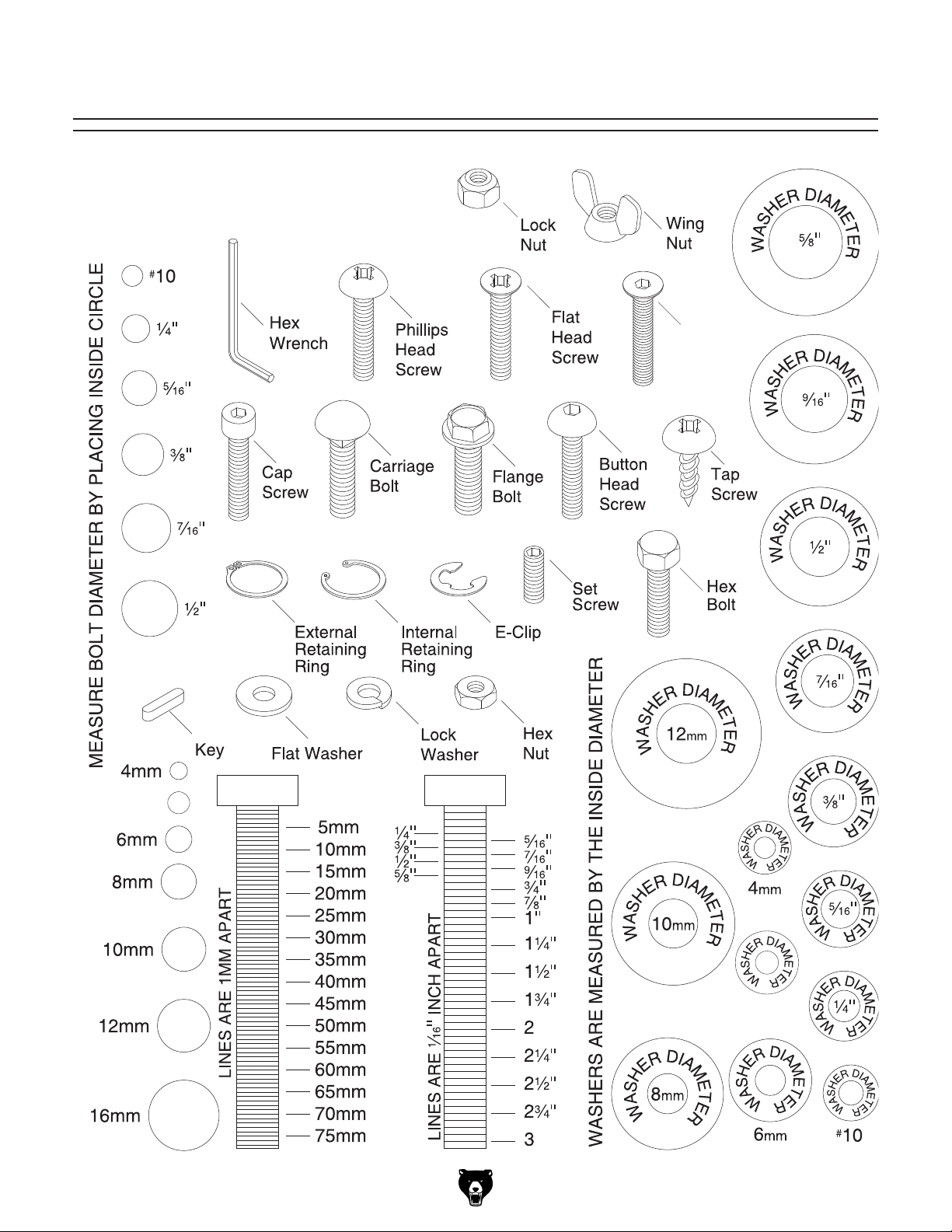

Hardware Recognition Chart

USE THIS CHART TO MATCH UP HARDWARE DURING THE INVENTORY AND ASSEMBLY PROCESS.

Flat Head Cap Screw

5mm

Model T33127 (Mfd. Since 05/24)

5mm

-13-

Page 16

Cleanup

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufac-

turer’s instructions with any cleaning product you

use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

2. Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe

as necessary until clean,

then coat all unpainted surfaces with a quality

Refer to the Machine Data Sheet for the weight and footprint specifications of your machine. Some workbenches may require additional reinforcement to support the weight of the machine and workpiece materials.

Consider anticipated workpiece sizes and additional space needed for auxiliary stands, work tables, or other machinery when establishing a location for this machine in the shop. Below is the minimum amount of space needed for the machine.

or disable start switch or

Site Considerations

Workbench Load

Placement Location

131/2"

29"

Put on safety glasses.

for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

off the rest with the rag.

Repeat Steps 2–3

metal protectant to prevent rust.

NOTICE

Avoid harsh solvents like acetone or brake parts cleaner that may damage painted surfaces. Always test on a small, inconspicuous location first.

-14-

131/2"

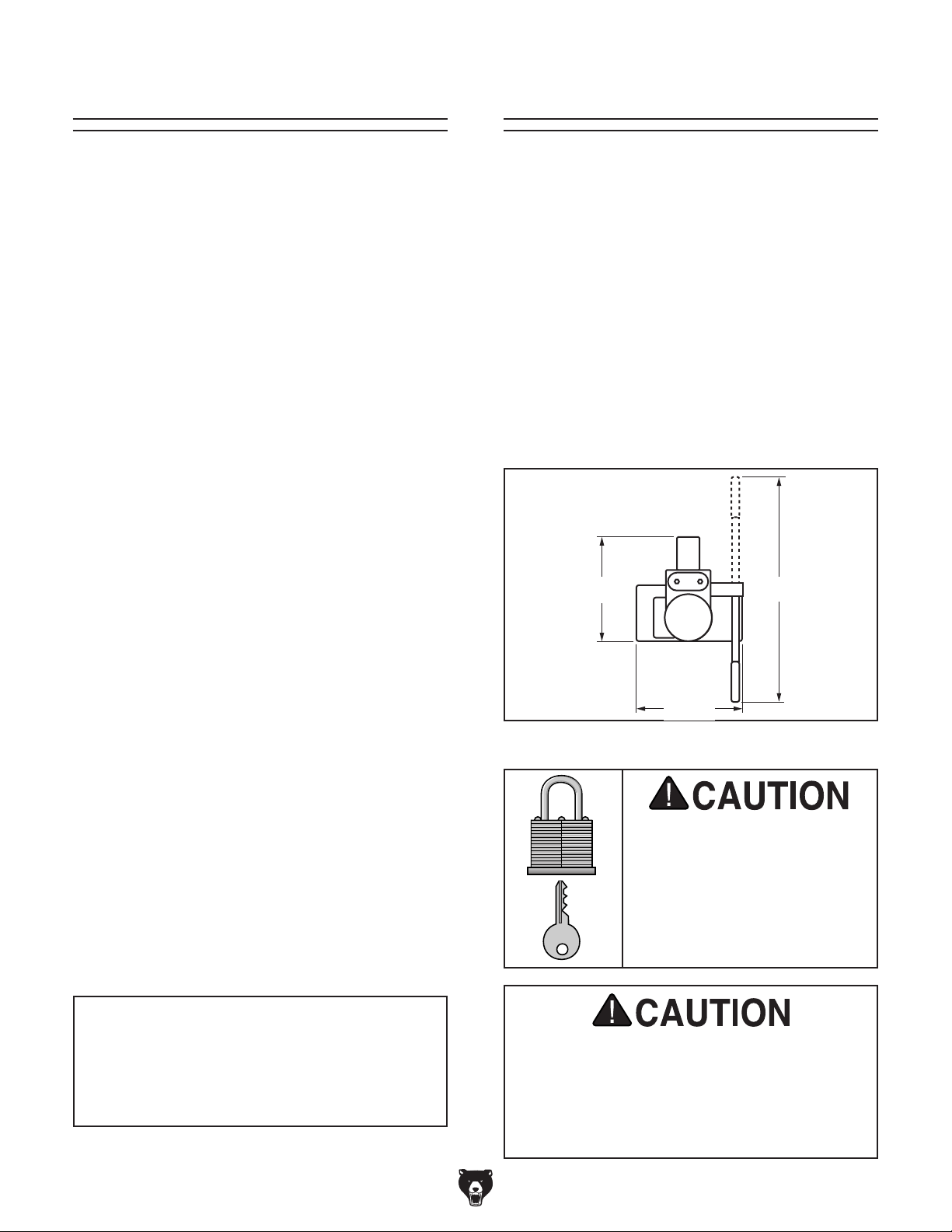

Figure 3. Minimum working clearances.

Children and visitors may be seriously injured if unsupervised around this machine. Lock entrances to the shop

power connection to prevent unsupervised use.

This machine creates a lot of wood chips/ dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust-collection system.

Model T33127 (Mfd. Since 05/24)

Page 17

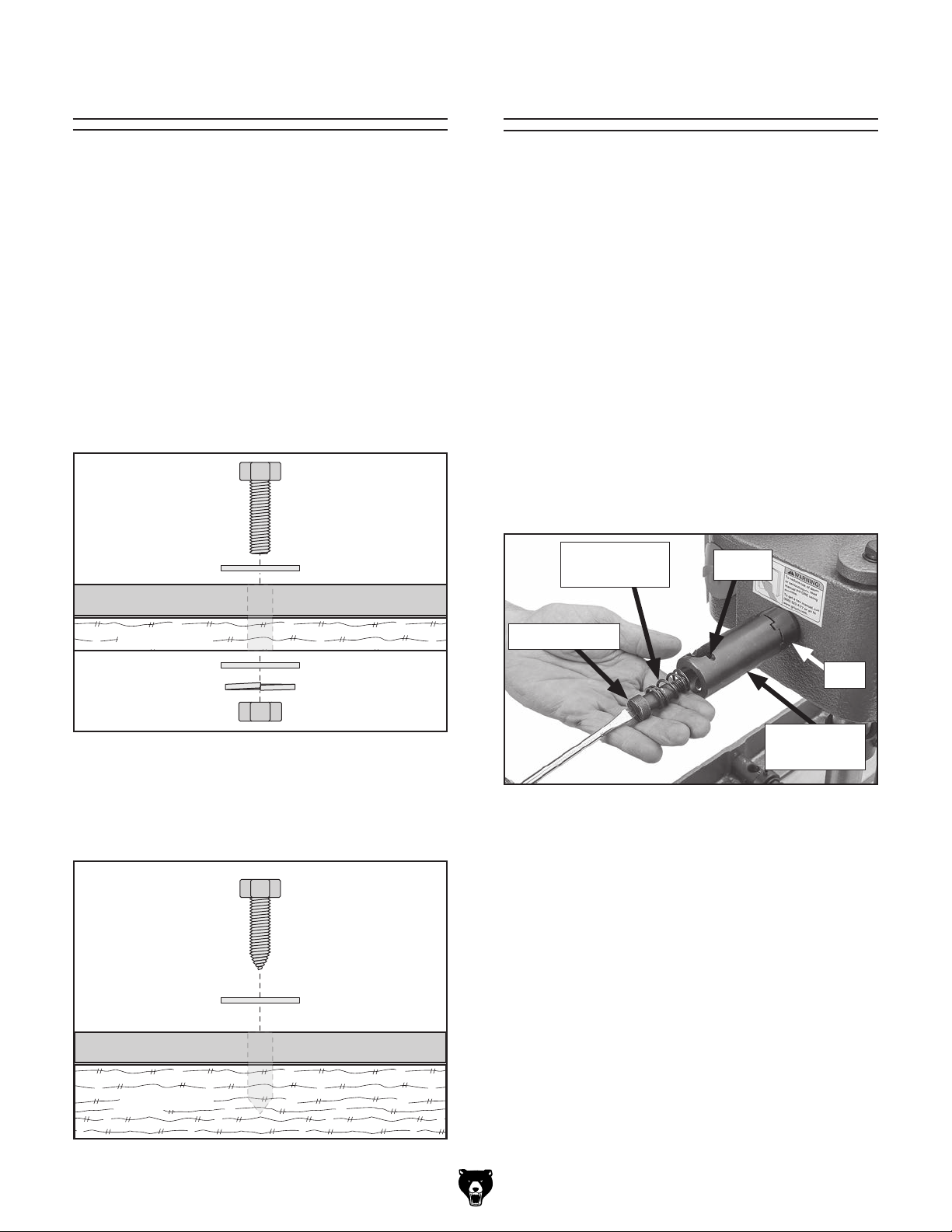

Bench Mounting

Another option is a "direct mount" (see example below) where the machine is secured directly to the workbench with lag screws and washers.

The base of this machine has mounting holes that allow it to be fastened to a workbench or other mounting surface to prevent it from moving during operation and causing accidental injury or damage.

The strongest mounting option is a "Through Mount" (see example below) where holes are drilled all the way through the workbench—and hex bolts, washers, and hex nuts are used to secure the machine in place.

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to

and gather

all

To ensure the assembly process

goes smoothly, first clean any

covered or coated in heavy-duty rust preventative (if applicable).

Assembly

Number of Mounting Holes Diameter of Mounting Hardware Needed

Machine Base

............................ 2

Hex Bolt

Flat Washer

..1⁄2"

Needed for Setup

listed items.

parts that are

To assemble machine:

Attach hand lever clutch to hub with 19 x 28mm

compression spring and M10-1.5 x 40 shoulder bolt (see Figure 6). Make sure that indent for locating pin is facing front of machine.

Note: Hand lever clutch can be indexed on

hub to rotate position of hand lever (refer to Adjusting Hand Lever on Page 25).

Compression

Spring

Indent

Workbench

Flat Washer

Lock Washer

Figure 4. "Through Mount" setup.

Machine Base

Hex Nut

Lag Screw

Flat Washer

Shoulder Bolt

Hub

Hand Lever

Clutch

Figure 6. Installing hand lever clutch.

Workbench

Figure 5. "Direct Mount" setup.

Model T33127 (Mfd. Since 05/24)

-15-

Page 18

2. Slide threaded end of hand lever through

opening in side of hand lever clutch (see Figure 7). Secure with 13mm fender washer, 25 x 28mm compression spring, 19mm fender washer, and M10-1.5 hex nut. Tighten hex nut until spring compresses

about

⁄8".

Compression

Spring

Hand Lever

Secure work table to base using

(2) M8-1.25 x 20 flat head screws (see Figure 9).

Hex Nut

19mm

13mm

Washer

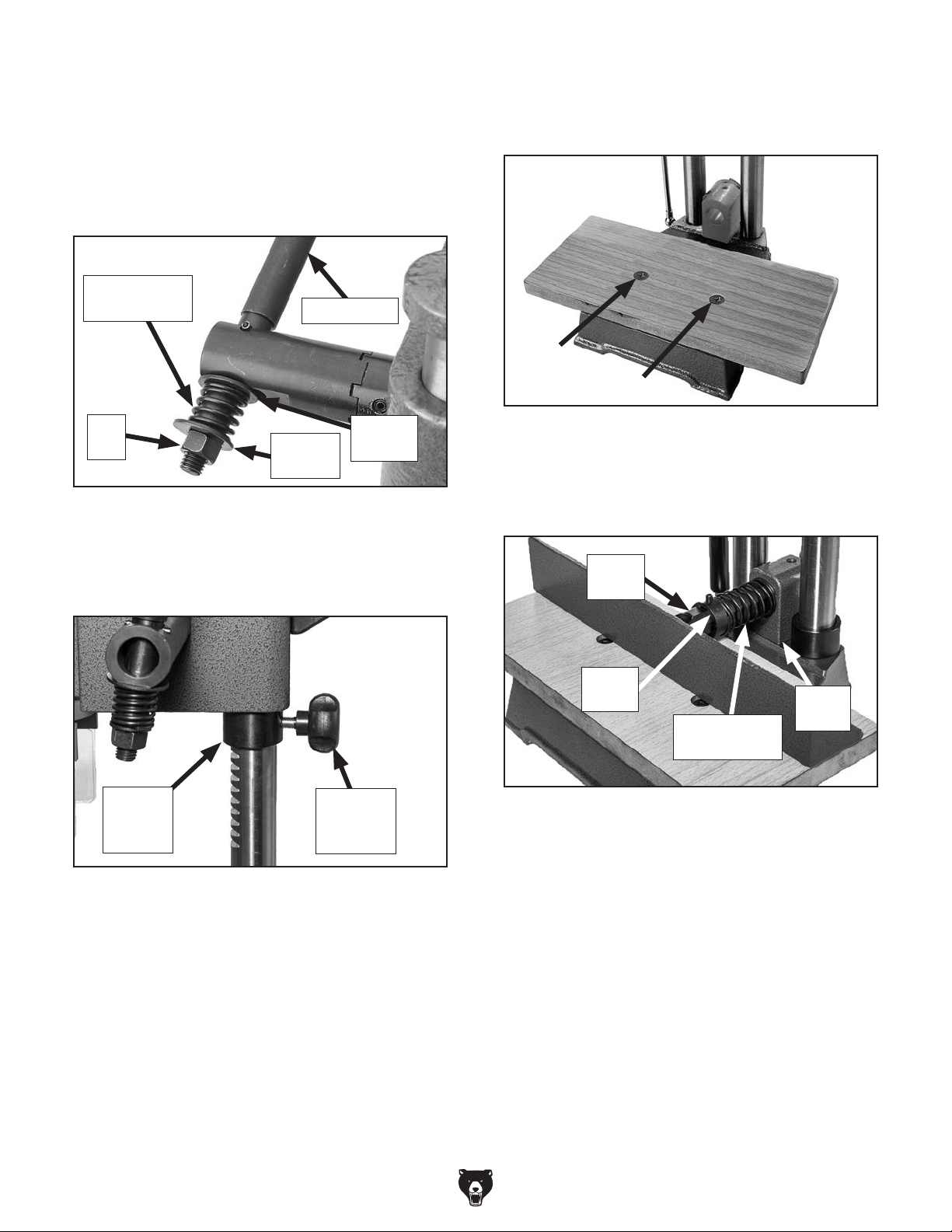

Figure 7. Hand lever installed.

Raise headstock to highest point and secure

with depth stop knob, as shown in Figure 8 (see Adjusting Depth Stop on Page 23).

Depth

Stop

Collar

Depth

Stop

Knob

Figure 9. Work table secured to base.

5. Slide 33 x 80mm compression spring onto

fence rod. Then slide fence rod through guide block (see Figure 10).

Fence

Rod

Fence

Collar

Compression

Guide

Block

Spring

Figure 10. Fence installed.

Figure 8. Depth stop securing headstock at

highest position.

-16-

Model T33127 (Mfd. Since 05/24)

Page 19

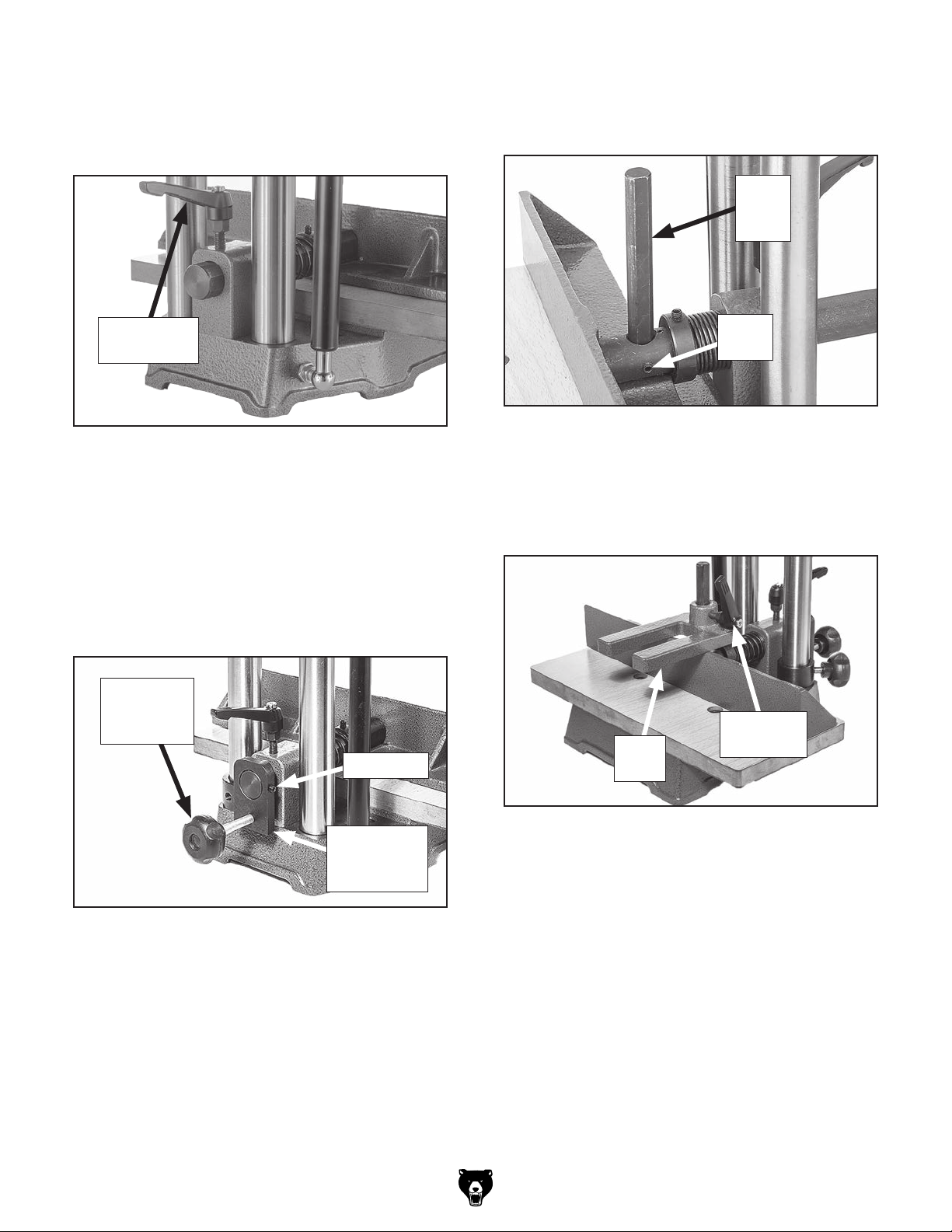

Thread adjustable handle into guide block

(see Figure 11). Pull up on adjustable handle and rotate to change position while tightening. Do not lock yet.

9. Install hold-down rod in recess in fence

rod, and tighten set screw to secure (see Figure 13).

Hold-

Down

Rod

Fence Lock

Handle

Figure 11. Fence lock handle threaded in guide

block.

Slide micro-adjustment bracket onto fence

7. rod so back surfaces are flush (see Figure

12).

Tighten set screw, then tighten micro-adjust-

ment knob until it touches machine (see Figure 12).

Micro-

Adjustment

Knob

Set Screw

Set

Screw

Figure 13. Hold-down rod secured with set

screw.

10. Slide hold-down over hold-down rod, and

secure by tightening adjustable handle (see Figure 14).

Adjustable

Hold-

Down

Handle

Micro-

Adjustment

Bracket

Figure 12. Micro-adjustment assembly installed.

Model T33127 (Mfd. Since 05/24)

Figure 14. Hold-down installed.

-17-

Page 20

5. Attempt to separate drill chuck and arbor by hand —if they separate, repeat Steps 3–4.

11. Attach tool storage rack to back of headstock

An arbor is included for the drill chuck that comes with this machine. The following procedure describes how to install the arbor in the chuck.

After the arbor is installed in the drill chuck, it is very difficult to separate the assembly. If you would like to use a different chuck in the future, we recommend obtaining a new arbor.

IMPORTANT: DO NOT install the drill chuck and arbor assembly

AFTER

the test run.

To join drill chuck and arbor:

clean drill

chuck and arbor mating surfaces, especially

4. Hold assembly by the arbor and tap chuck

onto a block of wood with medium force, as

using (2) M6-1 x 15 cap screws and (2) 6mm flat washers (see Figure 15).

x 2

Storage

Figure 15. Tool storage rack installed.

Note: Use tool storage rack to hold provided

hex wrenches (3mm, 4mm, 5mm, 6mm), mortising chisels ( arbor (#2 x B16). Store chuck key by clipping to outside of chuck cover.

⁄2", 3⁄8", 1⁄4"), and drill chuck

Joining

Drill Chuck & Arbor

Rack

into the spindle until

Use acetone or lacquer thinner to

the bore.

Retract chuck jaws completely into chuck.

Insert small end of arbor into chuck.

illustrated below.

Figure 16. Assembling arbor and chuck.

-18-

Model T33127 (Mfd. Since 05/24)

Page 21

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

setup instructions have been performed. Operating an improperly set up machine

Serious injury or death can result from

Children or untrained people can be

. This

To help prevent unsupervised operation,

switch before leaving

Troubleshooting

4. Remove switch disabling key, as shown in Figure 17.

The Test Run consists of verifying the following:

1) The motor powers up and runs correctly, and

2) the switch disabling key disables the switch properly.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

DO NOT start machine until all preceding

may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

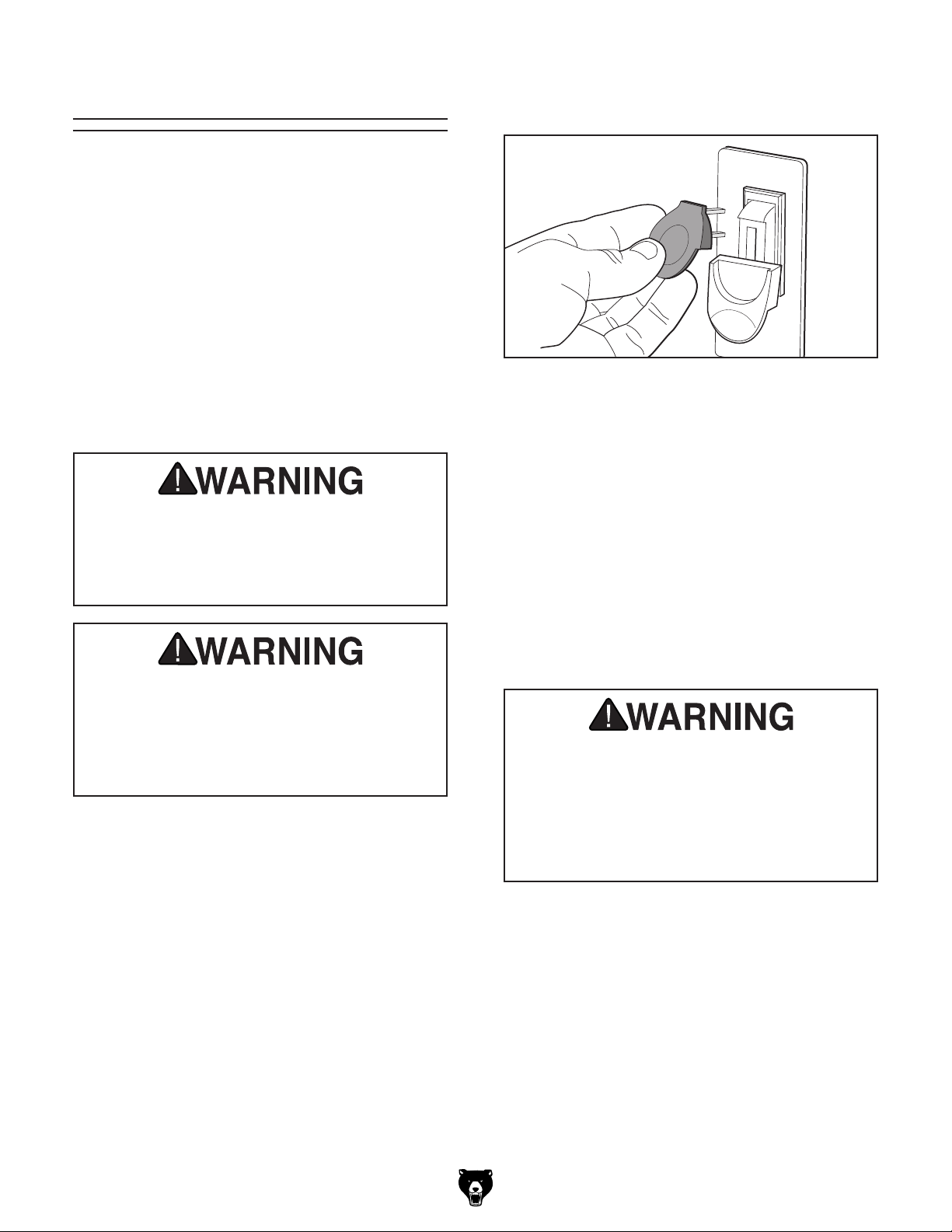

Figure 17. Removing switch key from paddle

switch.

Try to start machine with paddle switch. The

machine should not start.

— If the machine does not start, the switch

disabling feature is working correctly.

— If the machine does start, immediately

stop the machine. The switch disabling feature is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help.

seriously injured by this machine risk increases with unsupervised operation.

To test run machine:

1. Clear all setup tools away from machine.

2. Connect machine to power supply.

3. Turn machine ON, verify motor operation,

and then turn machine OFF.

The motor should run smoothly and without

unusual problems or noises.

Model T33127 (Mfd. Since 05/24)

always disable machine unattended. Make sure to place key in a well-hidden or secure location!

-19-

Page 22

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed

later in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators, and do additional research outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

To reduce risk of eye injury from flying

Operation Overview

machine controls/components

are easier to understand.

seek additional

To complete a typical operation, the operator does the following:

Puts on safety glasses and respirator.

2. Installs chisel and auger in chuck.

3. Places workpiece on table flush with fence.

4. Adjusts fence to correct position for operation.

Secures workpiece in place with the hold-

down.

Adjusts depth stop for desired mortise depth.

7. When all safety precautions have been taken,

turns machine ON.

Using hand lever, slowly feeds chisel and

auger into workpiece until correct depth is reached.

using machine.

chips or lung damage from breathing dust, always wear safety glasses and a respirator when operating this machine.

Never mortise treated lumber—the smoke is extremely poisonous.

Raises hand lever to extract chisel and auger

from workpiece.

Turns machine OFF.

10.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

-20-

Model T33127 (Mfd. Since 05/24)

Page 23

Installing Mortising

2. Raise headstock to highest position, then secure with depth stop (see Page 23).

Chisel

This mortising machine uses 3⁄4" shank mortising chisels ranging from to use chisels not provided with this machine, make sure they conform to the dimensions specified in Figure 18.

Cut Depth

⁄2 " Minimum Chuck Grab

Chisel

Width

(A)

Min.

Overall

Auger

Length

(B)

⁄4" 61⁄2"

⁄8" 61⁄2"

⁄2" 61⁄2"

⁄4"–1⁄2 " in width. If you want

/4" Max. Dia.

Max

Auger

Overall

Dia.

(C)

⁄16" 41⁄2"

⁄4" 411⁄16"

⁄8" 57⁄16"

Length

Min.

Chisel

(D)

Remove chuck access cover, and loosen

chuck to accept desired auger bit.

Install bushing (see Figure 19) and secure

with cap screw. Cap screw must pass through casting and stop flush with inner wall of bushing.

Tip: Feel inside casting with finger to ensure

cap screw is correctly positioned.

Join chisel and paired auger bit. Slide them

into drill chuck and bushing.

Note: Install chisel so face with chip ejection

slot is facing side (see Figure 19). Installing chisel with open slot facing the front or back of machine can cause undesirable rounding pattern in mortise cuts.

6. Push chisel up until it stops at bushing (see Figure 19), then allow it to slide back down

approximately

⁄64" to prevent binding. Tighten

cap screw just enough to hold chisel in place. Do not overtighten.

Chuck

Casting

Figure 18. T33127 chisel and auger dimensions.

Tools Needed Qty

Hex Wrench 5mm .............................................. 1

Chuck Key Machinist's Square

......................................................... 1

............................................ 1

To install mortising chisel:

DISCONNECT MACHINE FROM POWER.

Use gloves or a towel when handling sharp objects such as the chisel and auger bits.

Model T33127 (Mfd. Since 05/24)

Cap Screw

Bushing

Chisel

Auger

Figure 19. Inserting chisel into bushing.

-21-

Page 24

7. Slide auger into chuck, allowing tip

to extend 1⁄16" beyond chisel (see Figure 20). Tighten with chuck key.

⁄16"

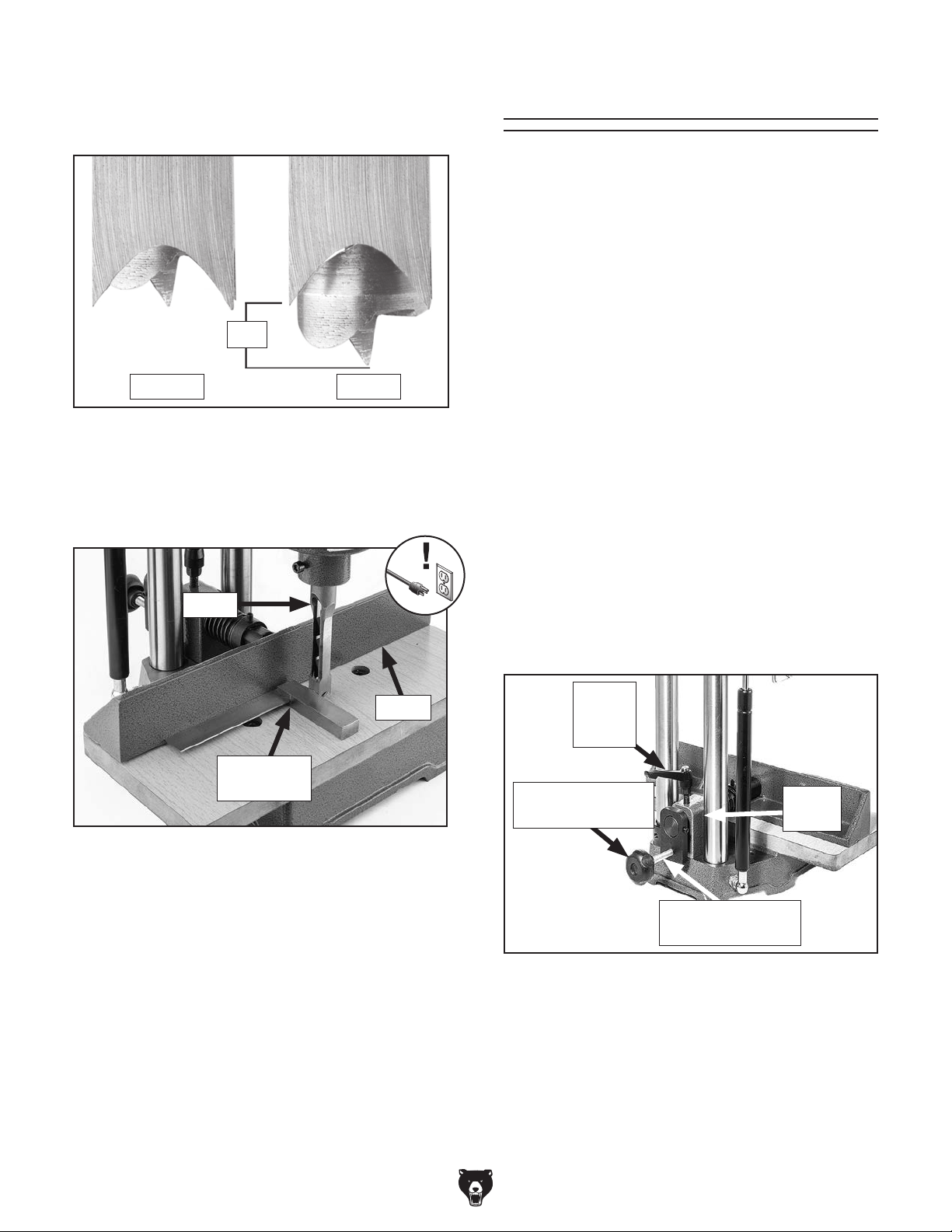

Incorrect Correct

Figure 20. Auger extending beyond tip of chisel.

Place a square against fence and chisel (see

Figure 21) to verify that chisel is square to fence.

Adjusting Fence

The fence is spring-loaded and can be moved back and forth on the table by hand by loosening the lock handle. The fence also includes a microadjustment bracket that provides fine control of

fence movement.

Tool Needed Qty

Hex Wrench 3mm ...............................................1

To adjust fence:

Loosen fence lock handle (see Figure 22).

Manually move fence to within 1⁄8" of final

position, and tighten fence lock handle.

Tighten micro-adjustment knob until screw

makes contact with back of guide block (see Figure 22).

Chisel

Fence

Machinist's

Square

Figure 21. Squaring chisel to fence with

machinist's square.

9. Rotate chuck by hand and make sure no

binding occurs.

If binding does occur, loosen bushing cap

—

screw and rotate chisel 90°.

Tighten fence lock handle.

Turn micro-adjustment knob clockwise to

move fence forward, and counterclockwise to move fence backwards (see Figure 22).

Fence

Lock

Handle

Micro-Adjustment

Knob

Micro-Adjustment

Screw

Figure 22. Micro-adjustment bracket for

adjusting fence position.

Guide

Block

Reinstall chuck access cover.

10.

-22-

When fence is in desired position, tighten

fence lock handle.

Model T33127 (Mfd. Since 05/24)

Page 25

Adjusting

Hold-Down

The hold-down acts as a clamp, securing the workpiece to the table. The hold-down must be used to keep the workpiece from rising when the chisel is removed after a cut.

To adjust hold-down:

Position chisel over workpiece and lock depth

stop.

Loosen hold-down lock handle, and adjust

hold-down to allows workpiece to move horizontally for making multiple mortises. Secure hold-down with lock handle (see Figure 23).

/16" above workpiece. This

Depth Stop

When adjusted correctly, the depth stop ensures that the mortise is not cut too deep and that repeated mortise depths are consistent. Always make the mortise at least an tenon to allow room for excess glue.

To adjust depth stop:

Loosen knob on depth stop.

2. Lower chisel to depth required for operation.

Tip: Before cutting mortise, mark depth of cut

required on workpiece (see Figure 24).

⁄8" deeper than the

Hold-

Down

Figure 23. Low hold-down position.

Note: When placed in position shown in

Figure 23, hold-down will accommodate workpiece slightly taller than fence. Holddown may also be flipped over to secure thicker workpieces.

Hold-

Down

Lock

Handle

Figure 24. Depth set for mortise cut.

3. Raise depth stop to bottom of headstock and

tighten knob.

Model T33127 (Mfd. Since 05/24)

-23-

Page 26

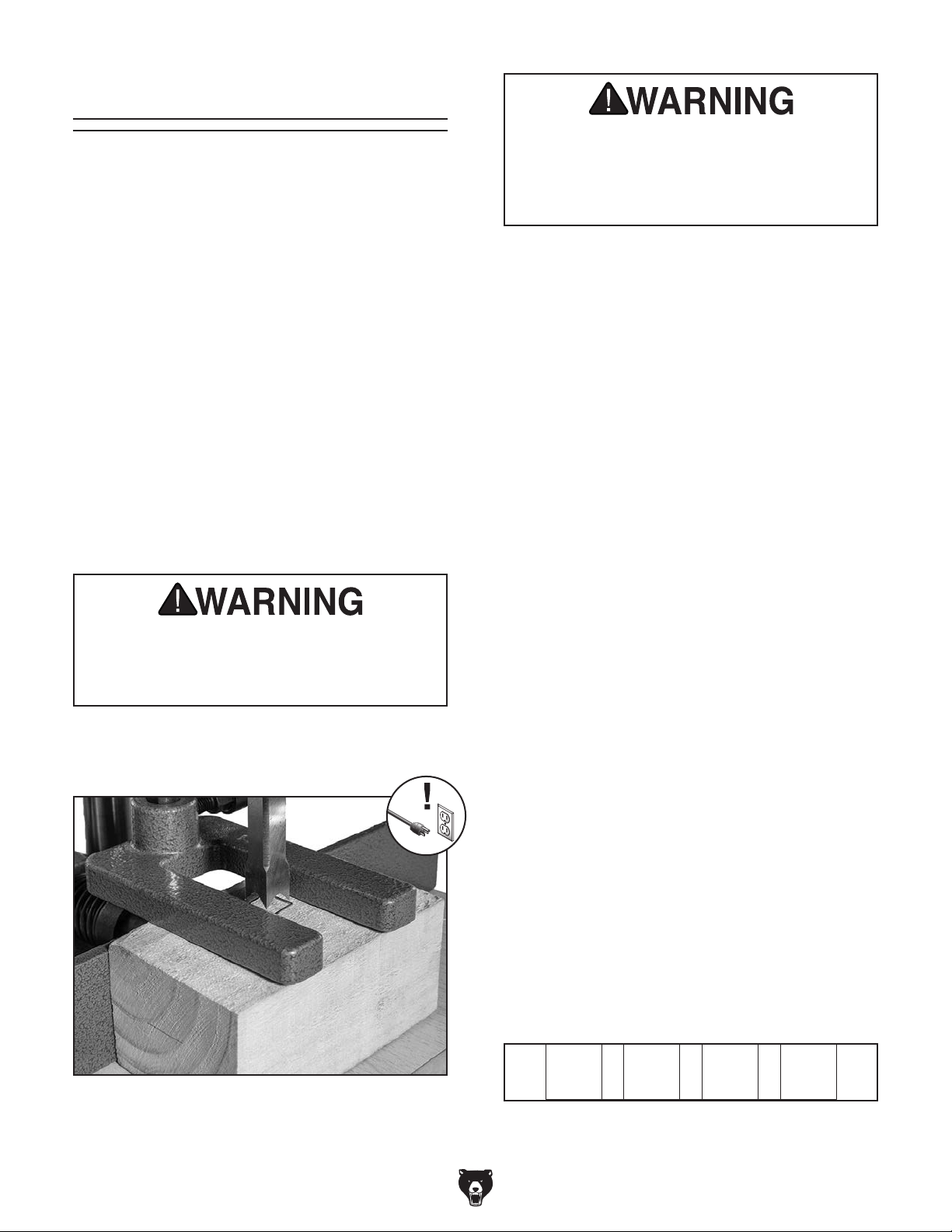

Cutting a Mortise

Mortises can be cut at varying lengths depending upon the size of tenon/joint being used. We recommend staggering mortise cuts to maximize material removed (see Figure 26) and to ensure chisel does not bend/tilt during operation.

To cut a mortise:

DISCONNECT MACHINE FROM POWER!

2. Verify that chisel and fence are square (see Installing Mortising Chisel on Page 21),

and adjust as needed.

Lay out desired mortise on test piece of scrap

lumber.

Position test piece flush with fence, and set

4. depth stop (see Adjusting Depth Stop on Page 23).

HAND INJURY HAZARD! During the next step, keep fingers and hands away from chisel and auger path when cutting the mortise.

5. Adjust fence so that chisel is aligned with outline of mortise (see Figure 25).

Pulling down on the handle can be difficult on some woods. However, NEVER use a cheater pipe or handle extender on the handle. You could break the hand lever and be seriously injured.

Turn power ON. Use hand lever to feed mor-

tising chisel into test piece.

— Feed rate must be fast enough to prevent

tip of auger from burning, but slow enough to prevent motor from stalling. This speed will vary depending on wood type, moisture content, and frequency of chip clearing from mortise.

— When cutting deep mortises, make a 1"

deep cut, then back off and allow chips to clear before cutting deeper.

Note: With some chisels, noise and smoke

are normal, but we recommend using a small amount of lubrication on augers (not chisels) to keep this to a minimum. See Page 27 for more information on lubricating augers.

Once desired depth is achieved, move hand

lever to return headstock to highest position. Test piece should be held in place by holddown.

Turn power OFF.

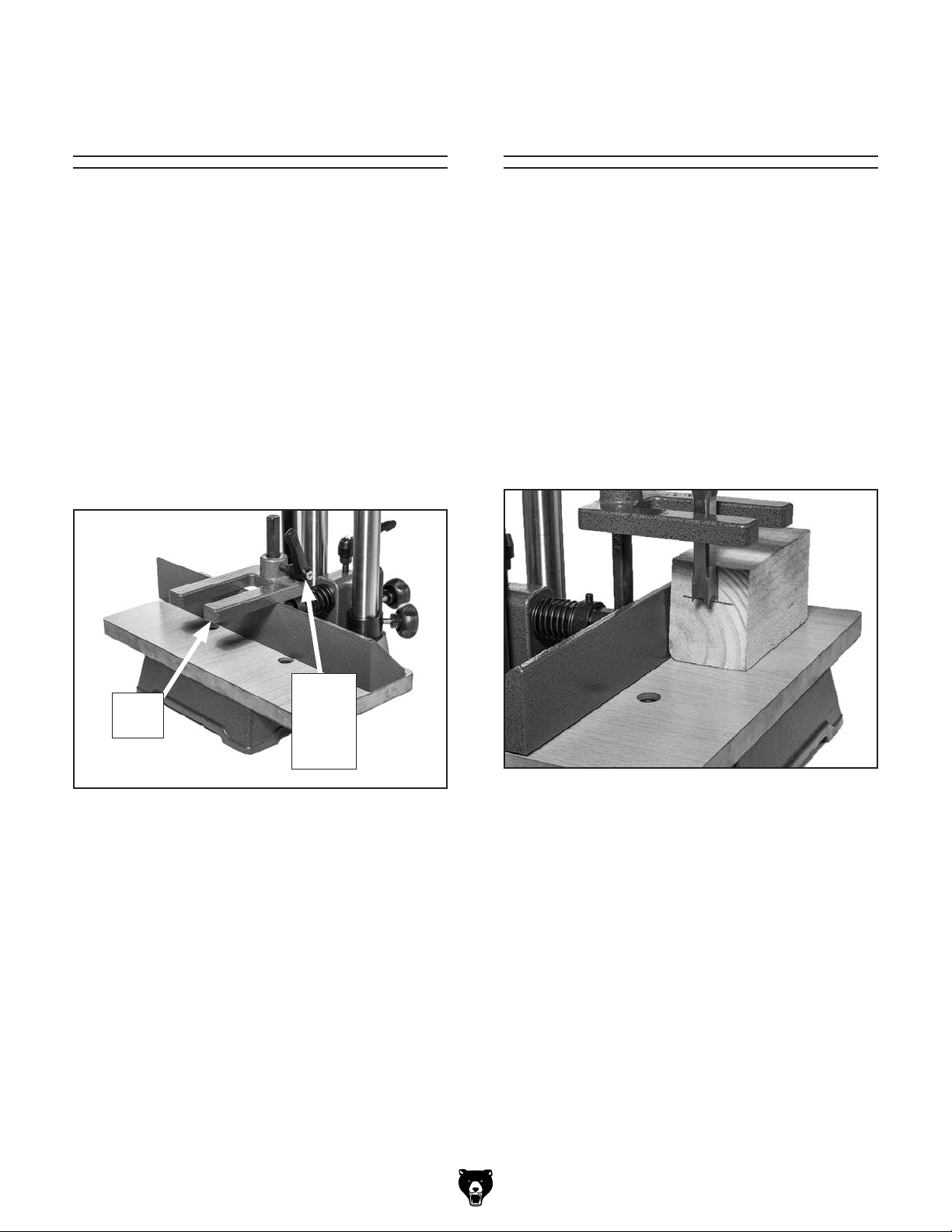

Figure 25. Aligning chisel with mortise outline.

6. Position and lock hold-down (see Adjusting Hold-Down on Page 23).

-24-

Inspect placement of mortise cut on test

10.

piece. If necessary, adjust machine until desired mortise placement is achieved.

Cut mortise in final workpiece.

11.

NOTE: When making multiple cuts to create

a rectangular mortise cut, follow sequence of cuts as shown in Figure 26. Position chisel over the center of cuts 5, 6, and 7, since these only use part of chisel.

1 2 3 45 6 7

Figure 26. Sequence of cuts.

Model T33127 (Mfd. Since 05/24)

Page 27

Adjusting

Hand Lever

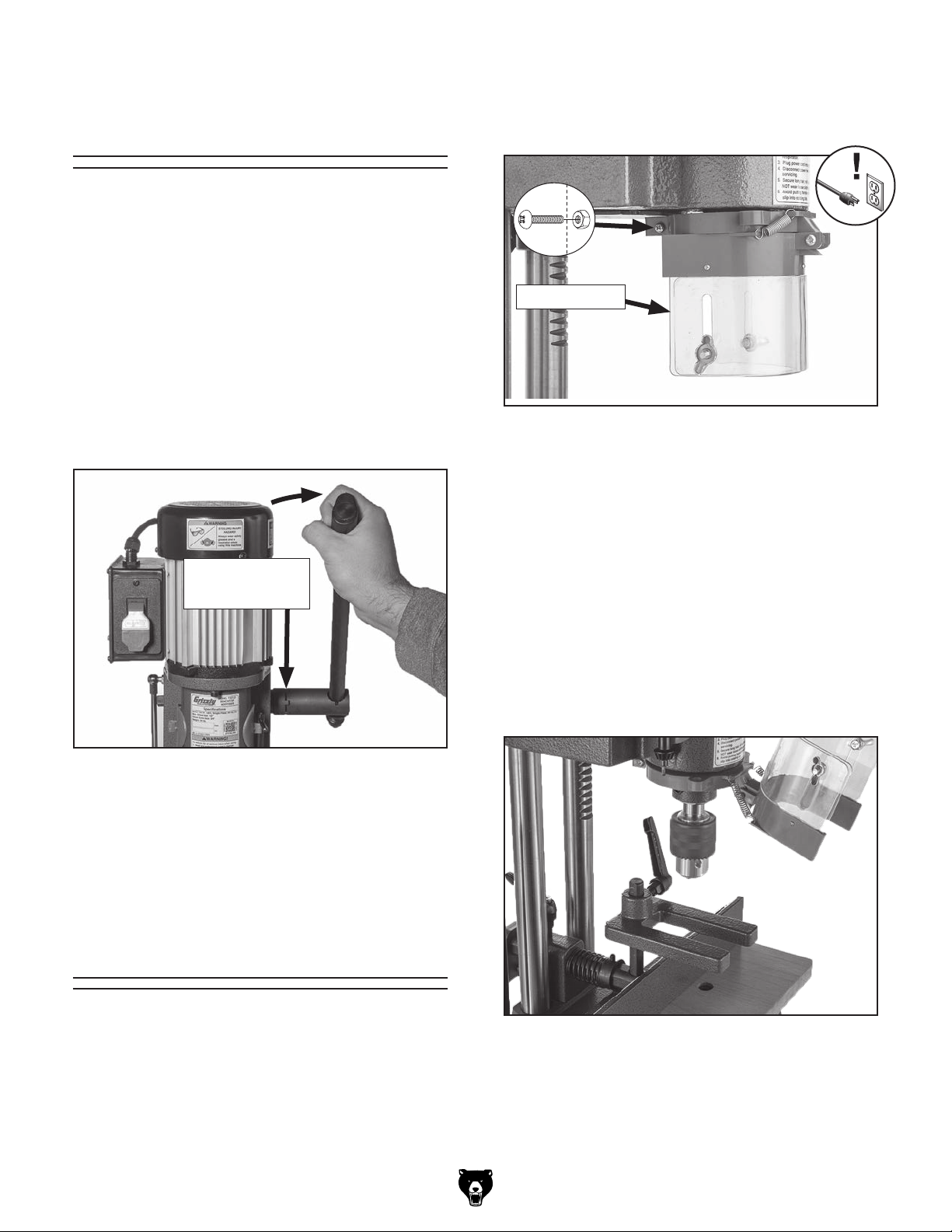

To maximize torque and ensure ease of use, the position of the hand lever can be adjusted to accommodate the operator.

To adjust hand lever:

Lift hand lever to highest position.

2. Pull lever to right, 90 degrees to machine.

3. When hand lever clutch separates from hub

(see Figure 27), rotate hand lever to desired position.

2. Slide chuck guard over throat of headstock

and tighten Phillips head screw and hex nut to secure (see Figure 28).

Chuck Guard

Figure 28. Chuck guard installed around throat

of headstock.

3. Remove chuck access cover.

4. Loosen chuck with chuck key enough to

accept drill chuck arbor.

Hand Lever

Clutch and Hub

Figure 27. Disengaging hand lever clutch from

hub.

4. Push hand lever left, ensuring that teeth in hub and clutch mesh.

Installing Drill Chuck

& Arbor

The T33127 comes with a spare drill chuck and arbor to install as an attachment in the machine.

Slide spare drill chuck arbor through head-

stock bushing and into chuck. DO NOT tighten bushing cap screw.

Tighten chuck using chuck key.

7. Reinstall chuck access cover (see Figure 29).

Figure 29. Drill chuck installed.

To install drill chuck:

DISCONNECT MACHINE FROM POWER!

Model T33127 (Mfd. Since 05/24)

-25-

Page 28

ACCESSORIES

order online at www.grizzly.com or call 1-800-523-4777

Installing unapproved accessories may

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

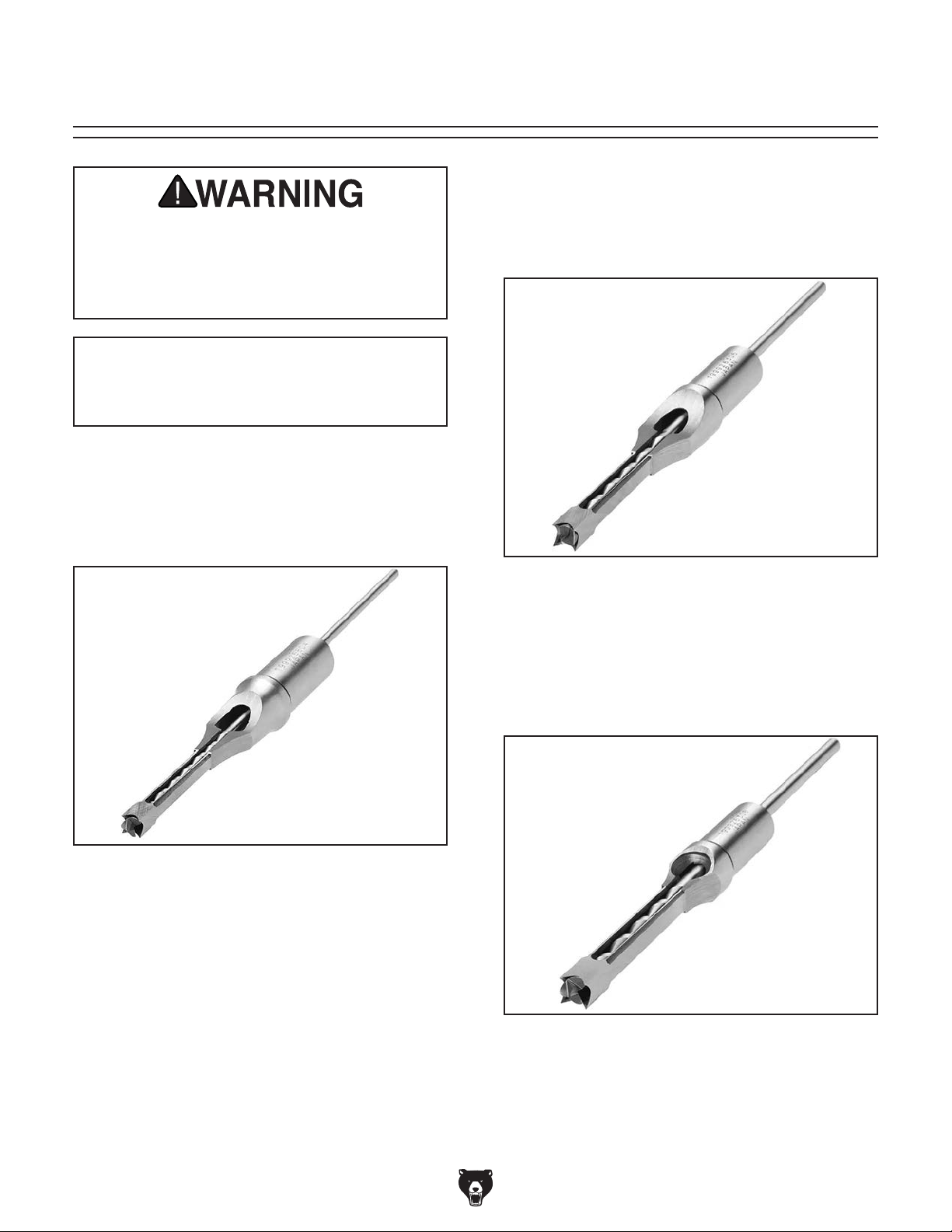

T10016—Grizzly 1⁄4" Premium Mortising Chisel

Precision machined and factory sharpened for perfect results right out of the box. Features

OD shank to fit

⁄4" drill press collars. Made in

Japan.

⁄4"

ChiselsChisels

T10017—Grizzly 5⁄16" Premium Mortising Chisel

Precision machined and factory sharpened for

perfect results right out of the box. Features

OD shank to fit

⁄4" drill press collars. Made in

⁄4"

Japan.

Figure 31. T10017

⁄16" Premium Mortising

Chisel.

Figure 30. T10016 1⁄4" Premium Mortising Chisel.

T10018—Grizzly 3⁄8" Premium Mortising Chisel

Precision machined and factory sharpened for

perfect results right out of the box. Features

OD shank to fit

⁄4" drill press collars. Made in

⁄4"

Japan.

Figure 32. T10018

⁄8" Premium Mortising Chisel.

-26-

Model T33127 (Mfd. Since 05/24)

Page 29

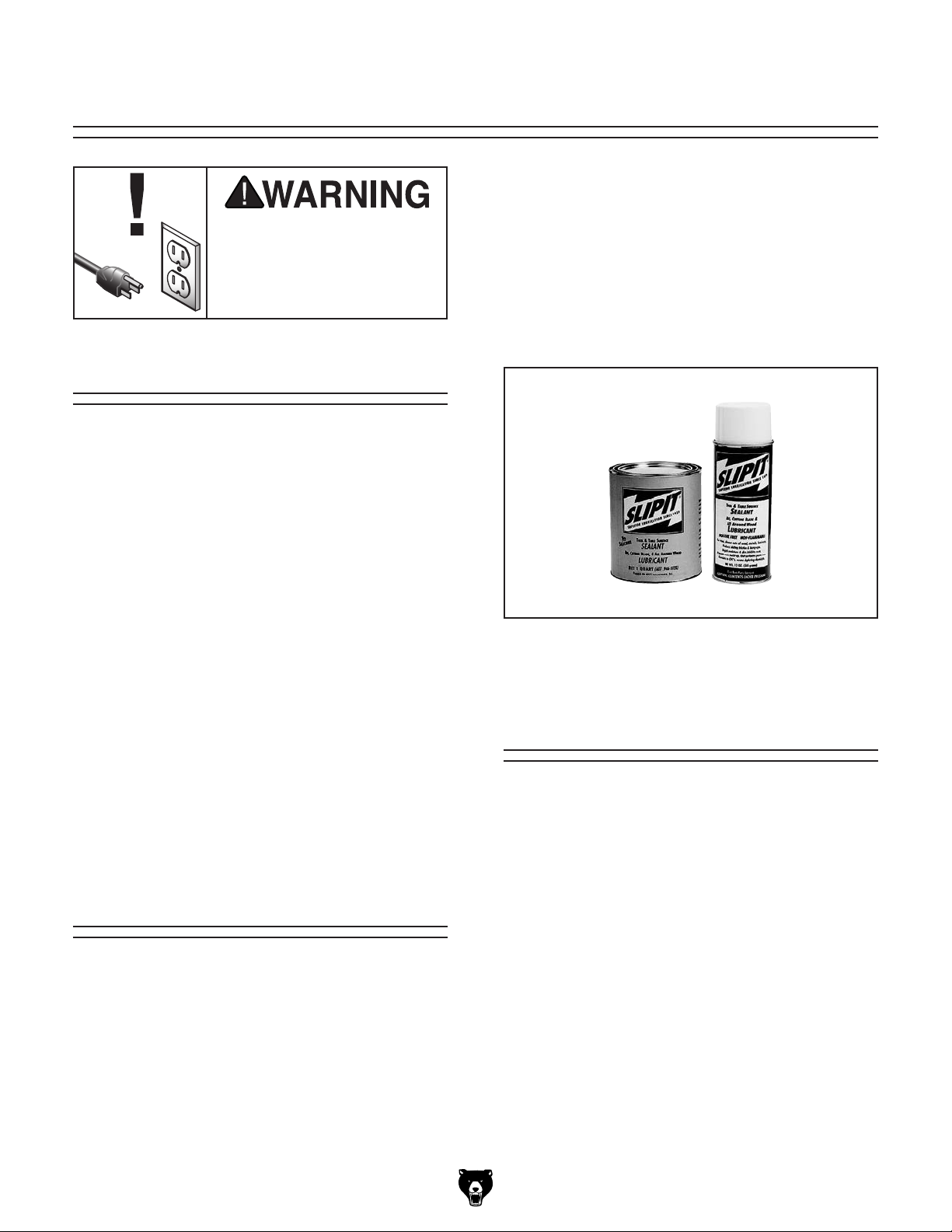

SECTION 6: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from

Protect the unpainted cast iron table by wiping it clean after every use—this ensures moisture from wood dust does not remain on bare metal surfaces. Keep the table rust-free with regular applications of products like SLIPIT

(see Figure 33).

power before adjustments, maintenance, or service.

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged cutting tools.

Worn or damaged wires.

•

Any other unsafe condition.

•

Weekly Maintenance

• Clean/grease hold-down shaft.

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel G5563—SLIPIT

Figure 33. Recommended products for protect-

ing unpainted cast iron/steel parts on machinery.

12 Oz. Spray

Lubrication

Monthly Check

• Clean/vacuum dust buildup off motor.

Cleaning &

Protecting

Cleaning the Model T33127 is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin dissolving cleaner to remove it. Treat all unpainted cast iron and steel with a non-staining lubricant after cleaning.

Model T33127 (Mfd. Since 05/24)

The augers for mortising chisels operate under extreme conditions. A small amount of bees wax applied to the auger can aid in reducing heat and expelling chips. It is important that a small amount is used and none is applied to the chisel. Bees wax coming into contact with the finished surfaces will impede adhesion of glues and finishes.

-27-

Page 30

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, call our Technical Support.

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

Machine has vibration or noisy operation.

1. Switch disabling key removed.

2. Machine circuit breaker tripped or at fault.

3. Incorrect power supply voltage or circuit size.

4. Power supply circuit breaker tripped or fuse blown.

5. Motor wires connected incorrectly.

6. Centrifugal switch adjustment/contact points at fault.

7. Wiring broken, disconnected, or corroded.

8. ON/OFF or circuit breaker switch at fault.

9. Motor or motor bearings at fault.

1. Chisel/auger dull.

2. Feed rate/cutting speed too fast.

3. Machine undersized for task.

4. Motor overheated, tripping machine circuit breaker.

5. Run capacitor at fault.

6. Extension cord too long.

7. Centrifugal switch/contact points at fault.

8. Motor or motor bearings at fault.

1. Motor or component loose.

2. Incorrectly mounted to workbench.

3. Motor fan rubbing on fan cover.

4. Motor bearings at fault.

5. Chuck or cutter at fault.

6. Spindle bearings at fault.

1. Install switch disabling key.

2. Reset circuit breaker on switch.

3. Ensure correct power supply voltage and circuit size.

4. Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

5. Correct motor wiring connections.

6. Adjust centrifugal switch/clean contact points. Replace either if at fault.

7. Fix broken wires or disconnected/corroded connections (Page 31).

8. Replace switch.

9. Replace motor.

1. Sharpen/replace chisel/auger.

2. Decrease feed rate/cutting speed.

3. Use sharp bits/reduce feed rate or depth of cut.

4. Clean motor, let cool, and reduce workload. Reset breaker.

5. Test/repair/replace.

6. Move machine closer to power supply; use shorter extension cord.

7. Adjust centrifugal switch/clean contact points. Replace either if at fault.

8. Replace motor.

1. Replace damaged or missing bolts/nuts or tighten if loose.

2. Adjust feet, shim, or tighten mounting hardware (Page 15).

3. Fix/replace fan cover; replace loose/damaged fan.

4. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

5. Replace out-of-round chuck,dull, or bent cutter.

6. Test by rotating spindle; rotational grinding/loose shaft requires bearing replacement.

-28-

Model T33127 (Mfd. Since 05/24)

Page 31

Operations

Symptom Possible Cause Possible Solution

Difcult to pull

lever down during machine operation.

Mortising auger and chisel are extremely noisy, chatter, and smoke. (An average amount of noise and chatter are normal for any mortising machine.)

Mortising auger and chisel generate smoke and burn the workpiece.

Headstock drops when hand lever is released.

Difcult to move

workpiece on table horizontally.

Holes not parallel in workpiece.

Auger and chisel cut too deeply.

1. Auger does not protrude enough from end of chisel.

2. Chisel or auger is dull.

3. Mortising operating handle is not positioned for maximum leverage.

1. Auger out of alignment with chisel.

2. Chisel mounting bushing loose or damaged, causing poor auger-to-chisel alignment.

3. Chisel/auger bent.

1. Chisel/auger dull.

2. Drilling pressure too aggressive and overheats auger.

3. Wood chips load up in chisel and overheat auger.

4. Wood is too green, has high moisture content, or is pressure treated.

1. Gas spring at fault. 1. Replace gas spring (Page 30).

1. Hold-down too tight. 1. Adjust hold down 1⁄8" above workpiece (Page 23).

1. Chisel not parallel with fence.

Depth stop set incorrectly. 1. Adjust depth stop (Page 23).

1. Adjust auger depth (Page 22).

2. Sharpen/replace auger and chisel.

3. Adjust handle for maximum length, and position

it so you have maximum leverage at most difcult

mortising depth.

1. Reinstall chisel in a different position.

2. Replace bushing, using care not to over-tighten chisel-retaining set screw.

3. Replace chisel and auger as a matched set (Page 26).

1. Sharpen/replace auger and chisel.

2. Adjust auger depth, reduce drilling pressure, clear chips often.

3. Apply small amount of bees wax to auger (Page 27); face chisel slot sideways (Page 21); clear chips often.

4. Only mortise dry, untreated wood.

1. Adjust chisel parallel to fence and tighten chisel retaining screw (Page 22).

Excessive runout or wobbling in chuck/ auger.

Auger slips in chuck or stuck in workpiece.

Auger skips/jumps inside mortise.

Workpiece raises as chisel is raised up.

1. Auger bent.

2. Chuck/auger installed incorrectly.

3. Spindle bearings worn.

1. Chuck jaws loose/broken. 1. Tighten/replace chuck jaws.

1. Proper mortising sequence not followed. 1. Follow proper mortising sequence (Page 24).

1. Hold-down not installed/loose. 1. Install hold-down. Properly position hold down for

Model T33127 (Mfd. Since 05/24)

1. Replace with straight auger.

2. Correctly re-install chuck/auger.

3. Replace spindle bearings.

workpiece thickness and secure (Page 23).

-29-

Page 32

Replacing

To reduce risk of shock or accidental startup, always disconnect machine from

Gas Spring

power before adjustments, maintenance, or service.

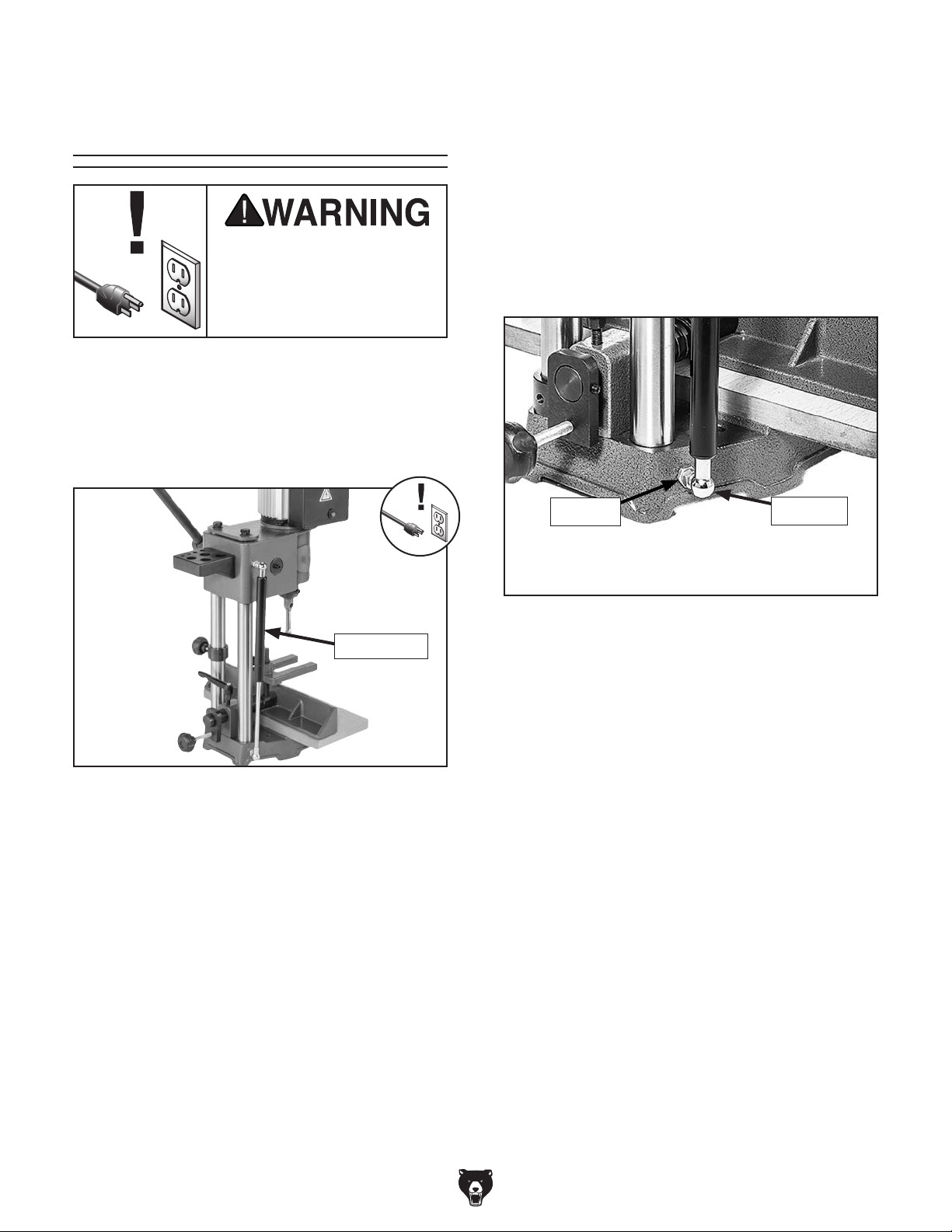

The gas spring, shown in Figure 34, keeps the headstock under pressure so it does not drop when the hand lever is released. If you notice that the gas spring is not working correctly, replace it promptly.

To replace gas spring:

DISCONNECT MACHINE FROM POWER!

2. Raise headstock as high as it will go, then

lock depth stop beneath headstock (see Adjusting Depth Stop on Page 23).

Loosen hex nut (see Figure 35).

Unscrew ball stud (see Figure 35).

Gas Spring

Figure 34. Location of gas spring.

Items Needed Qty

Open-End Wrenches 12, 13mm ..................1 Ea.

Gas Spring (Part # PT33127063)

...................... 1

Hex Nut

Figure 35. Ball stud and hex nut secured to

base.

Repeat Steps 3–4 on other ball stud.

Note: Ball studs on gas spring are pressed

in and cannot be replaced. Do NOT attempt to remove them. When ordering replacement parts from Grizzly the new gas spring will have ball studs already pressed in.

Install new gas spring using hex nuts loos-

ened in Step 3.

Ball Stud

-30-

Model T33127 (Mfd. Since 05/24)

Page 33

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available.

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

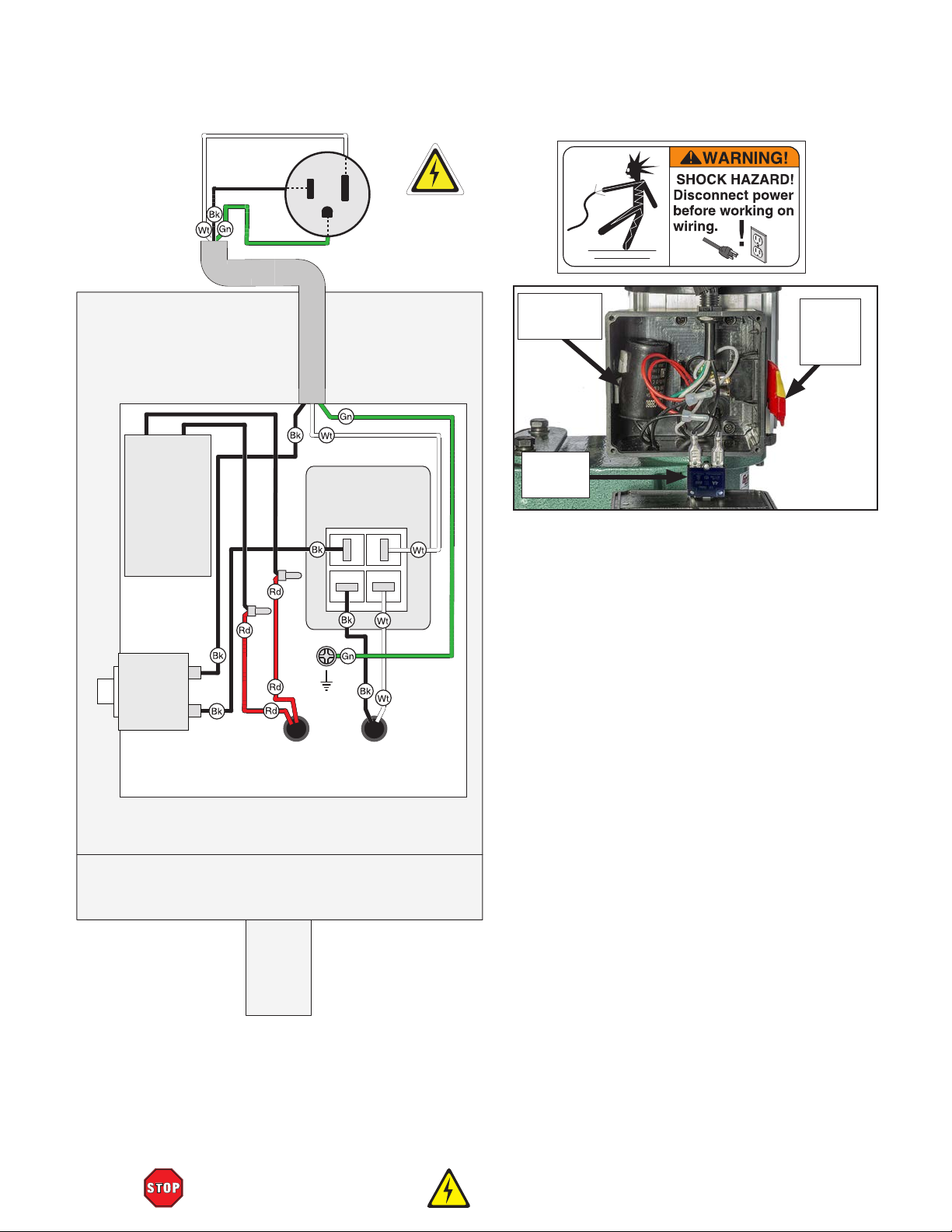

SECTION 8: WIRING

Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model T33127 (Mfd. Since 05/24)

-31-

Page 34

Neutral

Hot

Ground

Wiring Diagram

Run

Capacitor

CBB60

24 uF

250 VAC

Ground

120 VAC

5-15 Plug

Paddle Switch

KEDU+HY18 20/12A

125/250V

Run

Capacitor

Circuit

Breaker

Safety Paddle Switch

Figure 36. Switch box.

Circuit Breaker

Kuoyuh 4A

125/250VAC

Junction Box

120V Motor

-32-

READ ELECTRICAL SAFETY

ON PAGE 31!

Model T33127 (Mfd. Since 05/24)

Page 35

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

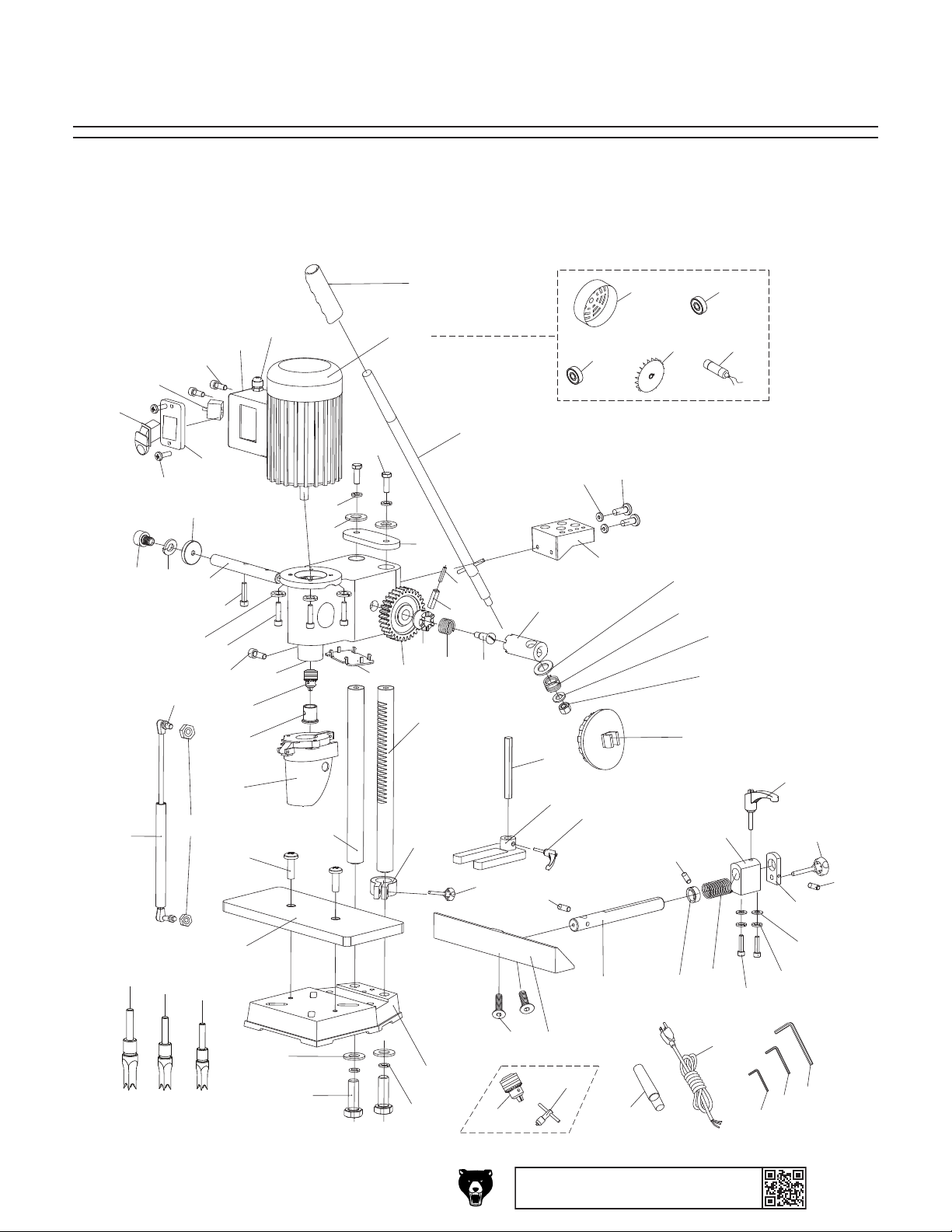

Main

65V2

63-1

29V2

29V2-3

29V2-1

29V2-4

29V2-2

29V2-6

Model T33127 (Mfd. Since 05/24)

49-1

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-33-

Page 36

REF PART # DESCRI PTION REF P ART # DES CRIP TION

Main Parts List

1 PT33127001 FLAT WASHER 10MM 40 PT33127040 HAND LEVER CLUTCH 2 PT33127002 HEX BOLT M10-1.5 X 30 41 PT33127041 RACK COLUMN 3 PT33127003 BASE 42 PT33127042 COLUMN 4 PT33127004 FLAT HD CAP SCR M6-1 X 12 43 PT33127043 DEPTH LOCK COLLAR 6 PT33127006 FENCE 44 PT33127044 KNOB BOLT M8-1.25 X 15, 4-LOBE, D40 7 PT33127007 FENCE ROD 45 PT33127045 TABLE 8 PT33127008 FENCE COLLAR 46 PT33127046 PHLP HD SCR M8-1.25 X 20 9 PT33127009 COMPRESSION SPRING 2 X 33 X 80MM 48 PT33127048 BUSHING 3/4" 10 PT33127010 MICRO-ADJUSTMENT BRACKET 49 PT33127049 DRILL CHUCK B16 1.5-13MM 11 PT33127011 KNOB BOLT M8-1.25 X 65, 4-LOBE, D40 49-1 PT33127049-1 DRILL CHUCK KEY 1/4" SE 12T SD-1/2" 12 PT33127012 CAP SCREW M8-1.25 X 20 50 PT33127050 CAP SCREW M8-1.25 X 45 13 PT33127013 SET SCREW M5-.8 X 8 51 PT33127051 CAP SCREW M6-1 X 20 14 PT33127014 GUIDE BLOCK 52 PT33127052 SHAFT 15 PT33127015 ADJUSTABLE HANDLE M8-1.25 X 25, 60L 53 PT33127053 HEADSTOCK 17 PT33127017 HOLD-DOWN BRACKET 54 PT33127054 CAP SCREW M8-1.25 X 25 18 PT33127018 HOLD-DOWN ROD 55 PT33127055 FLAT WASHER 8MM 20 PT33127020 CHUCK ACCESS COVER, PLASTIC 56 PT33127056 FENDER WASHER 6MM 21 PT33127021 HEX NUT M12-1.75 57 PT33127057 MOTOR JUNCTION BOX 22 PT33127022 FLAT WASHER 12MM 58 PT33127058 PHLP HD SCR M3-.5 X 14 23 PT33127023 COMPRESSION SPRING 2 X 25 X 28MM 59 PT33127059 SWITCH PLATE 24 PT33127024 FLAT WASHER 20MM 60 PT33127060 PHLP HD SCR M4-.7 X 12 25 PT33127025 TOOL RACK 61 PT33127061 CAP SCREW M6-1 X 16 26 PT33127026 CAP SCREW M6-1 X 12 63 PT33127063 GAS SPRING 38MM 27 PT33127027 POWER CORD 18G 3W 72" 5-15P 63-1 PT33127063-1 BALL STUD M8-1.25, 15MM 28 PT33127028 HAND GRIP 65V2 PT33127065V2 CIRCUIT BREAKER KUOYUH 88 4A V2.05.24 29V2 PT33127029V2 MOTOR 1/2HP 120V 1-PH V2.05.24 66 PT33127066 CHUCK GUARD 29V2-1 PT33127029V2-1 MOTOR FAN COVER 68 PT33127068 HEX NUT M8-1.25 29V2-2 PT33127029V2-2 BALL BEARING 6202ZZ REAR 70 PT33127070 STRAIN RELIEF TYPE 3 M16-2 29V2-3 PT33127029V2-3 BALL BEARING 6203ZZ FRONT 71 PT33127071 LOCK WASHER 6MM 29V2-4 PT33127029V2-4 MOTOR FAN 73 PT33127073 LOCK WASHER 8MM 29V2-6 PT33127029V2-6 R CAPACITOR 24M 250V 1-3/8 X 2-1/2 74 PT33127074 PADDLE SWITCH KEDU HY18 30 PT33127030 HEX BOLT M10-1.5 X 25 75 PT33127075 HEX WRENCH 6MM 31 PT33127031 LOCK WASHER 10MM 77 PT33127077 FLAT WASHER 6MM 32 PT33127032 STEP PLATE 78 PT33127078 ROLL PIN 5 X 35 33 PT33127033 HAND LEVER, 450L 79 PT33127079 HEX WRENCH 5MM 34 PT33127034 GEAR 34T 80 PT33127080 HEX WRENCH 3MM 35 PT33127035 ROLL PIN 8 X 35 81 PT33127081 MORTISING CHISEL 1/2" 36 PT33127036 HUB 82 PT33127082 MORTISING CHISEL 3/8" 37 PT33127037 PLASTIC COVER 83 PT33127083 MORTISING CHISEL 1/4" 38 PT33127038 COMPRESSION SPRING 2 X 19 X 28MM 84 PT33127084 DRILL CHUCK ARBOR MT#2 X B16 39 PT33127039 SHOULDER SCREW M10-1.5 40, 26 X 40

-34-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model T33127 (Mfd. Since 05/24)

Page 37

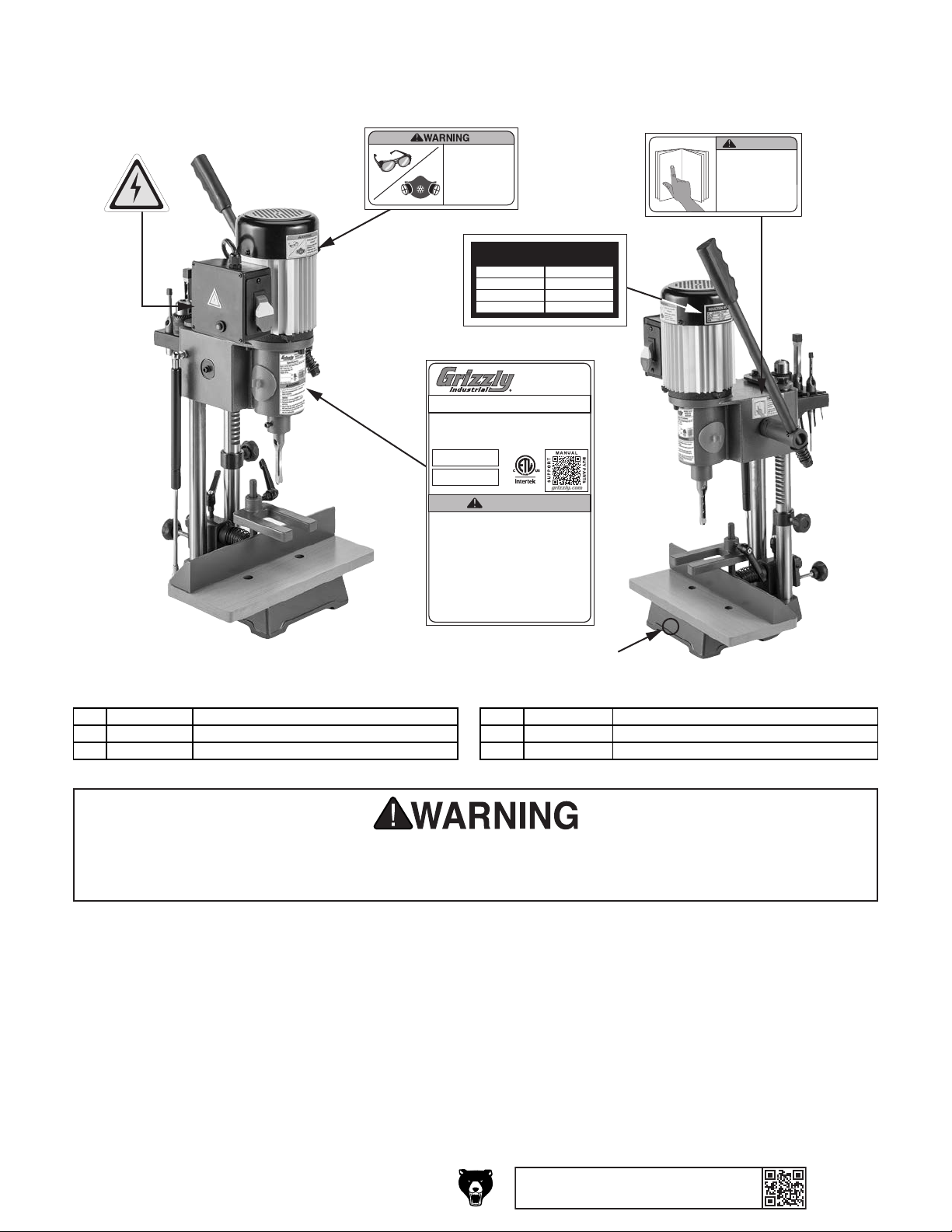

Labels & Cosmetics

104

101

EYE/LUNG INJURY

HAZARD!

Always wear safety glasses and a respirator when using this machine.

102

INDUCTION MOTOR

106V2

Motor: 1/2 HP, 120V, 1-Ph, 60 Hz, 3.4A Max. Chisel Size: 1/2" Chisel Collar Size: 3/4" Weight: 60 lbs.

Mfd. for Grizzly in China

To reduce risk of serious injury when using:

6. slip into rotating bits.

HP 1/2 VOLTS 120 AMPS 3.4 RPM 1720

MODEL T33127

BENCHTOP

MORTISER

Specifications

Date

4000909

WARNING!

Read and understand owner’s manual

before operating.

Always wear approved safety glasses and

respirator.

Plug power cord into grounded outlet. Disconnect power before setting up or

servicing.

Secure long hair, roll up long sleeves. DO

NOT wear loose clothing, gloves, jewelry.

Avoid putting hands where they could

105V2

PHASE 1 HZ 60 POLE 2 SER

WARNING!

To reduce risk of death or serious injury, read manual BEFORE using machine.

To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

103

REF PART # DES CRIP TI ON REF P ART # DESCRI PTIO N

101 PT33127101 ELECTRICITY LABEL 104 PT33127104 GRIZZLY GREEN TOUCH-UP PAINT 102 PT33127102 EYE LUNG HAZARD LABEL 105V2 PT33127105V2 MACHINE ID LABEL V2.05.24 103 PT33127103 READ MANUAL LABEL 106V2 PT33127106V2 MOTOR LABEL V2.05.24

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
