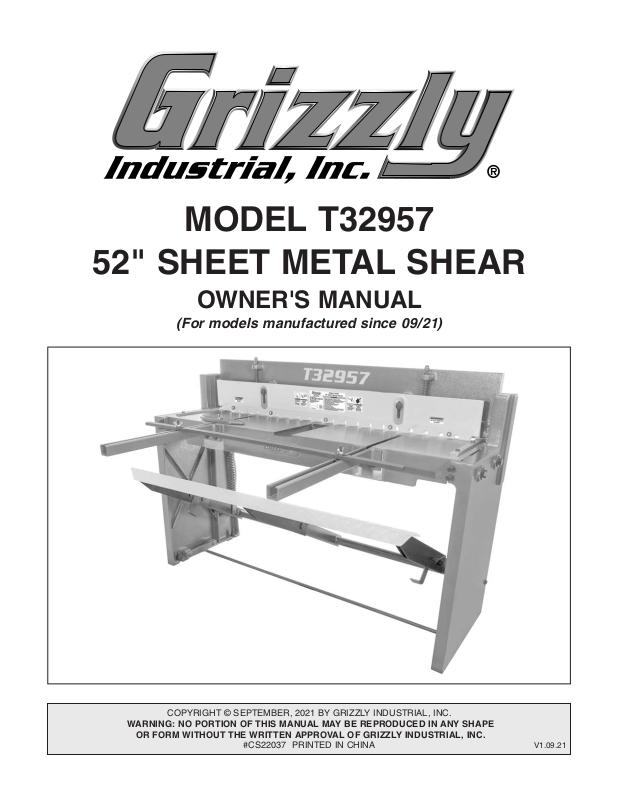

MODEL T32957
52" SHEET METAL SHEAR
OWNER'S MANUAL
(For models manufactured since 09/21)
COPYRIGHT © SEPTEMBER, 2021 BY GRIZZLY INDUSTRIAL, INC.
WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#CS22037 PRINTED IN CHINA
V1.0 9.21
Page 2
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Page 3
Table of Contents
INTRODUCTION ............................................................................................................................... 2
Contact Info
Manual Accuracy
Identification
Controls & Components
Machine Data Sheet
................................................................................................................................ 2
........................................................................................................................ 2
............................................................................................................................... 3
............................................................................................................. 4
................................................................................................................... 5
SECTION 1: SAFETY
Safety Instructions for Machinery
Additional Safety for Metal Shears
SECTION 2: SETUP
Needed for Setup
Unpacking
Inventory
Hardware Recognition Chart
Cleanup
Site Considerations
Lifting & Placing
Anchoring to Floor
Assembly
SECTION 3: OPERATIONS
Operation Overview.................................................................................................................. 17
Cutting Tips
Adjusting Rear Work Stop
Adjusting Front Work Stop
Using Bevel Gauge
SECTION 4: ACCESSORIES
SECTION 5: MAINTENANCE......................................................................................................... 22
Schedule
Cleaning & Protecting
Lubrication
.................................................................................................................................. 9
................................................................................................................................... 10
.................................................................................................................................... 12
.................................................................................................................................. 15
.................................................................................................................................. 22
................................................................................................................................ 22
....................................................................................................................... 6
............................................................................................... 6
............................................................................................. 8
......................................................................................................................... 9
....................................................................................................................... 9
.................................................................................................... 11
.................................................................................................................. 13
....................................................................................................................... 14
.................................................................................................................... 14
........................................................................................................... 17
.............................................................................................................................. 18
........................................................................................................ 18
....................................................................................................... 19
.................................................................................................................. 19
......................................................................................................... 20
.............................................................................................................. 22
SECTION 6: SERVICE
Troubleshooting
Sharpening/Replacing Blade
Adjusting Blade Gap
Adjusting Blade Bow
Adjusting Return Spring Tension
Adjusting Gibs
Adjusting Hold-Down/Blade Guard
Squaring Front Scales
SECTION 7: PARTS
.......................................................................................................................................... 30
Main
WARRANTY & RETURNS
................................................................................................................... 24
........................................................................................................................ 24
................................................................................................................ 26
................................................................................................................ 27
.......................................................................................................................... 28
.............................................................................................................. 29
....................................................................................................................... 30
............................................................................................................. 33
.................................................................................................... 25
............................................................................................. 27
.......................................................................................... 28
Page 4
We stand behind our machines! If you have questions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
from the
machine ID label. This will help us help you faster.
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Email: manuals@grizzly.com
We are proud to provide a high-quality owner’s
manual with your new machine!
We
instructions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
you receive is
slightly different than shown in the manual
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
check our
website for an updated version. W
current
manuals and
on our web-
site at
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the
serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.
INTRODUCTION
Contact Info
and manufacture date
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: (570) 546-9663
Email: techsupport@grizzly.com
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Manual Accuracy
made every effort to be exact with the
sometimes the machine
.
,
e post
manual updates for free
www.grizzly.com.
manufacture date and
Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equipment, or poor work results.
Manufacture Date
Serial Number
-2-
Model T32957 (Mfd. Since 09/21)
Page 5
To reduce your risk of
serious injury, read this
entire manual BEFORE

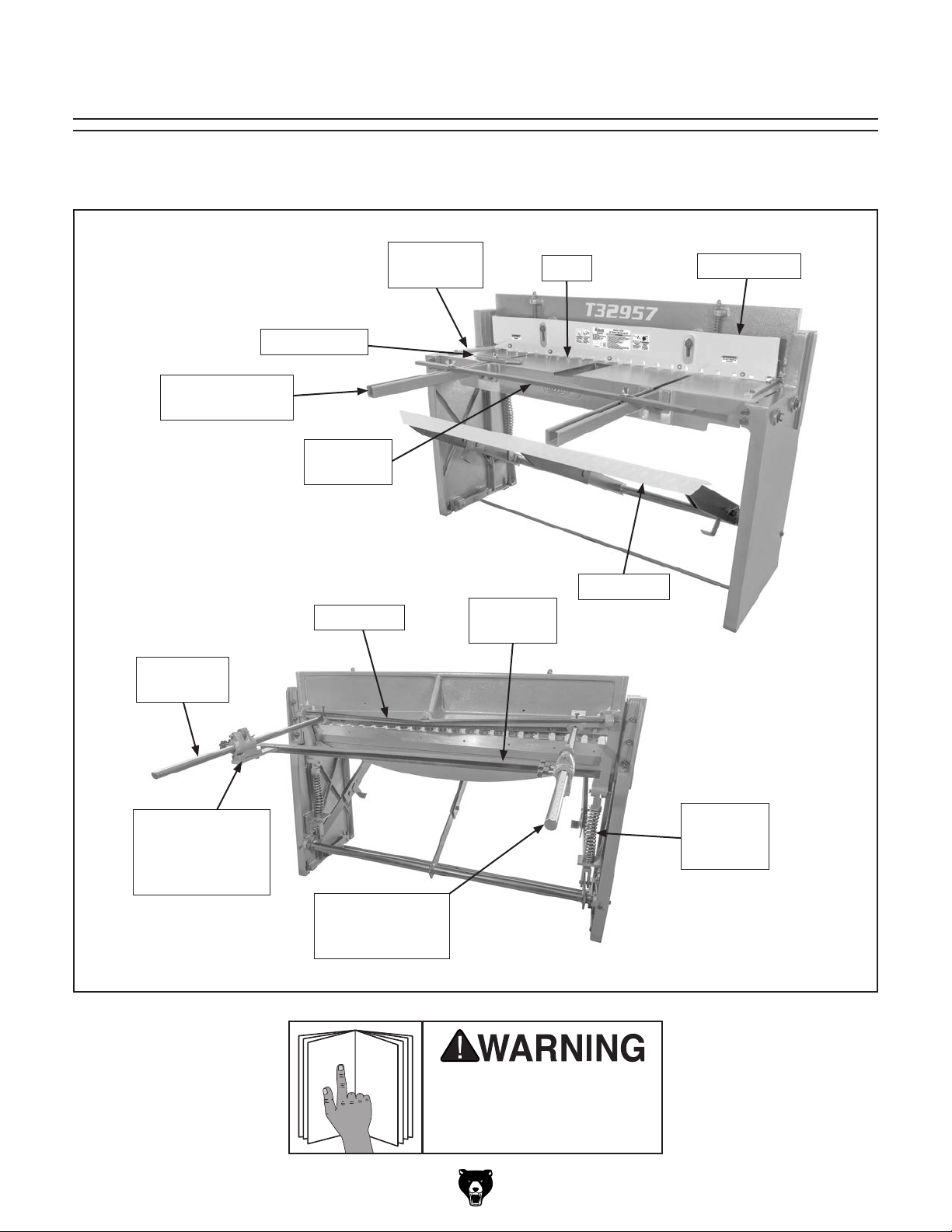

Identification
Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
Front Extension
Arm (1 of 2)
Rear Scale
(1 of 2)
Bevel Gauge
Front
Work Stop
Blade Bow
Front Scale
(1 of 2)
Rear
Work Stop
Table
Blade Guard
Foot Pedal
Micro-Adjustable
Rear Work Stop
Assembly
(1 of 2)
Model T32957 (Mfd. Since 09/21)
Extension
Spring
(1 of 2)
Rear Work Stop
Support Rod
(1 of 2)
using machine.
-3-
Page 6
Controls &
Components
Refer to the following figures and descriptions to
become familiar with the basic controls and components of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.
B
A
C
I
H
M

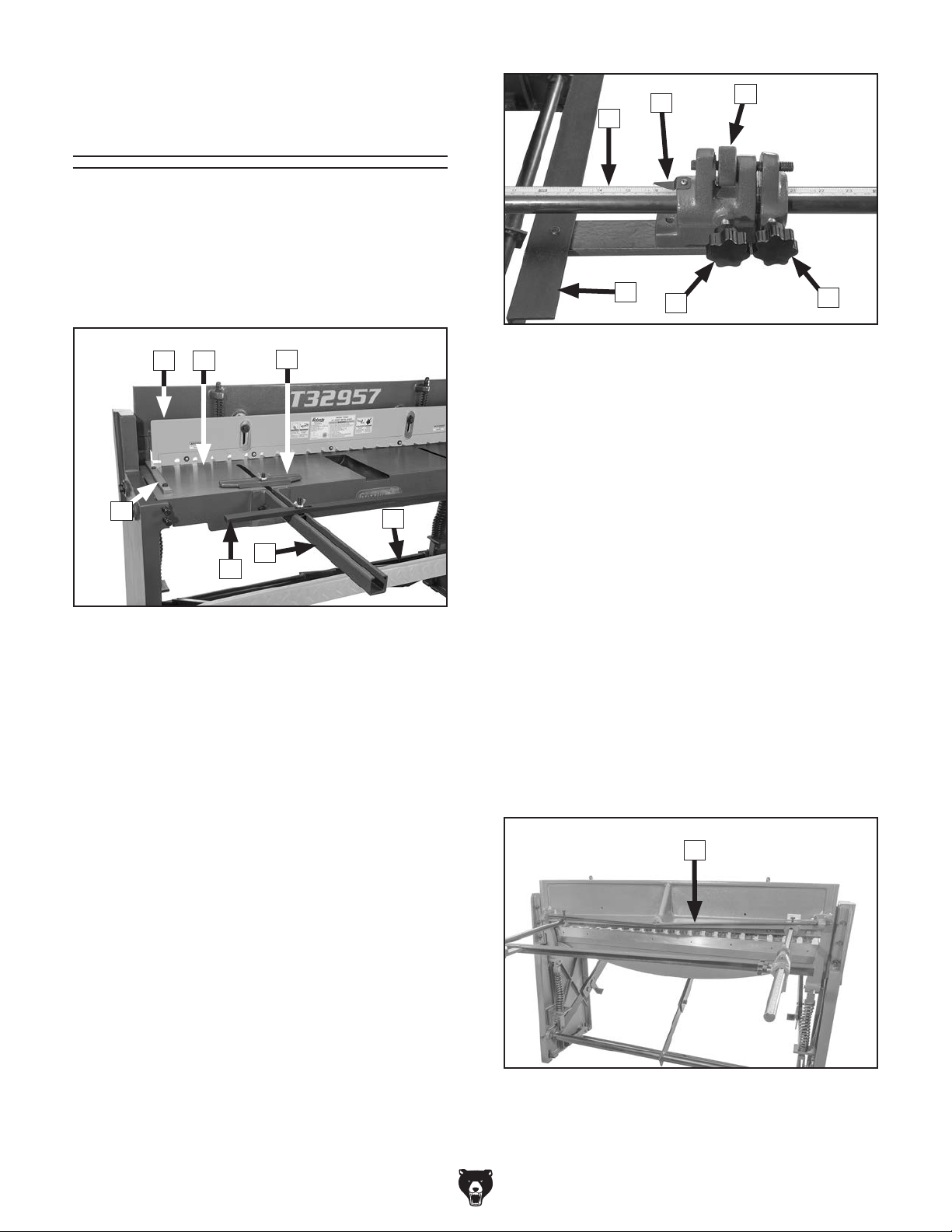

Figure 2. Outfeed components and controls.
H. Rear Work Stop Support Rod (1 of 2):
Supports work stop and has scale for
approximate positioning from 0–33".
I. Rear Work Stop Indicator: Indicates rear
work stop position on scale.
L
J
K
G
E
F
Figure 1. Infeed components and controls.
A. Hold-Down/Blade Guard: Holds down
workpiece and protects user from blades
during shearing operation.
B. Table: Supports infeed side of workpiece.
C. Bevel Gauge: Secures front edge of angled
workpieces.
D. Foot Pedal: Controls cutting action of upper
blade.
E. Front Extension Arm (1 of 2): Provides
infeed support for large workpieces and
extends front work stop and bevel track.
D
J. Micro-Adjustment Knob (1 of 2): Fine-
tunes rear work stop position.
K. Rear Work Stop Lock Knob (1 of 2):
Loosen to adjust rear work stop position;
tighten to secure.
L. Micro-Adjustment Lock Knob (1 of 2):
Loosen to fine-tune rear work stop position;
tighten to secure.
M. Rear Work Stop: Adjusts on rear work
stop support rods to measure and support
workpieces for repeatable cuts.
N
F. Front Work Stop: Adjusts on front extension
arms and holds workpiece in place during
shearing operation.
G. Front Scale (1 of 2): Indicates distance from
cutting line; keeps workpiece square with
blades.
-4-
Figure 3. Location of blade bow.
N. Blade Bow: Adjusts to keep upper blade
straight along its length.
Model T32957 (Mfd. Since 09/21)
Page 7
Machine Data Sheet
MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL T32957 52" SHEET METAL SHEAR
Product Dimensions:
Weight.............................................................................................................................................................. 982 lbs.
Width (side-to-side) x Depth (front-to-back) x Height........................................................................... 62 x 74 x 42 in.
Footprint (Length x Width)............................................................................................................................ 60 x 21 in.
Shipping Dimensions:
Type.......................................................................................................................................................... Wood Crate
Content........................................................................................................................................................... Machine
Weight............................................................................................................................................................ 1202 lbs.
Length x Width x Height....................................................................................................................... 67 x 30 x 46 in.
Must Ship Upright................................................................................................................................................... Yes
Main Specifications:
Capacities
Maximum Width......................................................................................................................................... 52 in.
Maximum Thickness Mild Steel.......................................................................................................... 16 Gauge
Maximum Thickness at Half Width Mild Steel..................................................................................... 14 Gauge
Maximum Thickness at Full Width Mild Steel..................................................................................... 16 Gauge
Aluminum............................................................................................................................................ 12 Gauge
Soft Brass........................................................................................................................................... 14 Gauge
Annealed Phosphor Bronze................................................................................................................ 17 Gauge
Soft Copper......................................................................................................................................... 14 Gauge
Hard Copper....................................................................................................................................... 14 Gauge
ABS Plastic............................................................................................................................................. 2.2 mm
Stainless Steel.................................................................................................................................... 20 Gauge
Maximum Beam Lift............................................................................................................................... 1-3/4 in.
Bed Height Above Floor...................................................................................................................... 42-1/8 in.
Working Height.................................................................................................................................... 31-1/4 in.
Front Stop Scale Range................................................................................................................. 0 - 12-1/2 in.
Rear Stop Scale Range........................................................................................................................ 0 - 33 in.
Construction
Frame......................................................................................................................................................... Steel
Head and Tail Supports.............................................................................................................................. Steel
Shear Table......................................................................................................................................... Cast Iron
Shear Hold-Down Clamp..................................................................................................................... Cast Iron
Shear Blades........................................................................................................................... 9CrSi Alloy Steel
Other Specifications:
Country of Origin ................................................................................................................................................ China
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ........................................................................................................ 30 Minutes
Serial Number Location ................................................................................................................... Machine ID Label
Model T32957 (Mfd. Since 09/21)
-5-
Page 8
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Alerts the user to useful information about proper operation of the
NOTICE
machine to avoid machine damage.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, disconnect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machinery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unintended startup or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
Always discon-
-6-
Model T32957 (Mfd. Since 09/21)
Page 9
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifications—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intended operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
Model T32957 (Mfd. Since 09/21)
-7-
Page 10
Additional Safety for Metal Shears
and ensure guards are properly installed. DO NOT
Serious cuts, amputation, or death can occur from contact with the shear blades during
operation, adjustment, or maintenance. To reduce this risk, anyone using this machine MUST
completely heed the hazards and warnings below.
FINGER AMPUTATION. The shear blades or hold-
down can easily pinch, crush, or amputate fingers or
other body parts. Always keep hands, fingers, and
other body parts away from blades and hold-down
(point-of-operation) during shearing operations.
CAPACITY. Exceeding cutting capacity of shear
may result in breakage or machine damage that
ejects dangerous metal debris at operator or
bystanders. Only use sheet metal within the rated
capacity of this shear (refer to the Machine Data
Sheet).
BLADE CONDITION. Sharp, undamaged, and
properly adjusted blades will reduce risk of injury
from breakage or sharp burrs left on workpiece.
Always keep blades properly adjusted and sharp.
SHEAR BLADE ADJUSTMENT. When adjusting or replacing shear blades, always wear heavy
leather gloves to protect hands and wear safety
glasses to protect eyes.
PROPER WORKPIECE MATERIAL. Shear is only
intended for cutting ferrous and non-ferrous mild
sheet metal or flat stock. Do not attempt to cut
round metal stock, glass, wood, drywall, backer
board, plywood, or other material not intended for
this machine. Cutting incorrect materials can produce unexpected results, which increases risk of
injury, and may result in damage to machine.
SHARP METAL EDGES. The sharp edges of
sheet metal can easily cut fingers, hands, and
other body parts. Always wear heavy leather
gloves when handling sheet metal. Always chamfer and deburr sharp workpiece edges.
OPERATOR POSITION. Avoid awkward body
and hand positions where a sudden slip could
cause your hand or body to enter point-of-operation or make accidental contact with shear blades.
MAINTENANCE/SERVICE. Always wait for all
moving parts to come to a complete stop before
performing any adjustments, service, or maintenance. Do not contact foot pedal while performing
these adjustments.
GUARDS. Keep all guards in place, properly
positioned, and in working order. Never operate
shear with blade guard removed. If blade guard
is removed or not properly positioned, fingers
may accidentally be cut or amputated by shear
blades. Always position guard just high enough to
allow workpiece to enter, but not high enough for
fingers.
CHECK MACHINE. Before using machine, carefully check components for wear that could affect
operation. Check blade alignment and gib play,
operate machine until all defects are corrected.
WORK AREA. Provide sufficient clearance around
machine to permit safe use by regular operators and performance of maintenance procedures.
Keep work area clear of materials or substances
that may create a slip, trip, or fall hazard.
-8-
STRAY SHEET METAL PIECES. Sheet metal
cut-off pieces left on the floor can easily slide
under foot and cause falling injuries. Always
remove cut-off sheet metal pieces from the floor
after operation. Keep work area clean.
Model T32957 (Mfd. Since 09/21)
Page 11
SECTION 2: SETUP
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
,
please
IMPORTANT:
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
Needed for Setup
This machine presents
serious injury hazards
to untrained users. Read
through this entire manual to become familiar with
the controls and operations before starting the
machine!
Wear safety glasses during
the entire setup process!
The following items are needed, but not included,
for the setup/assembly of this machine.
Description Qty
• Safety Glasses (For Each Person) ......1 Pair
• Disposable Rags ........................ As Needed
• Disposable Gloves ..................... As Needed
• Cleaner/Degreaser ..................... As Needed
• Lifting Equipment (Rated for 1500 lbs.) ...... 1
• Another Person .......................................... 1
• Floor Mounting Hardware ........... As Needed
• Precision Level ........................... As Needed
• Wrench or Socket 10, 12mm ................1 Ea.
• Tape Measure............................................. 1
HEAVY LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
Unpacking
If items are damaged
call us immediately at (570) 546-9663.
Save all packaging materials until
Model T32957 (Mfd. Since 09/21)
-9-
Page 12

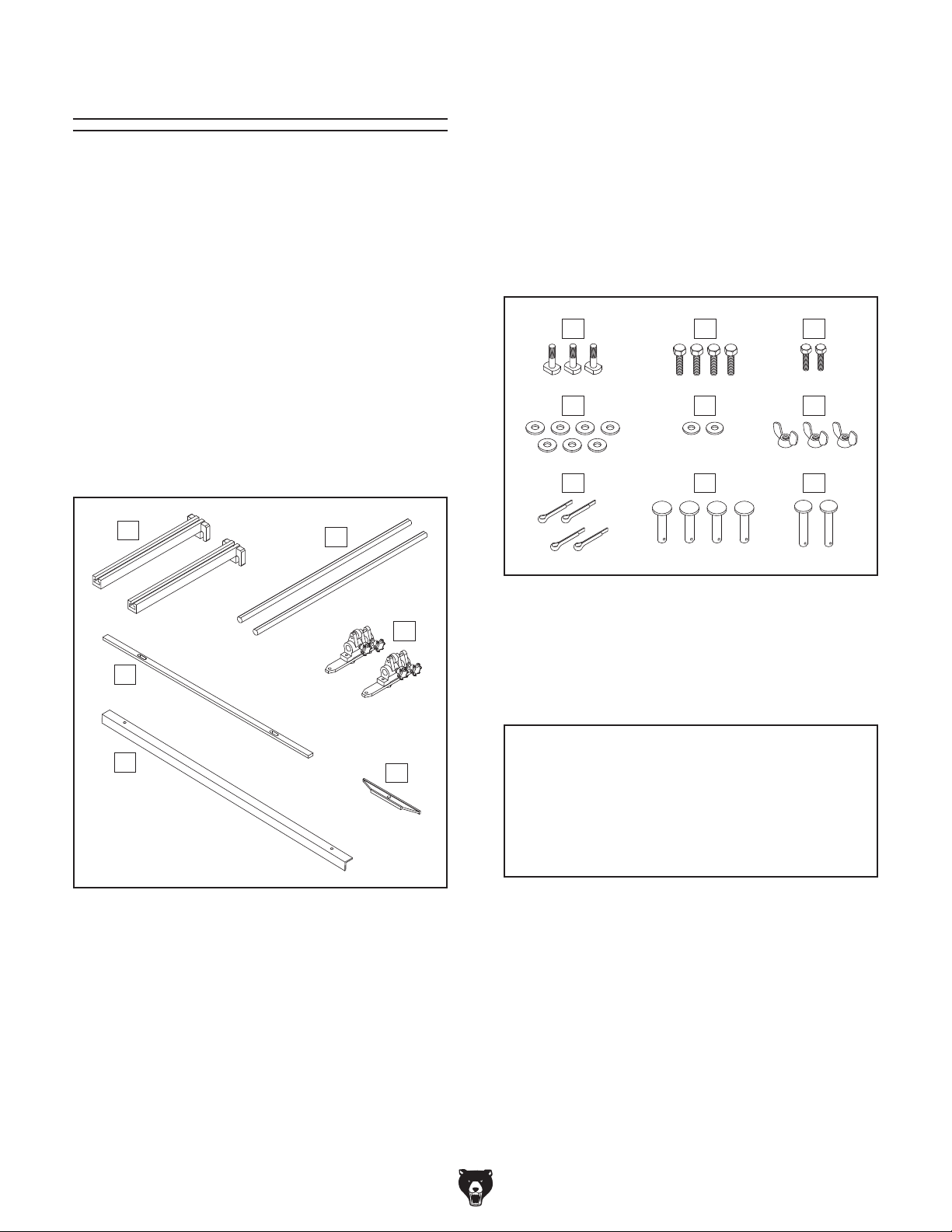

Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
74
72
Fasteners (Figure 5) Qty
G. T-Bolts M12-1.75 x 45 ................................. 3
H. Hex Bolts M12-1.75 x 30 ............................. 4
I. Hex Bolts M10-1.5 x 20 .............................. 2
J. Flat Washers 12mm ................................... 7
K. Flat Washers 10mm ................................... 2
L. Wing Nuts M12-1.75 .................................... 3
M. Cotter Pins M3 x 50.................................... 4
N. Clevis Pins 12 x 45mm ............................... 4
O. Clevis Pins 12 x 88mm ............................... 2
Loosen Inventory (Figure 4) Qty
A. Front Extension Arms ................................. 2
B. Rear Work Stop Support Rods .................. 2
C. Front Work Stop ......................................... 1
D. Rear Work Stop Assemblies ...................... 2
E. Rear Work Stop .......................................... 1
F. Bevel Gauge ............................................... 1
A
C
E
B
D
F
G H I
J K L
M N O
Figure 5. Fasteners.
Note: Some of the clevis pins and cotter pins
listed above have been provided to replace those
pre-installed on the machine in the event they
break due to wear.
NOTICE
If you cannot find an item on this list, carefully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or they are pre-installed at the factory.
Figure 4. Loose inventory.
-10 -
Model T32957 (Mfd. Since 09/21)
Page 13

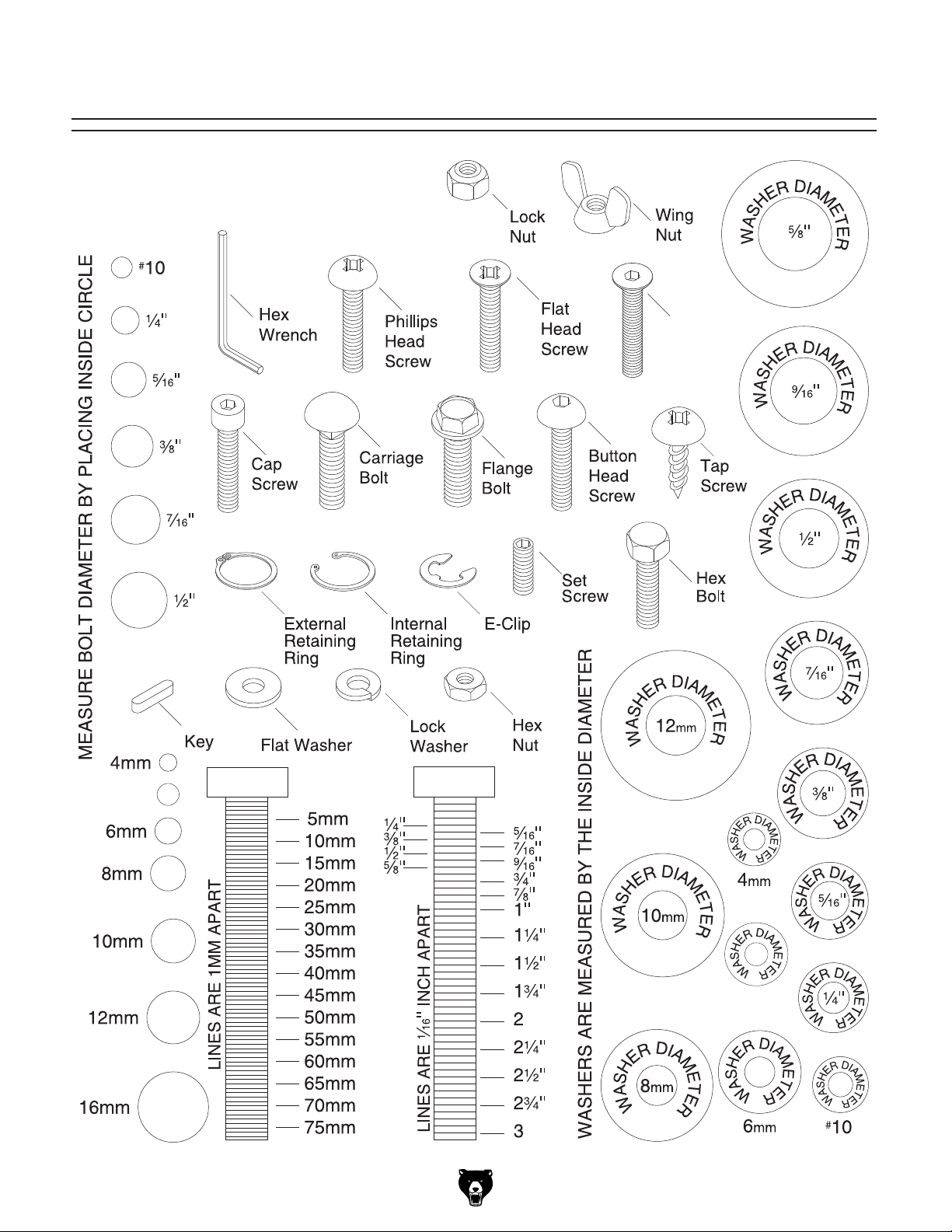

Hardware Recognition Chart
USE THIS CHART TO MATCH UP
HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.
Flat
Head
Cap
Screw
5mm
Model T32957 (Mfd. Since 09/21)
5mm
-11-
Page 14
Cleanup
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preventative, but the following steps work well in a wide
variety of situations. Always follow the manufacturer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
• Disposable rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
2.
3.
4.
Many cleaning solvents
work in a well-ventilated
Cleanup
Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avo i d
using these products
to clean machinery.
Put on safety glasses.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
Wipe off the surfaces. If your cleaner/degreas-
er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.
are toxic if inhaled. Only
area.
NOTICE
Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted surfaces. Always test on a small, inconspicuous location first.
T23692—Orange Power Degreaser
A great product for removing the waxy shipping grease from the non-painted parts of the
machine during clean up.
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
-12-
Figure 6. T23692 Orange Power Degreaser.
Model T32957 (Mfd. Since 09/21)
Page 15
Site Considerations
Weight Load
for the weight
of your machine. Make sure that the surface upon
of the machine, additional equipment that may be
Physical Environment
The physical environment where the machine
is operated is important for safe operation and
longevity of components. For best results, operate this machine in a dry environment that is
free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range is outside 41°–104°F; the relative humidity
range is outside 20–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.
Shadows, glare, or strobe effects that may distract
Space Allocation
Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the maintenance and service described in this manual.
See below for required space allocation.
Refer to the Machine Data Sheet
which the machine is placed will bear the weight
installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.
Lighting
Lighting around the machine must be adequate
enough that operations can be performed safely.
or impede the operator must be eliminated.
Keep Area
Unobstructed
Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.
74"
62"
Keep Area
Unobstructed
Model T32957 (Mfd. Since 09/21)

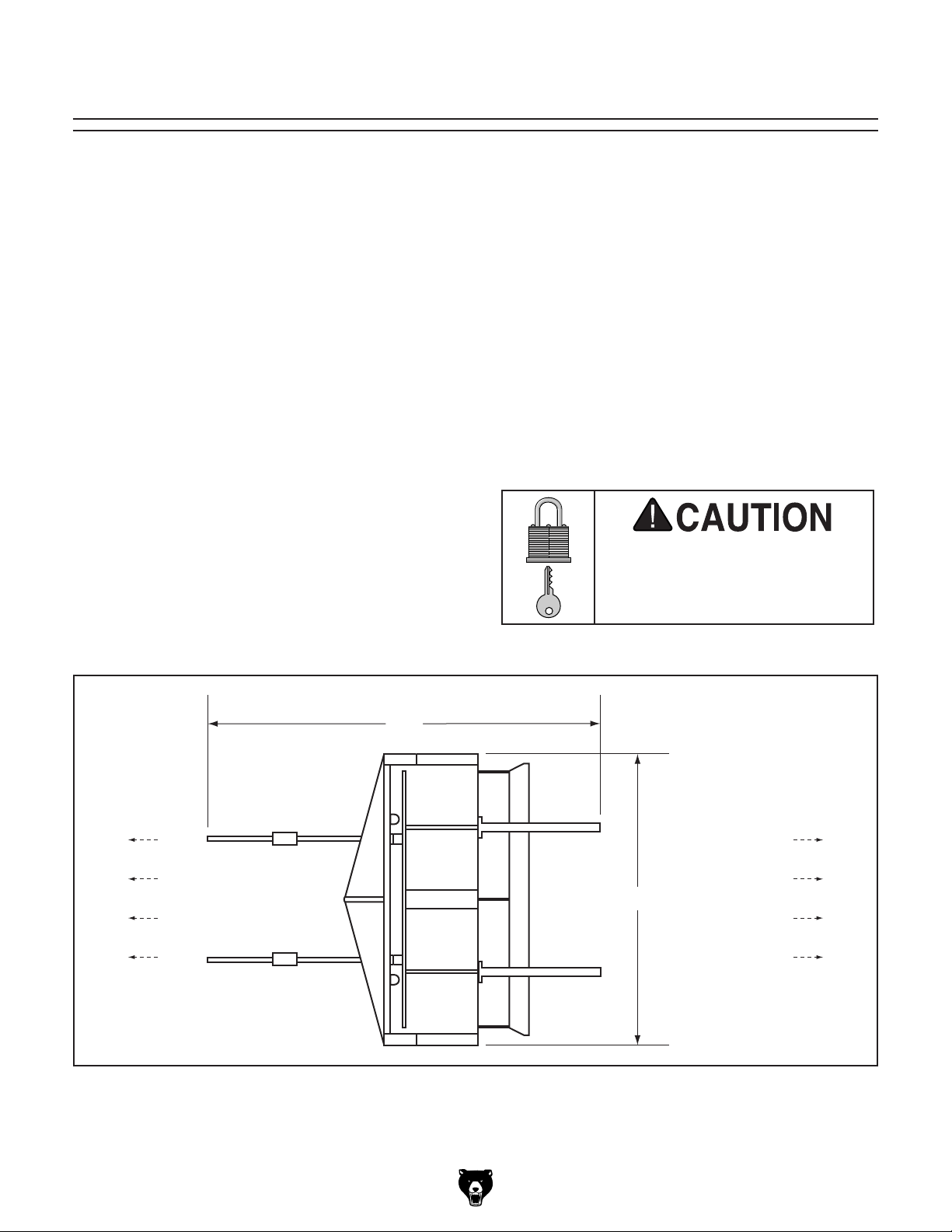

Figure 7. Minimum working clearances.
-13-
Page 16
Anchoring machinery to the floor prevents tipping
or shifting and reduces vibration that may occur
during operation, resulting in a machine that runs
slightly quieter and feels more solid.
If the machine will be installed in a commercial or
workplace setting, or if it is permanently connected (hardwired) to the power supply, local codes
may require that it be anchored to the floor.
If not required by any local codes, fastening the
machine to the floor is an optional step. If you
choose not to do this with your machine, we recommend placing it on machine mounts, as these
provide an easy method for leveling and they have
vibration-absorbing pads.
Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a concrete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later, if needed. However, anytime
local codes apply, you MUST follow the anchoring
methodology specified by the code.

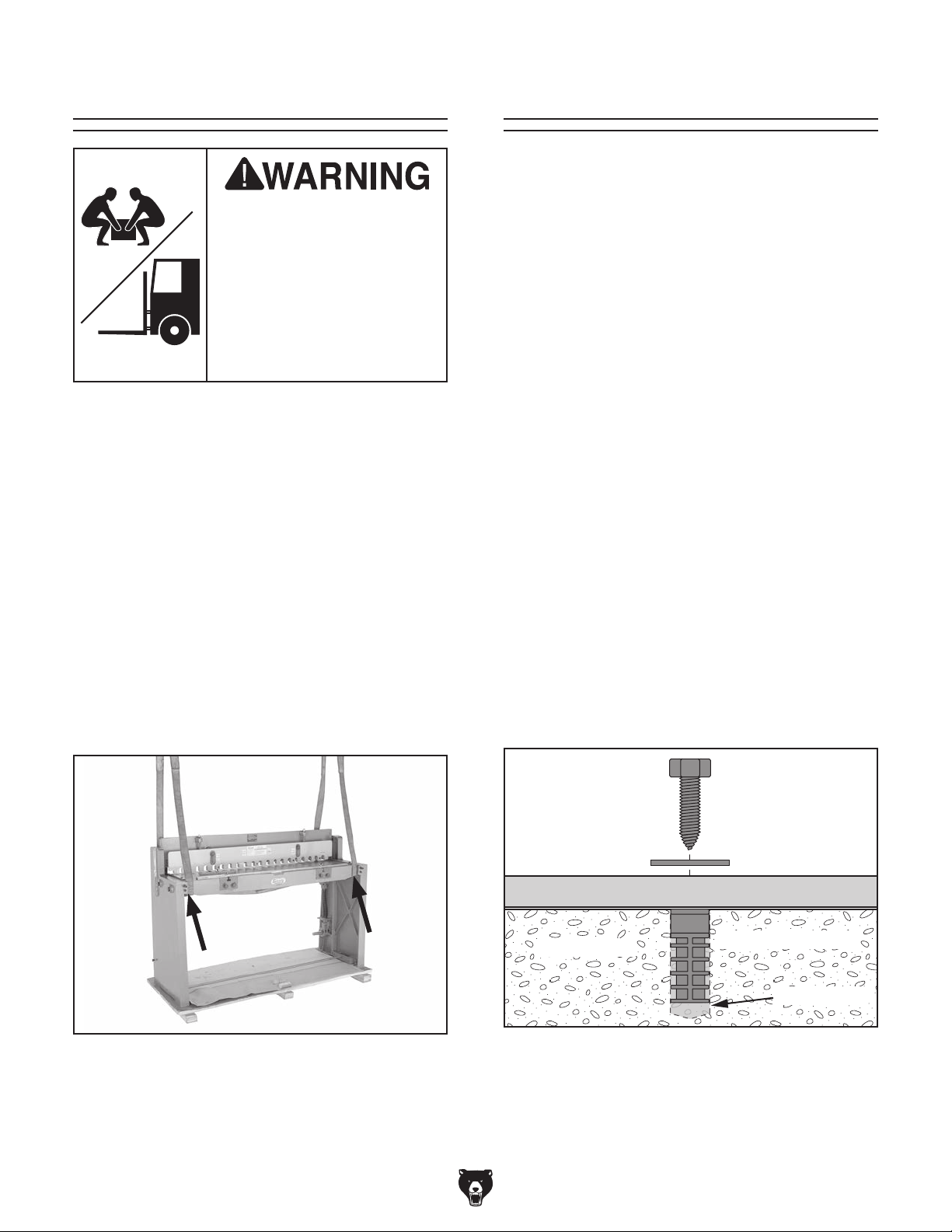

Lifting & Placing
HEAVY LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
Use a forklift (or other type of lifting equipment)
with lifting straps to move the machine to your
desired location. All lifting equipment should be
rated for at least 1500 pounds.
To lift & place machine:
Anchoring to Floor
Number of Mounting Holes ............................ 4
Diameter of Mounting Hardware
.................5⁄8"
Place shipping crate near installation loca-
1.
tion, then remove crate top and sides and set
small items aside.
Unbolt machine from shipping pallet.
2.
3. Place lifting straps under shear table at loca-
tions shown in Figure 8. Straps should be
spread as wide as possible.
Figure 8. Example of lifting straps placed under
shear table for lifting.
Anchoring to Concrete Floors
Lag Screw
Flat Washer
Machine Base
Concrete
Figure 9. Popular method for anchoring
machinery to a concrete floor.
Lag Shield Anchor
Drilled Hole
4.
With help of another person to steady load,
use forklift or crane to lift machine from pallet
and move to desired location.
-14-
Model T32957 (Mfd. Since 09/21)
Page 17

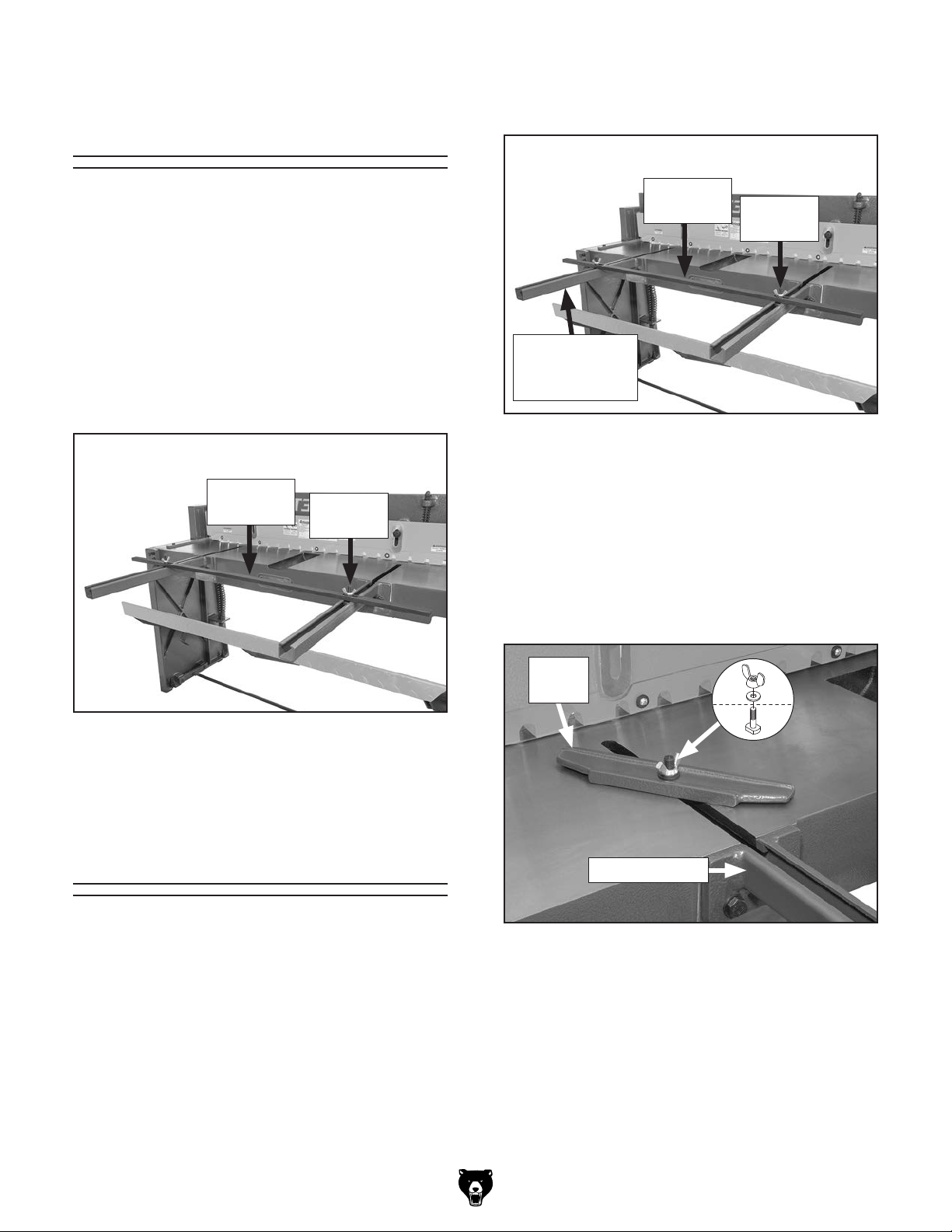

Assembly
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
and gather
all
To ensure the assembly process
goes smoothly, first clean any
covered or coated in heavy-duty rust preventative (if
applicable).
listed items.
Needed for Setup
parts that are
To assemble machine:
Use level to check shear table.
1.
— If table is level, no adjustment is required.
Proceed to Step 2.
If table is not level, use shims between
—
floor and base to level machine before
proceeding. Leveling shear helps blades
and other components remain straight and
flat during life of machine so machine can
continue to cut straight and square.
Cut cable ties securing foot pedal to table.
2.
3. Have another person press and hold foot
pedal about halfway through full range of
movement.
Insert (2) 12 x 45mm clevis pins in holes in
4.
foot pedal frame and secure with (2) M3 x 50
cotter pins, as shown in Figure 10.
Front Extension
Arm (1 of 2)
Figure 11. Front extension arms attached.
Note: Arm T-slots must line up with table
T-slots, and surfaces must be flush (see
Figure 12).
Figure 12. Extension arm T-slot lined up with
table and flush with table surface.
6.
Install (1) M12-1.75 x 45 T-bolt in each T-slot
and secure front work stop to extension arms
using (2) 12mm flat washers and M12-1.75
wing nuts (see Figure 13).
x 4
x 2

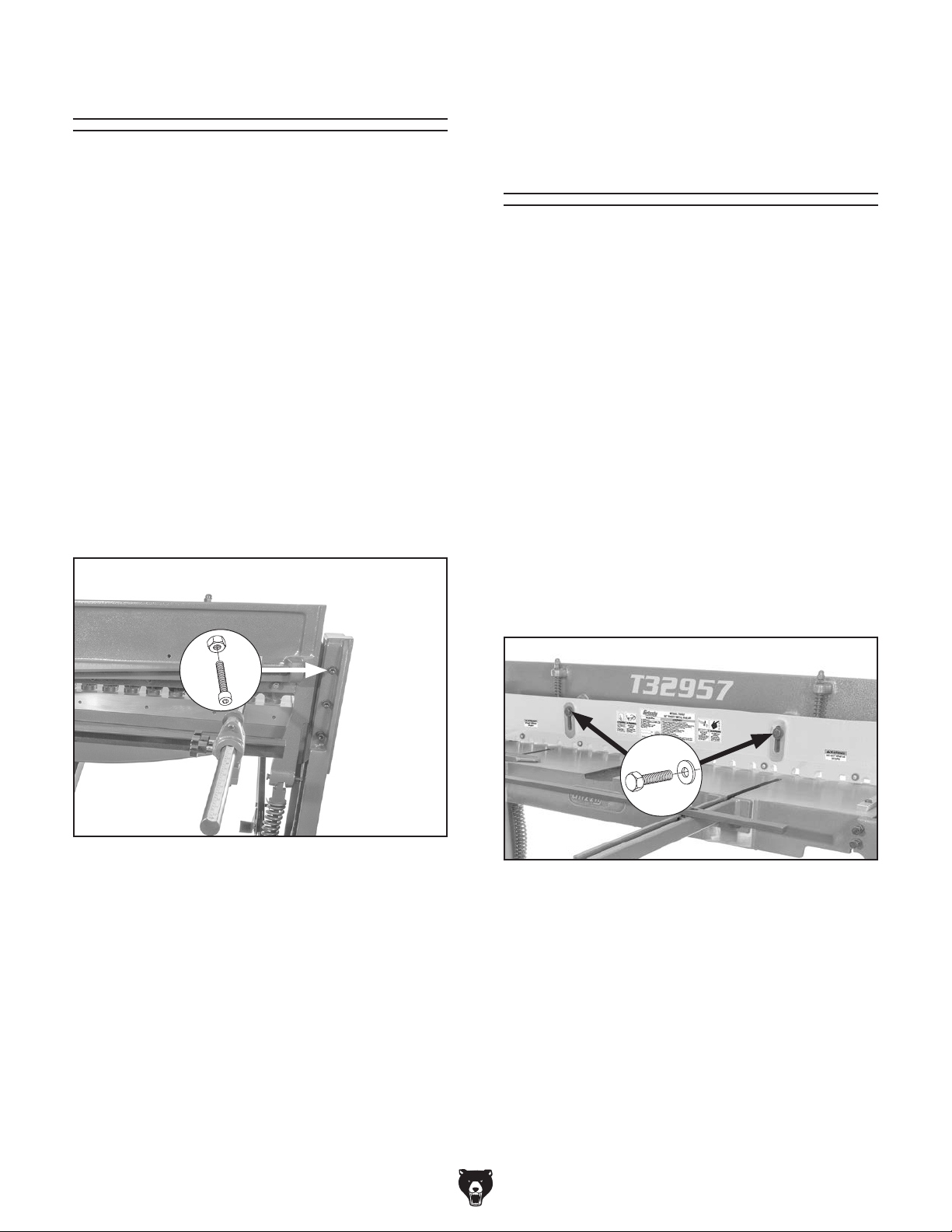

Figure 10. Location of hole in foot pedal frame
(1 of 2 shown).
5. Attach (2) front extension arms to shear table
with (4) M12-1.75 x 30 hex bolts and 12mm
flat washers (see Figure 11).
Model T32957 (Mfd. Since 09/21)
Extension Arm
(1 of 2)
Front
Work Stop
Figure 13. Front work stop secured to extension
arms.
x 2
-15-
Page 18
7. Insert (2) rear work stop support rods in holes
shown in Figure 14.
Secure rear work stop supprt rods in place
8.
by tightening pre-installed hex bolts (see
Figure 14).
Note: Rear work stop support rods should
extend same distance from back of machine.
If one rod extends farther than the other,
adjust hex bolts and rods until even.
Hex Bolt
10. Align each work stop indicator to the same
number on rod scales, then tighten microadjustment lock knobs and rear work stop
lock knobs (see Figure 16).
Work Stop
Indicator
Rear Work Stop
Support Rod
(1 of 2)

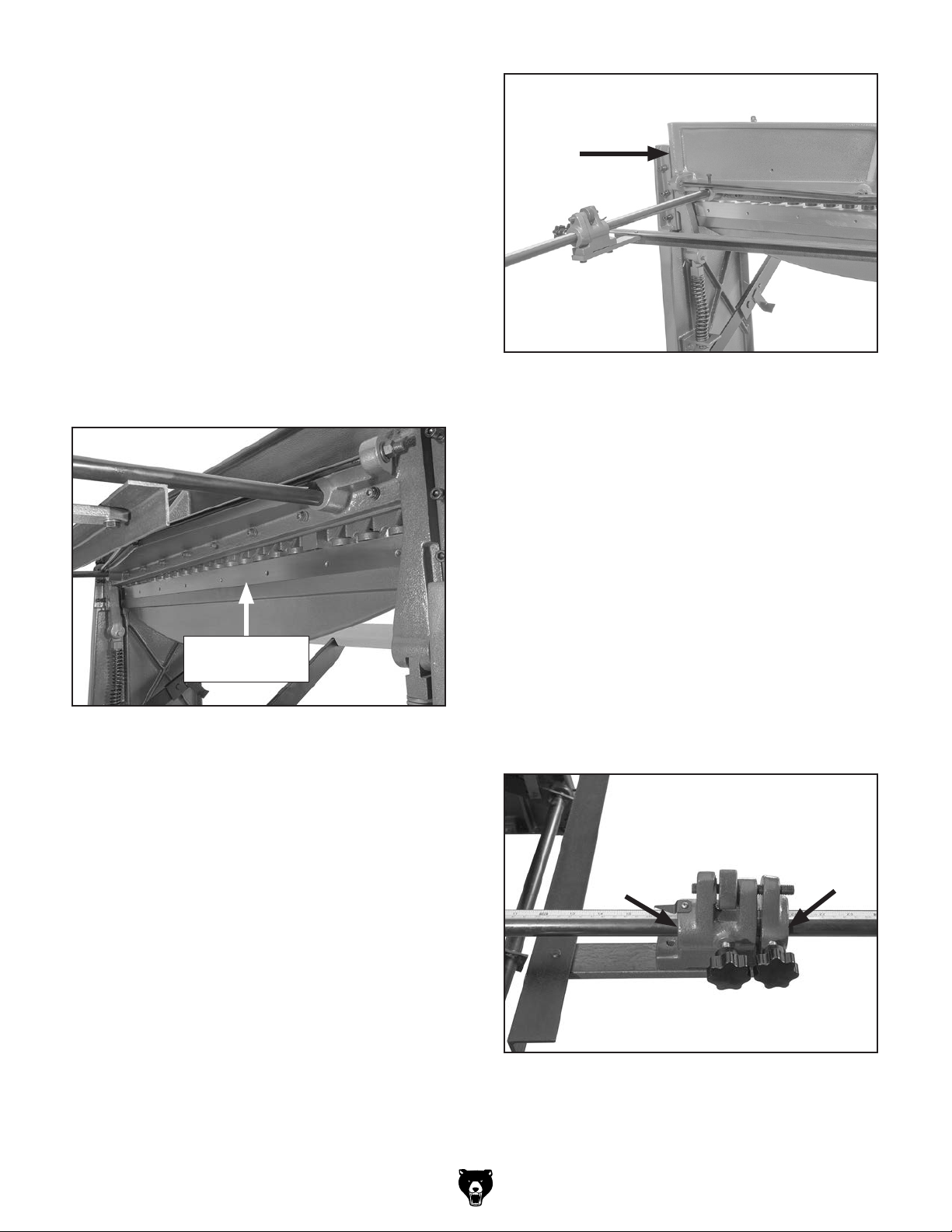

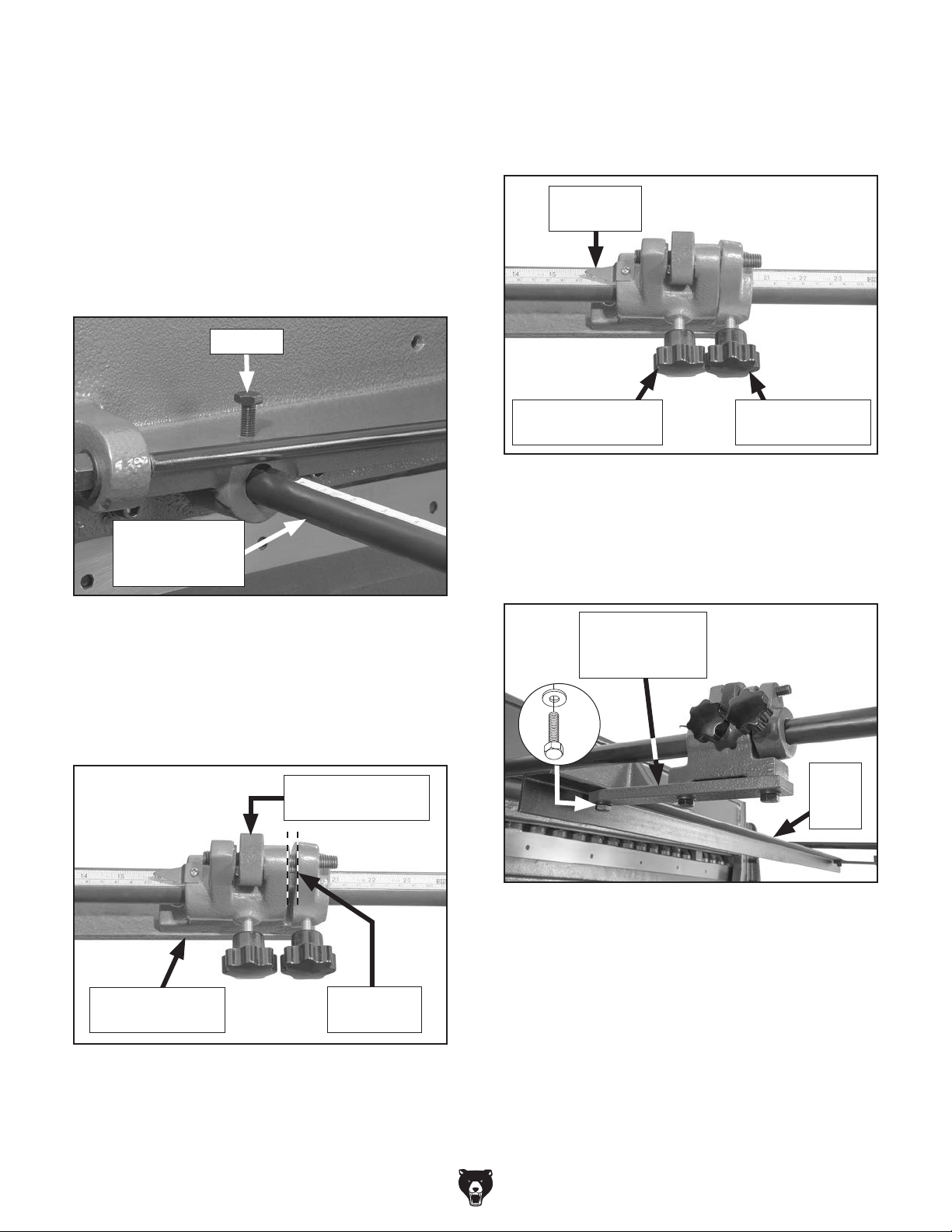

Figure 14. Rear work stop support rods installed
on machine.
9. Install (2) rear work stop assemblies on rear
work stop support rods and tighten each
micro-adjustment knob completely to eliminate space shown in Figure 15.
Micro-Adjustment
Knob (1 of 2)
Micro-Adjustment
Lock Knob
Figure 16. Rear work stop assembly
components.
Attach rear work stop to rear work stop assem-
11.
blies with (2) M10-1.5 x 20 hex bolts and
10mm flat washers, as shown in Figure 17.
Rear Work
Stop Assembly
(1 of 2)
x 2
Rear Work Stop
Lock Knob
Rear
Work
Stop
Rear Work Stop
Assembly
Figure 15. Rear work stop assembly installed on
rear work stop support rod.
-16 -
Eliminate
This Space
Figure 17. Rear work stop attached to rear work
stop assembly.
Model T32957 (Mfd. Since 09/21)
Page 19
SECTION 3: OPERATIONS
The purpose of this overview is to provide the novice machine operator with a basic understanding
of how the machine is used during operation, so
the
discussed later
in this manual
Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,
training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.
To reduce your risk of
serious injury, read this
entire manual BEFORE
Operation Overview
machine controls/components
are easier to understand.
seek additional
, and do additional research
If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable
for accidents caused by lack of training.
To complete a typical operation, the operator
does the following:
Examines workpiece to make sure it is within
1.
capacities of machine.
Adjusts rear work stop for length of cut.
2.
using machine.
Bodily injury could result from using this
machine. Always wear safety glasses,
leather work boots, and heavy duty leather
work gloves when operating this machine
or whenever handling sheet metal.
Model T32957 (Mfd. Since 09/21)
Shear blades or hold-down
blade guard can easily
pinch, crush, or amputate
fingers or other body parts.
Always keep body parts
away from blades and holddown during operation.
3. Puts on safety glasses, leather boots, and
leather gloves.
Places workpiece on front extension arms.
4.
5. Slides workpiece under blade guard and
upper blade, and up against rear work stop.
Adjusts front work stop (or bevel gauge,
6.
if angled workpiece) against workpiece to
keep shearing force from pushing workpiece
forward.
With balanced and stable body position,
7.
firmly presses down on foot pedal to make
cut.
Raises foot pedal and either removes
8.
workpiece or repeats Steps 5–7 to make
additional cuts.
-17-
Page 20
Cutting Tips
• Never attempt to cut any workpiece narrower
than 1⁄2". The workpiece must be long enough
to be engaged by the hold-down/blade guard.
• Keep the upper blade properly adjusted to
the lower blade (refer to Adjusting Blade
Gap on Page 26 for detailed instructions).
This will help ensure good cutting results and
avoid blade damage.
• Before each operation, clean cut-offs or
debris away from the shear.
Adjusting Rear
Work Stop
The rear work stop is used for making repetitive
cuts of the same length. The micro-adjustment
assemblies allow for precise positioning of the
work stop.
To adjust rear work stop:
Loosen (2) rear work stop lock knobs and (2)
1.
micro-adjustment lock knobs (see Figure 19).
• Use the foot pedal to engage the hold-down/
blade guard with the workpiece, then pause
to check the workpiece position. If workpiece
position is correct, continue lowering the foot
pedal to complete the cut.
• The shearing action of the blades works
similarly to a pair of scissors (see illustration in Figure 18). Use even pressure on the
foot pedal throughout entire cut to produce a
straight, even cut.
Shearing Action
Upper Blade
Lower Blade

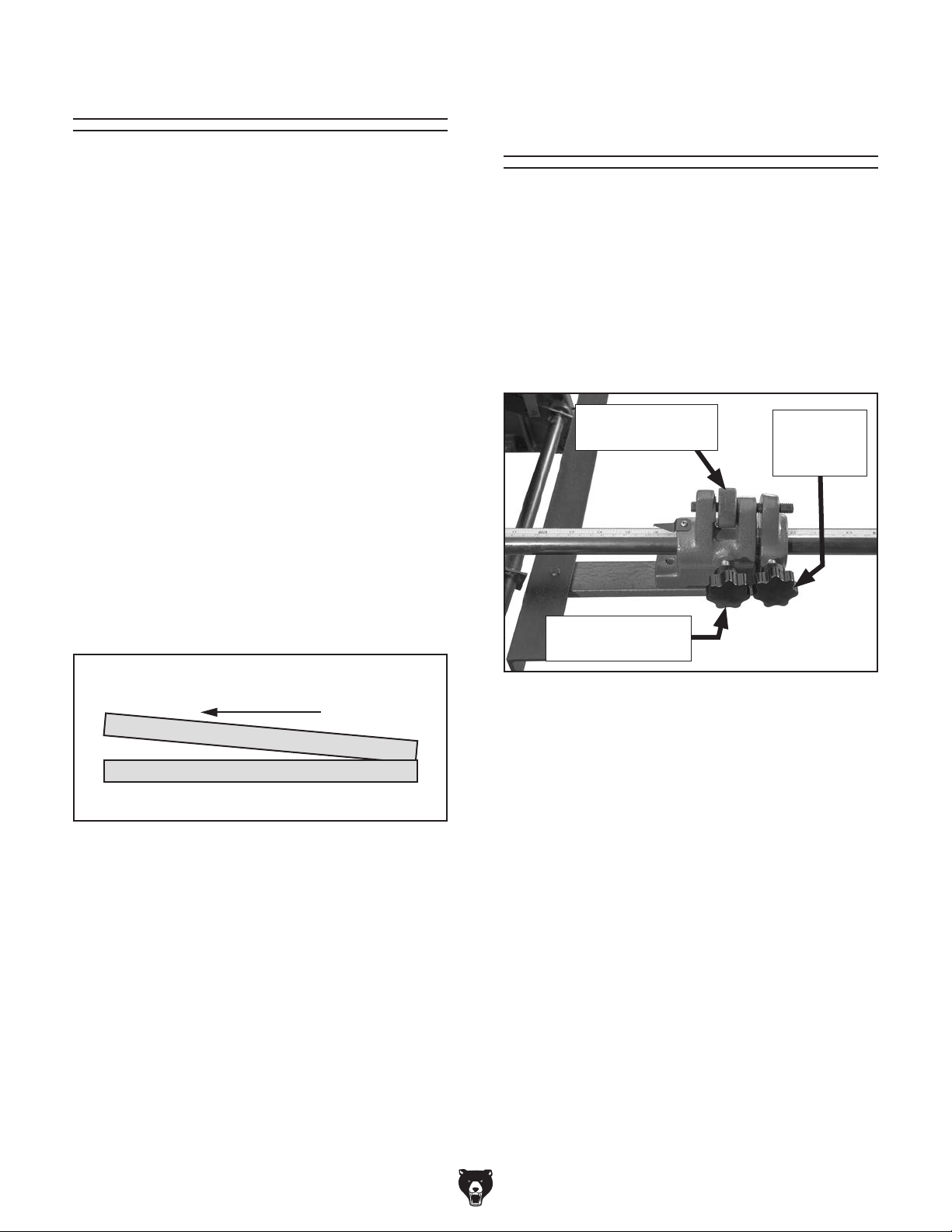

Figure 18. Blade shearing action.
Micro-Adjustment
Knob
Micro-Adjustment
Lock Knob
Figure 19. Location of rear stop work lock knob
and micro-adjustment lock knob.
2. Slide rear work stop evenly along rear work
stop support rods so work stop leading edge
is at approximate desired distance from cutting edges of blades.
Note: Use scales on top of support rods for
approximate positioning. Use fine ruler or
tape measure for more precise positioning.
Rear Work
Stop
Lock Knob
-18-
Tighten (2) rear work stop lock knobs.
3.
4. Use micro-adjustment knob on each assem-
bly to adjust work stop in small, precise
amounts until they are exactly where needed
(see Figure 19).
Note: Move work stop evenly on both sides
to keep it parallel with blades.
Tighten micro-adjustment lock knobs to
5.
secure rear work stop position.
Model T32957 (Mfd. Since 09/21)
Page 21
Adjusting Front
Work Stop
2.
Slide front work stop out of front extension
arms to remove (see Figure 21).
The front work stop keeps the shearing blades
from pushing the workpiece forward during cutting
operations. Use the following steps to adjust the
front work stop to the front workpiece edge once
the workpiece has been inserted under the blade
guard and is ready to be sheared.
To adjust front work stop:
Loosen (2) front work stop wing nuts (see
1.
Figure 20).
Front
Work Stop
Wing Nut
(1 of 2)
Front
Work Stop
Front
Extension Arm
(1 of 2)
Figure 21. Front work stop components.
3. Position workpiece on table and under blade
guard for shearing operation.
Install (1) M12-1.75 x 45 T-bolt in T-slot and
4.
secure bevel gauge to extension arm or table
against workpiece front edge with (1) T-bolt,
12mm flat washer, and M12-1.75 wing nut
(see Figure 22).
Wing Nut
(1 of 2)
Figure 20. Location of front work stop wing nuts.
2. Adjust front work stop against front workpiece
edge and tighten wing nuts to secure.
Using Bevel Gauge
The bevel gauge can be installed in place of the
front work stop to support workpieces that have
an angled front edge.
To use bevel gauge:
Loosen (2) front work stop wing nuts (see
1.
Figure 21).
Bevel
Gauge
Extension Arm
Figure 22. Bevel gauge installed to support
angled front workpiece edge.
Note: Figure 22 shows bevel gauge installed
in left T-slot, but it can be installed in either
side. Install the bevel gauge in the best
position to secure your workpiece for the
operation.
Model T32957 (Mfd. Since 09/21)
-19 -
Page 22
ACCESSORIES
Installing unapproved accessories may
order online at www.grizzly.com or call 1-800-523-4777
SECTION 4: ACCESSORIES
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.
NOTICE
Refer to our website or latest catalog for
additional recommended accessories.
T25208—23-Pc. Deburring Set
Includes: 380-0060 double burr; 2-piece 3800088 handle; 380-0097, 380-0098, and 380-0091
holders; D25 and D40 scrapers; C20 countersink;
ES100 and ES200 blades (5 each); V13, and A13
blades; wrench and hex wrenches; case.
D3042—Double Suction Cup
Handle plate glass, glass mirrors, and sheet metal
with safety and security. Cam-action levers make
placement and removal quick and easy.
Figure 24. Model D3042 Double Suction Cup.
Recommended Metal Protectants
G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT
G2871—Boeshield
G2870—Boeshield
H3788—G96
H3789—G96
®
12 Oz. Spray
®
T-9 12 Oz. Spray
®
®
Gun Treatment 12 Oz. Spray
®
Gun Treatment 4.5 Oz. Spray
T-9 4 Oz. Spray
Figure 23. Model T25208 23-Pc. Deburring Set.
Figure 25. Recommended products for protect-
ing unpainted cast iron/steel part on machinery.
-20-
Model T32957 (Mfd. Since 09/21)
Page 23
1
order online at www.grizzly.com or call 1-800-523-4777
H5503—
This electric sheet metal shear features a
⁄2 HP Electric Sheet Metal Shear
1
⁄2 HP,
110V, 2500 RPM, 3.8 amp motor with a 360 degree adjustable swivel head and variable speed
range from 0 to 2500 SPM. Cuts up to 14 gauge
in mild steel and 18 gauge in stainless, at up to
150 inches per minute.
1
Figure 26. Model H5503
⁄2 HP Electric Sheet
Metal Shear.
H5614—Sheet Metal Gauge US Standard
Calibrated for sheet metal sized from 0 to 30
gauge. The front is marked with gauge sizes, the
back is marked with actual inch measurements.
SB1365—South Bend Way Oil-ISO 68
Engineered for the high pressure exerted on
horizontal or vertical ways and slides. Protects
against rust and corrosion. Ensures stick-free,
smooth motion which maximizes finishes and
extends the life of your machine. Won’t gum up!
12 oz. AMGA#2 (ISO 68 Equivalent)
Figure 28. SB1365 Way Oil.
T26685—ISO 32 Moly-D Machine Oil, 1 Gal.
T23963—ISO 32 Moly-D Machine Oil, 5 Gal.
Moly-D oils are some of the best we've found for
maintaining the critical components of machinery
because they tend to resist run-off and maintain
their lubricity under a variety of conditions. Buy in
bulk and save with 5-gallon quantities.
T26685 T23963
Figure 29. ISO 32 machine oil.
Figure 27. H5614 Sheet Metal Gauge.
Model T32957 (Mfd. Since 09/21)
-21-
Page 24

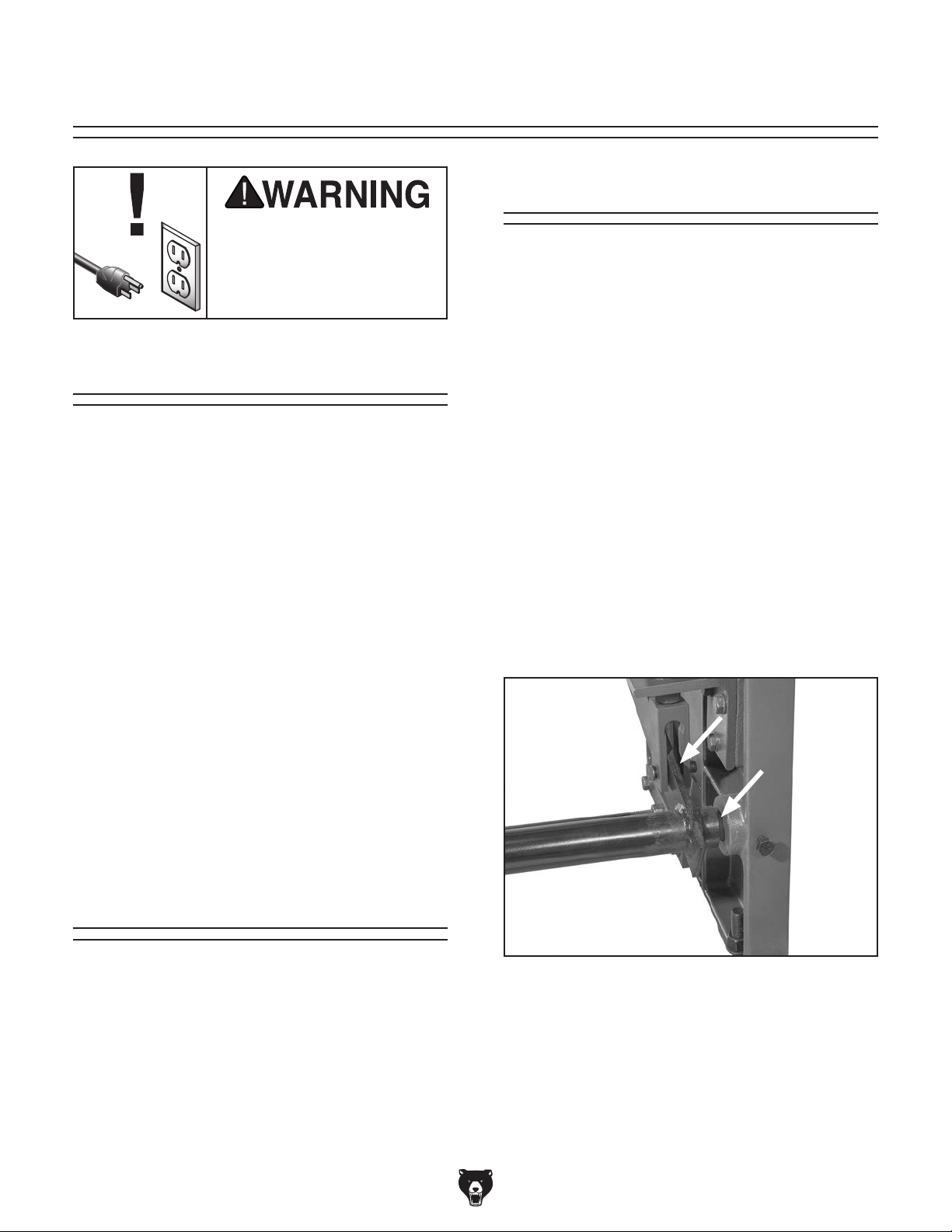

SECTION 5: MAINTENANCE
To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,
Lubrication
There are a number of parts on this machine that
undergo a lot of movement and must remain lubri-
maintenance, or service.
Schedule
cated for smooth operation and long life.
Pivot Pins
Oi l Ty pe .................T26685 or ISO 32 Equivalent
Oil Amount
Lubrication Frequency
....................................... 1 or 2 Drops
................................. Daily
For optimum performance from this machine, this
maintenance schedule must be strictly followed.
Ongoing
To minimize your risk of injury and maintain proper
machine operation, stop operations immediately if
you ever observe any of the items below, and fix
the problem before continuing operations:
• Loose mounting bolts.
• Loose or damaged blade guard.
Worn or damaged blades.
•
Loose or bent rear work stop support rods.
•
Any other unsafe condition.
•
Daily Maintenance
• Clean and protect blades and bare cast iron
surfaces.
• Lubricate pivot pins.
Cleaning &
Items Needed Qty
Wire Brush ......................................................... 1
Shop Rags
T26685 or ISO 32 Equivalent
Use a wire brush to clean any built-up grease
from pivot pins (see Figure 30) before applying a
few drops of lubricant to the exposed portions of
all four pivot pins. Keep your hands and fingers
away from shearing area and press down on the
foot pedal a few times to distribute the lubricant.
......................................... As Needed
............ As Needed
Protecting
Cleaning the Model T32957 is relatively easy. Use
a brush to clear away any metal debris from the
blades, the blade guard, and the table.
Keep the table and exposed portions of the blades
rust-free with regular applications of products like
®
Gun Treatment, SLIPIT®, or Boeshield® T-9
G96
(see Page 20 for more details).
-22-
Figure 30. Location of pivot pins (2 of 4 shown).
Model T32957 (Mfd. Since 09/21)
Page 25
Shearing Blades
Oi l Ty pe ................ SB1365 or ISO 68 Equivalent
Oil Amount
Lubrication Frequency
Items Needed Qty
Protective Gloves..........................................1 Pr.
Shop Rags
Mineral Spirits
SB1365 or ISO 68 Equivalent
While wearing protective gloves, use a rag and
mineral spirits to clean away grease and built-up
grime from the surfaces of the shearing blades
(Figure 31). Once the blades are dry, apply oil to
the surfaces with a clean rag.
....................................... 1 or 2 Drops
..............................Weekly
......................................... As Needed
.................................... As Needed
............ As Needed
Figure 32. Gib and slide lubrication point.
Rear Work Stop Assemblies
Oi l Ty pe ................ SB1365 or ISO 68 Equivalent
Oil Amount
Lubrication Frequency
Items Needed Qty
Shop Rags ......................................... As Needed
Mineral Spirits
SB1365 or ISO 68 Equivalent
....................................... 1 or 2 Drops
....................... As Needed
.................................... As Needed
............ As Needed
Surface of
Shearing Blade
Figure 31. Location of lower shearing blade
surface.
Gibs & Slides
Oi l Ty pe ................ SB1365 or ISO 68 Equivalent
Oil Amount
Lubrication Frequency
Items Needed Qty
SB1365 or ISO 68 Equivalent ............ As Needed
Apply a few drops of oil at each gib (see Figure
32) weekly to keep the upper blade and holddown/blade guard moving smoothly.
....................................... 1 or 2 Drops
..............................Weekly
The rear work stop assemblies must slide smoothly in order to achieve accurate measurements
when shearing. Clean the rear work stop support
rods with mineral spirits when you have any trouble adjusting the rear work stop position. Apply a
few drops of oil to the locations shown in Figure
33 on each assembly.
Figure 33. Rear work stop assembly lubrication
locations.
Model T32957 (Mfd. Since 09/21)
-23-
Page 26
Review the troubleshooting procedures in this section if a problem develops with your machine. If you need
the
serial number and manufacture date of your machine before calling.
SECTION 6: SERVICE
replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather
Troubleshooting
Operations
Symptom Possible Cause Possible Solution
Shear will not
cut workpiece.
Cuts are not
square.
Poor quality of
cuts (ripping or
tearing).
Foot pedal
difficult to use.
1. Workpiece thickness exceeds shear capacity.
2. Not enough pressure applied to foot pedal.
3. Blades worn or damaged.
4. Blade gap not correct.
5. Hold-down/blade guard is not adjusted
correctly.
1. Rear work stop not parallel with blades.
2. Blade gap not correct.
3. Blade bow is not correct.
4. Hold-down/blade guard is not adjusted
correctly.
1. Blade gap not correct.
2. Blades worn or damaged.
3. Hold-down/blade guard is not adjusted
correctly.
4. Gibs too loose.
1. Blade gap not correct.
2. Pivot pins need lubrication.
3. Gibs too tight.
1. Only use workpiece material that is within shear
capacity (Page 5).
2. Safely increase pressure on foot pedal.
3. Sharpen/replace blades (Page 25).
4. Properly adjust blade gap (Page 26).
5. Properly adjust hold-down/blade guard (Page 28).
1. Properly adjust rear work stop parallel with blades
(Page 18).
2. Properly adjust blade gap (Page 26).
3. Properly adjust blade bow (Page 27).
4. Properly adjust hold-down/blade guard (Page 28).
1. Properly adjust blade gap (Page 26).
2. Sharpen/replace blades (Page 25).
3. Properly adjust hold-down/blade guard (Page 28).
4. Tighten gib screws (Page 28).
1. Properly adjust blade gap (Page 26).
2. Lubricate pivot pins (Page 22).
3. Loosen gib screws (Page 28).
-24-
Model T32957 (Mfd. Since 09/21)
Page 27

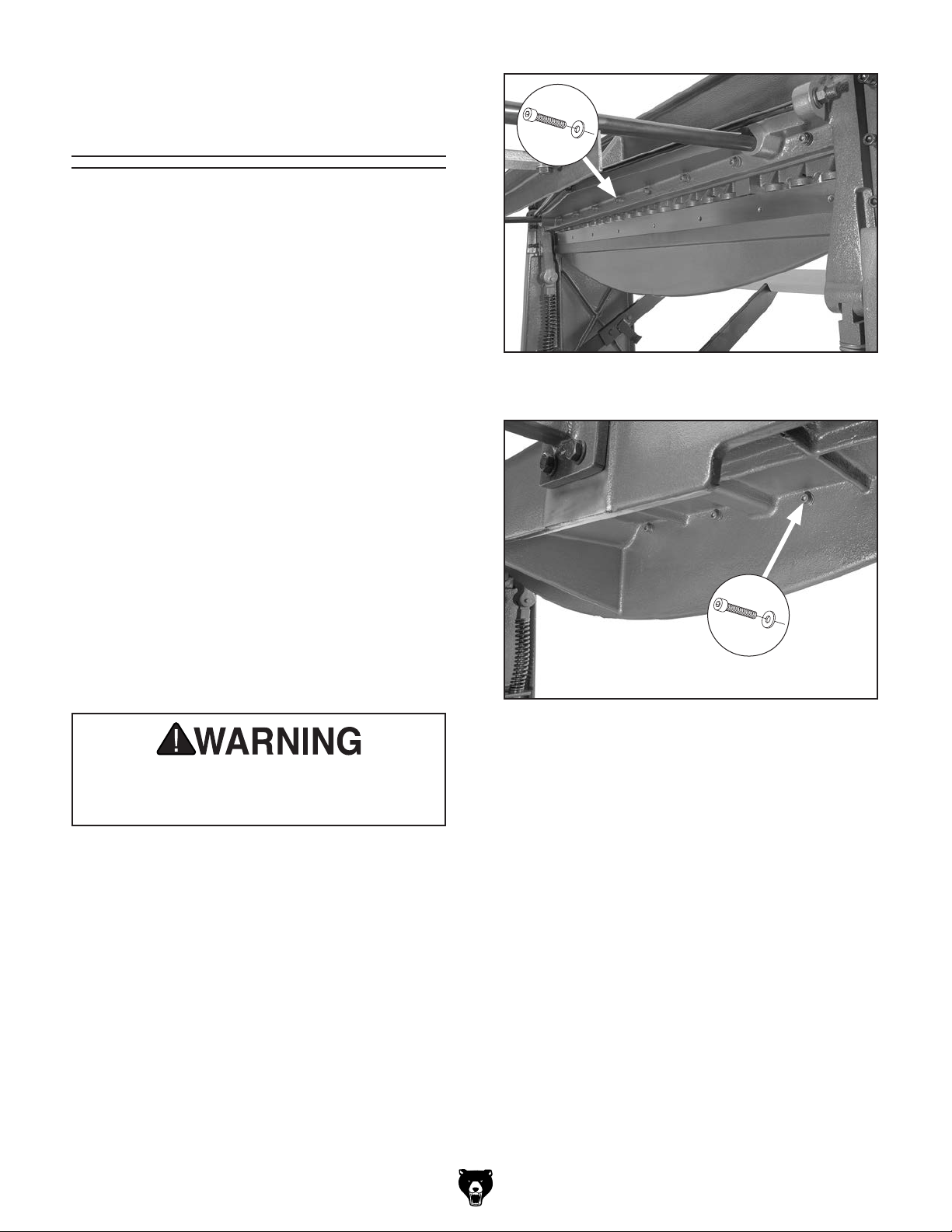

Sharpening/
Replacing Blade
The upper blade of the Model T32957 has two
cutting edges so that if one cutting edge becomes
dull, you can reverse the blade and use the fresh,
sharp cutting edge.
If both of the upper blade cutting edges are dull,
or the cutting edge of the lower blade is dull,
sharpen the blade(s) on a surface grinder and
make sure the blade is flat along the entire length.
Re-sharpen each blade edge as needed until it is
too thin to safely install (as described in the steps
below), then replace the blade. We recommend
you keep an extra set of blades on hand to avoid
any downtime.
Items Needed Qty
Another Person .................................................. 1
Protective Gloves (for Each Person)
Hex Wrench 8mm
Surface Grinder
Mineral Spirits
Shop Rags
Metal Protectant
New Upper Blade (#PT32957024)
New Lower Blade (#PT32957025)
......................................... As Needed
.............................................. 1
................................................. 1
.................................... As Needed
................................ As Needed
............1 Pr.
..... As Needed
..... As Needed
x 8
Figure 34. Upper blade cap screws and flat
washers.
x 8
Shear blades are sharp. Wear protective
gloves when handling blades to prevent
laceration injuries.
To sharpen/replace blade:
Have another person support blade while you
1.
remove (8) cap screws and flat washers to
remove blade (see Figures 34–35).
Figure 35. Lower blade cap screws and flat
washers.
Reverse blade (upper blade only) or sharpen
2.
on surface grinder.
Clean blade with mineral spirits, then apply
3.
thin coat of quality metal protectant.
Install blade using hardware removed in
4.
Step 1.
If blade is so thin after sharpening that
—
securing cap screws extend beyond opposite side of cutting edge, replace blade.
Model T32957 (Mfd. Since 09/21)
-25-
Page 28

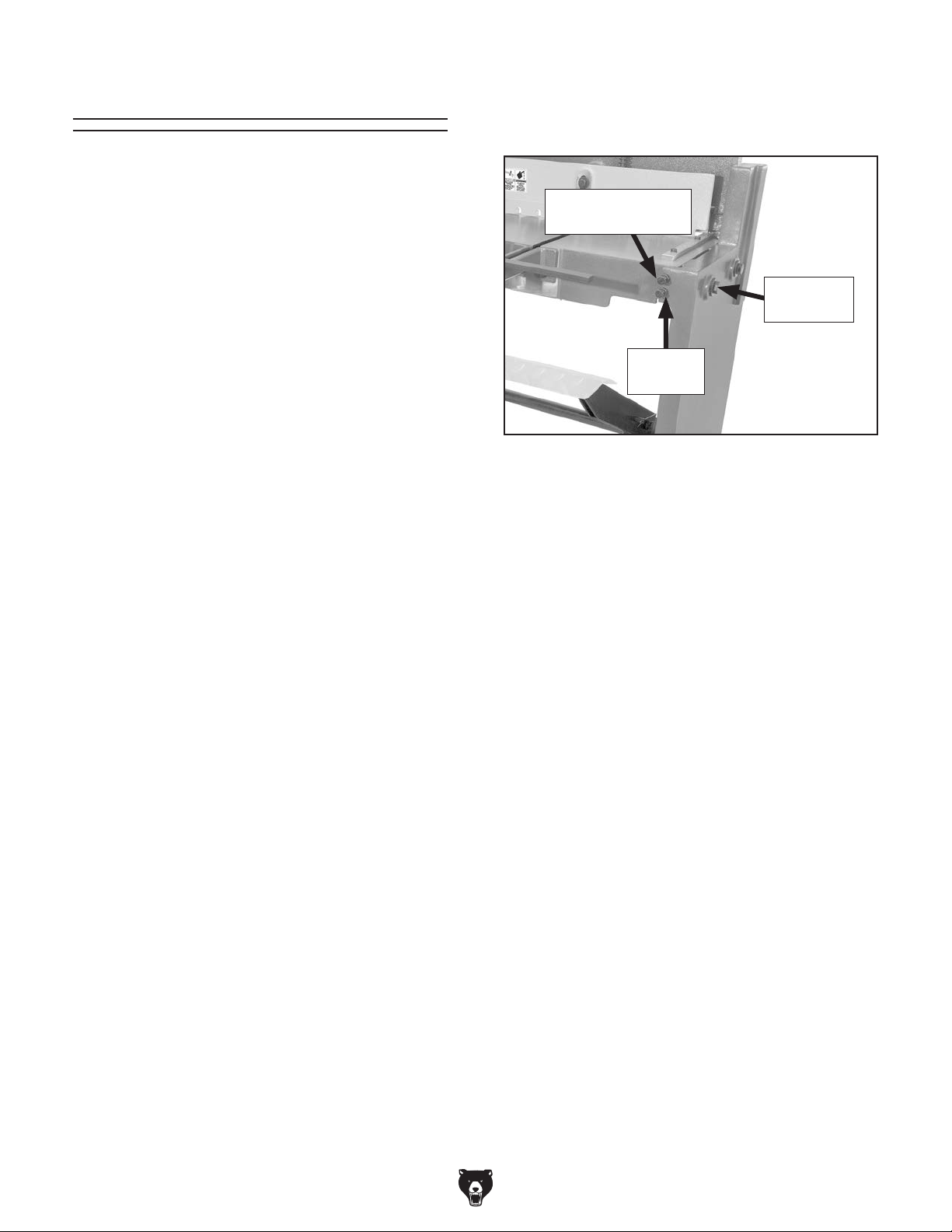

Adjusting Blade Gap
The gap between the upper and lower blades (as
they pass each other) must remain even along
the length of the blades to produce clean cuts.
Initially, this adjustment has been made at the
factory. However, over time and with normal wear,
you may need to adjust the blade gap.
Loosen (2) table bolts, (2) table adjustment
2.
bolts, and (2) jam nuts on side of shear that
needs adjustment (see Figure 36).
Table Adjustment
Bolt (1 of 2)
If the blade gap is too wide, the workpiece will
not cut correctly and show signs of bending, ripping, or tearing. If the blade gap is too narrow,
the upper blade will bind when lowering past the
lower blade and the cutting edges may become
damaged.
Items Needed Qty
Scrap Paper ...................................... As Needed
Wrench or Socket 24mm
Open-End Wrenches 17mm
Feeler Gauge 0.002"
To adjust blade gap:
Make cuts on piece of paper along full length
1.
of shear blades.
If paper cuts cleanly on full length of shear
—
blades, blade gap requires no adjustment.
If paper does not cut cleanly only on one
—
end of shear, lower blade needs to be
adjusted on that end. Proceed to Step 2.
................................... 1
.............................. 2
......................................... 1
Table Bolt
(1 of 2)
Jam Nut
(1 of 2)
Figure 36. Location of blade gap adjustment
components.
3. Use foot pedal to lower and hold upper blade
in lowest position.
Insert feeler gauge between blades on side
4.
that needs adjustment, then turn table adjustment bolts to move table and lower blade
until lower blade makes light contact with
feeler gauge against upper blade.
Tighten (2) jam nuts and (2) table bolts to
5.
secure blade gap adjustment.
Repeat Step 1 to check adjustment.
6.
-26-
If paper does not cut cleanly along the
—
entire length of blades, both ends of lower
blade need to be adjusted. Proceed to
Step 2.
If paper cuts cleanly on ends but not cen-
—
ter of blades, or it cuts cleanly in center but
not ends, blade bow needs to be adjusted
(refer to Adjusting Blade Bow on Page
27 for detailed instructions).
If paper still does not cut cleanly, but
—
blade gap adjustment is correct, blade(s)
may need to be sharpened (refer to
Sharpening/Replacing Blade on Page
25 for detailed instructions).
Model T32957 (Mfd. Since 09/21)
Page 29

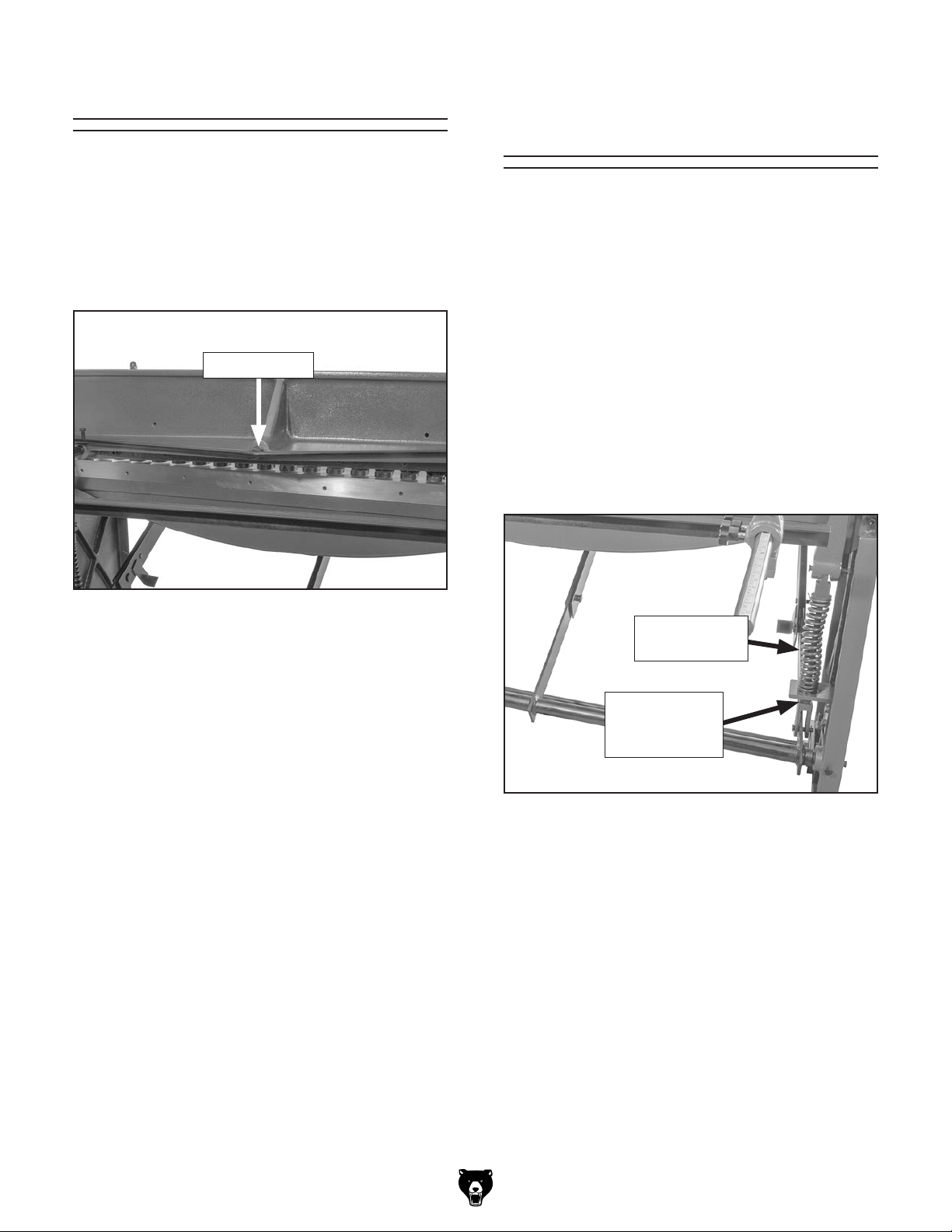

Adjusting Blade Bow
The blade bow is used to keep the upper blade
straight along its full length by adjusting the
amount of force that the bow exerts on the blade
ends.
Adjusting Return
Spring Tension
The tension of the return springs can be adjusted
to increase or decrease the return rate.
The blade bow is adjusted by adjusting the bow
jam nut on the centering rod (see Figure 37).
Bow Jam Nut
Figure 37. Location of bow jam nut.
Items Needed Qty
Open-End Wrench 24mm .................................. 1
Scrap Paper
To adjust blade bow:
Perform Step 1 of Adjusting Blade Gap on
1.
Page 26 to determine if blade bow needs
adjustment. Adjust blade gap, if necessary,
before proceeding
...................................... As Needed
Tool Needed Qty
Open-End Wrench 24mm .................................. 1
To adjust return spring tension:
Adjust (2) return spring hex nuts in small,
1.
equal increments (see Figure 38).
To increase return rate, tighten hex nuts
—
against springs.
To decrease return rate, loosen hex nuts.
—
Return Spring
(1 of 2)
Return Spring
Hex Nut
(1 of 2)
Figure 38. Return spring tension adjustment
components.
If paper cuts cleanly on ends but not cen-
—
ter of blades, adjust bow jam nut clockwise while testing results until paper cuts
cleanly along entire length of blades.
If paper cuts cleanly at center but not end
—
of blades, adjust bow jam nut counterclockwise while testing results until paper
cuts cleanly along entire length of blades.
Model T32957 (Mfd. Since 09/21)
-27-
Page 30
Adjusting Gibs
The gibs are responsible for the amount of play in
the upper blade. They should only be adjusted if
the foot pedal is difficult to lower or if all the other
blade adjustments have been verified as correct,
and the quality of cut is still poor.
Tools Needed Qty
Hex Wrench 8mm .............................................. 1
Open-End Wrench 17mm
.................................. 1
Adjusting
Hold-Down/
Blade Guard
When the foot pedal lowers the upper blade,
the blade guard is also engaged to contact and
secure the workpiece during the cutting operation.
The blade guard must be parallel to the table to
correctly secure workpieces.
To adjust gibs:
Loosen (3) jam nuts on each gib (see
1.
Figure 39).
Adjust (3) gib screws on each side of shear
2.
in small, equal increments (see Figure 39).
Test for binding or play after each adjustment
by pushing or pulling top of cutter bar.
x 3
Tools Needed Qty
Feeler Gauge Set .............................................. 1
Wrench or Socket 19mm
................................... 1
Adjusting Blade Guard Clearance
For extra thin or thick workpieces, the guard can
be adjusted to provide the correct amount of
clearance to secure them.
To adjust blade guard clearance:
Loosen (2) blade guard hex bolts (see
1.
Figure 40).
Figure 39. Location of gib screws and jam nuts.
If foot pedal is difficult to lower and blades
—
are binding, adjust screws counterclockwise.
If too much play of upper blade is result-
—
ing in poor quality of cuts, adjust screws
clockwise.
Tighten jam nuts to secure gib adjustment.
3.
-28-
Figure 40. Location of blade guard hex bolts.
Adjust blade guard up or down to accommo-
2.
date workpiece thickness.
Tighten (2) blade guard hex bolts to secure.
3.
4. Place front edge of workpiece under blade
guard, then use foot pedal to confirm
workpiece is secured by blade guard.
Refer to Adjusting Blade Guard Parallel
5.
to Table on Page 29 before performing
operation.
Model T32957 (Mfd. Since 09/21)
Page 31

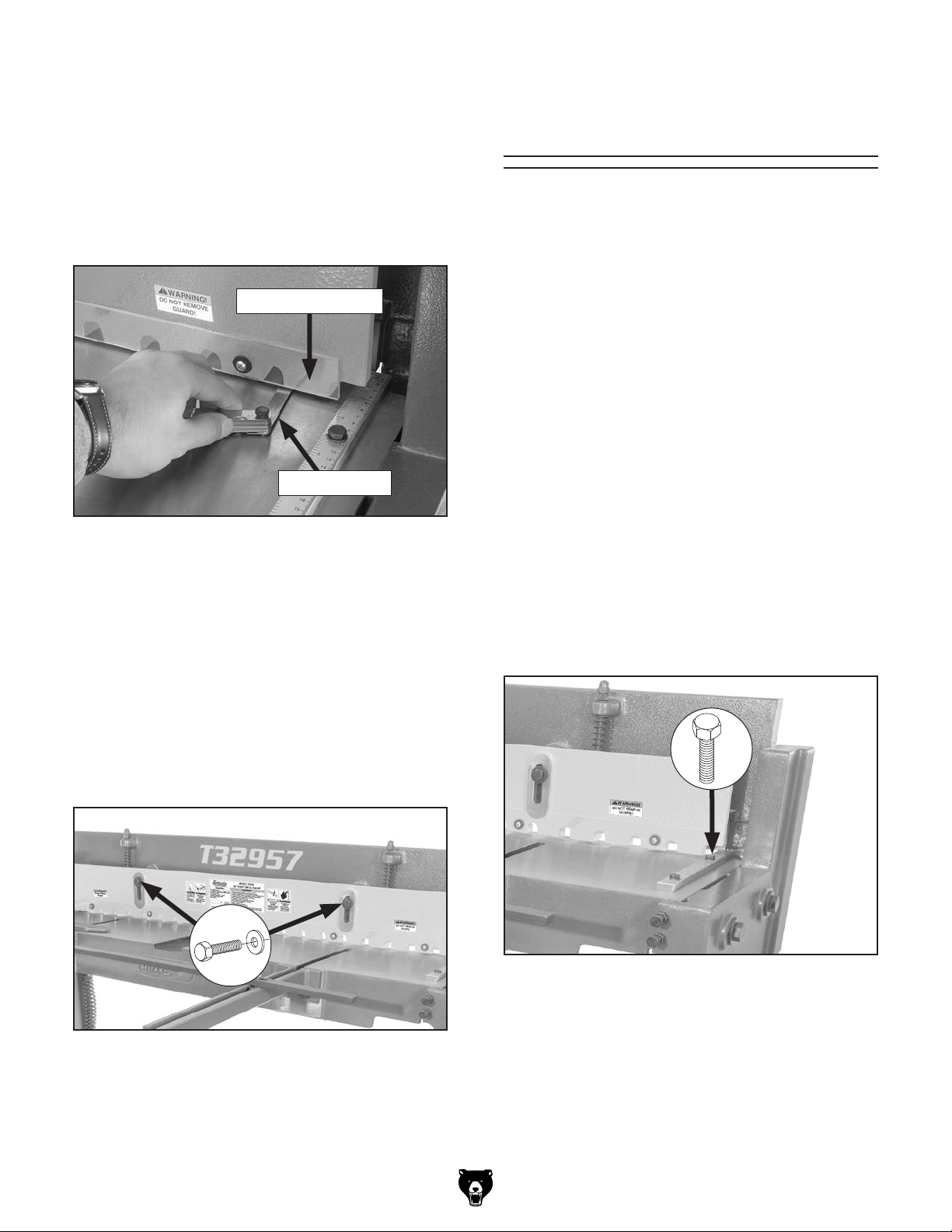

Adjusting Blade Guard Parallel With
Table
1. Use foot pedal to lower and hold blade guard
in lowest position.
Insert largest feeler gauge that will fit between
2.
hold-down finger and table on right end of
blade guard (see Figure 41).
Hold-Down Finger
Feeler Gauge
Figure 41. Using feeler gauge to check blade
guard clearance.
3. Repeat Step 2 on left end of blade guard.
Squaring
Front Scales
For the front scales to work properly, these scales
must be square to the blades.
Tools Needed Qty
Machinist's Square ............................................ 1
Wrench or Socket 13mm
To square front scales:
Use foot pedal to lower and hold blade guard
1.
in lowest position.
Place machinist's square against blade guard
2.
and front scale.
If scale is square to blade guard, no
—
adjustment is necessary.
If scale is not square to blade guard, pro-
—
ceed to Step 3.
................................... 1
If both hold-down fingers are same dis-
—
tance from table, no adjustment is required.
If hold-down fingers are not same distance
—
from table, proceed to Step 4.
Loosen blade guard hex bolt on side of blade
4.
guard that needs adjustment (see Figure 42).
Figure 42. Location of blade guard hex bolts.
Loosen (2) hex bolts for front scale that
3.
needs adjustment (see Figure 39).
x 2
Figure 43. Location of front scale hex bolts.
4.
Place one side of machinist's square against
blade guard and adjust front scale against
other side of square.
5. Adjust blade guard until entire length is same
distance from table, then tighten hex bolt.
Model T32957 (Mfd. Since 09/21)
Tighten hex bolts from Step 3 to secure
5.
position.
-29-
Page 32
33
We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.
19
68
18
53
20
50
72
5
52
57
67
56
54
21
50
22
SECTION 7: PARTS
Main
74
72
75
6
12
7
74
48
49
14
45
1
56
43
46
77
72
44
13
27
76
47
29
57
47
31
24
67
44
51
23
46
2
50
76
39
10
38
41
42
42
59
34
72
9
8
3
11
12
17
15
20
33
19
18
43
45
48
76
39
76
71
17
23
56
73
33
20
32
42
41
42
20
58
16
15
55
52
25
39
14
22
37
28
21
61
26
8
78
69
66
63
62
65
20
70
40
9
76
33
20
58
53
68
4
65
60
20
64
68
35
36
31
51
32
-30-
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
Model T32957 (Mfd. Since 09/21)
Page 33
REF P ART # DES CRIPTION REF P ART # DES CRIPTION
Main Parts List
1 PT32957001 TABLE 41 PT32957041 COMPRESSION SPRING 8 X 46 X 275
2 PT32957002 CUTTER BAR 42 PT32957042 SPRING CAP
3 PT32957003 HOLD DOWN 43 PT32957043 PIVOT BLOCK
4 PT32957004 SIDE PANEL (RIGHT) 44 PT32957044 PIVOT BRACKET
5 PT32957005 SIDE PANEL (LEFT) 45 PT32957045 STUD-UDE M16-2 X 320, 2, 16
6 PT32957006 EXTENSION ARM 46 PT32957046 FLAT WASHER 16MM
7 PT32957007 HEX BOLT M12-1.75 X 30 47 PT32957047 HEX NUT M16-2
8 PT32957008 COMPRESSION SPRING 3 X 22 X 165 48 PT32957048 SPRI NG MOUNTI NG BRA CKET
9 PT32957009 STUD-UDE M12-1.75 X 220, 25, 45 49 PT32957049 HEX BOLT M10-1.5 X 25
10 PT32957010 ACORN NUT M12-1 . 7 5 50 PT32957050 HEX NUT M16-2
11 PT32957011 HEX BOLT M12-1.75 X 80 51 PT32957051 CLEVIS PIN 12 X 88MM
12 PT32957012 FLAT WASHER 12MM 52 PT32957052 CLEVIS PIN 12 X 45MM
13 PT32957013 BLADE GUARD 53 PT32957053 HINGE PIN
14 PT32957014 PHLP HD SCR M6-1 X 15 54 PT32957054 FOOT PEDAL ASSEMBLY
15 PT32957015 90-DEG STOP 55 PT32957055 STUD-DE M16-2 X 1480, 60
16 PT32957016 TABLE SCALE 56 PT32957056 CLEVIS PIN 20 X 36MM
17 PT32957017 HEX BOLT M8-1.25 X 25 57 PT32957057 HEX BOLT M12-1.75 X 25
18 PT32957018 HEX BOLT M10-1.5 X 60 58 PT32957058 HEX BOLT M10-1.5 X 25
19 PT32957019 HEX BOLT M10-1.5 X 50 59 PT32957059 REAR WORK STOP
20 PT32957020 FLAT WASHER 10MM 60 PT32957060 REAR WORK STOP MOUNT
21 PT32957021 HEX BOLT M16-2 X 120 61 PT32957061 MICRO-ADJ USTMENT BLOCK
22 PT32957022 FLAT WASHER 16MM 62 PT32957062 KNOB M10-1.5, D35, ROUND KD
23 PT32957023 HEX NUT M16-2 63 PT32957063 STUD-FT M10-1.5 X 90
24 PT32957024 UPPER BLADE 64 PT32957064 HEX BOLT M10-1.5 X 30
25 PT32957025 LOWER BLADE 65 PT32957065 KNOB BOLT M8-1.25 X 25, 6-LOBE, D35
26 PT32957026 CAP SCREW M10-1.5 X 45 66 PT32957066 REAR WORK STOP ADJUSTMENT BLOCK
27 PT32957027 CAP SCREW M10-1.5 X 50 67 PT32957067 CONNECTI NG STUD BRA CKET
28 PT32957028 FLAT WASHER 10MM 68 PT32957068 HEX BOLT M10-1.5 X 20
29 PT32957029 FLAT WASHER 10MM 69 PT32957069 SUPPORT ROD
31 PT32957031 GIB 70 PT32957070 HEX NUT M16-2
32 PT32957032 CAP SCREW M10-1.5 X 45 71 PT32957071 FRONT WORK STOP
33 PT32957033 HEX NUT M10-1 . 5 72 PT32957072 FLAT WASHER 12MM
34 PT32957034 BLADE BOW ROD 73 PT32957073 T-BOLT M12-1.75 X 45
35 PT32957035 FLAT WASHER 14MM 74 PT32957074 WING NUT M12-1 . 7 5
36 PT32957036 HEX NUT M14-2 75 PT32957075 BEVEL GAUGE
37 PT32957037 BOW BOLT M16-2 X 60 76 PT32957076 COTTER PI N M3 X 50 STANDA RD
38 PT32957038 HEX NUT M12-1.75 77 PT32957077 FLAT WASHER 6MM
39 PT32957039 FLAT WASHER 16MM 78 PT32957078 SUPPORT ROD SCALE
40 PT32957040 HEX BOLT M10-1.5 X 40
Model T32957 (Mfd. Since 09/21)
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
-31-
Page 34
101
103

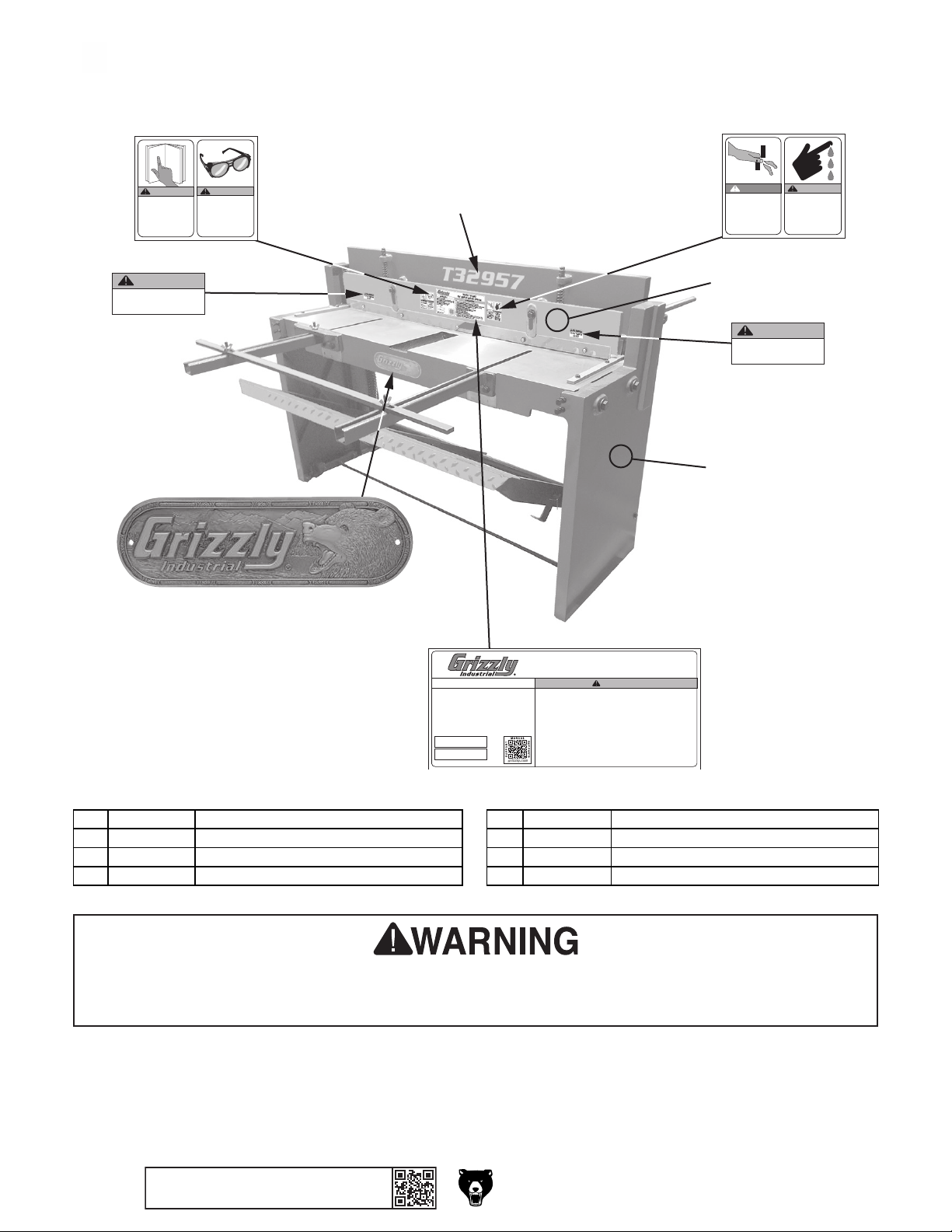

Labels & Cosmetics
102
WARNING!
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call (800) 523-4777 or
go to www.grizzly.com.
105
WARNING!
DO NOT REMOVE
GUARD!
WARNING!
EYE INJURY
HAZARD!
Always wear safety
glasses when using
this machine.
T32957
108
DANGER!
AMPUTATION
HAZARD!
Keep hands and fingers
out of blade path when
shearing or serious
injury will occur!
104
WARNING!
DO NOT REMOVE
106
105
GUARD!
WARNING!
LACERATION
HAZARD!
Wear gloves while
handling metal and
chamfer and deburr
sharp metal edges.
107
MODEL T32957
Specifications
Max. Stock Width: 52"
Max. Thickness, Mild Steel, Half Width: 14 Ga.
Max. Thickness, Mild Steel, Full Width: 16 Ga.
Max. Beam Lift: 1-3/4"
Front Stop Scale Range: 0–12-1/2"
Rear Stop Scale Range: 0–33"
Weight: 982 lbs.
Date
S/N
Mfd. for Grizzly in China
52" SHEET METAL SHEAR
To reduce risk of serious injury while using this machine:
1. Read and understand owner’s manual before operating.
2. Always wear ANSI-approved eye protection and heavy leather gloves.
3. Chamfer and deburr sharp metal edges before and after cutting.
4. Always keep guards in place and in working order.
5. Secure shear to floor before using.
6. Always keep hands and fingers away from blade.
7. Do not exceed rated capacity of this shear.
8. Do not cut wire or nails.
9. Rotate or sharpen dull blades.
10. Do not place foot under foot pedal.
11. Do not operate under influence of drugs or alcohol or when tired.
12. Prevent unauthorized use by children or untrained users; restrict
access or disable machine when unattended.
WARNING!
REF P ART # DES CRIPTION RE F P ART # DES CRIPTION
101 PT32957101 MANUAL/EYE INJURY LABEL 105 PT32957105 DO NOT REMOVE GUARD LABEL
102 PT32957102 MODEL NUMBER LABEL 106 PT32957106 TOUCH-UP PAI NT, GRI ZZLY G REEN
103 PT32957103 AMPUTATION/LACERATION LABEL 107 PT32957107 MACHINE ID LABEL
104 PT32957104 TOUCH-UP PAI NT, CAUTI ON YE LLO W 108 PT32957108 OBLONG NAMEPLATE SMALL
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-32-
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
Model T32957 (Mfd. Since 09/21)
Page 35
WARRANTY & RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
To
you can
applicable information for
take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or
scan the QR code below to be automatically directed to our warranty registration page. Enter all
the product.
WARRANTY
Page 36
Loading...
