NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 08/21) #CS22022 PRINTED IN CHINA
CE
F

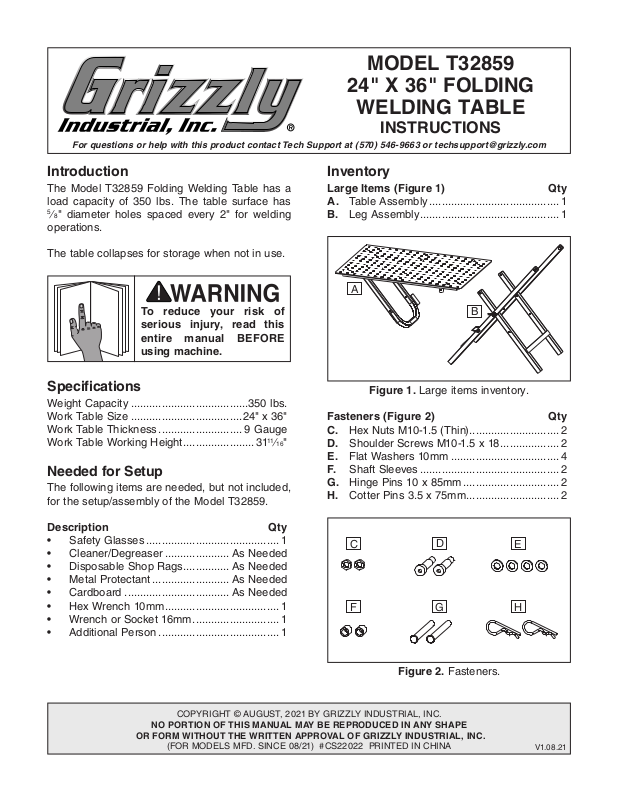

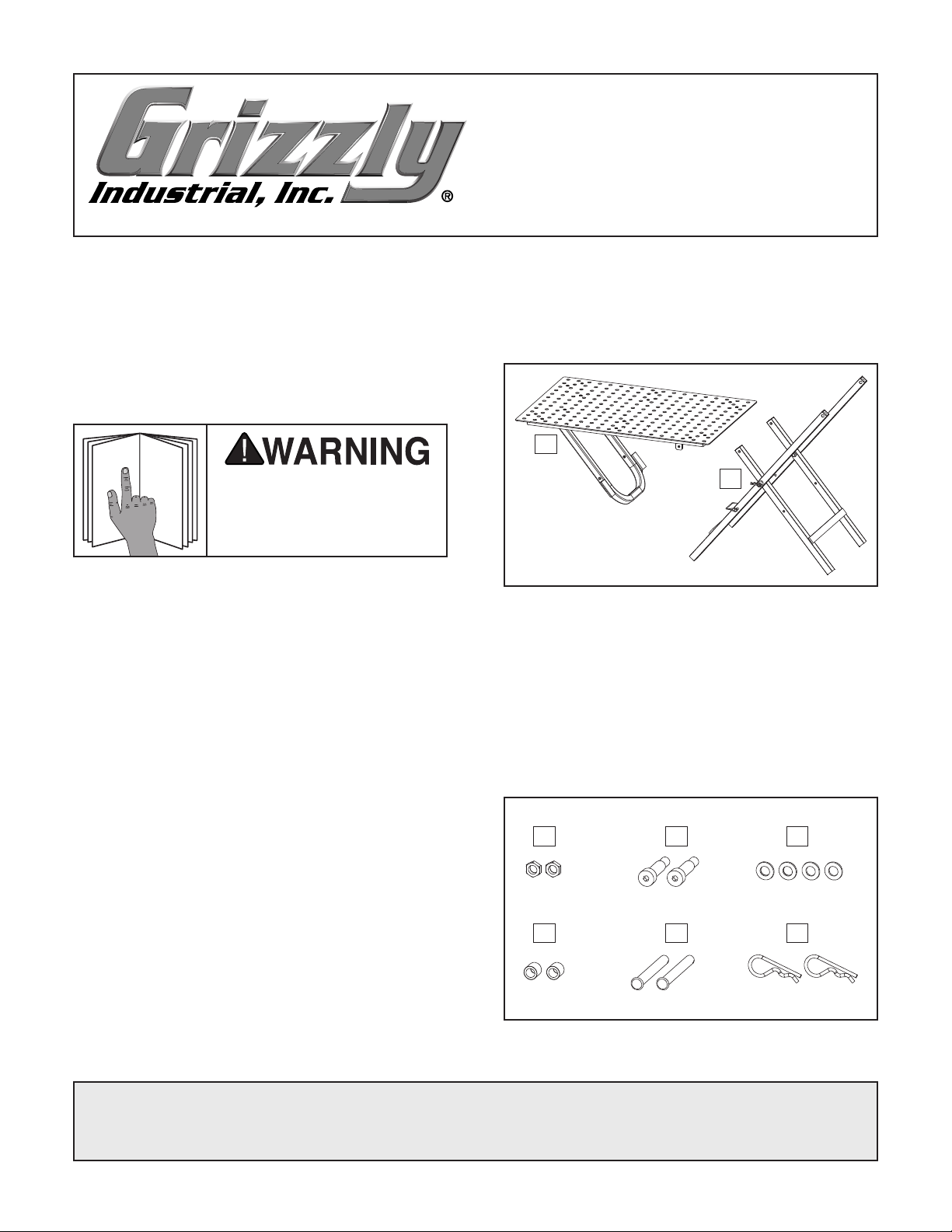

Figure 2. Fasteners.
D
GH
V1.0 8.21
Page 2

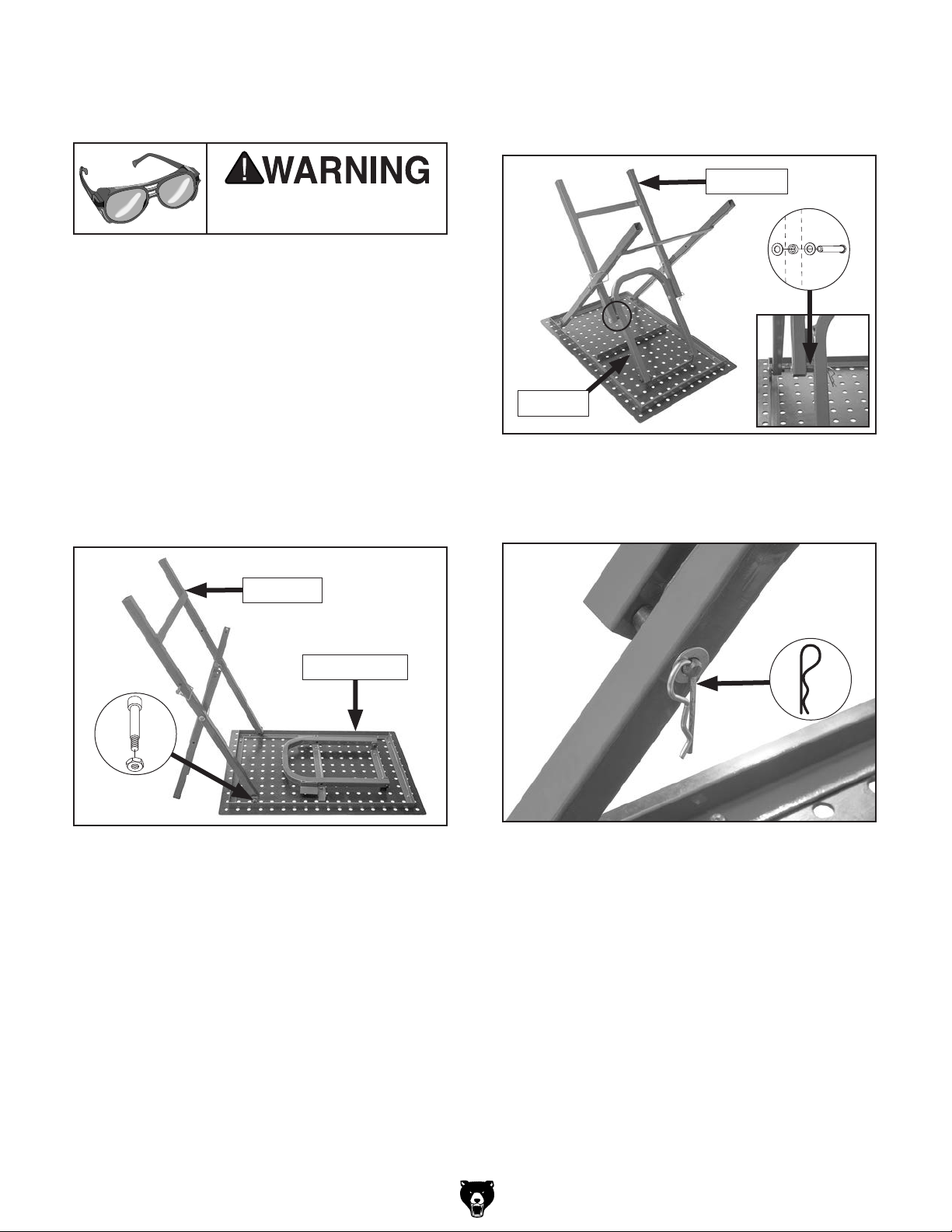

Assembly
The Model T32859 requires assembly before use.
Wear safety glasses during
the entire setup process!
To assemble welding table:
Clean factory rust preventative off table with
1.
cleaner/degreaser, then coat all unpainted
surfaces with quality metal protectant to
prevent rust.
4. Attach one side of short leg to U-brace with
10 x 85mm hinge pin, (2) 10mm flat washers,
and shaft sleeve (see Figure 4).
Short Leg
Place table assembly face down on card-
2.
board on floor to protect it during assembly.
Attach long leg to table frame with (2) M10-
3.
1.5 x 18 shoulder screws and M10-1.5 hex
nuts (see Figure 3).
Long Leg
Table Frame
x 2
Figure 3. Long leg attached to table frame.
U-Brace
Figure 4. Short leg attached to U-brace.
Secure fasteners by inserting 3.5 x 75mm cot-
5.
ter pin through hinge pin hole (see Figure 5).
Figure 5. Cotter pin inserted through hinge pin.
-2-
Repeat Steps 4–5 with other side of short
6.
leg.
Have one other person help you lift welding
7.
table and place on legs.
Model T32859 (Mfd. Since 08/21)
Page 3
Safety & Correct UseStorage
• Do not apply an unbalanced load.
• Keep unsupervised children away from the
table.
• Do not stand or climb on the table.
• Do not use in wet or damp locations.
• Do not leave rags or other items that are
damp with water, oil, paint, or solvents on the
table.
• Set up the table in a well-ventilated area
where there are no hazardous or combustible
materials that could ignite during welding
operations.
• While using an electric welder, the welder
must be grounded to either the workpiece
or the table before the welding operation.
If grounding to the table, the workpiece
must contact the table so the current may
flow through the workpiece to the grounding
clamp and close the welding circuit. Ensure
there is insulation between the operator and
the electric current (a dry rubber mat, rubber
gloves, etc.).

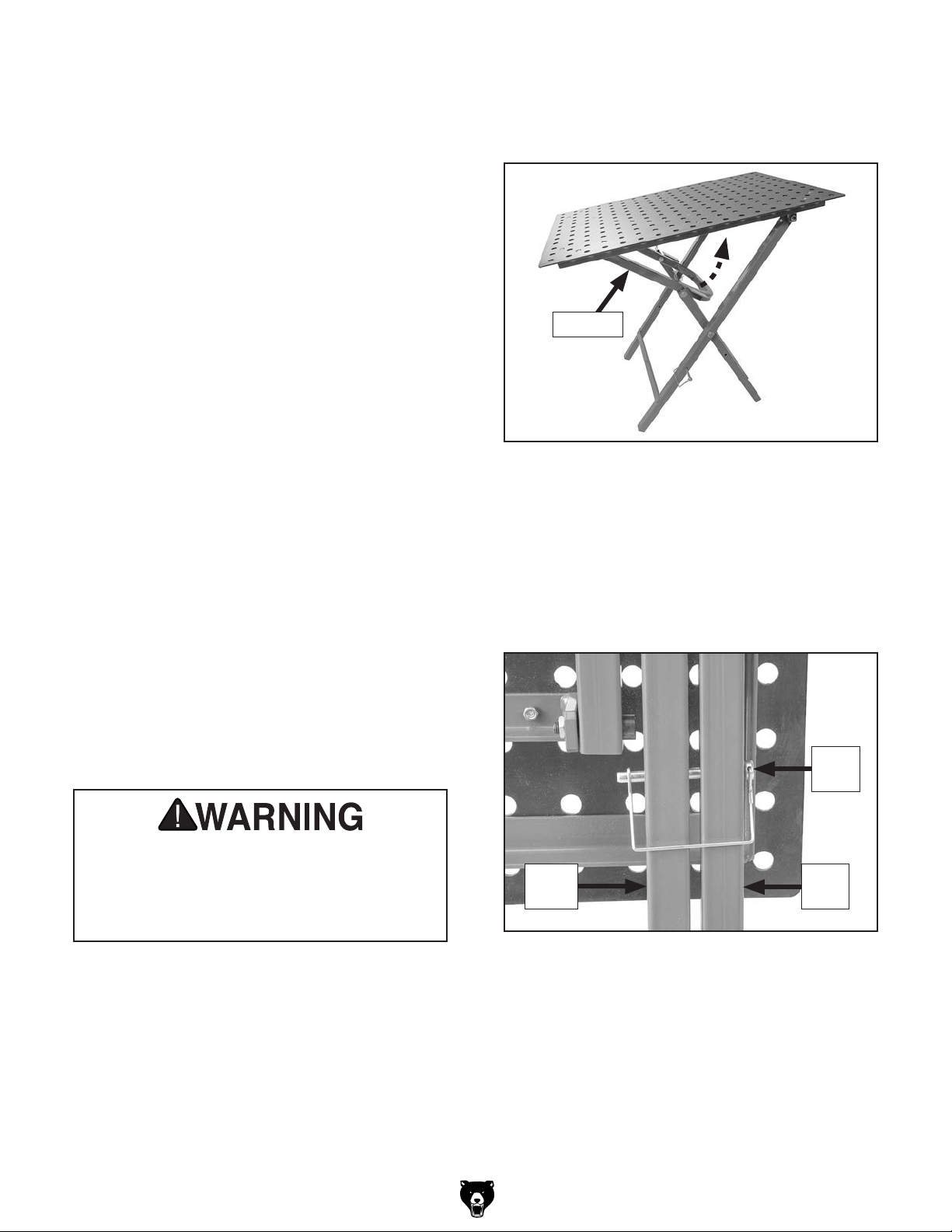

Lift U-brace toward underside of table, as
1.
shown in Figure 6.
U-Brace
Figure 6. Lifting U-brace to fold table.
Note: You may need to adjust folding lock pin
(see Figure 7) out of the way if pin prevents
folding.
Lean top of table against wall or work table to
2.
secure short leg, and lock legs together with
lock pin shown in Figure 7.
• Lubricate the hinge pins holding the legs
together and the shoulder screws attaching
the legs to the frame with light machine oil if
folding the table becomes difficult.
DO NOT exceed table weight capacity of
350 lbs. Sudden change in dynamic load
at maximum weight capacity could cause
table to tip or collapse, resulting in serious
personal injury or property damage.
Lock
Pin
Short
Leg
Figure 7. Long and short legs secured with lock
pin.
3.
Slide into convenient location for storage.
Long
Leg
Model T32859 (Mfd. Since 08/21)
-3-
Page 4

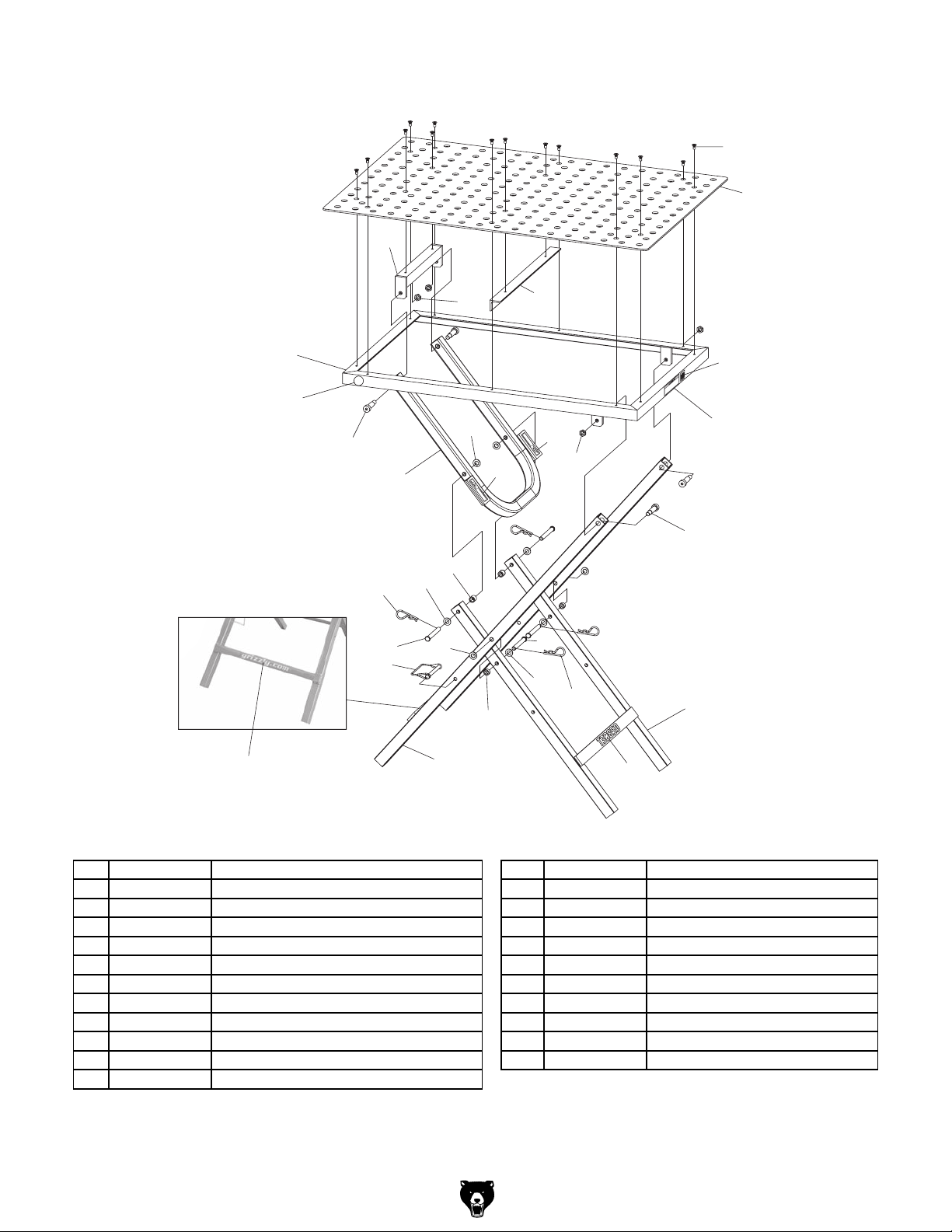

T32859 Parts Breakdown & List
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
16
6
9
22
1
18
11
10
15
17
20
5
23
T32859
To reduce risk of serious injury when using this table:
1. Read owner’s manual before using table.
2. Ensure machine is correctly set up before using.
3. Always wear ANSI-approved eye protection.
4. Do not exceed maximum weight capacity of 350 lbs.
20
PINCH HAZARD!
closing stand.
hinge area when
Keep hands away from
19
12
12
14
4
Keep hands away from
hinge area when
closing stand.
PINCH HAZARD!
11
7
14
14
13
14
10
3
8
T3 28 5 9
2
21
REF PART #DES CRIPTIONREF PART #DESCRIP TION
1PT32859001FRAME13PT32859013HINGE PIN 10 X 80 LOWER
2PT32859002LEG (LONG)14PT32859014FLAT WASHER 10MM
3PT32859003LEG (SHORT)15PT32859015HINGE PIN 10 X 85 UPPER
4PT32859004U-BRACE16PT32859016FLAT HD SCR M6- 1 X 12
5PT32859005BRACE17PT32859017FOLDING LOCK PIN
6PT32859006U-BRACE BRACKET18PT32859018TOUCH-UP PAI NT, G RI ZZL Y GREEN
7PT32859007SHAFT SLEEVE (LONG)19PT32859019WARNING LABEL
8PT32859008SHAFT SLEEVE (SHORT)20PT32859020PINCH HAZARD LABEL
9PT32859009TABLE21PT32859021MODEL NUMBER LABEL
10PT32859010COTTER PIN M3.5 X 75 HAIRPIN22PT32859022GRIZZLY.COM LABEL
11PT32859011SHOULDER SCREW M10-1.5 X 18, 12 X 3023PT32859023QR CODE LABEL
12PT32859012HEX NUT M10-1. 5 THI N
are available for purchase. Call (800) 523 - 4777 or visit our online parts store at www.grizzly.com to check for availability.
-4-
Model T32859 (Mfd. Since 08/21)
