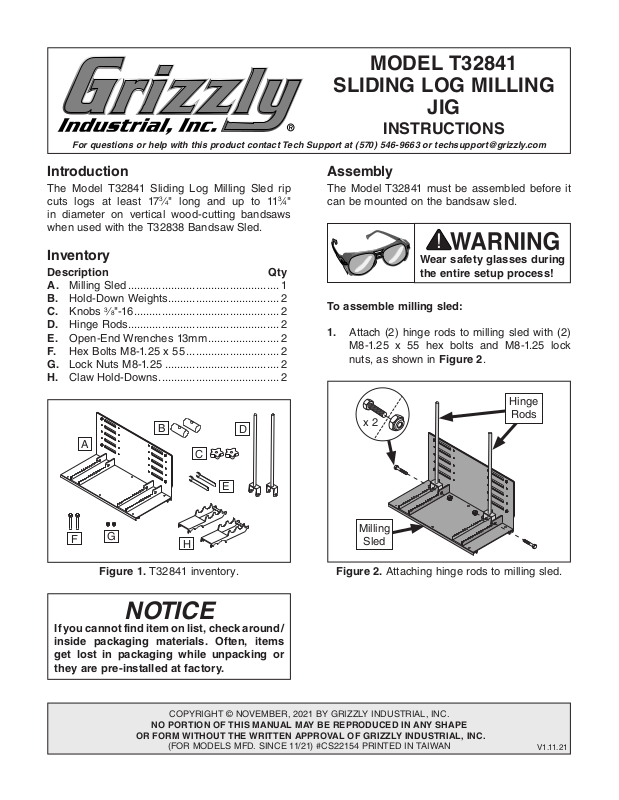

Grizzly T32841 User guide

MODEL

T32841

SLIDING LOG MILLING

JIG

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

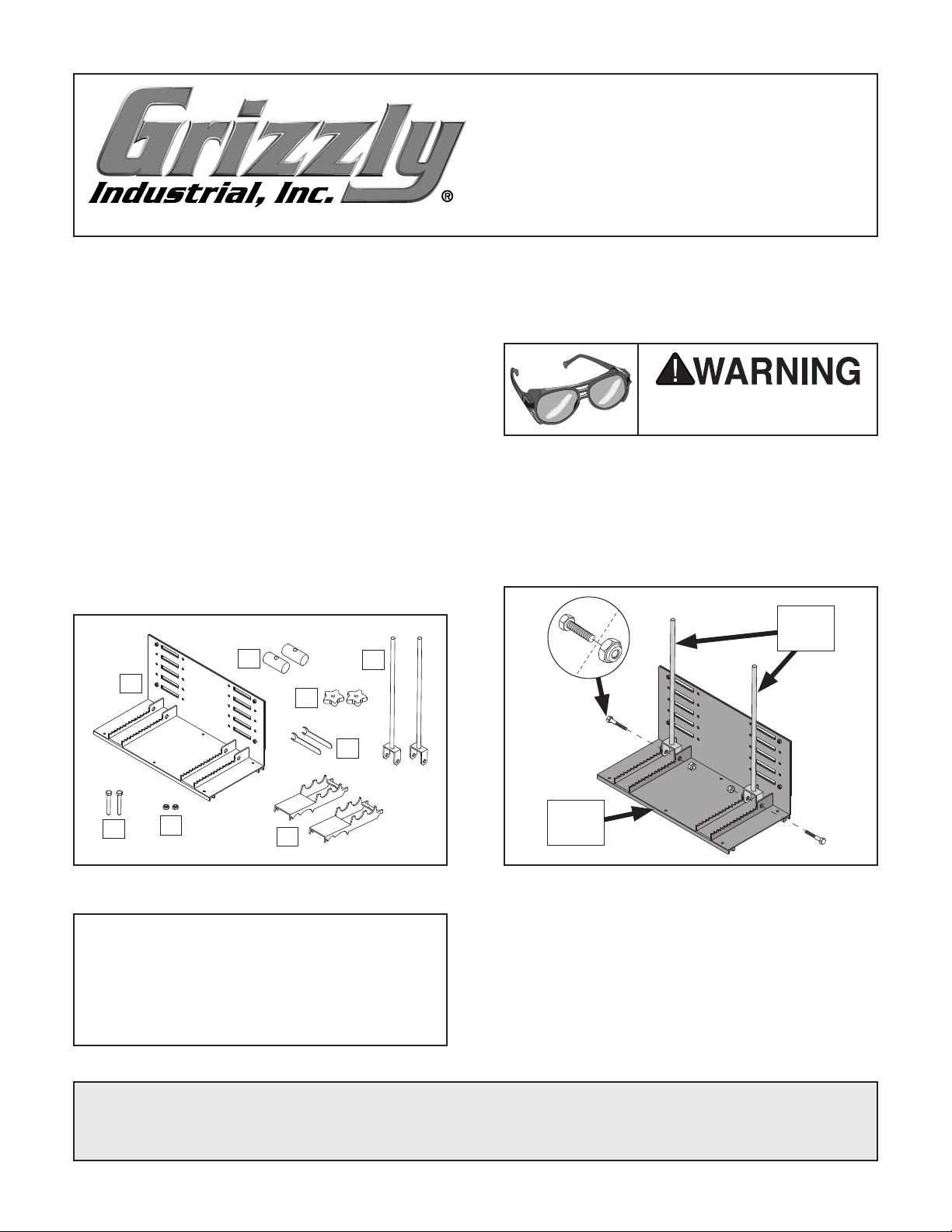

Introduction

The Model T32841 Sliding Log Milling Sled rip
cuts logs at least 17
in diameter on vertical wood-cutting bandsaws
when used with the T32838 Bandsaw Sled.

3

⁄4" long and up to 113⁄4"

Inventory

Description Qty

A. Milling Sled ................................................. 1

Hold-Down Weights .................................... 2

B.

Knobs 3⁄8"-16 ............................................... 2

C.

Hinge Rods................................................. 2

D.

Open-End Wrenches 13mm ....................... 2

E.

Hex Bolts M8-1.25 x 55 .............................. 2

F.

Lock Nuts M8-1.25 ..................................... 2

G.

Claw Hold-Downs ....................................... 2

H.

B

A

C

D

Assembly

The Model T32841 must be assembled before it
can be mounted on the bandsaw sled.

Wear safety glasses during
the entire setup process!

To assemble milling sled:

Attach (2) hinge rods to milling sled with (2)

1.

M8-1.25 x 55 hex bolts and M8-1.25 lock
nuts, as shown in Figure 2.

Hinge

x 2

Rods

E

F

G

Figure 1. T32841 inventory.

H

NOTICE

If you cannot find item on list, check around/
inside packaging materials. Often, items
get lost in packaging while unpacking or
they are pre-installed at factory.

COPYRIGHT © NOVEMBER, 2021 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 11/21) #CS22154 PRINTED IN TAIWAN

Milling

Sled

Figure 2. Attaching hinge rods to milling sled.

V1.11.21

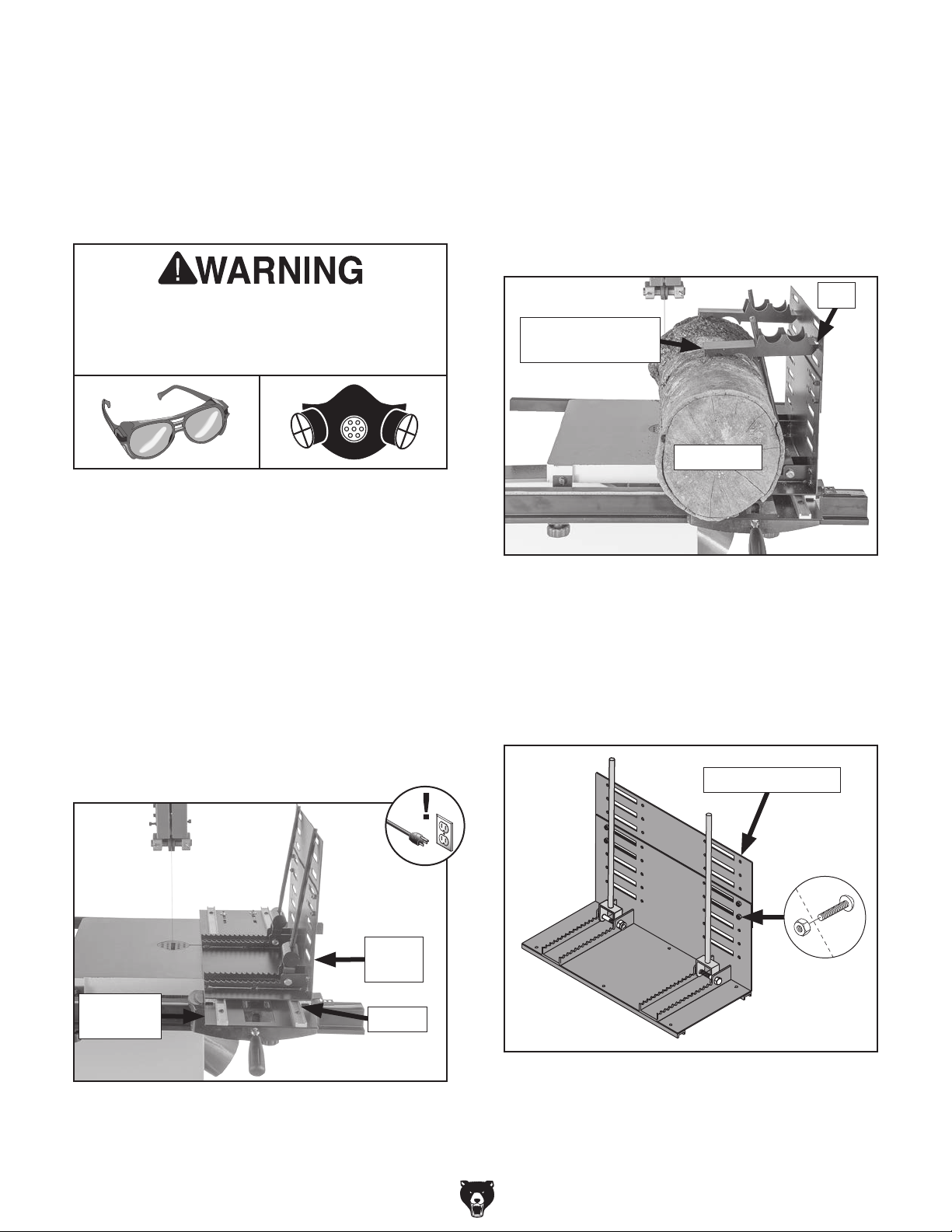

Using Milling Sled

Mount the Model T32841 on the tracks of the
T32838 Bandsaw Sled to smoothly feed logs
across the table of your bandsaw.

IMPORTANT: Refer to the bandsaw manual for
information on safely operating your bandsaw.

Rest workpiece on milling sled, aligning blade

4.

with intended line of cut (see Figure 4).

Secure workpiece with claw hold-downs by

5.

inserting them into slots in milling sled (see

Figure 4).

Note: Hinge rods should extend up through

holes in claw hold-downs (see Figure 4).

To reduce risk of eye injury from flying
chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating bandsaw.

Items Needed Qty

Vertical Bandsaw ............................................... 1

T32838 Bandsaw Sled

To use milling sled:

Refer to Model T32838 Instructions to

1.

install bandsaw sled on bandsaw.

DISCONNECT BANDSAW FROM POWER!

2.

3. Align tracks of milling sled with tracks of

bandsaw sled, then slide milling sled onto
bandsaw sled (see Figure 3).

...................................... 1

Slot

Claw Hold-Down

(1 of 2)

Workpiece

Figure 4. Workpiece and claw hold-downs

installed.

Note: If workpiece is too tall to be secured by

slots, remove (4) hex nuts and button head
cap screws shown in Figure 5, extend milling
sled height with frame extension, then secure
with hex nuts and button head cap screws.

Frame Extension

Milling

Sled

Bandsaw

Sled

Figure 3. Sliding milling sled onto bandsaw sled.

-2-

Tracks

x 4

Figure 5. Example of milling sled extended.

Model T32841 (Mfd. Since 11/21)

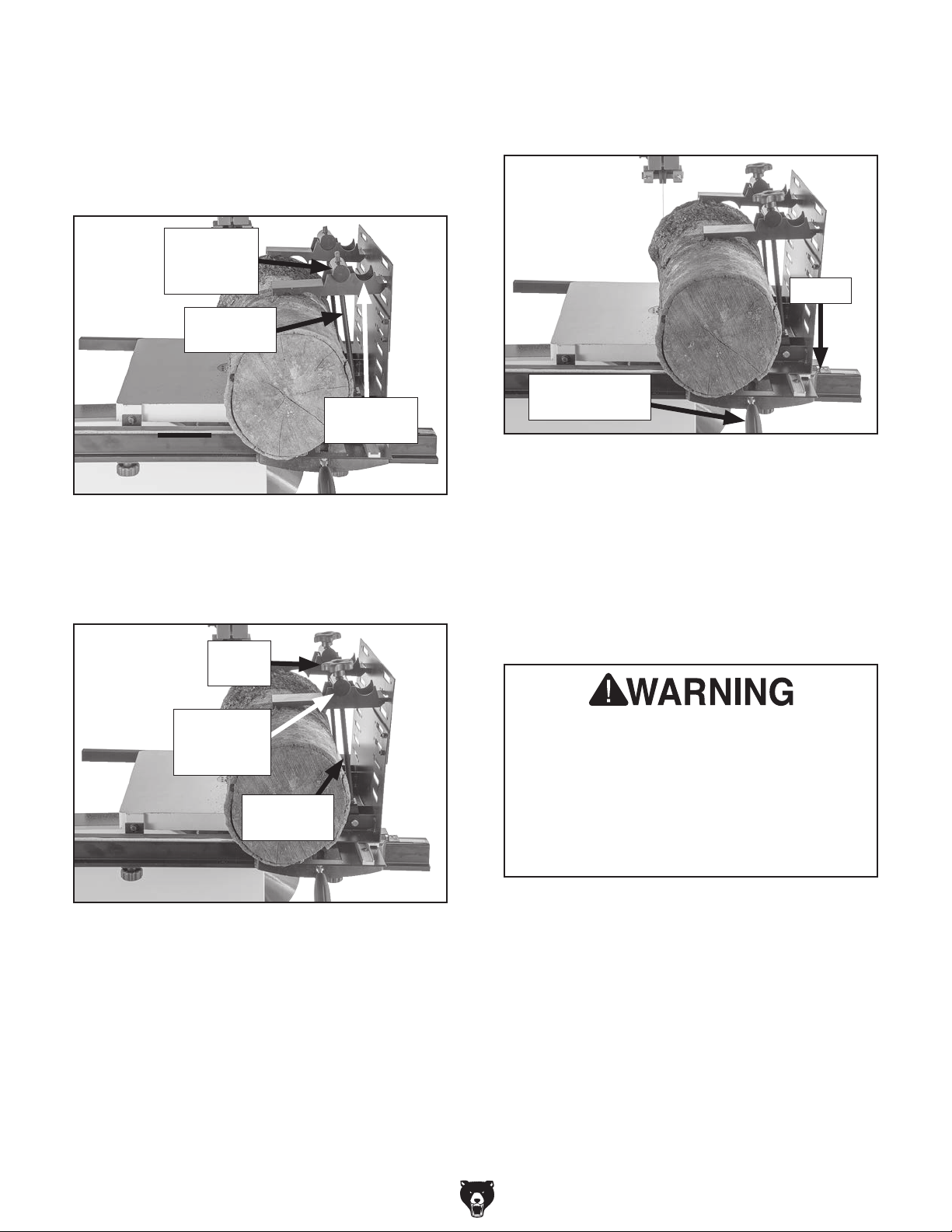

6. Install (2) hold-down weights onto hinge
rods, fitting weights into hollows in claw hold­downs (see Figure 6).

Note: Install weights in hollows that best

secure workpiece (see Figure 6).

Hold-Down

Weight
(1 of 2)

Hinge Rod

(1 of 2)

Hold-Down

Hollow

9. Lift bandsaw sled handle (see Figure 8) and
adjust sled right so workpiece is out of blade
path.

Pointer

Bandsaw Sled

Handle

Figure 8. Location of pointer on rail and

bandsaw sled handle.

Figure 6. Hold-down weights installed.

7.

Thread (2) 3⁄8"-16 knobs onto hinge rods

and tighten against hold-down weight (see
Figure 7).

Knob

(1 of 2)

Hold-Down

Weight
(1 of 2)

Hinge Rod

(1 of 2)

Figure 7. Knobs threaded onto hinge rods.

8. Make note of where pointer points on bandsaw
sled rail (see Figure 8).

10. Move bandsaw sled handle down to lock

position.

Push workpiece forward through a test cut.

11.

Workpiece must clear blade before any por­tion of milling table extends off of bandsaw
sled rear.

If workpiece is too long to cut without milling
sled leaving bandsaw sled, milling sled and
workpiece can easily tip off of bandsaw
sled. Body parts could be pulled into moving
blade or pinched/crushed if caught under
falling workpiece. Use roller table (or other
method of workpiece support) or cut down
workpiece to more manageable length.

Adjust sled back to measurement noted in

12.
Step 8 and secure it in place for cut.

Connect bandsaw to power, turn bandsaw

13.

ON, then slide table forward on sled to feed
workpiece through blade and complete cut.

Model T32841 (Mfd. Since 11/21)

-3-

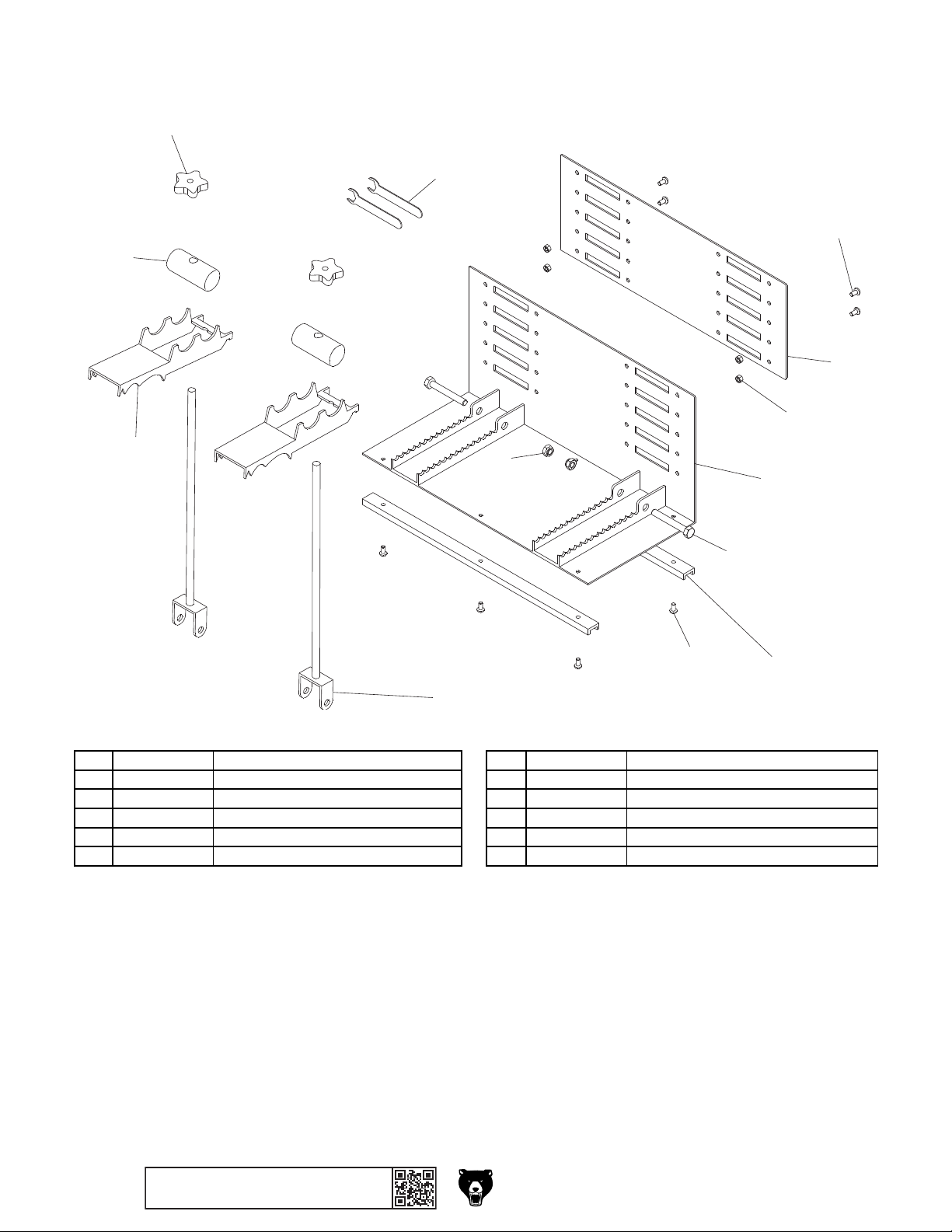

T32841 Parts Breakdown & List

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call (800) 523 - 4777 or visit our online parts store at www.grizzly.com to check for availability.

3

7

REF PART # DES CRIPTION REF PART # DES CRIPTION

4

11

5

6

12

2

10

1

9

1 PT32841001 MI LLI NG FRA ME 7 PT32841007 KNOB 3/8-16, 5-LOBE, D2
2 PT32841002 CLAW HOLD- DOWN 8 PT32841008 TRACK
3 PT32841003 HINGE ROD 3/8-16 X 9-7/ 8 9 PT32841009 HEX BOLT M8-1.25 X 55
4 PT32841004 WRENCH 13MM OP EN-E ND 10 PT32841010 LOCK NUT M8-1. 25
5 PT32841005 HOLD-DOWN WE I G HT 11 PT32841011 B UTTON HD CAP SCR M5- . 8 X 10
6 PT32841006 FRAME EXTENSION 12 PT32841012 HE X NUT M5- . 8

11

8

-4-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model T3 2841 (Mfd. Since 11/ 21)
