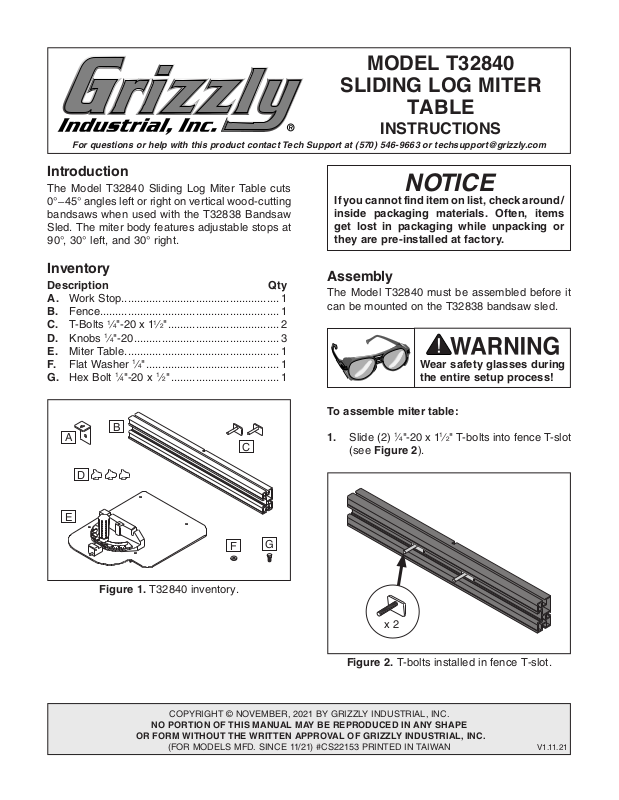

MODEL T32840
SLIDING LOG MITER
TABLE
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T32840 Sliding Log Miter Table cuts
0°–45° angles left or right on vertical wood-cutting
bandsaws when used with the T32838 Bandsaw
Sled. The miter body features adjustable stops at
90°, 30° left, and 30° right.
If you cannot find item on list, check around/
inside packaging materials. Often, items
get lost in packaging while unpacking or
they are pre-installed at factory.
NOTICE
Inventory
Description Qty
A. Work Stop ................................................... 1
Fence.......................................................... 1
B.
T-Bo lt s
C.
Knobs 1⁄4"-20 ............................................... 3
D.
Miter Table .................................................. 1
E.
Flat Washer 1⁄4" ........................................... 1
F.
Hex Bolt 1⁄4"-20 x 1⁄2 " ................................... 1
G.
A
E
1
⁄4"-20 x 11⁄2 " .................................... 2
B
C
D
F
G
Assembly
The Model T32840 must be assembled before it
can be mounted on the T32838 bandsaw sled.
Wear safety glasses during
the entire setup process!
To assemble miter table:
1
Slide (2)
1.
(see Figure 2).
⁄4"-20 x 11⁄2 " T-bolts into fence T-slot
Figure 1. T32840 inventory.
COPYRIGHT © NOVEMBER, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/21) #CS22153 PRINTED IN TAIWAN
x 2
Figure 2. T-bolts installed in fence T-slot.
V1.11.21
Page 2
Attach fence to miter table by threading (2)
2.
1
⁄4"-20 knobs onto T-bolts (see Figure 3).
Fence
Miter Table
Figure 3. Attaching fence to miter table.
3. Slide 1⁄4"-20 x 1⁄2 " hex bolt into top slot of fence
(see Figure 4).
Using Jig
Mount the Model T32840 on the tracks of the
T32838 Bandsaw Sled to smoothly feed logs
across the table of your bandsaw.
IMPORTANT: Refer to the bandsaw manual for
information on safely operating your bandsaw.
To reduce risk of eye injury from flying
chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating bandsaw.
Items Needed Qty
Vertical Bandsaw ............................................... 1
T32838 Bandsaw Sled
...................................... 1
Figure 4. Hex bolt installed in fence top slot.
4.
Attach work stop to fence with 1⁄4"-20 knob,
1
⁄4" flat washer, and hex bolt from Step 3, as
shown in Figure 5.
Work
Stop
To use jig:
Refer to Model T32838 Instructions to
1.
install bandsaw sled on bandsaw.
DISCONNECT BANDSAW FROM POWER!
2.
3. Align tracks of miter table with tracks of
bandsaw sled, then slide jig onto sled (see
Figure 6).
Miter Table
Tracks
Sled
Figure 5. Attaching work stop to fence.
-2-
Figure 6. Sliding miter table onto bandsaw sled.
4. Loosen miter gauge handle, then rotate miter
gauge until pointer on scale indicates desired
angle (see Figure 7).
Model T32840 (Mfd. Since 11/21)
Page 3
Note: Pull pin shown in Figure 7 to adjust
angle to the left.
Note: If workpiece is short enough, adjust
work stop against workpiece edge to keep it
from drifting during cut (see Figure 9).
Workpiece
Miter
Gauge
Handle
Pointer
Pin
Figure 7. Miter adjustment components.
Loosen (2) knobs shown in Figure 8, slide
5.
fence out of blade path, then tighten knobs to
secure.
Center of
Gravity
Fence
Work Stop
Figure 9. Workpiece resting against fence with
work stop adjusted for repeatable cuts.
7.
Connect bandsaw to power, turn bandsaw
ON, then slide table forward on sled to feed
workpiece through blade and to complete cut.
Adjusting Stops
Items Needed Qty
Combination Square or Protractor ..................... 1
Open-End Wrench
Phillips Head Screwdriver #2
3
⁄8" ....................................... 1
............................ 1
Knob
(1 of 2)
Figure 8. Fence adjusted out of blade path.
6.
Rest workpiece against fence, aligning blade
with intended line of cut (see Figure 9).
If workpiece center of gravity (see Figure
9) extends too far right, table can easily
tip off of bandsaw sled. Body parts could
be pulled into moving blade or pinched/
crushed if caught under falling workpiece.
If table is not firmly seated on bandsaw
sled, use roller table (or other method of
workpiece support) or cut down workpiece
to more manageable length.
Check the accuracy of the fence when adjusted
to the 90°, 30° left, and 30° right stops. If a stop
is not accurate, loosen the jam nut, adjust the
Phillips head screw until the fence is the correct
angle, then tighten the jam nut to secure (see
Figure 10).
Figure 10. Stop components (30° right shown).
Model T32840 (Mfd. Since 11/21)
-3-
Page 4
T32840 Parts Breakdown & List
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523 - 4777 or visit our online parts store at www.grizzly.com to check for availability.
5
7
REF PART # DES CRIPTION REF PART # DES CRIPTION
2
9
10
11
4
8
17
13
16
8
12
18
19
20
1
6
3
3
7
1 PT32840001 MI TER TAB LE 10 PT32840010 FLAT WA SHER 6 MM
2 PT32840002 FENCE 11 PT32840011 FLAT WASHER 6MM PLASTIC
3 PT32840003 TRACK 12 PT32840012 POINTER PLATE
4 PT32840004 MI TER BO DY 13 PT32840013 LOCK BRACKET
5 PT32840005 FIXED HANDLE 28 X 72, M6-1 X 24 16 PT32840016 HEX BOLT 1/4-20 X 1/2
6 PT32840006 POINTER BODY ASSEMBLY 17 PT32840017 FLAT WASHER 1/4
7 PT32840007 BUTTON HD CAP S CR M5-. 8 X 10 18 PT32840018 FLANGE TAP SCREW 8 X 1/2
8 PT32840008 KNOB 1/4-20, 3-LOBE, D1-1/8 19 PT32840019 PHLP HD SCR 10-24 X 7/8
9 PT32840009 T-BOLT 1/4-20 X 1-1/2 20 PT32840020 HEX NUT 10-24
-4-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T32840 (Mfd. Since 11/ 21)
